HYDAC ZW-DM10-01-PT70V-V 3504864

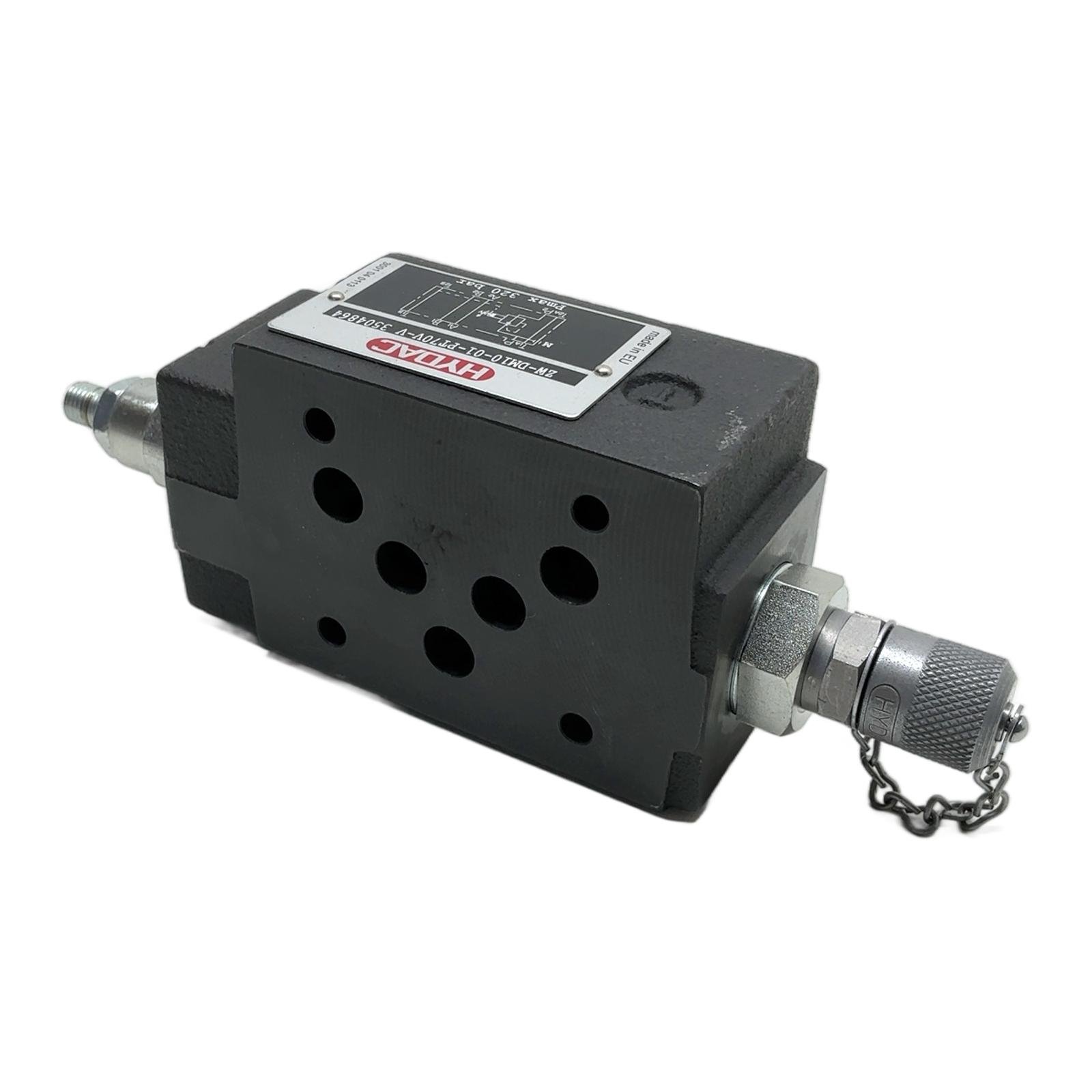

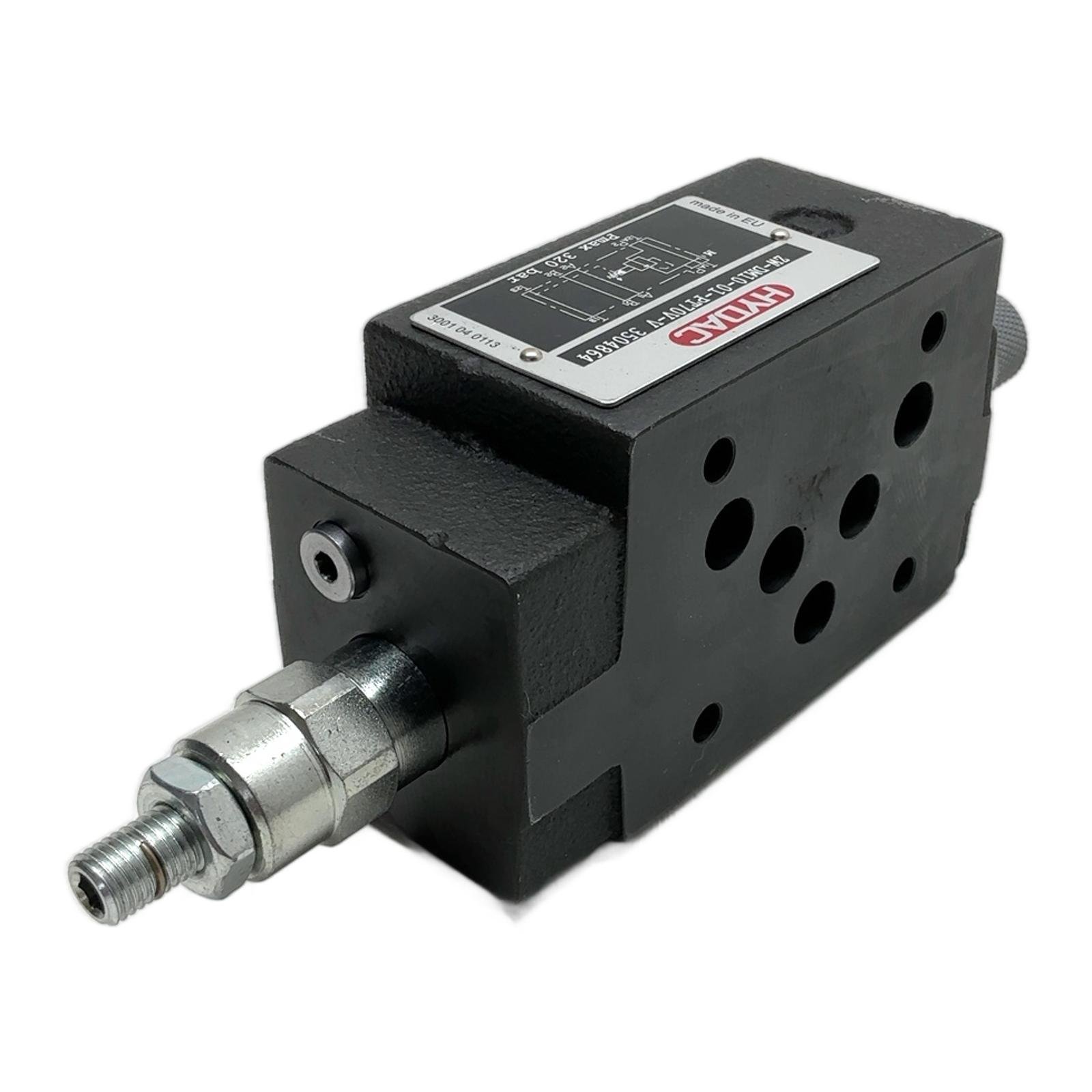

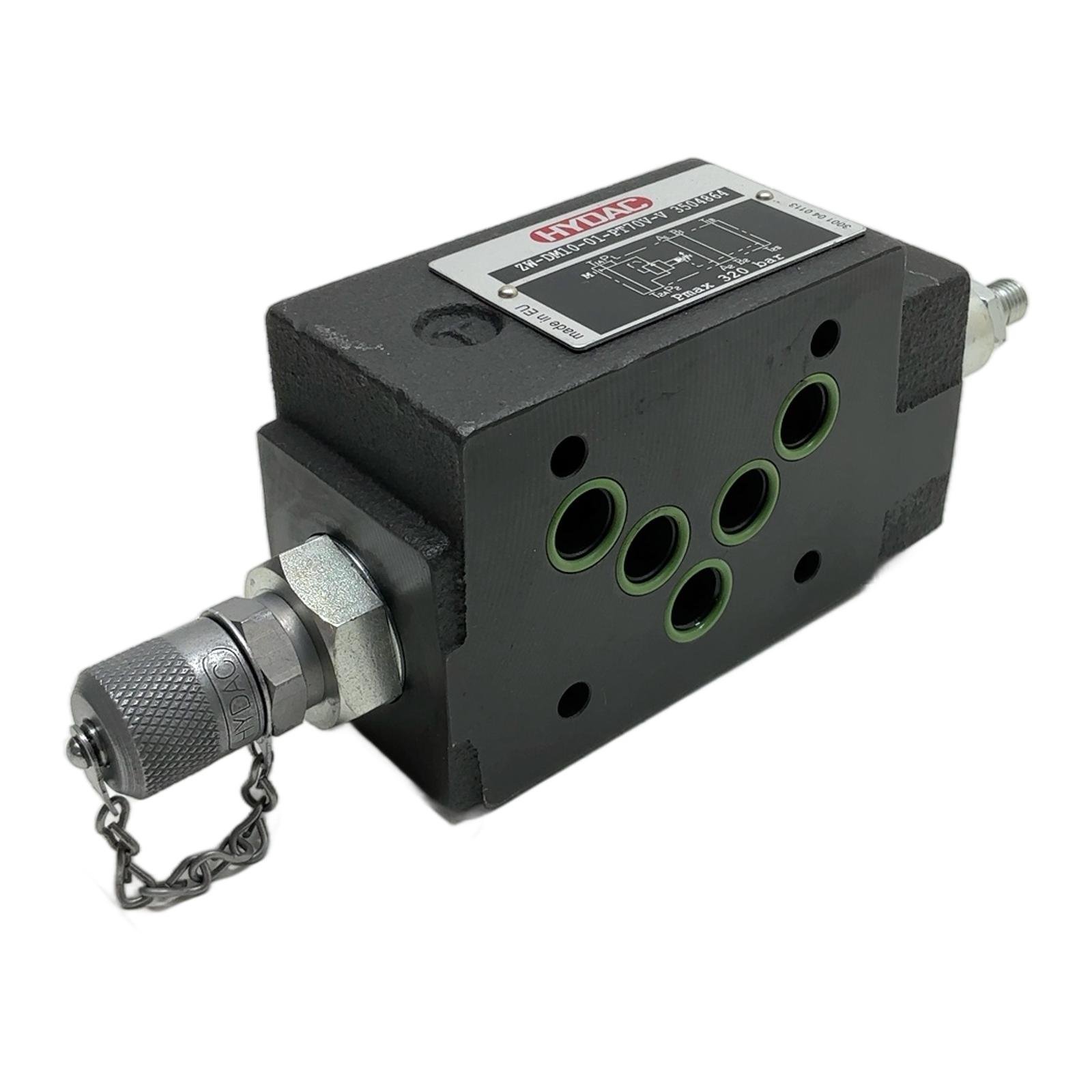

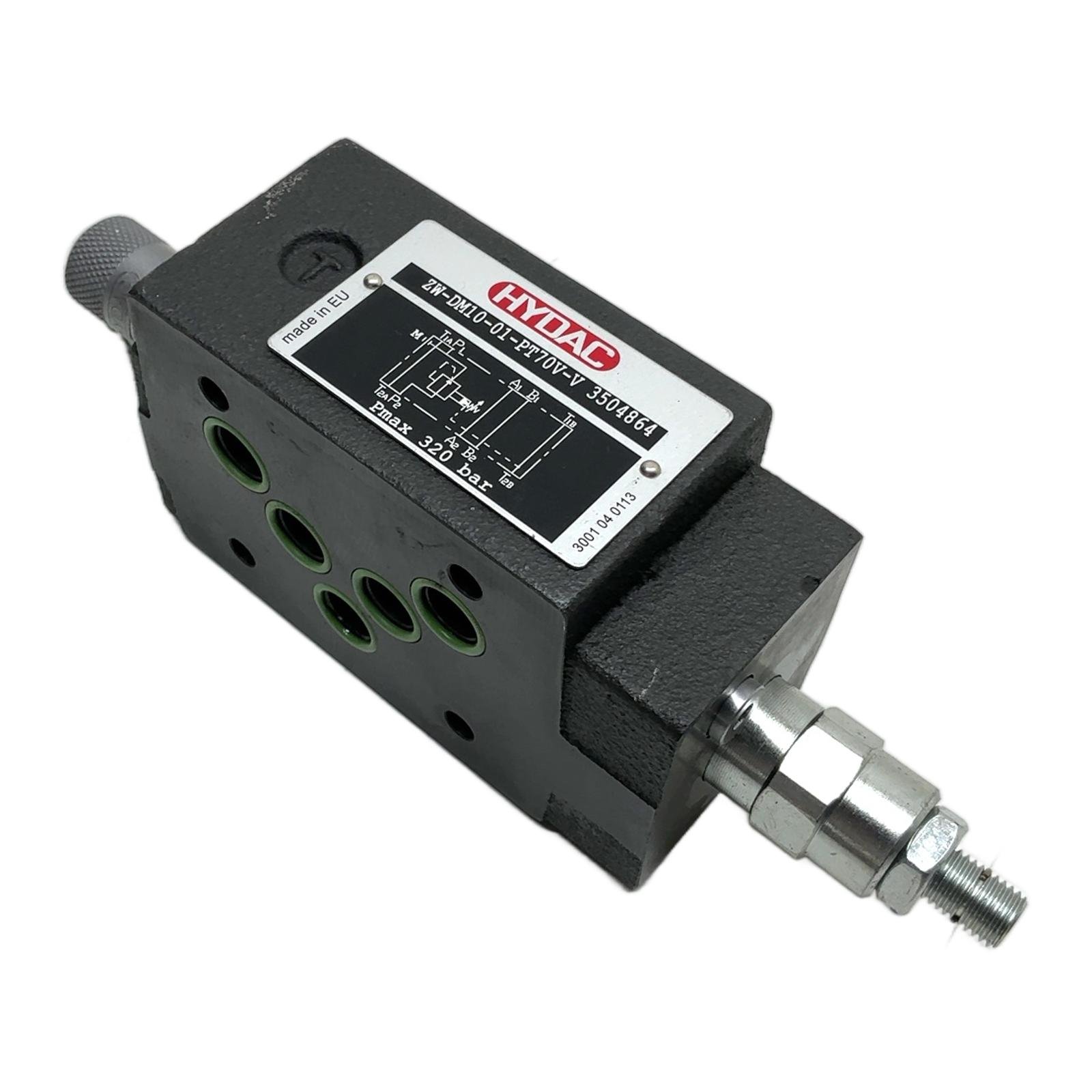

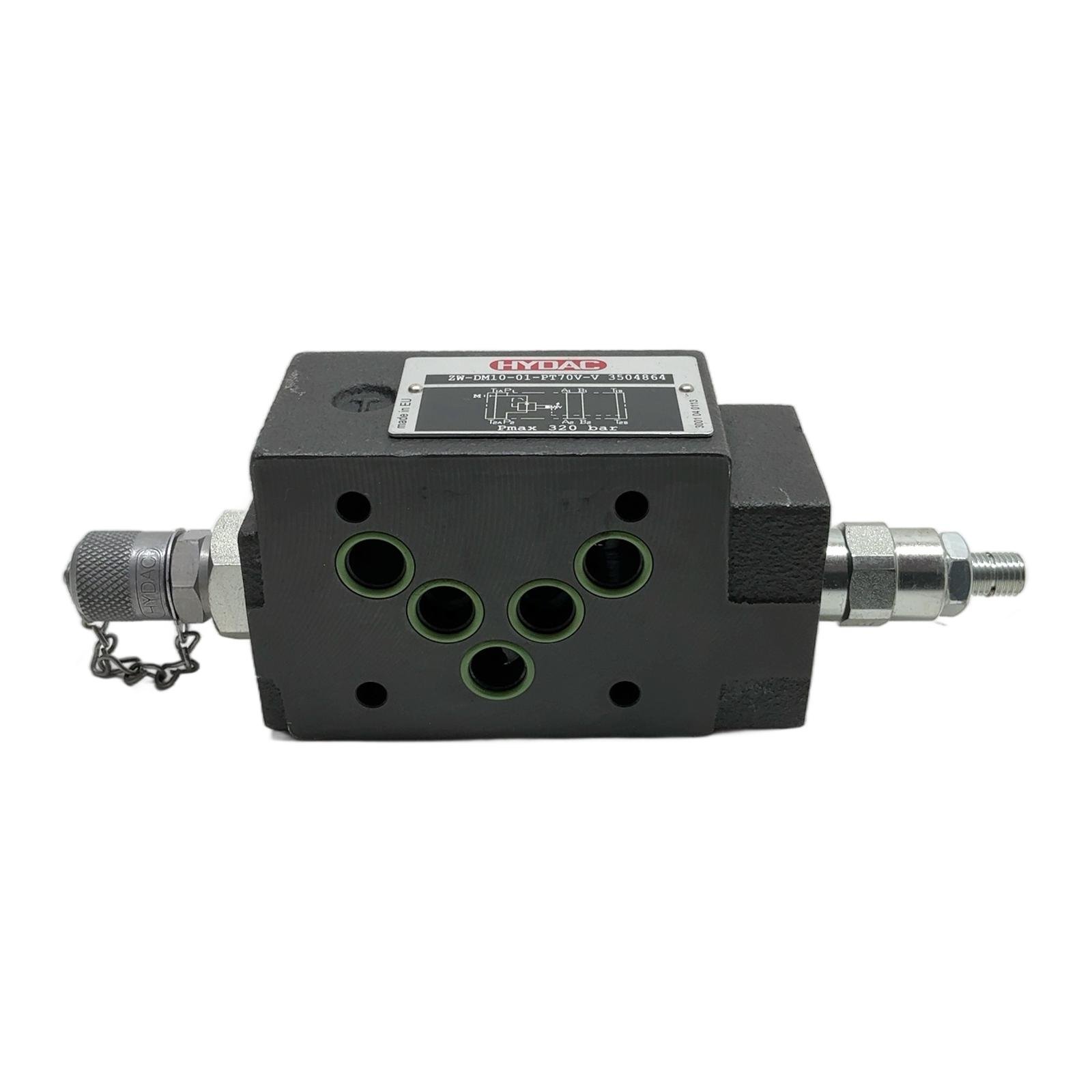

<h2>HYDAC ZW-DM10 Sequence Valve</h2> <h3>Description</h3> <p>This is a HYDAC ZW-DM10-01-PT70V-V sequence valve, designed for mounting in hydraulic systems. As a sandwich plate valve, it is intended for vertical stacking assemblies according to ISO 4401-05 (CETOP 5). Sequence valves are a type of pressure control valve that ensure a certain pressure level is reached in one part of a circuit before a secondary circuit is activated. This unit is built for durability and precision in demanding industrial applications.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: HYDAC</li> <li>Type: Sequence Valve, Sandwich Plate Design</li> <li>Model: ZW-DM10-01-PT70V-V</li> <li>Part Number: 3504864</li> <li>Size: NG10 / CETOP 5</li> <li>Maximum Operating Pressure (Pmax): 320 bar</li> <li>Seals: Viton (FKM)</li> </ul> <h3>Label Info</h3> <ul> <li>HYDAC ZW-DM10-01-PT70V-V 3504864</li> <li>Pmax 320 bar</li> <li>Made in EU</li> </ul> <h3>Application</h3> <p>Ideal for use in industrial hydraulic machinery where sequential operation of actuators is required, such as in presses, machine tools, and manufacturing lines. It ensures that clamping cylinders are fully pressurized before a work cylinder advances, for example.</p> <h3>Country of Origin</h3> <p>Germany.</p> <h3>CO2 Impact</h3> <p>Opting for a reconditioned component like this valve prevents the emission of approximately 7.0 kg of CO2, which would have been generated during the production of a new one. This choice supports a more sustainable industrial practice.</p> <h3>Availability</h3> <p>This item is a used, tested product in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>What is the function of a ZW-DM10 sequence valve?</strong><br><p>A ZW-DM10 sequence valve is used to control the sequence of operations in a hydraulic circuit. It senses the pressure in its primary line (P port) and only opens to allow flow to a secondary circuit (A port) once a pre-set pressure is reached.</p> <strong>What does NG10 / CETOP 5 signify for this valve?</strong><br><p>NG10 (Nominal Size 10mm) and CETOP 5 are standardized designations for the valve’s mounting interface. This ensures that the valve is interchangeable with other NG10/CETOP 5 valves from different manufacturers, regarding port locations and mounting bolt patterns.</p> <strong>Are the seals in this valve compatible with standard hydraulic oils?</strong><br><p>Yes. The ‘-V’ in the model number indicates that the valve is fitted with Viton (FKM) seals. Viton is highly resistant to standard mineral-based hydraulic oils, synthetic fluids, and high temperatures, making it suitable for a wide range of industrial applications.</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
