TELEMECANIQUE ATV18U18N4

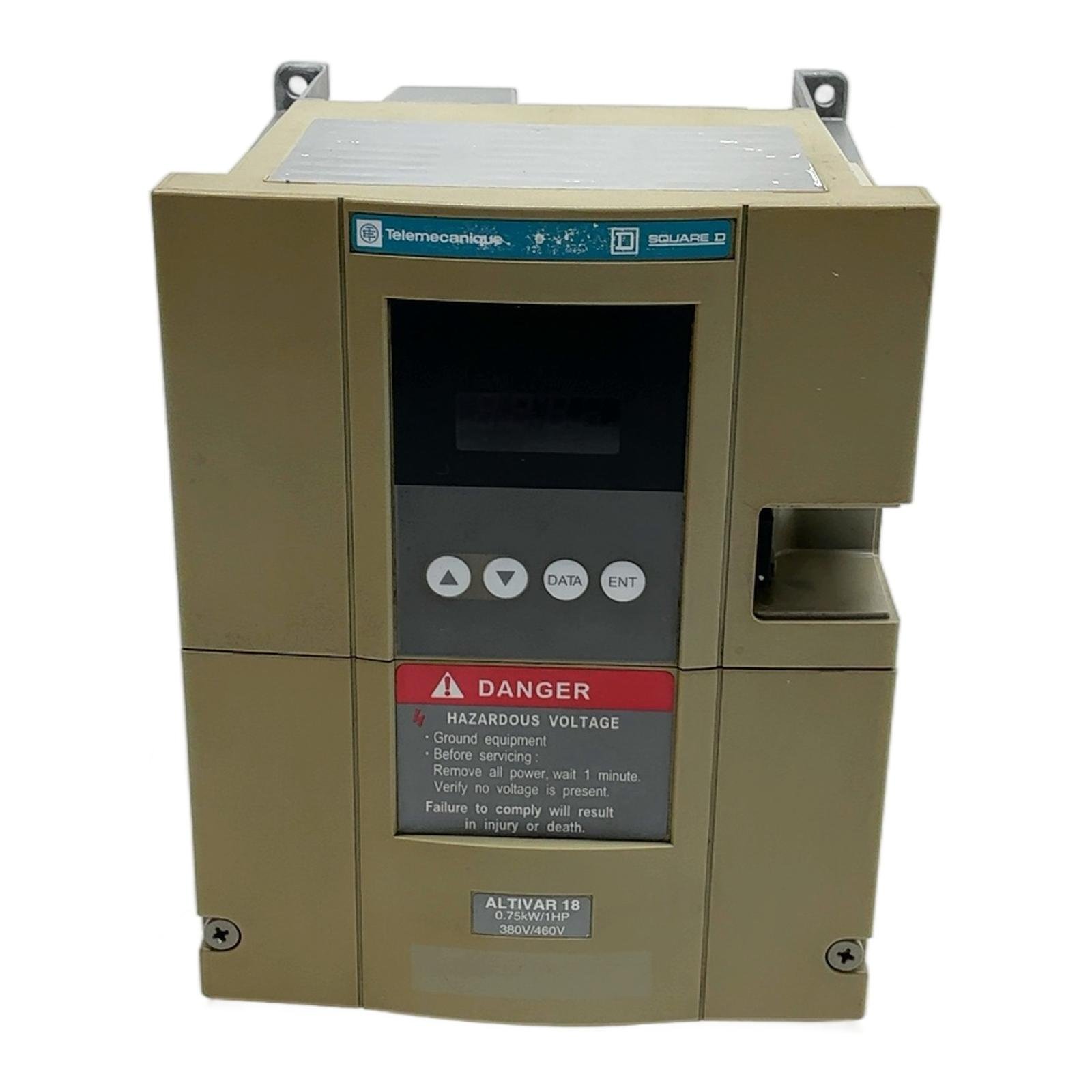

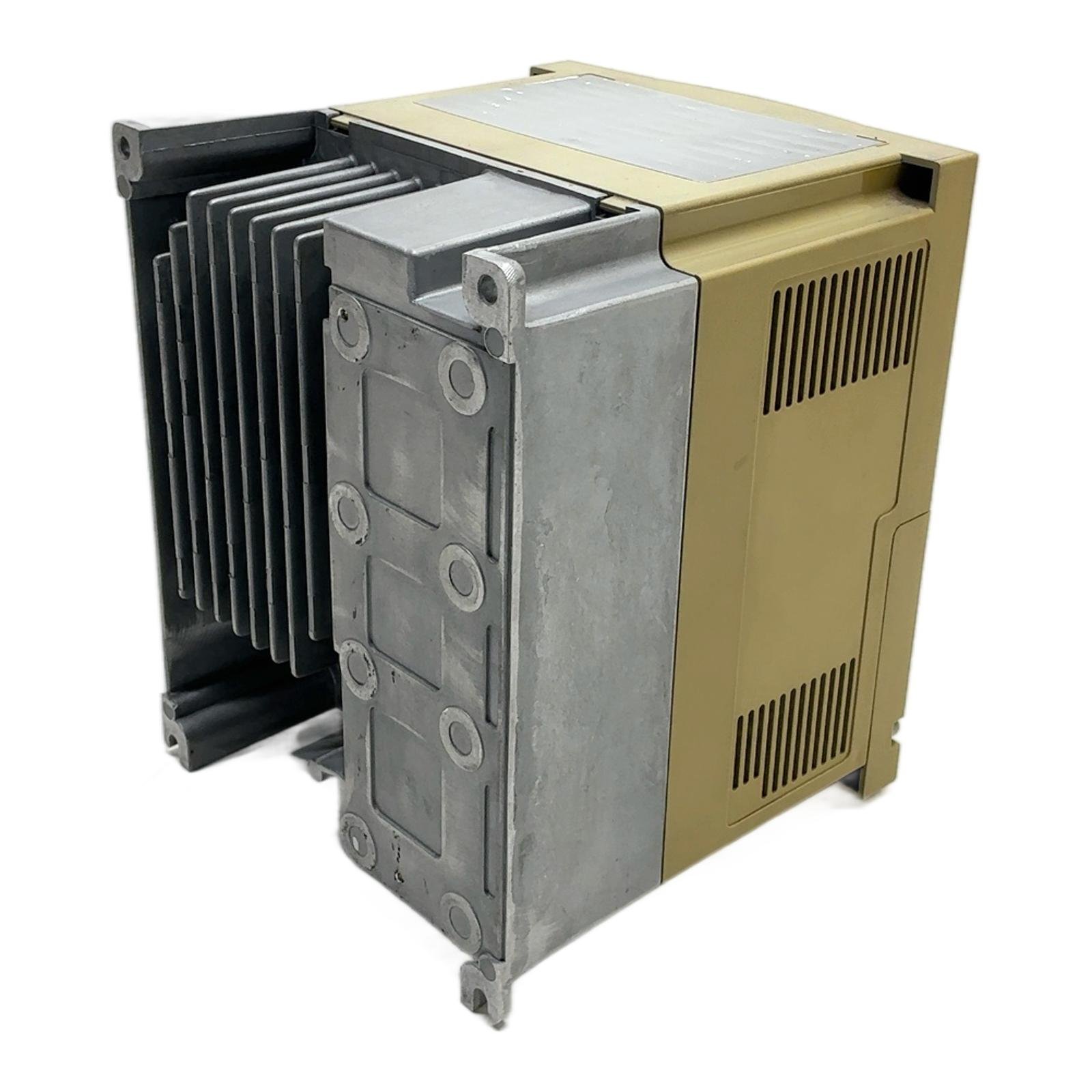

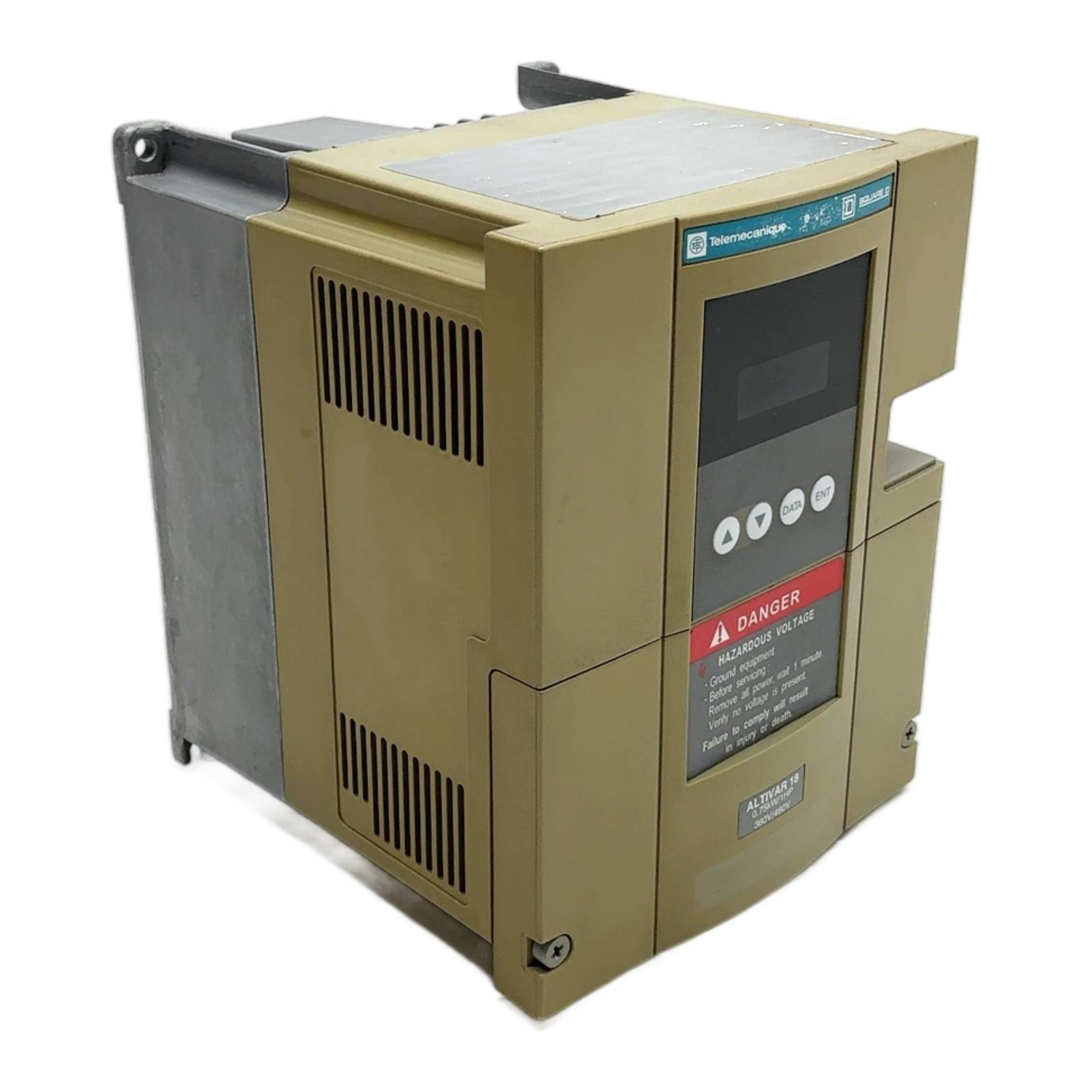

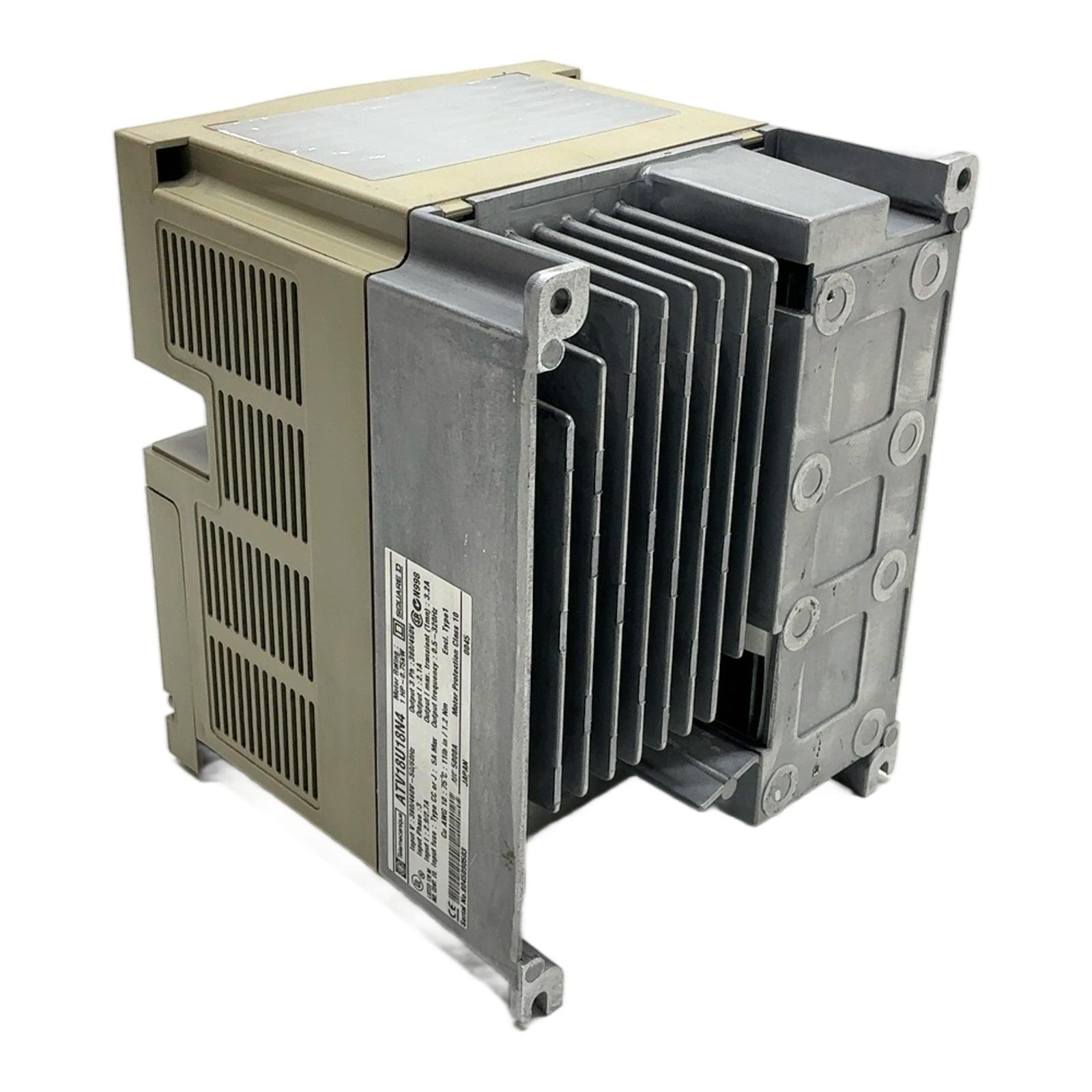

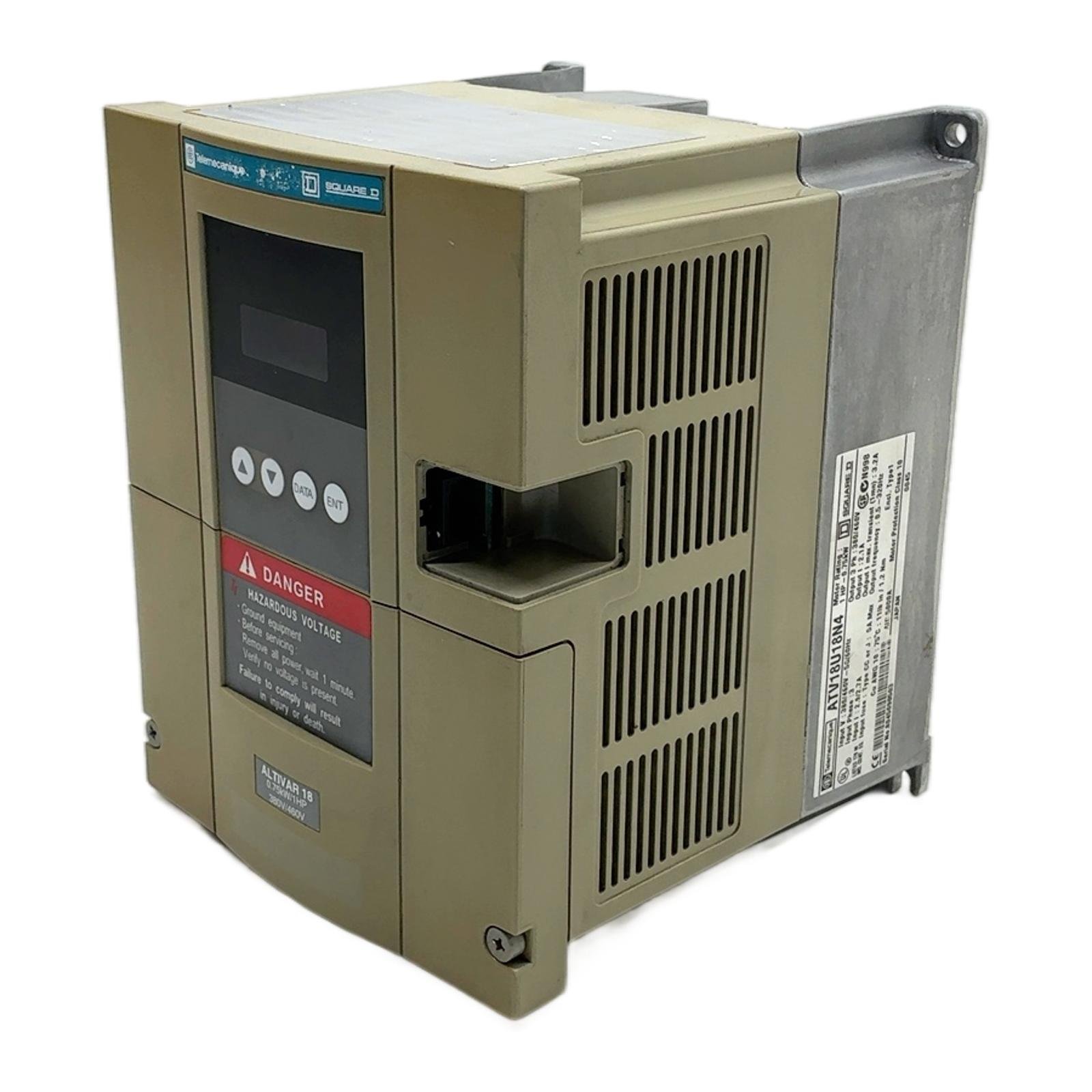

Telemecanique Altivar 18 Variable Frequency Drive Description The ATV18U18N4 is a variable speed drive controller from the Telemecanique Altivar 18 series, designed for 0.75 kW (1 HP) three-phase asynchronous motors. It provides efficient and precise motor speed control, making it a reliable choice for various industrial applications such as pumps, fans, and simple conveying systems. This compact drive is engineered for simplicity and durability, ensuring a long service life in demanding environments. Specifications Manufacturer: Telemecanique (Schneider Electric) Model: ATV18U18N4 Series: Altivar 18 Power Rating: 0.75 kW / 1 HP Input Voltage: 3-Phase 380 to 460V, 50/60Hz Input Current: 2.9A / 2.7A Output Voltage: 3-Phase 380 to 460V Output Current (Nominal): 2.1A Output Current (Max. Transient, 1 min): 3.2A Output Frequency Range: 0.5 to 320Hz Enclosure Rating: Type 1 Label Info Type: ATV18U18N4 Serial Number: 8045090503 Application This drive is ideal for standard industrial applications requiring variable speed control, including HVAC fans, centrifugal pumps, material handling conveyors, and other machinery where energy savings and process optimization are desired. Country of Origin Made in Japan. CO2 Impact By purchasing this pre-owned unit, you are contributing to the circular economy and have helped avoid approximately 68 kg of CO2 emissions associated with the production of a new device. Availability This unit is an obsolete but functional spare part. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ Can the ATV18U18N4 be programmed without the integrated keypad?Yes, while the integrated keypad is sufficient for basic setup, the Altivar 18 series can also be programmed using an optional remote keypad (VW3A18201) or via a PC with PowerSuite software, connected through the Modbus port. What is the braking capability of this drive out of the box?The ATV18U18N4 has built-in DC injection braking capabilities. However, it does not have a built-in dynamic braking chopper. For applications requiring rapid deceleration or handling overhauling loads, an external braking resistor and a separate braking unit would be necessary. Is this drive compatible with modern network protocols like EtherNet/IP or Profinet?No, the Altivar 18 series is an older generation drive. Its primary communication protocol is Modbus RTU via its serial port. It is not natively compatible with modern Ethernet-based protocols like EtherNet/IP or Profinet. A gateway would be required for integration into such networks. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
