AVENTICS AS3-SOV 0821300967

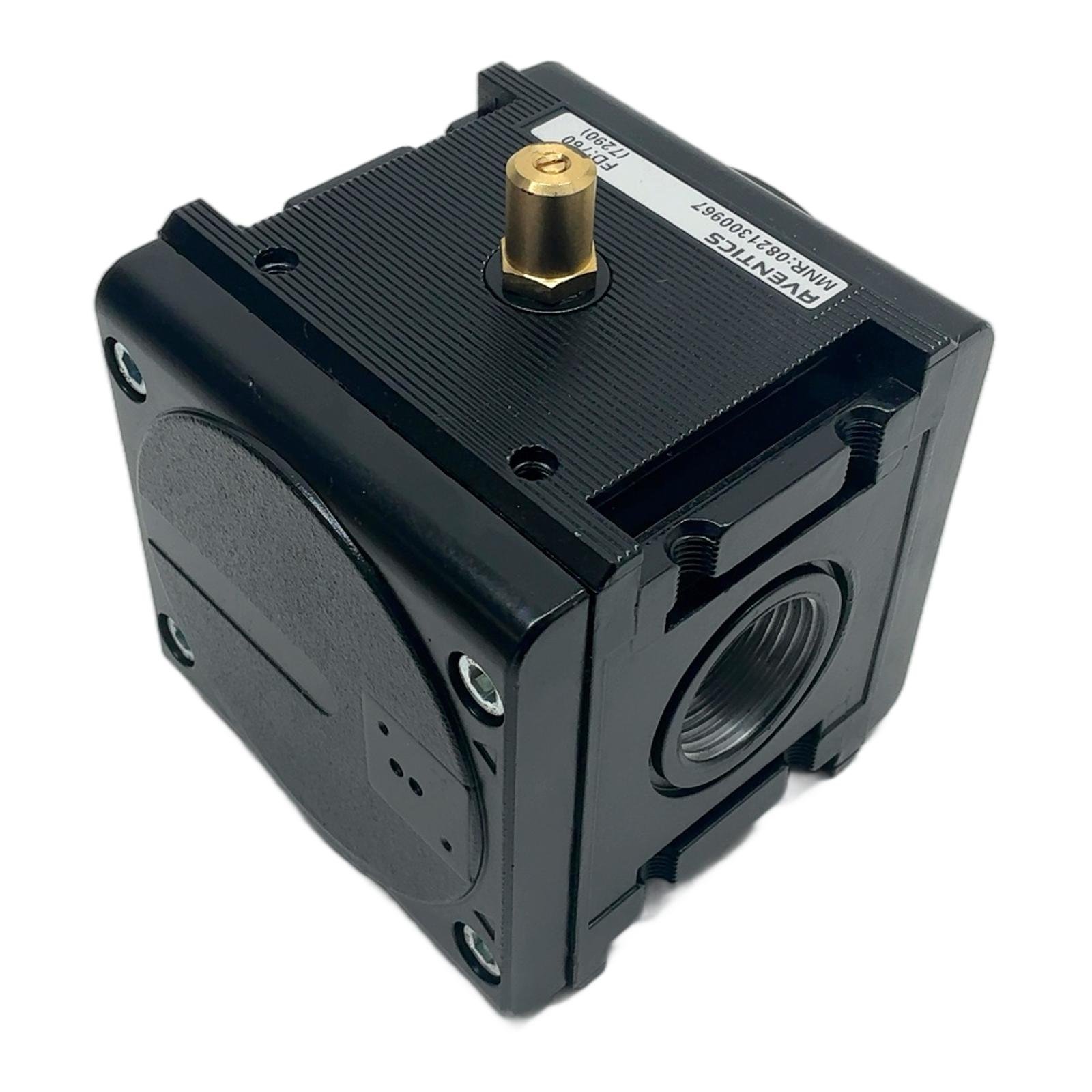

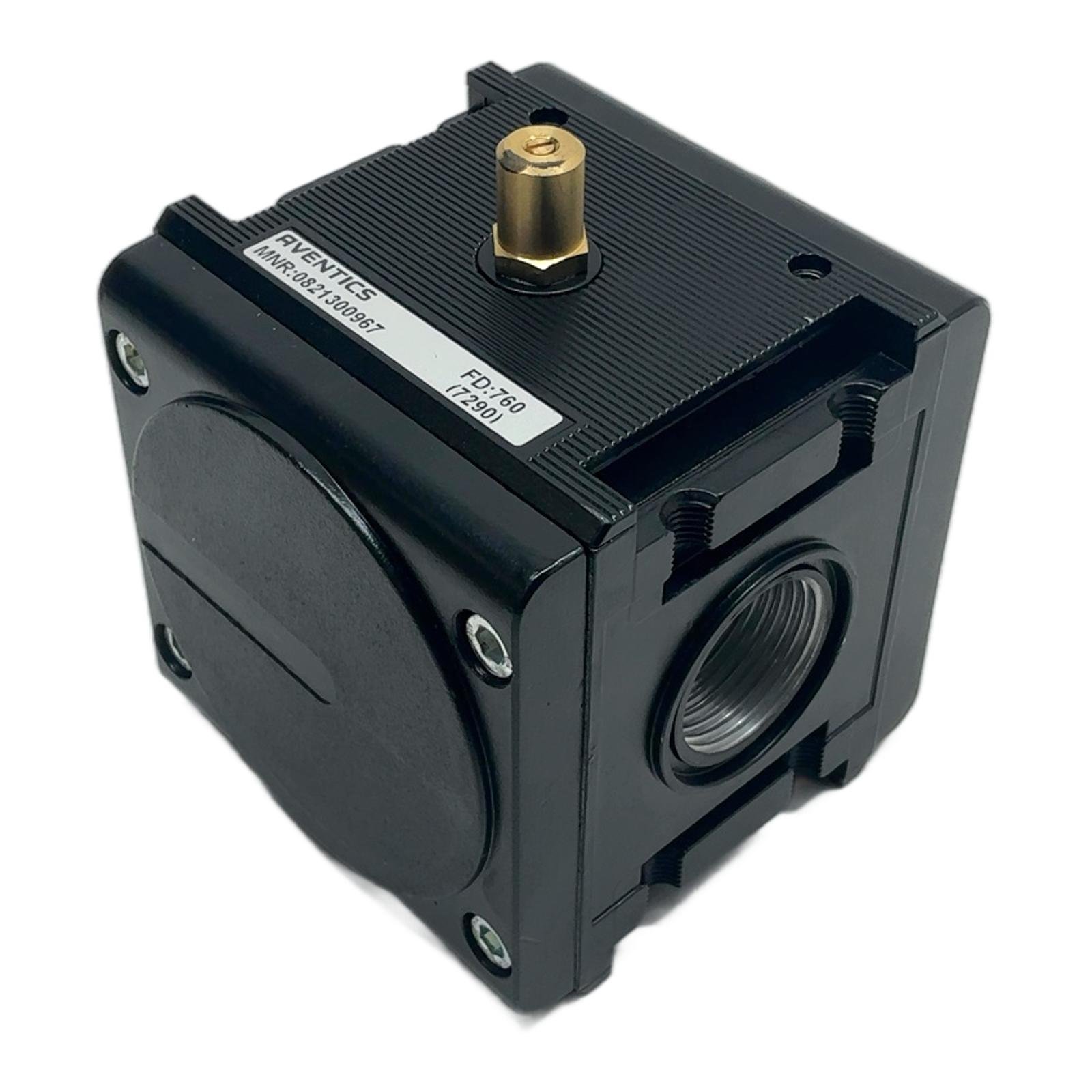

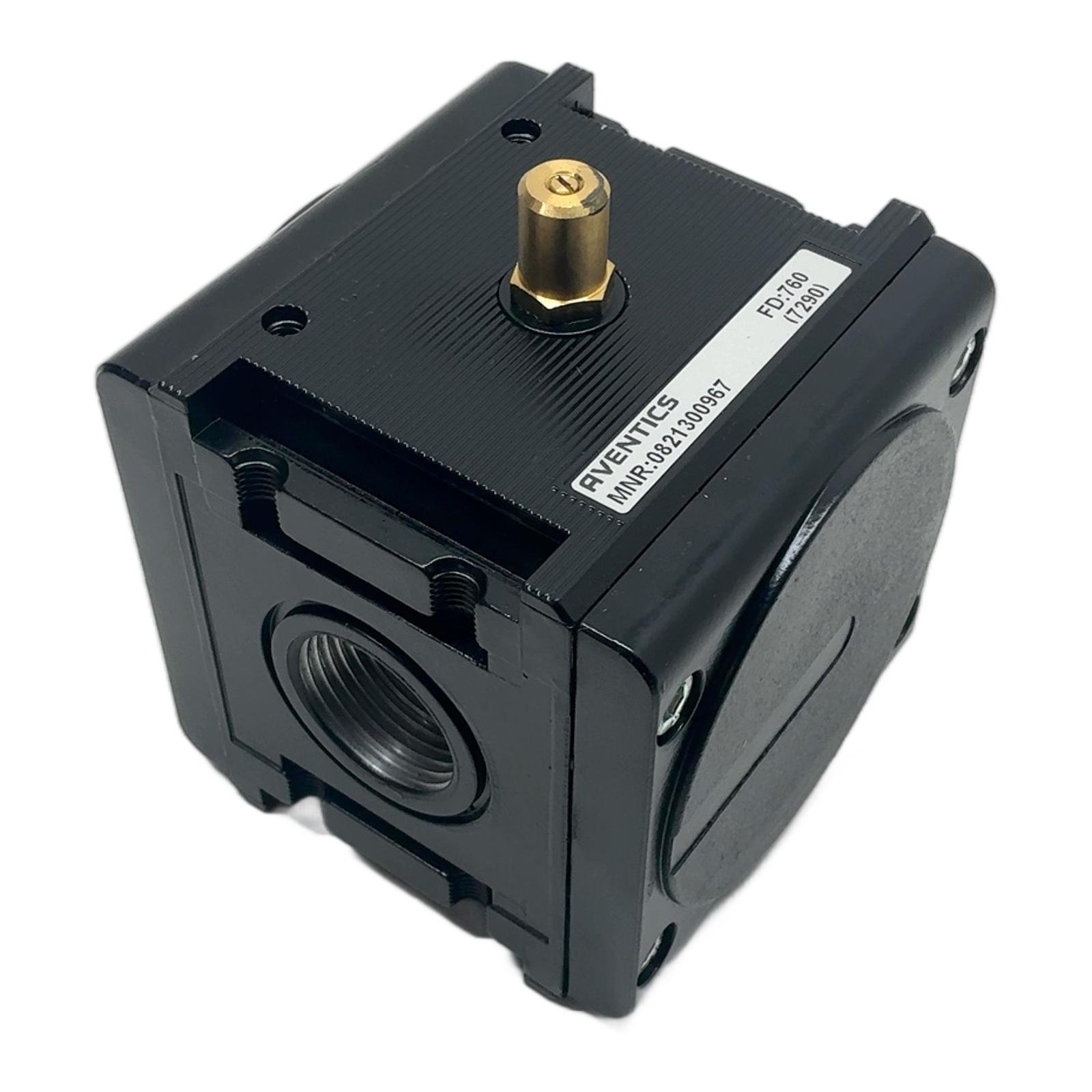

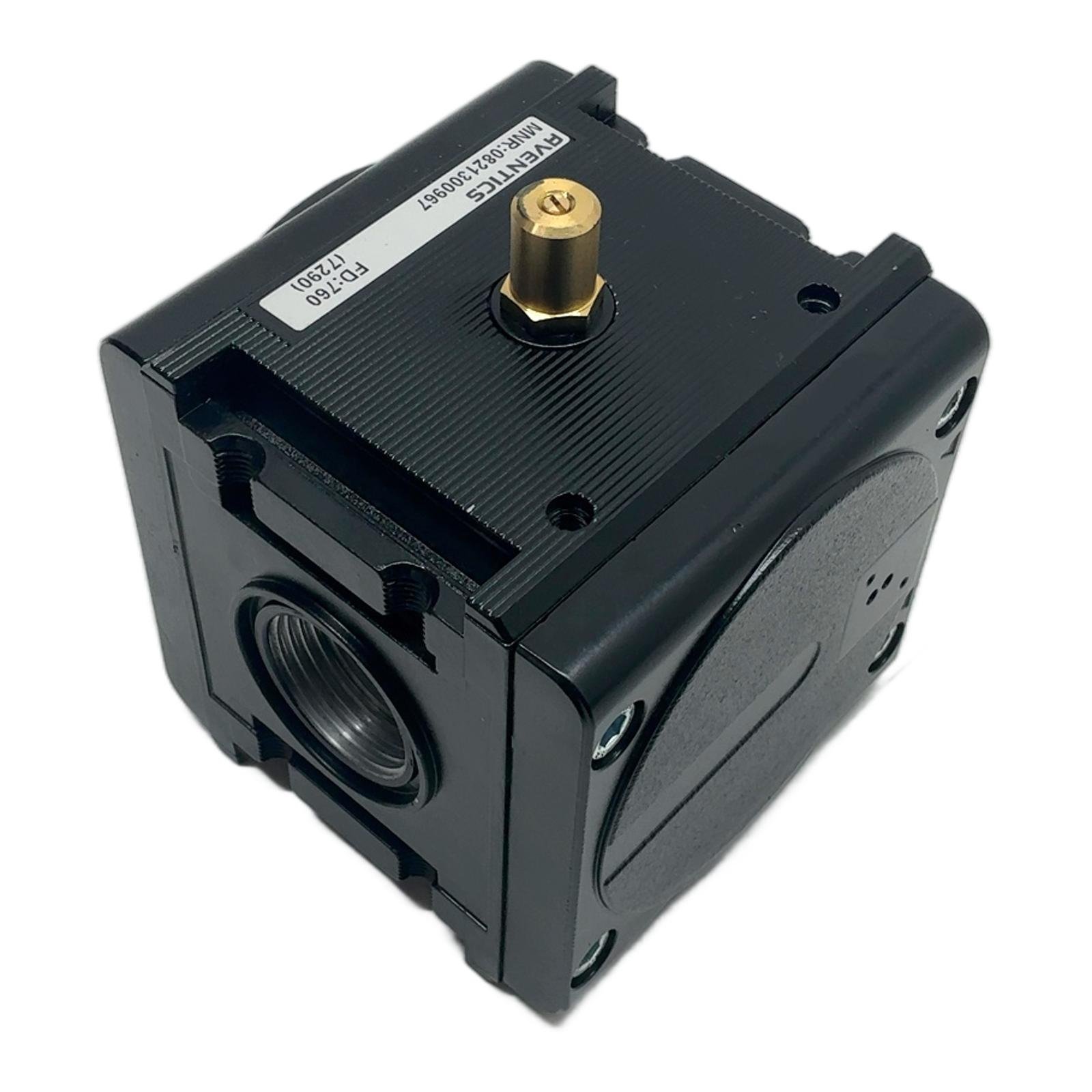

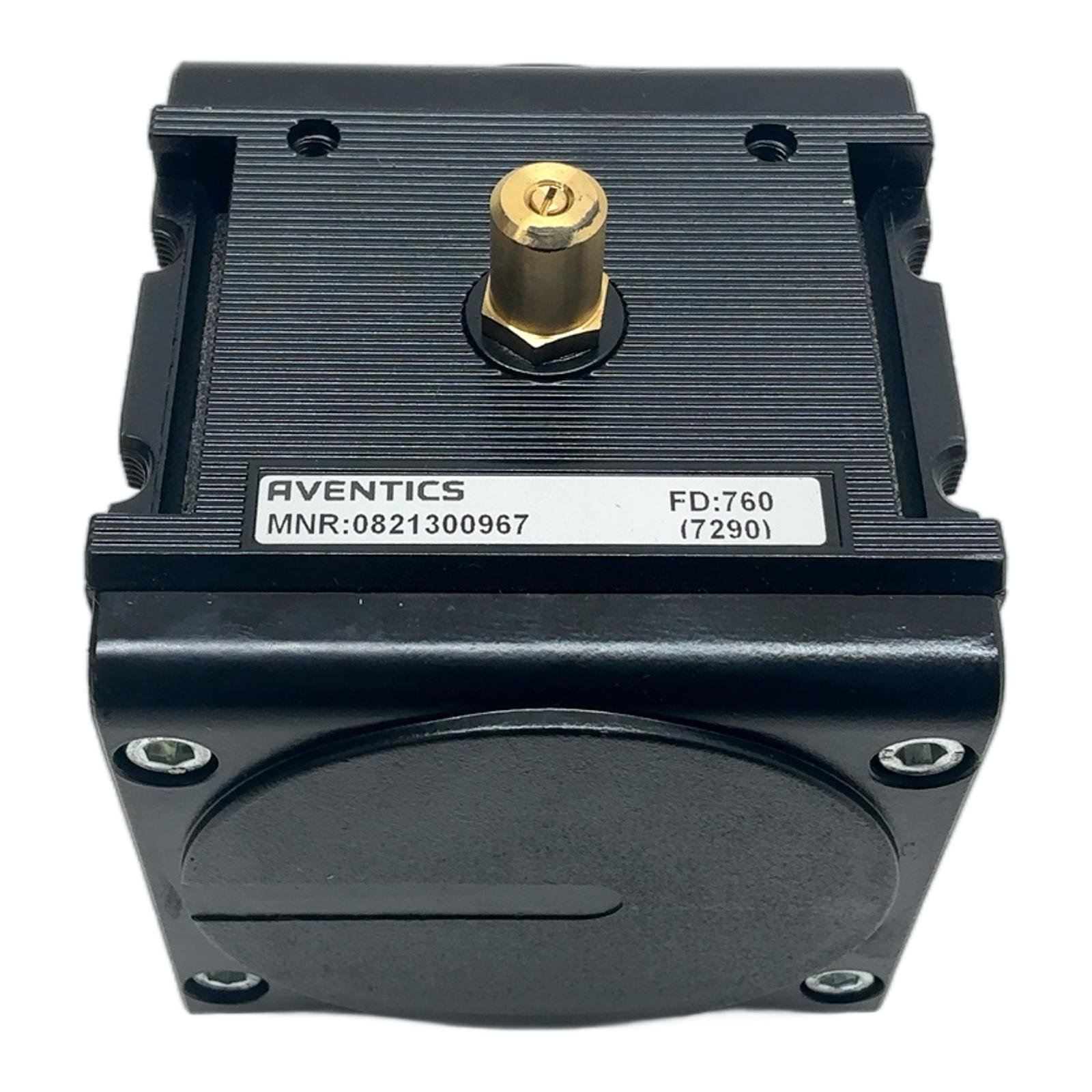

AVENTICS AS3-SOV Soft Start / Shut-off Valve Description The AVENTICS 0821300967 is a 3/2 soft-start and shut-off valve from the AS3 series of air preparation units. It is designed to safely and gradually build up pressure in a pneumatic system, preventing abrupt and potentially dangerous actuator movements. When de-energized, it provides a quick exhaust function, rapidly venting the downstream system. This component is essential for machine safety and smooth operational start-ups. Specifications Manufacturer: AVENTICS Part Number: 0821300967 Series: AS3 Type: AS3-SOV (Soft-Start / Shut-off Valve) Pneumatic Connection: G 1/2 Operating Pressure: 3 to 10 bar Nominal Flow Qn: 5500 l/min Control: External pilot required Label Info MNR: 0821300967 FD: 760 Application This valve is typically used as the main shut-off valve in a pneumatic FRL (Filter, Regulator, Lubricator) assembly. It’s ideal for applications requiring controlled pressurization after a system stop or during initial machine power-up. Country of Origin Made in Germany. CO2 Impact Opting for a refurbished pneumatic component like this one prevents the emission of approximately 7.2 kg of CO2 compared to manufacturing a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Does this valve include the solenoid pilot valve?No, this is the main valve body (part number 0821300967). The solenoid pilot valve must be ordered separately according to the required control voltage (e.g., 24V DC). What is the purpose of the adjustment screw on this AS3-SOV valve?The brass adjustment screw on top is a needle valve that controls the pressurization time. By turning it, you can regulate how quickly the downstream pressure builds up, allowing for a ‘soft start’ of pneumatic actuators. Can this valve be used for safety applications like emergency stops?Yes, the AS3-SOV is designed for this purpose. When the pilot signal is removed, the valve quickly blocks the inlet pressure and rapidly exhausts the downstream system (port 2 to 3), which is a key function for safety-related pressure dumping. However, always verify the required safety performance level (PL) for your specific application. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
