MURRELEKTRONIK 4000-68000-0010000

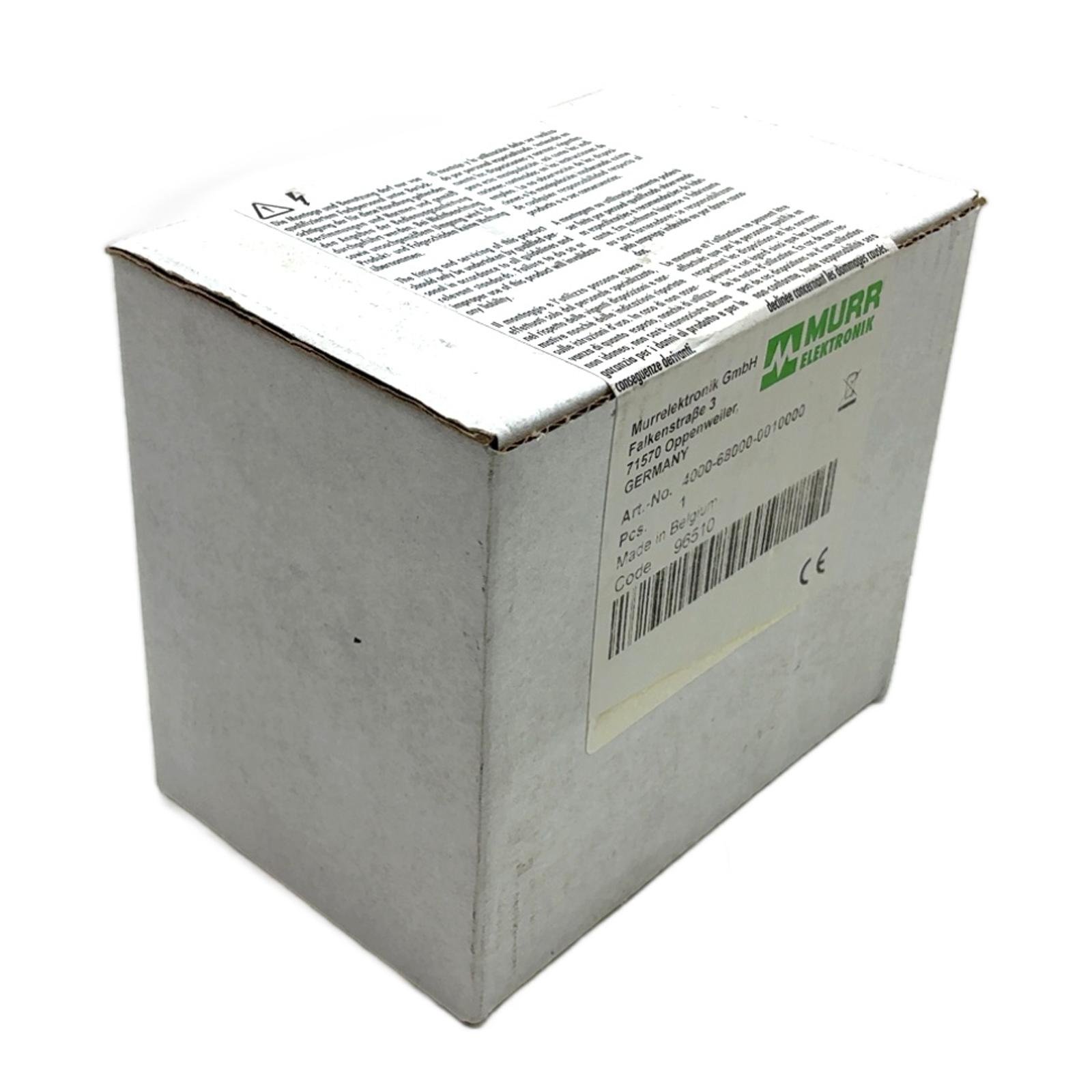

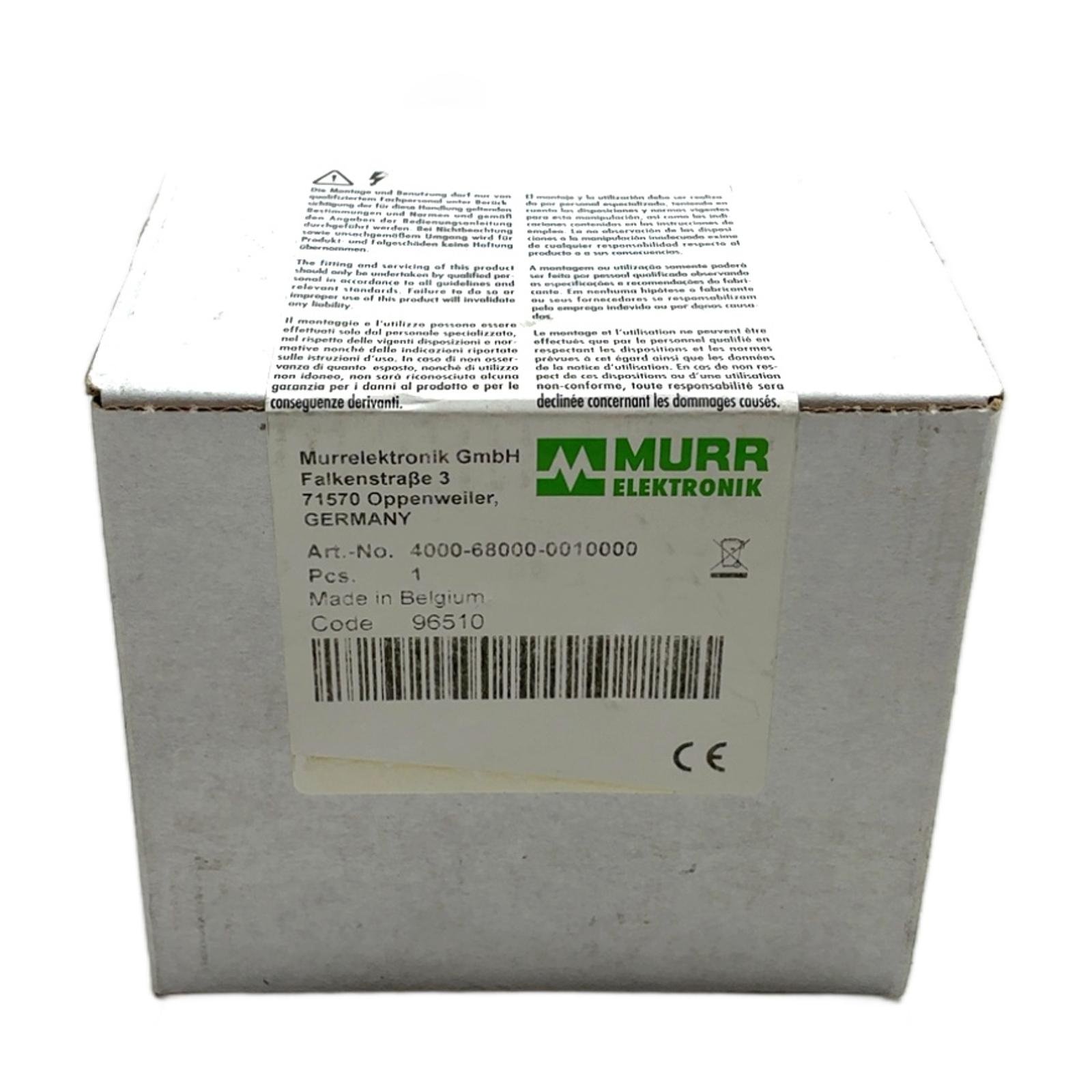

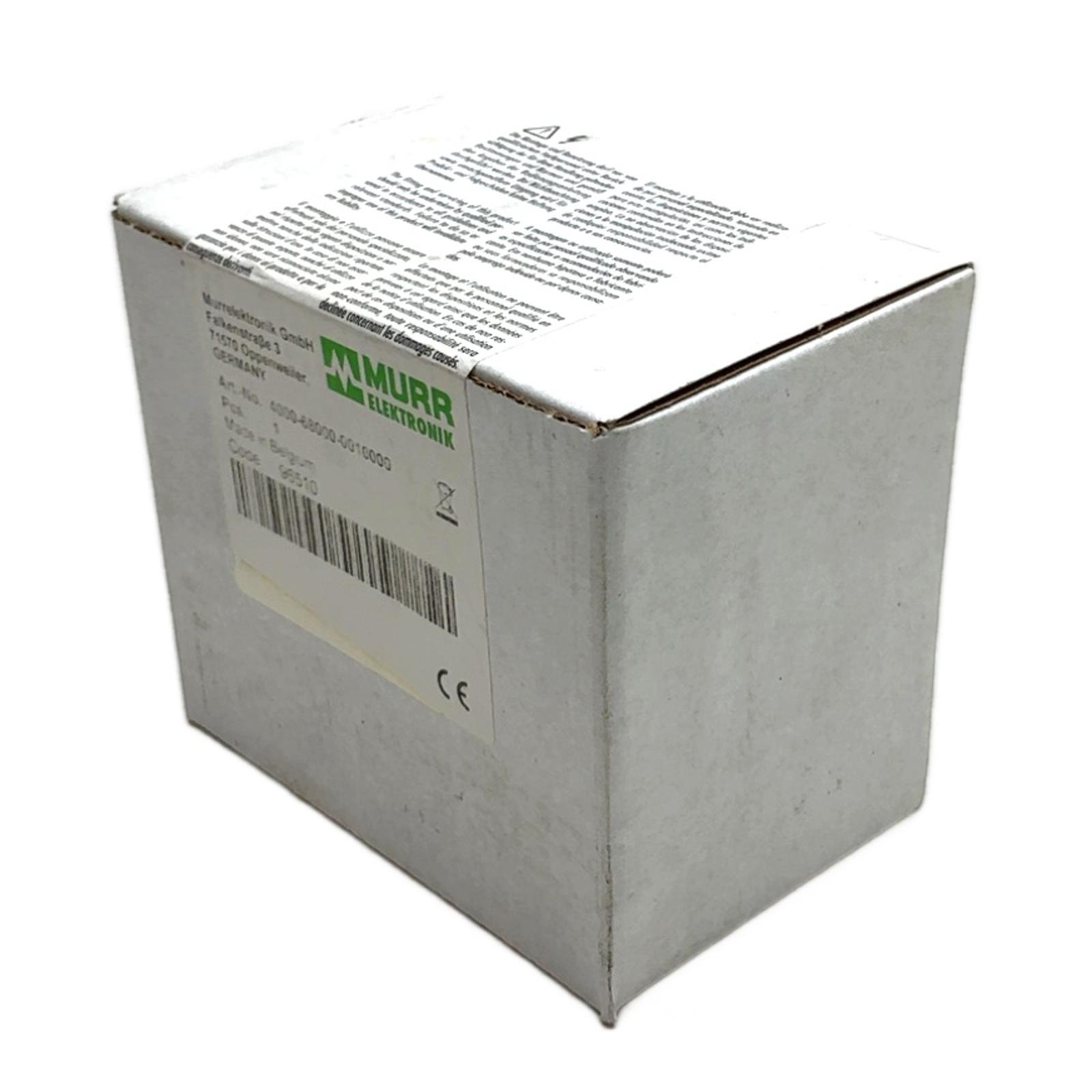

Murrelektronik M12 Cable Socket Description This is the Murrelektronik M12 female cable socket, article number 4000-68000-0010000. It is a high-quality, straight connector designed for use in a wide range of industrial automation applications. Ideal for connecting sensors, actuators, and other field-level devices, it provides a secure and reliable connection with an IP67 protection rating when properly mated. Specifications Manufacturer: Murrelektronik Article Number: 4000-68000-0010000 Connector Type: M12 Socket, Female Number of Poles: 4 Coding: A-coded Orientation: Straight (0 deg) Operating Voltage: max. 250V AC/DC Operating Current: max. 4A per contact Protection Class: IP67 (when mated and secured) Label Info Art.-No.: 4000-68000-0010000 Code: 96510 Application Commonly used in factory automation, robotics, and machine building to ensure dependable signal and power transmission to peripheral devices. Country of Origin Made in Belgium. CO2 Impact Choosing this reused industrial part saves an estimated 4.0 kg of CO2 compared to manufacturing a new one. This environmental saving is equivalent to driving a car for approximately 20 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the A-coding on an M12 connector used for?A-coding is the most common M12 coding standard and is typically used for sensors, actuators, DC power, and 1 Gbit Ethernet. This connector is ideal for such sensor/actuator applications. What does the IP67 rating mean for this cable socket?An IP67 rating means the connector is completely protected against dust ingress and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, once it is properly connected and tightened. Can this connector be used for Profinet or industrial Ethernet applications?No, this 4-pole A-coded connector is not suitable for Profinet or most industrial Ethernet protocols. Those typically require 4-pole D-coded (for 100 Mbit) or 8-pole X-coded (for 10 Gbit) connectors. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
