MKT Anchor rod V-A 16-45/190 21510101

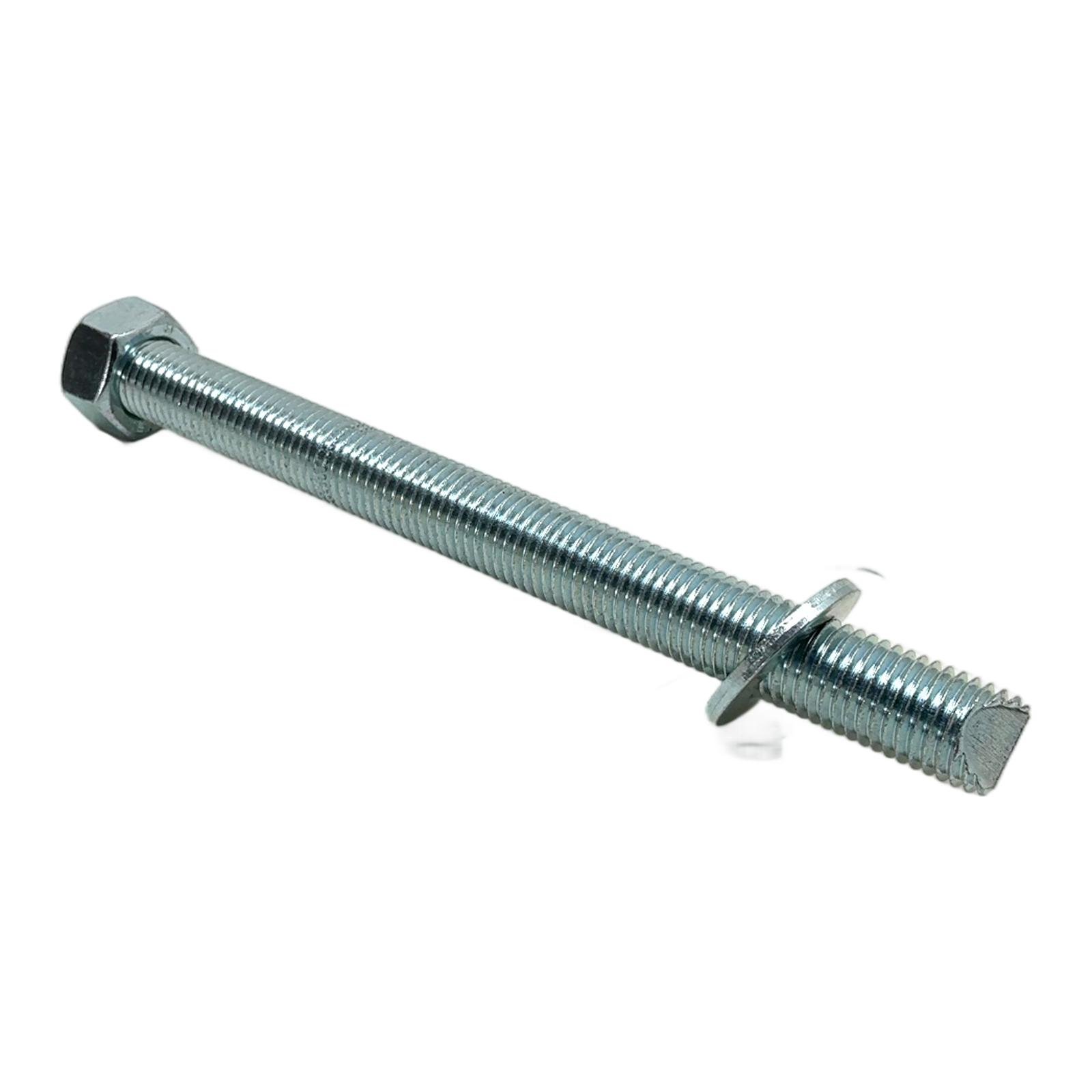

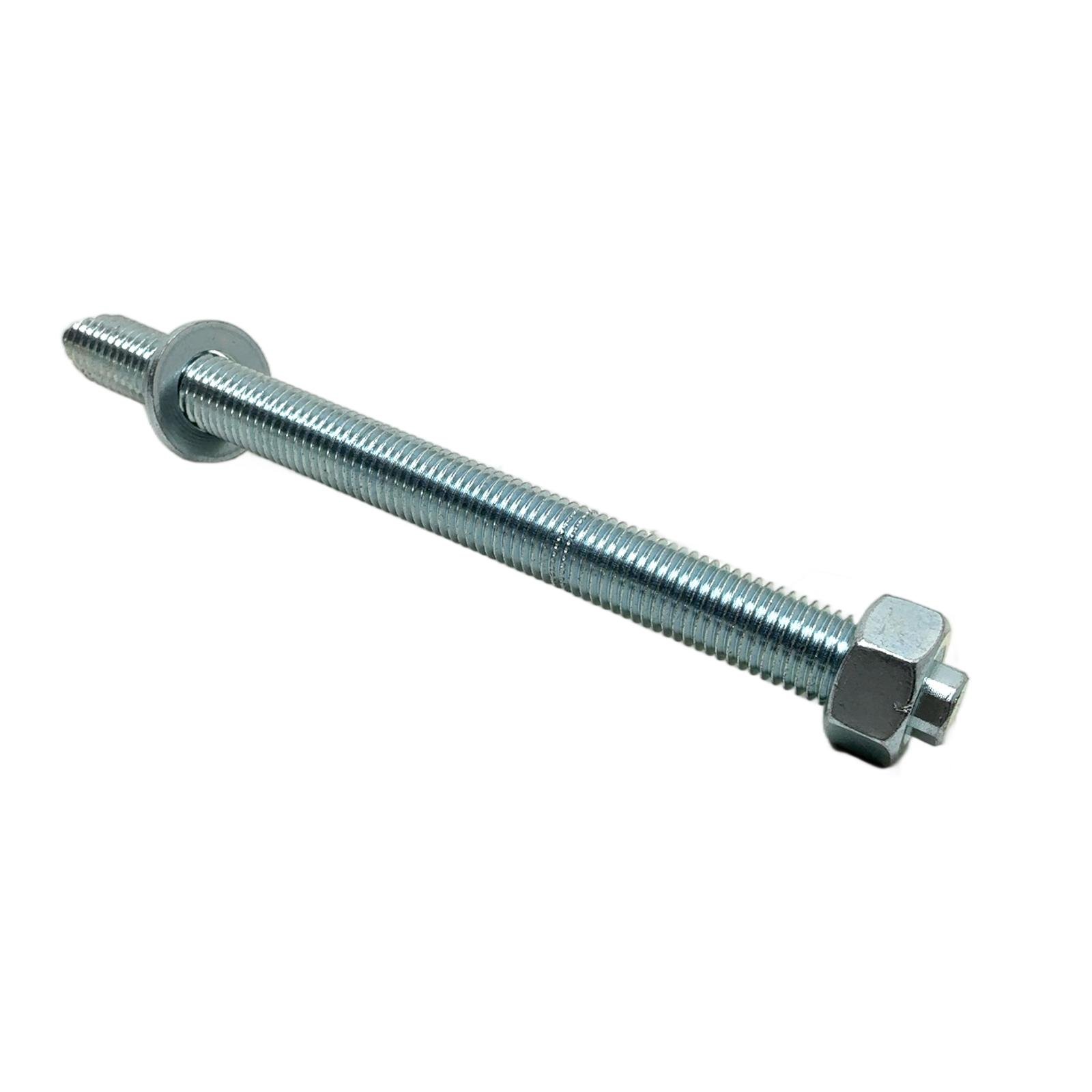

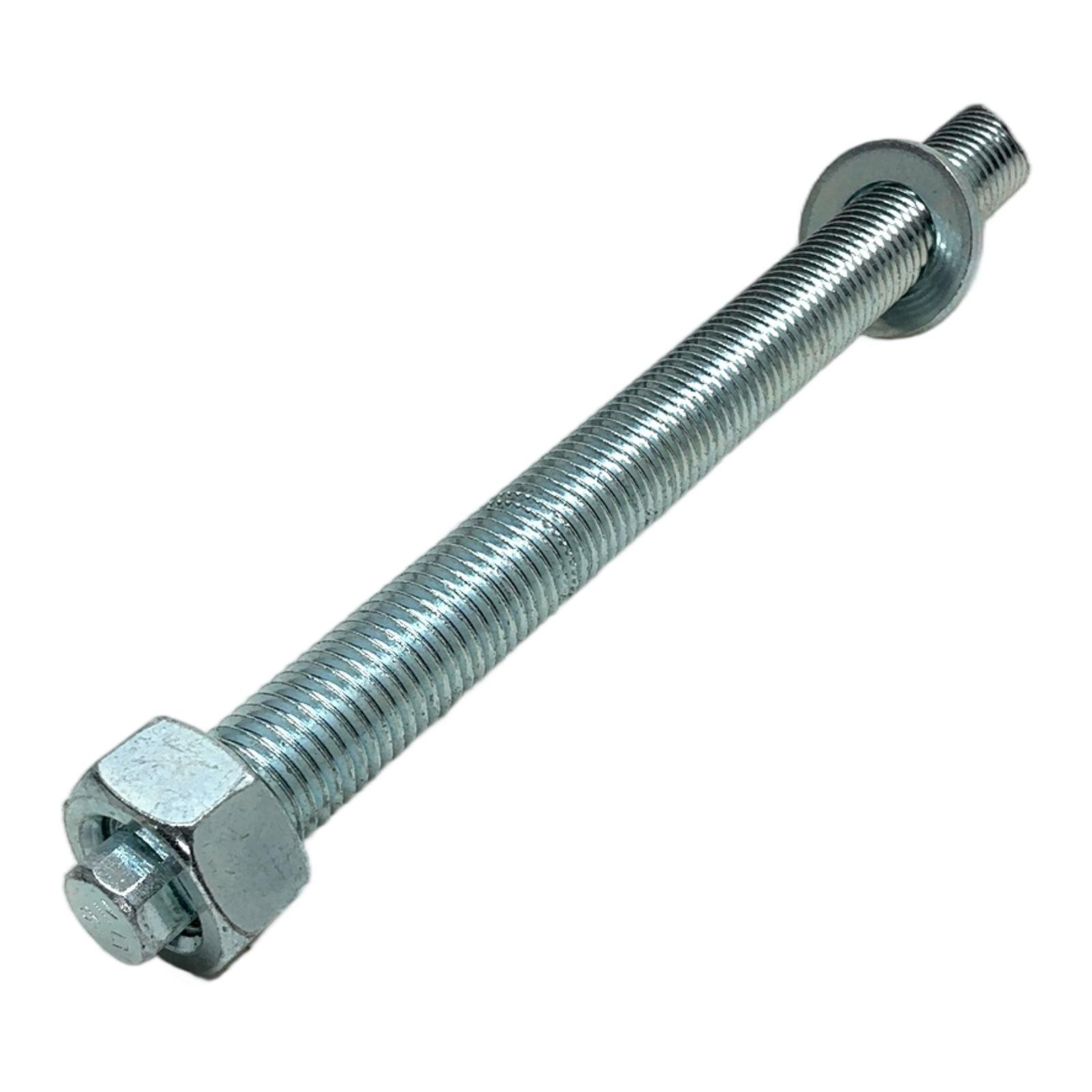

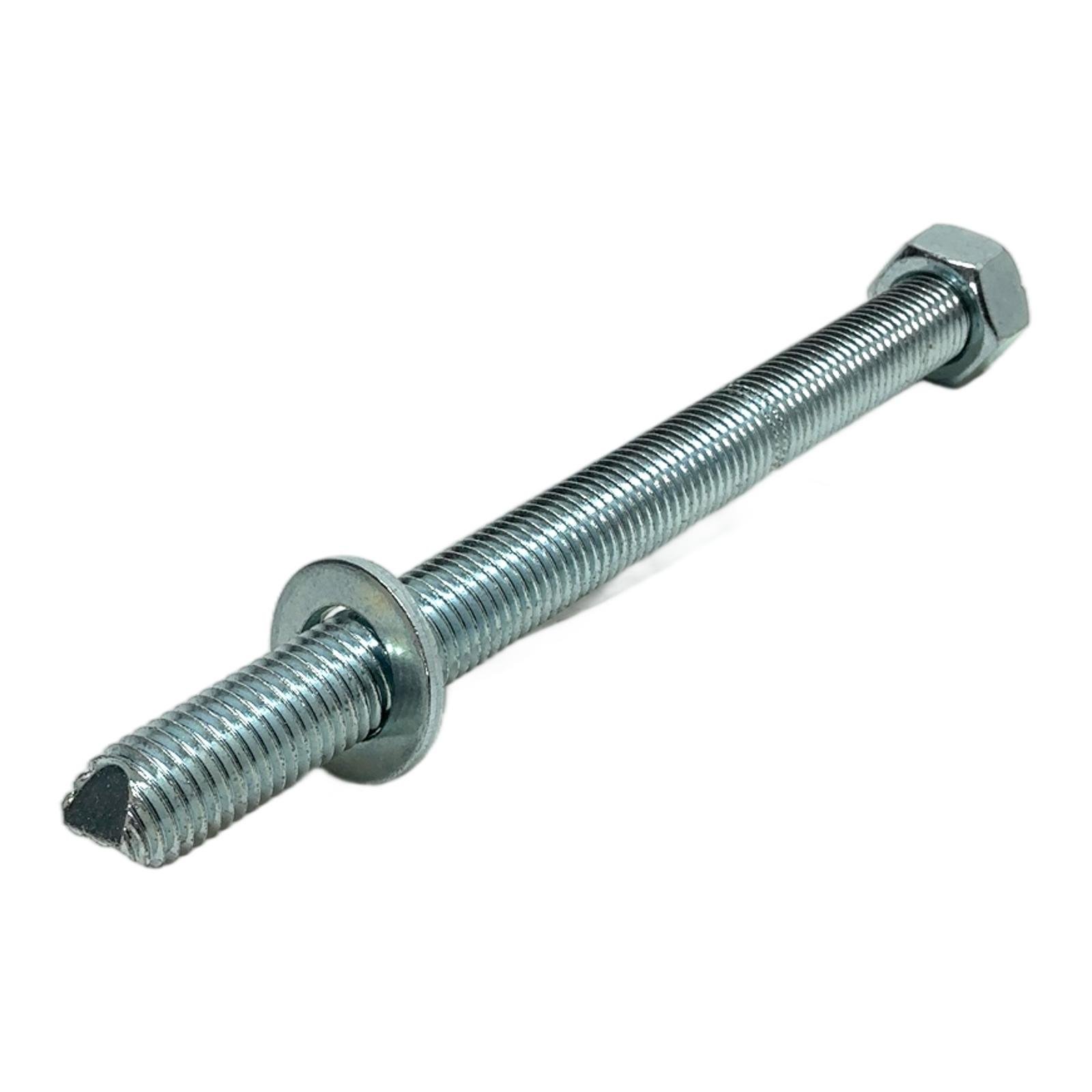

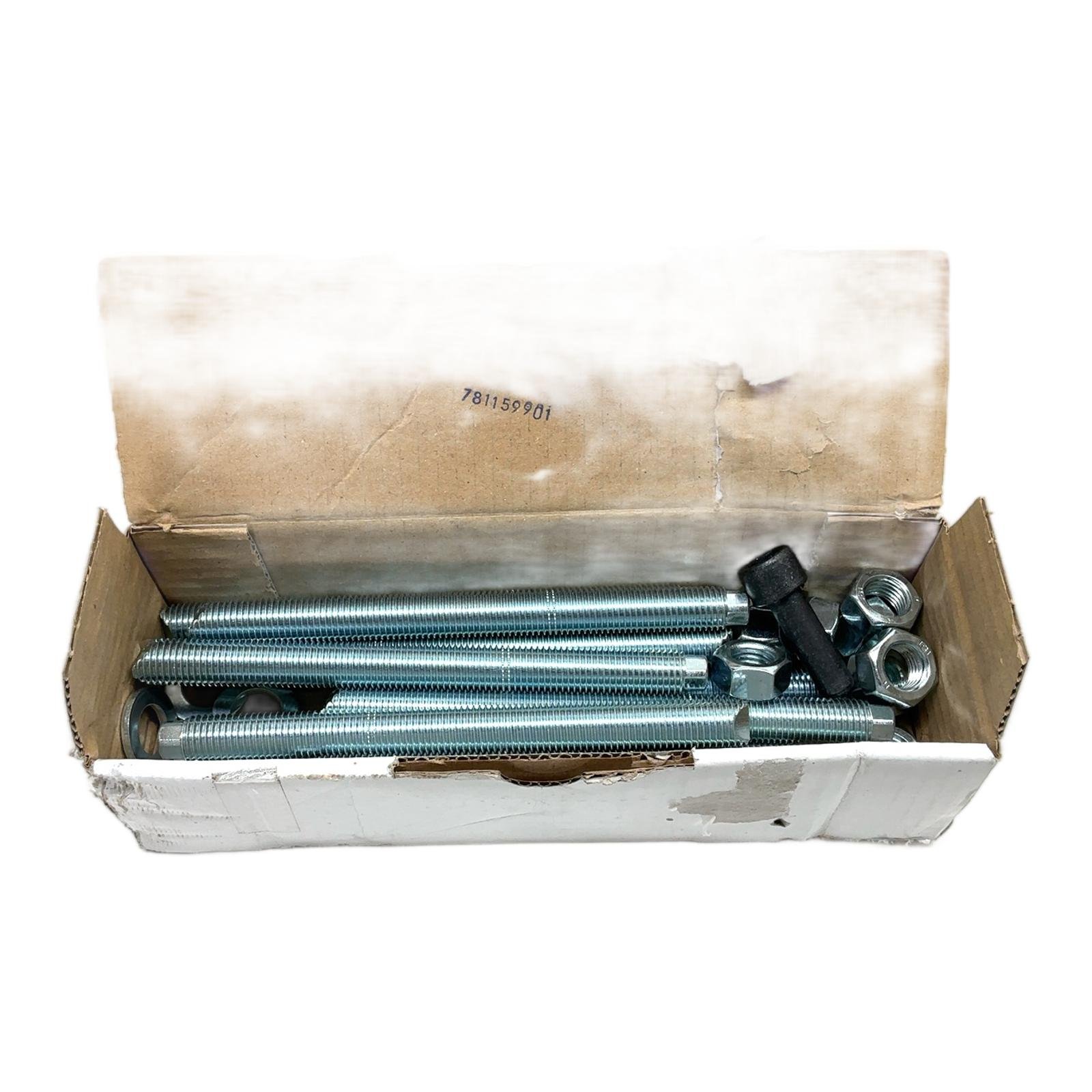

MKT V-A 16-45/190 Heavy-Duty Wedge Anchor Description This is a box of 10 new, unused MKT V-A wedge anchors, article number 21510101. These high-performance anchors are designed for through-fastening applications in non-cracked concrete. Made from galvanized steel, they provide a strong and reliable fixing for structural components, machinery, and support systems. The product comes in its original, opened box. Specifications Manufacturer: MKT Type: V-A 16-45/190 Article Number: 21510101 Material: Steel, zinc-plated Thread Size: M16 Total Length: 190 mm Maximum Fixture Thickness (tfix): 45 mm Required Drill Diameter: 18 mm Required Installation Torque (Tinst): 80 Nm Quantity per Box: 10 Application Ideal for heavy-duty anchoring in solid concrete bases for applications such as steel constructions, guard rails, cable trays, and machinery installations in dry, indoor environments. Country of Origin Made in Germany. CO2 Impact Choosing this product saves 7.08 kg of CO2, which is comparable to the emissions from a 35 km car journey. Availability This box of 10 anchors is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between cracked and non-cracked concrete for this MKT V-A anchor?The MKT V-A anchor is approved for use in non-cracked concrete. For applications in cracked concrete (areas under tensile stress), you should use an anchor with a specific ETA approval for cracked concrete, such as the MKT BZ plus. Using the wrong anchor type can significantly reduce load capacity and safety. What is the required drill bit size and hole cleaning procedure for an M16 anchor?For the M16 V-A anchor, a drill bit diameter of 18 mm is required. The drill hole must be cleaned thoroughly to ensure proper performance. The recommended procedure is to blow out the dust with compressed air, brush the hole, and then blow it out again. Debris in the hole can prevent the anchor from setting correctly and reduce its holding power. Can this galvanized steel (vz) anchor be used outdoors?Standard zinc-plated (verzinkt) steel anchors like this one are intended for indoor, dry applications. For outdoor use or in damp environments, it is crucial to use an anchor made from stainless steel (A4 grade) or with a hot-dip galvanized coating to prevent corrosion, which could compromise the fastening’s integrity over time. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
