MENNEKES AMAXX 920067 ip44

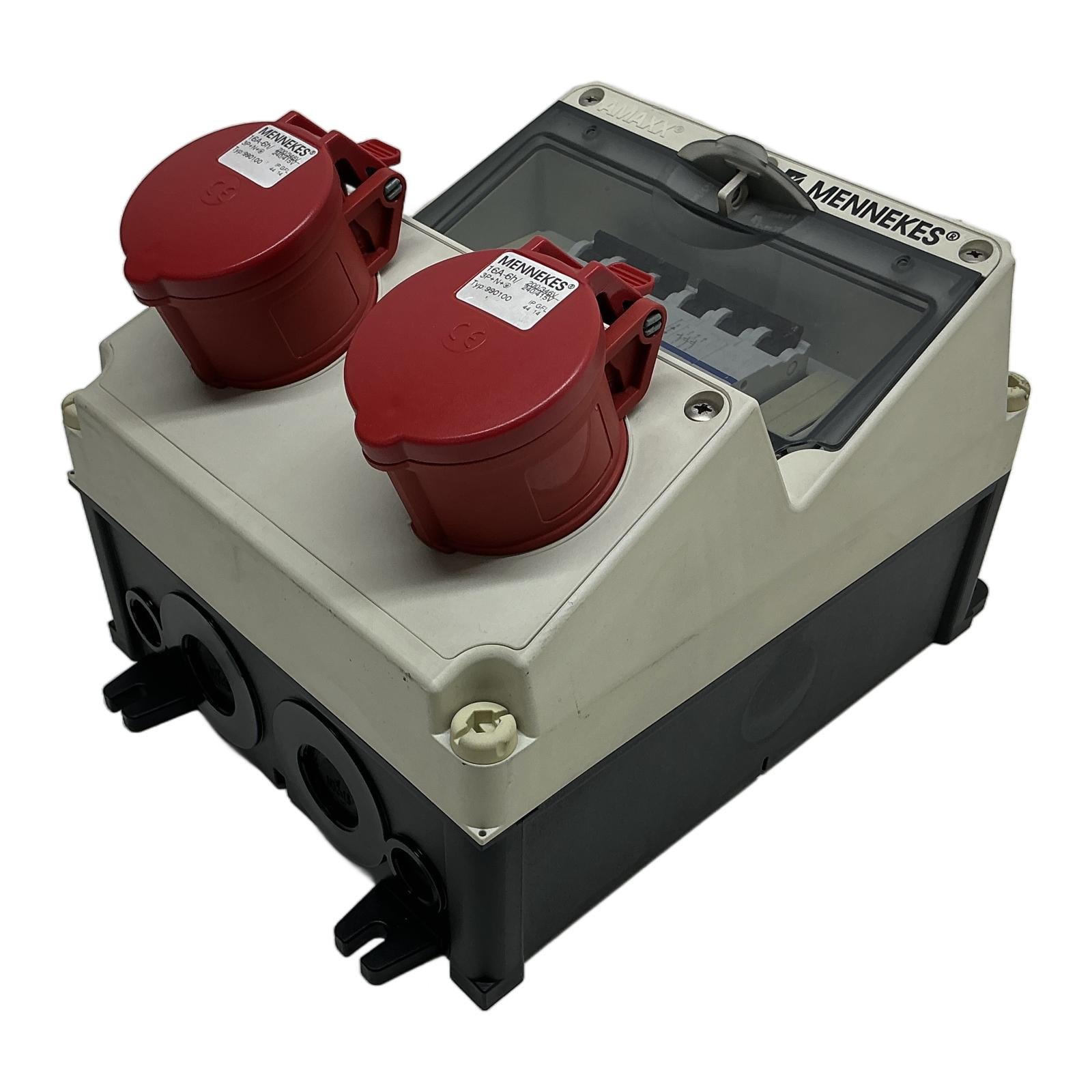

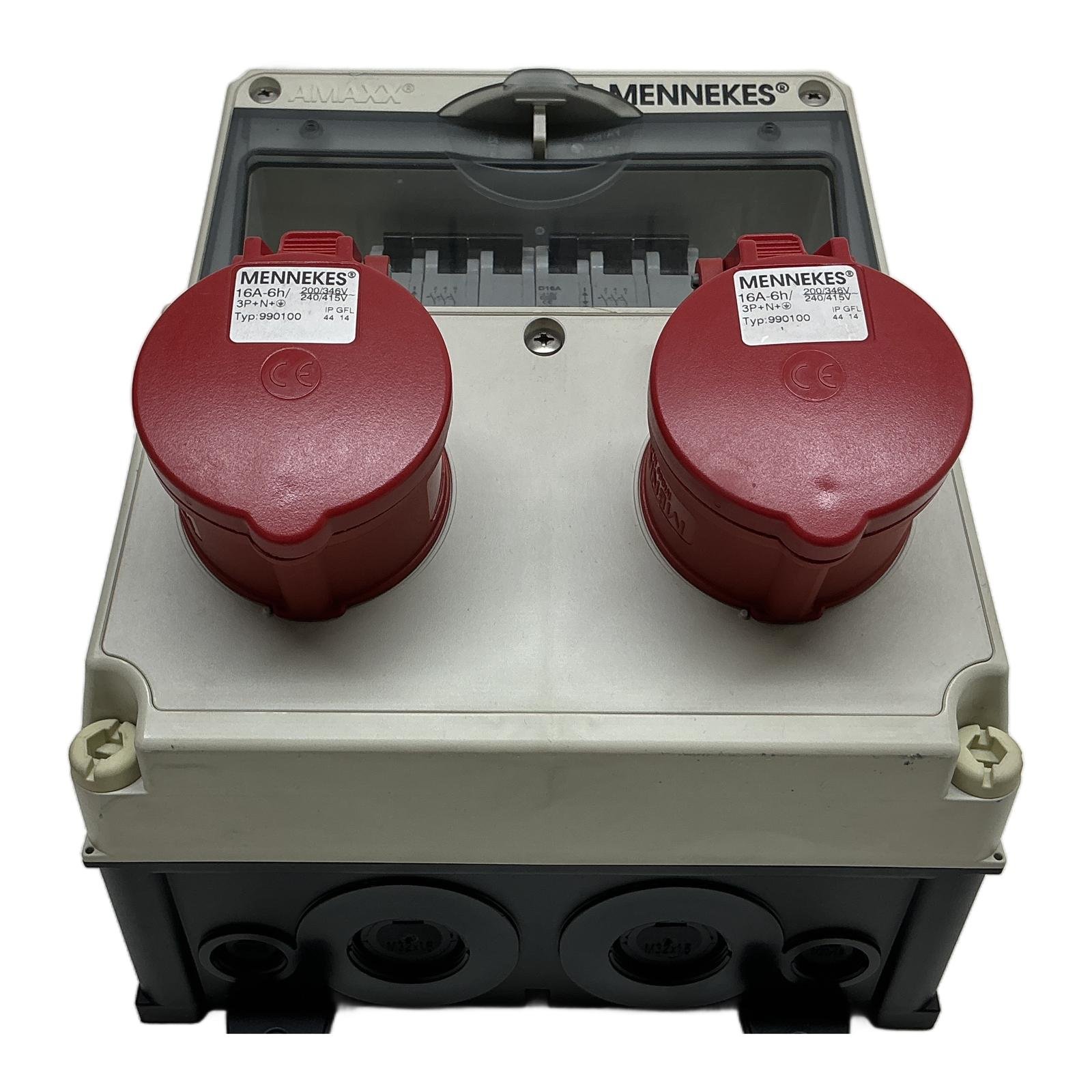

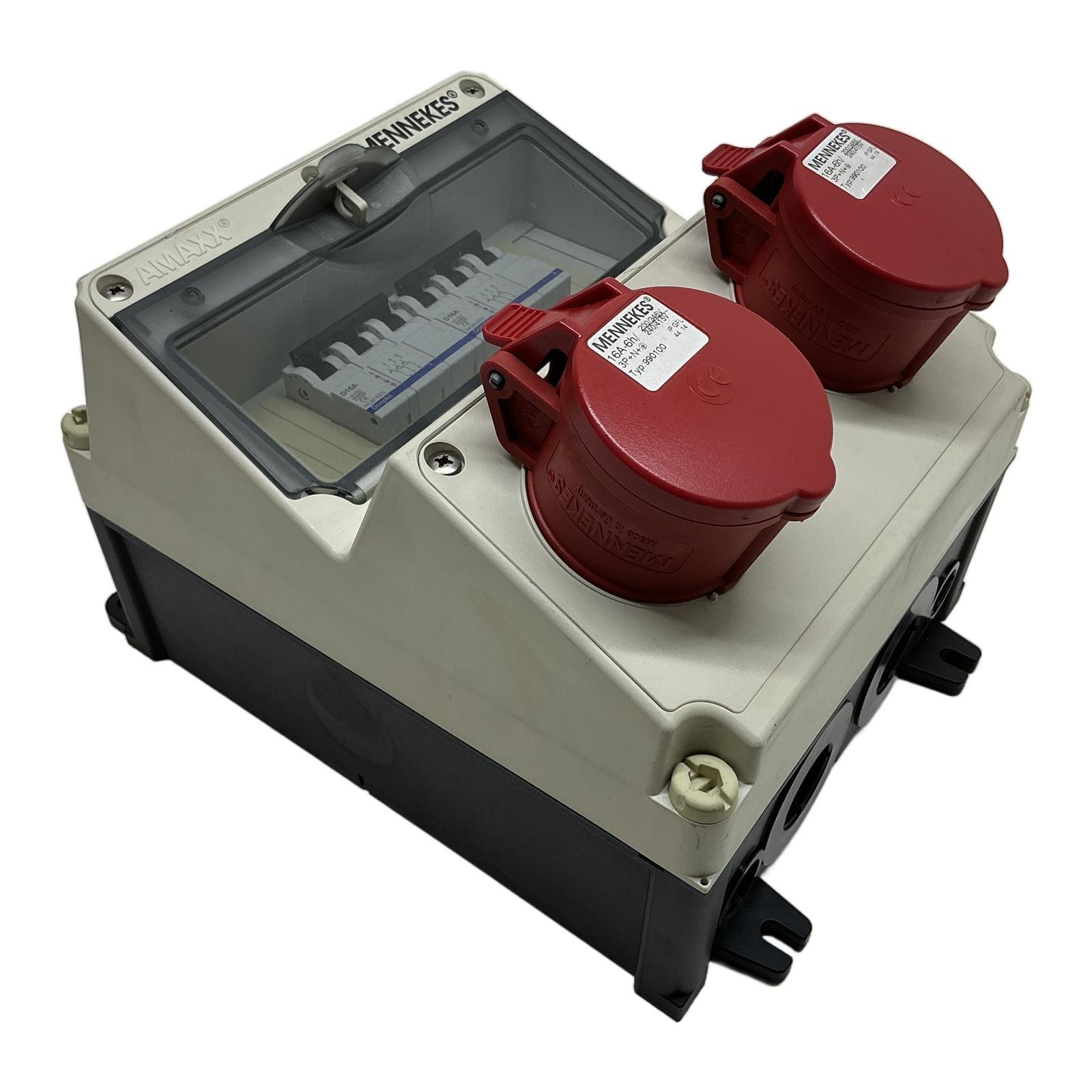

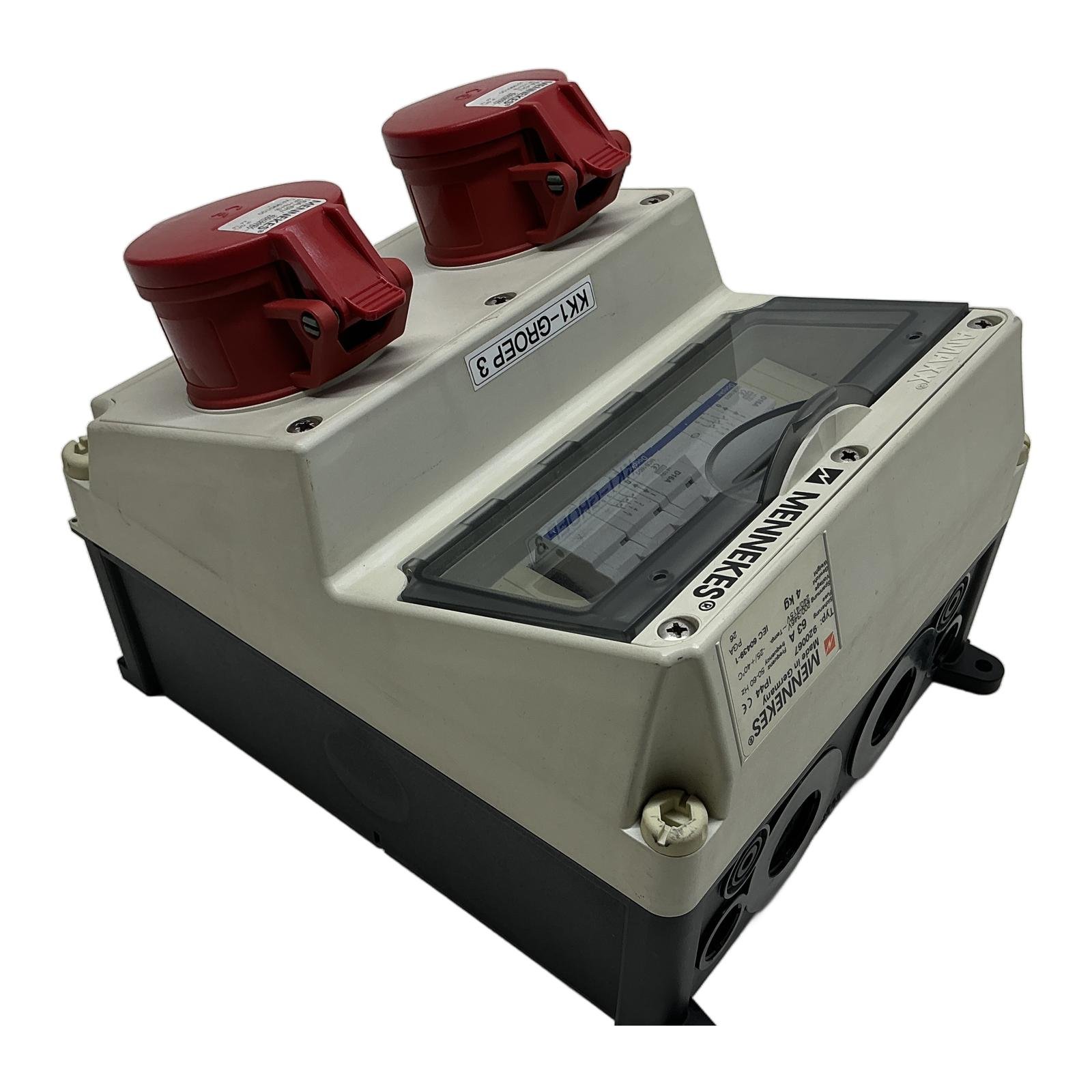

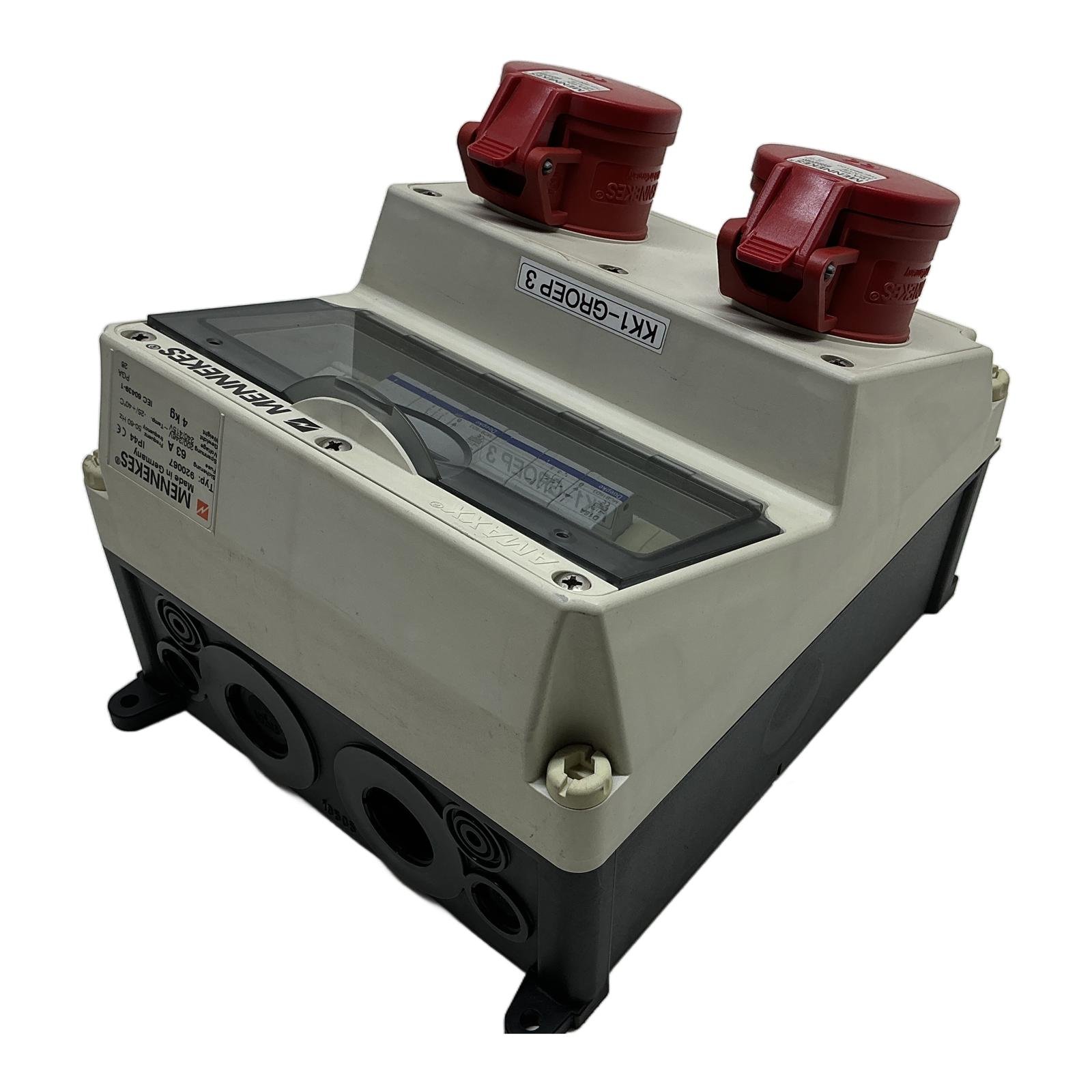

Mennekes AMAXX Power Distribution Box Description The Mennekes AMAXX 920067 is a highly durable and versatile socket combination box, designed for providing safe and reliable power in demanding industrial environments. This pre-wired unit simplifies installation and ensures compliance with safety standards. It features a rugged enclosure with a transparent, lockable window for easy inspection and access to the internal circuit breakers. This model is equipped with two CEE sockets for three-phase power connections. Specifications Manufacturer: Mennekes Series: AMAXX Model: 920067 Input Voltage: 200/346V to 240/415V AC Frequency: 50-60 Hz Max Input Current: 63 A Output Sockets: 2x CEE 16A, 5-pin (3P+N+E), 6h, 400V Protection Class: IP44 (splash-proof) Housing Material: Plastic Label Info Typ: 920067 Sicherung/Fuse: 63 A Spannung/Voltage: 200/346V – 240/415V Standard: IEC 60439-1 Application Ideal for use in workshops, construction sites, manufacturing plants, and event venues where robust and mobile power distribution is required. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned unit prevents the emission of approximately 160 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorption of 8 trees over a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can the internal circuit breakers be changed or upgraded?Yes, the AMAXX series uses a standard DIN rail. You can replace the existing breakers with others of a suitable rating, provided they physically fit and are compliant with local electrical codes. What does the ‘6h’ on the socket mean?The ‘6h’ (6 o’clock) designation refers to the position of the earth pin relative to the keyway on the socket. This is a standard IEC 60309 convention to ensure that plugs and sockets of different voltage and frequency ratings cannot be connected. 6h is standard for 380-415V three-phase systems. Is this unit suitable for outdoor use?With an IP44 rating, this unit is protected against splashing water from all directions. It is suitable for use in covered outdoor areas or locations where it is not exposed to direct, heavy rain or water jets. For full outdoor exposure, a unit with a higher IP rating (e.g., IP67) would be recommended. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
