GESTRA 930/25/1/M/F5 DN25 PN10-40 58300003

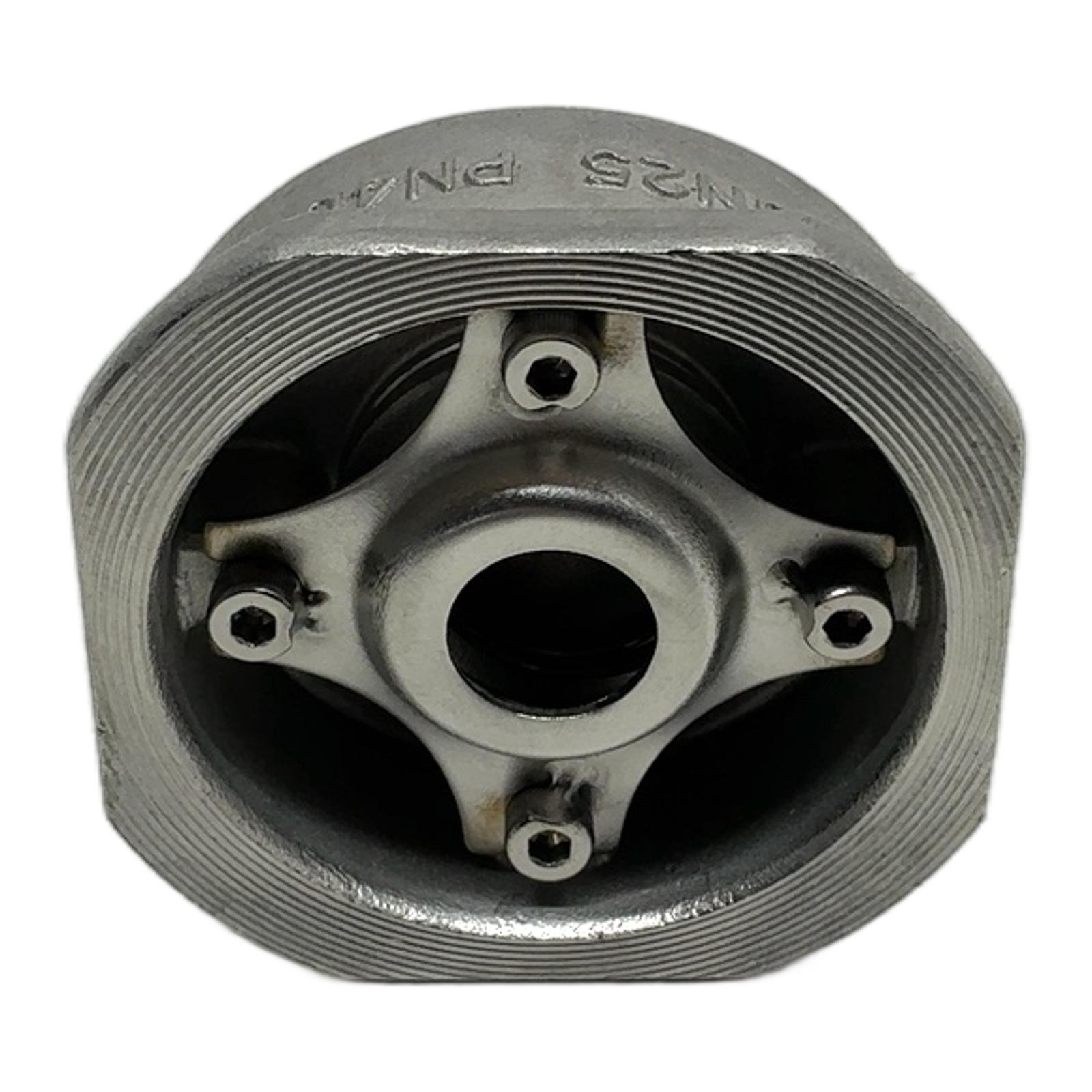

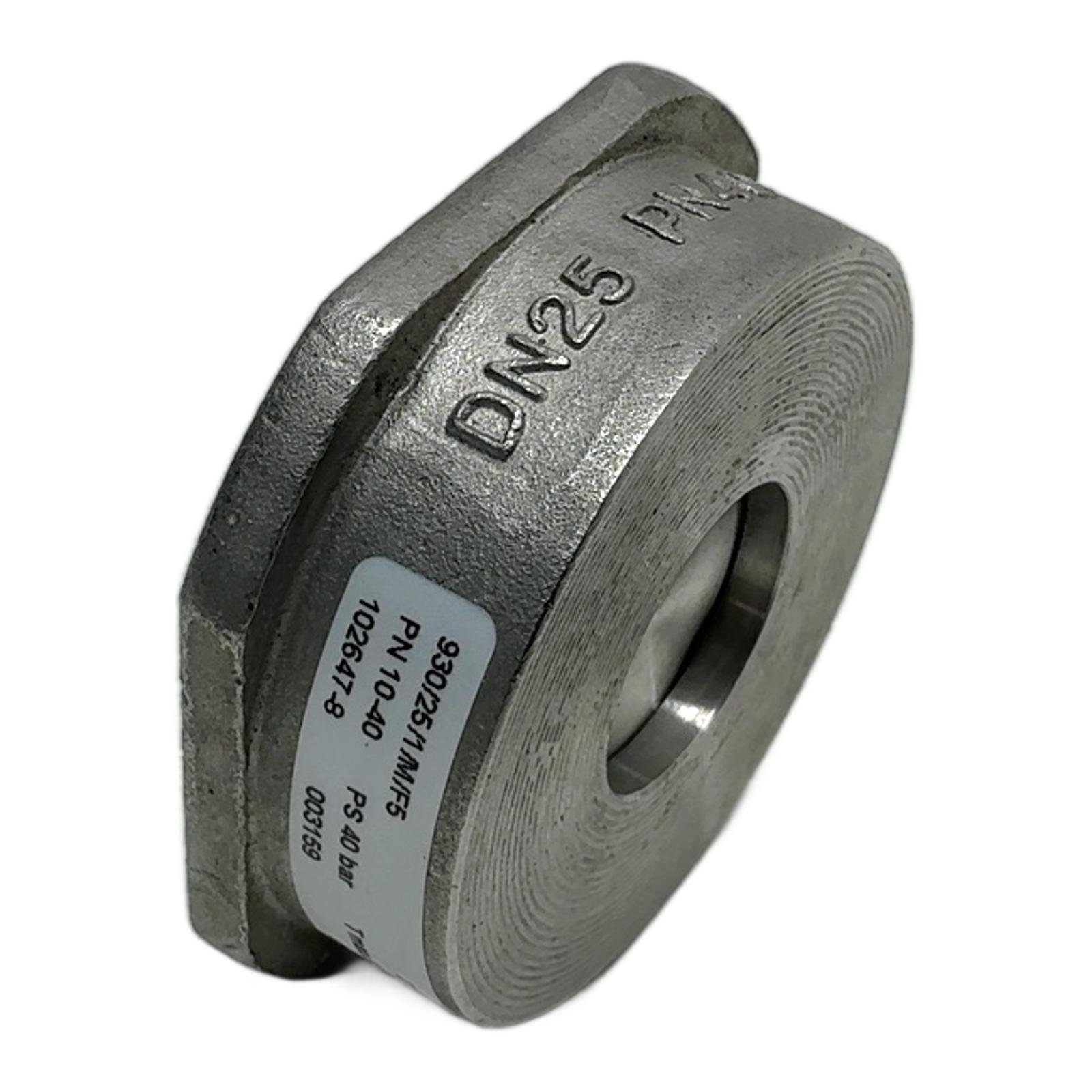

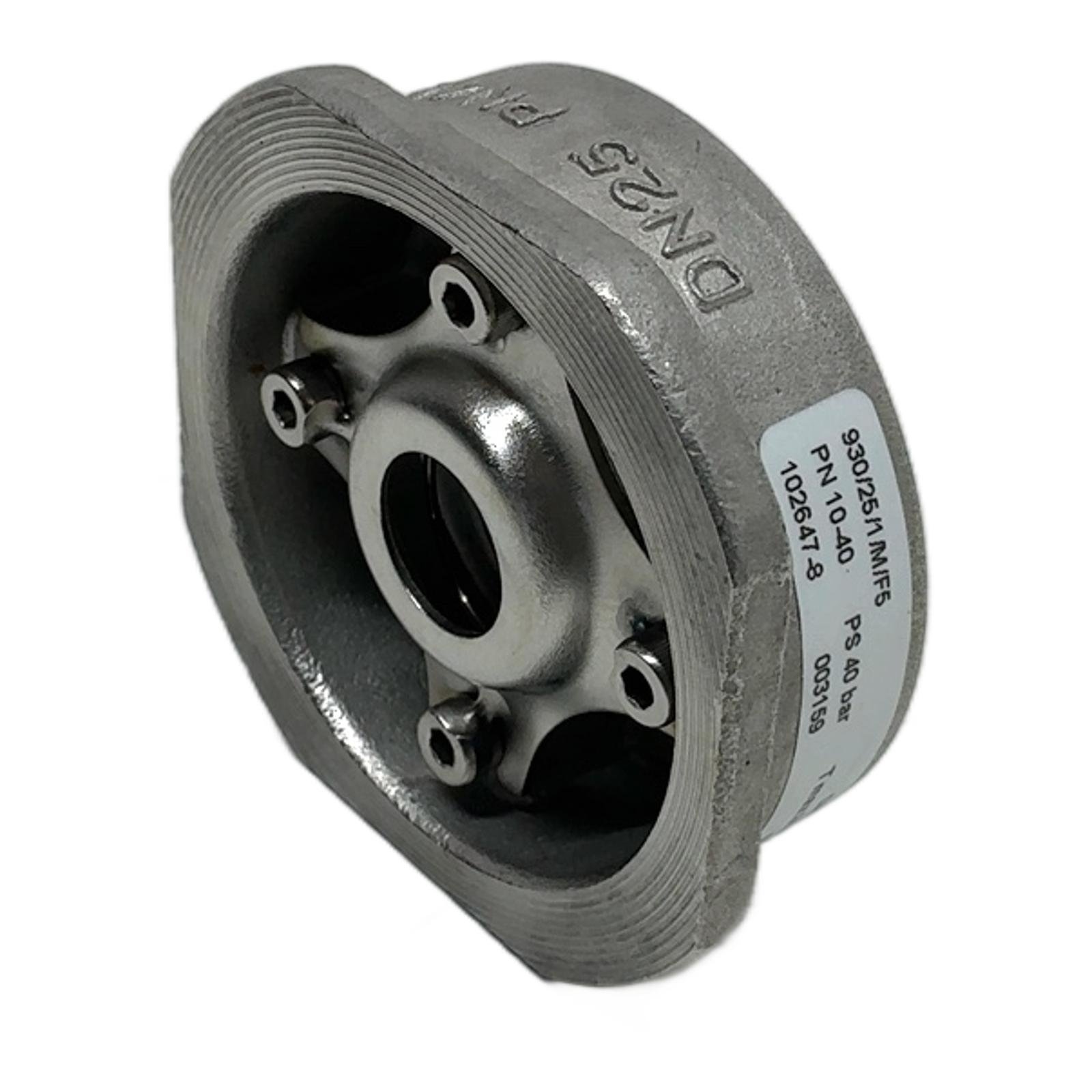

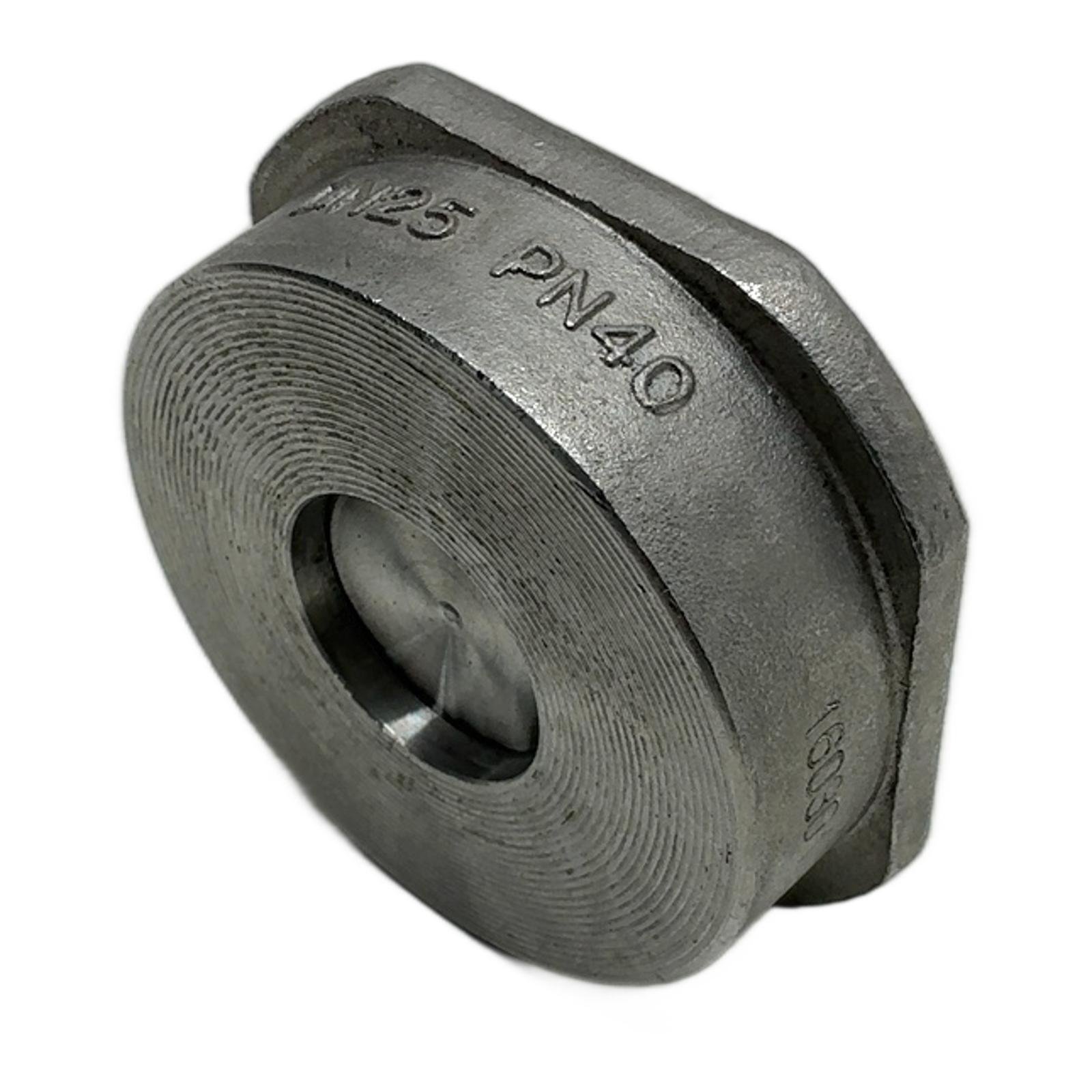

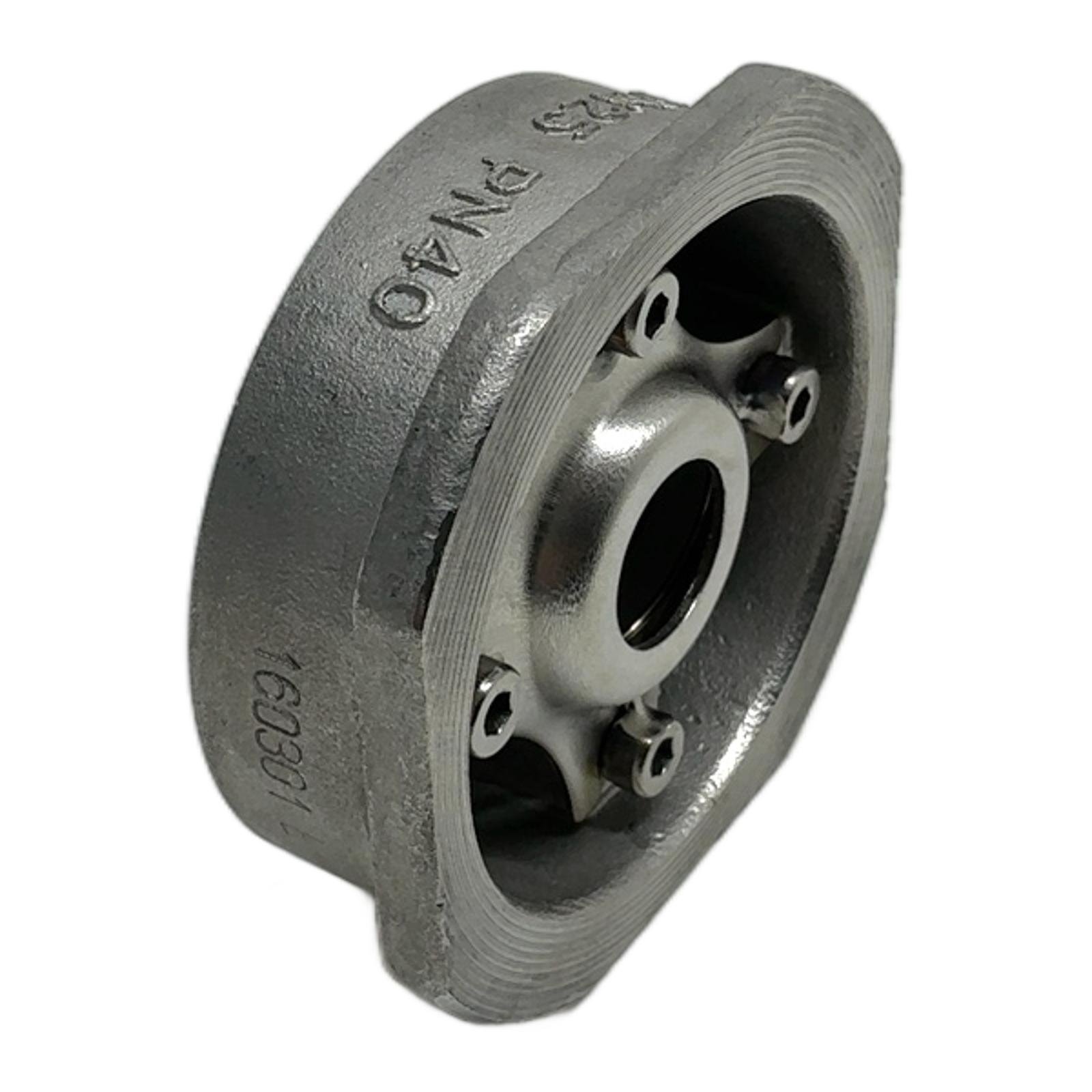

Gestra DN25 PN40 DISCO Non-Return Valve Description This is a high-quality DISCO non-return valve from Gestra, part of the proven RK series. With a nominal diameter of DN25 and a pressure rating up to PN40, this valve is designed for reliable prevention of backflow in demanding industrial applications. Its wafer-type design allows for easy installation between flanges, making it a space-saving and efficient solution for liquid, gas, and steam systems. Specifications Manufacturer: Gestra Type: Check Valve / Non-Return Valve Model: 930/25/1/M/F5 Order Number: 58300003 Nominal Diameter (DN): 25 Pressure Rating (PN): 10 to 40 Max. Allowable Pressure (PS): 40 bar Max. Allowable Temperature (Tmax): 300 deg C Connection Type: Wafer (for installation between flanges) Label Info 930/25/1/M/F5 PN 10-40 PS 40 bar T max.300 C 102647-8 Date: 05/17 Application Ideal for use in heating systems, industrial process lines, water treatment plants, and steam applications where preventing reverse flow is critical for system safety and efficiency. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 1.5 kg of CO2 emissions associated with the production of a new part. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the cracking pressure of this Gestra valve?The cracking pressure for Gestra DISCO valves is very low by design to minimize pressure drop. The exact value depends on the installation orientation (horizontal vs. vertical) but is typically in the millibar range. Is this valve suitable for vertical pipeline installation with upward flow?Yes, the spring-assisted design ensures positive closure in any installation position, including vertical pipelines with upward or downward flow. What materials are the main components made from?While specific configurations vary, a common construction for this series is a carbon steel body (P240GH / 1.0460) with stainless steel internals (plate, spring) for durability and corrosion resistance. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Friday, March 13, 2026
