ABB ACS800-01-0011-3+E200

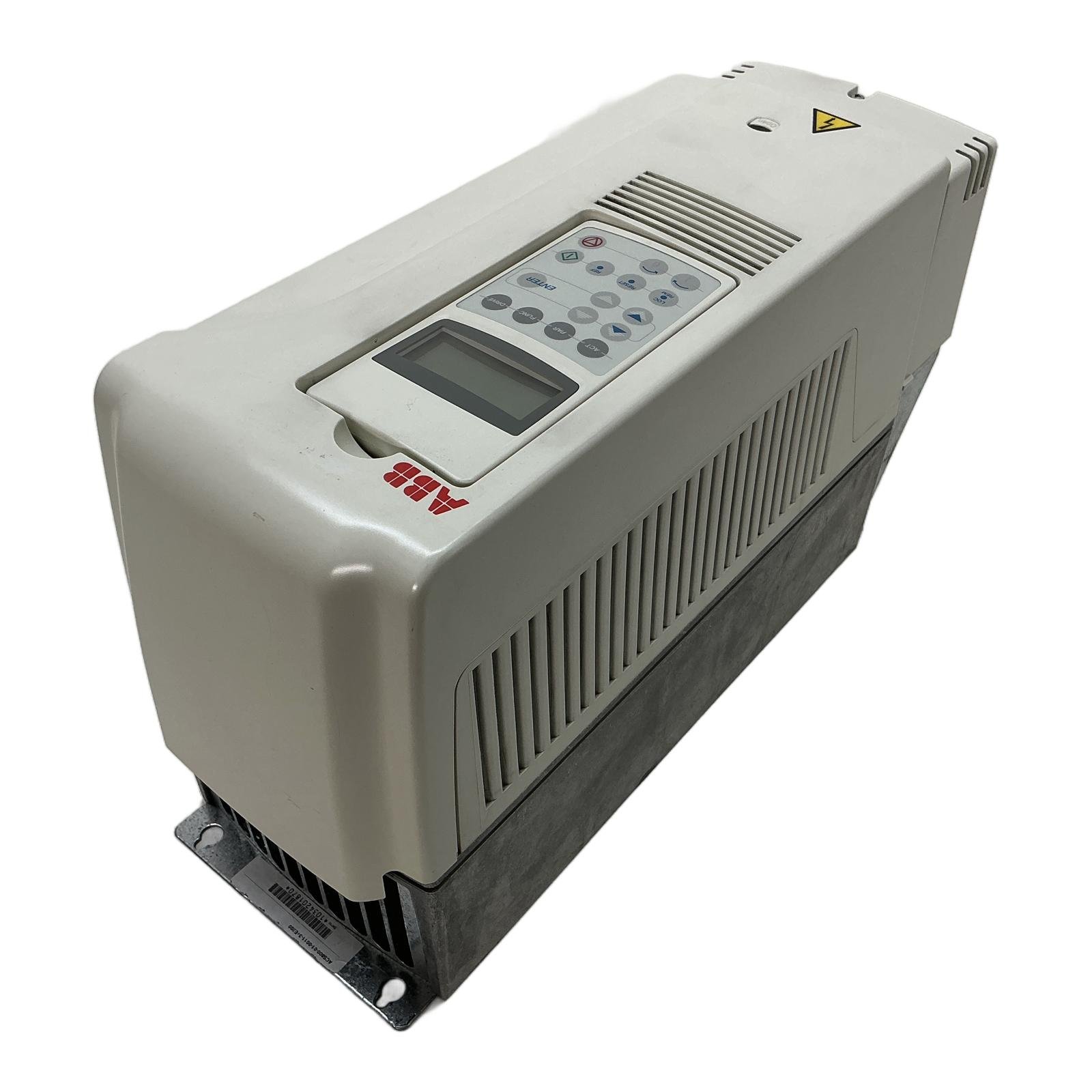

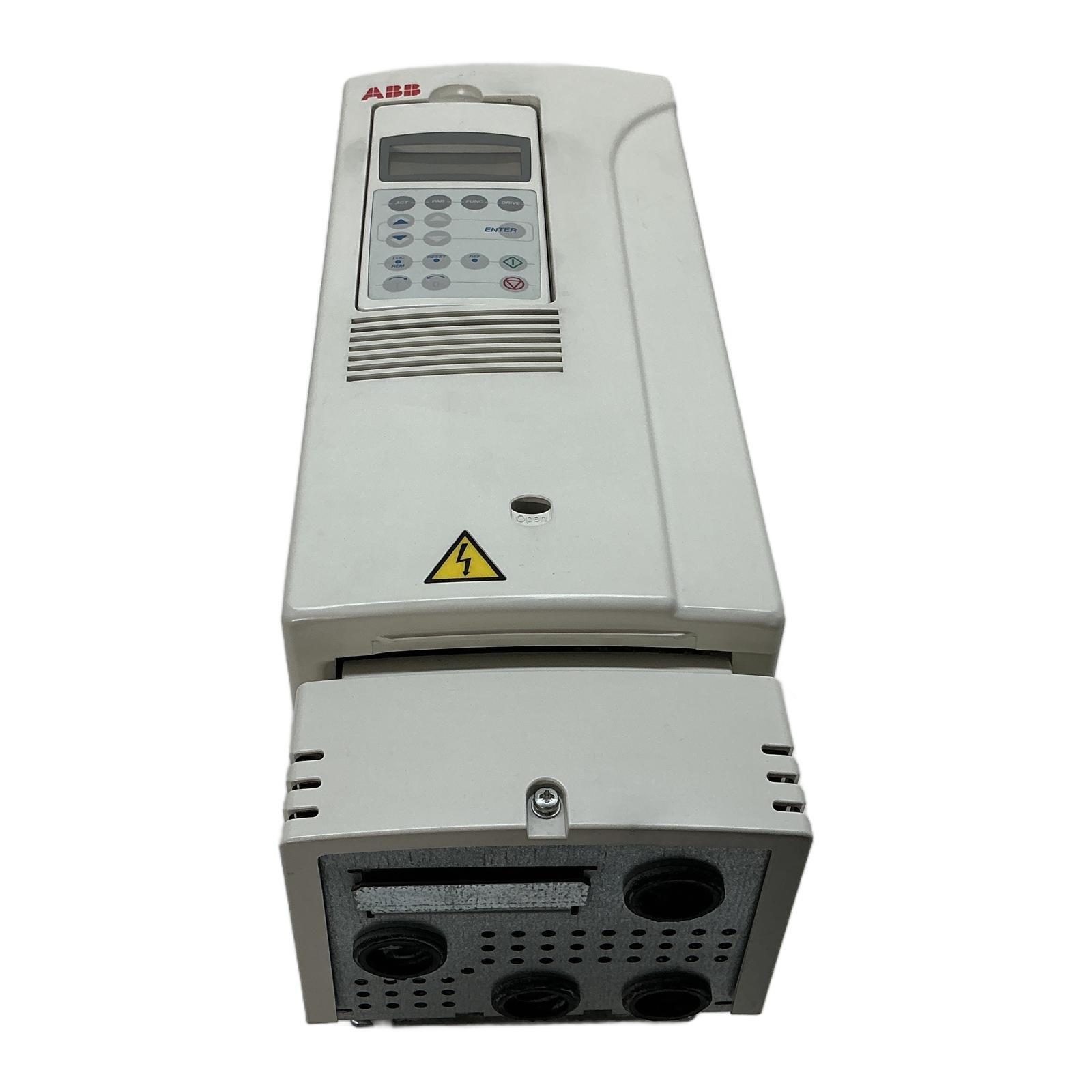

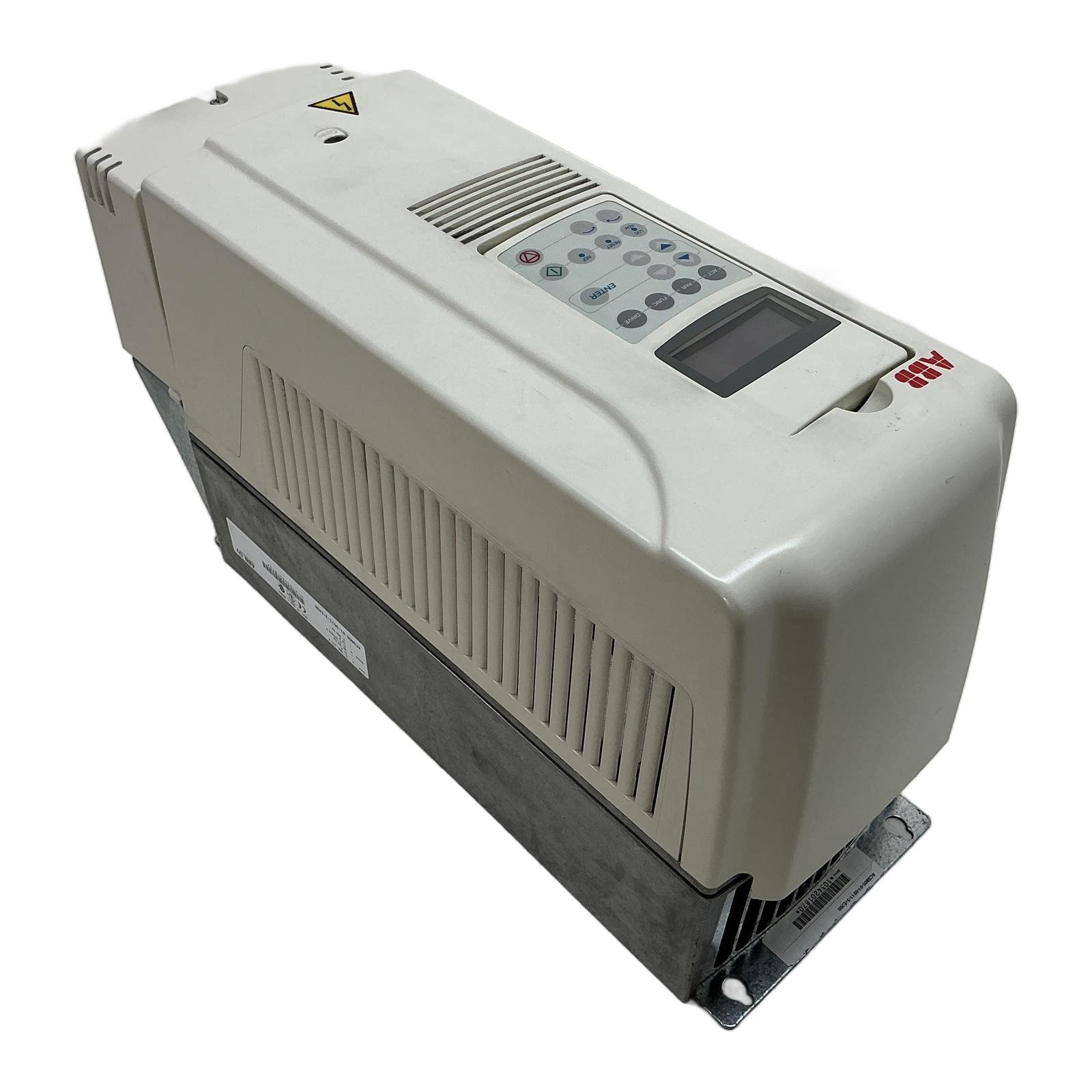

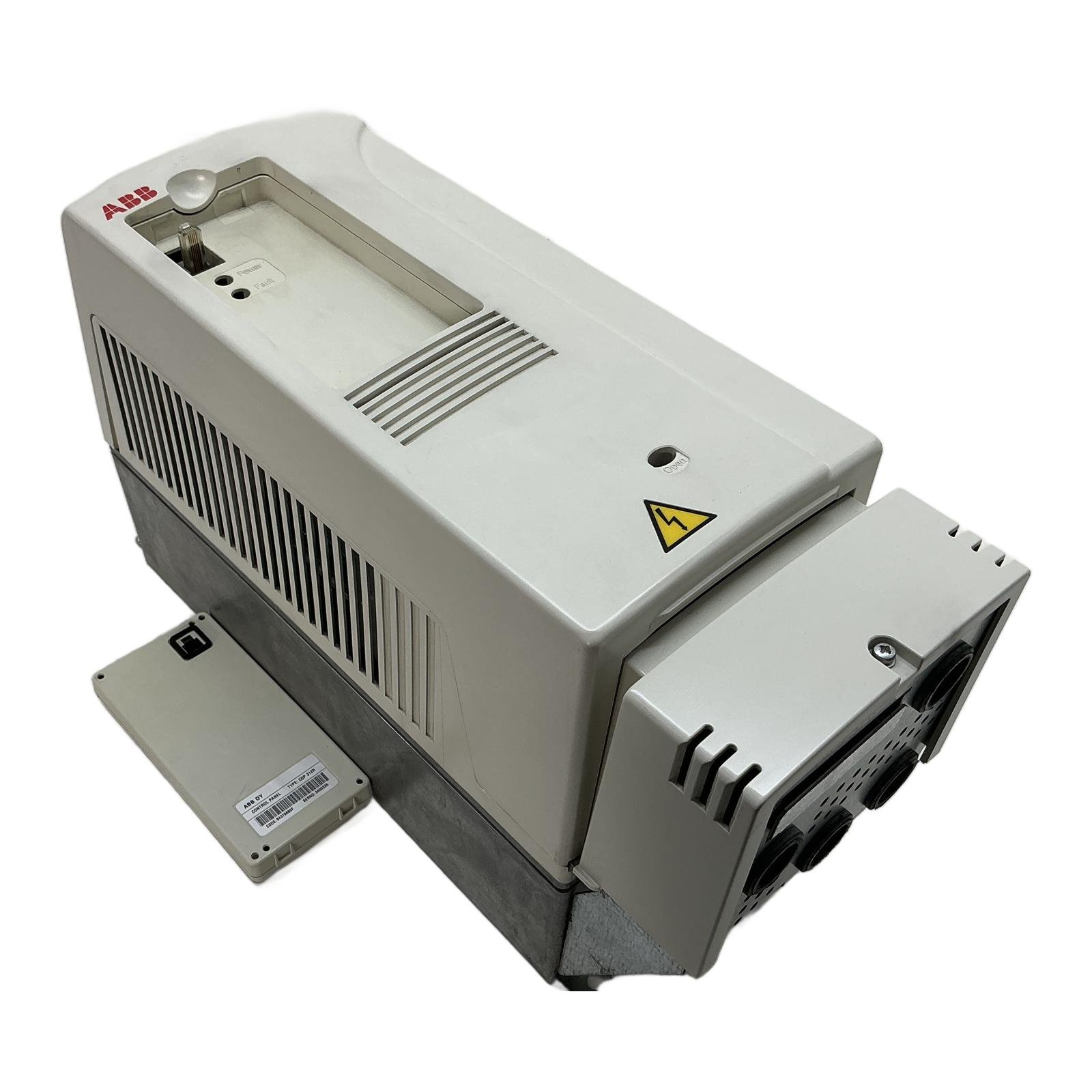

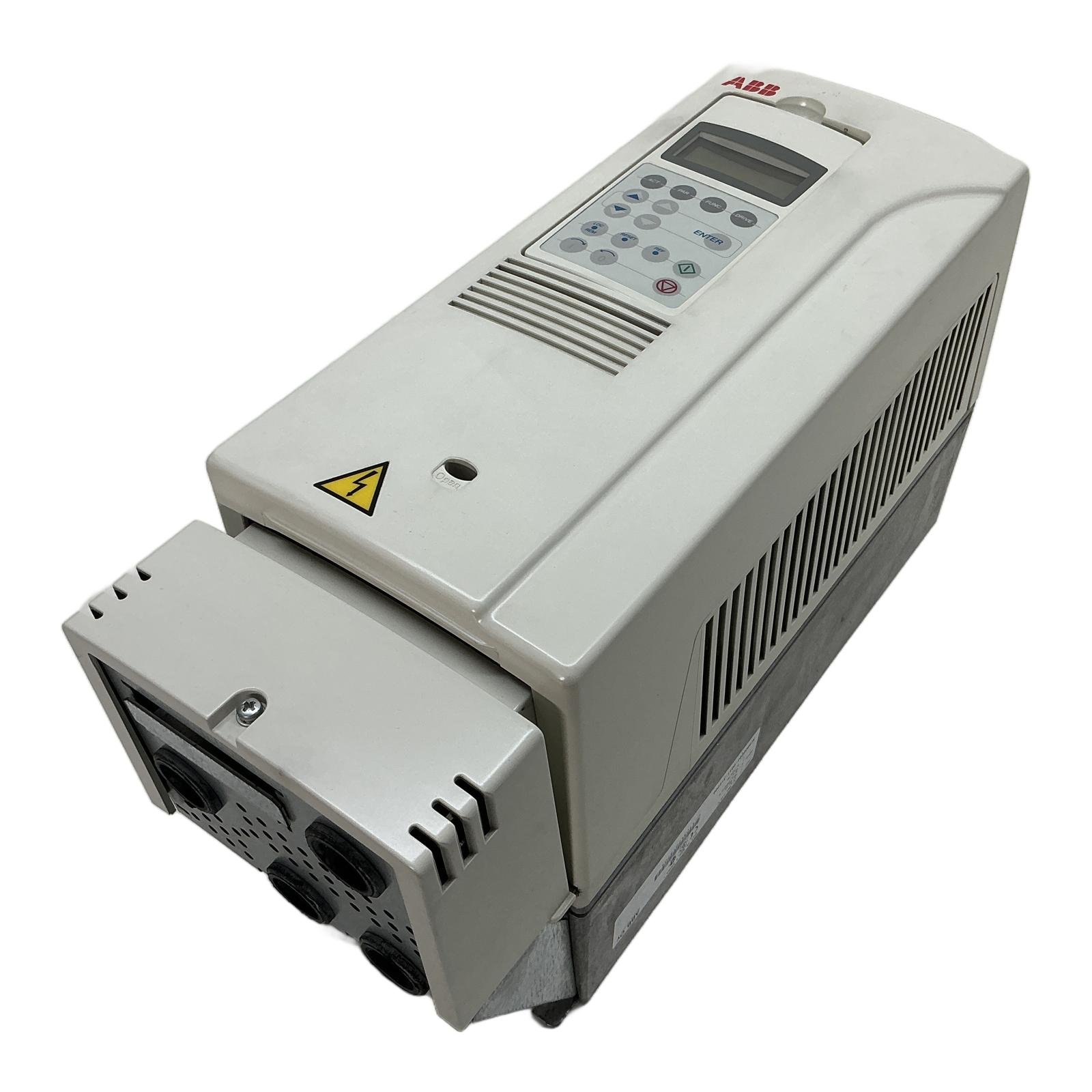

ABB ACS800-01-0011-3+E200 Frequency Drive Description The ABB ACS800-01-0011-3+E200 is a high-performance, wall-mounted AC drive designed for industrial motor control applications. Part of the renowned ACS800 series, it provides precise and dynamic control of motor speed and torque, thanks to ABB’s Direct Torque Control (DTC) technology. This 5.5 kW unit is suitable for a wide range of machinery, from pumps and fans to conveyors and mixers. This unit includes the +E200 option for an integrated EMC filter and is supplied with a detachable CDP 312R control panel. Specifications Power Rating: 5.5 kW (Heavy-Duty) Input Voltage: 3-phase 380 to 415 V AC Output Voltage: 3-phase 0 to Input V AC Enclosure Rating: IP21 / UL Type 1 / NEMA 1 Control Technology: Direct Torque Control (DTC) Control Panel: Includes removable CDP 312R panel (Type: CDP 312R, Code: 64378660F) Option Code: +E200 (EMC filter, C3) Label Info Input: 3~ 380…415 V, 17 A, 48…63 Hz Output: 3~ 0…Uinput V, 19 A, 0…300 Hz Serial Number: 1034201870 Application Ideal for controlling AC induction motors in various industrial settings including manufacturing, HVAC, water/wastewater, and material handling. Its robust design ensures reliability in demanding environments. Country of Origin Made in Finland. CO2 Impact Choosing this pre-owned drive over a new one saves approximately 210 kg of CO2, which is comparable to the emissions from driving a car for 1050 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main benefit of the Direct Torque Control (DTC) feature in this ACS800 drive?Direct Torque Control (DTC) is ABB’s signature motor control technology. It provides highly accurate and rapid torque and speed control without the need for an encoder on the motor shaft. This results in superior process control, reduced mechanical stress, and reliable operation even with sudden load changes. Can this drive be used without the CDP 312R control panel?Yes, the drive can be operated without the control panel attached. Once the parameters are set, the panel can be removed. The drive can then be controlled via its I/O terminals (start/stop signals, speed reference) or through a fieldbus communication network if a corresponding adapter is installed. The label shows an output current of 19A, but the model ‘0011’ usually corresponds to a lower current. Can you clarify?The type designation `ACS800-01-0011-3` corresponds to a nominal heavy-duty power rating of 5.5 kW with a nominal current of around 12.4A. The 19A listed on the label likely represents the maximum intermittent or overload current capacity of the drive for short durations, a critical specification for applications with high starting torque requirements. Always program the motor data and protection parameters according to your specific motor’s nameplate data. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
