SCHNEIDER ELECTRIC / TELEMECANIQUE TSXTLYEX

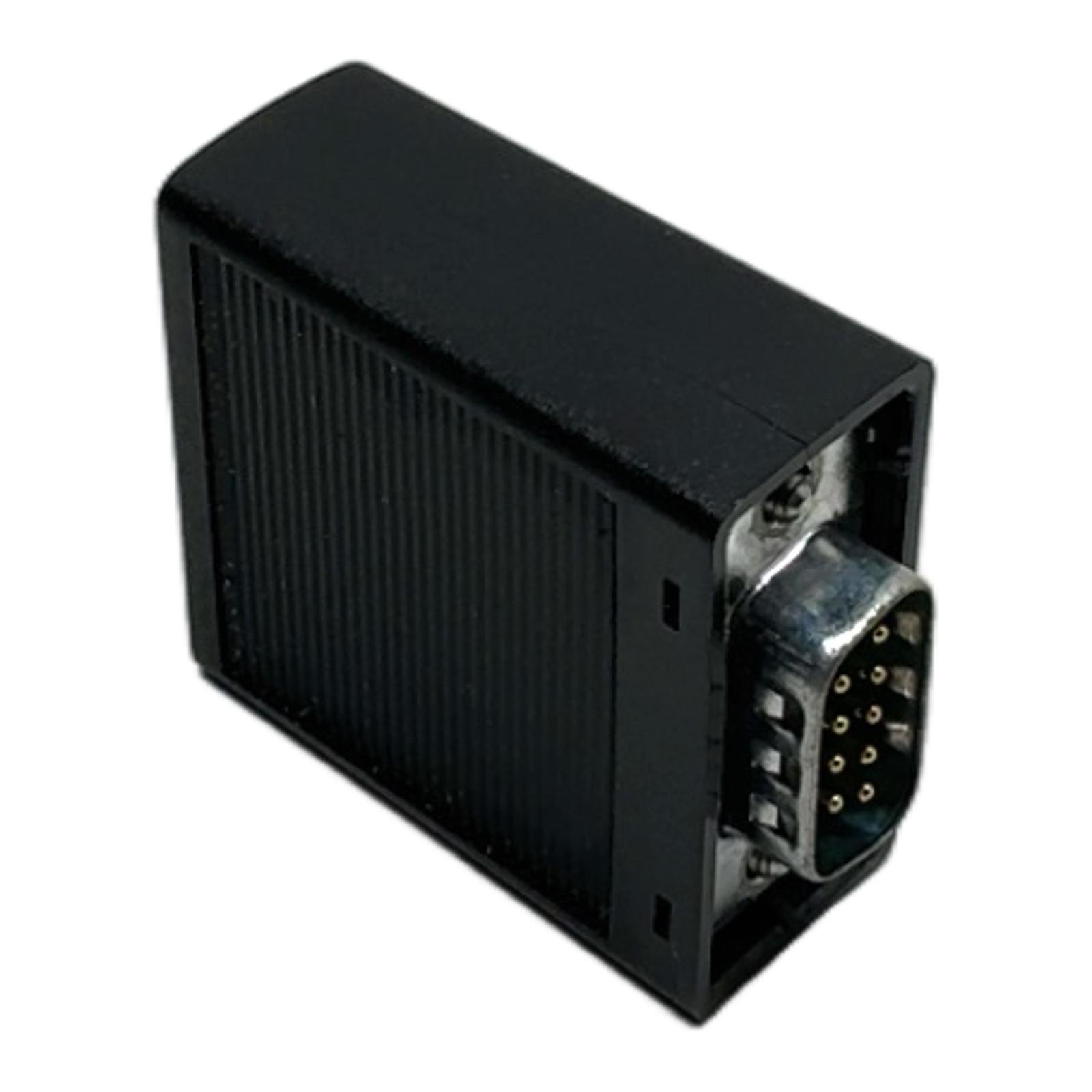

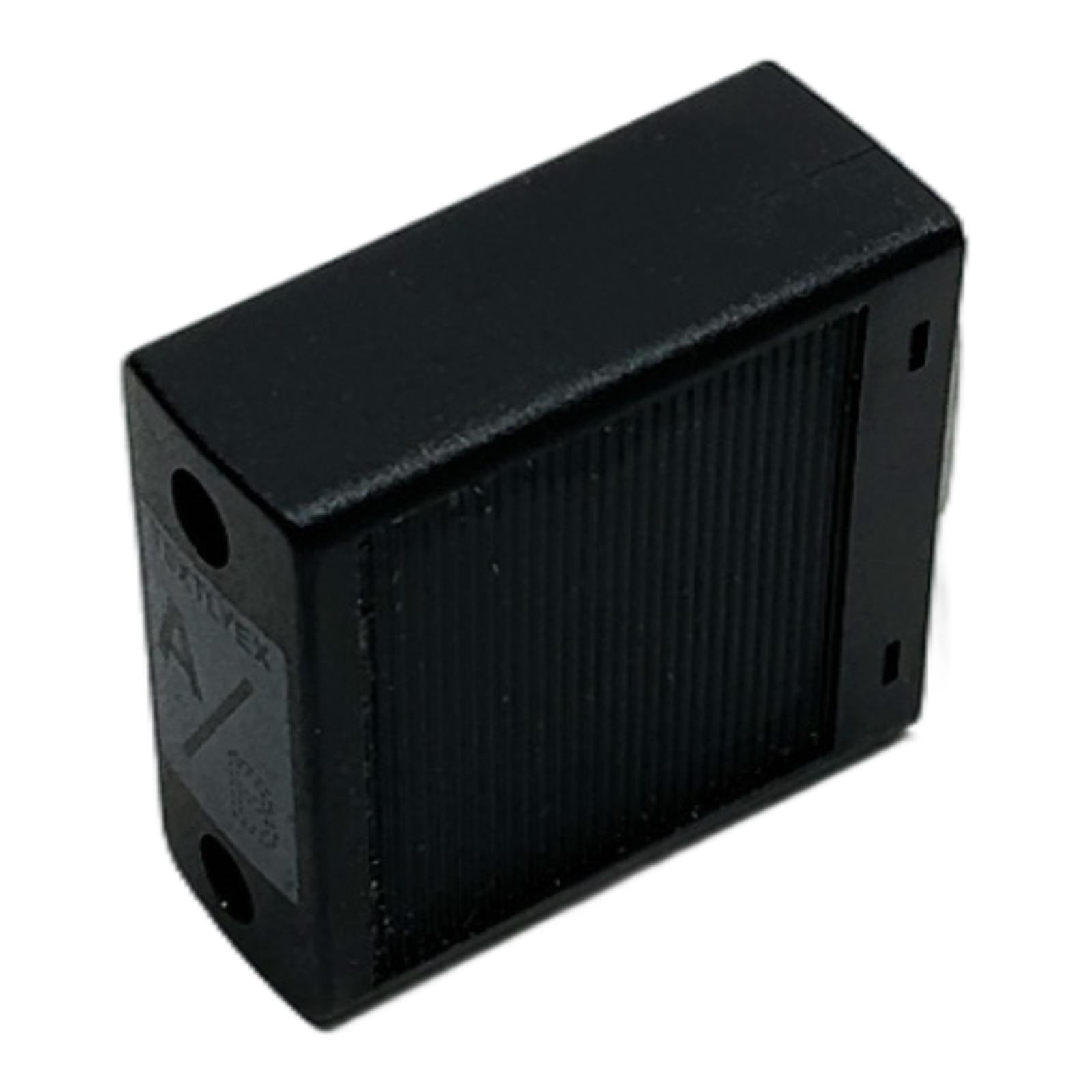

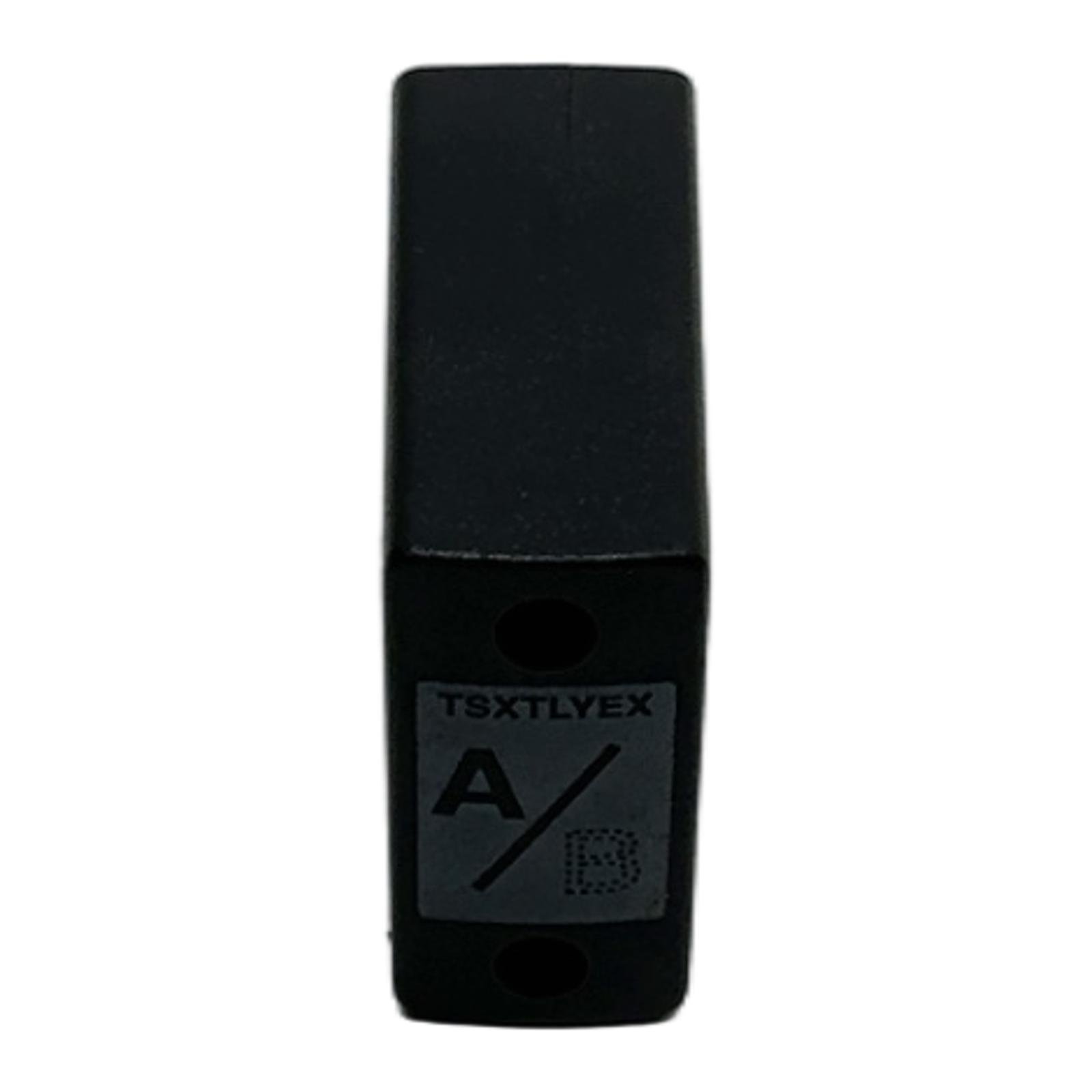

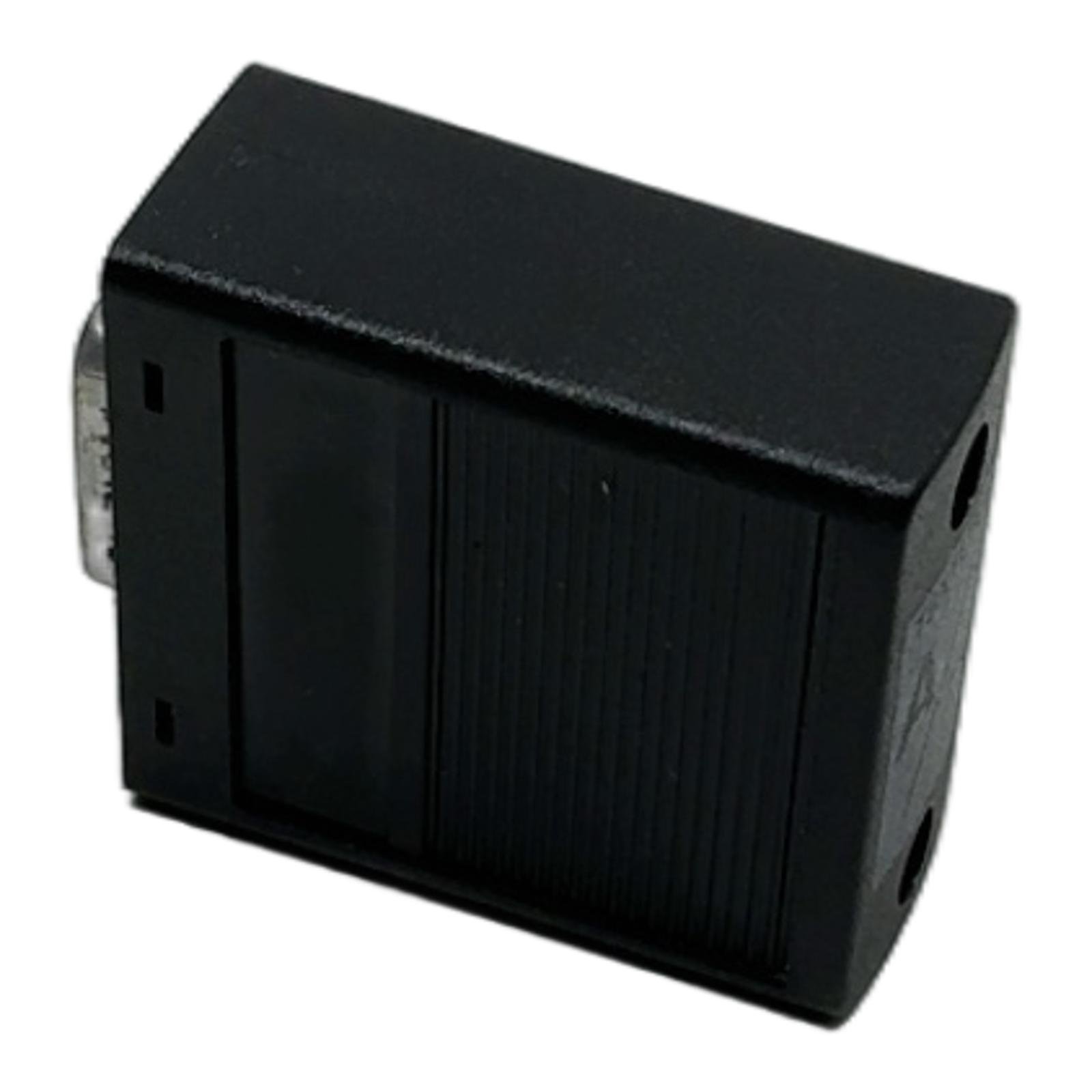

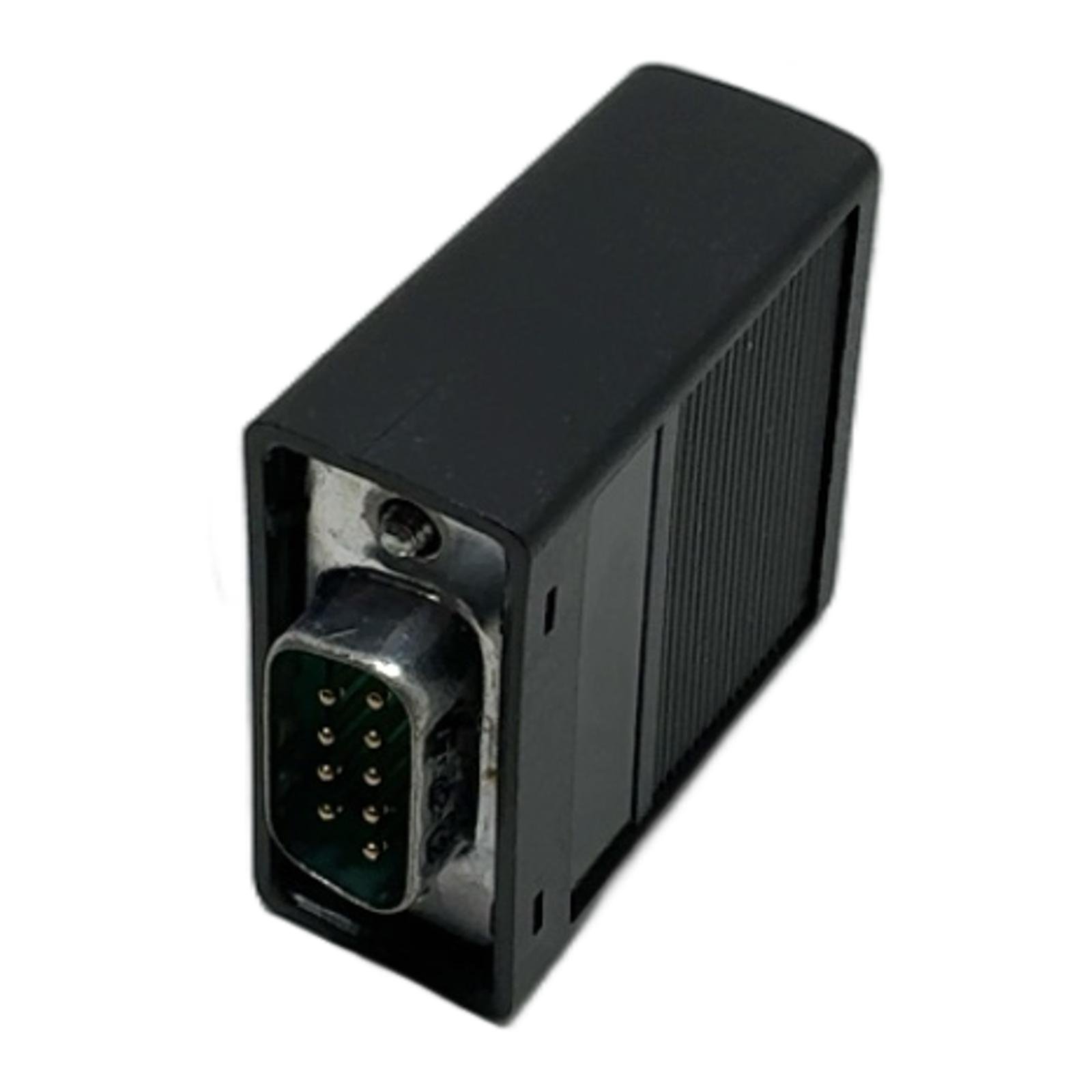

Schneider Electric / Telemecanique AS-i Bus Terminator TSXTLYEX Description The TSXTLYEX is a passive bus terminator for AS-i (Actuator Sensor Interface) networks, manufactured by Schneider Electric under the Telemecanique brand. This component is essential for maintaining signal integrity within an AS-i bus line. By terminating the end of the cable, it prevents signal reflections that can cause communication errors and system instability. Its compact form factor and standard DB9 connector allow for easy integration into existing setups. Specifications Manufacturer: Schneider Electric / Telemecanique Type: TSXTLYEX Product Type: AS-i Bus Terminator Network Compatibility: Actuator Sensor Interface (AS-i) Connector: DB9 Male Status: Obsolete Application This terminator is used in industrial automation systems that employ the AS-i network protocol. It is installed at the physical end of the bus cable to ensure reliable data transmission between the PLC master and the connected sensors and actuators. Country of Origin France CO2 Impact By purchasing this reused TSXTLYEX, you are helping to avoid the production of a new unit, which saves an estimated 2.0 kg of CO2. This saving is comparable to the emissions from driving a standard car for 10 kilometers. Availability This item is a readily available, tested spare part. Ideal for repairs or maintenance of existing AS-i installations. Order now from profideals for expert support and fast delivery. FAQ What is the function of an AS-i bus terminator like the TSXTLYEX?An AS-i bus terminator is a passive electronic component placed at both physical ends of the main bus cable. It provides a resistance that matches the cable’s characteristic impedance, which absorbs the signal energy. This prevents the signal from reflecting back down the cable, which would otherwise cause interference and data corruption. Is the TSXTLYEX compatible with all versions of the AS-i protocol?Yes, the TSXTLYEX is a passive terminator and is compatible with all standard AS-i specifications, including AS-i 2.0, 2.1, and 3.0, as the underlying physical layer requirements for termination have remained consistent. How do I install the TSXTLYEX at the end of an AS-i bus line?Installation is straightforward. The TSXTLYEX features a DB9 male connector. It should be connected to a corresponding DB9 female port located at the very end of your AS-i bus segment, typically on the last device or a dedicated connection box. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
