NSK 7900CTYNSULP4

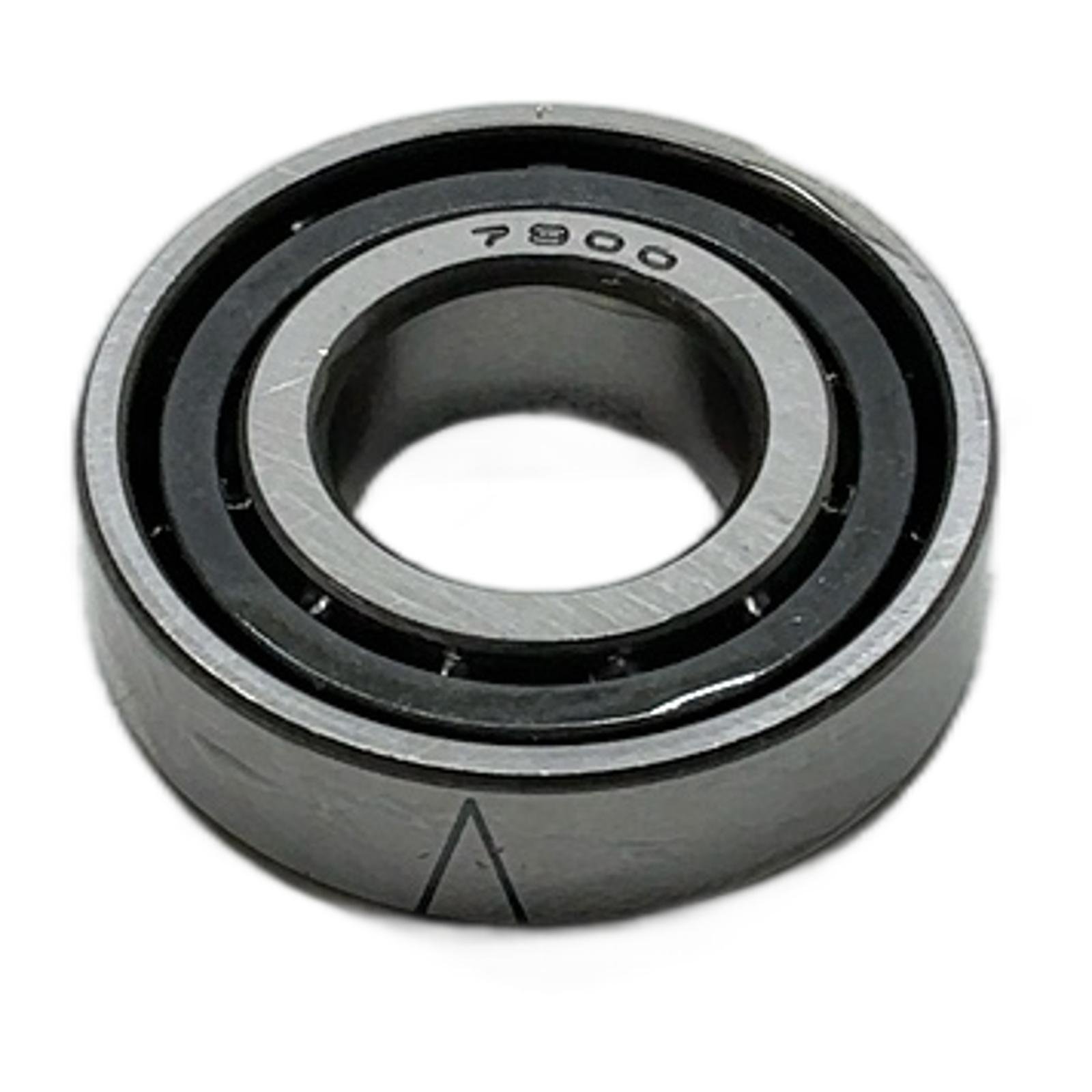

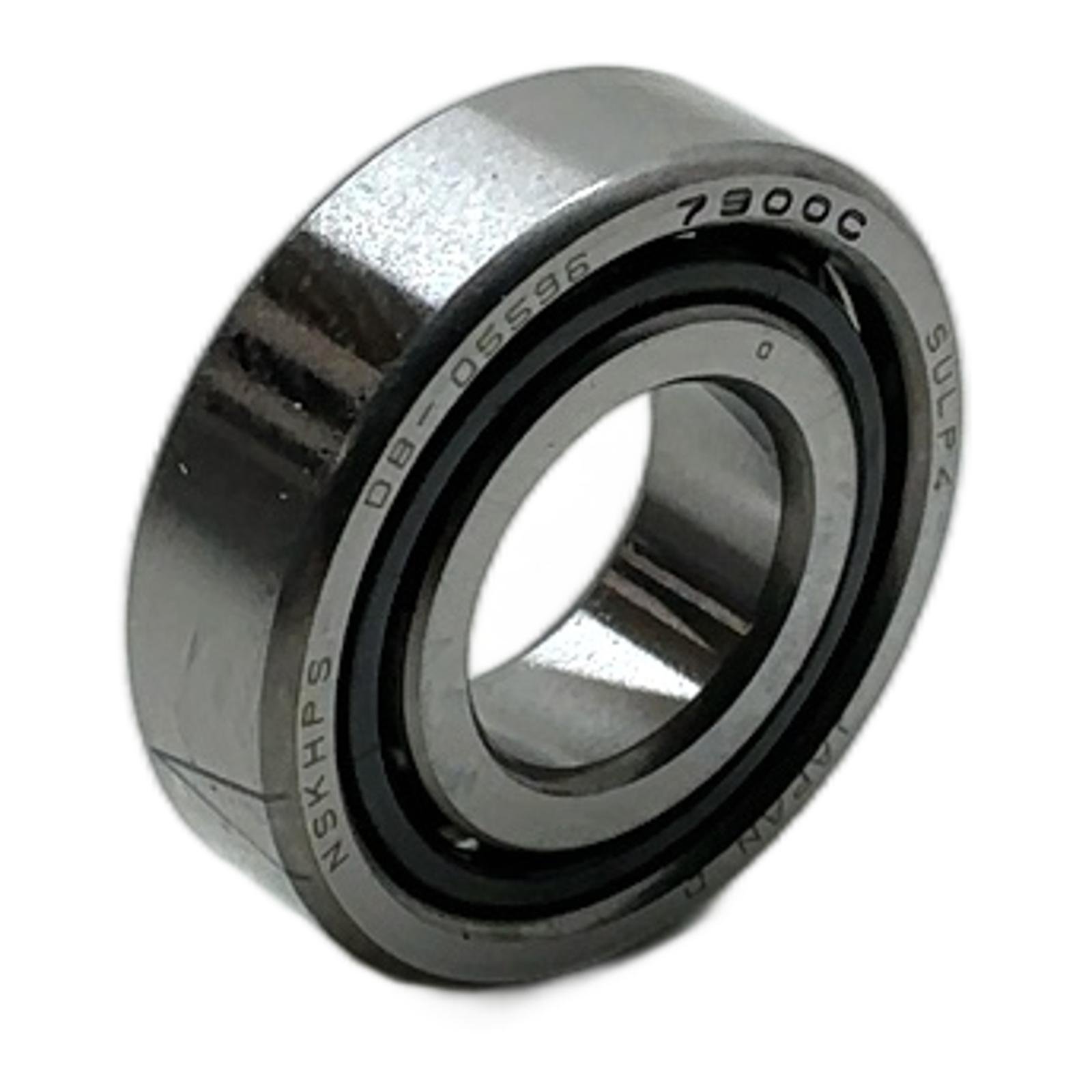

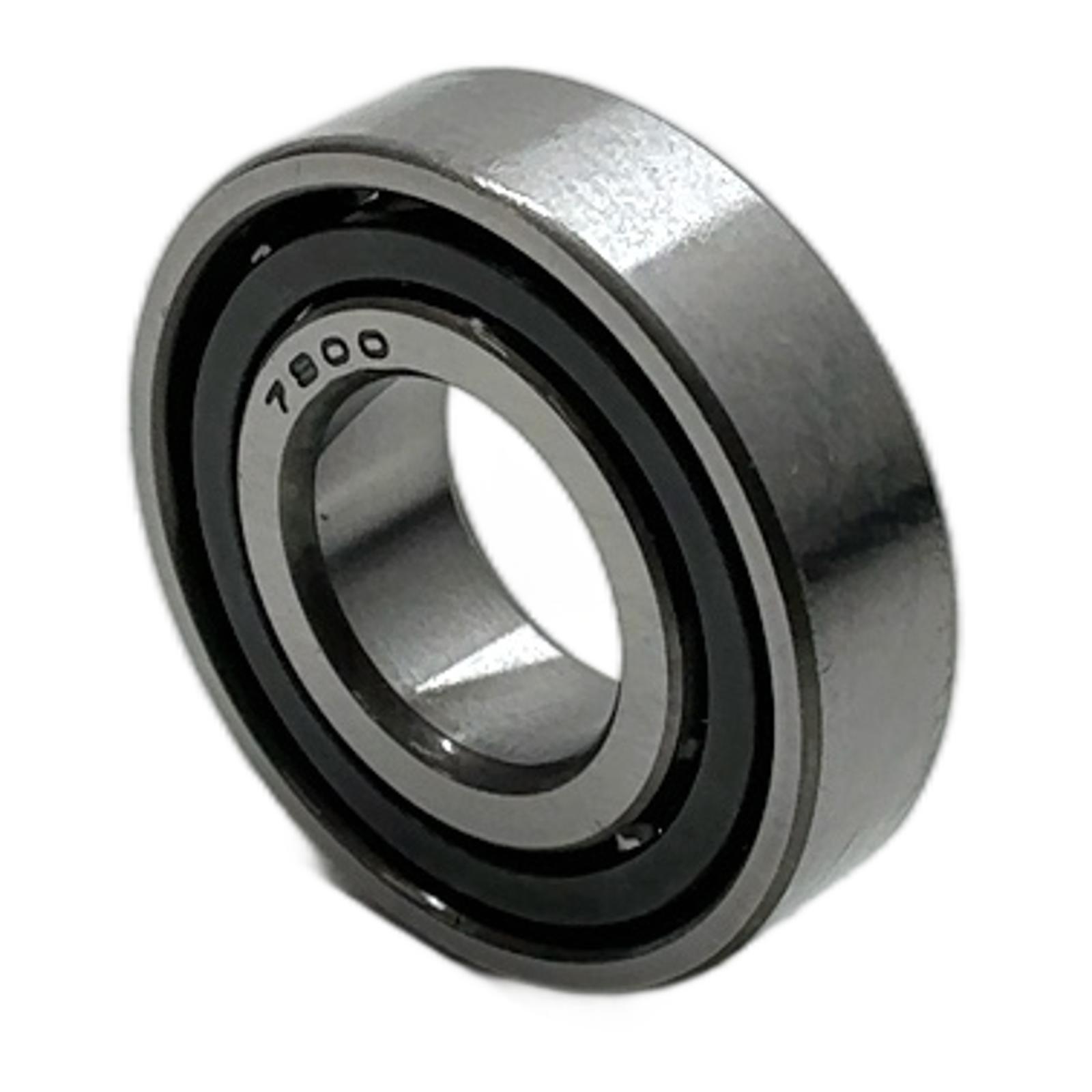

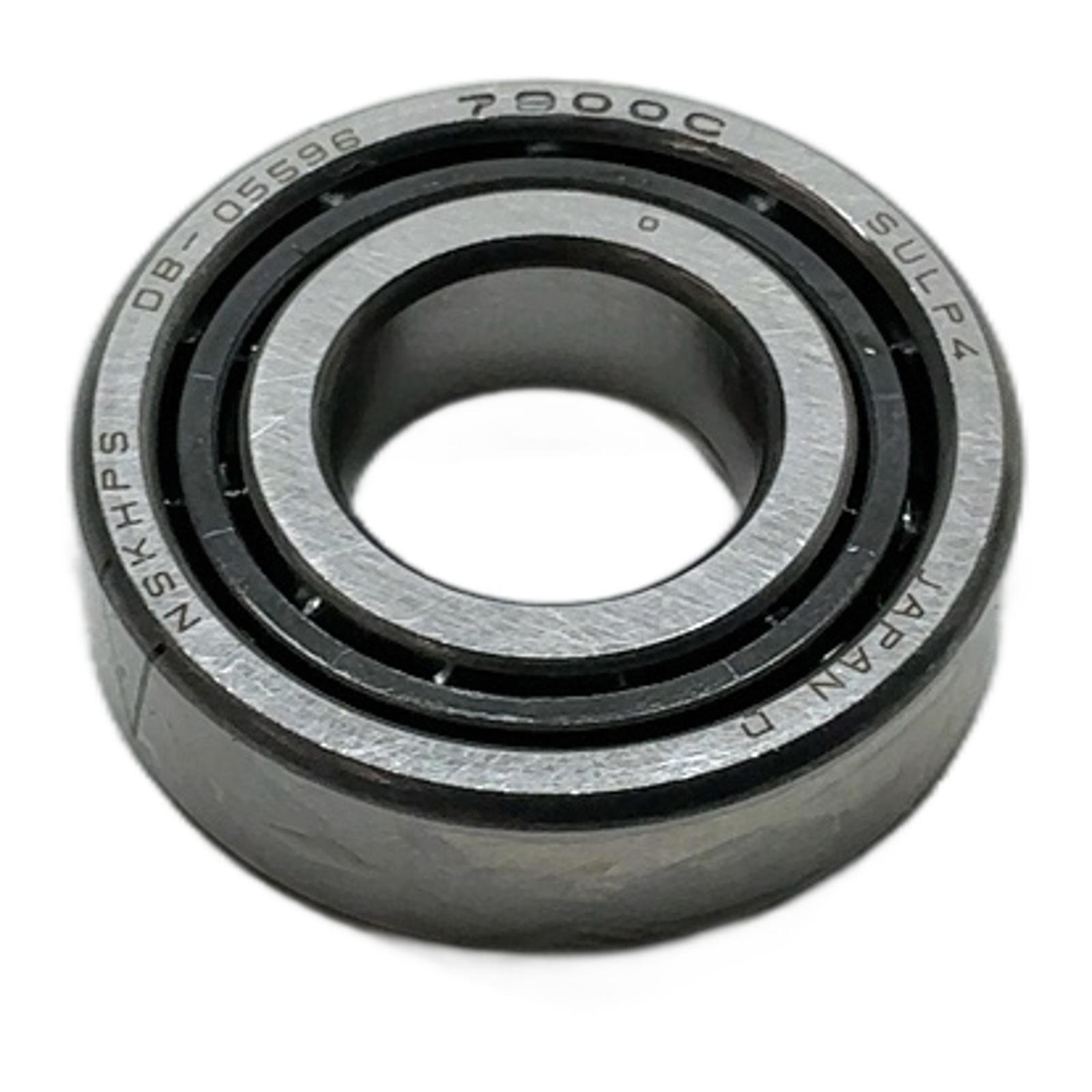

NSK 7900CTYNSULP4 High-Precision Angular Contact Bearing Description The NSK 7900CTYNSULP4 is a single-row angular contact ball bearing, part of the NSKHPS (High Performance Standard) series. It is engineered for high-speed, high-precision applications that demand rigidity and accuracy, such as machine tool spindles, robotics, and measuring instruments. The P4 precision class ensures extremely tight tolerances for superior rotational accuracy. Specifications Manufacturer: NSK Type: 7900CTYNSULP4 Series: NSKHPS Bore Diameter: 10 mm Outside Diameter: 22 mm Width: 6 mm Contact Angle: 15 degrees (C) Cage Material: Polyamide Resin (TYN) Arrangement: Universal Matching (SU) Preload: Light (L) Precision Class: P4 (ISO Class 4) Label Info Full Part Number: 7900CTYNSULP4 Additional Code: DB-05596 Application This bearing is ideal for main spindles of machine tools, high-frequency motors, printing machinery, and other applications requiring high rotational accuracy and speed under combined radial and axial loads. Country of Origin Made in Japan. CO2 Impact Opting for this component helps avoid 0.024 kg of CO2 emissions associated with the production of a new part, contributing to a more sustainable industrial practice. Availability Available from stock for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What does the ‘TYNSULP4’ suffix signify on the NSK 7900C bearing?Answer: The suffix provides critical details: ‘TYN’ indicates a high-speed polyamide resin cage. ‘SU’ means it’s for universal matching, allowing it to be used singly or in paired sets (DB, DF, DT). ‘L’ denotes a light preload, and ‘P4′ signifies a very high precision class (ISO Class 4), suitable for machine tool spindles and other high-accuracy applications. Question?What are the lubrication and mounting considerations for a P4 precision bearing like this?Answer: High-precision bearings like the 7900CTYNSULP4 require extremely clean assembly environments. Lubrication should be carefully selected based on the operating speed and temperature; grease or oil-air lubrication is common. It’s crucial to use appropriate tools and follow strict mounting procedures to avoid damaging the bearing and to achieve the specified preload and running accuracy. Question?Can I use this bearing as a direct replacement for a standard 7900 bearing without a suffix?Answer: While the basic dimensions (10x22x6mm) are the same, this P4 precision bearing is not a direct drop-in for a standard-grade bearing. It’s designed for applications with much tighter tolerances. Conversely, using a standard bearing in a P4-spec application would lead to poor performance, reduced accuracy, and premature failure. Always match the suffix codes. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
