MURRELEKTRONIK 7000-17061-2923000

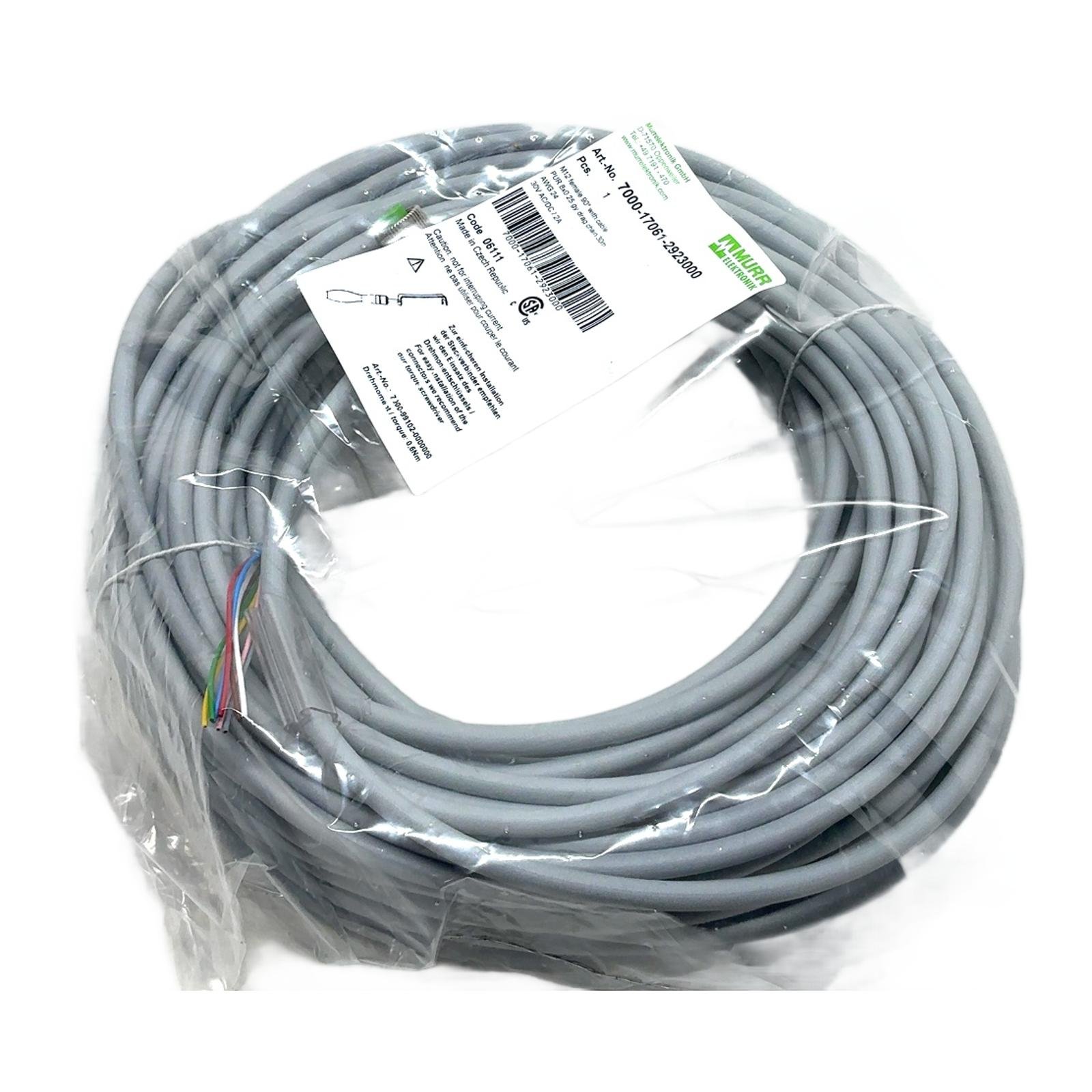

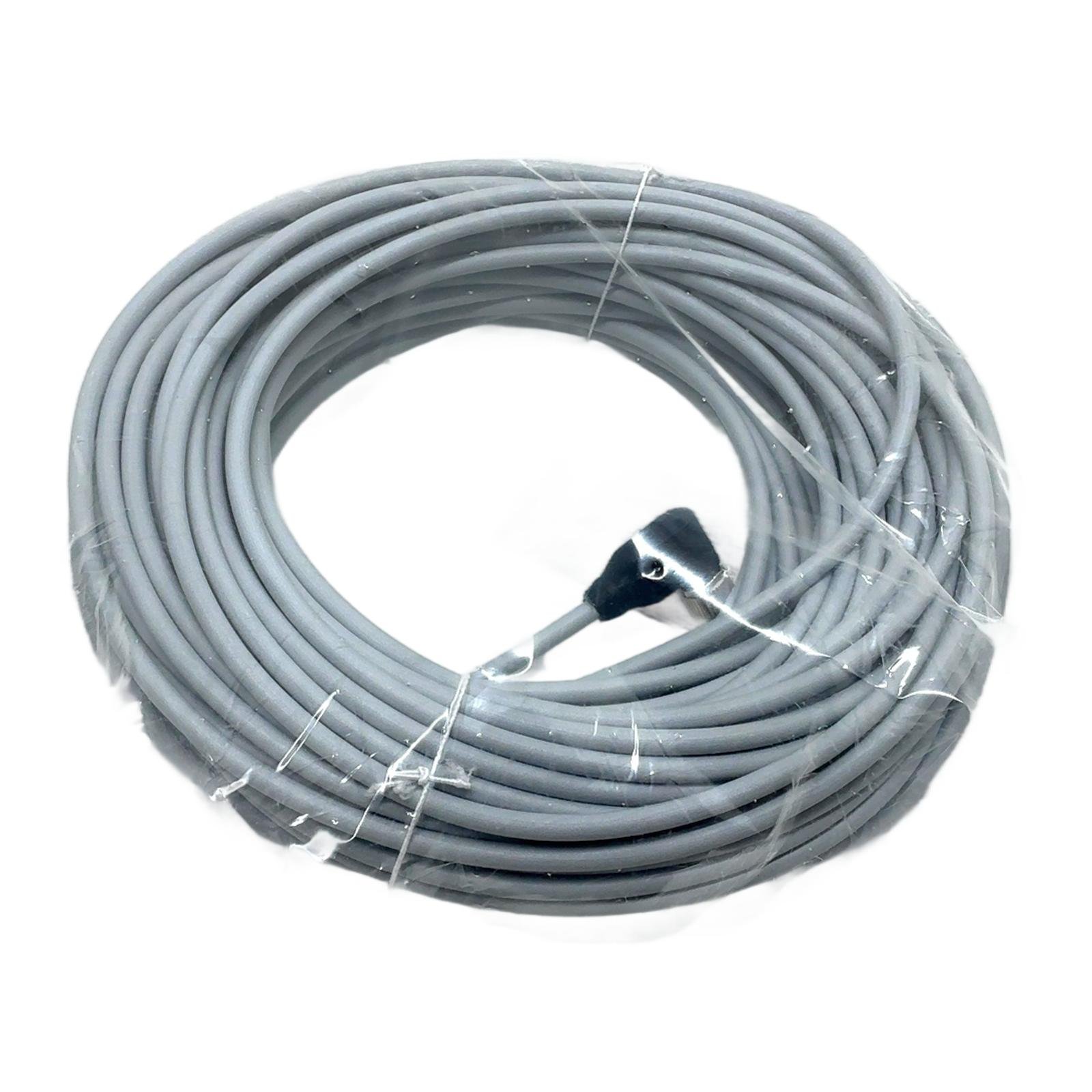

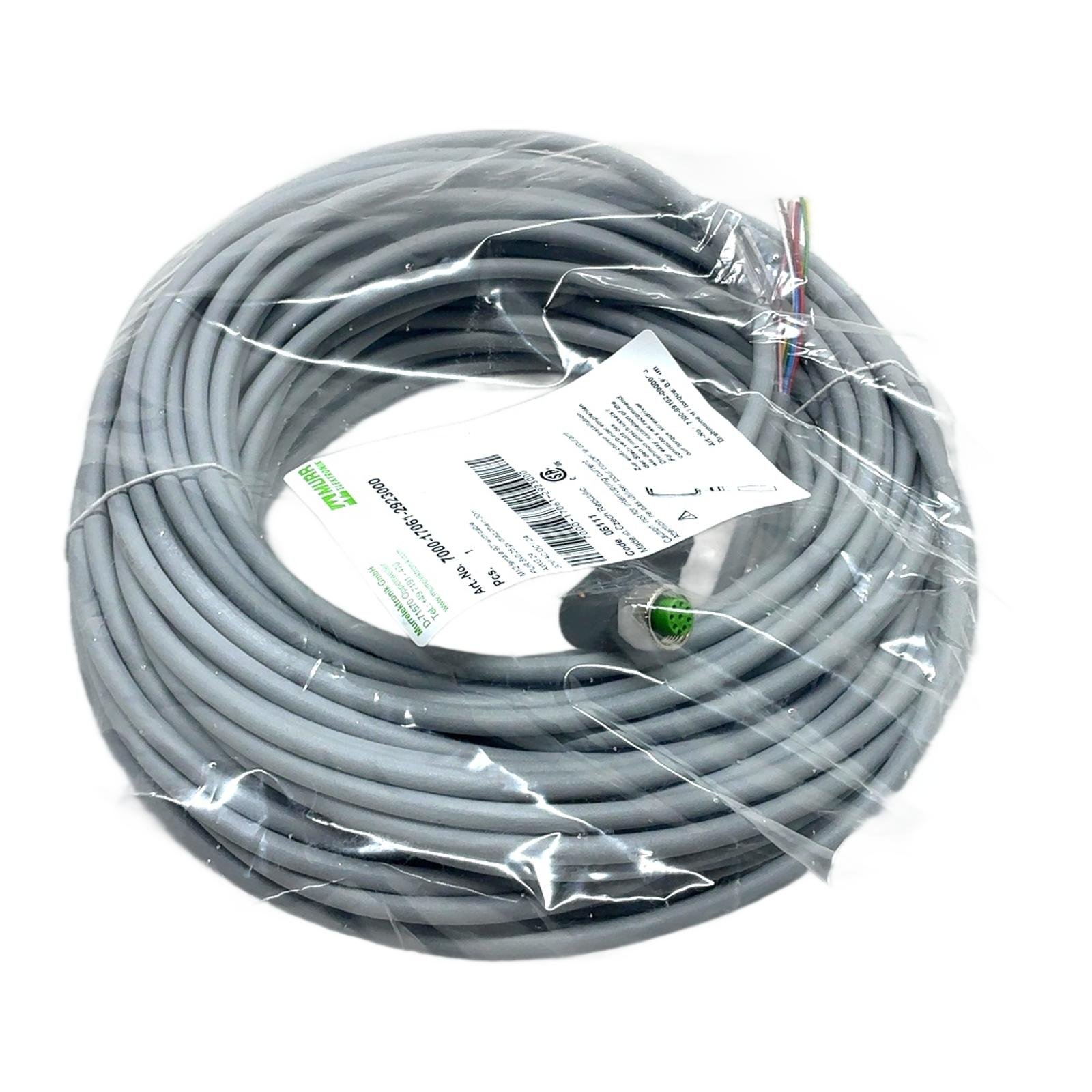

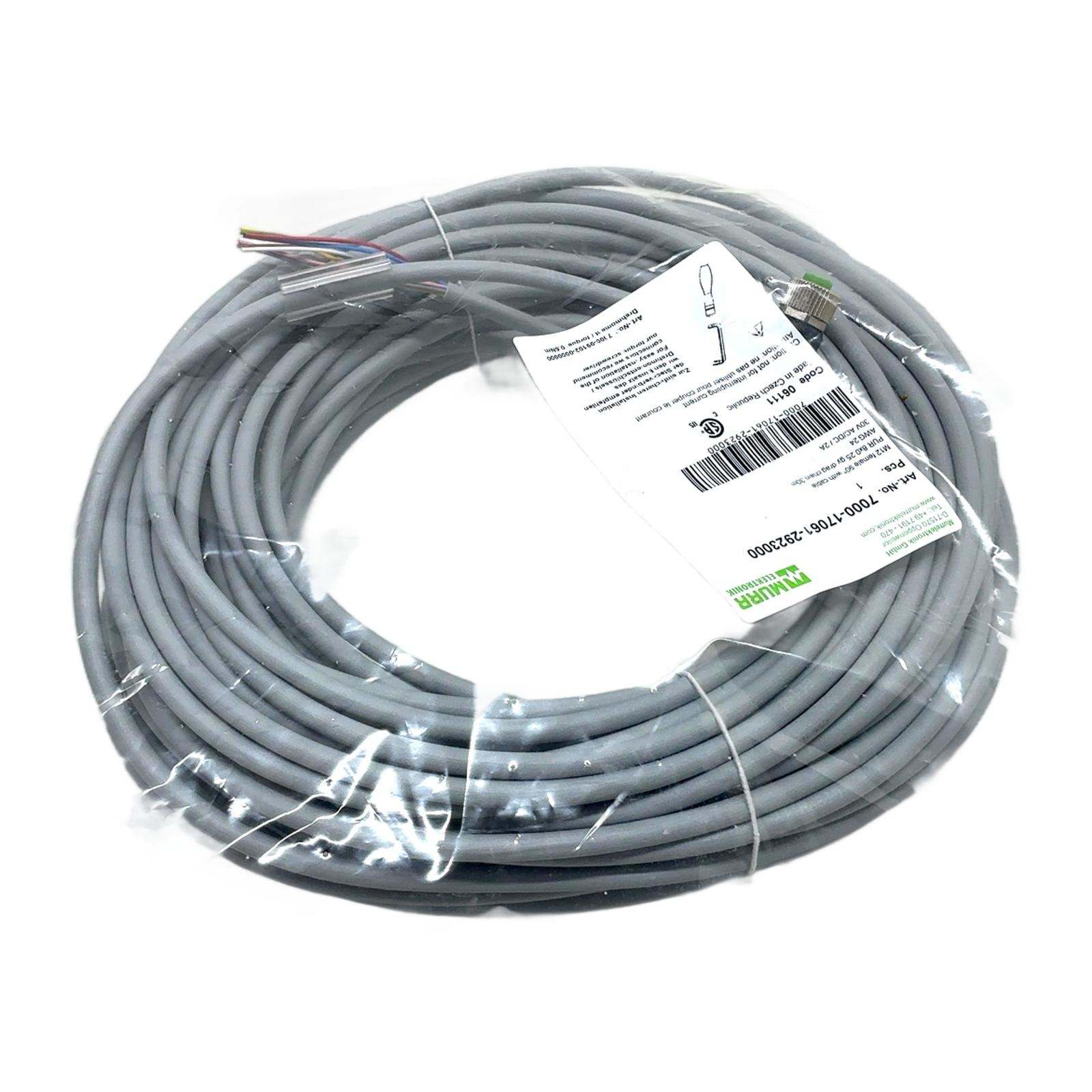

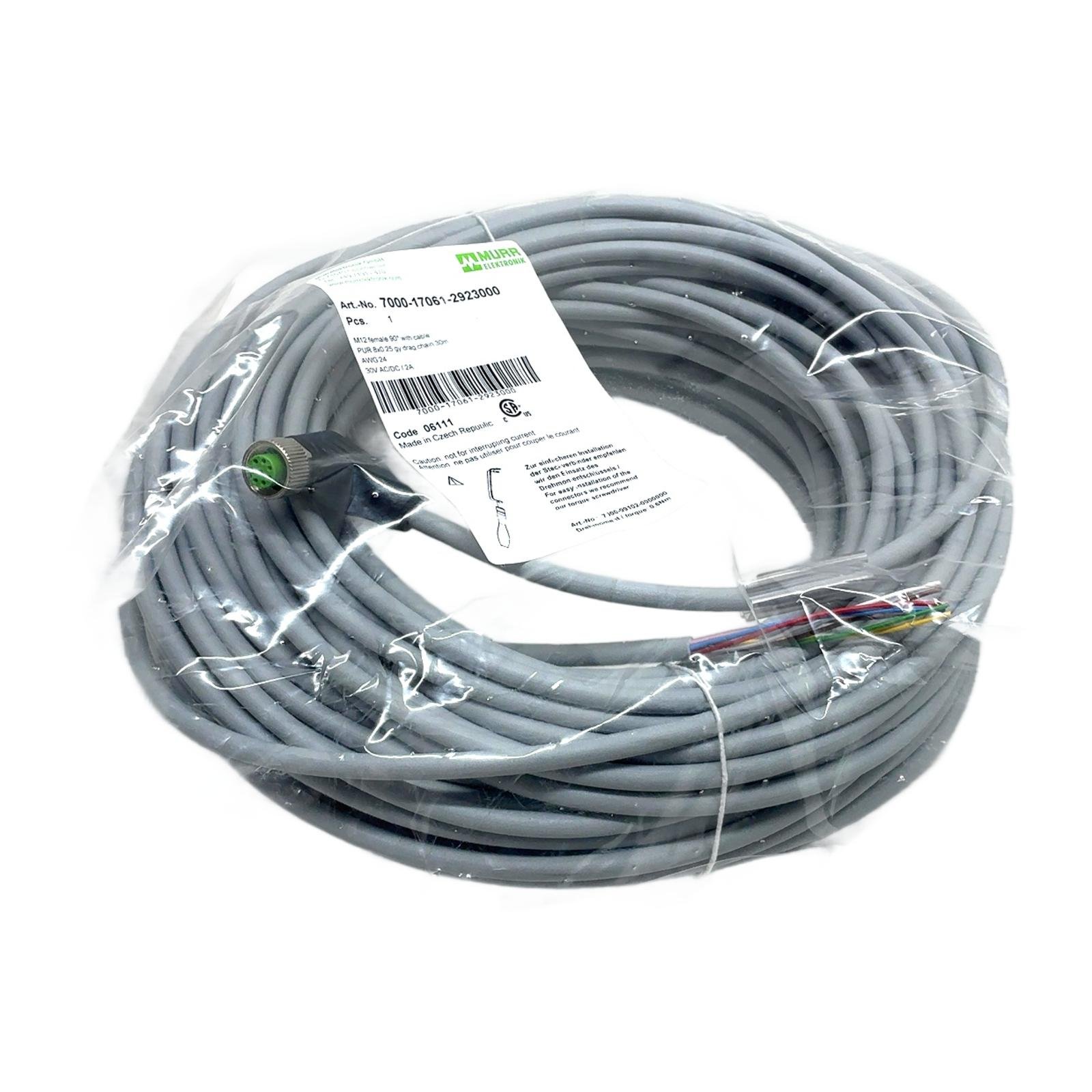

Murrelektronik M12 Sensor/Actuator Cable, 30m, 8-Pin Description This high-quality, pre-assembled cable from Murrelektronik is designed for reliable signal transmission in industrial automation systems. It features a 90-degree angled, 8-pin M12 female connector on one end and flying leads on the other, over a total length of 30 meters. The robust PUR (Polyurethane) jacket is specifically designed for use in drag chains (cable carriers), offering excellent resistance to abrasion, oils, and chemicals. Specifications Manufacturer: Murrelektronik Part Number: 7000-17061-2923000 Connector Type: M12 Female, Angled (90 deg.) Number of Pins: 8 Cable Length: 30.0 meters Jacket Material: PUR (Polyurethane), Gray Cable Specification: 8 x 0.25 mm2 (AWG 24) Application: Drag chain compatible Operating Voltage: max. 30V AC/DC Operating Current per Contact: max. 2A Locking Mechanism: Screw thread (M12 x 1 mm) Label Info Art.-No.: 7000-17061-2923000 Code: 06111 Application Ideal for connecting sensors, actuators, and other components in machine building, robotics, automated assembly lines, and material handling systems where a long, flexible, and durable cable is required. Country of Origin Czech Republic CO2 Impact Opting for this component over a new one prevents the emission of an estimated 74 kg of CO2, a saving equivalent to driving a car for 370 kilometers. Make a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the minimum bend radius for this drag-chain compatible cable?According to the manufacturer’s datasheet, the minimum bend radius for flexible use is 10 times the outer diameter of the cable, ensuring longevity in dynamic applications. Is the PUR jacket on this cable resistant to oils and chemicals?Yes, the Polyurethane (PUR) jacket offers excellent resistance to oils, greases, and many common industrial chemicals, making it highly suitable for harsh factory environments. Can this 8-pin M12 cable be used for industrial Ethernet applications?While it has 8 pins, this is a standard sensor/actuator cable and is not shielded or twisted in pairs for high-speed data transmission like Profinet or EtherCAT. For industrial Ethernet, you should use a dedicated, shielded, D-coded (4-pin) or X-coded (8-pin) M12 cable. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
