MAC 6323D-251-PM-221DA

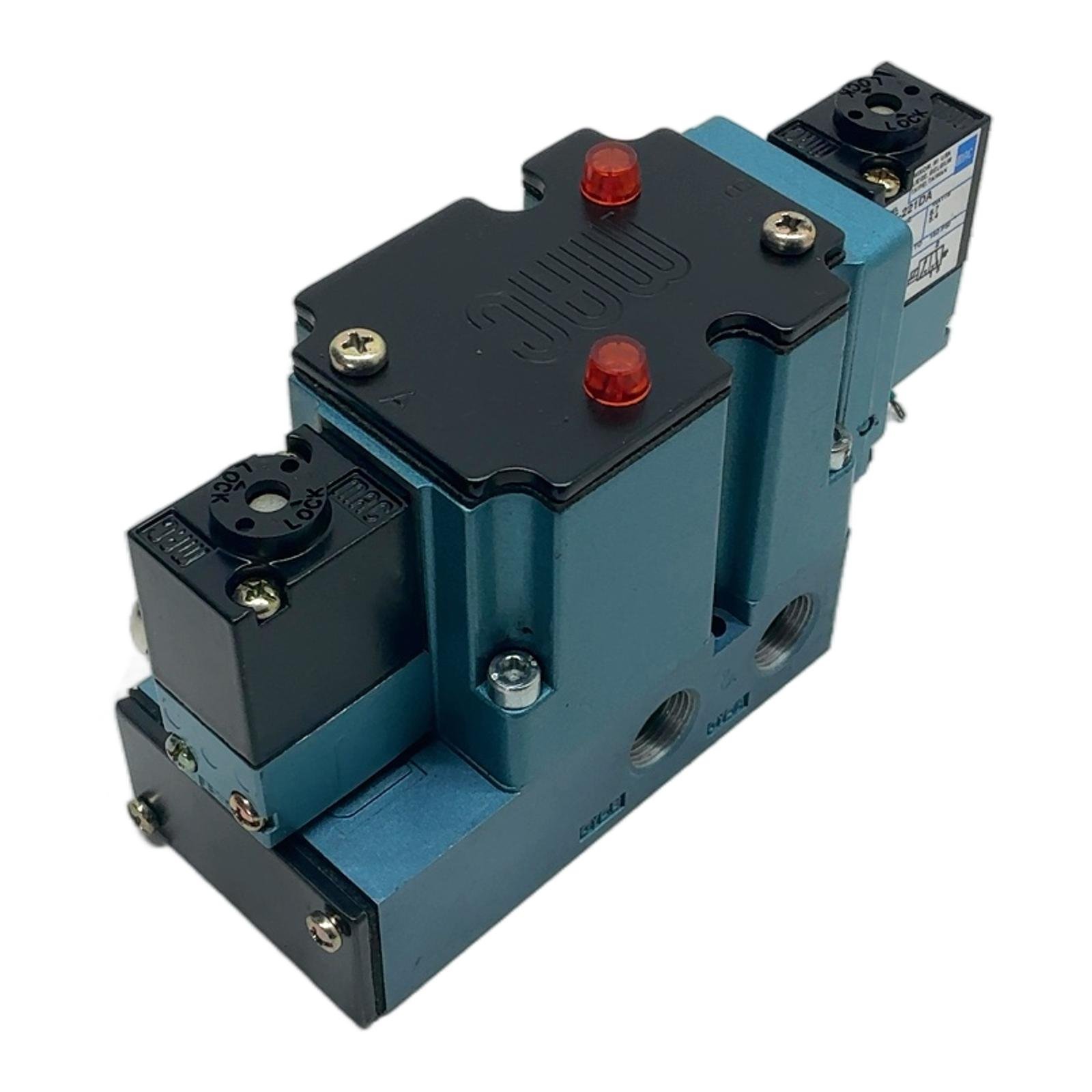

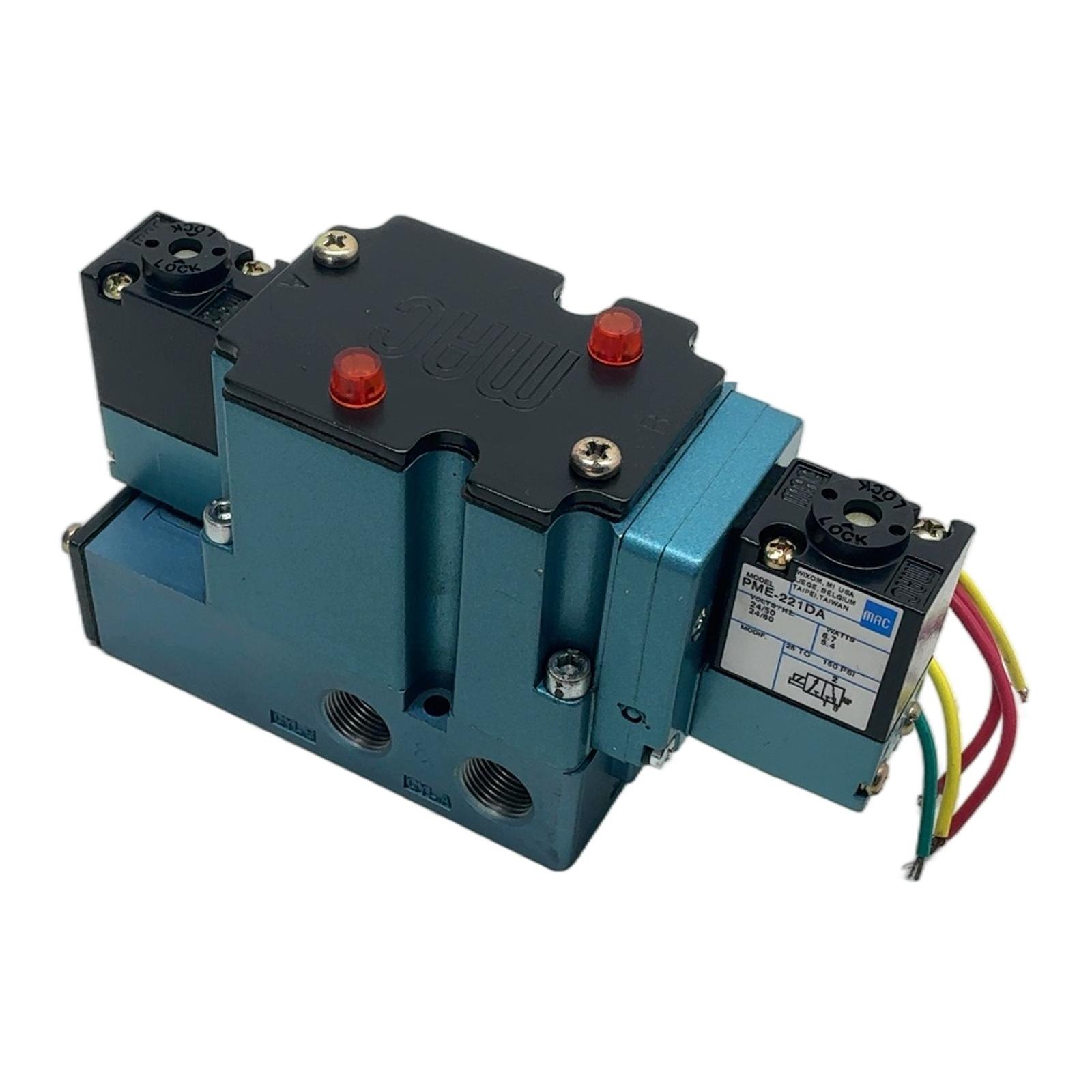

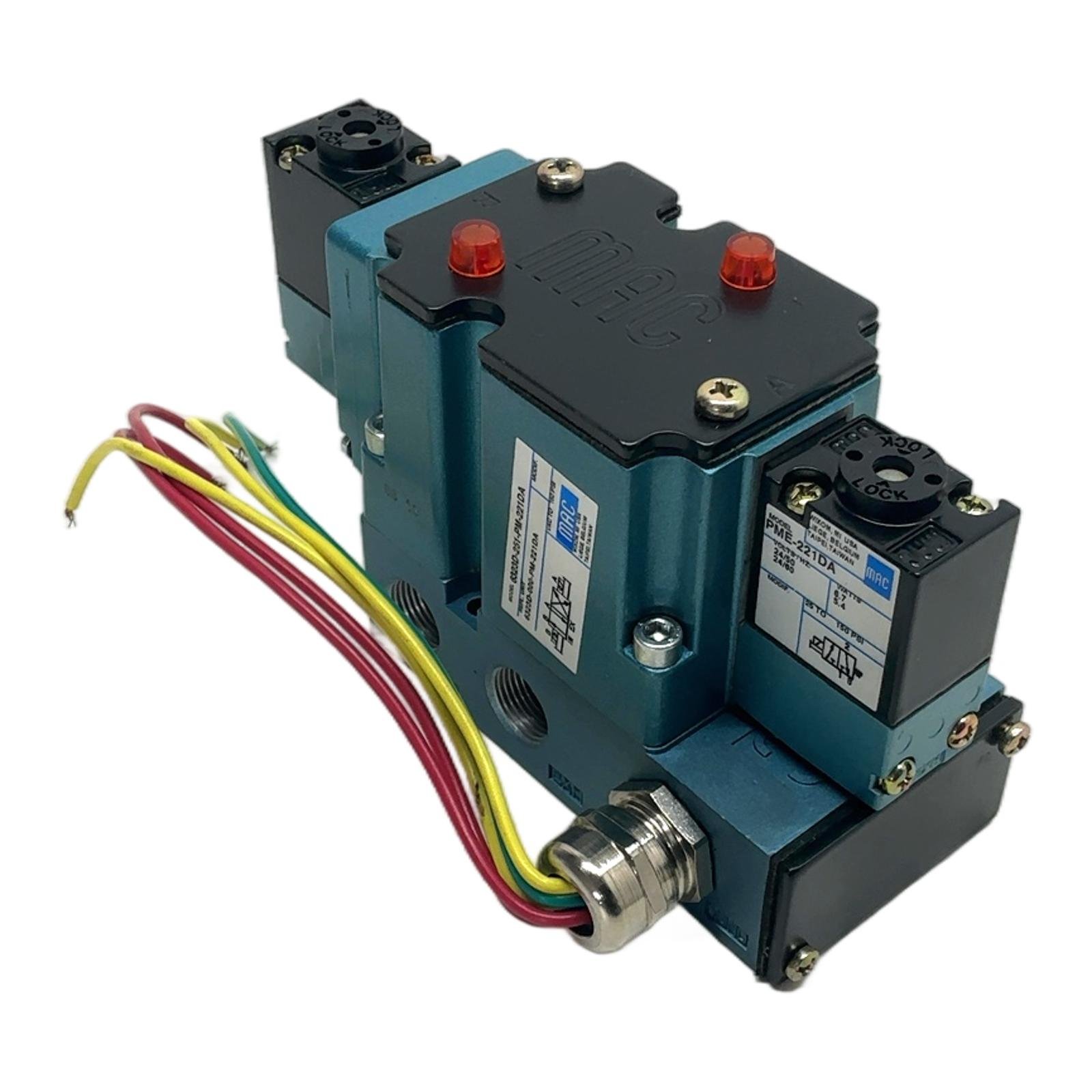

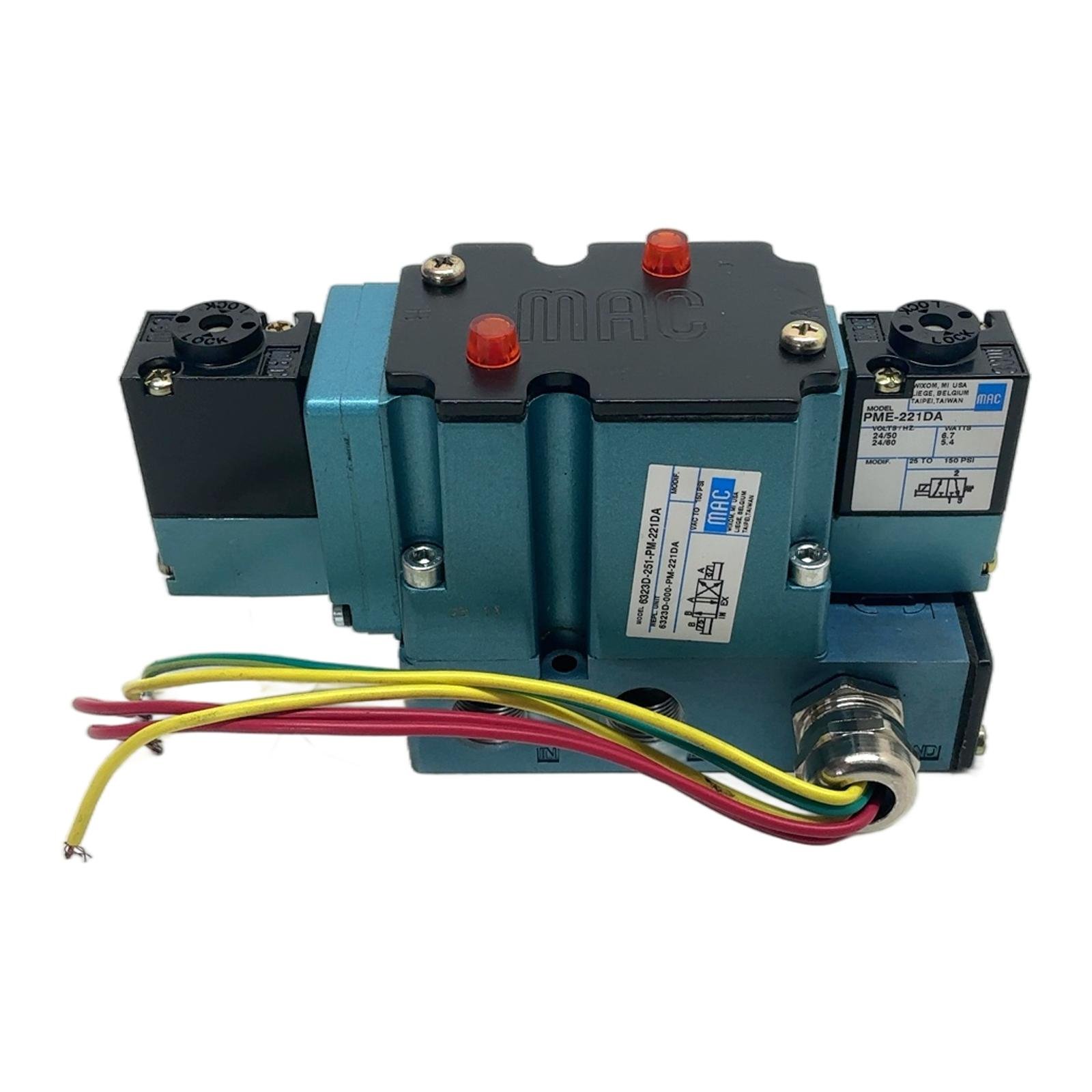

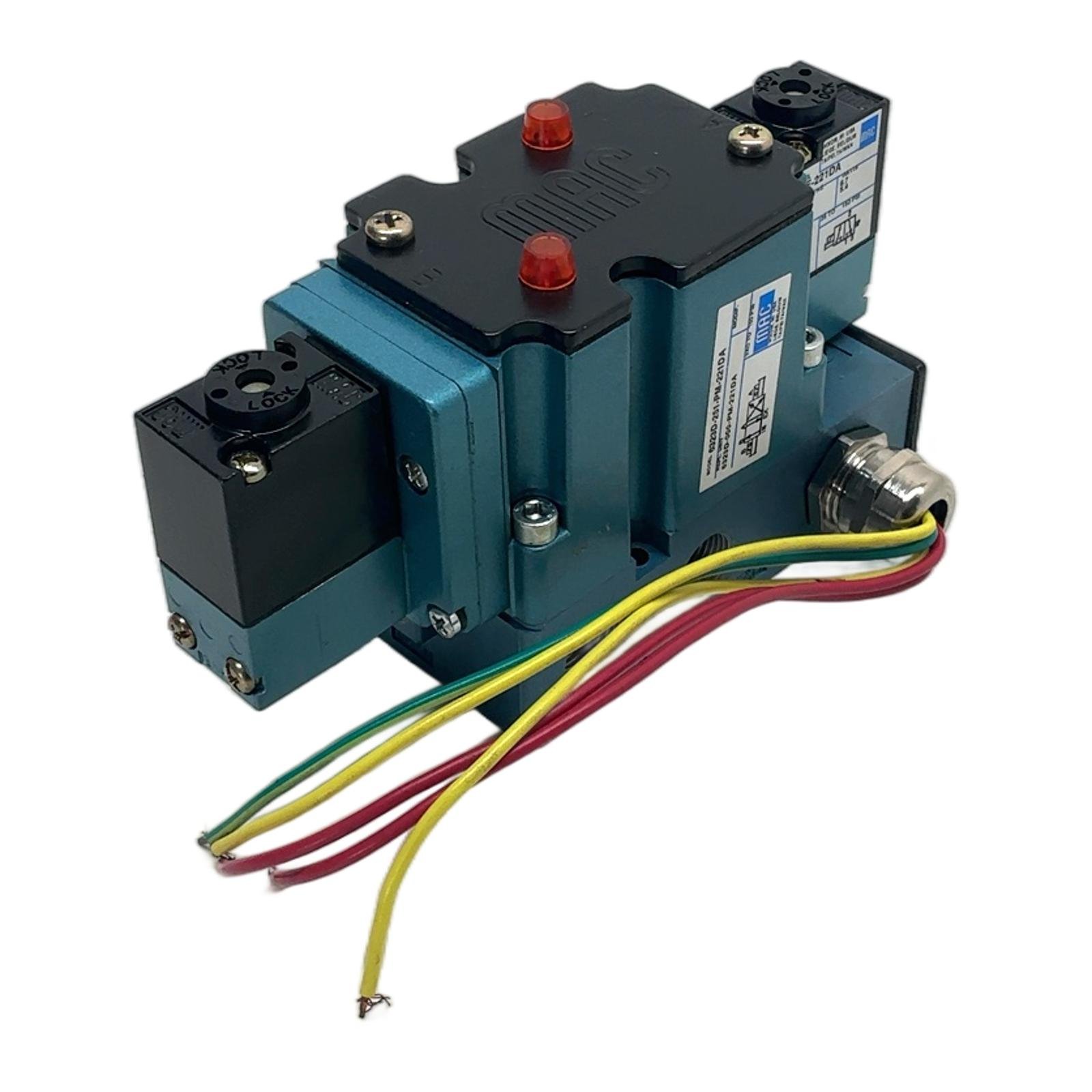

MAC 6323D-251-PM-221DA Pneumatic Solenoid Valve Description The MAC Valves 6323D-251-PM-221DA is a high-performance, 4-way (5/2) double solenoid valve designed for industrial pneumatic applications. Part of the 6300 series, it features a balanced poppet design that ensures high flow capacity and a long operational life. This valve is pilot-operated via two PME-221DA solenoids and is suitable for systems requiring precise and rapid control of air flow. Its sub-base plug-in design allows for easy installation and maintenance. Specifications Manufacturer: MAC Model: 6323D-251-PM-221DA Voltage: 24V AC at 50/60 Hz Power Consumption: 6.7W at 50Hz, 5.4W at 60Hz Operating Pressure: Vacuum to 150 PSI Function: 5-Port, 2-Position, Double Solenoid Mounting Style: Sub-base Plug-in Label Info Main Model: 6323D-251-PM-221DA Replacement Unit: 6323D-000-PM-221DA Pilot Solenoid Model: PME-221DA Pressure Range (Pilot): 25 to 150 PSI Application This solenoid valve is ideal for use in factory automation, packaging machinery, sorting equipment, and other systems where reliable pneumatic actuation is critical. Country of Origin Manufactured in USA, Belgium, or Taiwan. CO2 Impact By purchasing this pre-owned item, you are helping to avoid approximately 26 kg of CO2 emissions that would be generated from manufacturing a new one. This is a sustainable choice for your operations. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the difference between the main model 6323D-251-PM-221DA and the REPL. UNIT 6323D-000-PM-221DA?The difference is typically in the manual override option. The ‘-251’ in the main model number indicates a locking recessed manual operator, while the ‘-000’ in the replacement unit number signifies no manual operator. The core valve function remains identical. Question?What does the ‘balanced poppet’ design mean for performance?The balanced poppet design means that the forces from the air pressure are equalized across the moving part (the poppet). This results in consistent shifting times regardless of pressure fluctuations, requires less energy to actuate, and contributes to a longer service life. Question?Can this 24V AC valve be operated with 24V DC?No. This valve is equipped with AC solenoid coils (PME-221DA) designed for 24V at 50/60 Hz. Applying 24V DC will likely cause the coil to overheat and fail, as AC coils have a lower resistance and rely on impedance for current limiting. A DC-rated coil would be required for DC operation. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
