HAVER & BOECKER 60M2-L-040A050 9.901.0302.42

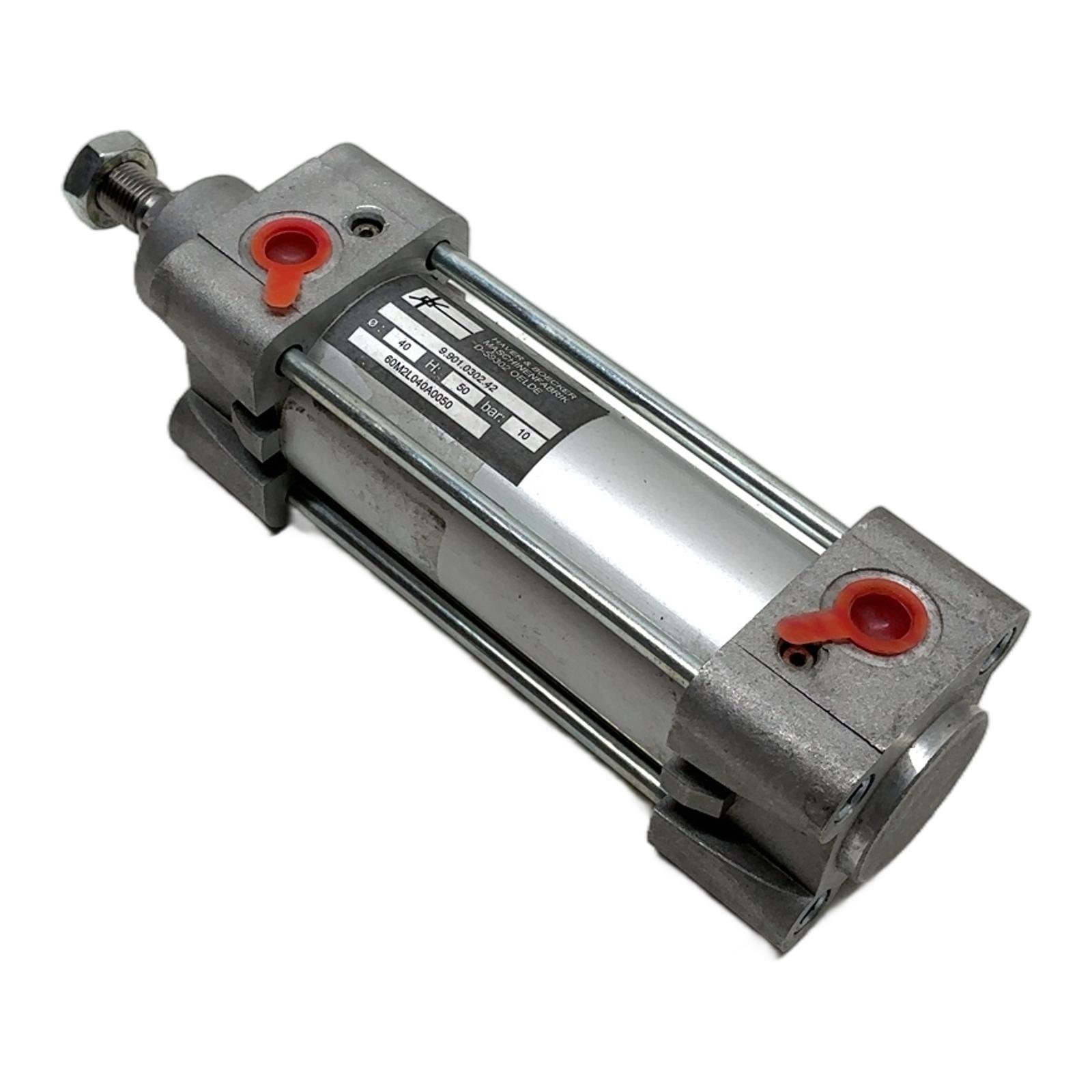

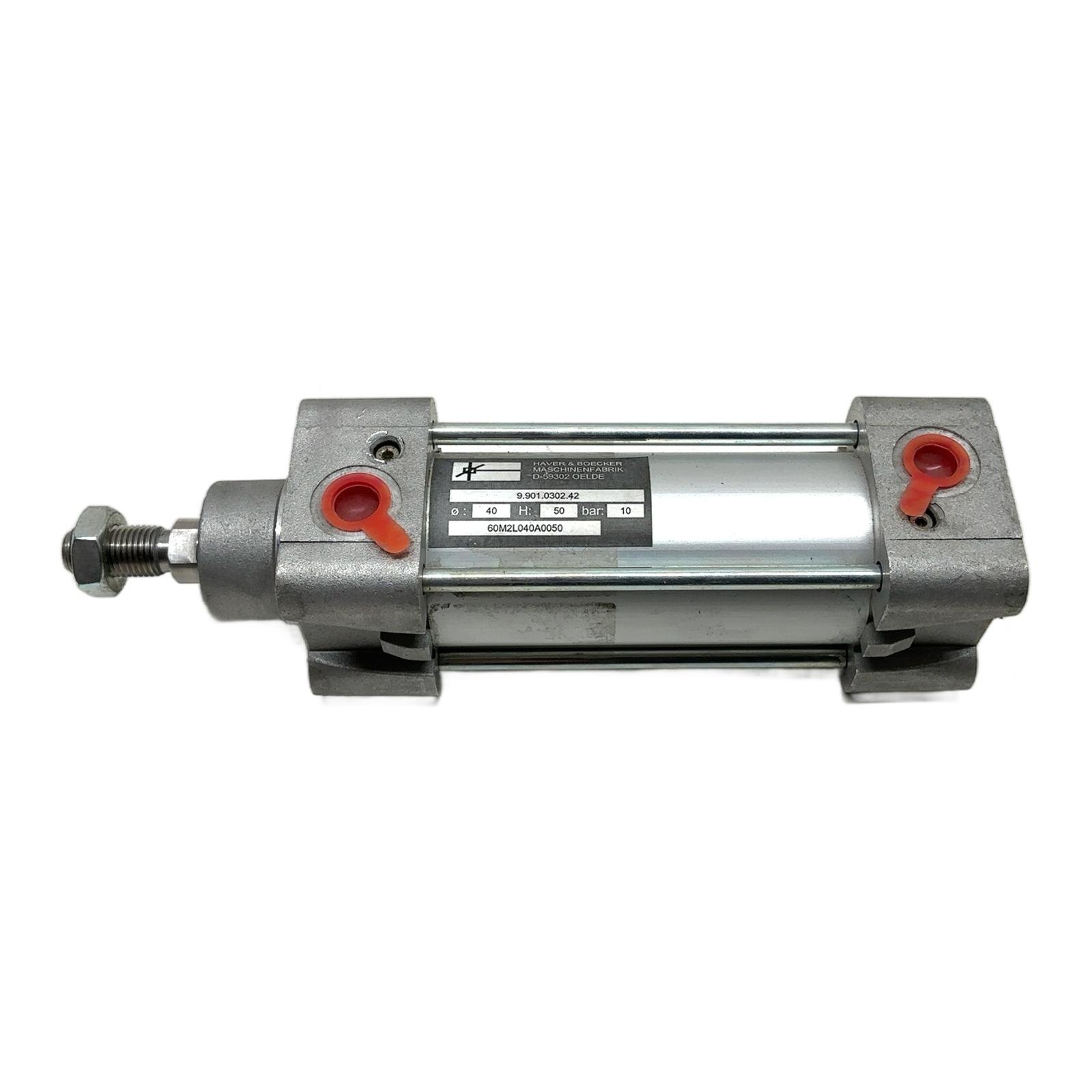

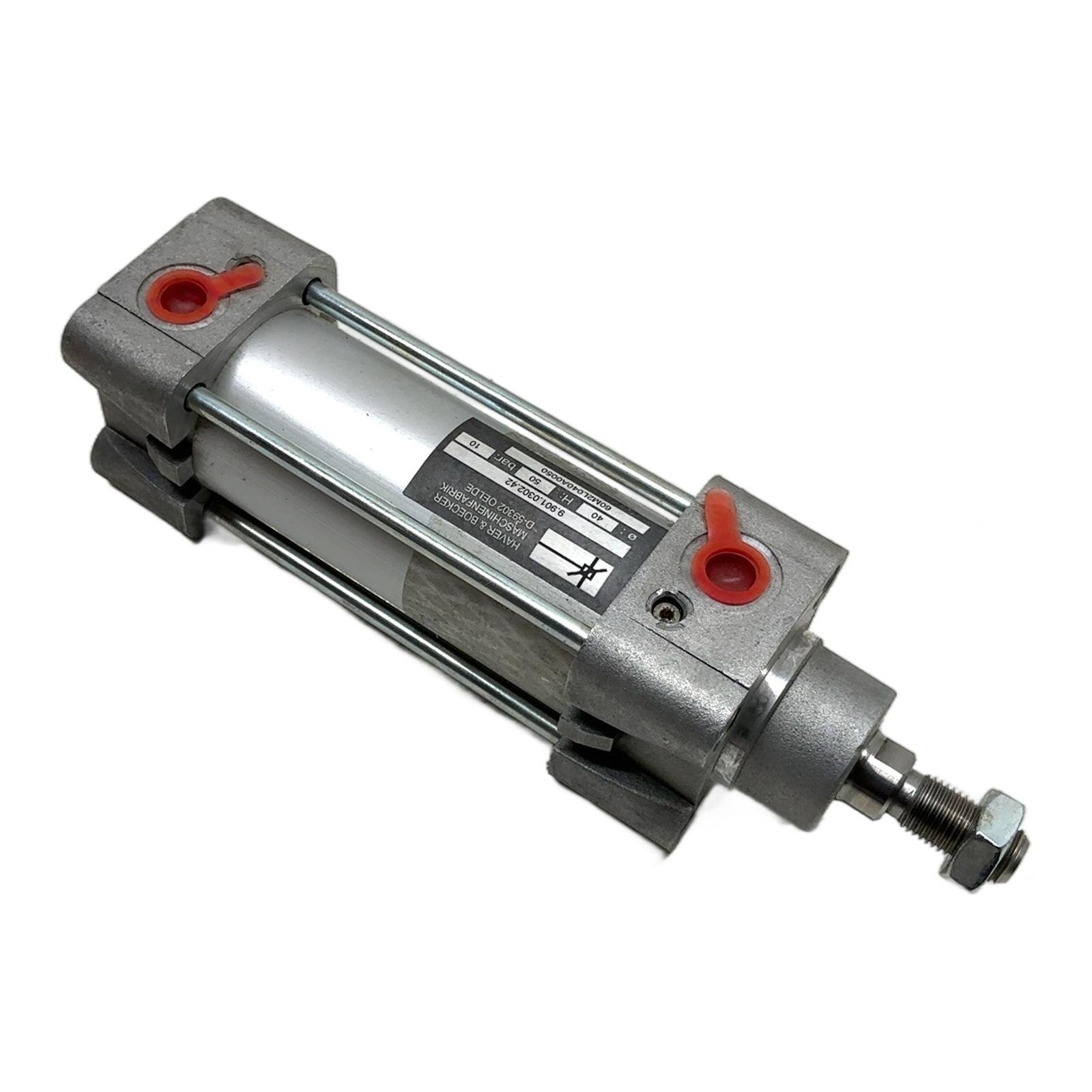

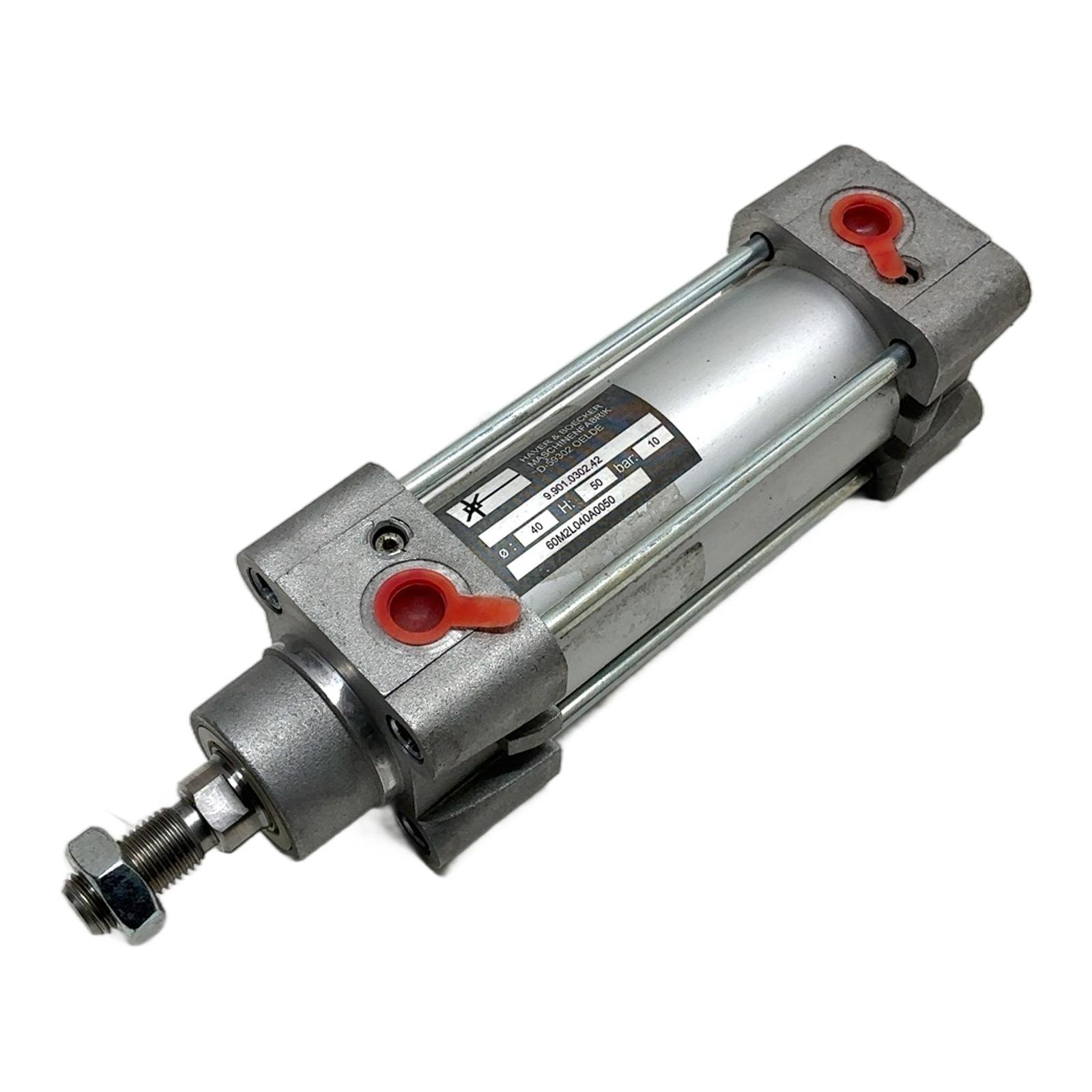

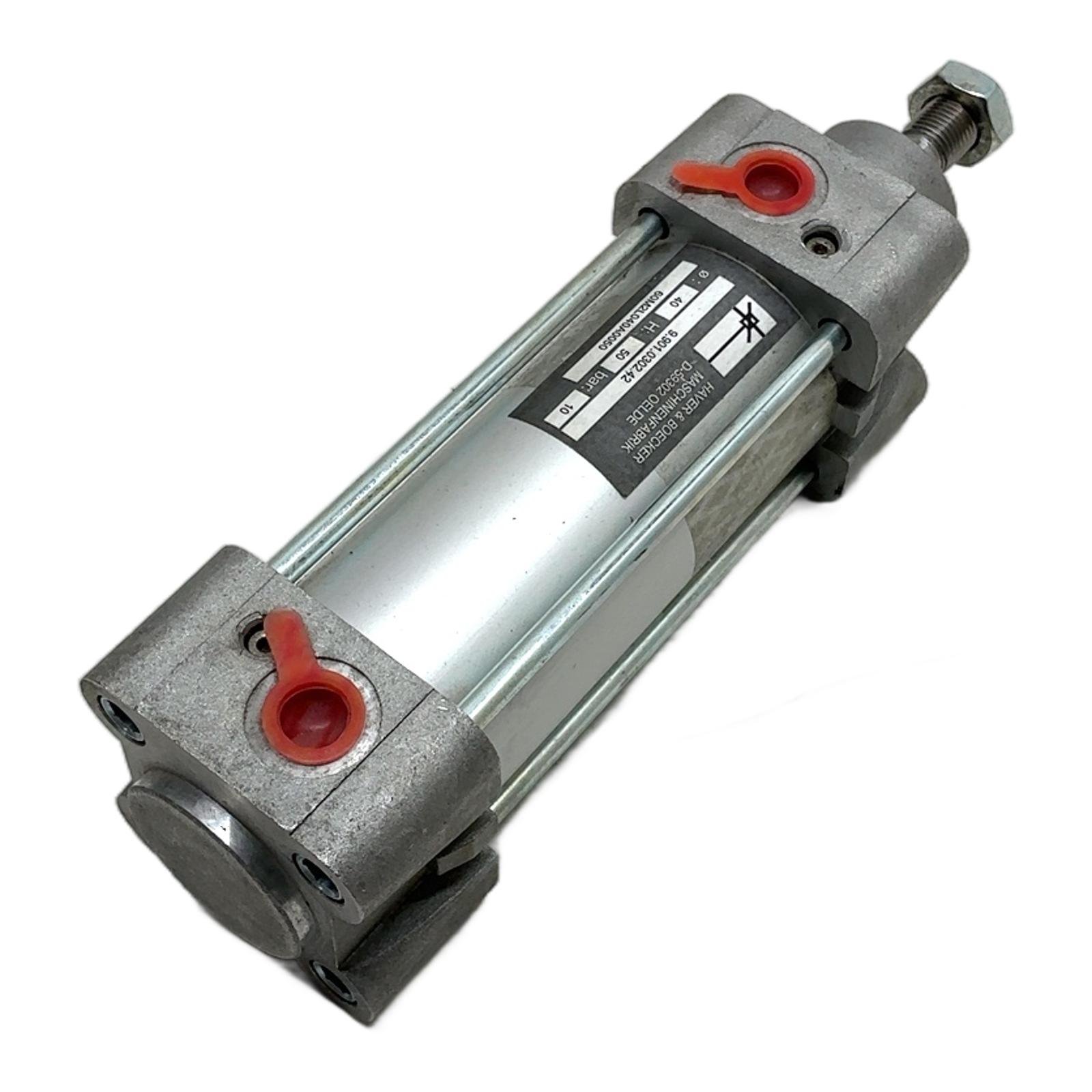

Univer 60M2 Series DIN ISO 6431 Pneumatic Cylinder Description This is a double-acting pneumatic cylinder from Univer, model 60M2-L-040A050. It is built according to the DIN ISO 6431 standard, ensuring interchangeability with other brands following the same specification. This cylinder features a 40 mm bore and a 50 mm stroke, making it suitable for a wide range of industrial automation tasks. It includes adjustable pneumatic cushioning at both ends for smooth operation and a magnetic piston for use with position sensors. Specifications Bore Diameter: 40 mm Stroke Length: 50 mm Standard Compliance: DIN ISO 6431 Action: Double-acting Maximum Operating Pressure: 10 bar Cushioning: Adjustable, pneumatic Piston: Magnetic Piston Rod Thread: M12 x 1.25 Label Info Manufacturer: Univer Model: 60M2-L-040A050 Haver & Boecker Part Number: 9.901.0302.42 Application Ideal for use in factory automation, material handling, packaging machinery, and other applications requiring reliable linear actuation. Its robust tie-rod construction ensures a long service life. Country of Origin Made in Italy. CO2 Impact Opting for this pre-owned cylinder avoids the production of a new one, saving an estimated 10.5 kg of CO2 emissions. This is comparable to the carbon footprint of driving 52 kilometers in a passenger car. Availability This item is new old stock, in excellent condition, and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the main difference between the DIN ISO 6431 standard and the newer ISO 15552 standard?The main mounting dimensions (like port positions, mounting hole patterns, and rod height) are identical, ensuring mechanical interchangeability. The primary differences are often in the profile of the cylinder body (ISO 15552 often uses profile barrels with T-slots for sensors) and potential internal design updates. For most replacement purposes, an ISO 15552 cylinder is a direct equivalent. Question?Does this cylinder have a magnetic piston for use with sensors?Yes, the ‘L’ in the model number 60M2-L-040A050 indicates that it is equipped with a magnetic piston, allowing for the use of external cylinder sensors to detect the piston’s end positions. Question?What is the required cleanliness of the compressed air for this cylinder?For optimal performance and longevity, it is recommended to use compressed air filtered to at least 40 microns. The air can be lubricated or non-lubricated; if lubrication is started, it must be continued. Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
