EUROTHERM 590P/0180/500/0010/FR/AN/0/230/0

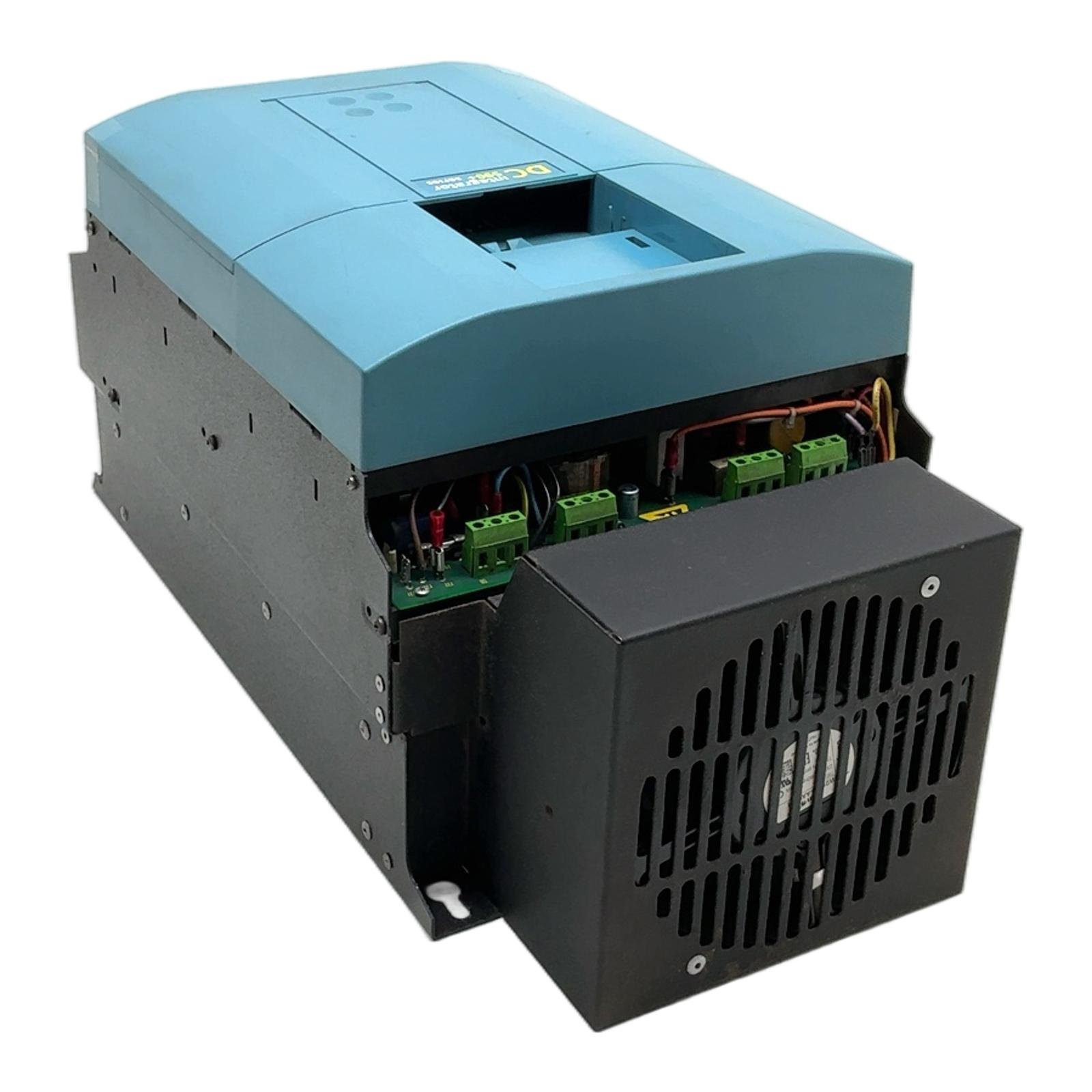

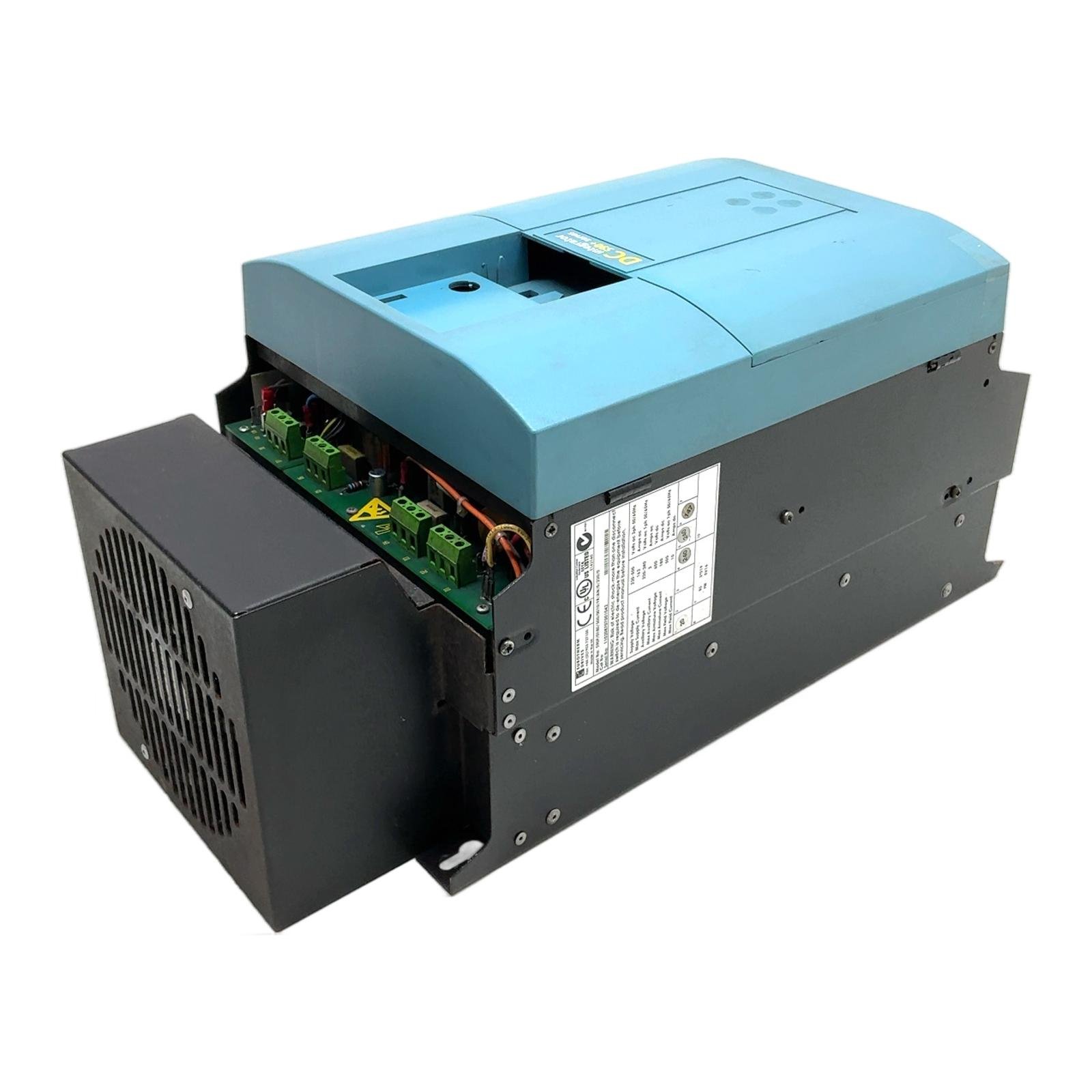

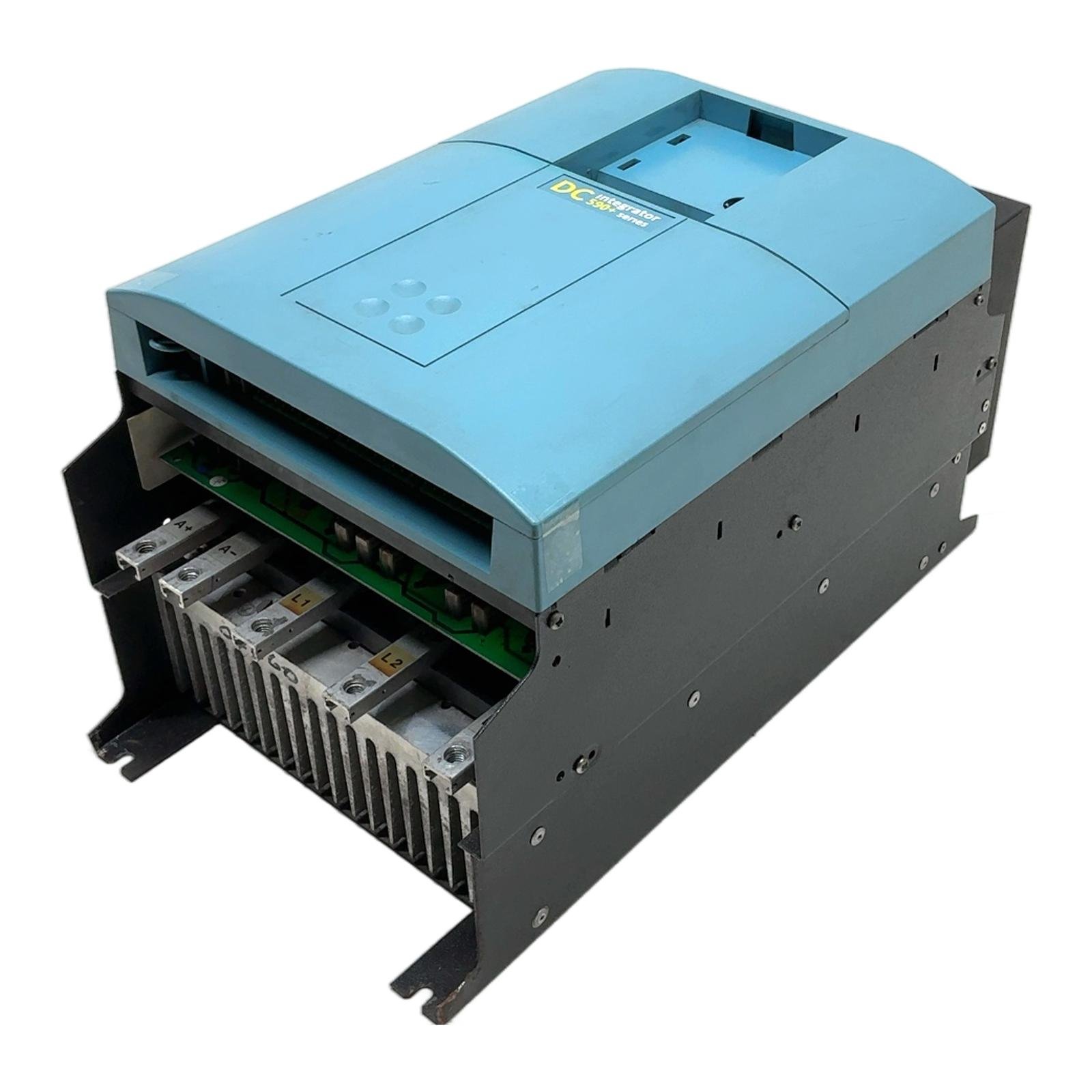

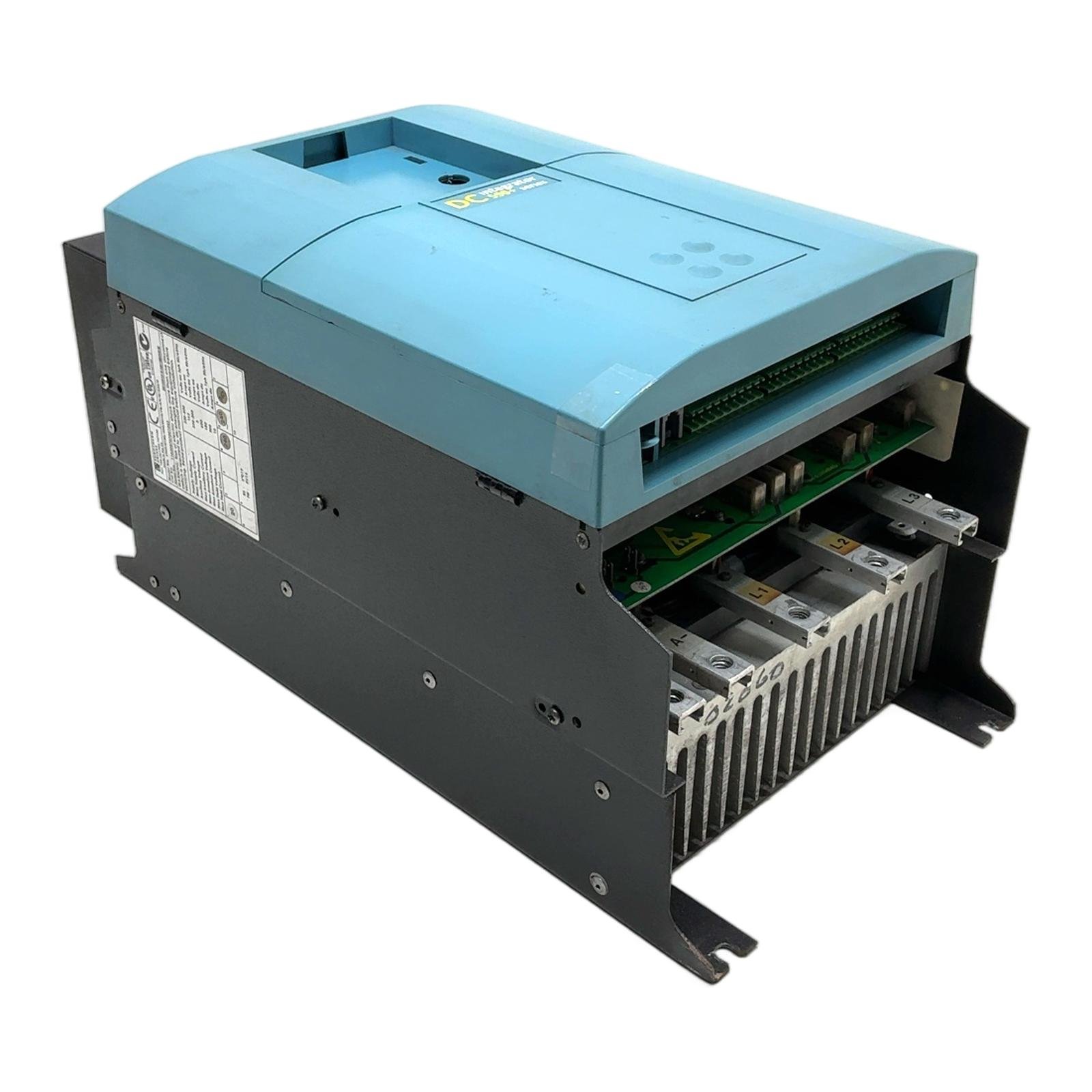

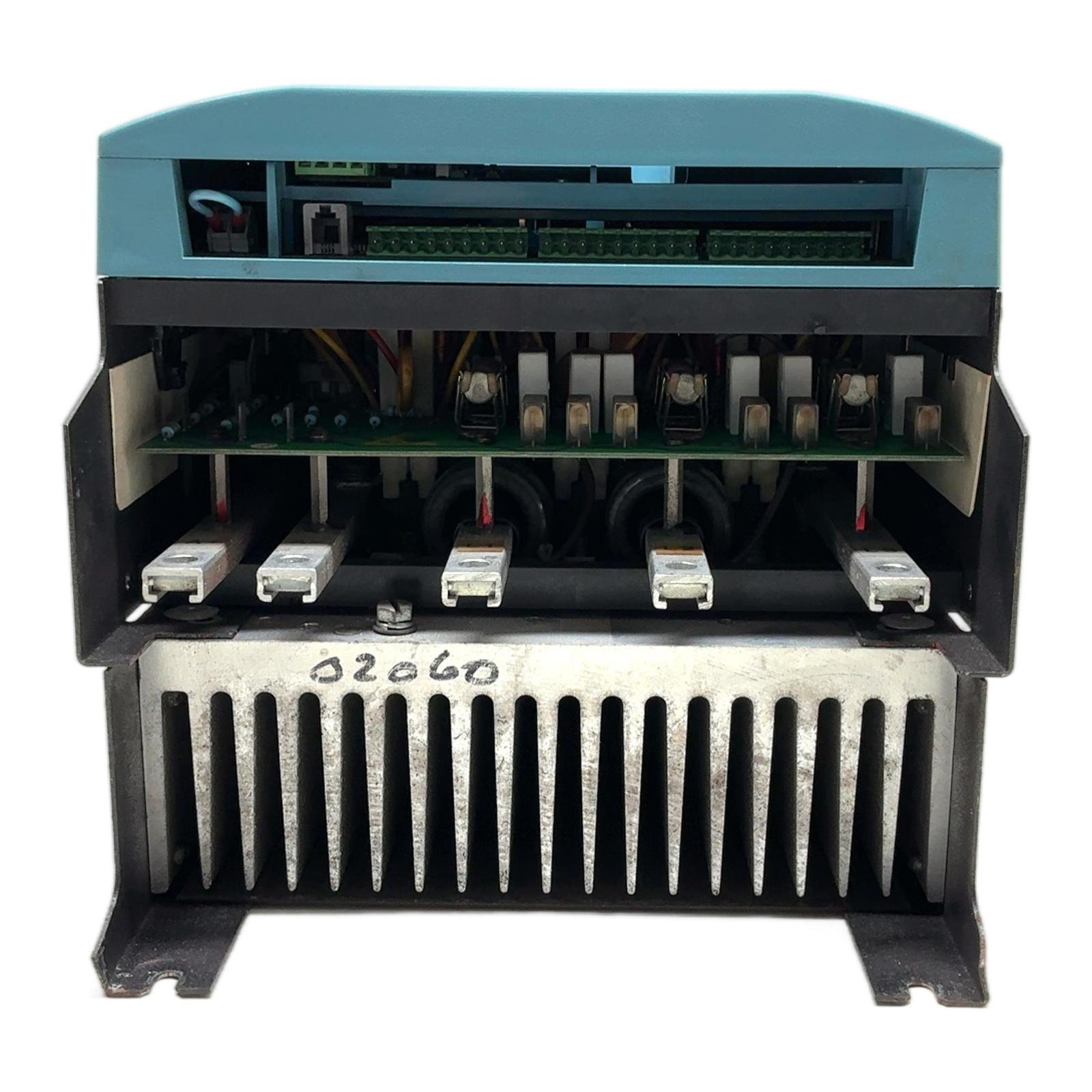

Eurotherm 590P Series 180A DC Drive Description This is a Eurotherm 590P series DC motor drive, model 590P/0180/500/0010/FR/AN/0/230/0. It is a high-performance, 4-quadrant regenerative drive designed for complex and demanding motor control applications. This unit provides reliable and precise control over DC motors with a maximum armature current of 180A. The drive is built for industrial environments and is a part of a legacy series known for its durability. Specifications Manufacturer: Eurotherm (Parker Hannifin) Series: 590P Max Armature Current: 180 Amps DC Max Armature Voltage: 600 Volts DC Supply Voltage: 220-500 Volts AC, 3-phase, 50/60Hz Control Type: 4-Quadrant Regenerative Firmware Version: 5V16 Condition: Used, with damage to the removable front cover. Label Info Model No: 590P/0180/500/0010/FR/AN/0/230/0 Serial No: 110208707001042 Application Ideal for applications requiring precise DC motor speed and torque control, such as extruders, winders, machine tools, and other industrial machinery where regenerative braking is beneficial. Country of Origin Made in the UK. CO2 Impact Choosing this pre-owned component saves an estimated 200 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions of driving a car for approximately 1000 kilometers. Availability This unit is an obsolete item but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What is the firmware version of this drive?The label indicates firmware version FW: 5V16. It is crucial to check compatibility with your existing system or configuration software before installation. Is this a 2-quadrant or 4-quadrant drive?This is a 4-quadrant regenerative drive, meaning it can control the motor’s speed and torque in both forward and reverse directions, and it can return energy to the power supply during braking. What type of feedback is this drive configured for out of the box?The 590P series is highly configurable. While this specific model number may indicate a factory setting, it should be verified and configured for the intended application, which could be analog tachometer, encoder, or armature voltage feedback. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
