REXROTH 4WE6Y62/EW230N9K4 R900909415

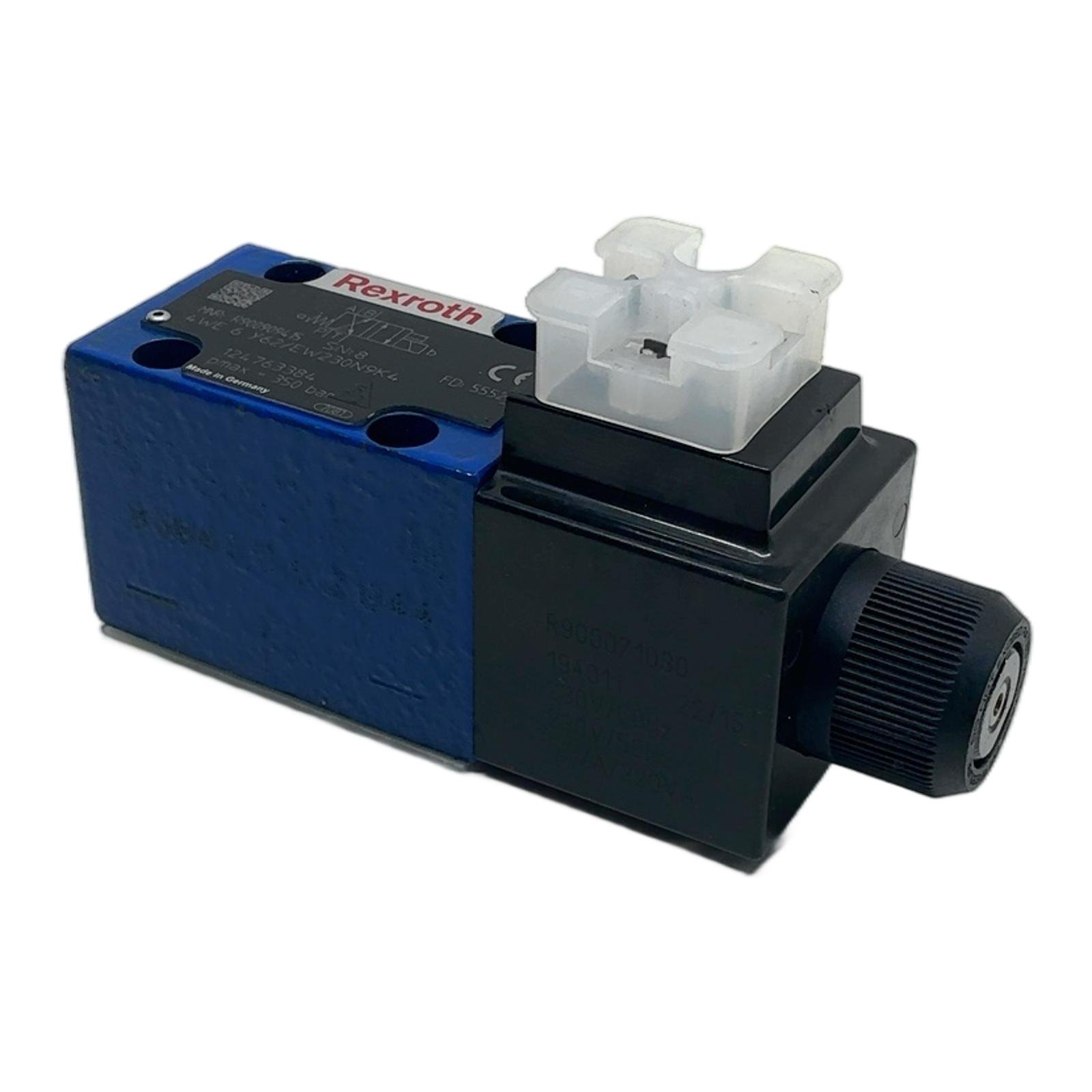

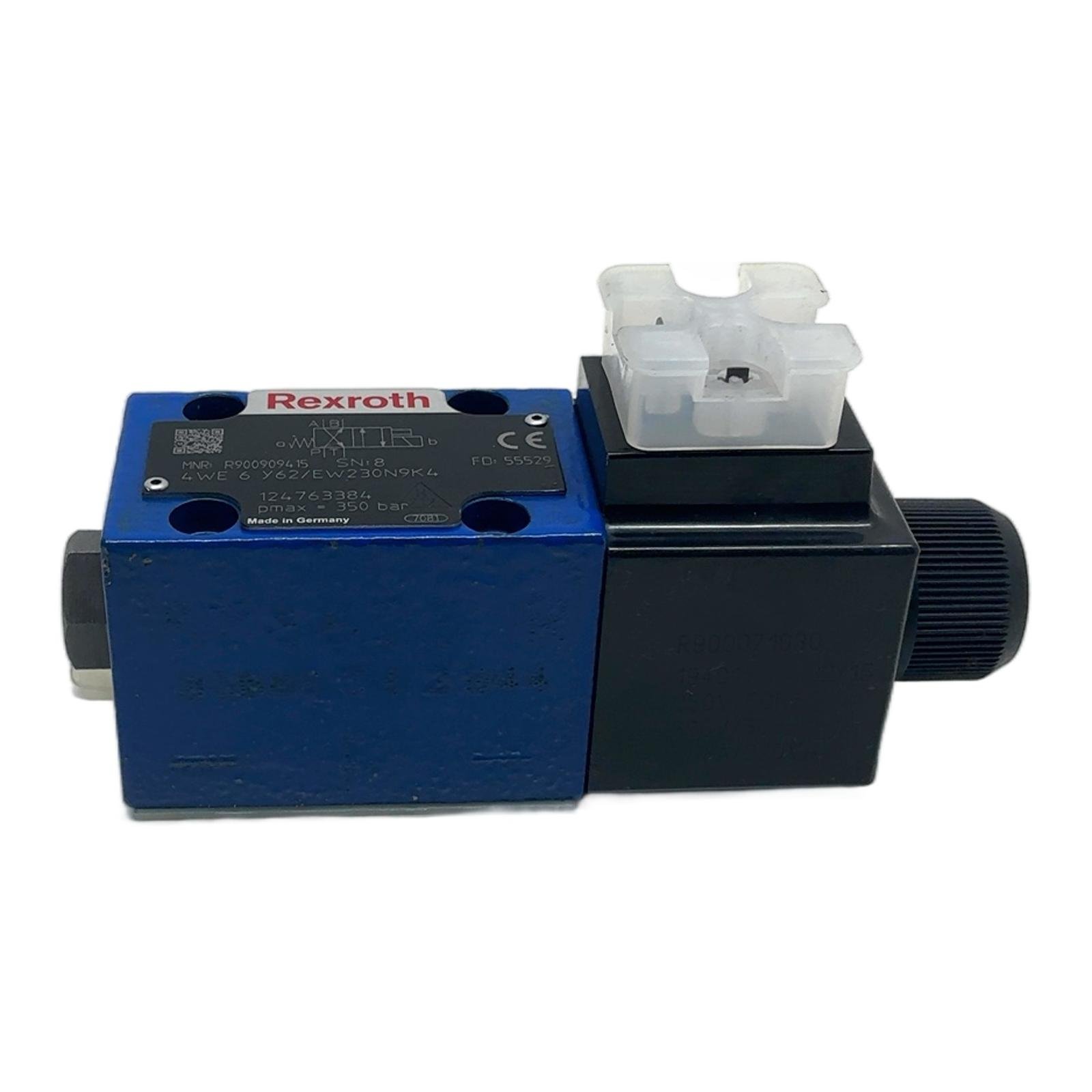

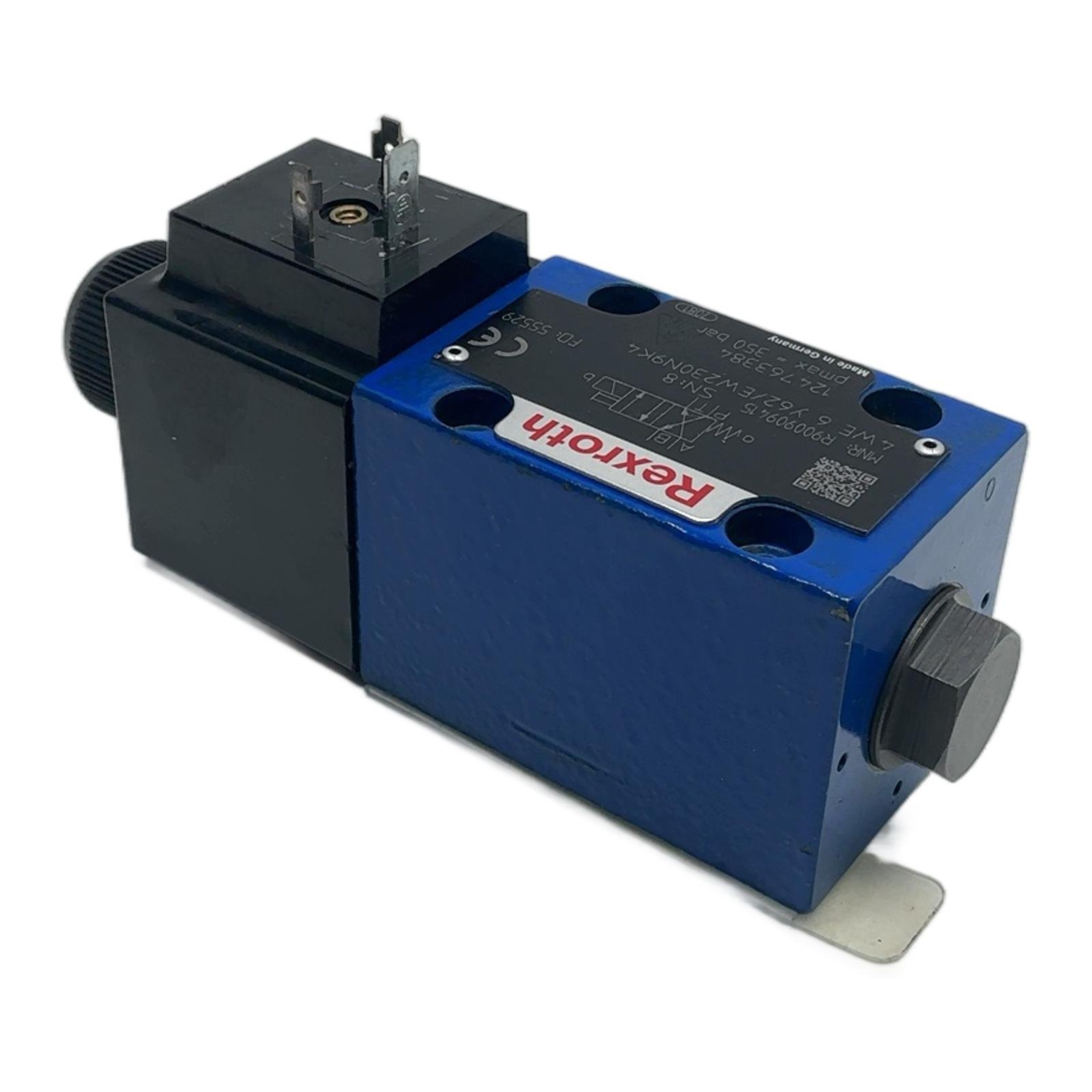

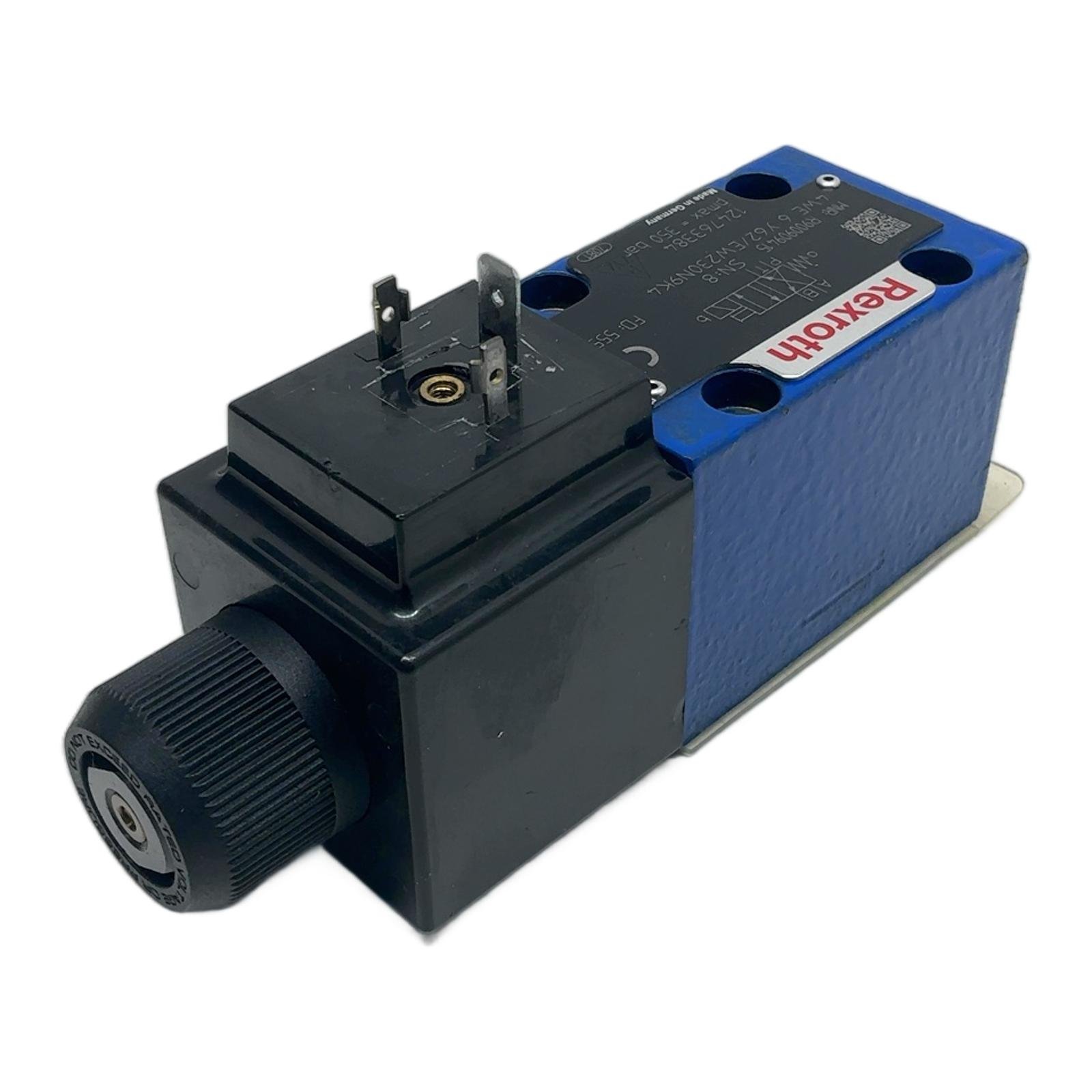

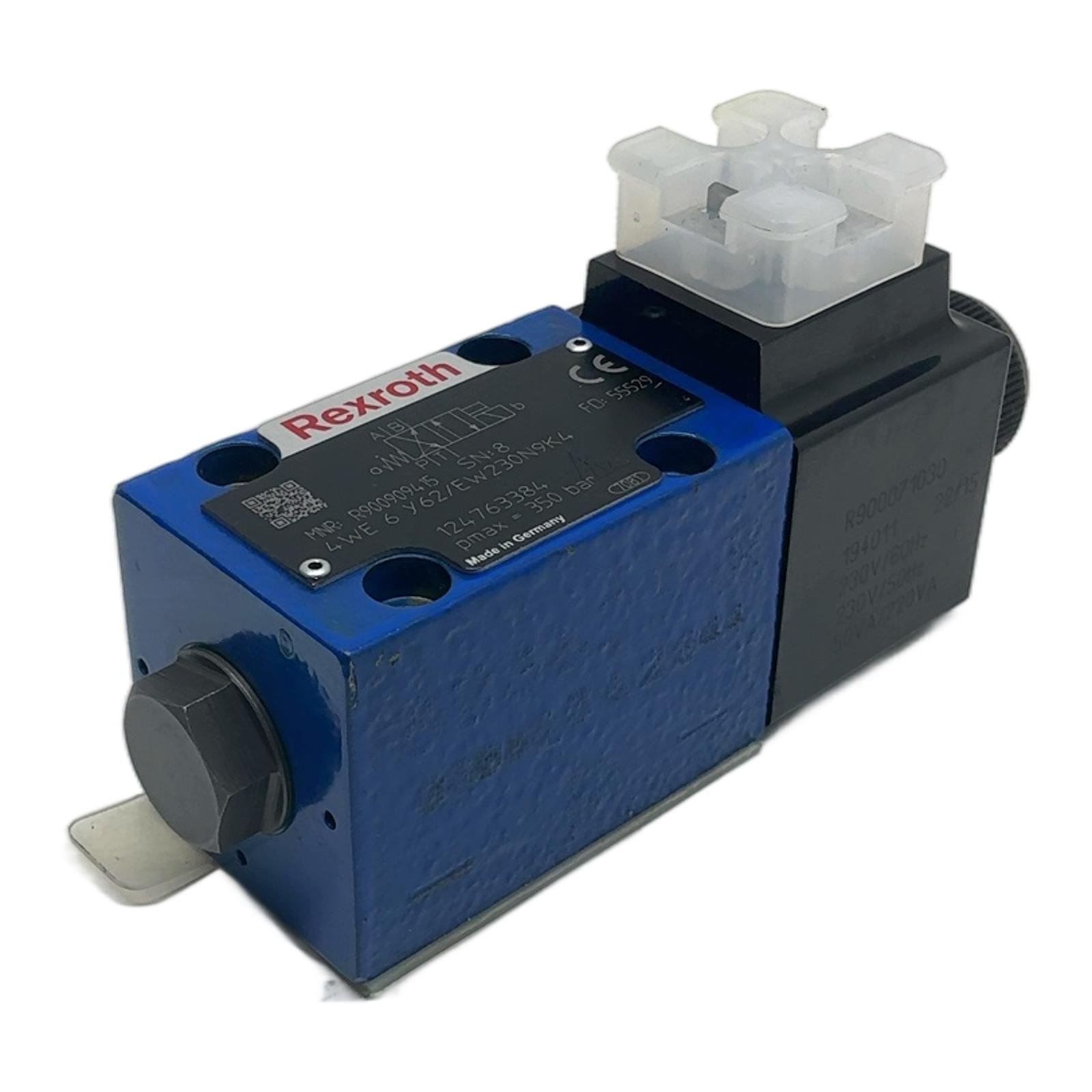

Rexroth 4WE 6 Series Hydraulic Directional Valve Description This is a direct-operated directional spool valve, model 4WE 6 Y62/EW230N9K4 by Bosch Rexroth. It is a size 6 (NG6) valve with a standard mounting pattern according to DIN 24340 Form A. The valve is actuated by a 230V AC wet-pin solenoid and features a spring return mechanism. It is designed to control the flow direction in hydraulic systems, making it suitable for a wide range of industrial applications. Specifications Manufacturer: Rexroth Type: 4WE 6 Y62/EW230N9K4 Material Number (MNR): R900909415 Valve Size: NG6 (CETOP 3) Maximum Operating Pressure (pmax): 350 bar Actuation: Solenoid-operated, spring return Solenoid Voltage: 230V AC (50/60Hz) Solenoid Model: EW230N9K4 (R900071030) Electrical Connection: For plug-in connector to DIN EN 175301-803 (DIN 43650) Features: Concealed manual override (N9) Label Info MNR: R900909415 Type: 4WE 6 Y62/EW230N9K4 SN: 8 FD: 55529 Application This valve is commonly used in industrial hydraulic systems such as machine tools, presses, production lines, and plastics machinery for precise control of actuators like cylinders and hydraulic motors. Country of Origin Made in Germany CO2 Impact By purchasing this reused component, you help avoid the emissions of a new production, saving an estimated 10.0 kg of CO2. This saving is comparable to the emissions from a 50 km car journey. Availability Available from stock for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of electrical connector is required for this solenoid?This solenoid requires a DIN 43650 / ISO 4400 (Form A) connector, which is a standard 3-pin + ground industrial connector for solenoid valves. What does the ‘Y’ in the model number signify?The ‘Y’ in the type code specifies the spool symbol and function. It indicates a 4-way, 2-position valve with a single solenoid and spring offset. When the solenoid is de-energized, the spring returns the spool to its initial position. Is the manual override detented or momentary?The ‘N9’ in the solenoid code indicates a concealed manual override. This type of override is non-locking (momentary), meaning it must be held to keep the valve shifted and will return to its original state once released. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
