REXROTH 4WE6E62/EG24N9K4 R900561278

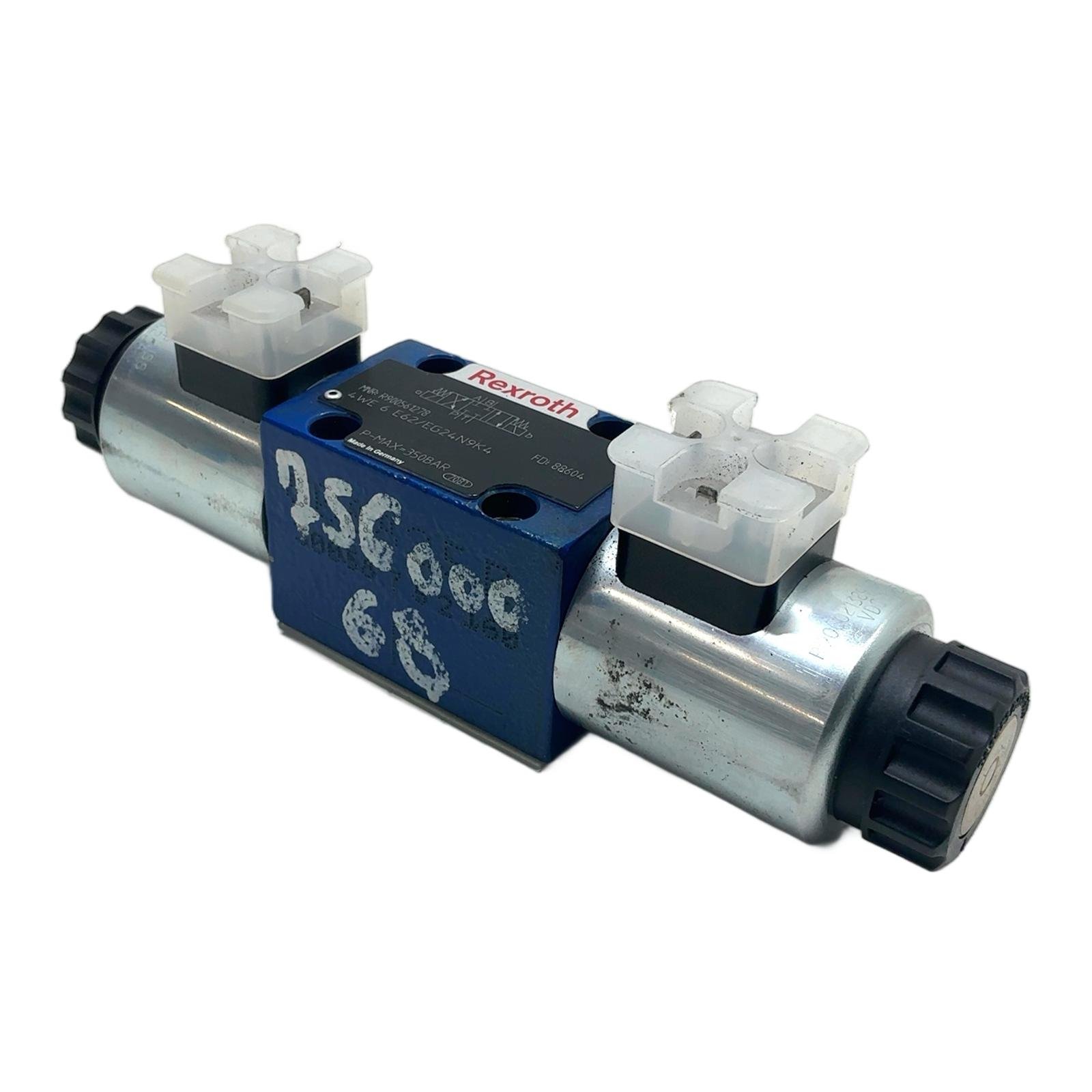

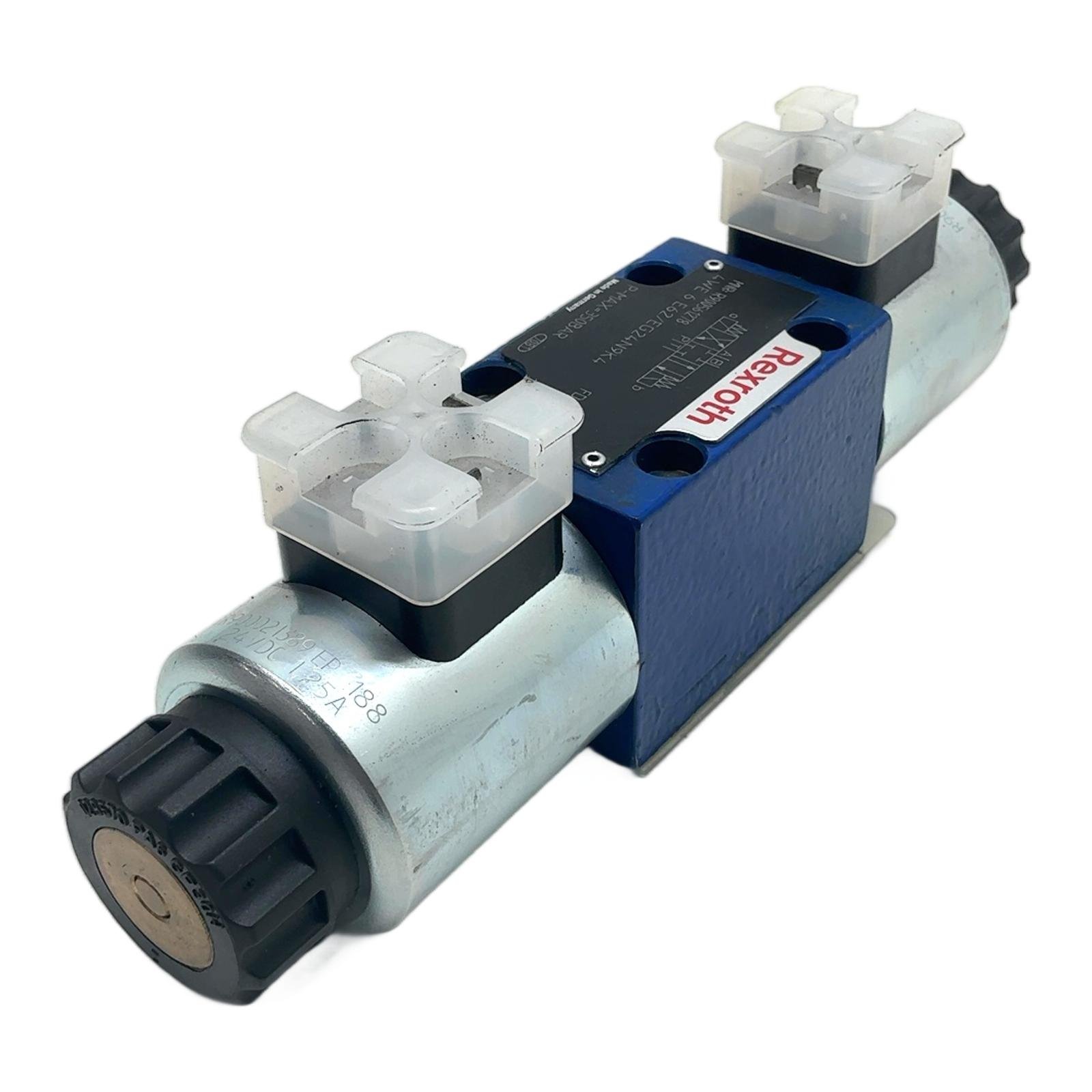

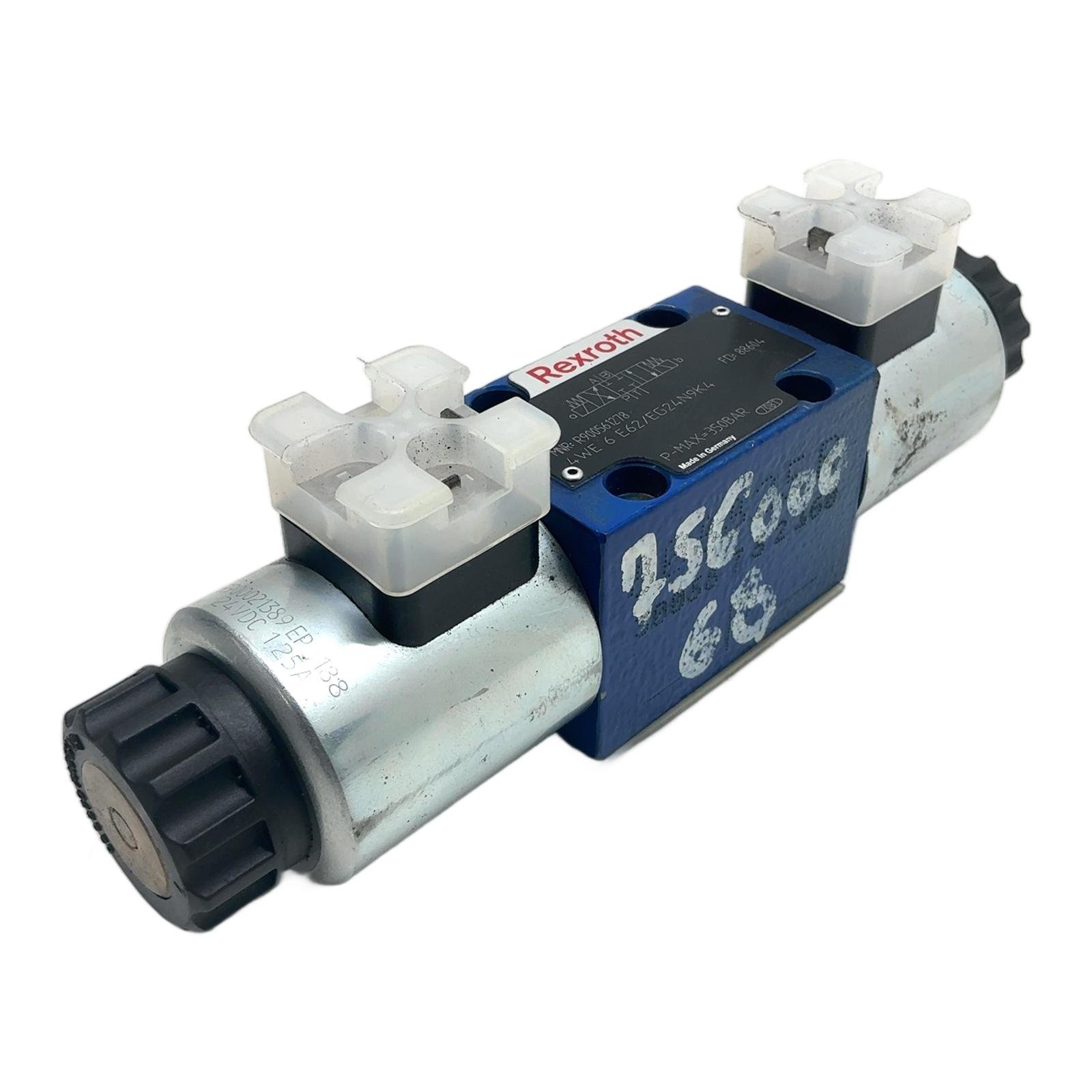

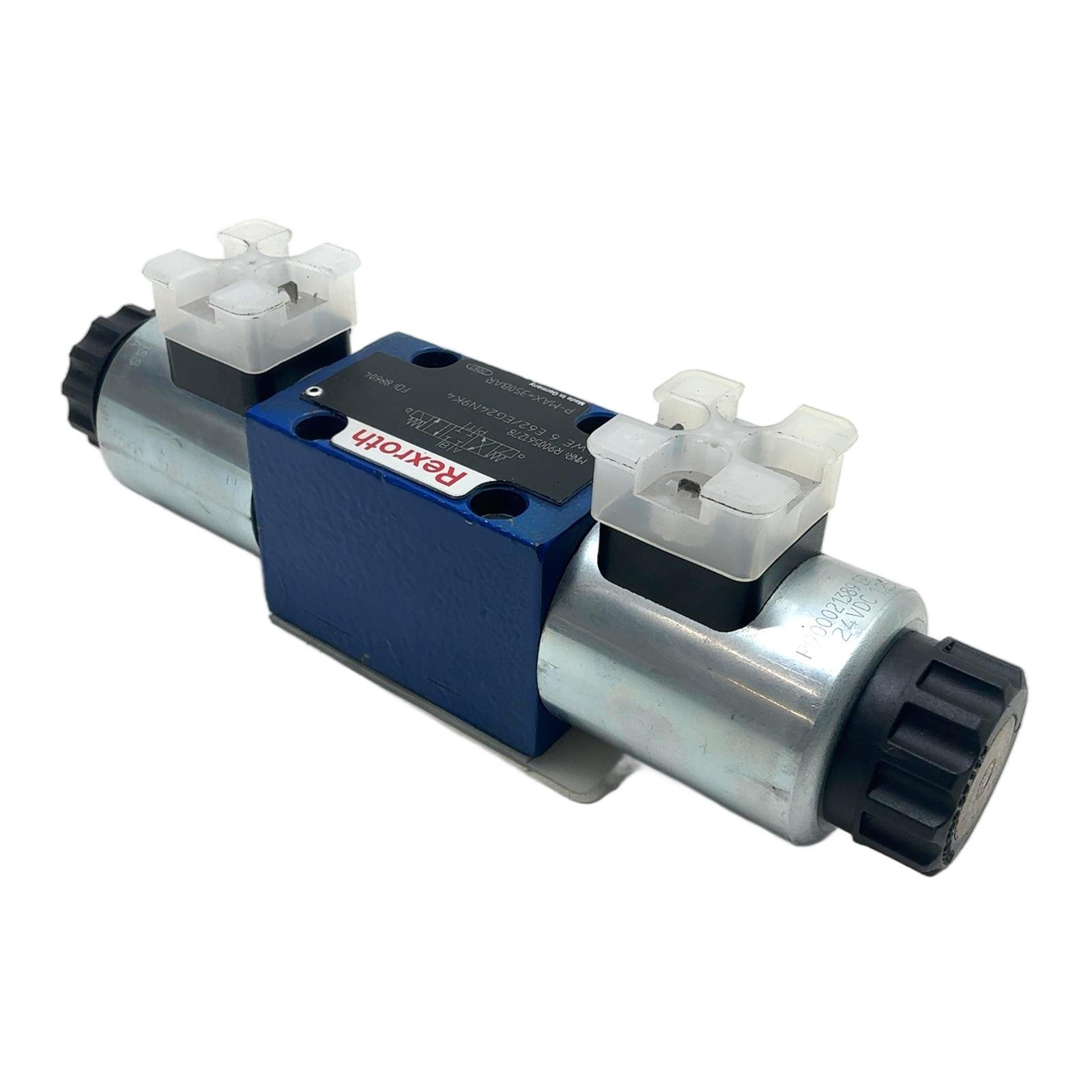

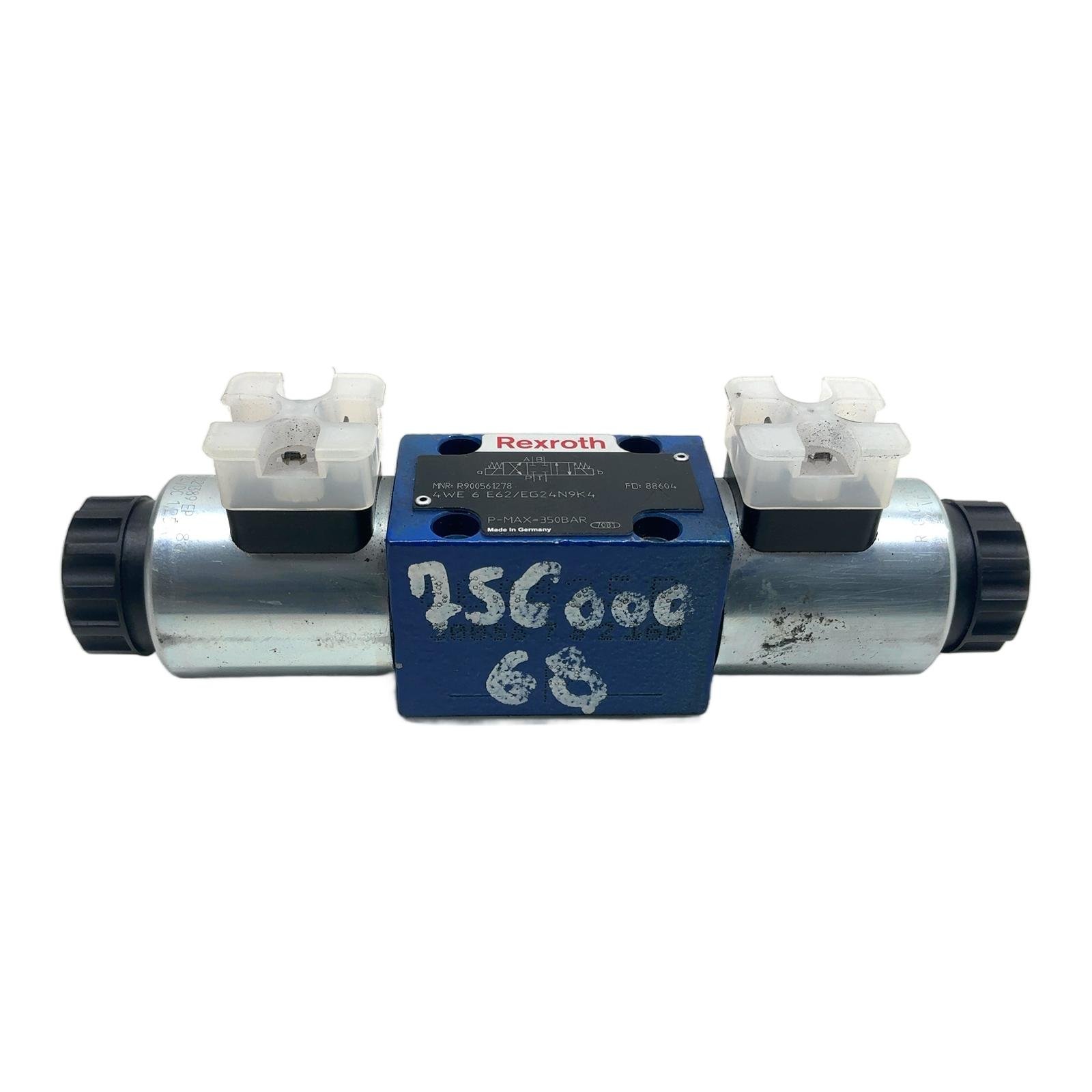

Rexroth 4WE 6 Series Hydraulic Directional Valve Description This is a Rexroth 4WE 6 E62/EG24N9K4 direct-operated directional spool valve. It is an industry-standard component for controlling fluid flow in hydraulic power systems. With its robust design and reliable 24V DC solenoid actuation, this valve ensures precise control and long service life. It is a 4/3-way valve (4 ports, 3 positions) with a spring-centered ‘E’ spool configuration. Specifications Manufacturer: Bosch Rexroth Part Number: R900561278 Type: 4WE 6 E62/EG24N9K4 Description: Directional Spool Valve Nominal Size: NG6 (CETOP 3) Actuation: Solenoid-operated Voltage: 24V DC Maximum Operating Pressure: 350 bar Mounting Interface: ISO 4401-03-02-0-05 Label Info MNR: R900561278 Type: 4WE 6 E62/EG24N9K4 FD: 88604 P-MAX: 350BAR Application This valve is suitable for a wide range of industrial hydraulic applications, including machine tools, presses, manufacturing lines, and general industrial machinery where reliable directional control is required. Country of Origin Made in Germany. CO2 Impact Choosing this pre-owned valve over a new one avoids the emission of approximately 15 kg of CO2. This saving is comparable to driving a standard passenger car for 75 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of connector does this valve use?This valve uses a K4 individual connection style, which is compatible with a standard DIN EN 175301-803 (formerly DIN 43650) Form A connector. Please note that connectors are typically sold separately. What does the spool symbol ‘E’ mean?The spool symbol ‘E’ defines the flow path in the center (neutral) position. For this valve, it means all ports (P, A, B, T) are connected, which is often used for pump circulation at low pressure when the valve is not actuated. Can the solenoids be replaced individually?Yes, the solenoids on the Rexroth 4WE 6 series are modular and can be replaced. The part number for the 24V DC coil is R900021389. Always ensure the hydraulic system is depressurized before performing maintenance. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
