FESTO DPA-100-16 188399

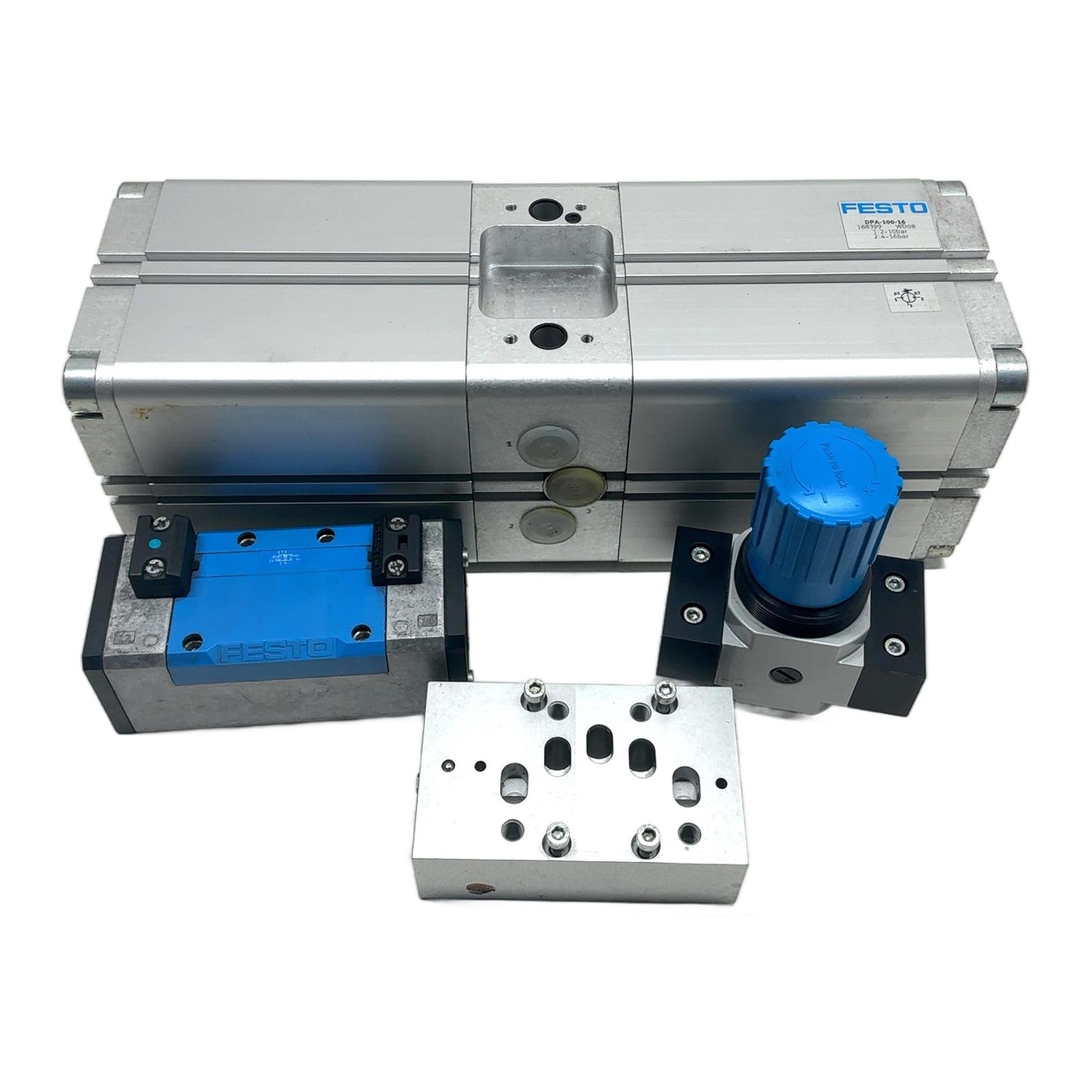

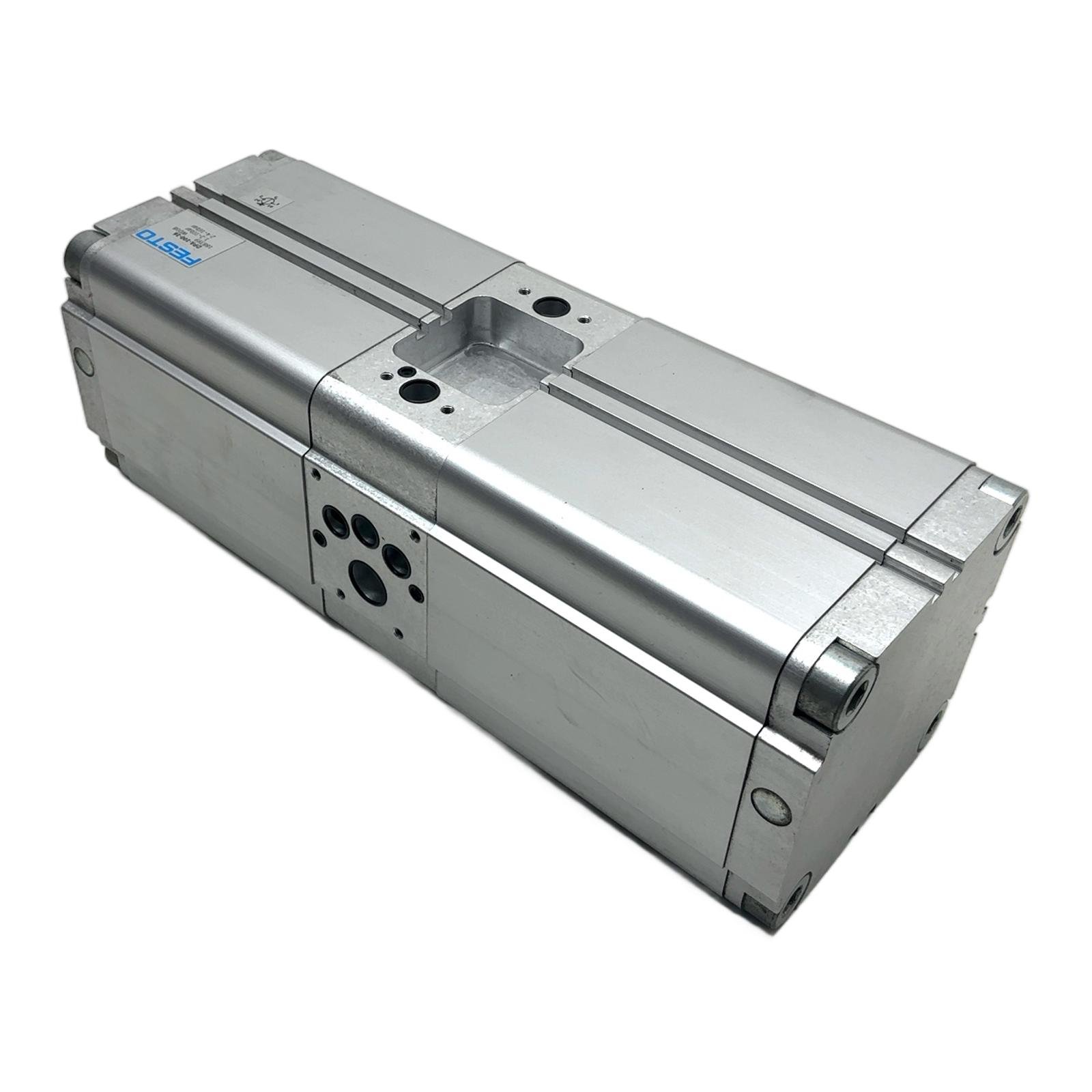

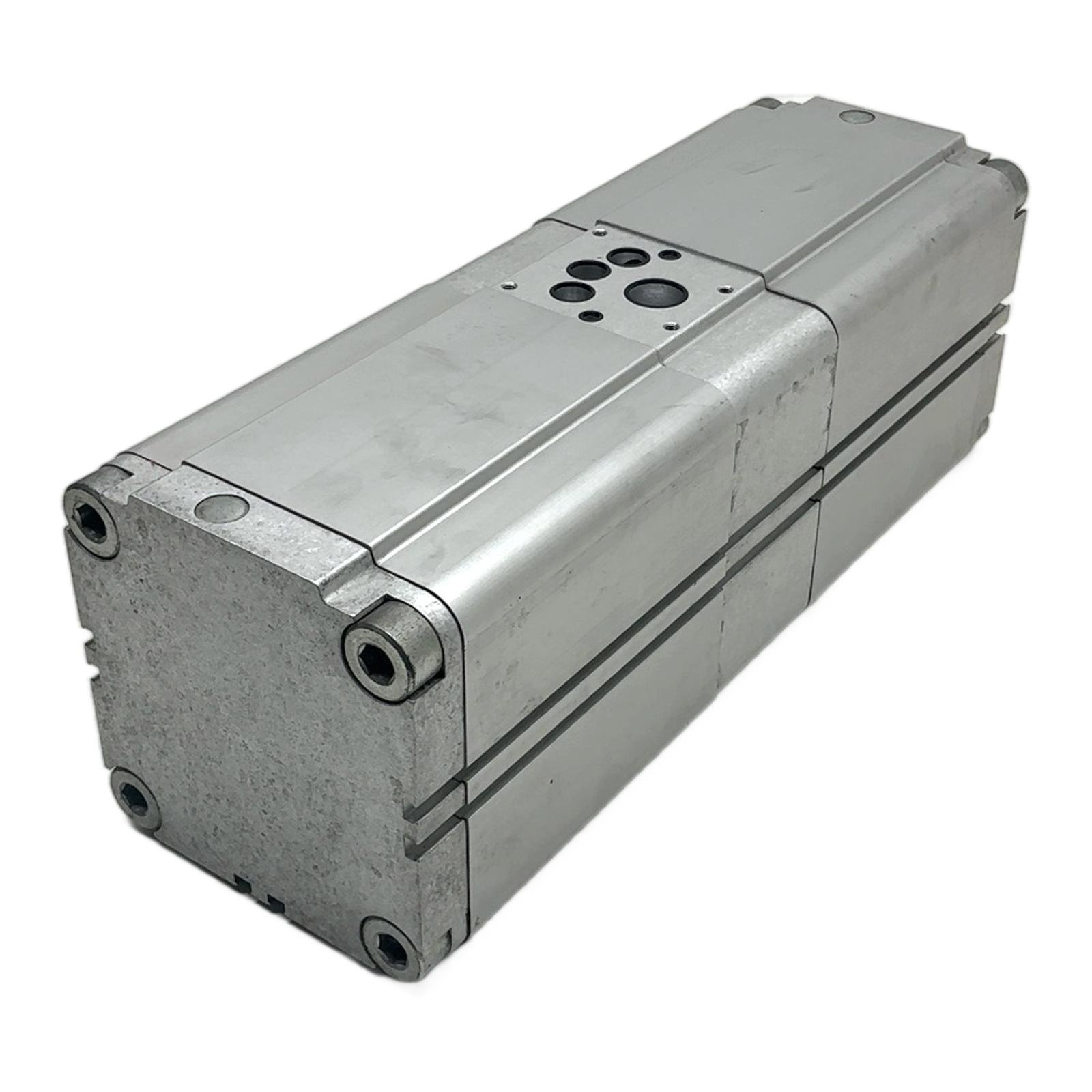

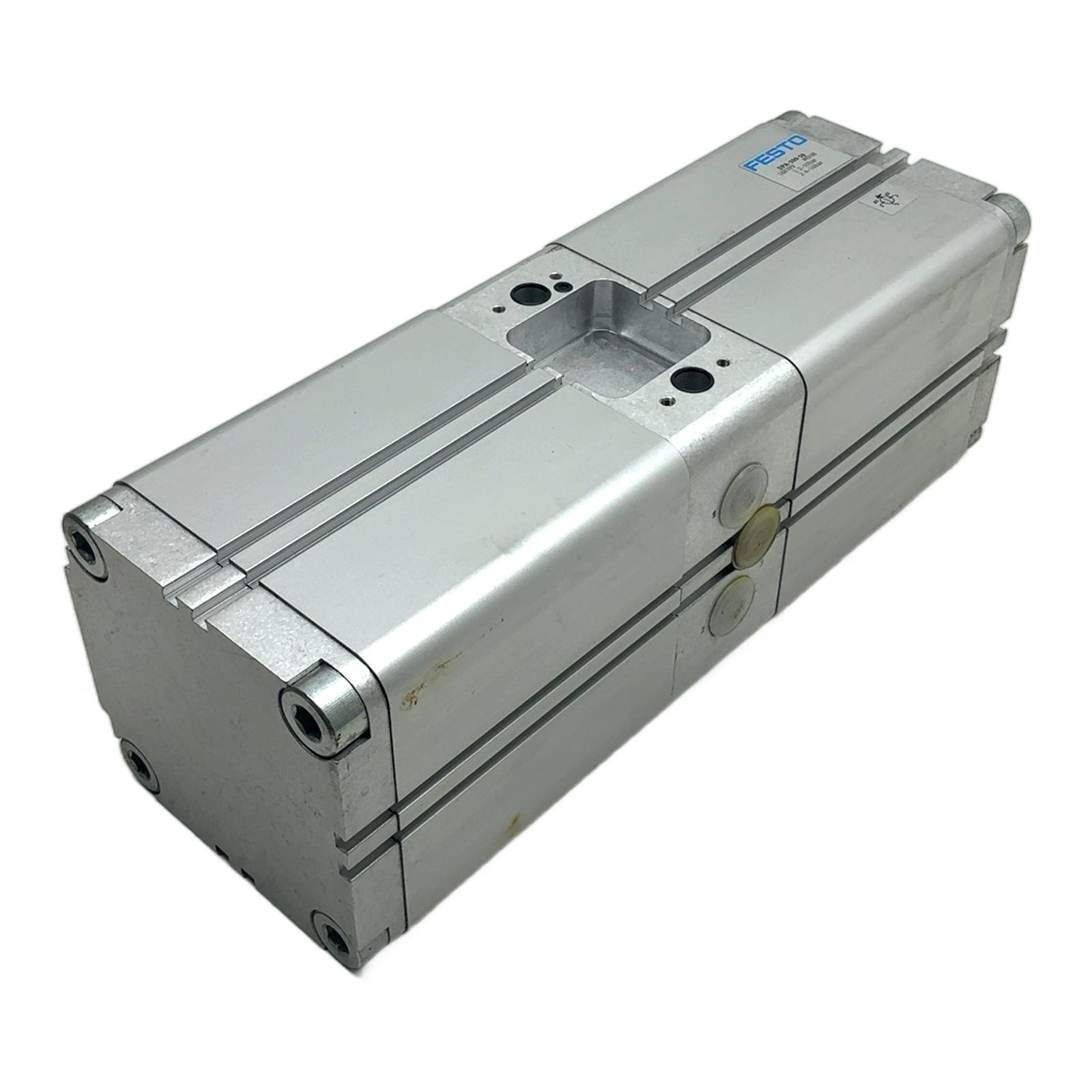

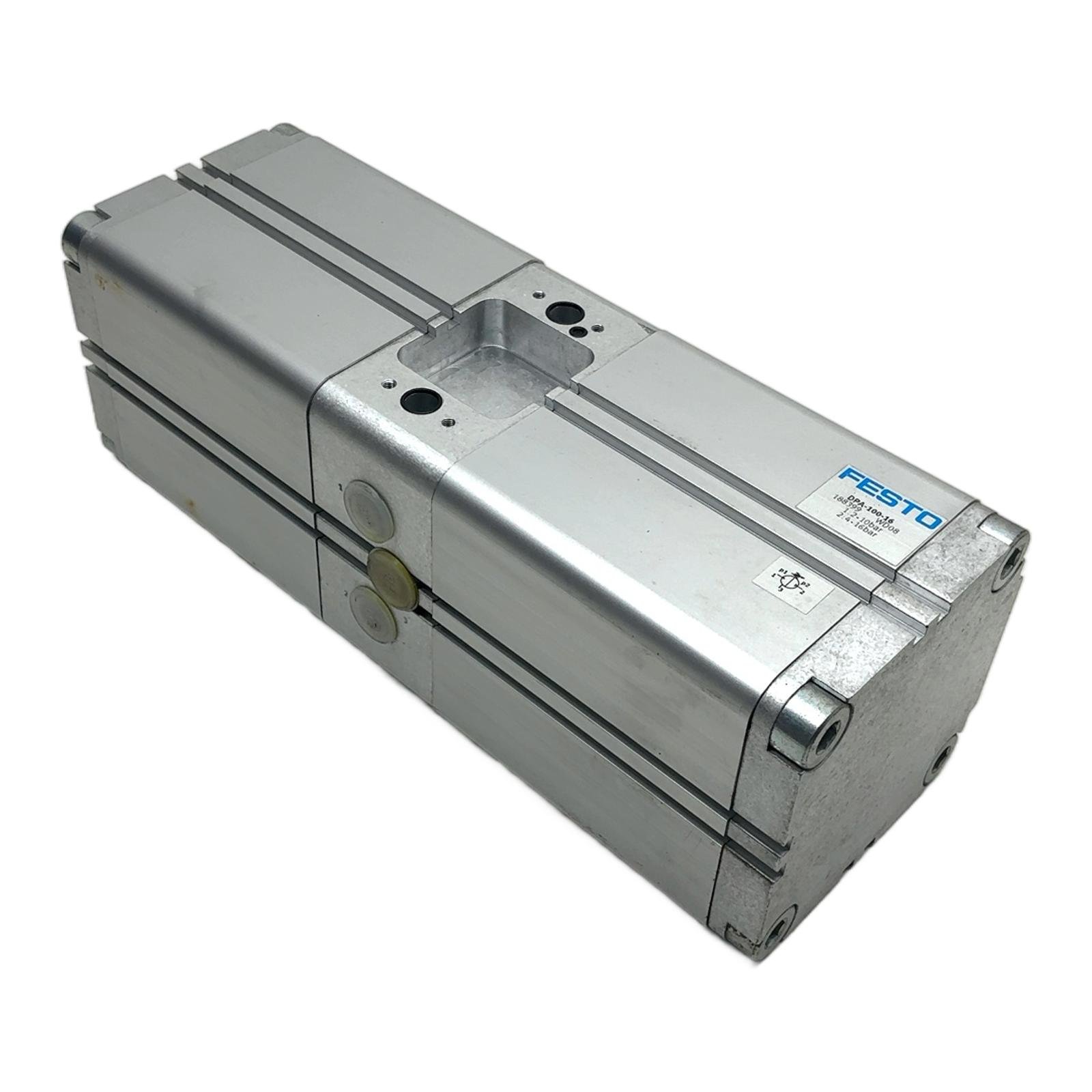

Festo DPA-100-16 Pneumatic Pressure Booster Description The Festo DPA-100-16 is a high-performance pneumatic pressure booster designed to double the input pressure for specific applications. With a 100 mm piston diameter and a 16 mm stroke, it provides a reliable method for pressure intensification without the need for an external power supply. This unit is ideal for clamping, testing, or pressing operations that require higher forces. This offer includes the main DPA-100-16 unit along with a detached valve sub-base, pressure regulator, and manifold block as pictured. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Festo Model: DPA-100-16 Part Number: 188399 Piston Diameter: 100 mm Stroke: 16 mm Pressure Ratio: 1:2 Operating Pressure (Inlet): 2 to 8 bar Maximum Outlet Pressure: 16 bar Operating Medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4] Label Info Type: DPA-100-16 Part No: 188399 Date Code: WD08 p1: 2-10 bar p2: 4-16 bar Application This pressure booster is commonly used in automation systems, manufacturing lines, and workshops for tasks such as powering high-force cylinders, leak testing components, and providing sufficient pressure for press-fitting operations. Country of Origin Made in Germany. CO2 Impact By reusing this industrial part, you contribute to a significant reduction in CO2 emissions. This single unit’s refurbishment saves approximately 36.0 kg of CO2, which is a substantial environmental benefit compared to manufacturing a new one. Availability This item is in stock and ready for immediate dispatch. It is an obsolete component, making it a valuable spare for existing installations. FAQ What is the actual pressure multiplication ratio of the DPA-100-16?The DPA-100-16 has a theoretical pressure multiplication ratio of 1:2. This means it can approximately double the inlet pressure at the outlet, up to a maximum of 16 bar. Can this pressure booster be operated without lubrication?Yes, according to the Festo datasheet, the DPA series can be operated with or without lubricated air. If lubrication is used once, it must be used continuously. What are the included accessories shown in the pictures?This offer includes the DPA-100-16 pressure booster along with a detached valve sub-base (likely Festo MPA1FBEMM8-C), a pressure regulator, and a manifold block, as shown in the images. Please verify all components upon receipt. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
