MURRELEKTRONIK 44711 7000-44711-7940150

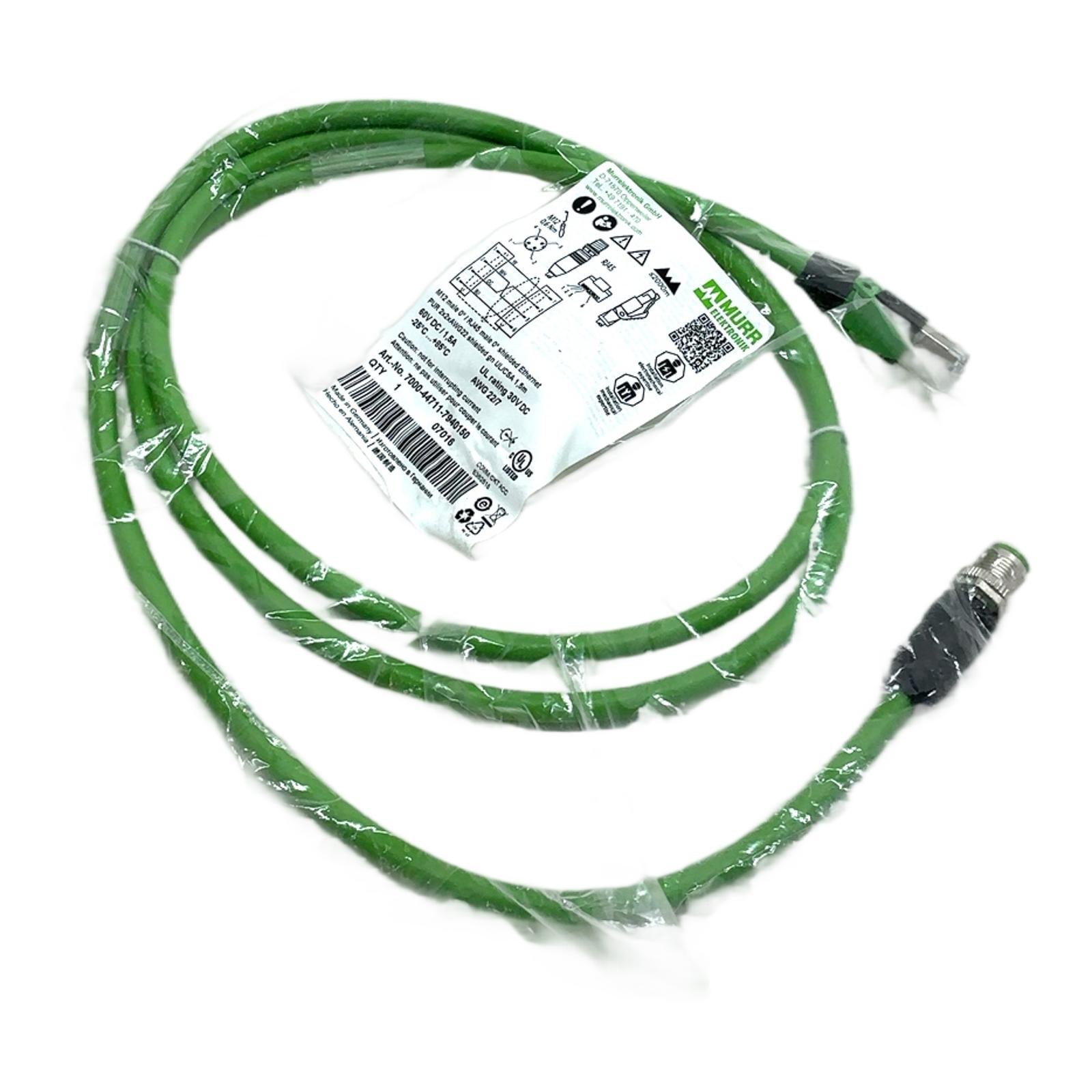

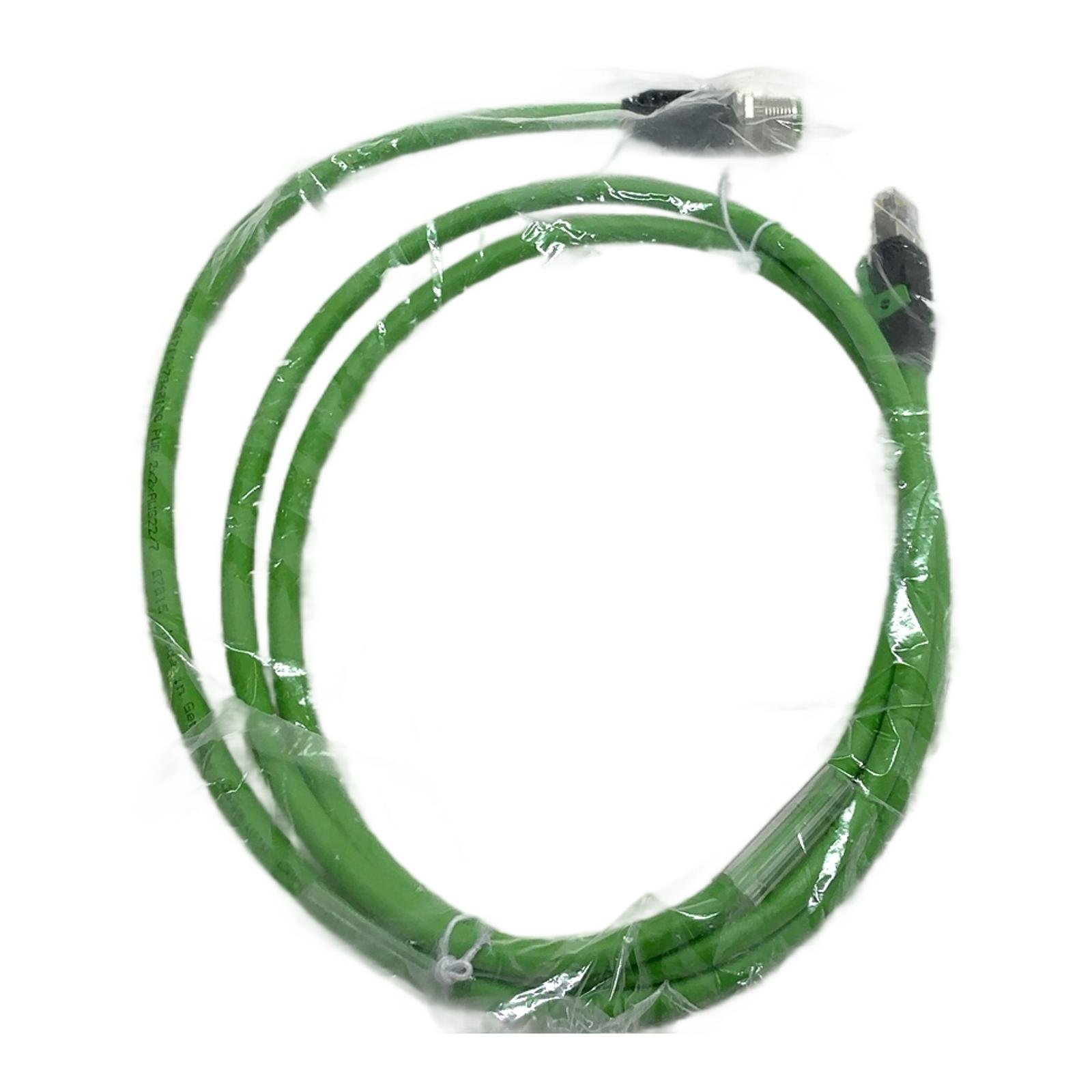

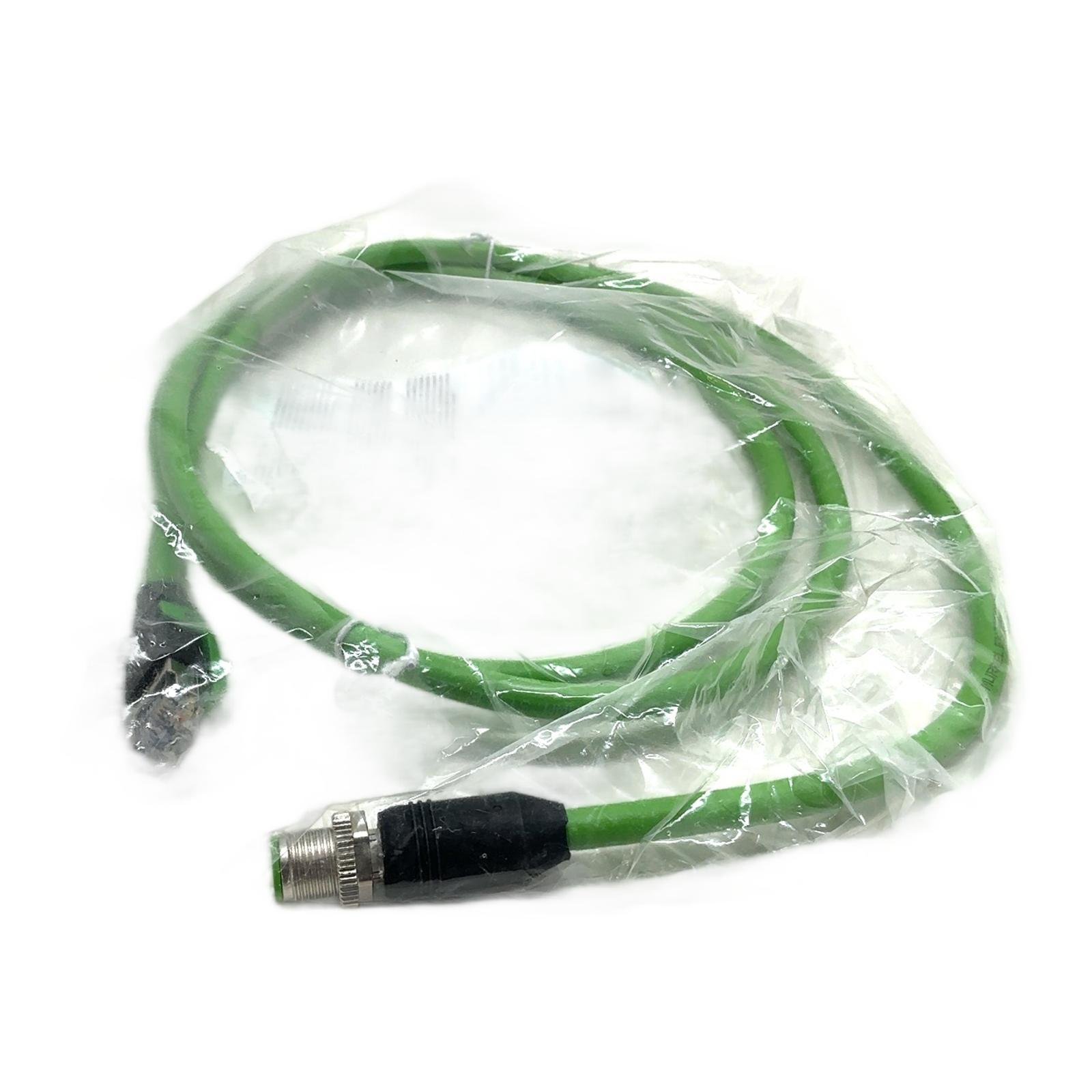

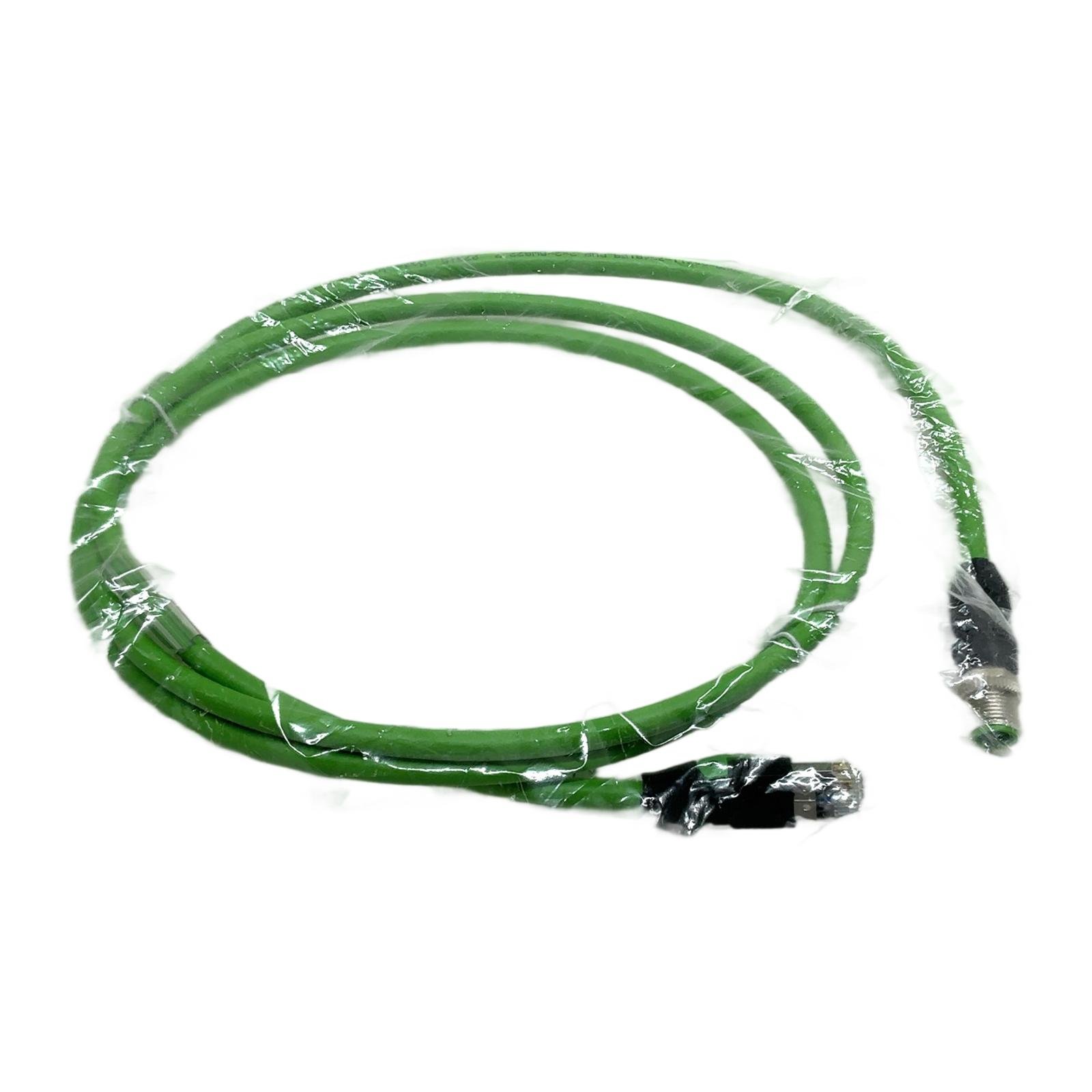

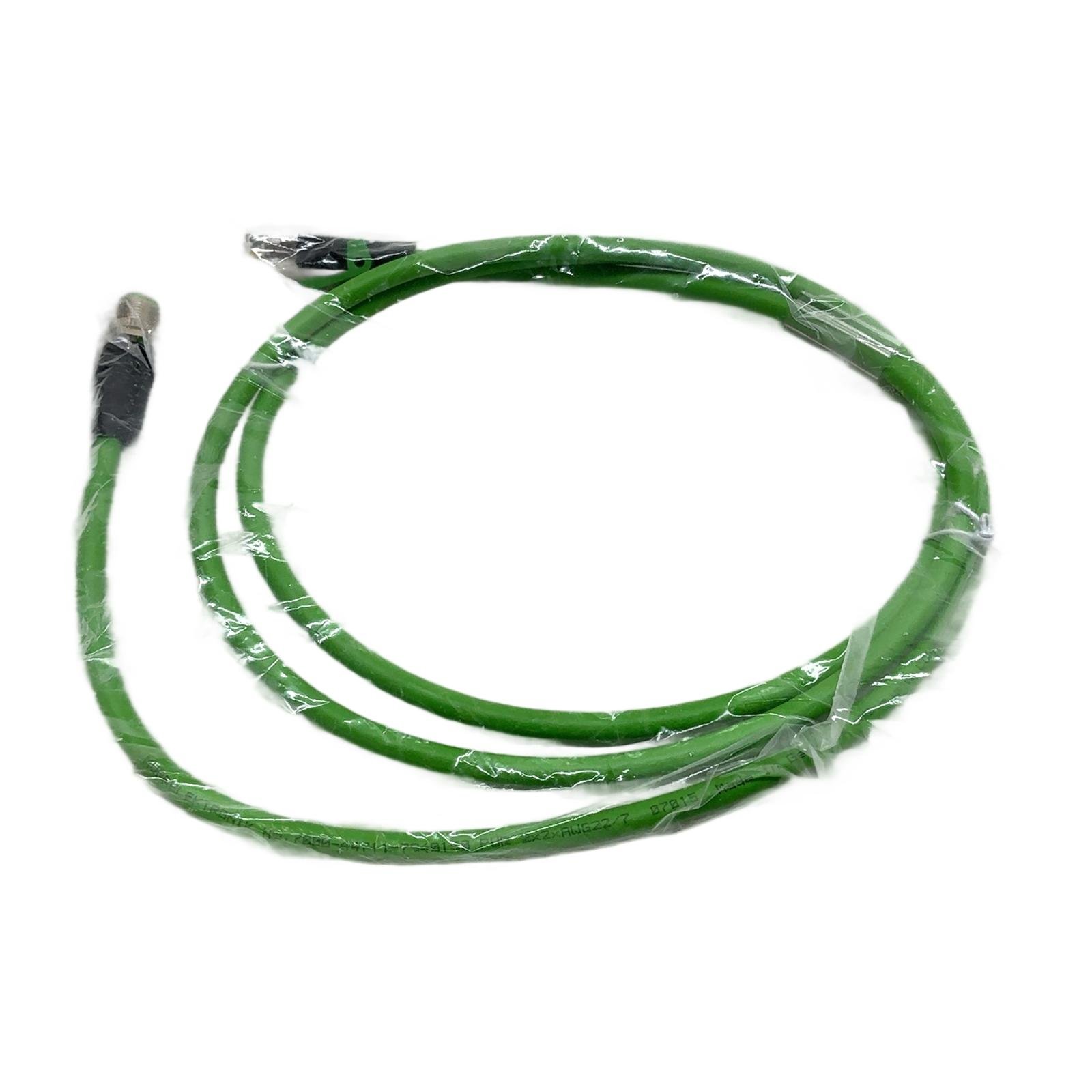

Murrelektronik Industrial PROFINET Ethernet Cable Description This high-quality industrial Ethernet cable, part number 7000-44711-7940150, from Murrelektronik is designed for reliable data communication in demanding automation environments. It features a robust, shielded construction with a 1.5-meter length, connecting a straight M12 D-coded male plug to a straight RJ45 male plug. The green PUR (Polyurethane) jacket provides excellent resistance to oils, chemicals, and abrasion. Specifications Manufacturer: Murrelektronik Article Number: 7000-44711-7940150 Connector A: M12 Male, 4-pole, D-coded, straight Connector B: RJ45 Male, straight Cable Length: 1.5 meters Jacket Material: PUR (Polyurethane) Jacket Color: Green Shielding: Yes, overall shield Operating Voltage: max. 60V DC Operating Current per Contact: max. 1.5 A Temperature Range: -25 to +85 deg C Wire Gauge: AWG 22/7 Label Info Art.-No.: 7000-44711-7940150 Type: M12 male 0 deg / RJ45 male 0 deg shielded Ethernet Rating: 60V DC / 1.5 A Application Ideal for connecting sensors, actuators, and control units in PROFINET and other Industrial Ethernet networks. Suitable for factory automation, machine building, and process control applications where a durable and reliable connection is critical. Country of Origin Made in Germany. CO2 Impact Opting for this component instead of a new one prevents the emission of approximately 6.0 kg of CO2, which is comparable to driving a car for 30 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the D-coding on the M12 connector?D-coding is an industry standard specifically for 100 Mbit/s Industrial Ethernet and PROFINET applications. It uses a 4-pin configuration that ensures proper connection and prevents accidental mismating with other M12-coded connectors used for power (A-coded) or other network protocols. Is the PUR jacket on this cable suitable for applications with oil or chemical exposure?Yes, the Polyurethane (PUR) jacket offers excellent resistance to oils, coolants, chemicals, and abrasion. This makes it ideal for harsh industrial environments, such as on machine tools or in production lines where such exposure is common. Can this cable be used in a drag chain (cable carrier) application?While the PUR jacket is very durable for static or occasional flexing, this specific cable (cable type 794) is not explicitly rated by the manufacturer for high-flex or continuous motion drag chain use. For such applications, Murrelektronik offers specific drag-chain-rated cables designed to withstand millions of bending cycles. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
