SIEMENS 3UF7100-1AA00-0

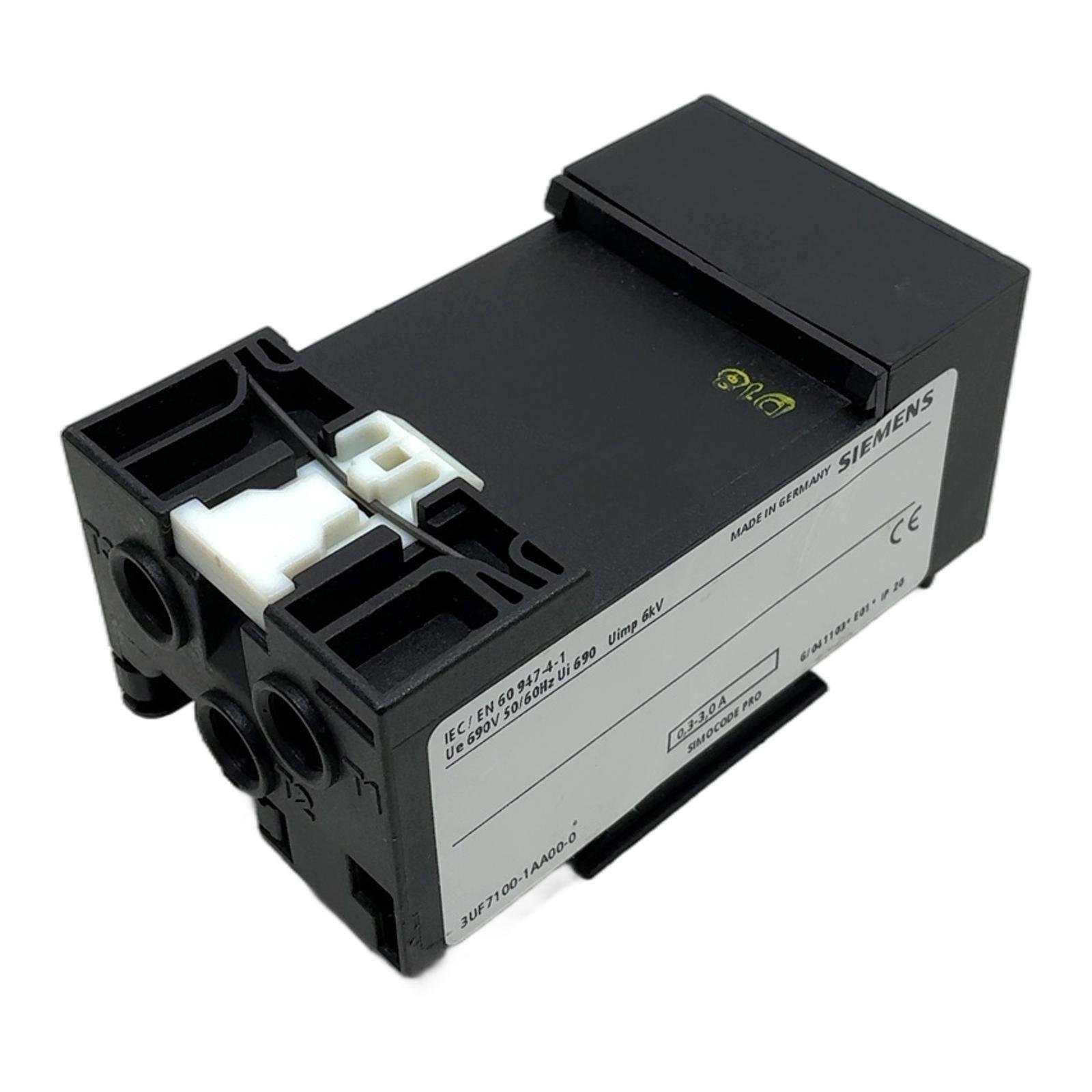

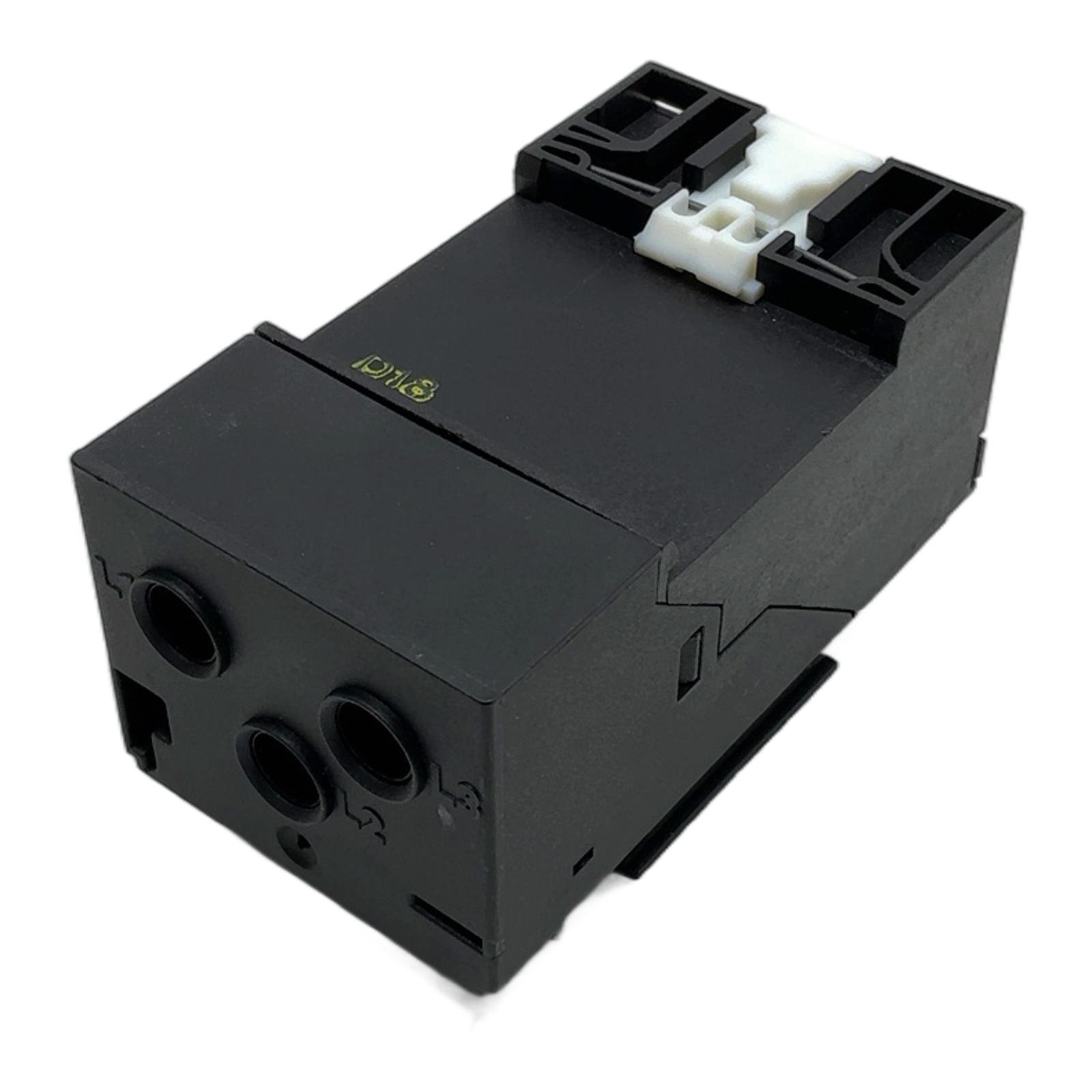

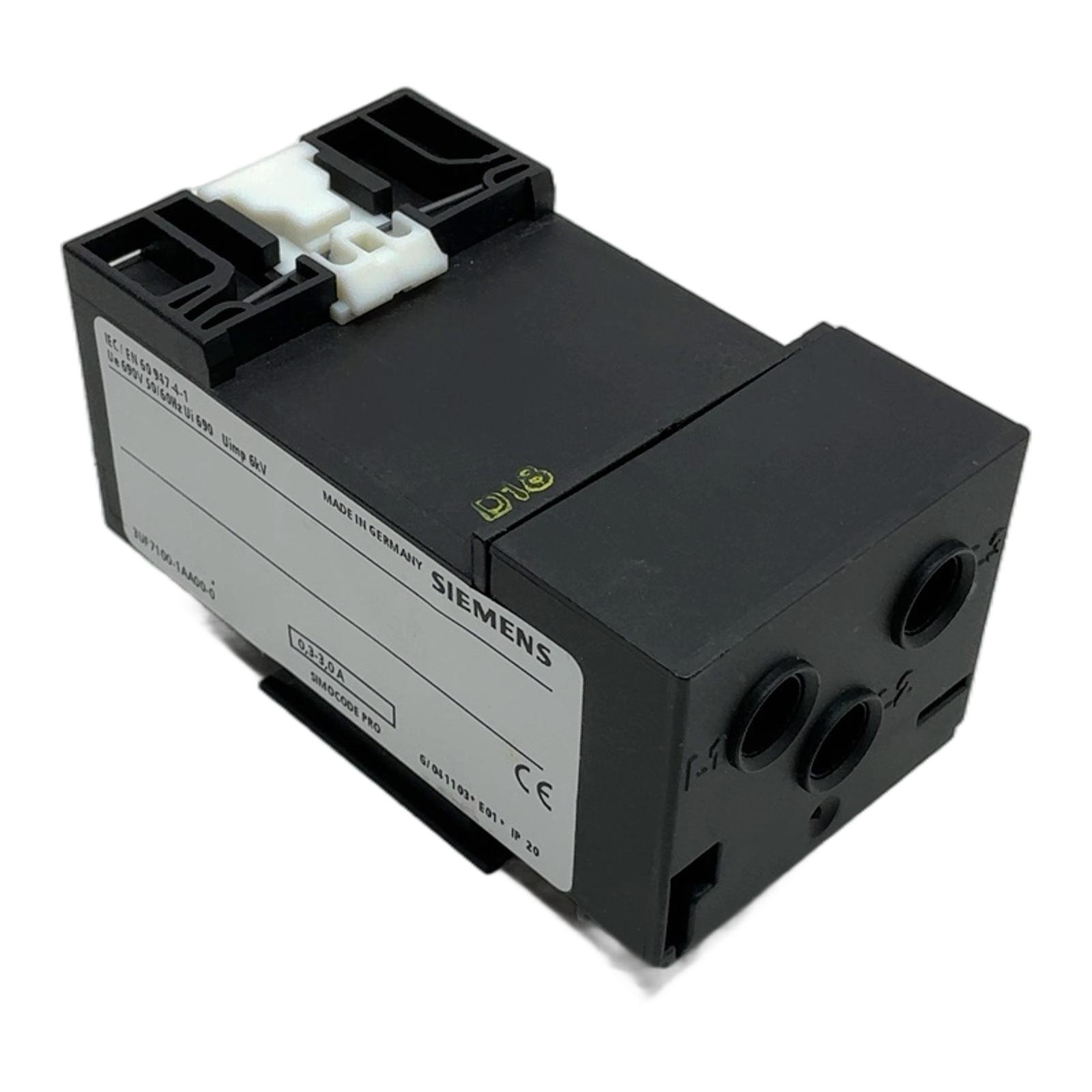

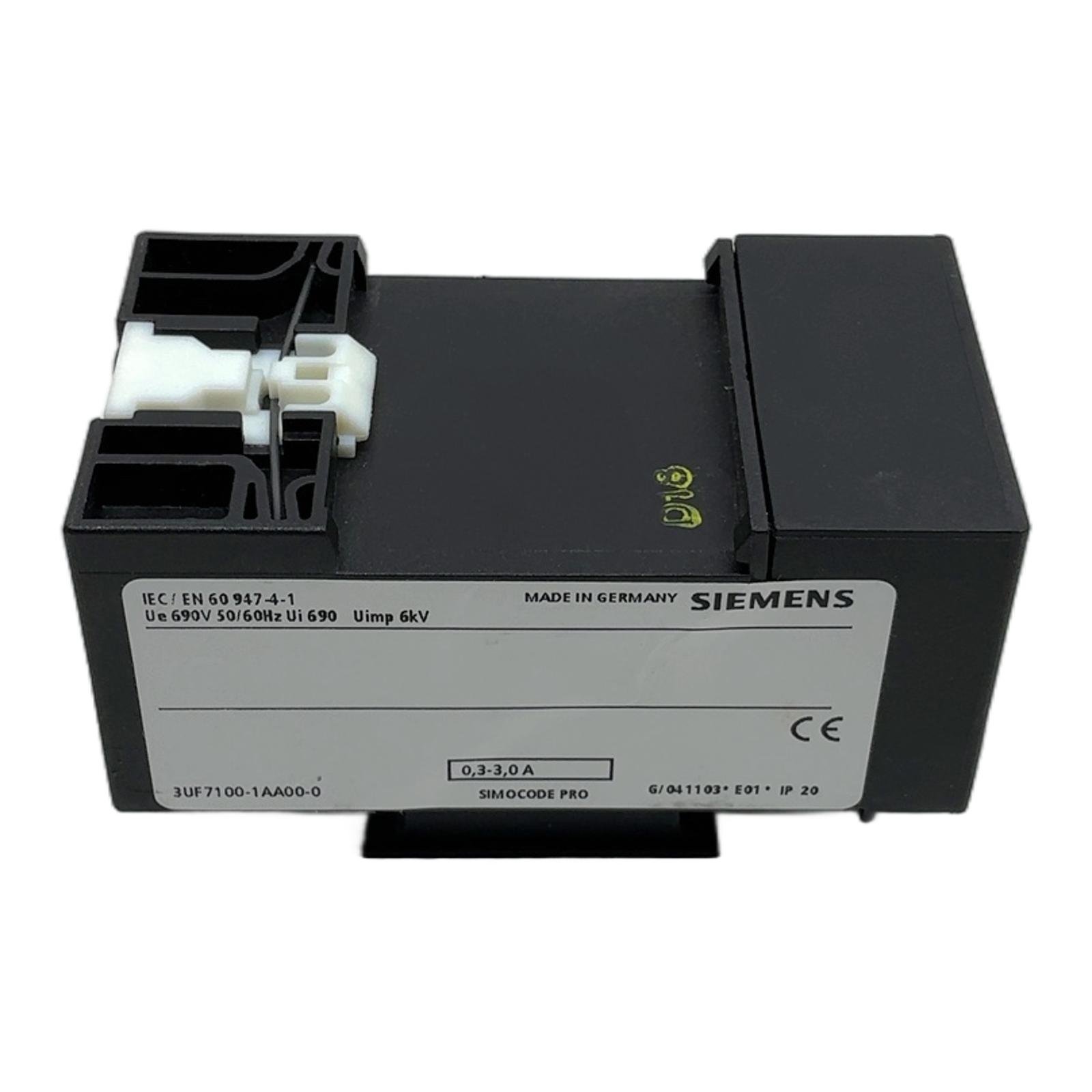

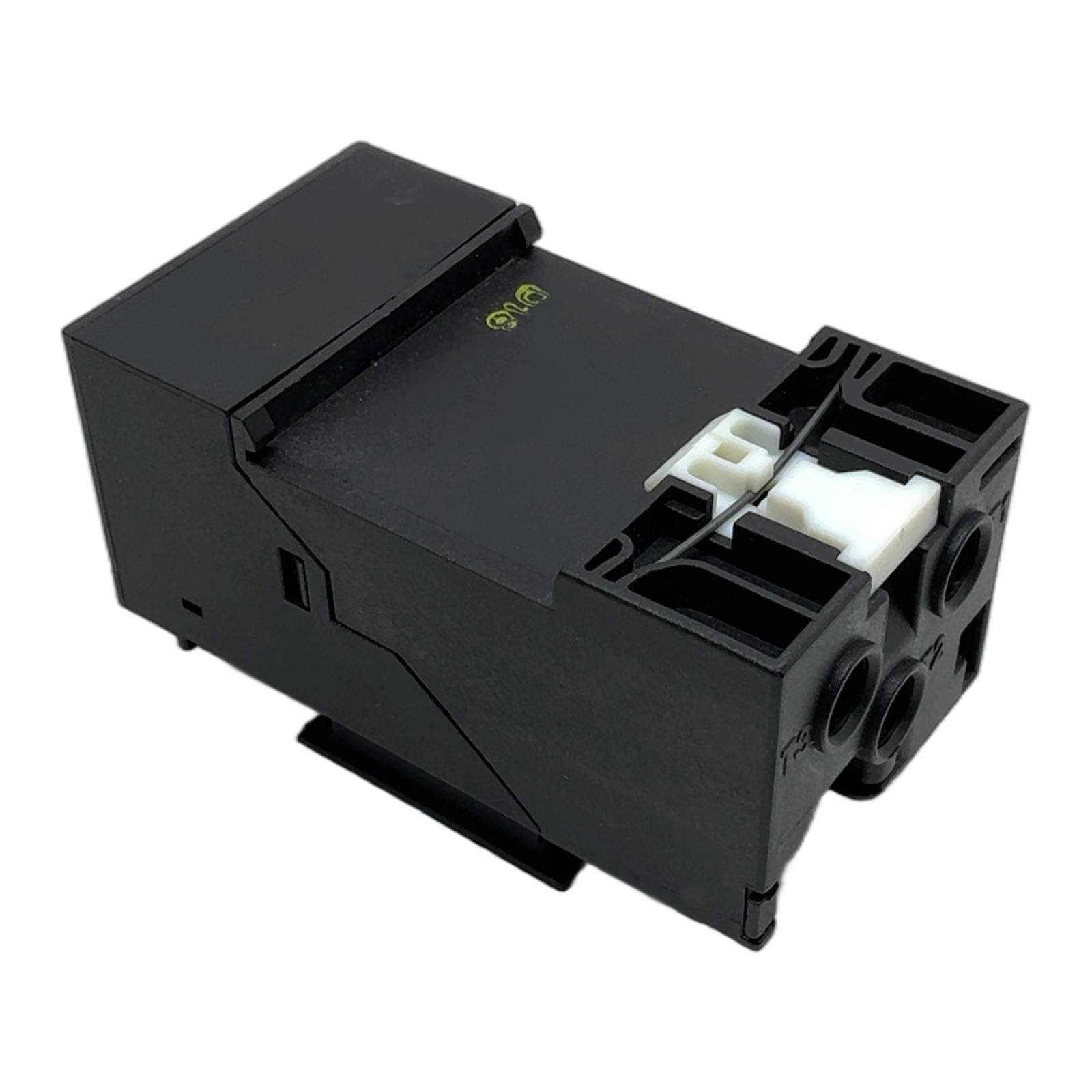

Siemens 3UF7100-1AA00-0 Current Measuring Module Description The Siemens 3UF7100-1AA00-0 is a current measuring module for the SIMOCODE pro C motor management system. It is designed for monitoring and protecting motors with a current range of 0.3 to 3.0 Amperes. This module utilizes a straight-through transformer for easy and non-invasive installation, providing accurate data for overload protection, phase failure detection, and performance monitoring. Specifications Manufacturer: Siemens Product Line: SIMOCODE pro C Model: 3UF7100-1AA00-0 Type: Current Measuring Module Current Setting Range: 0.3 A to 3.0 A Rated Operational Voltage (Ue): up to 690V AC Rated Insulation Voltage (Ui): 690V Rated Impulse Withstand Voltage (Uimp): 6kV Protection Class: IP20 Label Info Part Number: 3UF7100-1AA00-0 Standard: IEC/EN 60947-4-1 Serial/Date Code: G/041103 E01 Application This module is ideal for use in control cabinets for the protection of small pumps, fans, conveyors, and other machinery with low-power three-phase motors. It integrates seamlessly with the SIMOCODE pro C basic unit to provide comprehensive motor management. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and helping to prevent approximately 6.0 kg of CO2 emissions that would be generated from manufacturing a new part. Availability This item is an obsolete but functional spare part. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ Is this 3UF7100-1AA00-0 module compatible with the newer SIMOCODE pro V basic units?No, this module is specifically designed for the SIMOCODE pro C (Compact) system. For SIMOCODE pro V systems, you would need the successor module, such as the 3UF7100-1AU00-0. What is the purpose of the straight-through transformer design in this module?The straight-through design allows motor cables to be passed directly through the module without cutting or terminating them. This simplifies installation and ensures a highly accurate, non-invasive current measurement. Can this module be used for single-phase applications?Yes, the SIMOCODE pro system, including this current measuring module, can be configured for single-phase motor protection. The monitoring parameters for phase failure and asymmetry would need to be adjusted accordingly in the basic unit’s programming. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
