SKF 3205ATN9

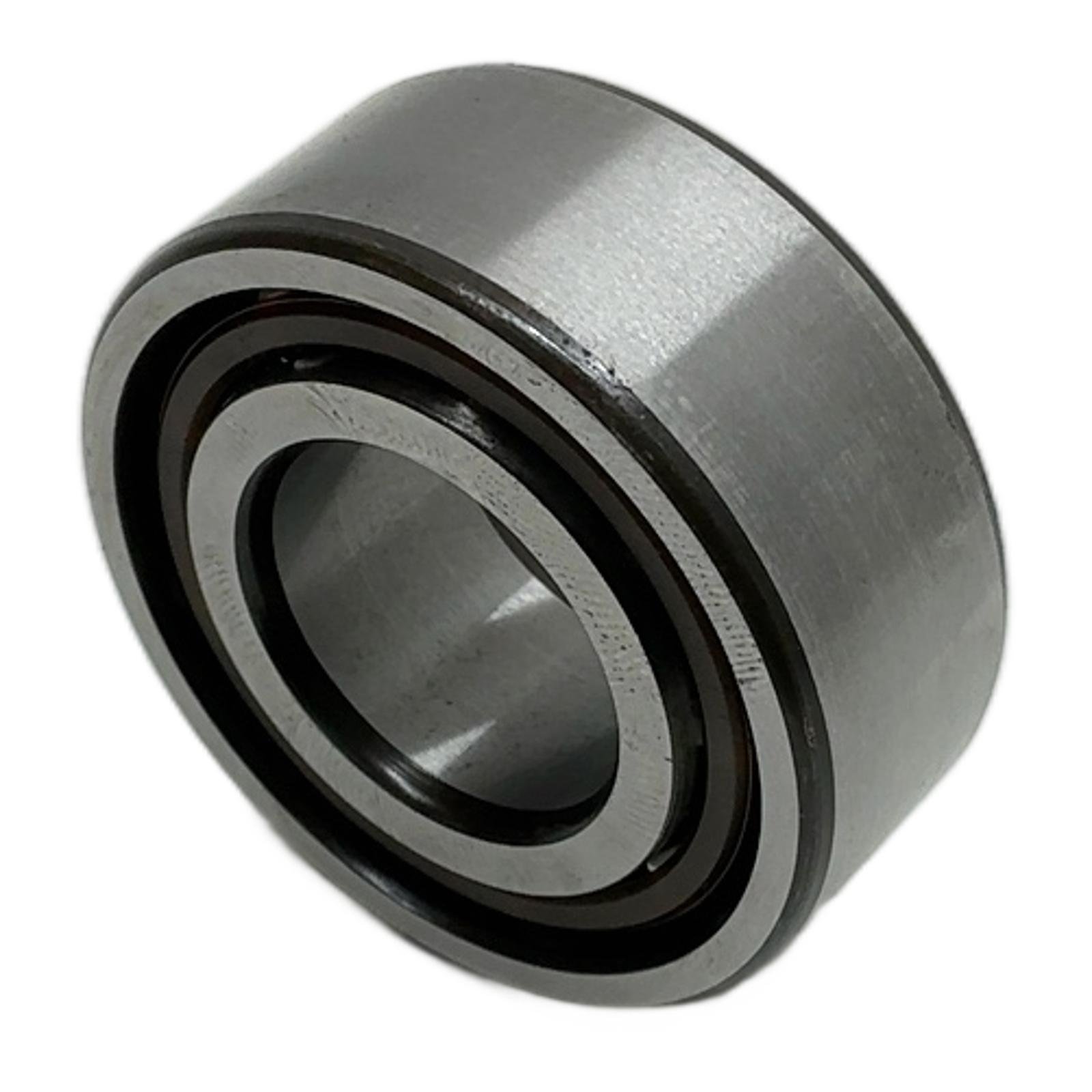

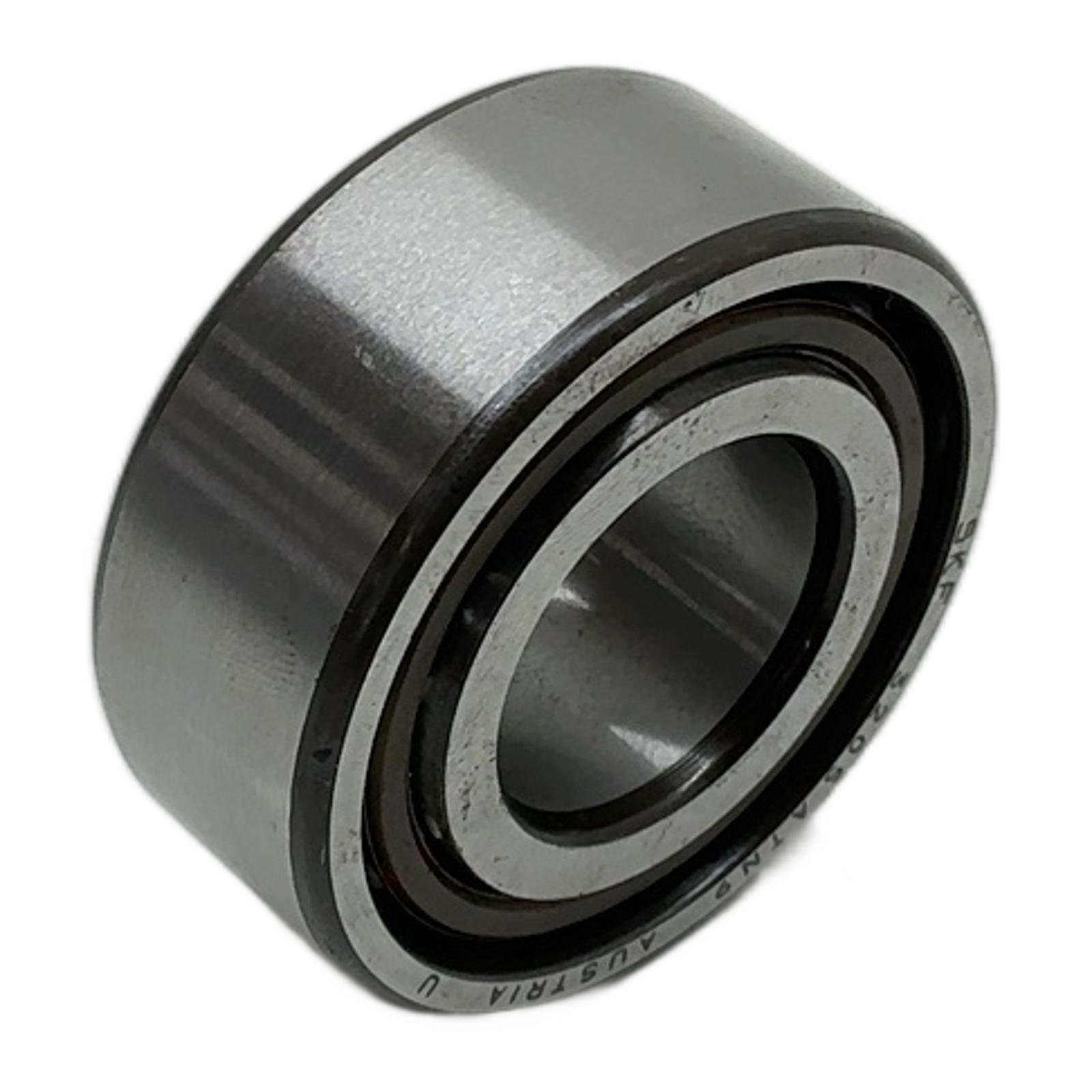

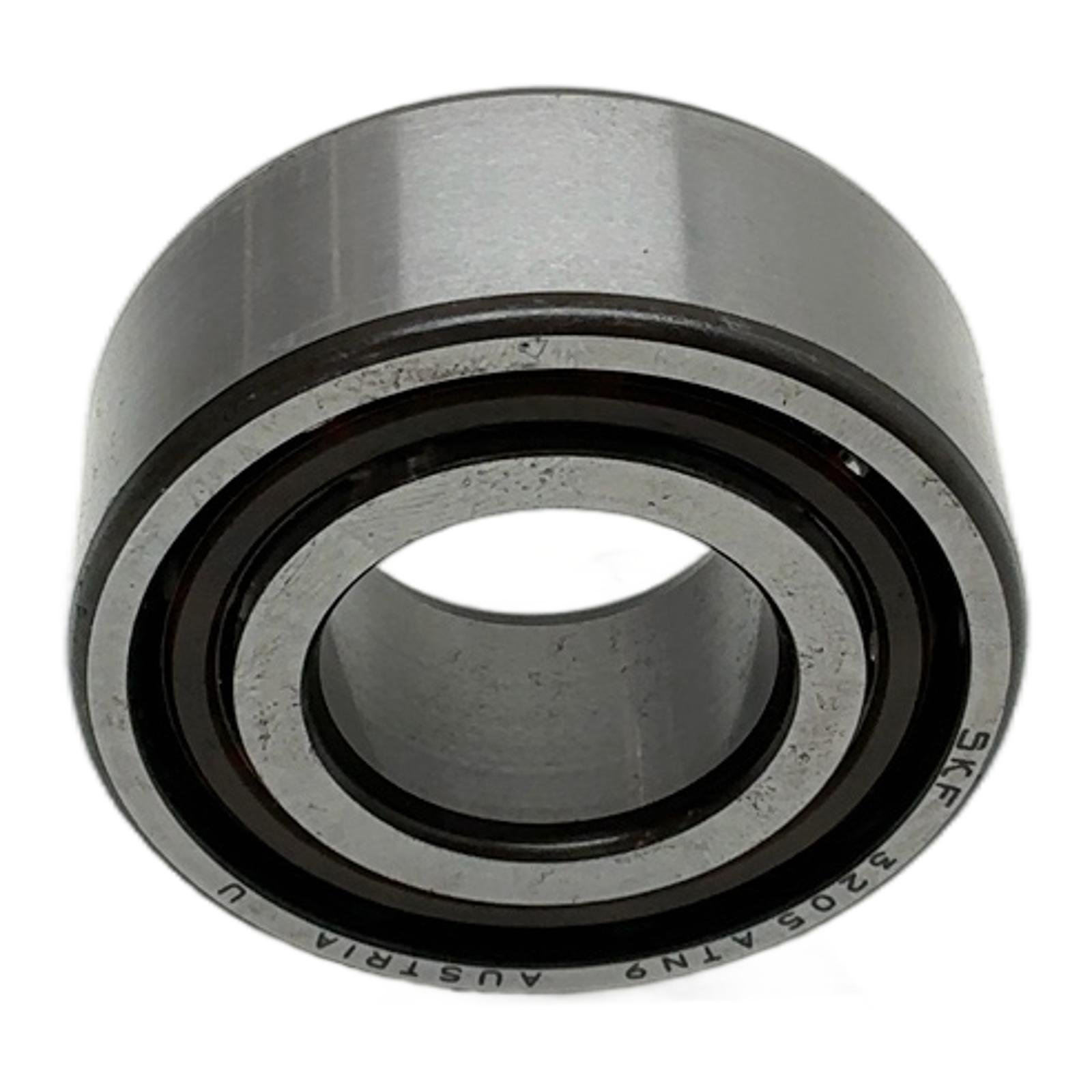

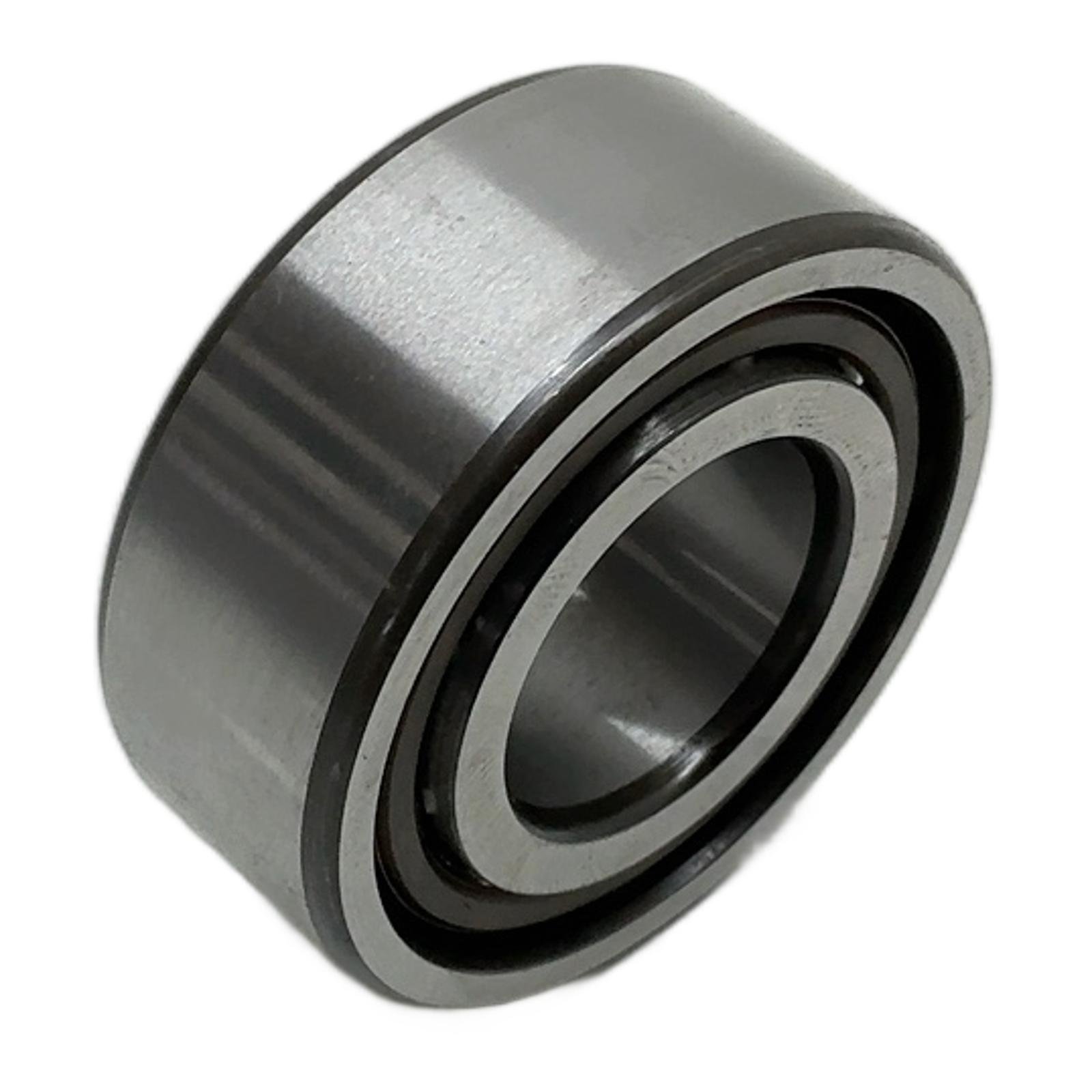

SKF 3205 ATN9 Double Row Angular Contact Ball Bearing Description The SKF 3205 ATN9 is a high-performance double row angular contact ball bearing designed to accommodate both radial and axial loads in both directions. Its design corresponds to two single row angular contact ball bearings arranged back-to-back but requires less axial space. This bearing is suitable for applications where rigid guidance of a shaft is required. Specifications Manufacturer: SKF Type Number: 3205 ATN9 Inner Diameter (d): 25 mm Outer Diameter (D): 52 mm Width (B): 20.6 mm Cage Material: Glass fibre reinforced polyamide 6,6 (TN9) Number of Rows: 2 Contact Angle: 30 deg. Sealing: Open (no seals) Label Info Brand: SKF Model: 3205 ATN9 Application This bearing is commonly used in pumps, compressors, gearboxes, and other industrial machinery where combined loads and precise shaft positioning are critical. Country of Origin Made in Austria. CO2 Impact By purchasing this reused industrial part, you are saving approximately 0.38 kg of CO2, contributing to a more sustainable manufacturing industry. Availability This is a new-old-stock item in its original, worn packaging. The bearing is in pristine condition. Order now from profideals for expert support and fast delivery. FAQ What does the ‘ATN9’ suffix mean for this SKF bearing?The ‘A’ indicates a 30-degree contact angle, and ‘TN9′ signifies a snap-type cage made of glass fibre reinforced polyamide 6,6, which is suitable for high speeds and has good temperature resistance. Can this open bearing be used in a dusty environment?As an open bearing (no seals or shields), it is not recommended for environments with high levels of contamination unless it is protected by an external sealing arrangement within the machine housing. For dirty environments, a sealed version would be preferable. What is the correct mounting procedure for a double-row angular contact bearing?It is crucial to apply mounting pressure only to the ring being fitted (press on the inner ring for shaft mounting, outer ring for housing mounting). Uneven pressure can damage the raceways and compromise the bearing’s lifespan and performance. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
