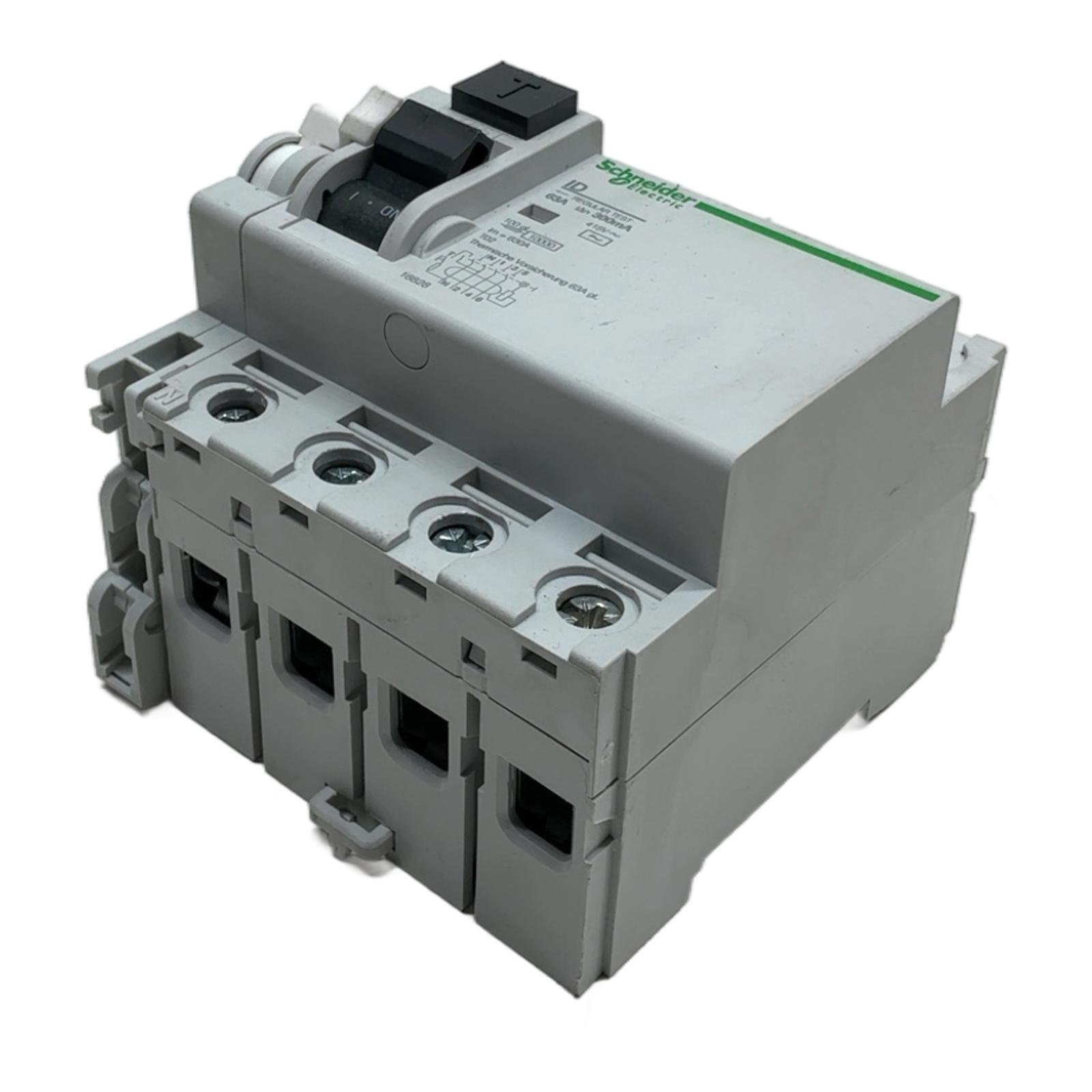

SCHNEIDER ELECTRIC ID 16828 63A

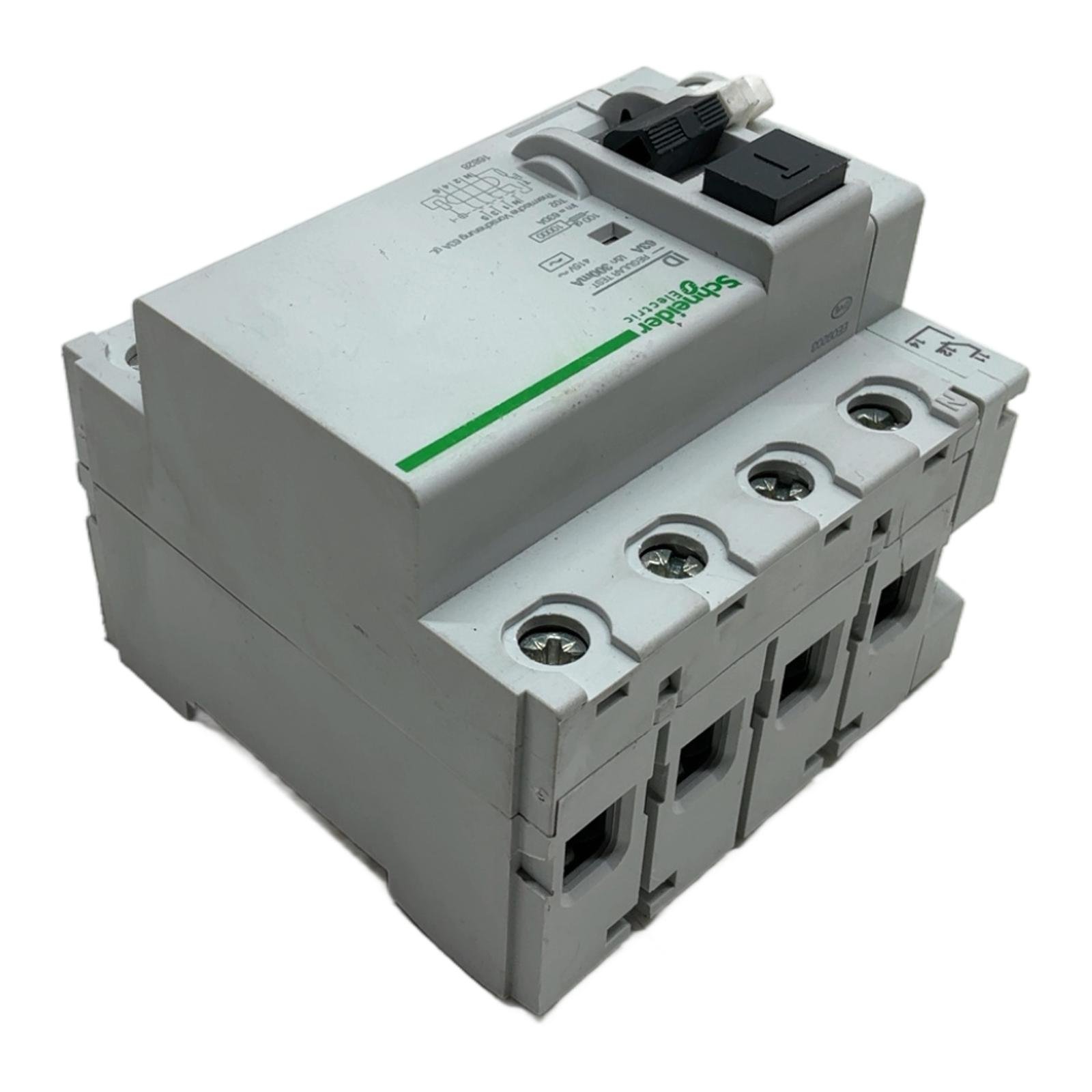

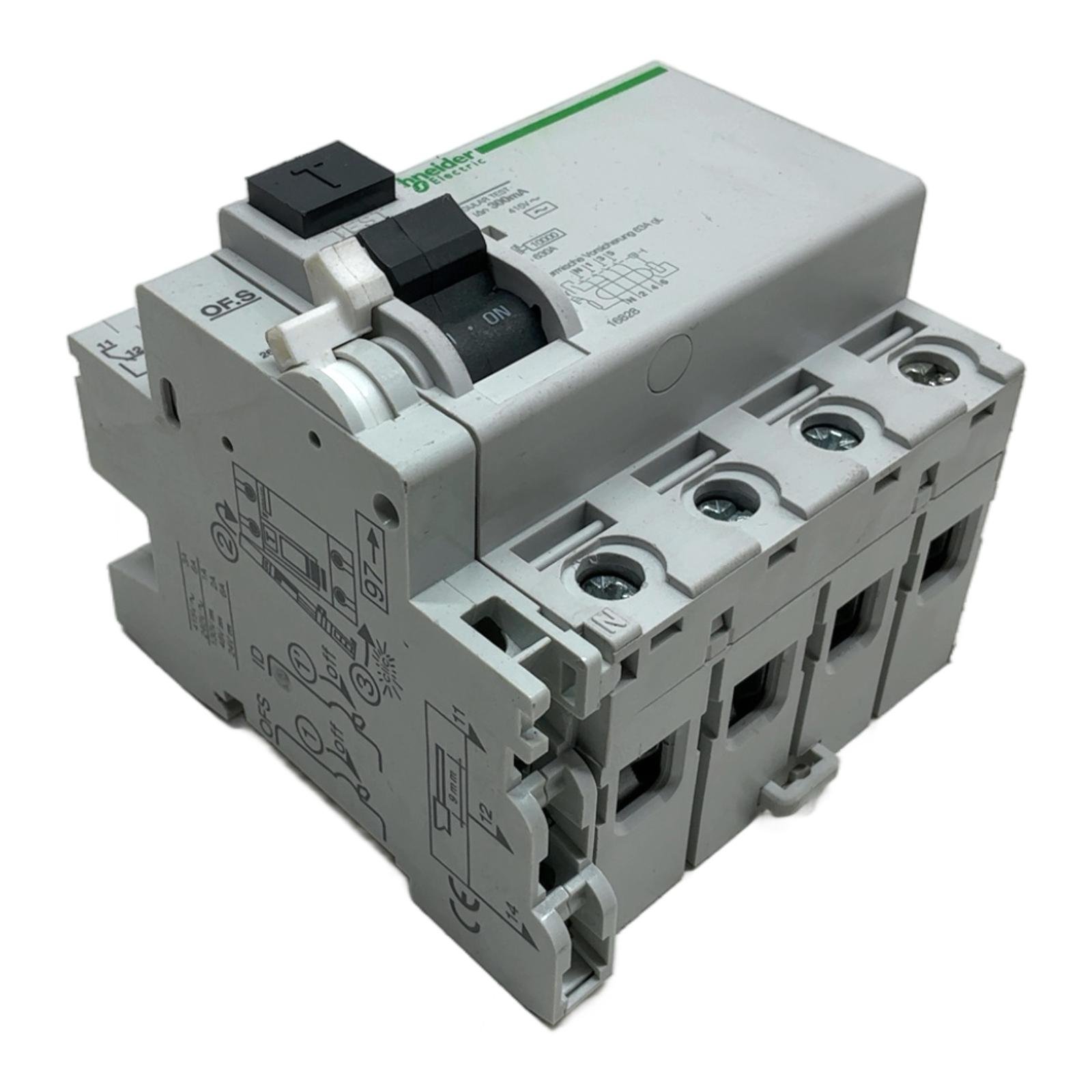

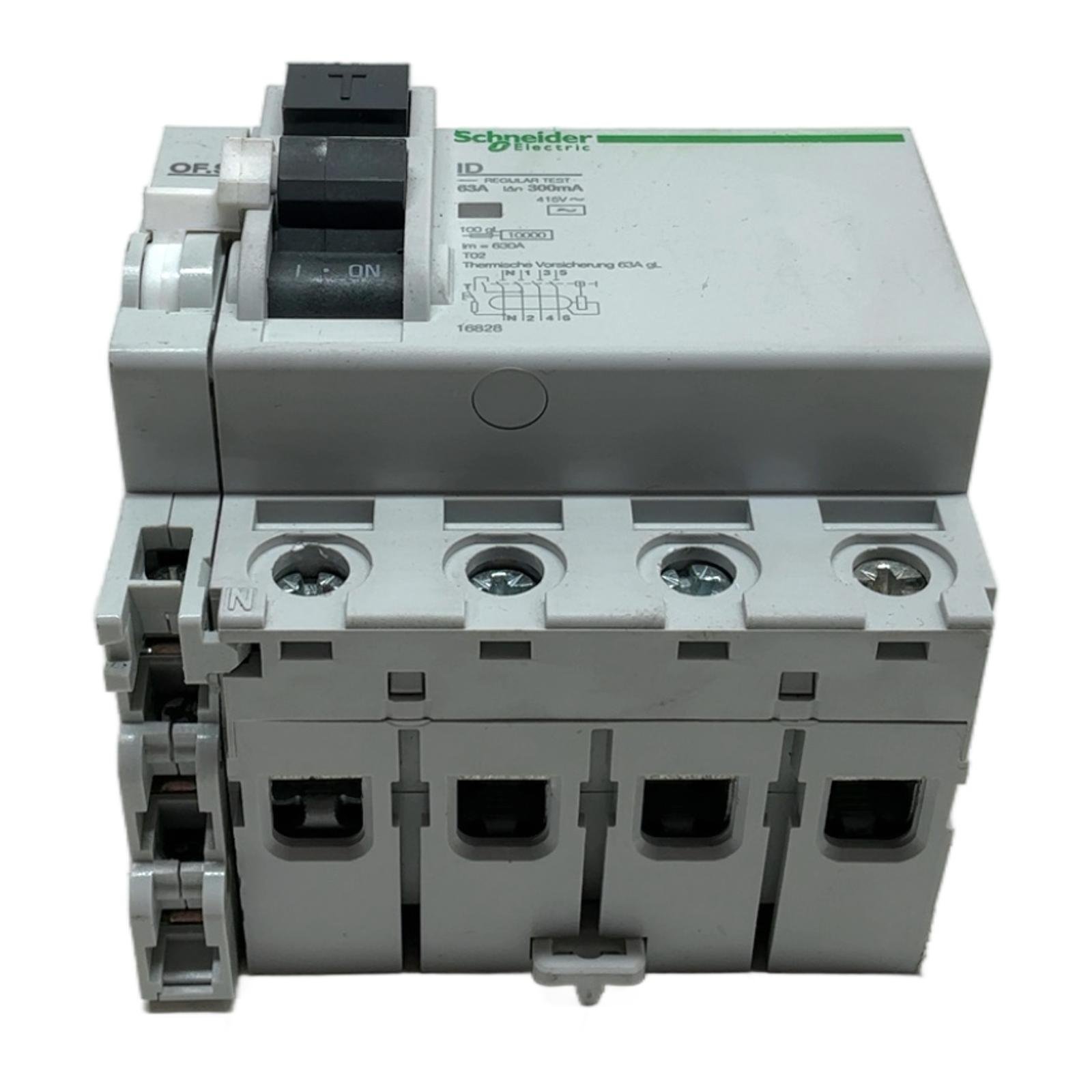

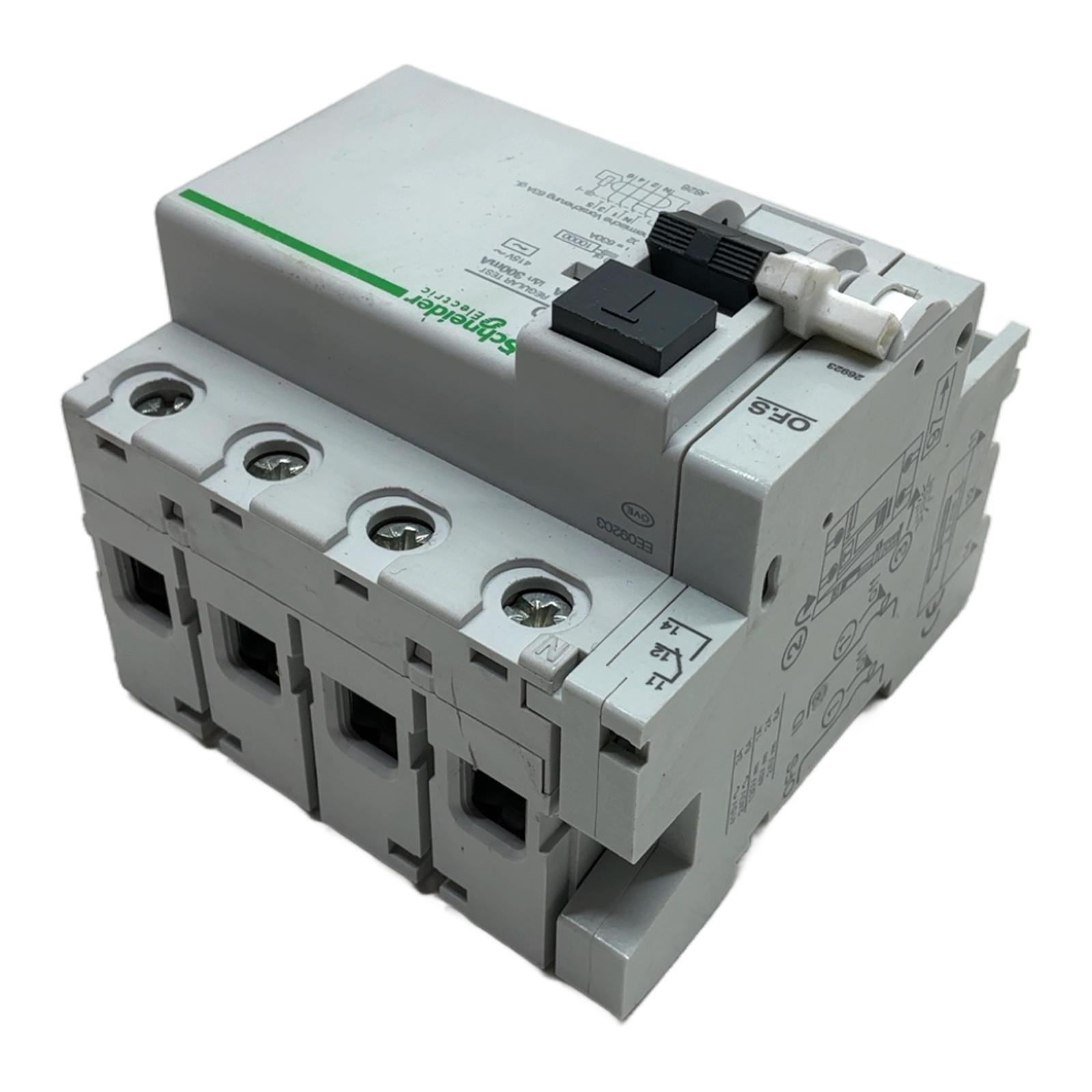

Schneider Electric ID 16828 RCCB Description The Schneider Electric 16828 is a robust 4-pole residual current circuit breaker (RCCB) from the proven Multi 9 ID series. It is engineered to provide essential protection against earth leakage faults in three-phase electrical systems. With its 300mA sensitivity, it is primarily designed for fire protection in commercial and industrial applications. Specifications Manufacturer: Schneider Electric Type: ID 16828 Rated Current (In): 63A Rated Residual Current (IΔn): 300mA Number of Poles: 4 (3P+N) Rated Voltage (Ue): 415V AC 50/60Hz Type: AC Conditional Short-circuit Current (Inc): 10,000A with appropriate backup fuse Mounting: DIN Rail Label Info Schneider Electric ID Ref: 16828 63A, 300mA, 415V~ Application This RCCB is suitable for installation in main distribution boards and sub-distribution boards to protect entire installations or specific circuits against fire hazards caused by insulation faults. It is commonly used in industrial plants, workshops, and commercial buildings. Country of Origin Made in Spain. CO2 Impact Opting for this pre-owned circuit breaker prevents the emission of approximately 14.4 kg of CO2, which is comparable to the savings from driving a standard car for 72 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a Type AC and a Type A RCCB?A Type AC RCCB, like this model 16828, is designed to trip on sinusoidal AC residual currents. A Type A RCCB trips on both sinusoidal AC and pulsating DC residual currents, making it suitable for circuits with modern electronic equipment like inverters or power supplies. The label specifies “Thermische Vorsicherung 63A gl”. Is this fuse mandatory?Yes, this specifies the maximum size and type of the backup protection device (fuse or circuit breaker) that should be installed upstream. Using a 63A gL/gG type fuse ensures that the RCCB is protected against short-circuit currents up to its rated conditional short-circuit current (10kA in this case). What does the 300mA sensitivity rating signify in terms of application?A 300mA sensitivity is primarily intended for fire protection by detecting larger earth leakage currents that could cause overheating and ignite materials. It is not suitable for direct personnel protection against electric shock, which typically requires a sensitivity of 30mA or less. This device is common in main distribution boards or for protecting specific circuits where fire risk is the main concern. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
