MAC VALVES 225B-111JJ

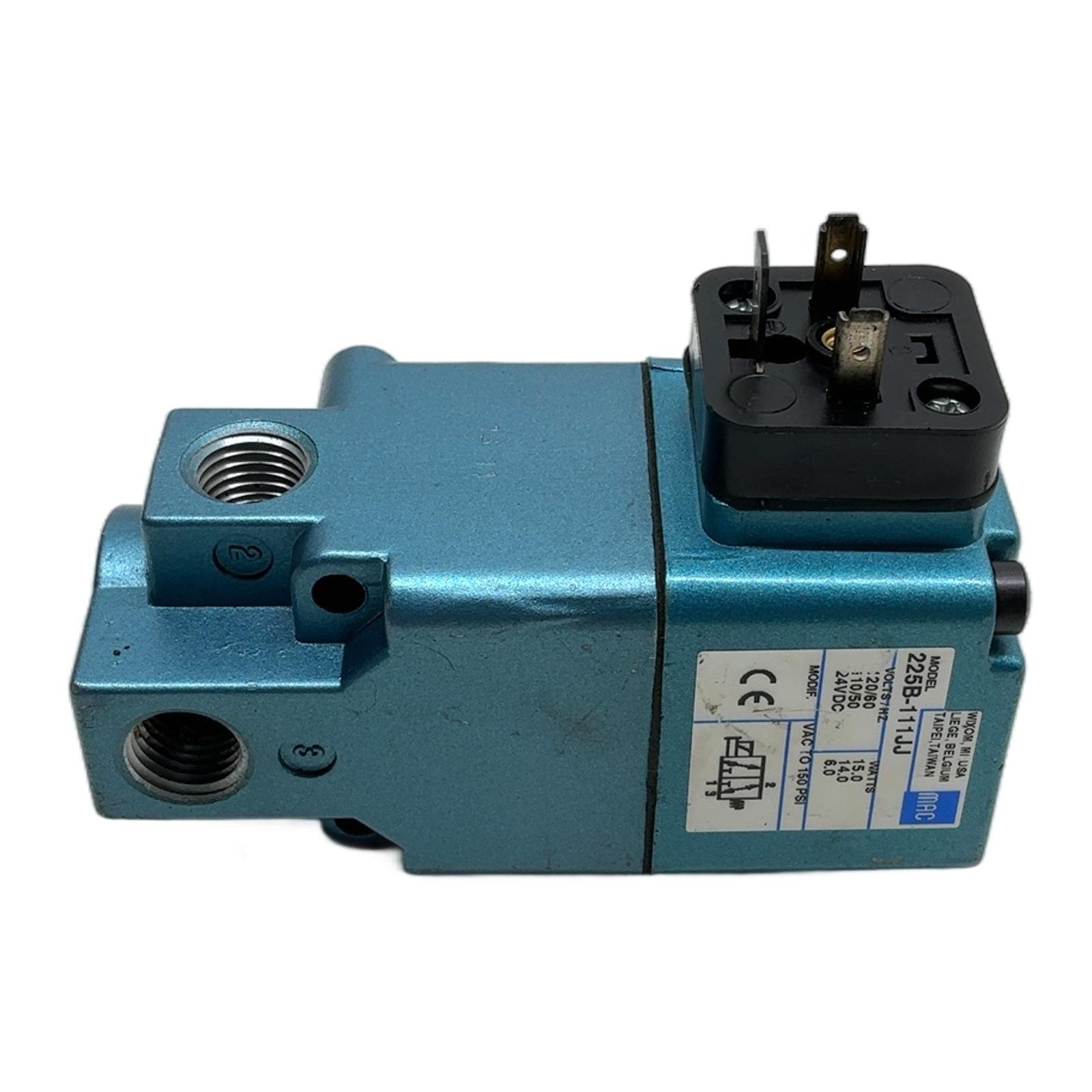

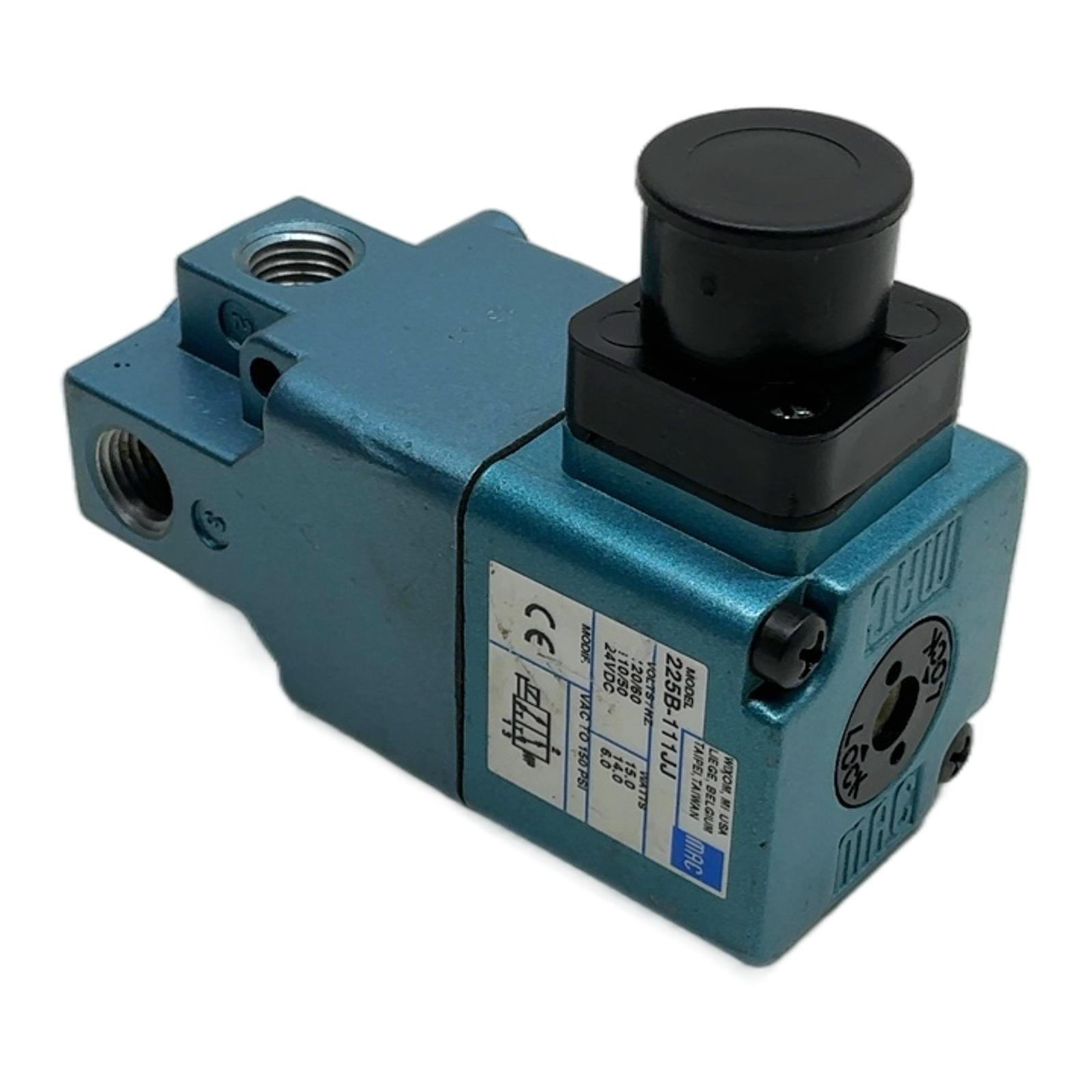

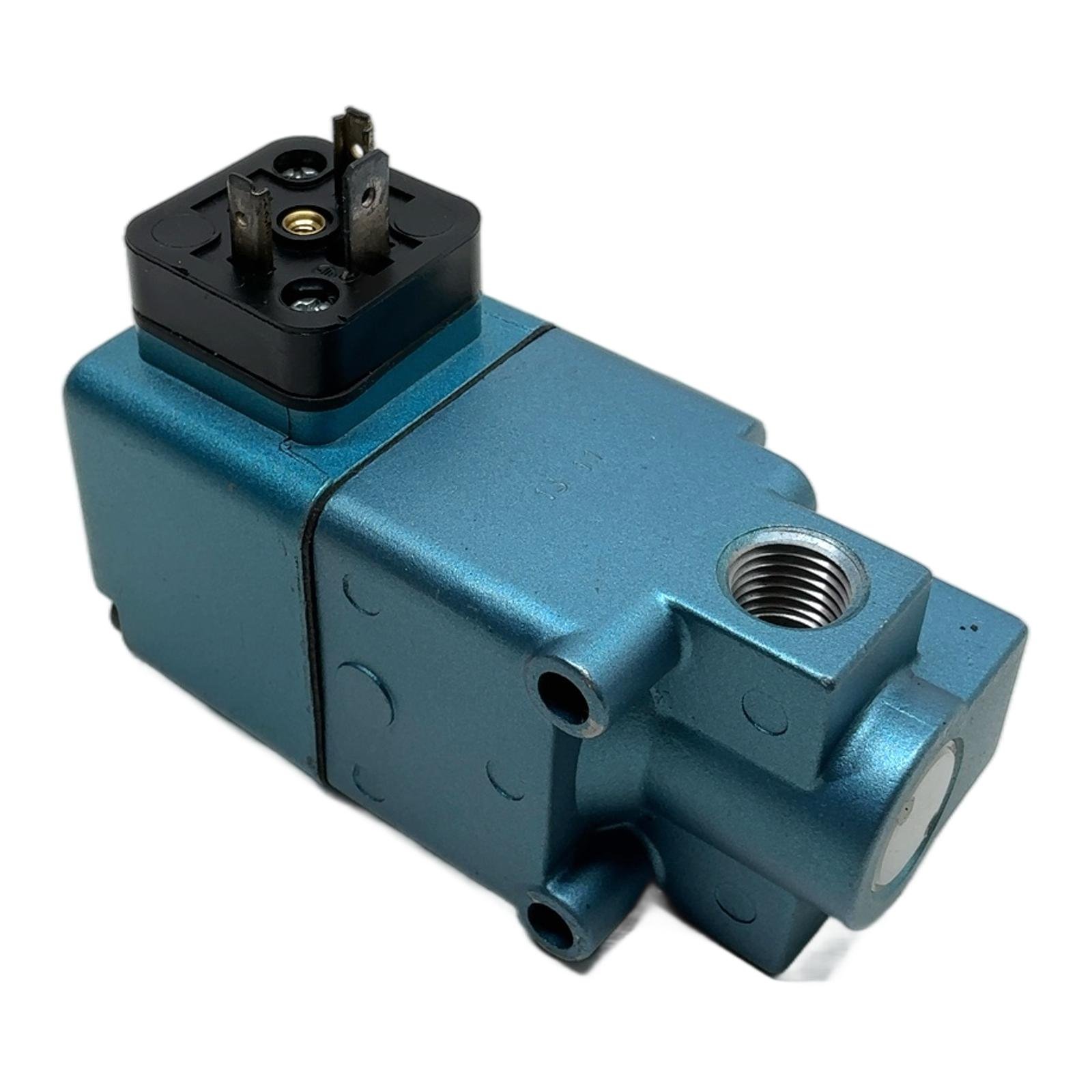

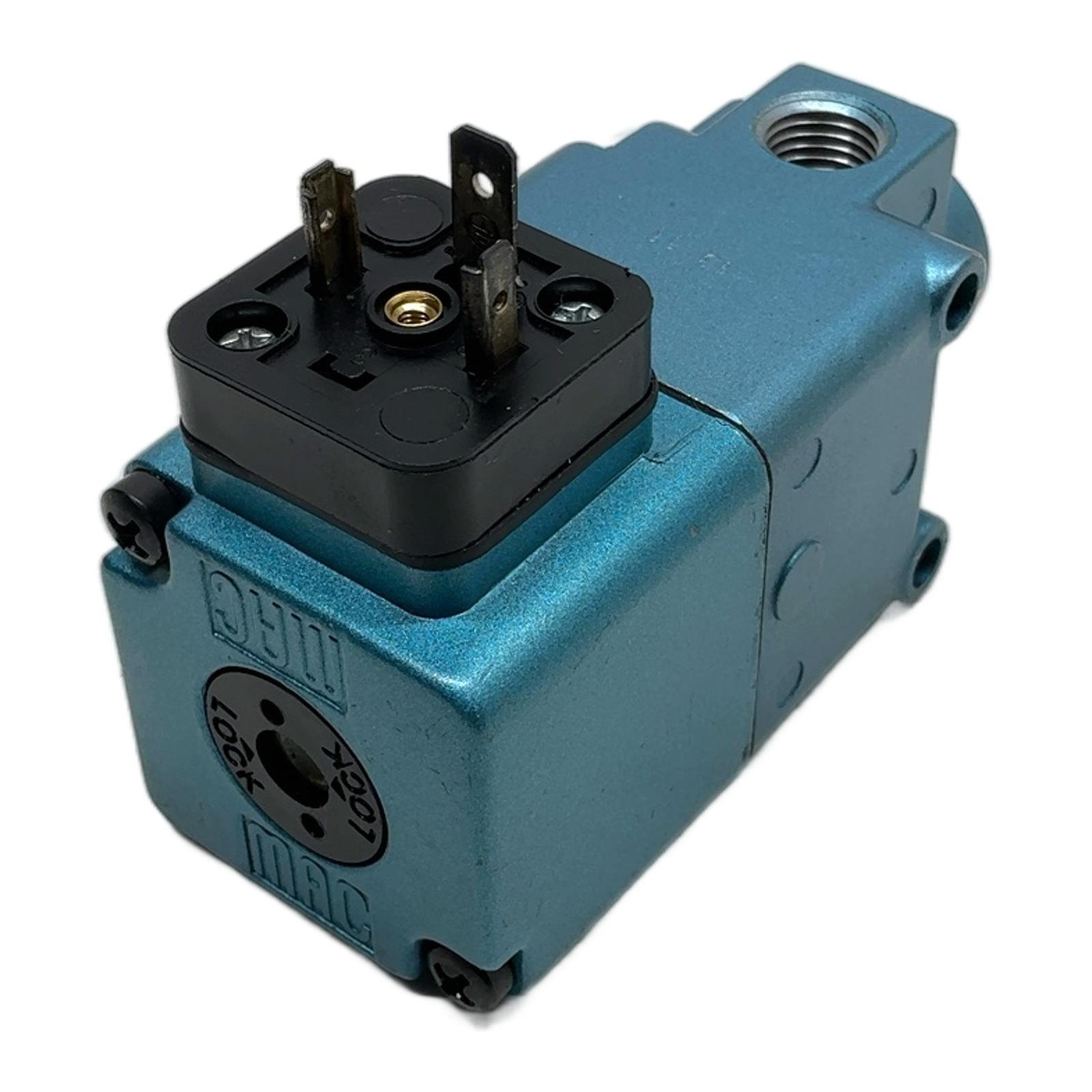

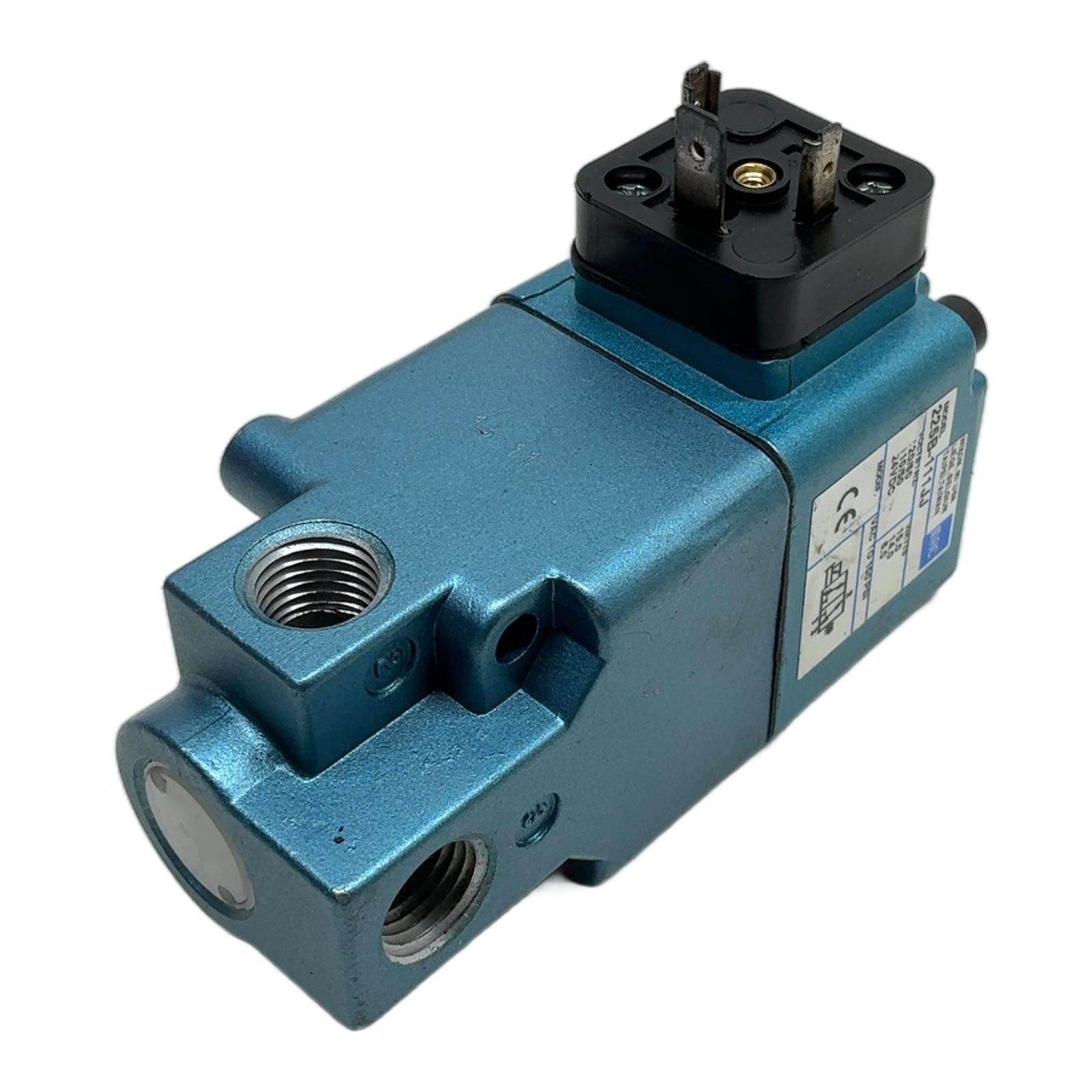

MAC 225B-111JJ Solenoid Spool Valve Description The MAC 225B-111JJ is a versatile and robust 3-way, normally closed solenoid valve designed for demanding pneumatic applications. Its balanced spool design ensures high flow rates and rapid, repeatable shifting. This valve features a multi-voltage coil, accommodating 120V AC, 110V AC, and 24V DC power sources, making it a flexible component for various control systems. A manual override button is included for easy system diagnostics and setup. Specifications Manufacturer: MAC Valves Model: 225B-111JJ Function: 3-Way, 2-Position, Normally Closed Voltage: 120V/60Hz, 110V/50Hz, 24VDC Pressure Range: Vacuum to 150 PSI Port Size: 1/4 inch NPT (Assumed standard) Actuation: Solenoid with Locking Recessed Manual Operator Connection: DIN 43650 Form A Connector Label Info Model: 225B-111JJ Volts/Hz: 120/60, 110/50, 24VDC Watts: 15.0, 14.0, 6.0 Modif: VAC TO 150 PSI Application Ideal for use in sorting, diverting, and piloting applications in industries such as packaging, automotive manufacturing, and general industrial automation where reliability and speed are critical. Country of Origin Manufactured by MAC Valves, USA. CO2 Impact By purchasing this pre-owned valve, you are avoiding approximately 5.0 kg of CO2 emissions associated with the production of a new one. This is a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the black knob on the 225B-111JJ?The black knob is a locking recessed manual override. It allows you to manually shift the valve’s spool without electrical power, which is useful for testing, setup, or emergency operation. Is the solenoid coil on this valve replaceable?Yes, MAC valve coils are generally designed to be easily replaceable. You can replace the coil with another of the same series if it fails or if you need to change the operating voltage. What type of electrical connector is required for this valve?This valve requires a standard DIN 43650 Form A connector, which is a common 3-pin connector used for industrial solenoid valves. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
