SIEMENS 1FT5066-0AF01-1-Z 1FU1050-6NF

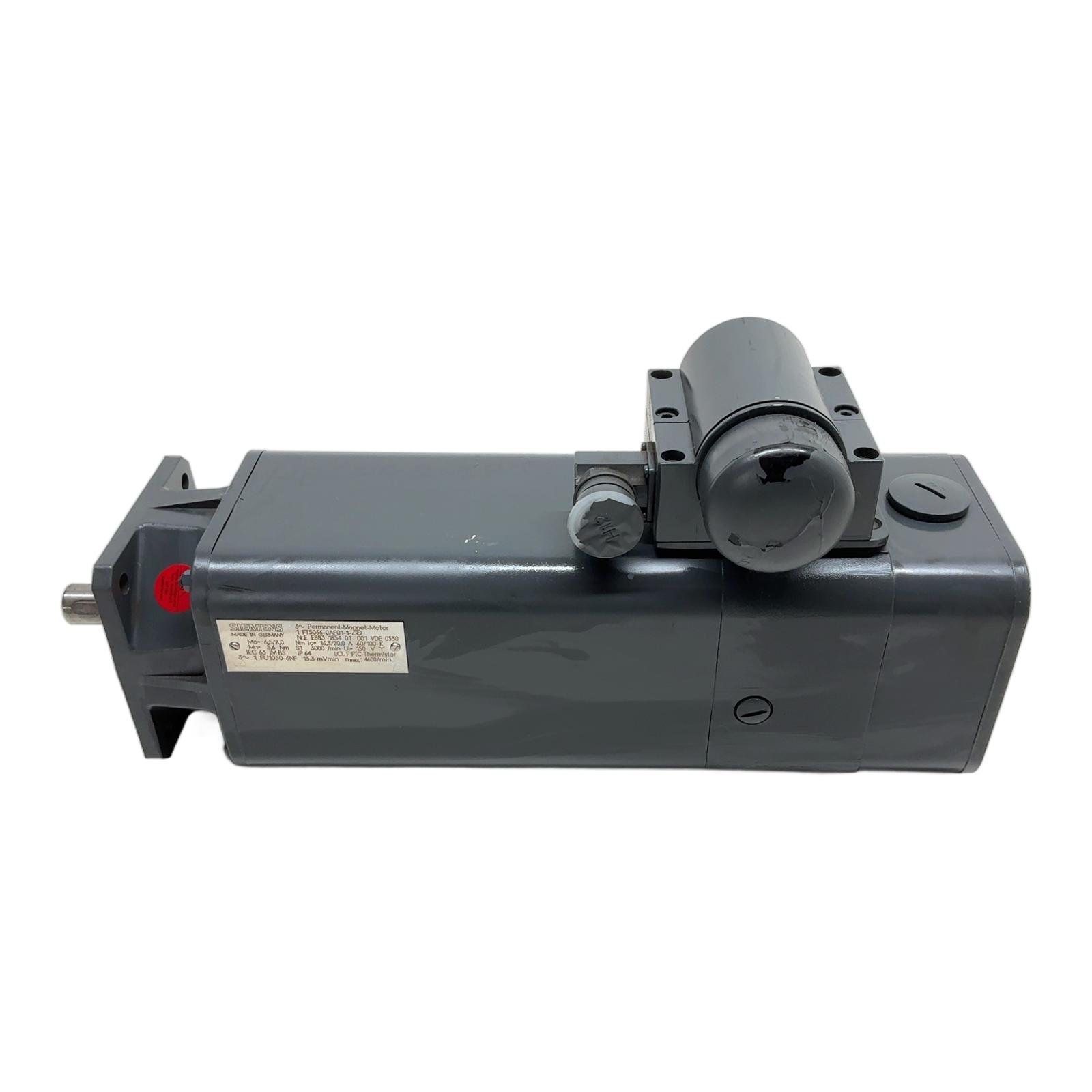

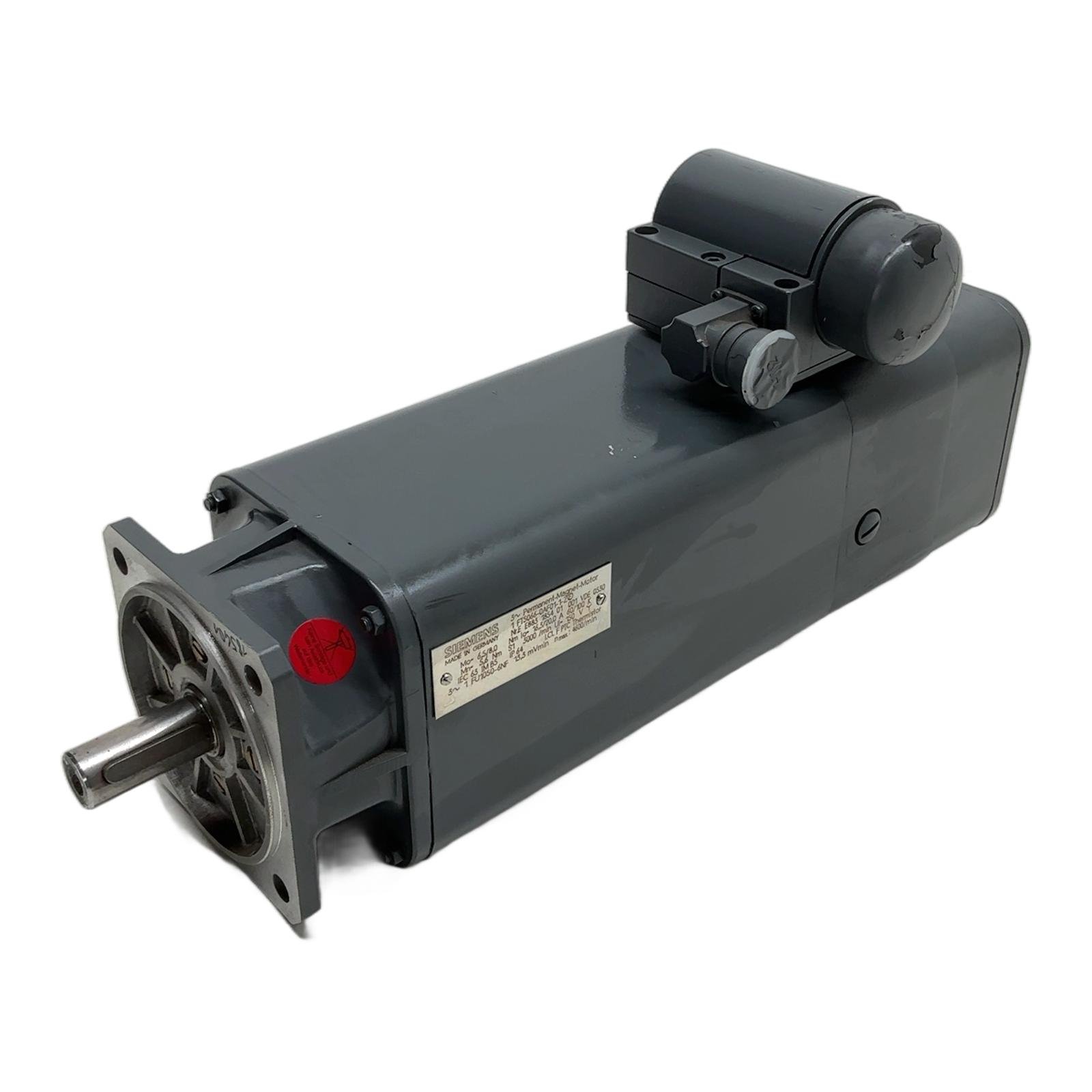

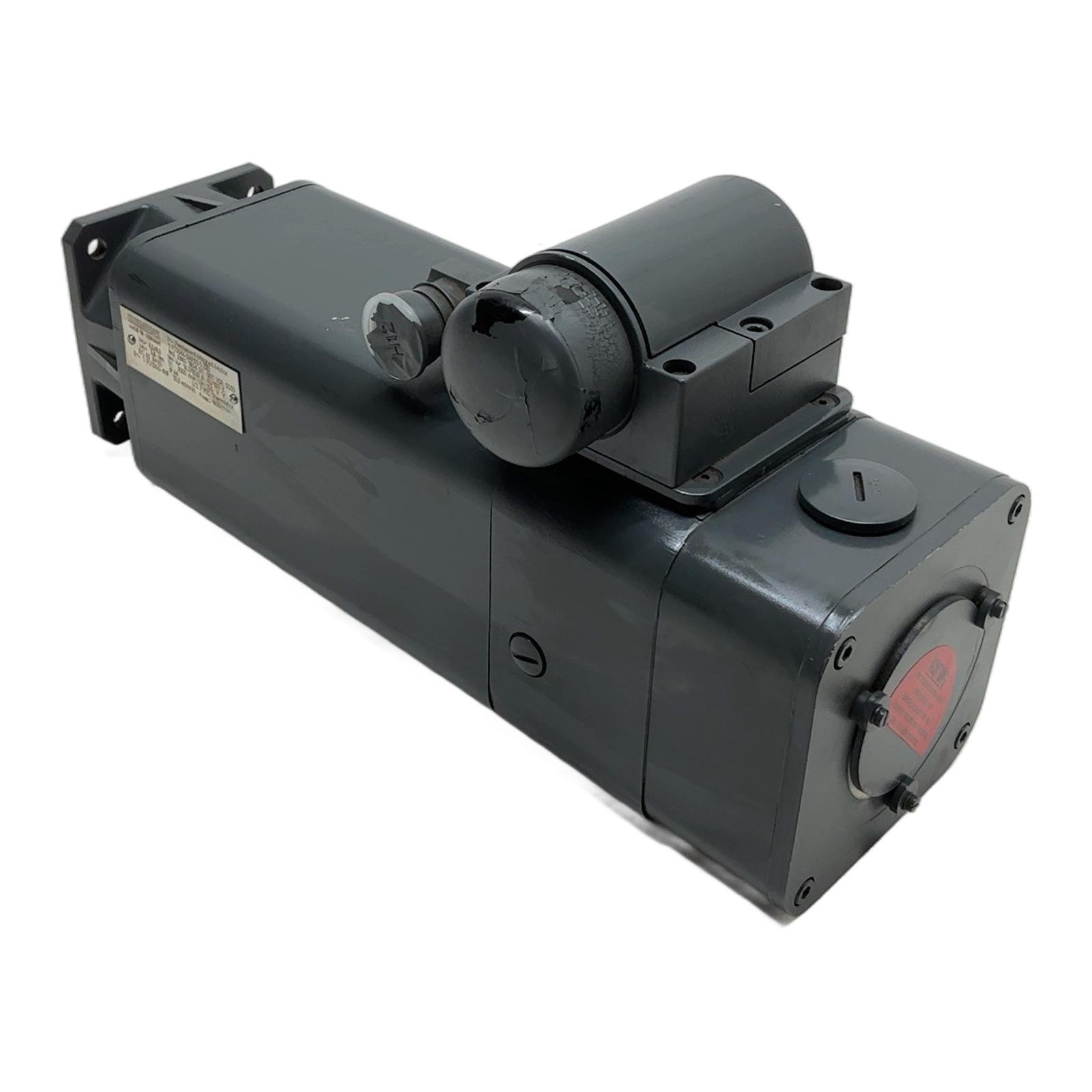

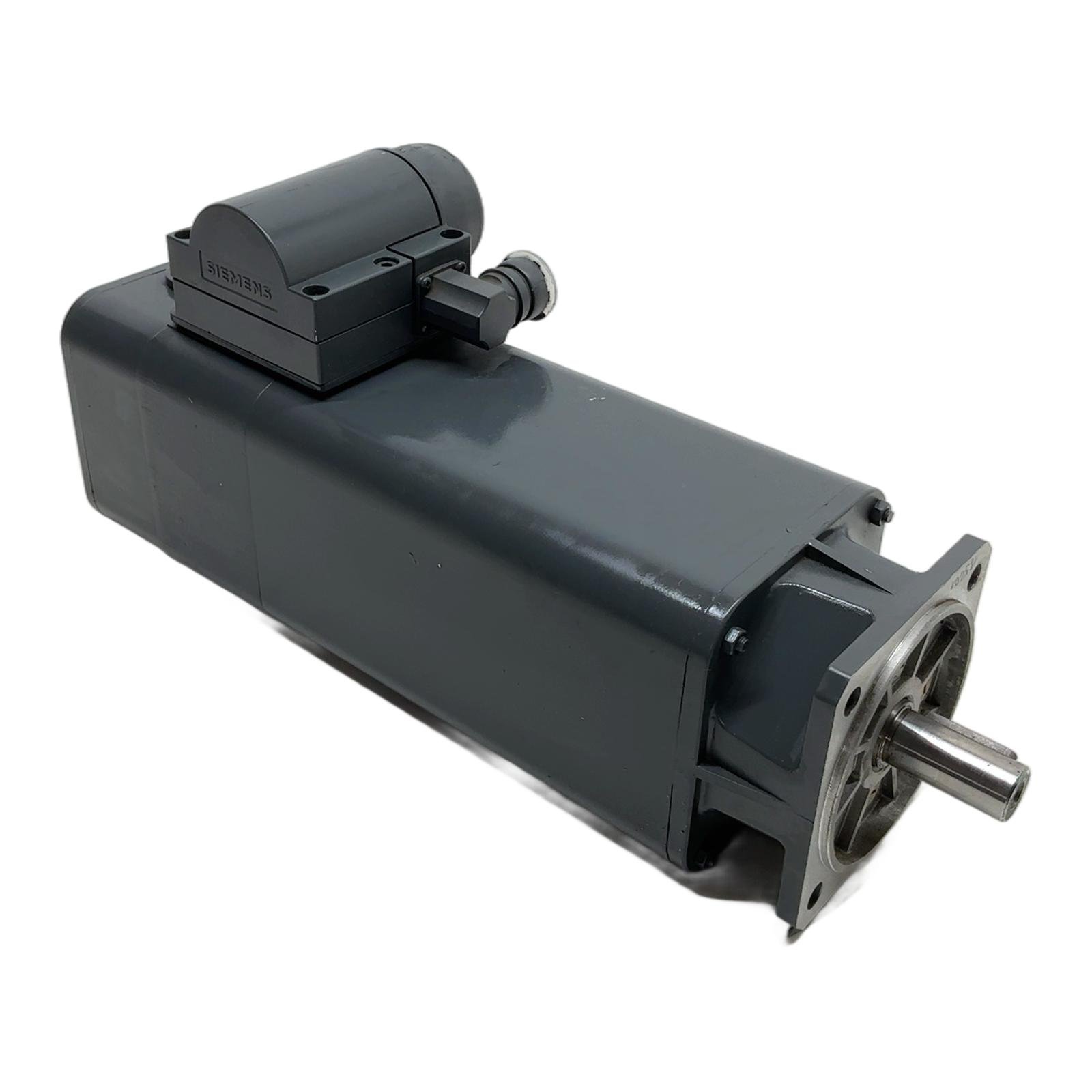

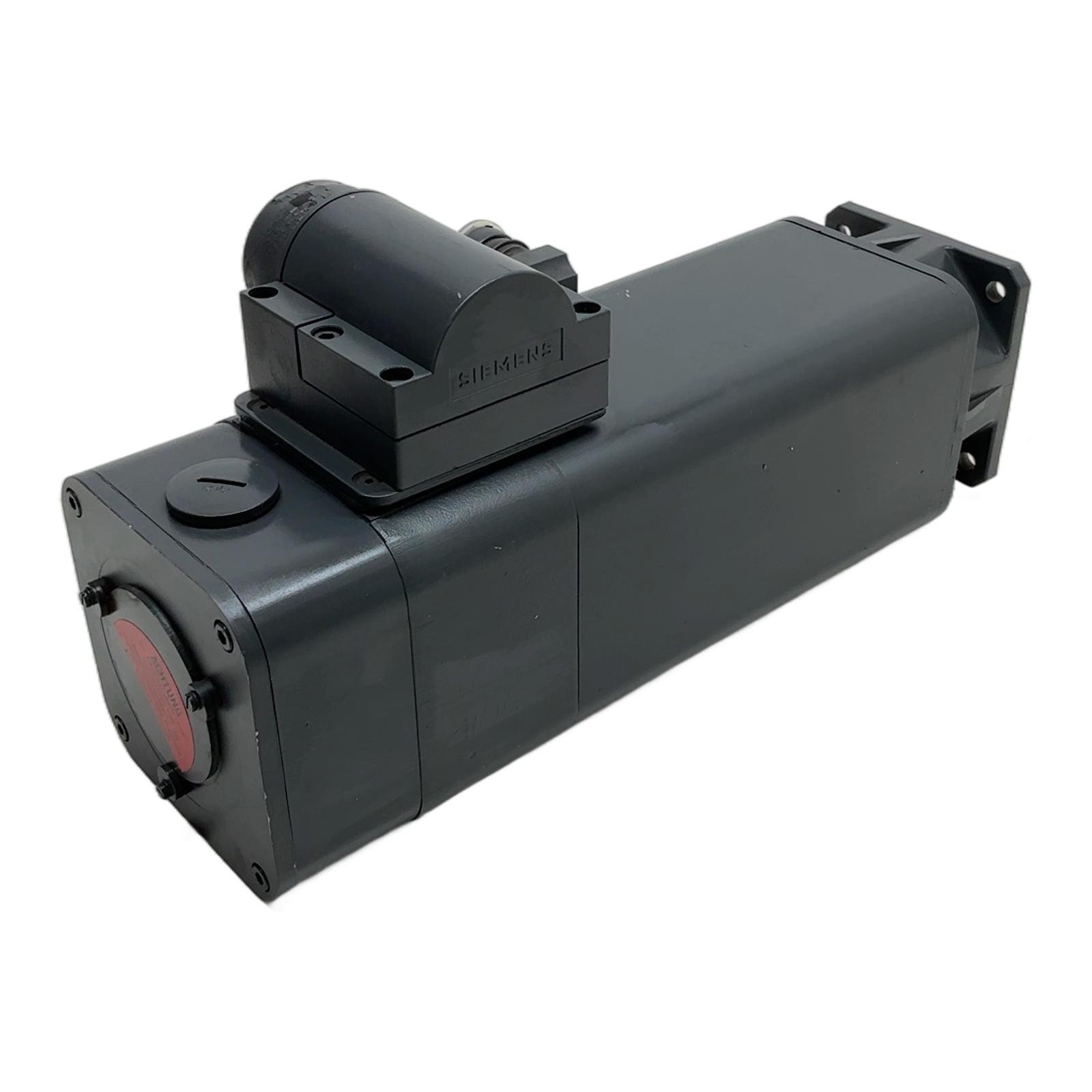

<h2>Siemens 1FT5 Series Servo Motor</h2> <h3>Description</h3> <p>This is a Siemens SIMOTICS S 1FT5066-0AF01-1-Z permanent magnet servo motor. It is an obsolete component, ideal for spare parts and maintenance of existing machinery that relies on the proven SIMODRIVE platform. This motor delivers a rated torque of 5.6 Nm at 3000 rpm and features an integrated resolver for precise feedback.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Siemens</li> <li>Type: 1FT5066-0AF01-1-Z</li> <li>Motor Series: SIMOTICS S 1FT5</li> <li>Rated Torque (Mn): 5.6 Nm</li> <li>Stall Torque (Mo): 6.5 / 8.0 Nm</li> <li>Rated Speed: 3000 rpm</li> <li>Maximum Speed (nmax): 4600 rpm</li> <li>Rated Voltage (Ui): 150 V</li> <li>Stall Current (Io): 16.3 / 20.0 A</li> <li>Protection Class: IP64</li> <li>Insulation Class: F</li> <li>Mounting: IM B5 (Flange mount)</li> <li>Feedback System: Resolver (Type 1FU1050-6NF)</li> </ul> <h3>Label Info</h3> <ul> <li>Model: 1FT5066-0AF01-1-Z</li> <li>Serial No: E E883 1854 01 001</li> <li>Standard: VDE 0530</li> </ul> <h3>Application</h3> <p>Designed for high-performance applications in machine tools, robotics, and automated manufacturing systems, particularly those using Siemens SIMODRIVE 611 controllers.</p> <h3>Country of Origin</h3> <p>Made in Germany.</p> <h3>CO2 Impact</h3> <p>By purchasing this pre-owned motor, you help avoid the emission of approximately 400 kg of CO2, which is comparable to the emissions from driving a car for 2000 kilometers.</p> <h3>Availability</h3> <p>This item is an obsolete spare part and availability is limited. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>Question?</strong><br><p>What type of drive is compatible with the 1FT5066-0AF01-1-Z motor?</p> <p><strong>Answer:</strong> This motor is designed for Siemens SIMODRIVE 611 series controllers. Compatibility with other drives requires careful matching of electrical parameters and feedback protocols.</p> <strong>Question?</strong><br><p>Does this motor include a holding brake?</p> <p><strong>Answer:</strong> Yes, despite the standard type code, the warning label on the rear clearly indicates the presence of an integrated holding brake. Always verify connections before operation.</p> <strong>Question?</strong><br><p>What is the function of the integrated 1FU1050-6NF component?</p> <p><strong>Answer:</strong> The 1FU1050-6NF is a resolver that provides analog position and speed feedback to the servo drive, enabling precise closed-loop control of the motor shaft.</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
