SCHNEIDER ELECTRIC LC2K0601FE7

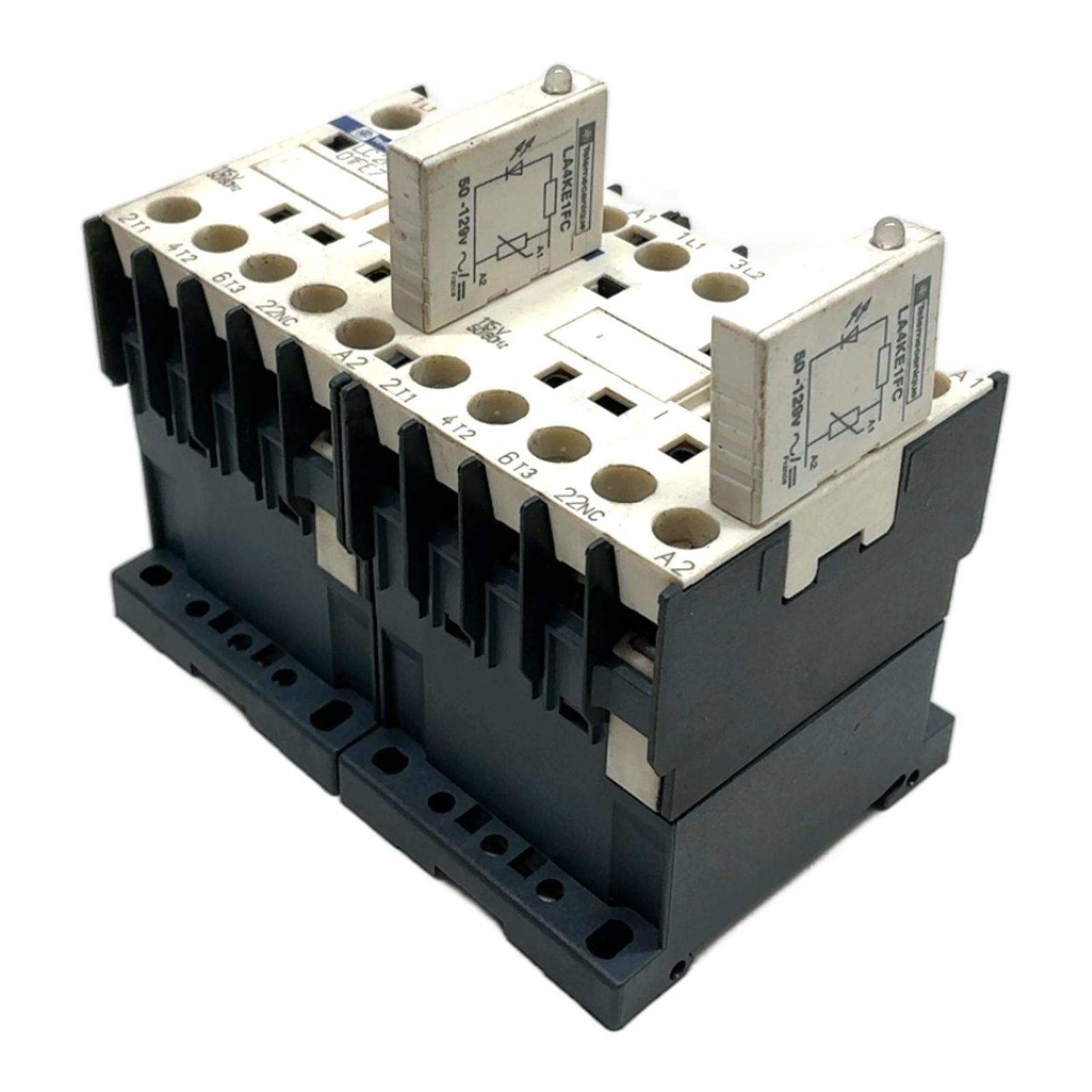

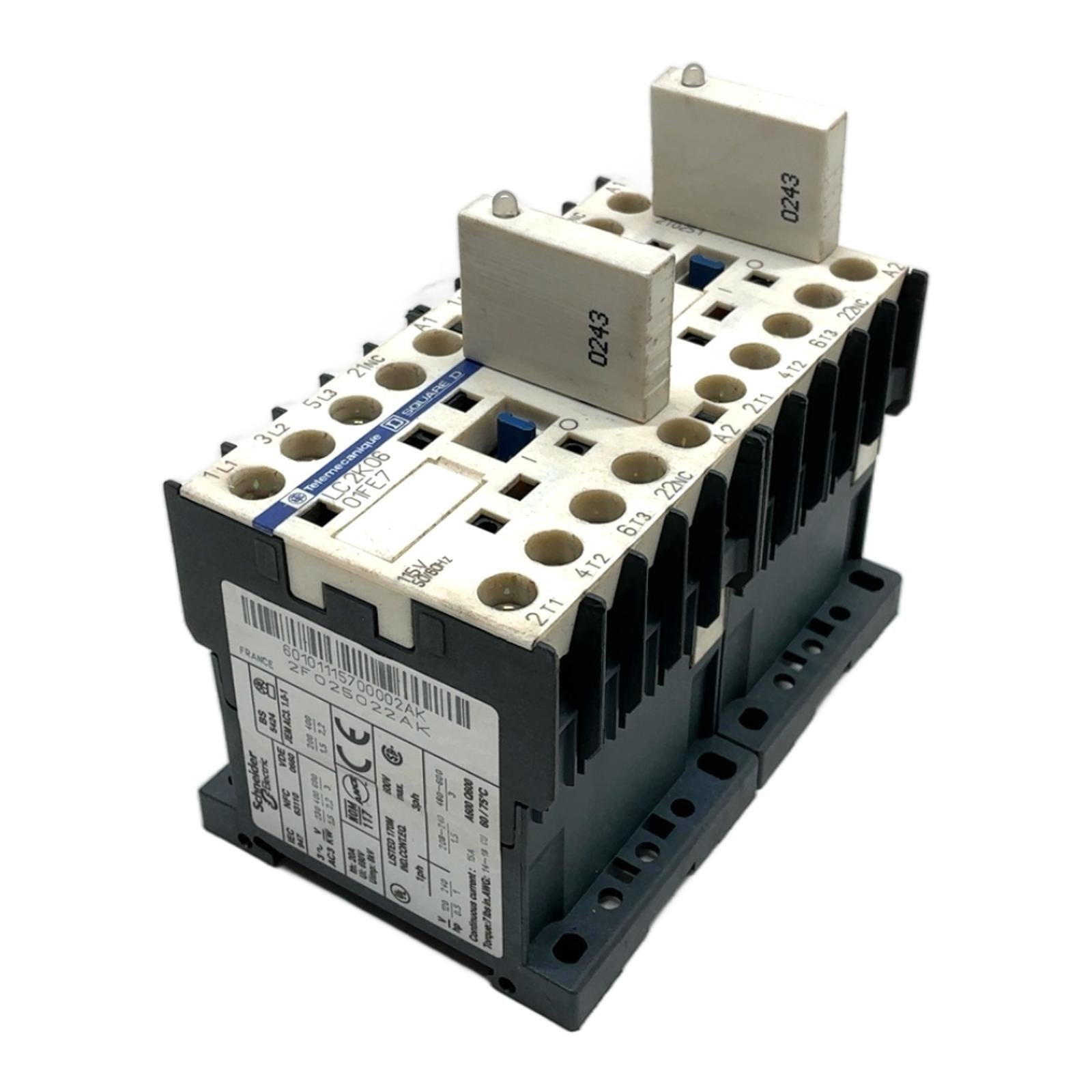

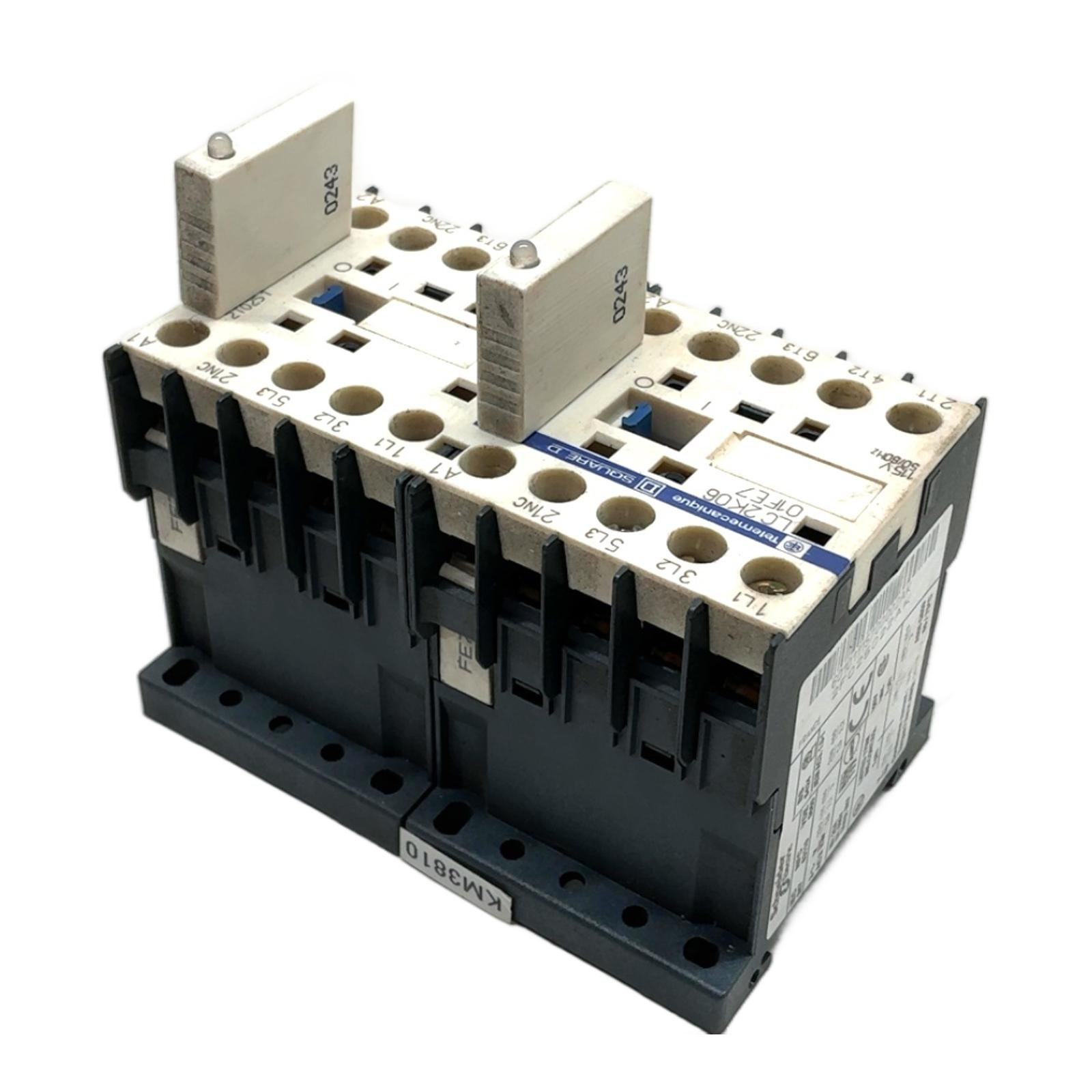

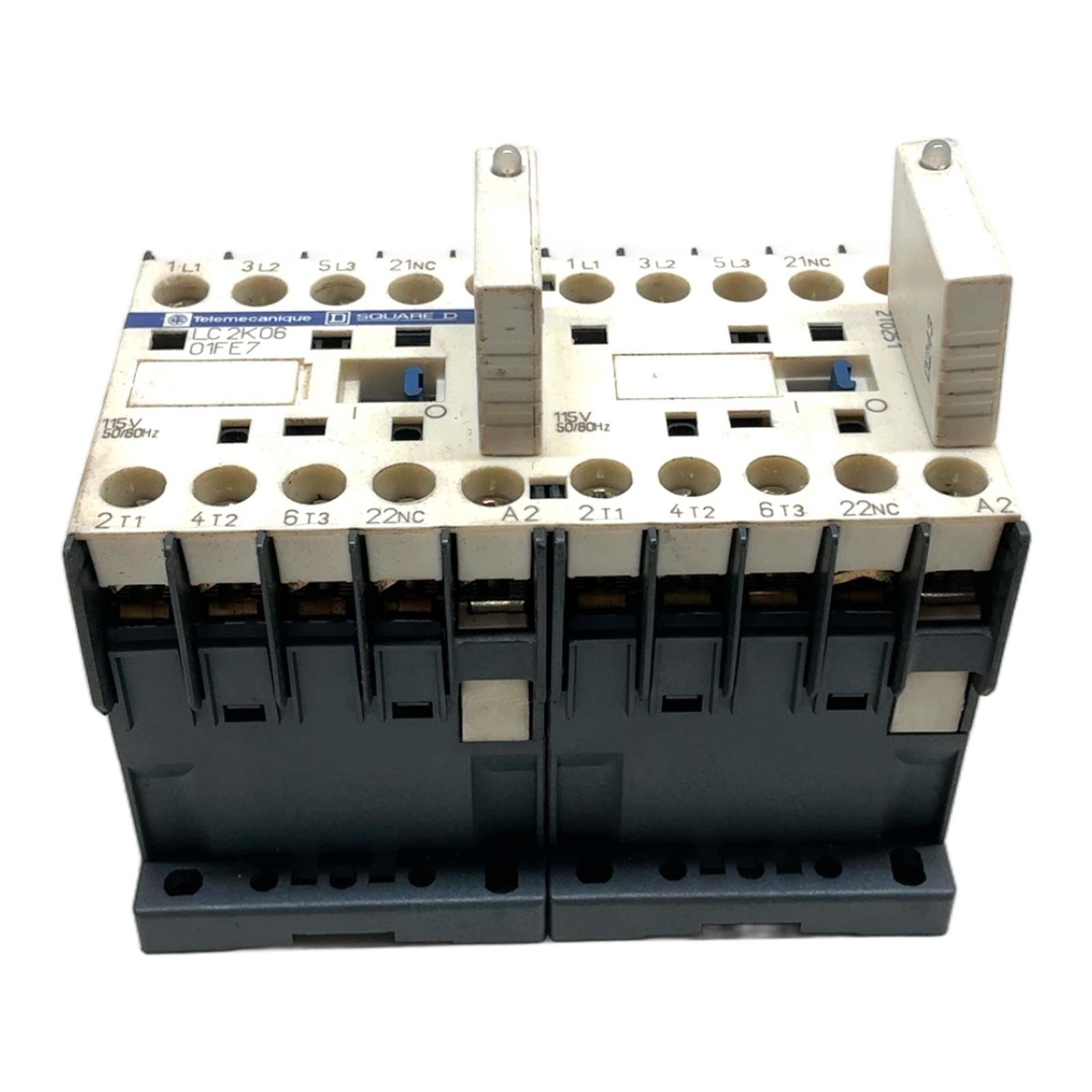

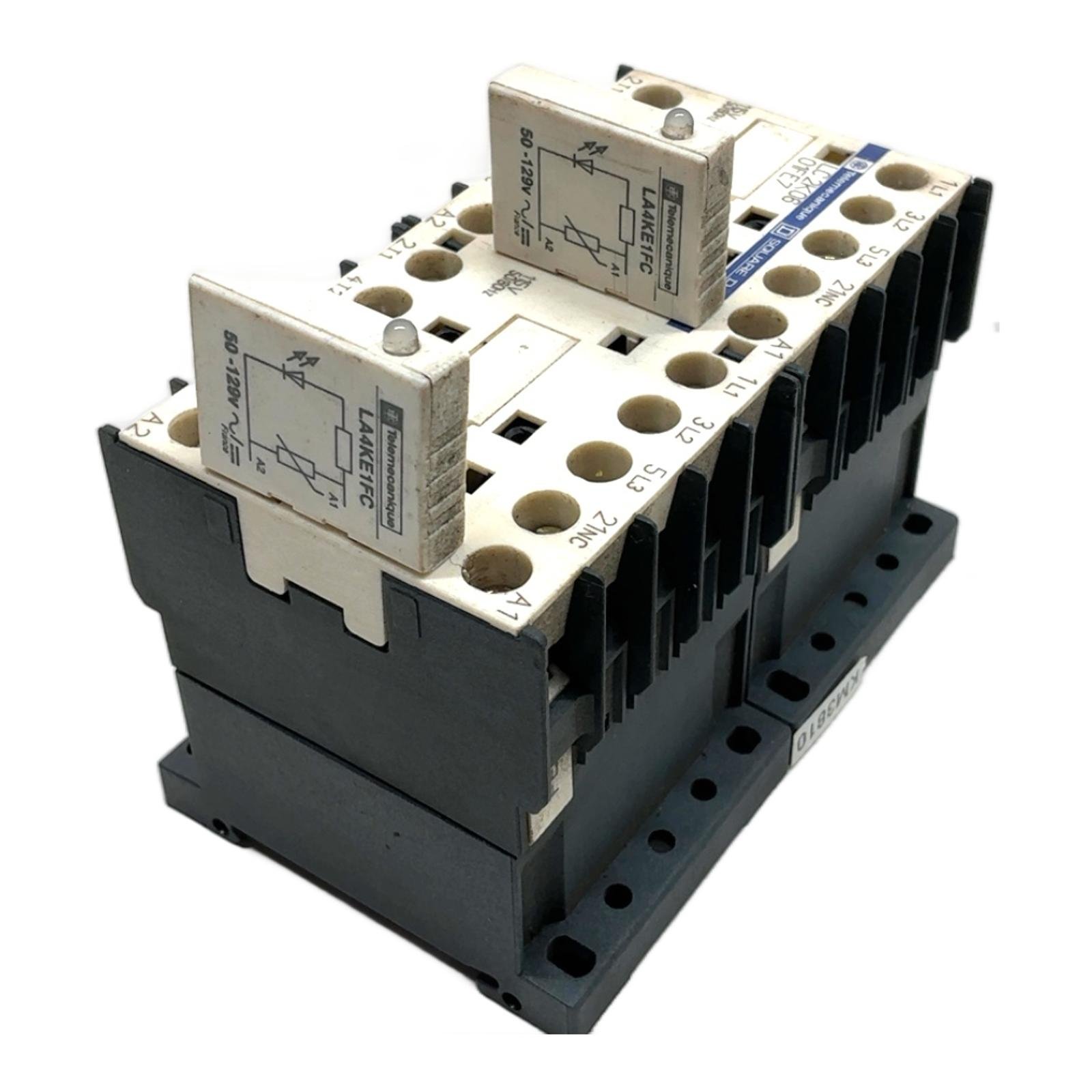

Schneider Electric TeSys K Reversing Contactor Description The LC2K0601FE7 is a high-performance reversing contactor from Schneider Electric’s TeSys K series. This compact assembly consists of two mechanically interlocked 3-pole contactors, designed for motor reversing applications. It is rated for 6A (AC-3) and features a control coil voltage of 115V AC. Ideal for use in tight spaces, it provides a reliable solution for controlling small motors in various industrial machines. Specifications Manufacturer: Schneider Electric Series: TeSys K Model: LC2K0601FE7 Product Type: Reversing Contactor Number of Poles: 3 Rated Operational Current (AC-3): 6A Control Circuit Voltage: 115V AC 50/60Hz Auxiliary Contacts: 1 Normally Closed (NC) per contactor Maximum Motor Power (AC-3): 2.2kW at 400V Label Info Brand: Telemecanique / Square D / Schneider Electric Model: LC2K06 01FE7 Thermal Current (Ith): 20A Rated Insulation Voltage (Ui): 690V Includes LA4KE1FC Suppressor Modules Application This reversing contactor is commonly used in applications requiring motor direction change, such as conveyor systems, automated doors, small hoists, and machine tools. Country of Origin This product is manufactured in France. CO2 Impact Opting for this pre-owned component avoids approximately 16 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industrial process. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What does the “FE7” in the part number LC2K0601FE7 signify? Answer?The “FE7” code specifies the control circuit (coil) voltage. For this TeSys K contactor, it indicates a coil designed to operate at 115V AC with a frequency of 50/60 Hz. Question?Is this assembly suitable for direct-on-line (DOL) reversing of a 3-phase motor? Answer?Yes, this LC2K0601FE7 is a mechanically interlocked reversing contactor assembly. The mechanical interlock prevents both contactors (forward and reverse) from being energized simultaneously, which is essential for safely reversing the direction of a three-phase motor. Question?Can I add more auxiliary contacts to this reversing contactor? Answer?Yes, the TeSys K series is modular. You can add front-mounting auxiliary contact blocks, such as the LA1K series, to increase the number of normally open (NO) or normally closed (NC) contacts as needed for your control circuit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
