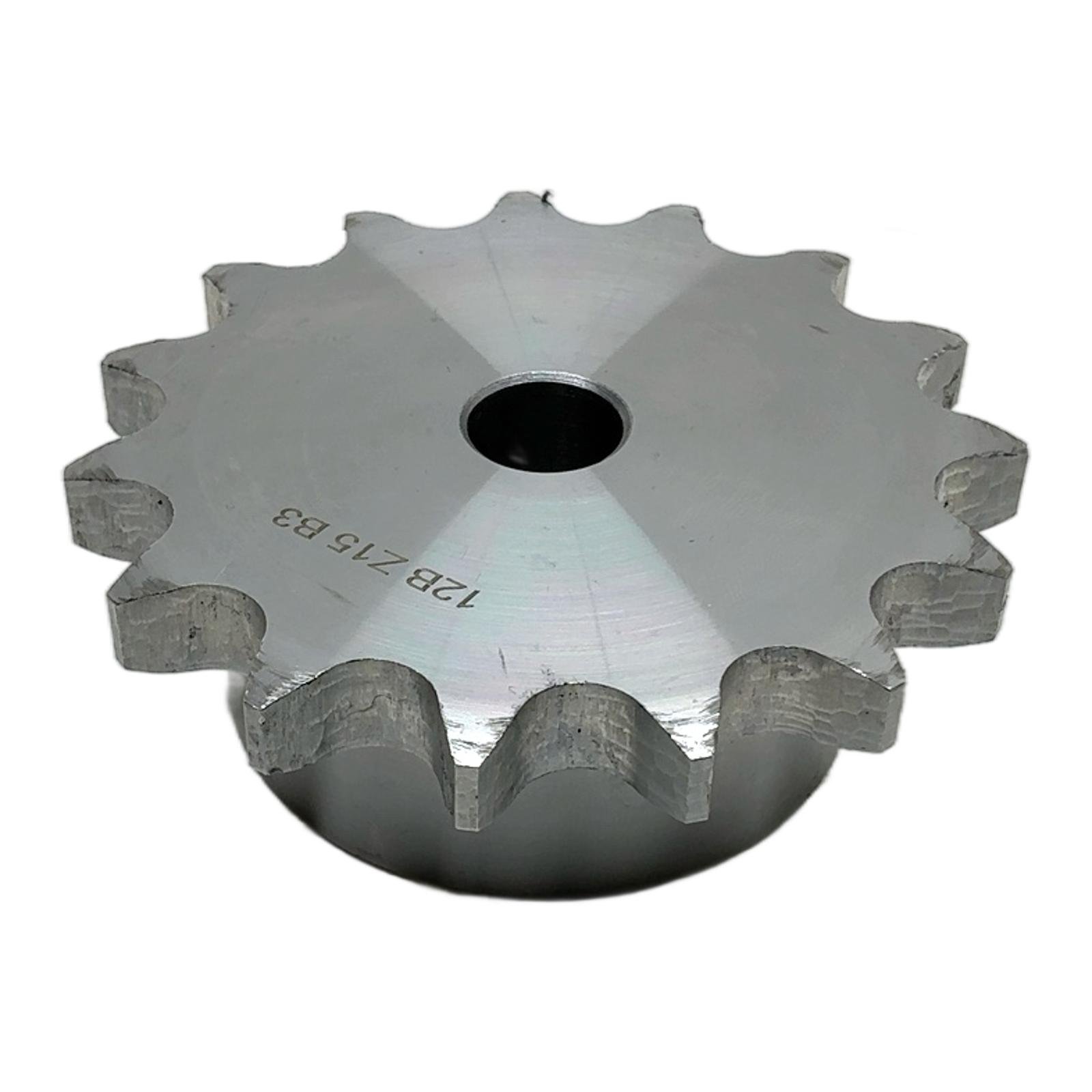

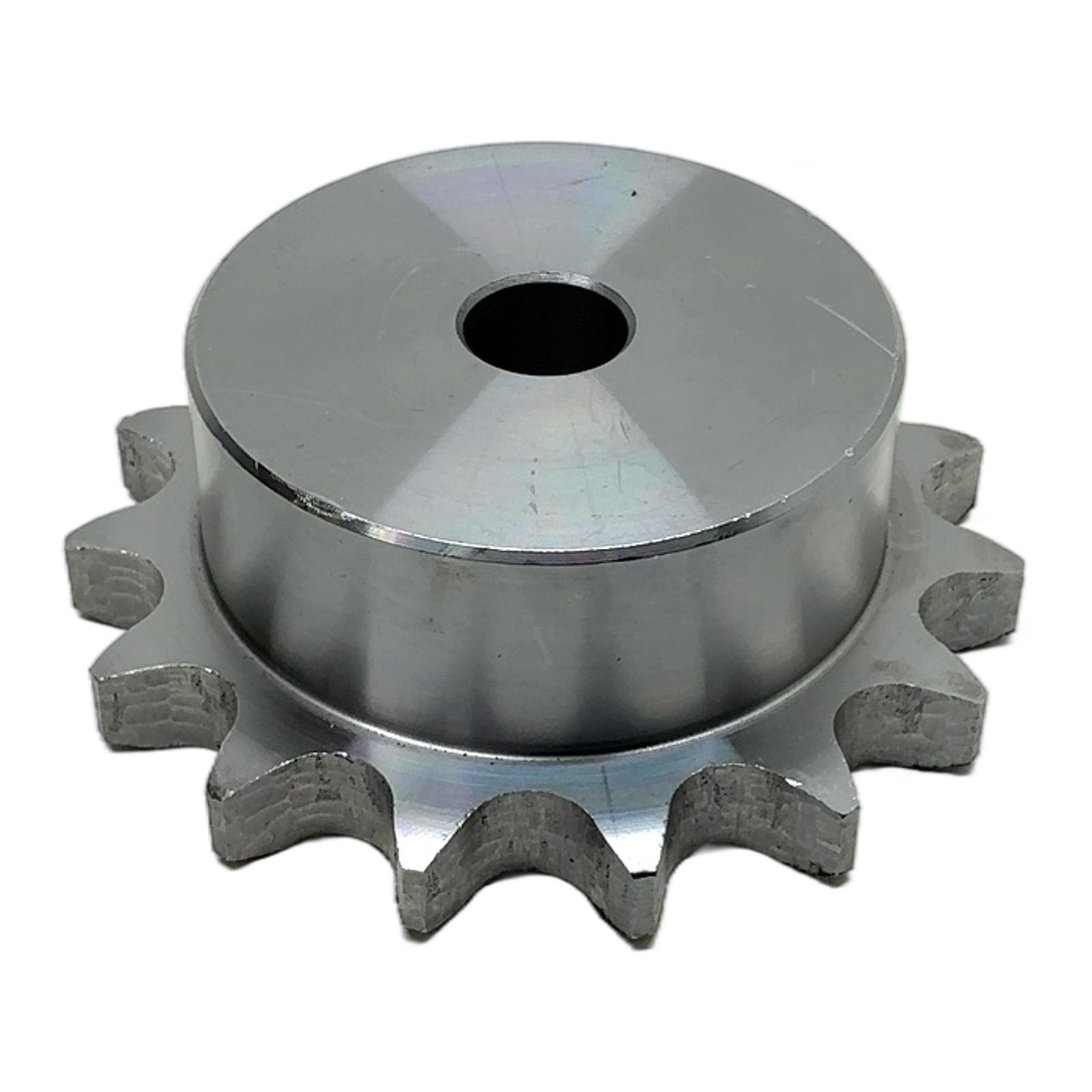

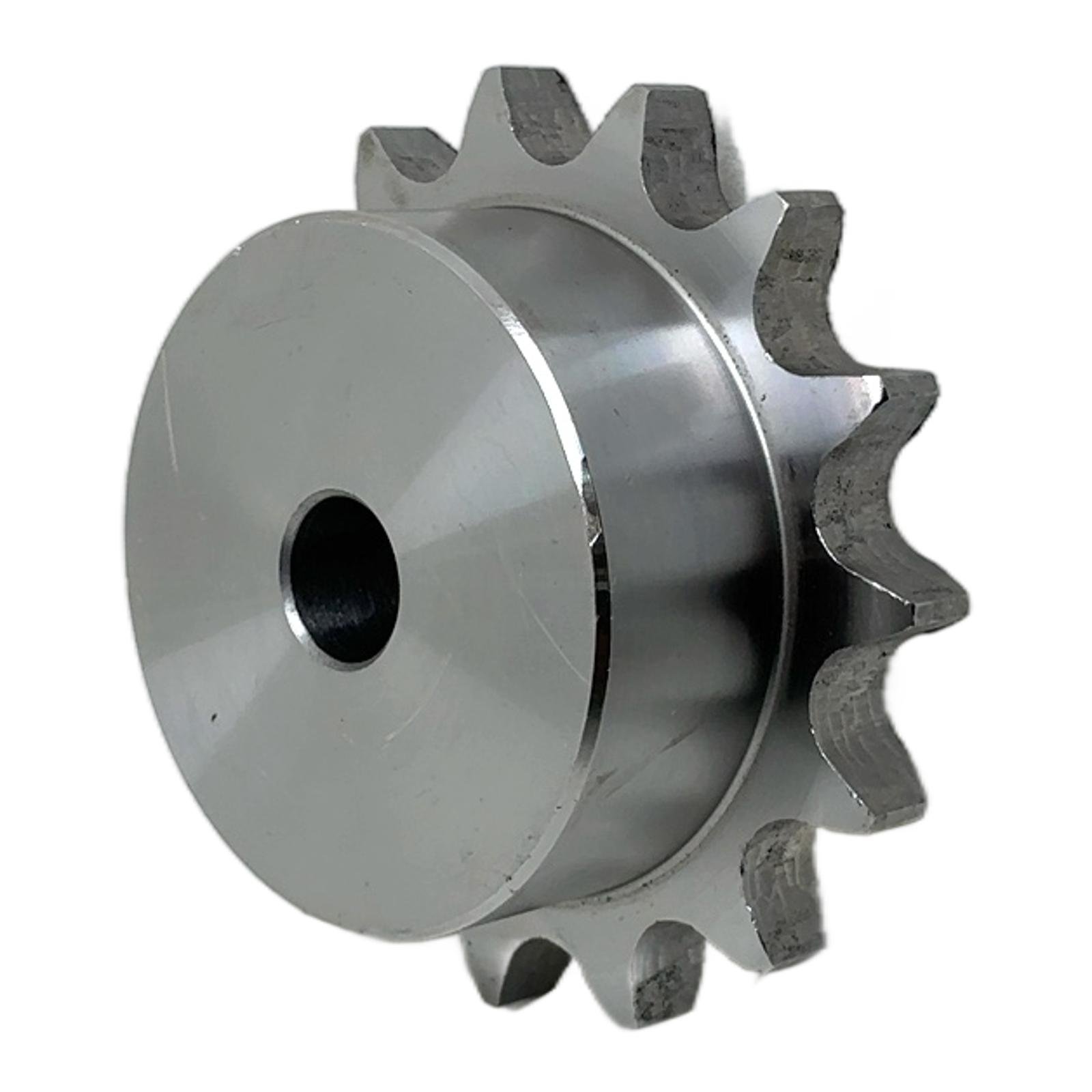

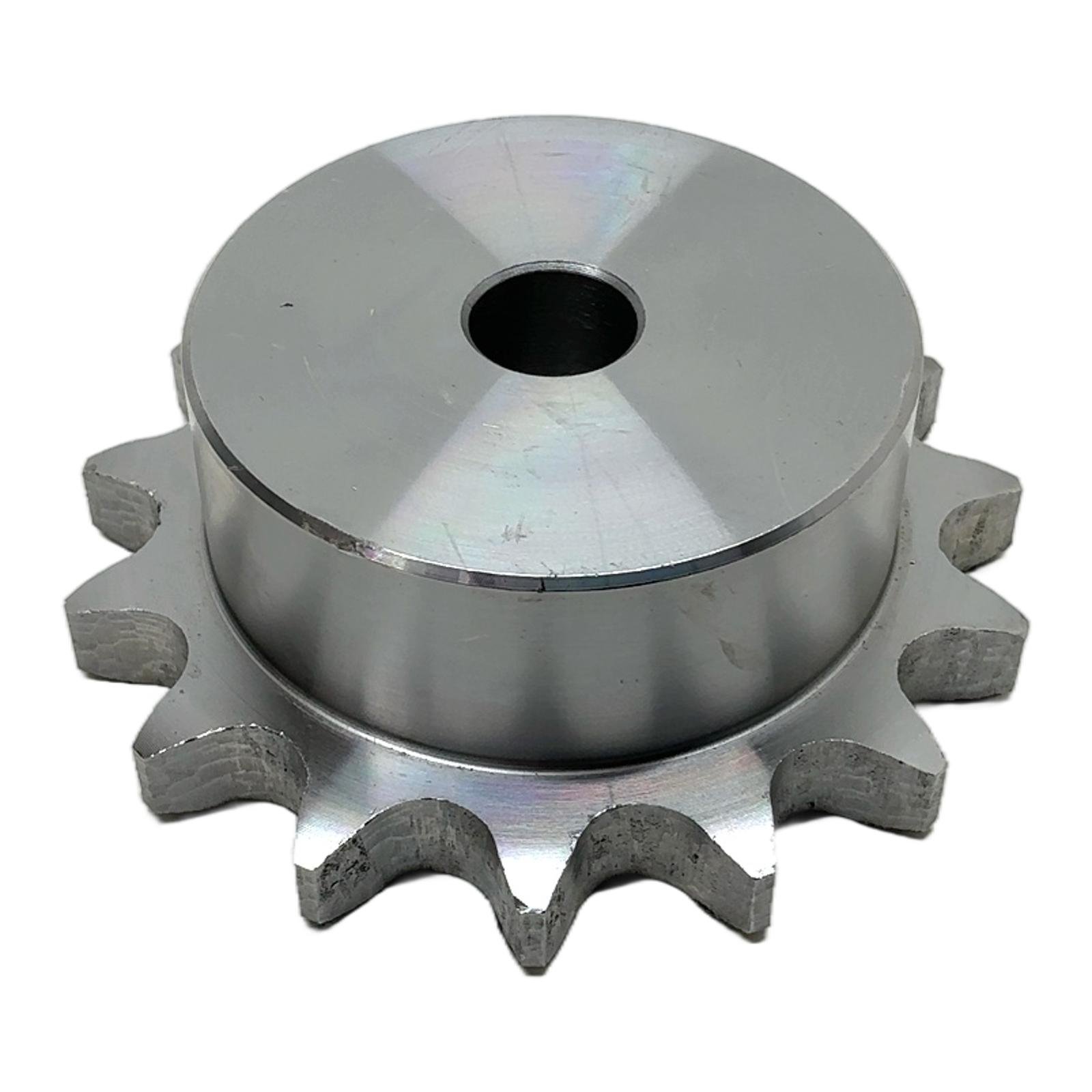

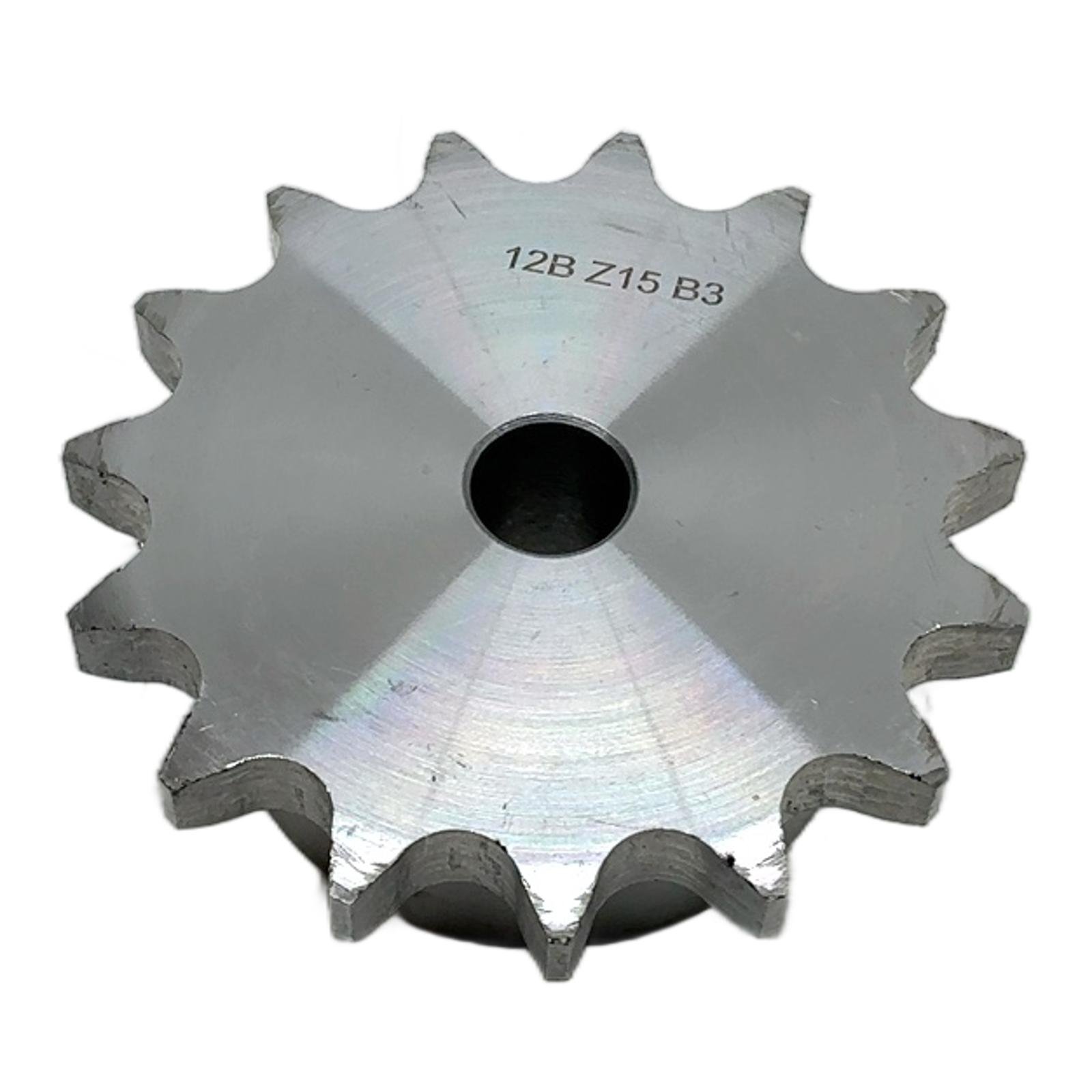

AKN 12B Z15 B3

Generic 12B Simplex Sprocket with 15 Teeth Description This is a robust and reliable industrial sprocket designed for power transmission systems using 12B standard roller chains. Manufactured from high-grade steel, it offers excellent durability and wear resistance. The sprocket features a pilot bore, which allows for custom machining to fit the exact diameter of your shaft and for adding a keyway. This makes it a versatile component for new installations and maintenance repairs. Specifications Chain Standard: 12B (ISO 606 / BS 228) Pitch: 19.05 mm (3/4 inch) Number of Teeth: 15 Rows: 1 (Simplex) Bore Type: Pilot Bore Material: Steel Hub Configuration: Single Hub Label Info Model: 12B Z15 B3 Application Suitable for a wide range of industrial applications, including conveyor systems, packaging machinery, agricultural equipment, and general mechanical engineering projects requiring reliable torque transmission. Country of Origin This is a generic industrial component; the country of origin is not specified. CO2 Impact By using this pre-owned component, you contribute to a circular economy and help avoid approximately 2.0 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to driving a car for about 10 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is a ‘pilot bore’ on a sprocket? A pilot bore is a small, unmachined hole in the center of the sprocket. It is intended to be machined by the end-user to the exact diameter required for their specific shaft, and often a keyway is also cut. This allows a single sprocket model to be adapted for various applications. How do I confirm if this 12B sprocket is compatible with my chain? You must verify that your chain is a 12B standard chain (ISO 606 / BS 228). A 12B chain has a pitch of 19.05 mm (3/4 inch). Mismatching the sprocket and chain size will lead to rapid wear and system failure. What does the ‘B3′ in the model number signify? The ’12B’ indicates the chain standard and ‘Z15’ specifies 15 teeth. The ‘B3’ is likely a manufacturer-specific code indicating hub style, material grade, or a specific production batch. For interchangeability, the primary parameters are the 12B chain size and the 15-tooth count. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
