HYDAC ZW-RV10-01-P 0.4-V 6078905

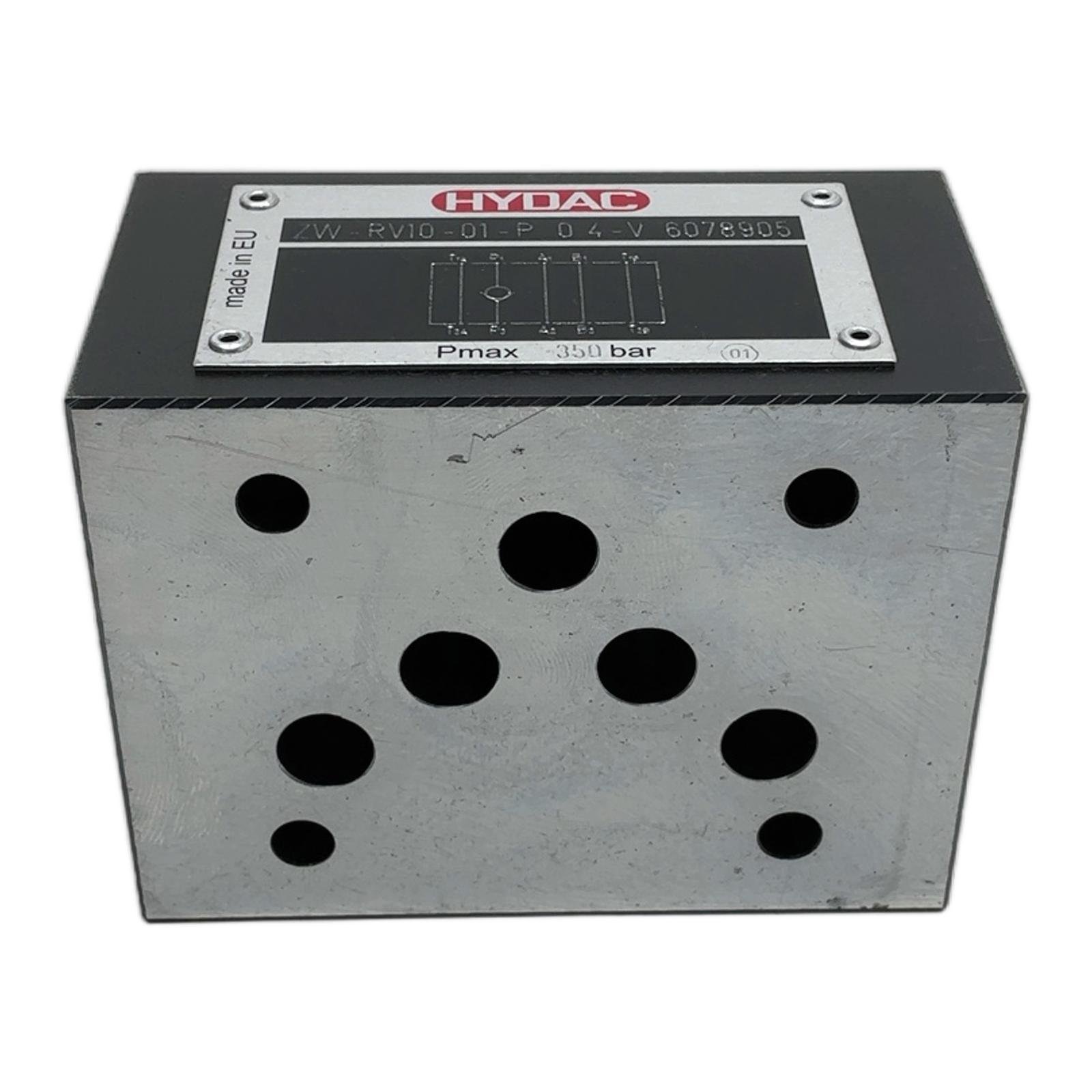

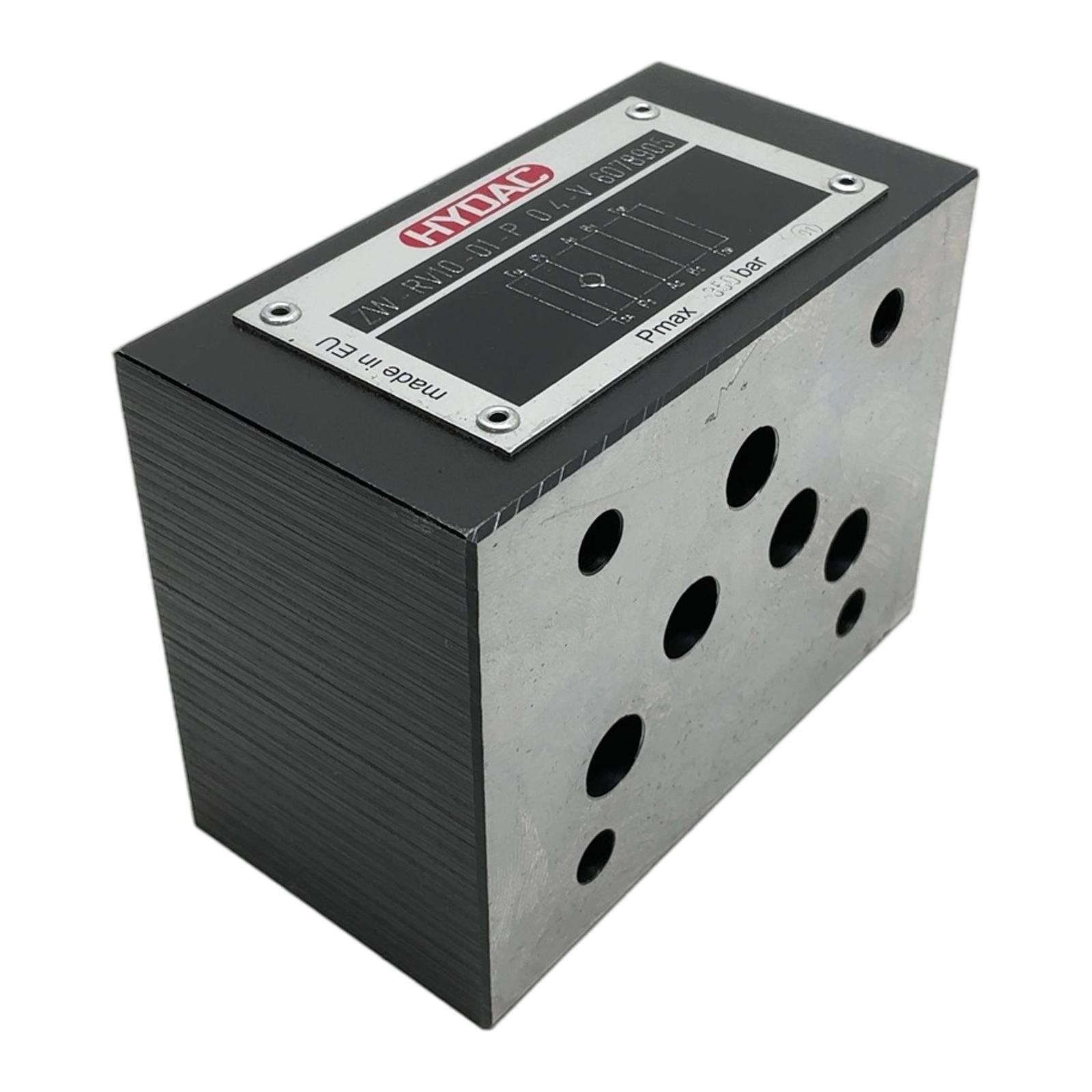

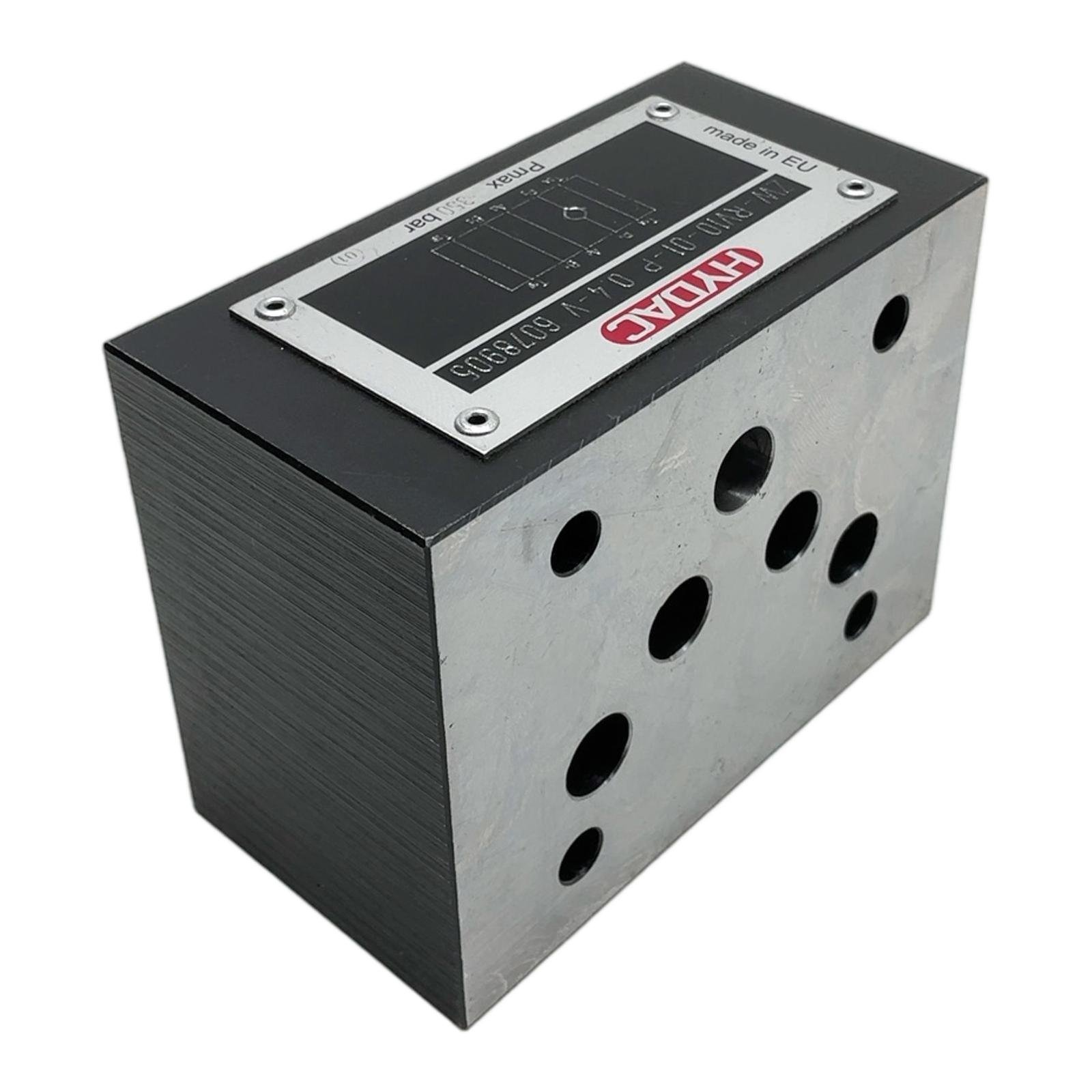

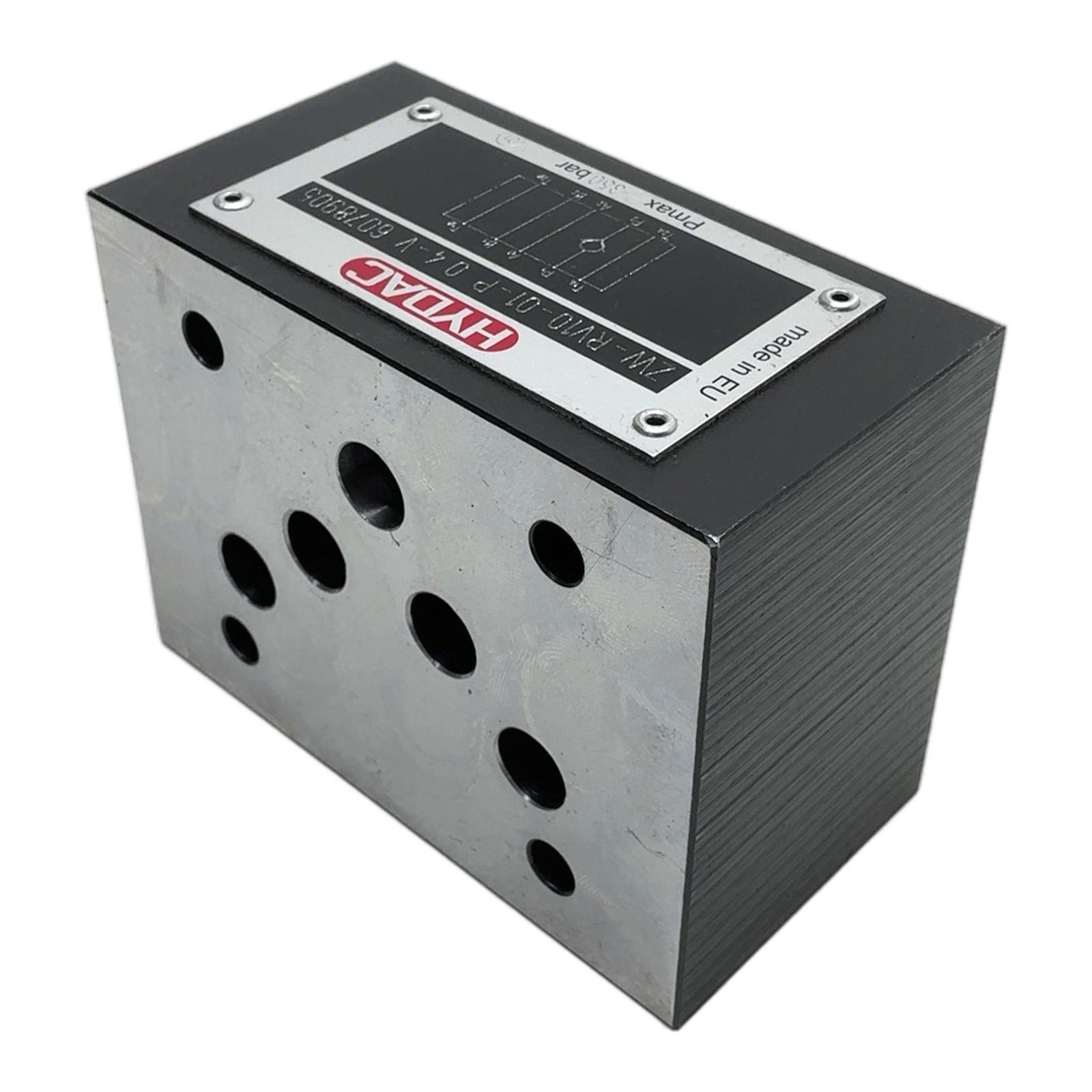

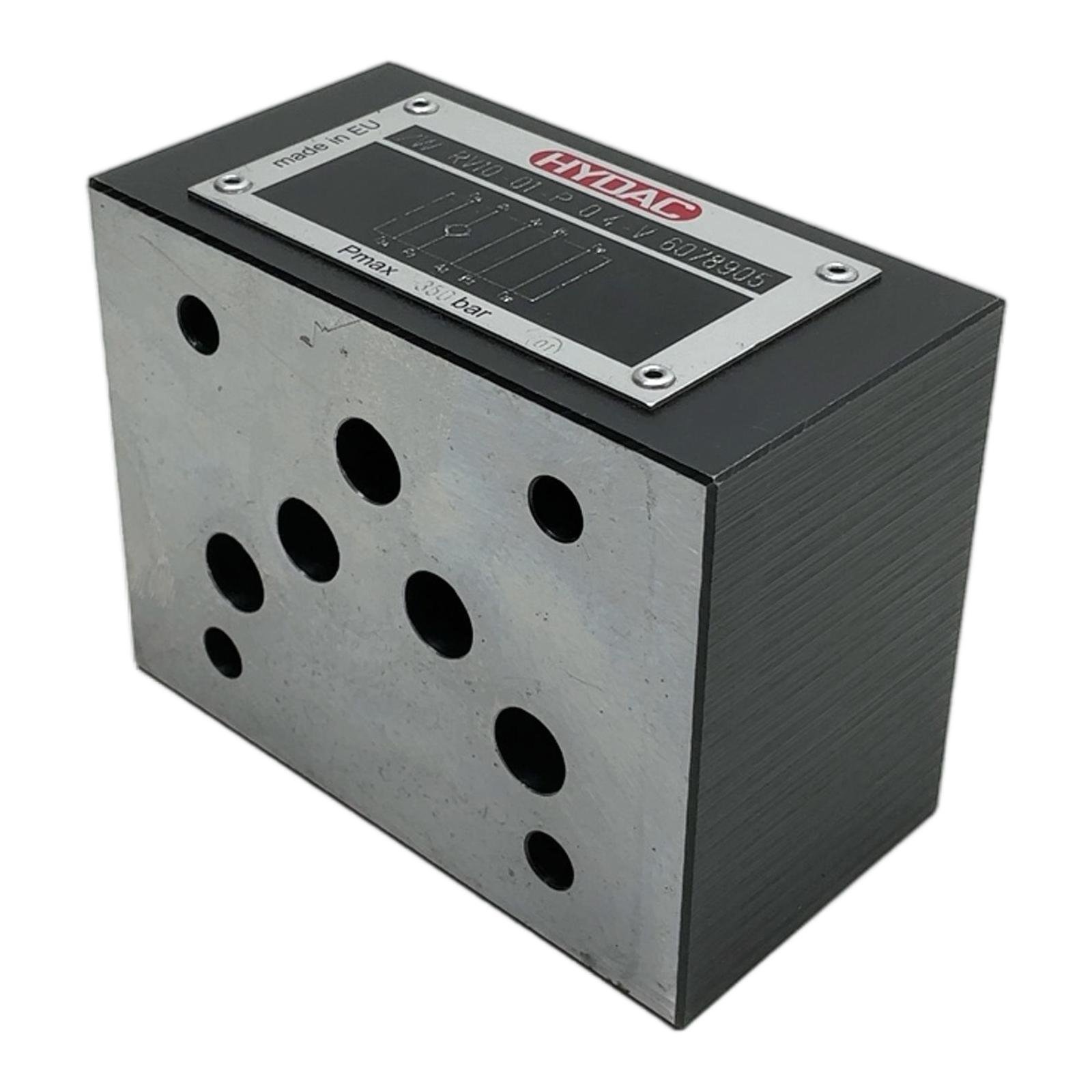

<h2>HYDAC Pilot-Operated Check Valve Subplate</h2> <h3>Description</h3> <p>This is a HYDAC pilot-operated check valve subplate, model ZW-RV10-01-P 0.4-V, designed for integration into hydraulic systems. It provides a mounting base for directional control valves and incorporates a pilot-operated check valve function, essential for load-holding applications. Its robust construction ensures reliability under high pressure.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: HYDAC</li> <li>Model: ZW-RV10-01-P 0.4-V</li> <li>Part Number: 6078905</li> <li>Type: Pilot-Operated Check Valve Subplate</li> <li>Maximum Operating Pressure: 350 bar</li> <li>Pilot Ratio: 0.4</li> <li>Seal Material: V (Viton / FKM)</li> <li>Mounting Interface: Likely NG10 / CETOP 5</li> </ul> <h3>Label Info</h3> <ul> <li>Pmax: 350 bar</li> </ul> <h3>Application</h3> <p>Ideal for hydraulic circuits in mobile and industrial machinery where secure load holding is required, such as in presses, lifts, and material handling equipment. It prevents actuator movement due to external forces or gravity.</p> <h3>Country of Origin</h3> <p>This component is labeled ‘made in EU’, manufactured by the German company HYDAC.</p> <h3>CO2 Impact</h3> <p>Reusing this part saves an estimated 10 kg of CO2 compared to manufacturing a new one. This is equivalent to charging over 1200 smartphones.</p> <h3>Availability</h3> <p>This item is a surplus part, in excellent condition and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p> <strong>What is the function of the ‘pilot-operated’ feature in this check valve subplate?</strong><br><p>The pilot-operated feature allows the check valve to be opened with an external hydraulic signal (pilot pressure). This permits reverse flow, which is essential for retracting cylinders or lowering loads in a controlled manner, something a standard check valve cannot do.</p> <strong>What does the ‘0.4’ in the model number ZW-RV10-01-P 0.4-V signify?</strong><br><p>The ‘0.4’ specifies the pilot ratio of the check valve. A pilot ratio of 0.4 means that the pilot pressure required to open the check valve against the main line pressure is 40% of that main line pressure. This ratio is critical for system stability and operation.</p> <strong>Are the ‘V’ seals compatible with all hydraulic fluids?</strong><br><p>’V’ stands for Viton (FKM) seals, which offer excellent resistance to high temperatures and a broad range of chemicals, including mineral oils, synthetic fluids (like HFD), and fuels. However, they are not recommended for use with certain fluids like ketones or ethers. Always verify fluid compatibility before installation.</p> </p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
