HYDAC ZW-DM10-01-PT70V-V 3504864

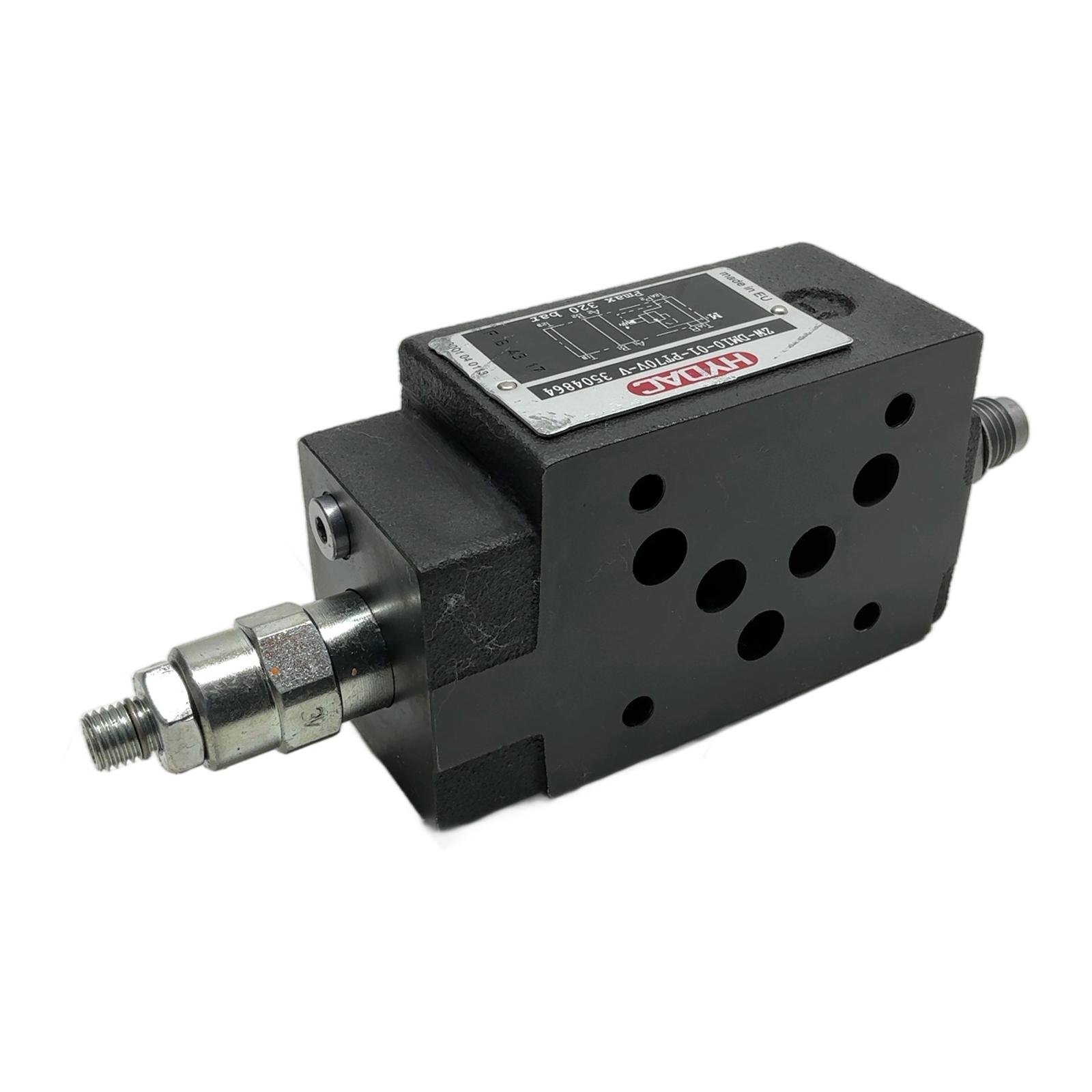

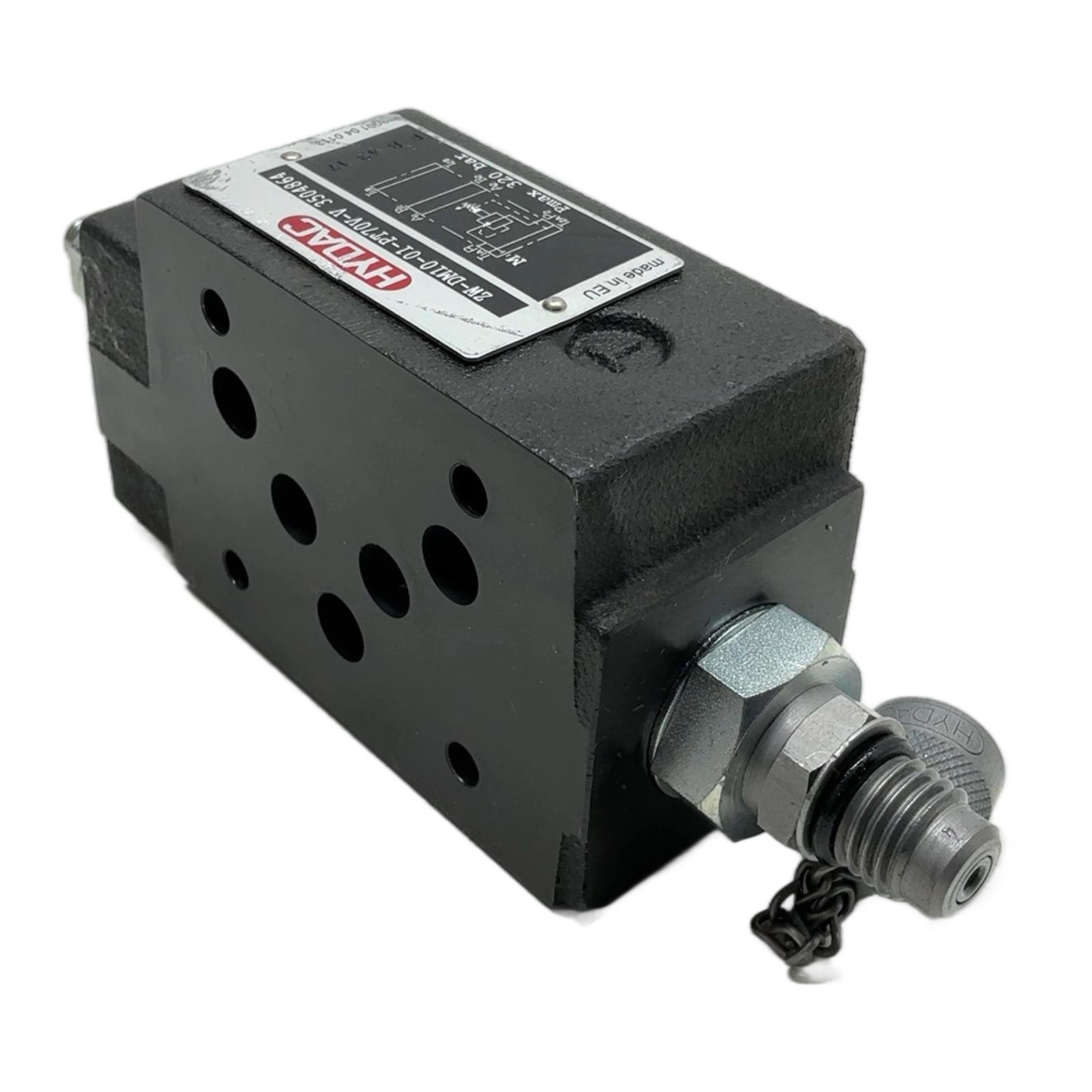

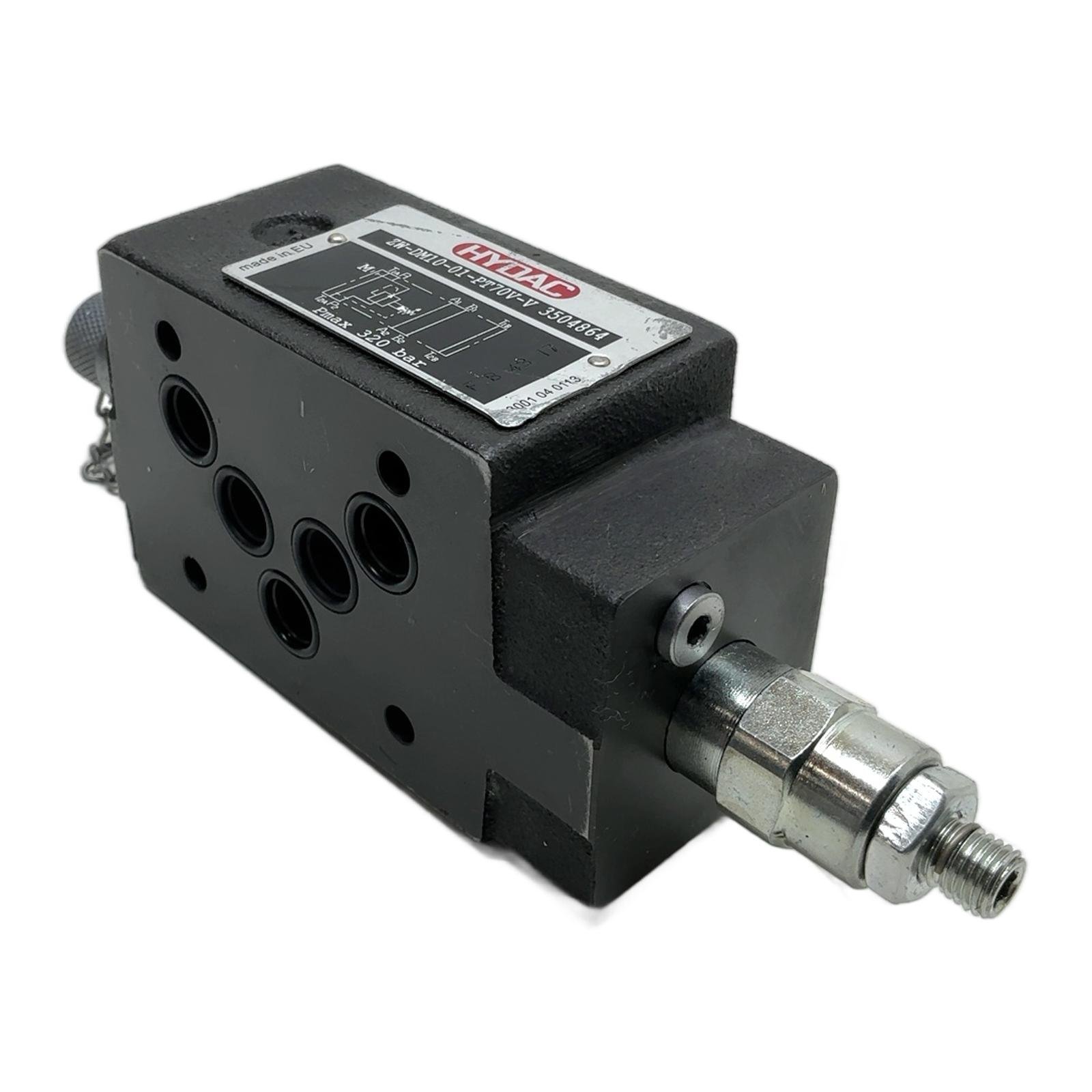

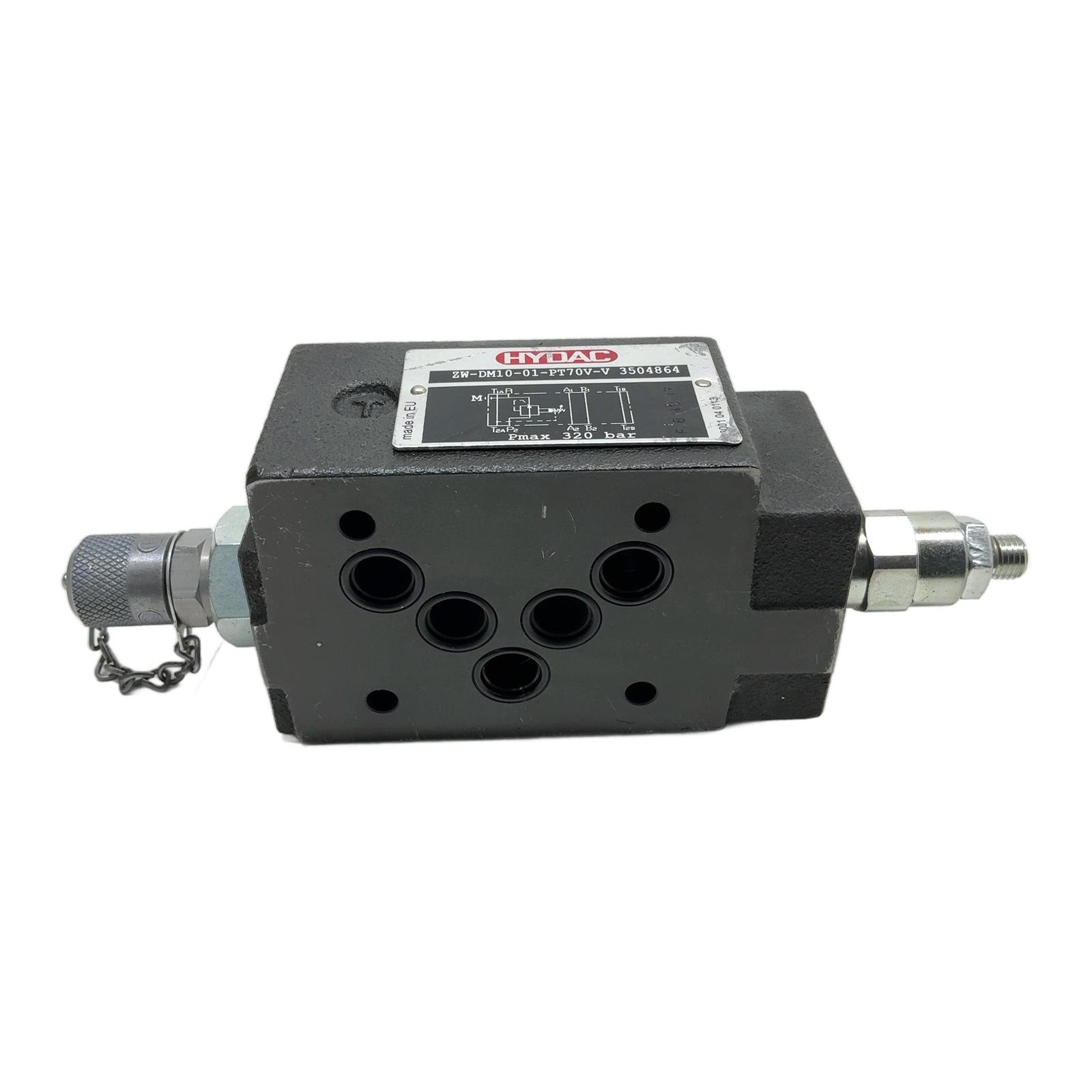

HYDAC Double Pilot Operated Check Valve NG10 320 bar Description The HYDAC ZW-DM10-01-PT70V-V is a sandwich plate double pilot operated check valve designed for reliable load-holding applications in hydraulic systems. Its NG10 size ensures compatibility with standard CETOP 5 mounting interfaces, making it a versatile component for various industrial machines. This valve provides leak-free closure of one or two actuator ports, even during extended periods of standstill. Specifications Manufacturer: HYDAC Model: ZW-DM10-01-PT70V-V Part Number: 3504864 Valve Type: Double Pilot Operated Check Valve Mounting Interface: NG10 / CETOP 5 Maximum Operating Pressure (Pmax): 320 bar Sealing Material: V (FKM) Label Info HYDAC ZW-DM10-01-PT70V-V 3504864 Pmax 320 bar Made in EU Application This valve is ideal for applications requiring secure load holding, such as presses, lifting equipment, and clamping units. It prevents cylinder creep and ensures actuator positions are maintained under load. Country of Origin This product is made in the EU. CO2 Impact By purchasing this pre-owned item, you are contributing to a circular economy and helping to save 5 kg of CO2, a significant reduction compared to manufacturing a new product. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of a double pilot operated check valve like the ZW-DM10?It allows free flow in one direction and blocks flow in the opposite direction. The blocked flow can be opened by applying hydraulic pilot pressure to the respective pilot port, which allows a connected actuator (like a hydraulic cylinder) to be held securely in position and then moved when required. What does the NG10 (CETOP 5) designation mean for installation?NG10 (Nominal Size 10) and CETOP 5 are standardized mounting patterns for hydraulic valves. This ensures that valves from different manufacturers with the same designation are interchangeable, simplifying design, installation, and maintenance. How does the pilot pressure ratio affect the valve’s operation?The pilot pressure ratio determines how much pilot pressure is needed to open the check valve against a certain load pressure. A lower ratio requires higher pilot pressure to open the valve, which can be important for stability in certain circuits. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
