EATON ZM-16-PKZ2 043217

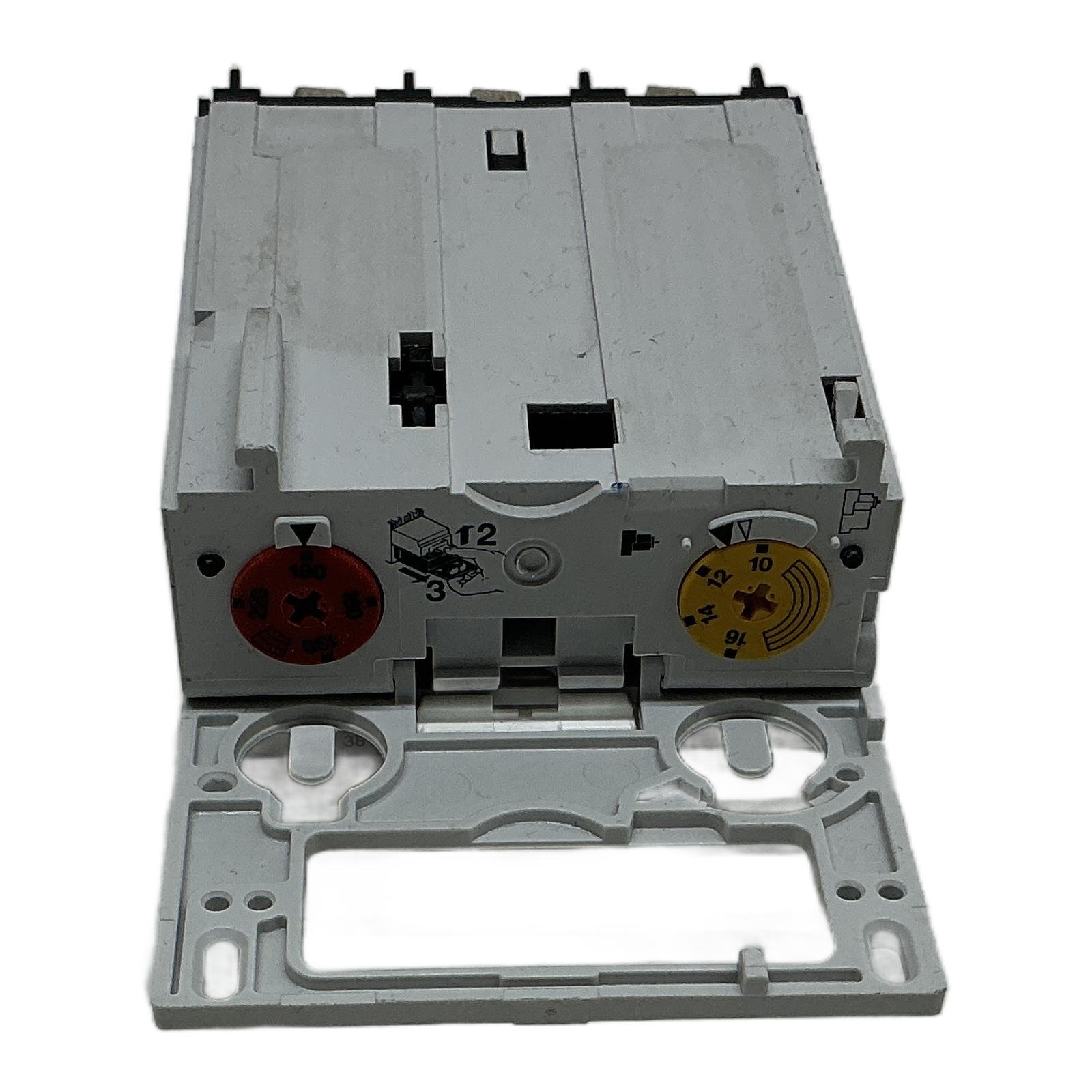

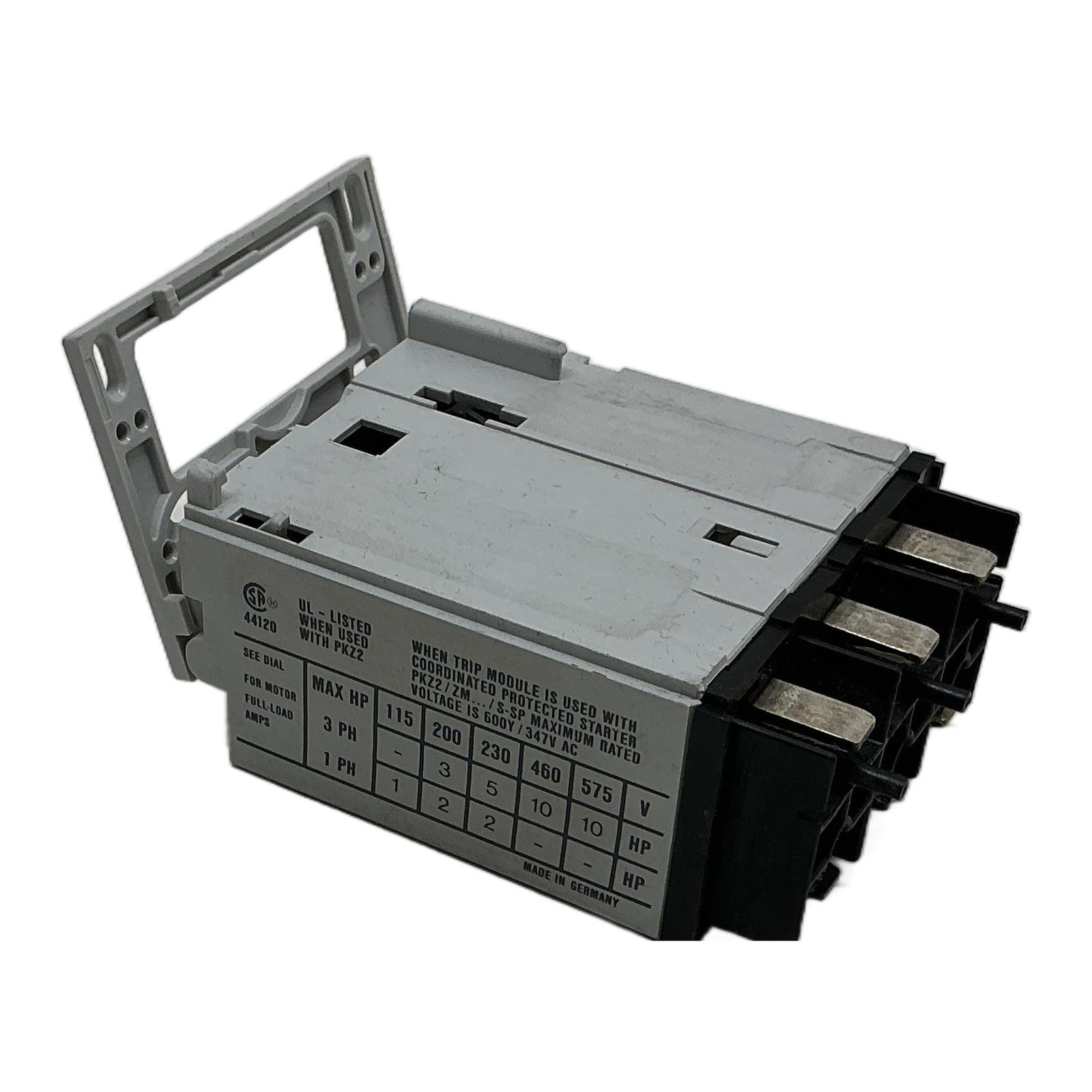

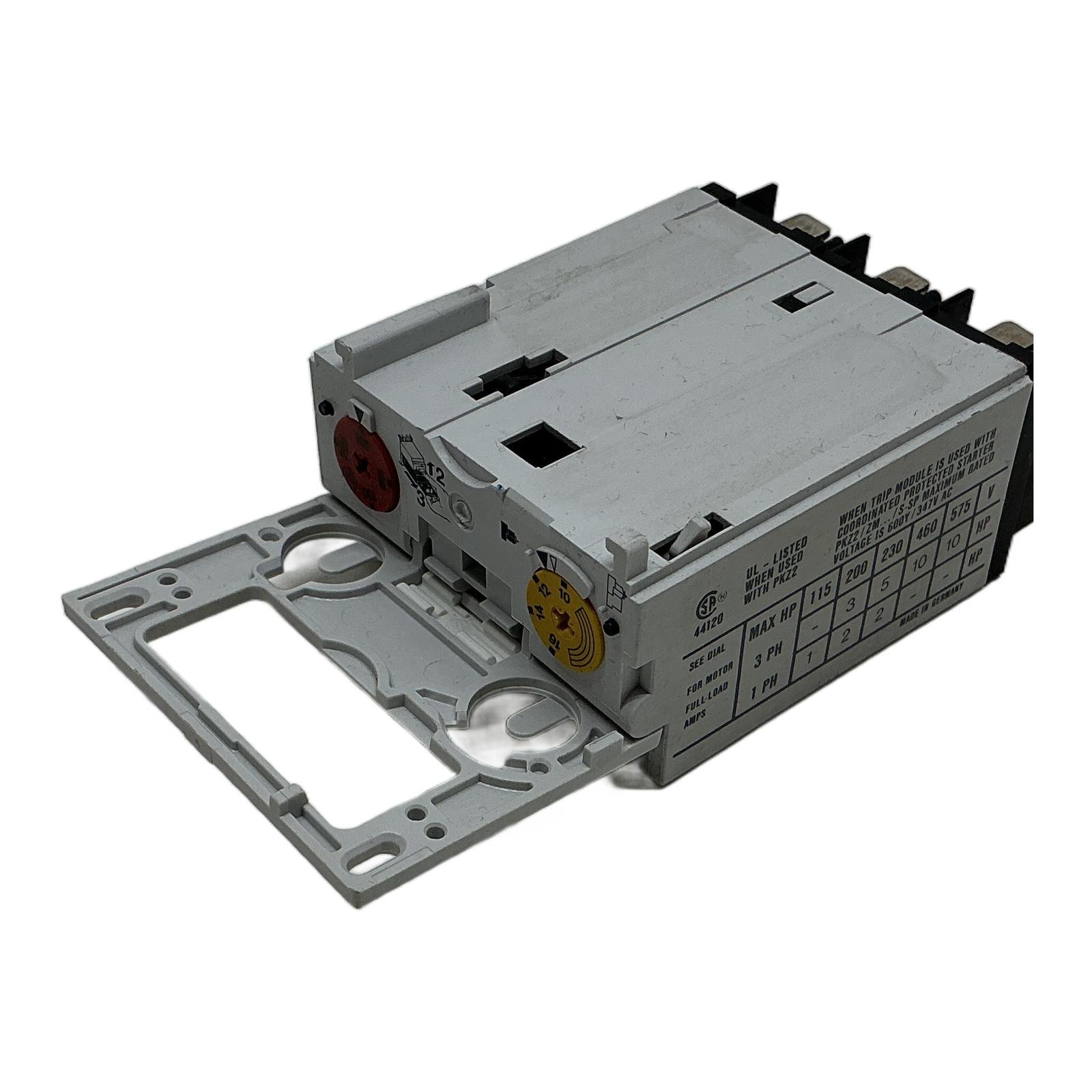

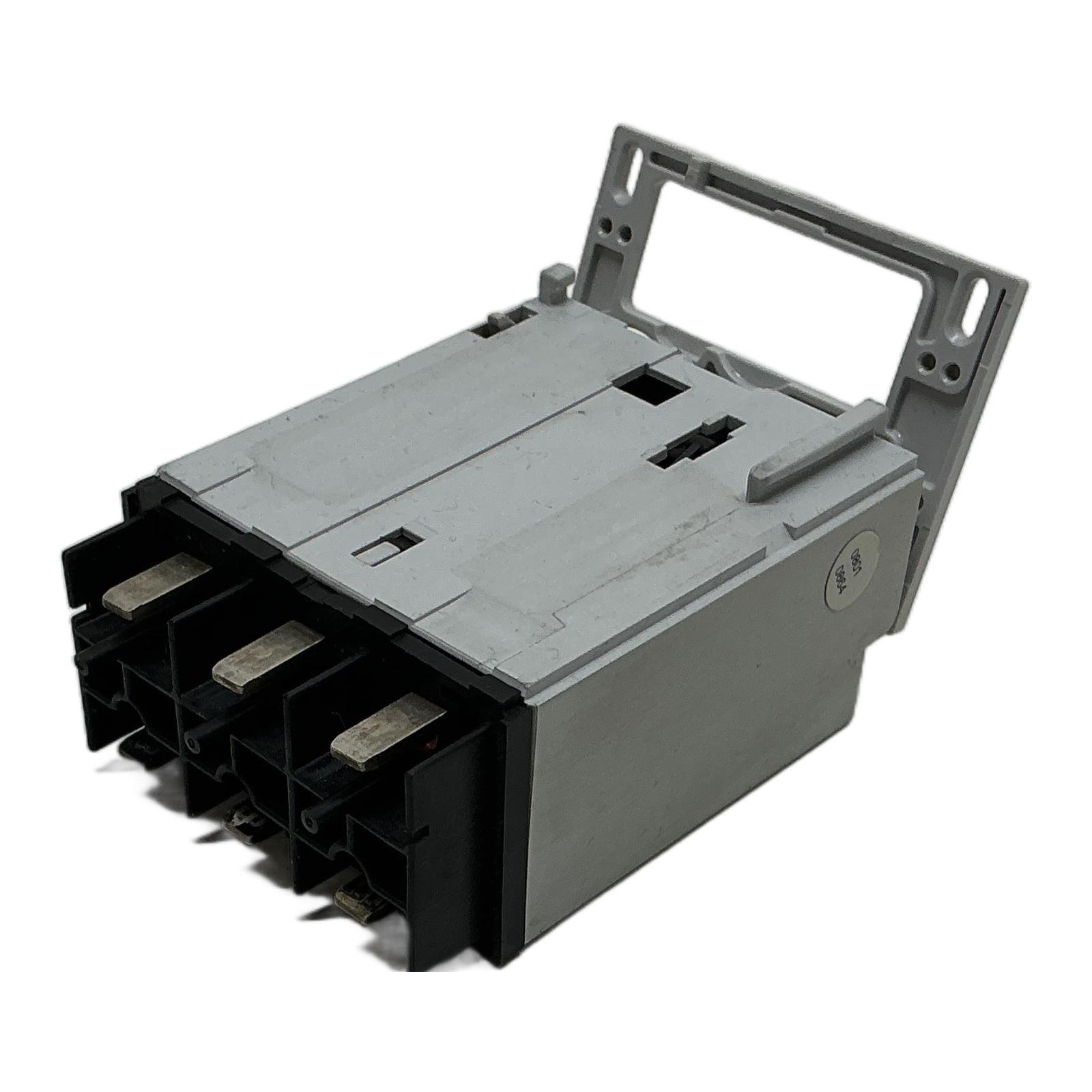

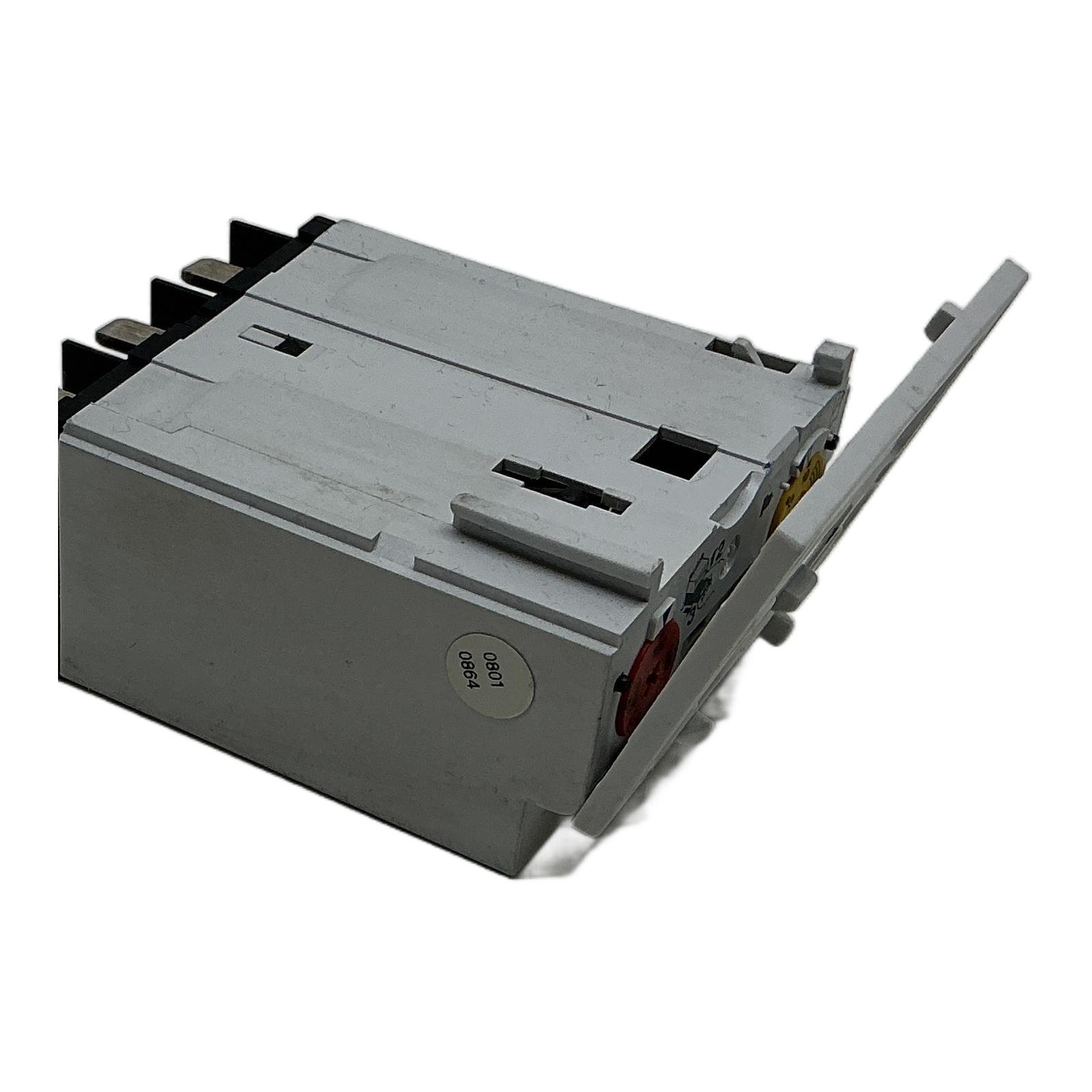

Eaton (Moeller) Motor Protection Trip Block 10-16A ZM-16-PKZ2 Description The ZM-16-PKZ2 is a motor protection trip block from the Moeller series, now part of Eaton’s portfolio. It is specifically designed to be used with PKZ2 basic units, providing reliable and adjustable thermal overload protection for electric motors. With a setting range of 10 to 16 A, it offers precise protection against overcurrents, helping to prevent motor damage and minimize downtime. This is an obsolete but essential component for the maintenance of existing installations. Specifications Manufacturer: Eaton (Moeller) Type Number: ZM-16-PKZ2 Article Number: 043217 Product Type: Motor Protection Trip Block / Overload Relay Adjustable Current Range: 10 – 16 A Compatibility: For use with PKZ2 series motor-protective circuit-breakers Poles: 3-pole Release Technology: Thermal Label Info Max HP 3PH (460V): 10 HP Max HP 3PH (230V): 5 HP Max HP 1PH (230V): 2 HP Application This trip block is ideal for a wide range of industrial applications requiring motor protection, including pumps, fans, conveyors, and machine tools. It is a critical spare part for systems built with the Moeller PKZ2 series components. Country of Origin Made in Germany. CO2 Impact Choosing this reused component over a new one saves approximately 6.0 kg of CO2 emissions, contributing to a more sustainable industrial environment. Availability This is an obsolete item, available as New Old Stock (NOS). Availability is limited. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘Test’ button on the ZM-16-PKZ2?The ‘Test’ button allows for a mechanical simulation of a trip event. Pressing it verifies the functionality of the tripping mechanism of the combined unit (trip block and base circuit-breaker) without requiring an actual overcurrent condition. Can this ZM-16-PKZ2 be used with a modern PKZM0 base unit?No, this trip block is specifically designed for the older, obsolete PKZ2 series. It is not mechanically or electrically compatible with the modern PKZM0 series from Eaton. What does the thermal adjustment range of 10-16A signify?This range allows you to set the trip current to match the Full Load Amperage (FLA) of your specific motor. The dial should be set to the motor’s nameplate FLA to ensure it trips correctly during an overload condition, thus protecting the motor windings from overheating. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
