KLOCKNER MOELLER ZE-4.0

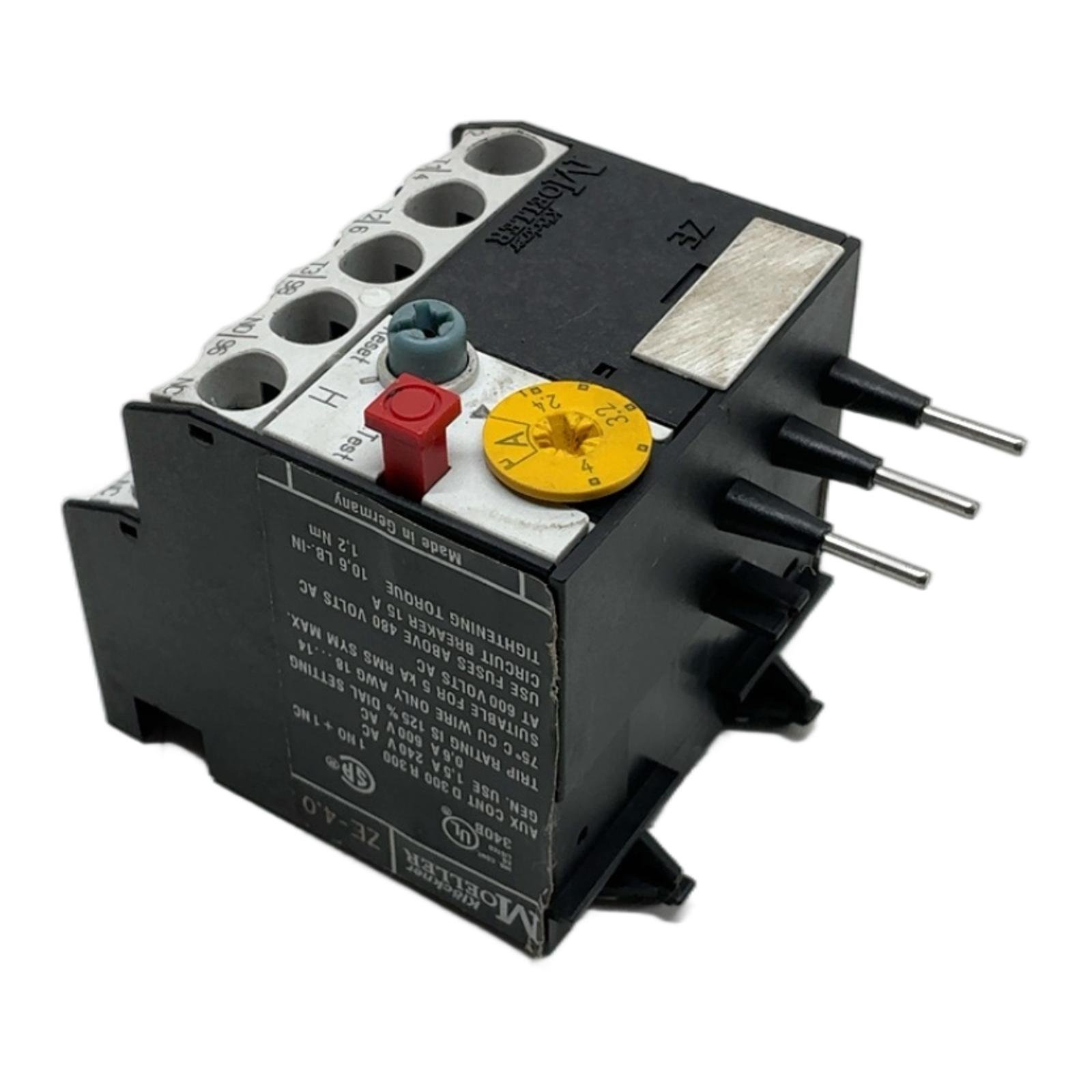

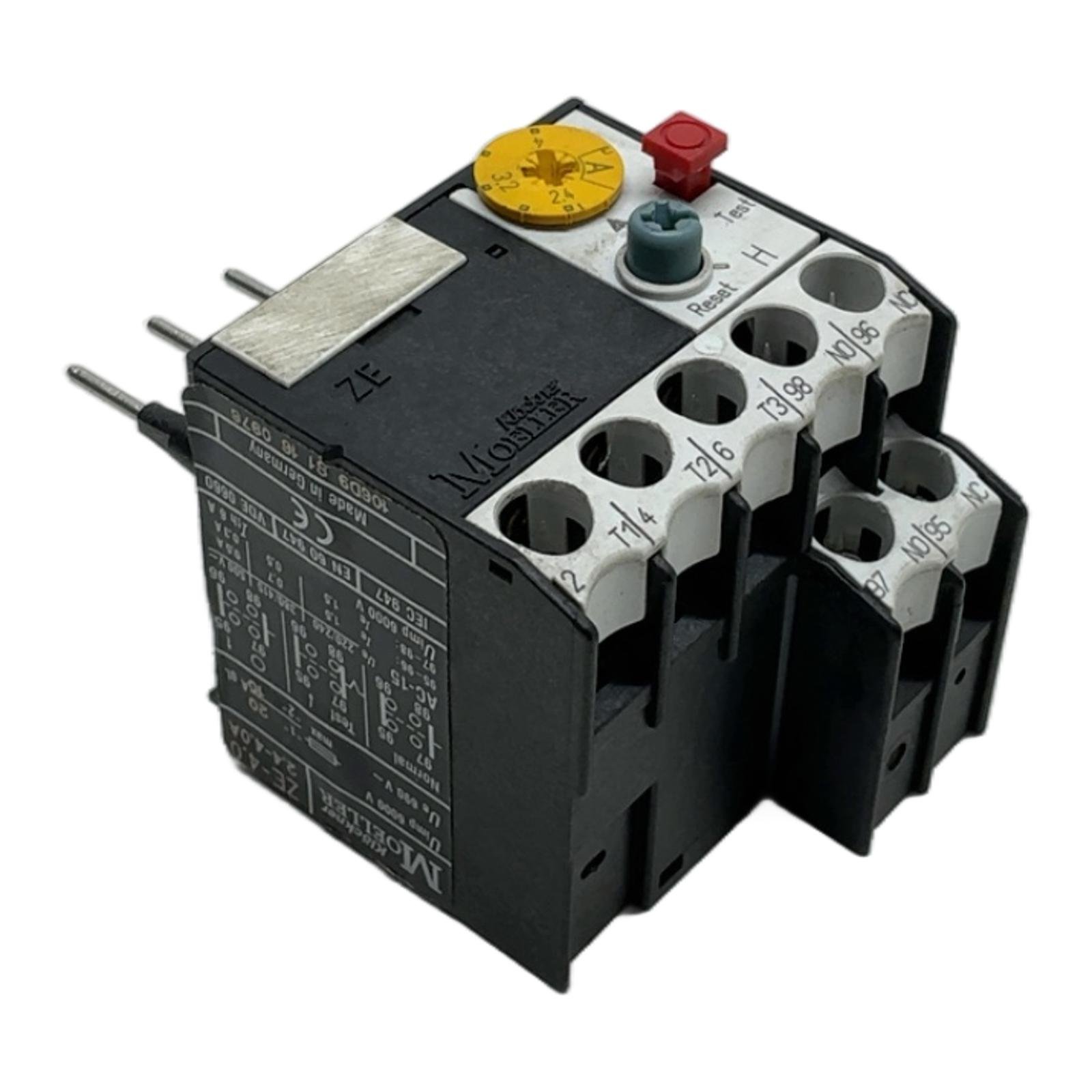

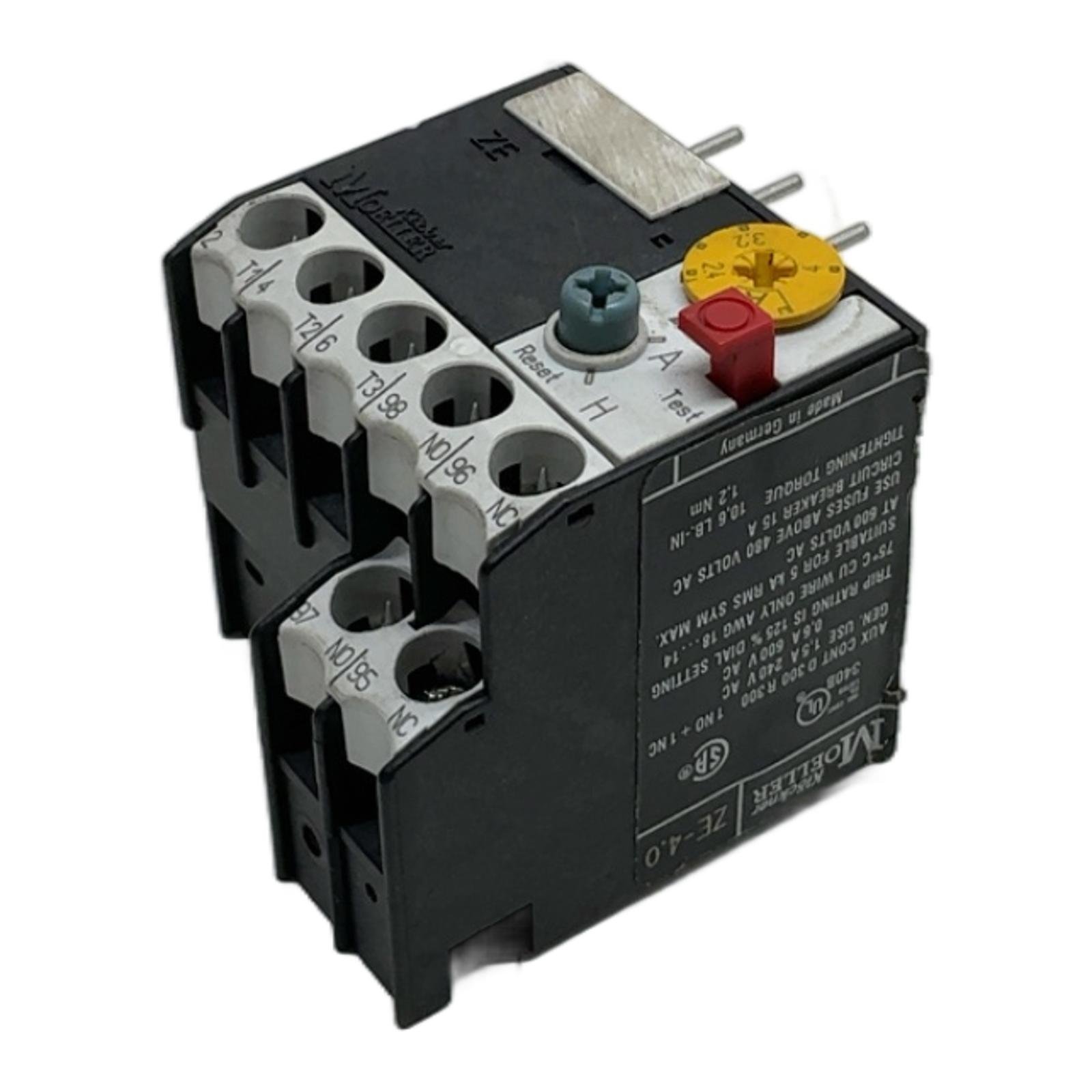

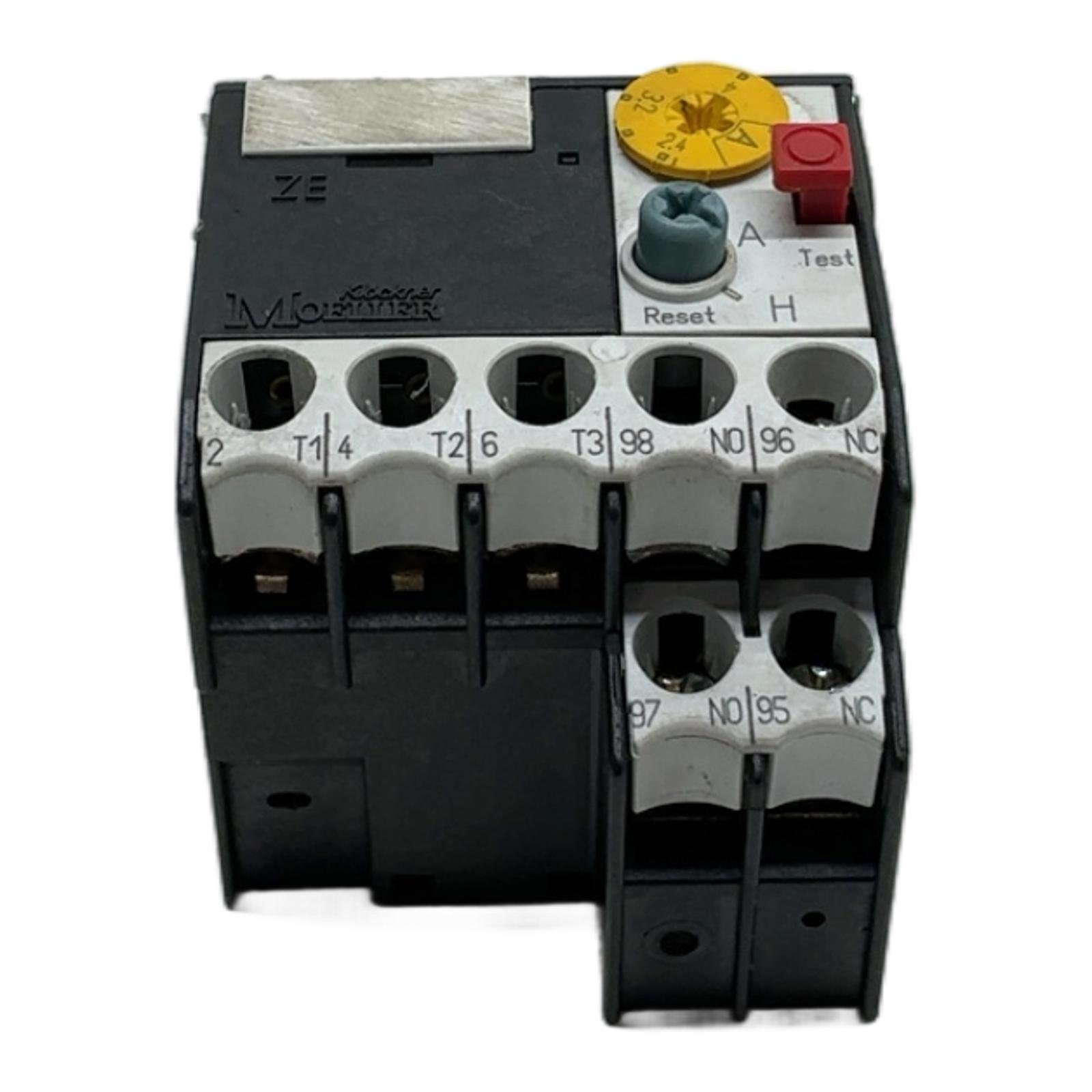

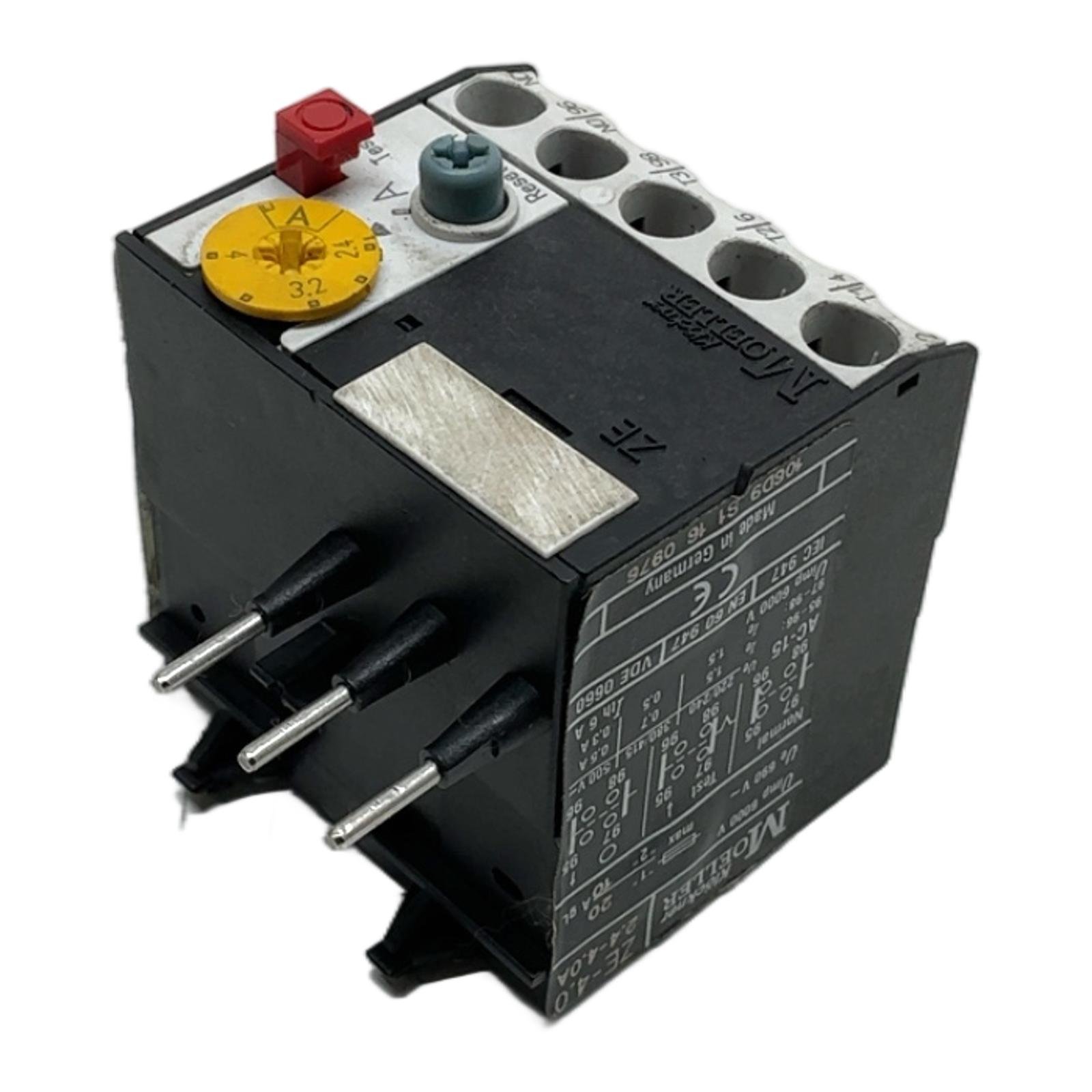

Klockner Moeller ZE-4.0 Thermal Overload Relay Description The Klockner Moeller ZE-4.0 is a thermal overload relay engineered for dependable protection of three-phase motors. It features an adjustable current range from 2.4 to 4.0 Amperes, making it suitable for a variety of small motor applications. This relay is designed for direct mounting onto Klockner Moeller DILM series contactors, ensuring a compact and efficient assembly. It includes selectable manual or automatic reset modes, a test function, and a trip indicator for easy diagnostics and maintenance. Specifications Manufacturer: Klockner Moeller (Eaton) Model: ZE-4.0 Current Setting Range: 2.4 – 4.0 A Rated Operational Voltage (Ue): up to 690V AC Rated Impulse Withstand Voltage (Uimp): 6000V Auxiliary Contacts: 1 NO + 1 NC Mounting Style: Direct Mount Trip Class: 10A Label Info Standards: IEC 947, EN 60 947, VDE 0660 Certifications: UL, SP (CSA) Application Ideal for protecting motors in applications such as pumps, fans, conveyors, and other industrial machinery where reliable overload protection is critical. Country of Origin Made in Germany. CO2 Impact Reusing this item saves approximately 6.0 kg of CO2, contributing to a more sustainable industrial environment compared to purchasing a new one. Availability This item is a tested, used product. Order now from profideals for expert support and fast delivery. FAQ What contactors is the ZE-4.0 compatible with? The Klockner Moeller ZE-4.0 is specifically designed for direct mounting on DIL 00M, DIL 0M, and DIL M contactors (e.g., DILM7, DILM9, DILM12, DILM15). How do I correctly set the current on this overload relay? The current should be set to the motor’s Full Load Ampere (FLA) rating listed on its nameplate. The trip rating is 125% of the dial setting, so setting it to the FLA ensures proper protection. What is the difference between the ‘A’ (Auto) and ‘H’ (Hand/Manual) reset modes? In ‘H’ (Hand/Manual) mode, the blue reset button must be pressed manually to reset the relay after a trip. In ‘A’ (Auto) mode, the relay will attempt to reset automatically after it has cooled down. Manual reset is recommended for most applications to ensure a safety check before restarting the motor. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
