BAUMER Z 136.203 11034181

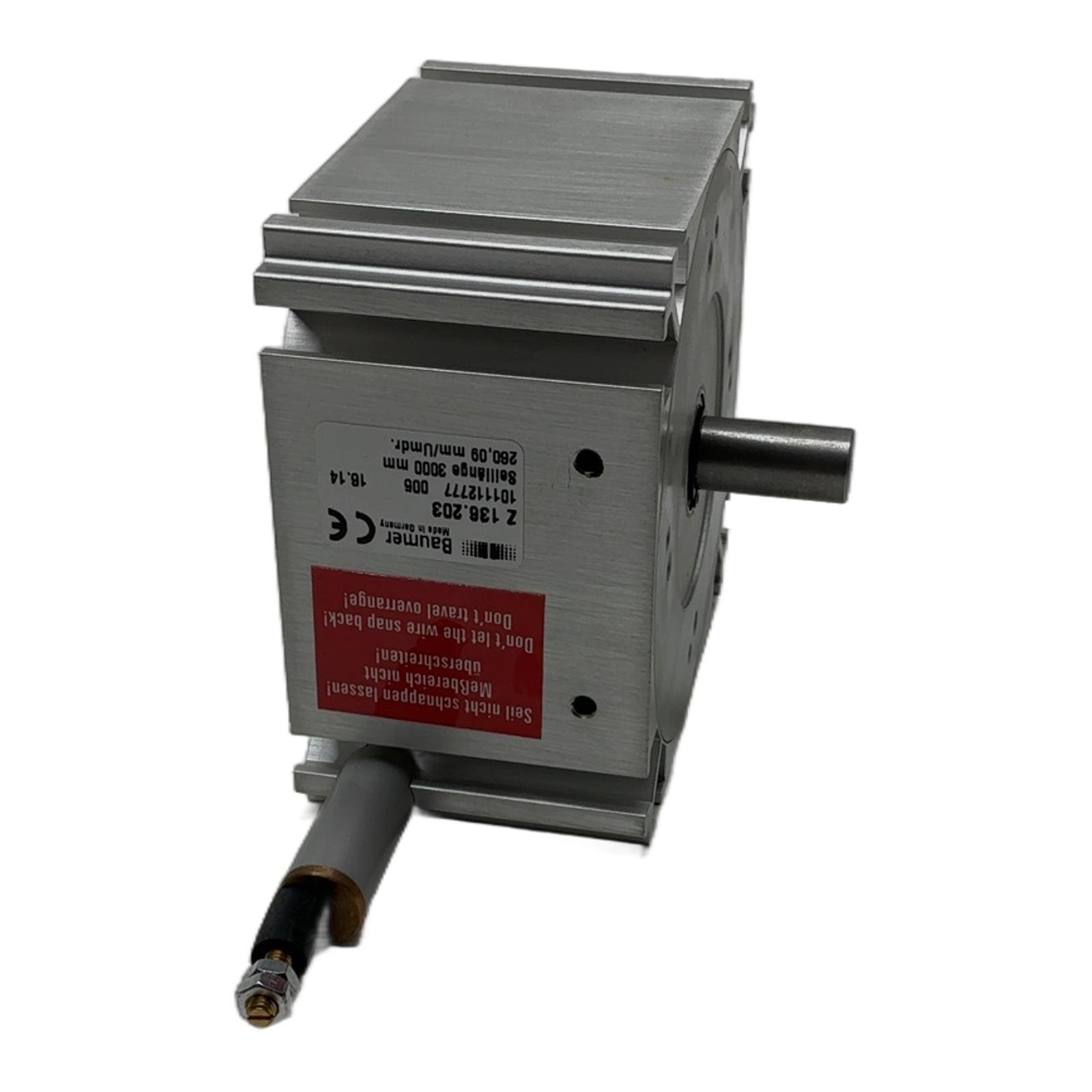

Baumer Wire Draw Encoder Mechanism Description The Baumer Z 136.203 is a high-precision wire draw mechanism, also known as a Seilzuggeber, designed for reliable linear position measurement in industrial automation. This unit is the mechanical component of a draw-wire encoder system, intended to be coupled with a rotary encoder. With a measuring length of 3000 mm, it is ideal for applications requiring accurate tracking of movement over medium distances. Its robust aluminum construction ensures durability and long-term performance in challenging environments. Specifications Manufacturer: Baumer Type: Wire Draw Mechanism Model: Z 136.203 Order Code: 11034181 Measuring Length: 3000 mm Wire Material: Stainless Steel Drum Circumference: 280.09 mm/revolution Housing Material: Aluminum Label Info Baumer Germany Type: Z 136.203 ID: 10111277 Seillange (Wire Length): 3000 mm 280,09 mm/Umdr. (mm per revolution) Application This mechanism is suitable for a wide range of applications including material handling systems, mobile hydraulics, packaging machinery, and automated assembly lines where precise linear positioning is critical. Country of Origin Made in Germany. CO2 Impact Choosing this reused component saves an estimated 15 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial operation. Availability Available for immediate dispatch. This item is a new, unused product from old stock. Order now from profideals for expert support and fast delivery. FAQ What type of encoder can be mounted on this Z 136.203 mechanism?This mechanism is typically designed for rotary encoders with a standard 58 mm synchro flange and a 6 mm shaft. Always verify compatibility with the specific encoder datasheet before mounting. What is the maximum travel speed and acceleration for this wire draw mechanism?The Baumer SG series, which this mechanism is part of, generally supports a maximum travel speed of up to 10 m/s and acceleration up to 100 m/s^2. Refer to the official Baumer datasheet for precise performance limits. What precautions are necessary during installation due to the internal spring?The device contains a high-tension spring for wire retraction. As the warning label indicates, never allow the wire to retract uncontrollably. Always guide it back slowly. Assembly and disassembly should only be performed when the wire is fully retracted to avoid personal injury or damage to the unit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
