TELEMECANIQUE XUSL4E30H061N

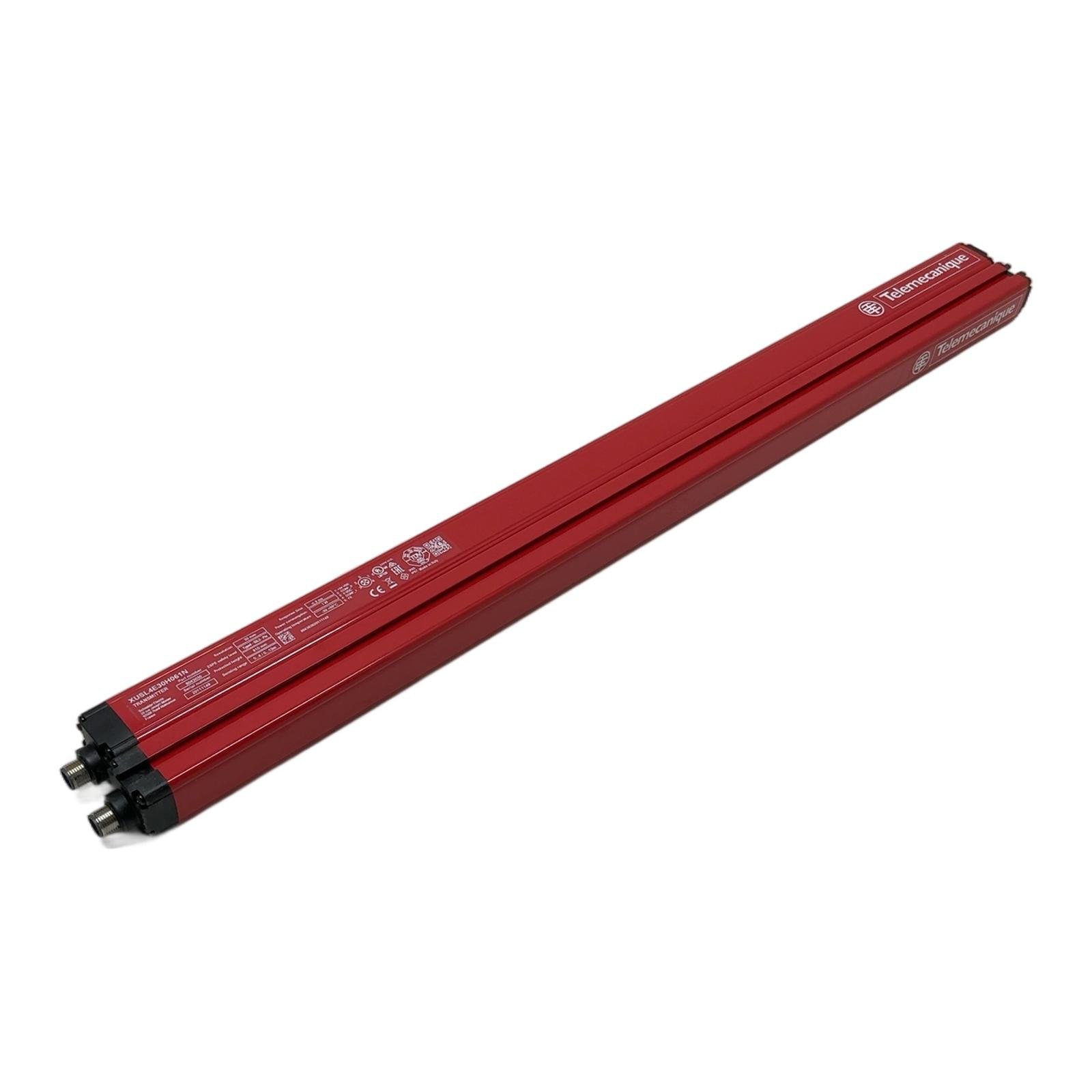

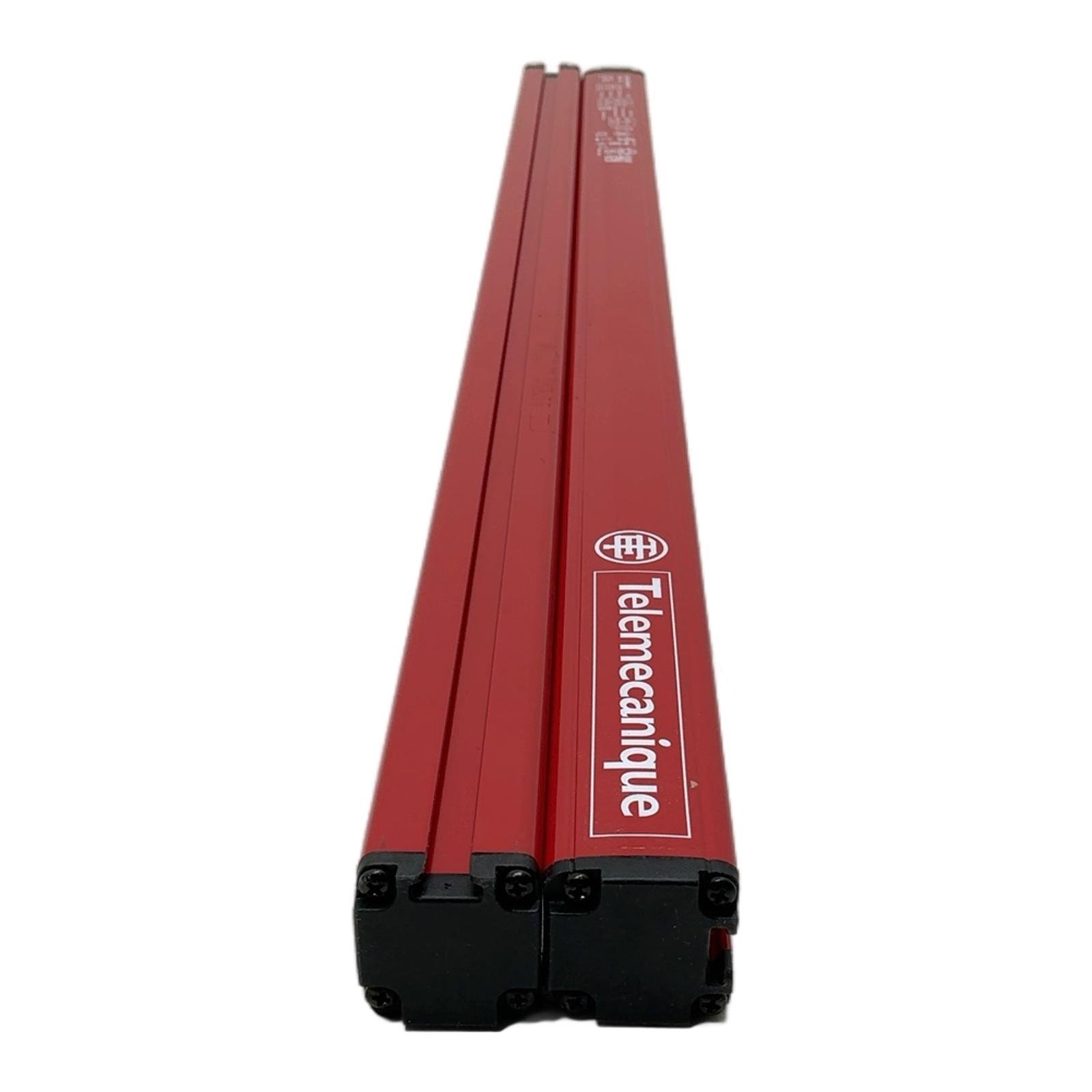

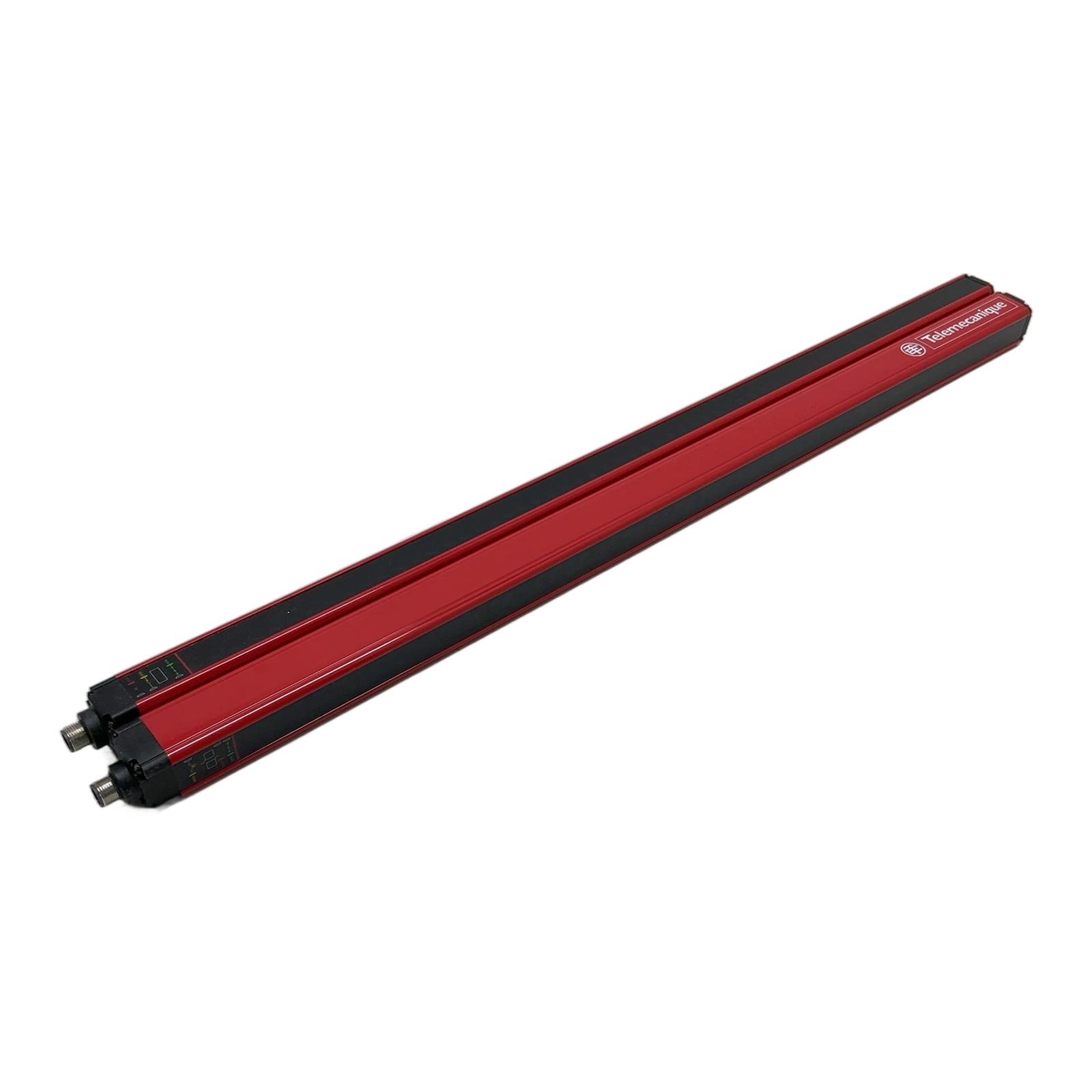

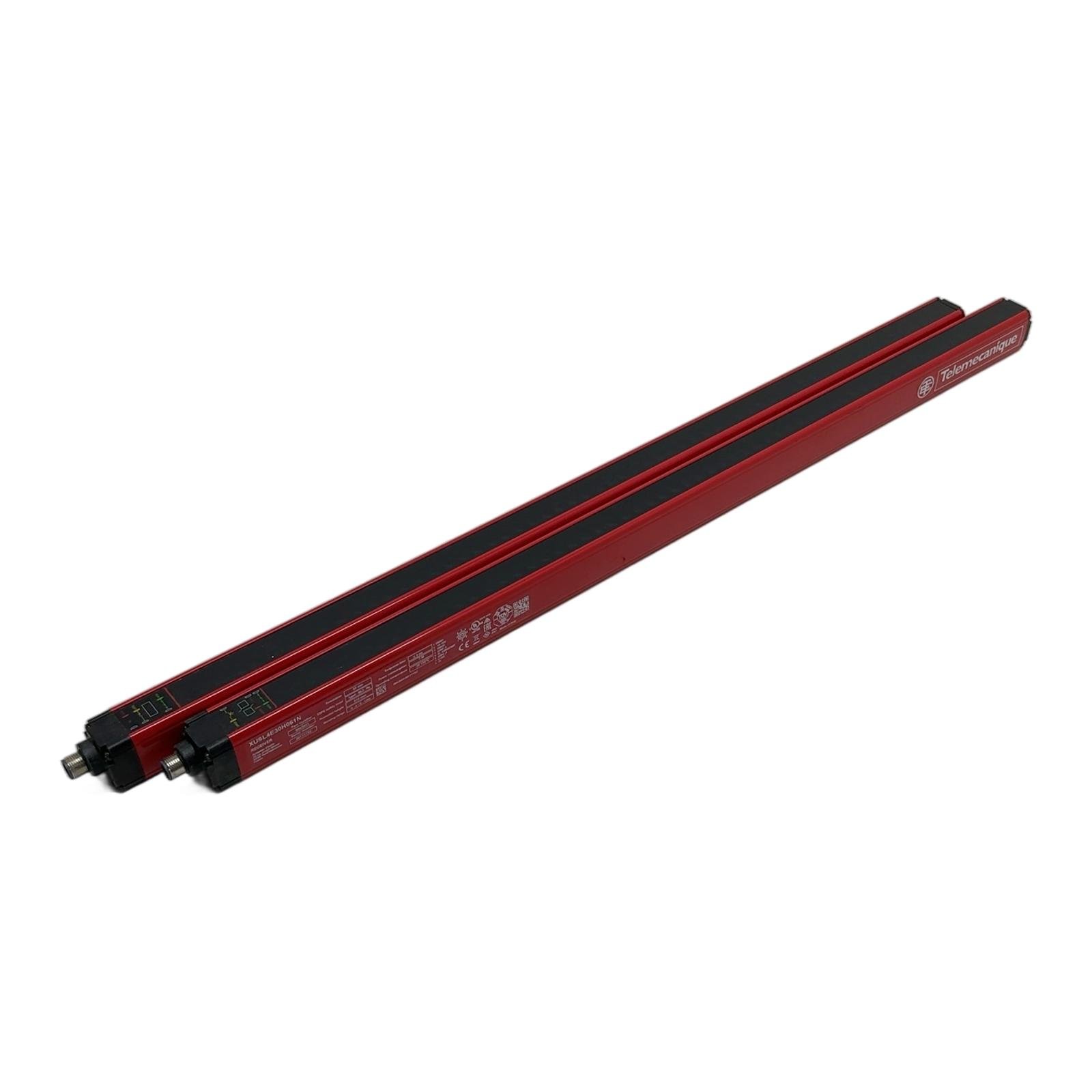

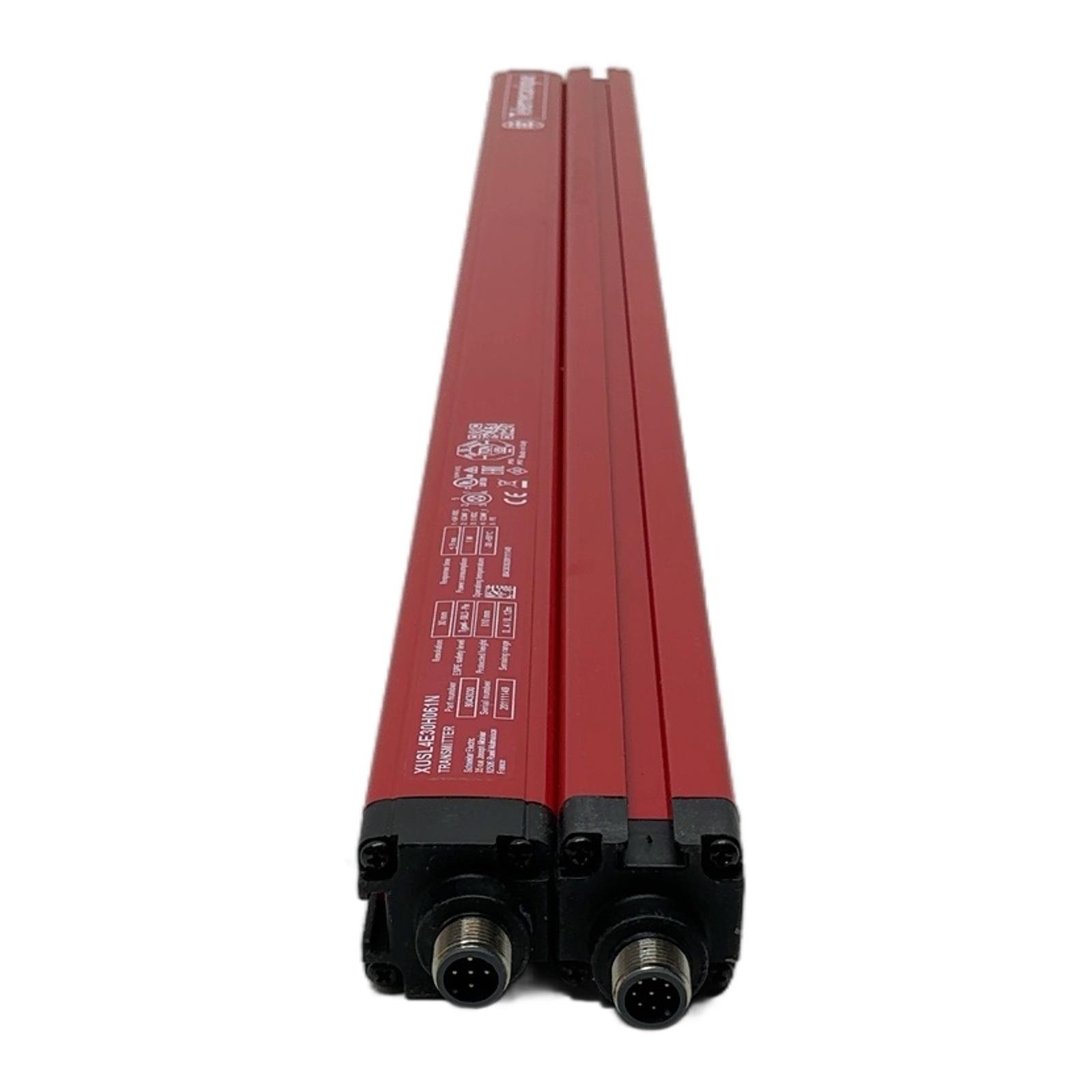

Telemecanique XUSL4E30H061N Safety Light Curtain Set Description This is a Telemecanique Preventa XUSL4E series Type 4 safety light curtain, model XUSL4E30H061N. The set includes both the transmitter and receiver units. It is engineered for high-risk applications requiring robust personnel protection, compliant with SIL 3 and PLe safety levels. With a resolution of 30mm, it is specifically designed for hand protection, and its 610mm protected height makes it suitable for a wide range of machine guarding applications. Specifications Manufacturer: Telemecanique (Schneider Electric) Model: XUSL4E30H061N Product Type: Safety Light Curtain, Type 4 Resolution: 30 mm (Hand Protection) Protected Height: 610 mm Sensing Range: 0 to 12 meters Number of Beams: 31 Response Time: 9.6 ms Supply Voltage: 24V DC +/- 20% Connection: M12 connector Label Info Part Number: XUSL4E30H061N EAN: 3389119618342 Date Code: 2020-W11 Application Ideal for ensuring safety around presses, packaging machines, assembly lines, robotic cells, and other industrial equipment where access to hazardous areas needs to be monitored and controlled. Country of Origin Made in Italy. CO2 Impact By choosing this pre-owned unit, you are preventing the emission of approximately 33 kg of CO2. This saving is comparable to the emissions from driving a standard car for 165 kilometers, making it a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. It is a new-in-box item, where the packaging has been opened for verification. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a Type 2 and a Type 4 safety light curtain like this one?A Type 4 light curtain, like the XUSL4E30H061N, offers a higher level of safety integrity (SIL 3 / PLe). It has more comprehensive self-checking and fault detection capabilities compared to a Type 2 curtain, making it suitable for high-risk applications where a failure could lead to serious injury. What does the 30mm resolution signify for this device?The 30mm resolution means the light curtain is designed for hand protection. It can detect an object, such as a hand, that is 30mm in diameter or larger, anywhere within the 610mm protected height. This resolution is critical for calculating the safe mounting distance from the hazard zone. Can this light curtain be used for muting applications?Yes, the Telemecanique Preventa XUSL4E series supports muting functionality when used with an appropriate safety controller or module. Muting allows for the temporary, automatic suspension of the safety function to allow materials to pass through the protected area, for example on a conveyor belt, without tripping the safety circuit. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
