SCHNEIDER ELECTRIC XD4 PA12 088740

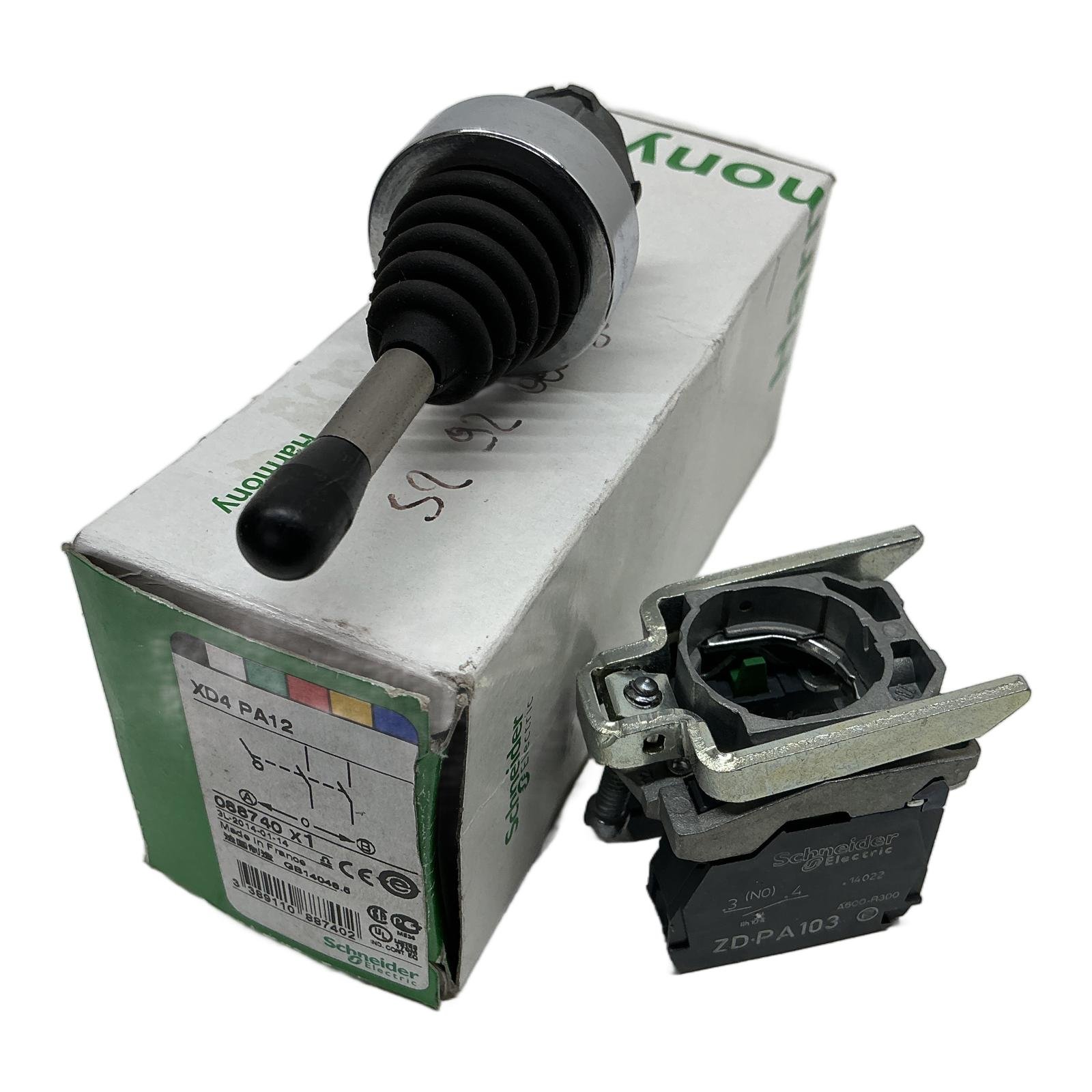

Schneider Electric Harmony XB4 Joystick Controller Description The XD4 PA12 is a robust joystick controller from Schneider Electric’s Harmony XB4 metal range. It provides reliable 2-direction control with a stay-put (maintained) action, ideal for applications requiring sustained operational states. The 22mm mounting diameter ensures compatibility with standard industrial control panels. This unit is a complete assembly, ready for installation. Specifications Manufacturer: Schneider Electric Range: Harmony XB4 Type: XD4 PA12 Order Code: 088740 Product Function: Joystick Controller Operator Profile: 2-direction, stay-put Contacts: 1 Normally Open (NO) per direction Mounting Diameter: 22 mm Bezel Material: Chromium plated metal Connection Type: Screw clamp terminals Label Info Model: XD4 PA12 EAN: 3389110887402 Application Perfect for controlling cranes, hoists, industrial machinery, and automation systems where two-axis directional control is required. The stay-put feature makes it suitable for setting continuous operations like conveyor belt direction or machine mode selection. Country of Origin Made in France. CO2 Impact Opting for this component saves an estimated 4.8 kg of CO2 compared to new production, contributing to a more sustainable industrial operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the mounting diameter for the XD4 PA12?The standard mounting diameter for this Harmony XB4 series joystick controller is 22 mm. Is the XD4 PA12 a momentary or maintained (stay-put) joystick?This model is a maintained, or ‘stay-put’, controller. It remains in the last position it was moved to until manually returned to the center. Can I add more contact blocks to this joystick controller?Yes, the Harmony XB4 system is modular. You can add additional ZBE series contact blocks to the body assembly, allowing for more complex control circuits, subject to the operator’s physical limitations. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
