SCHNEIDER ELECTRIC XD2GA1212111116

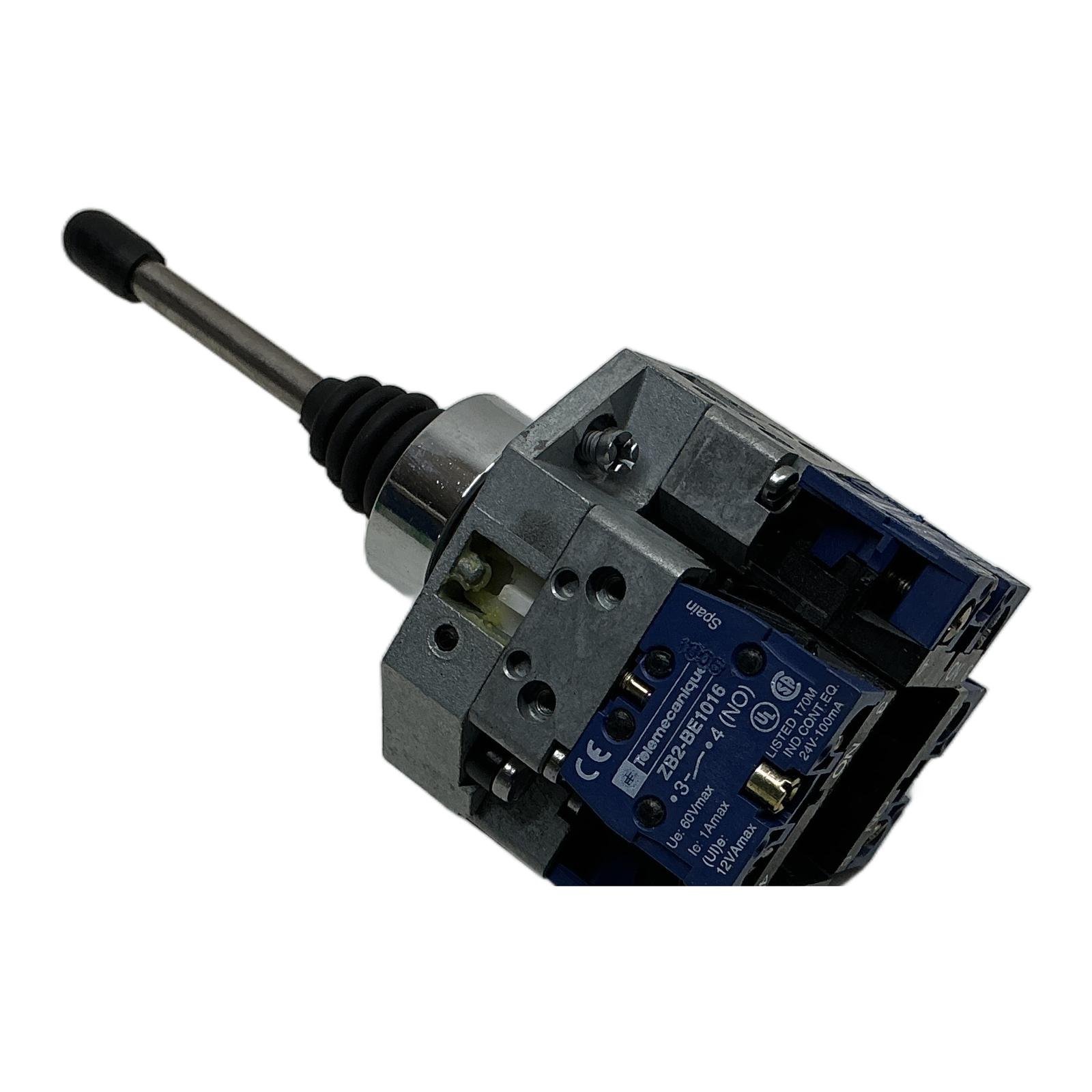

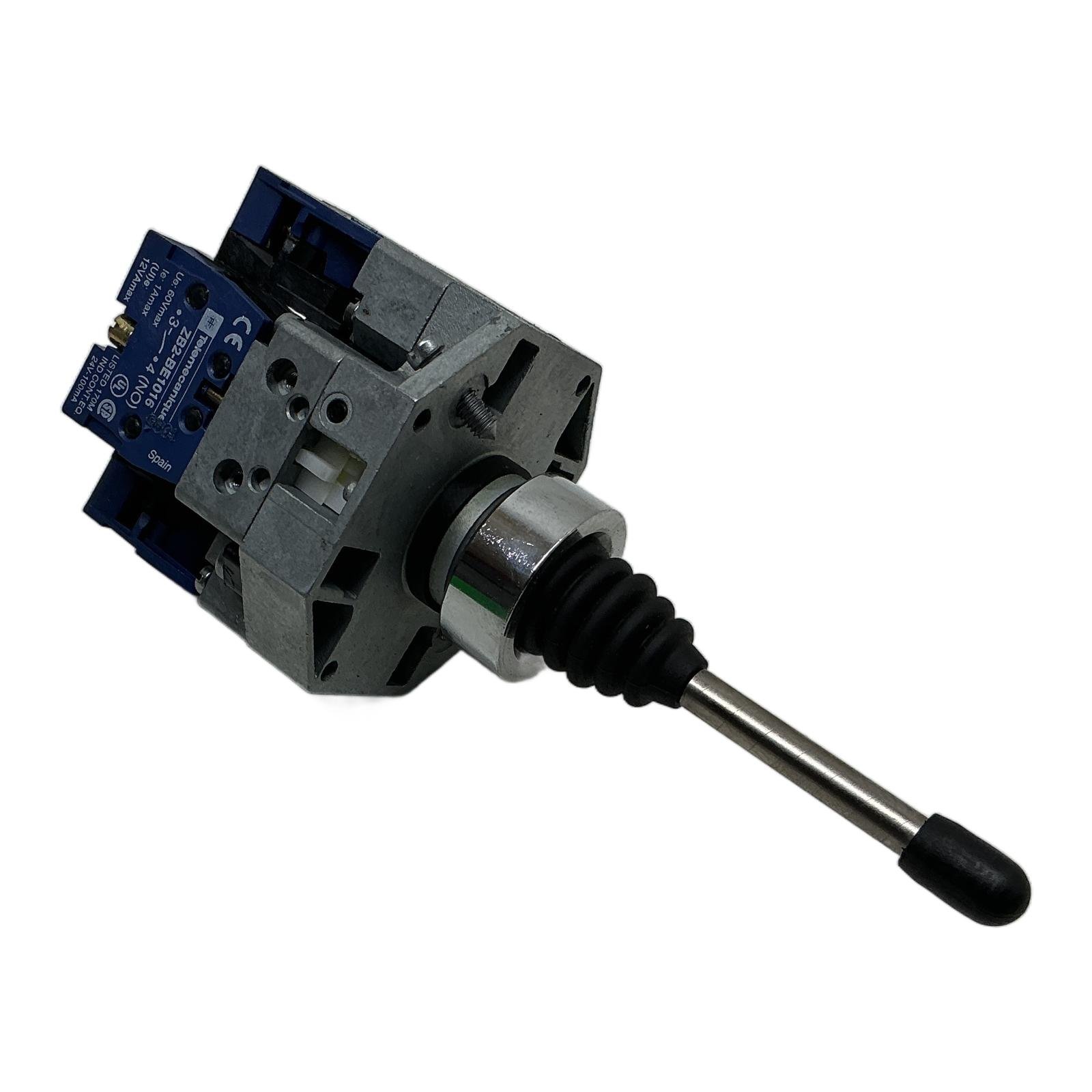

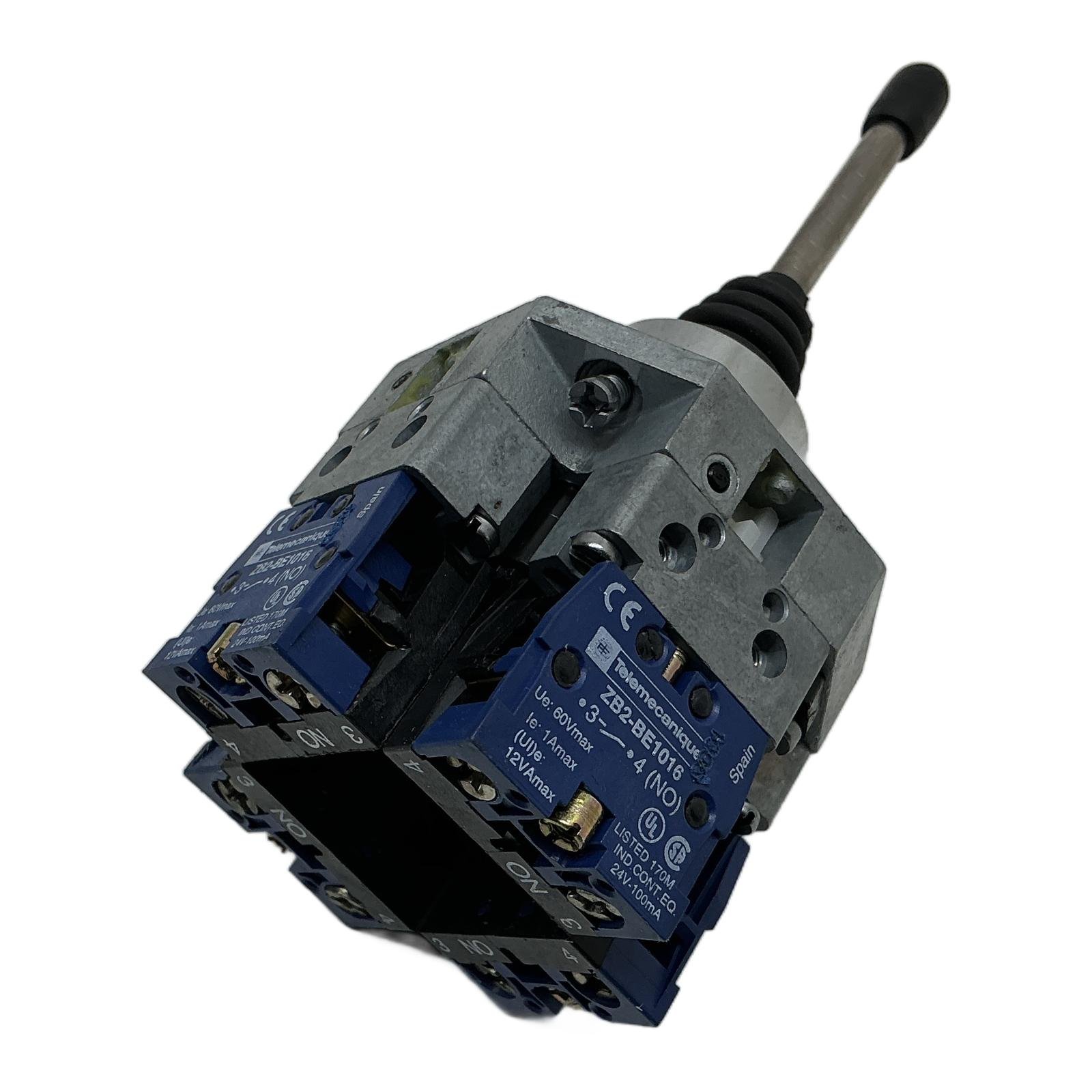

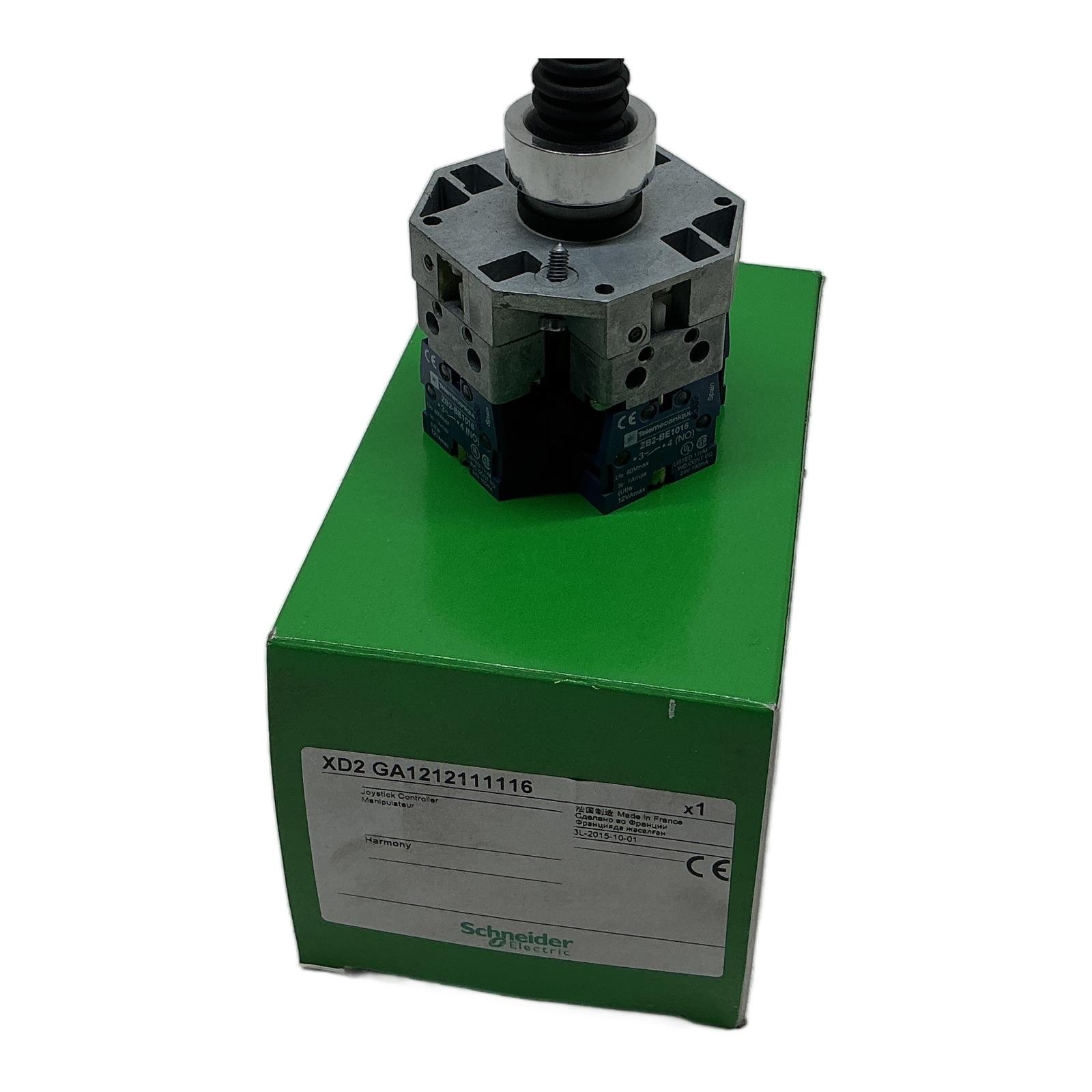

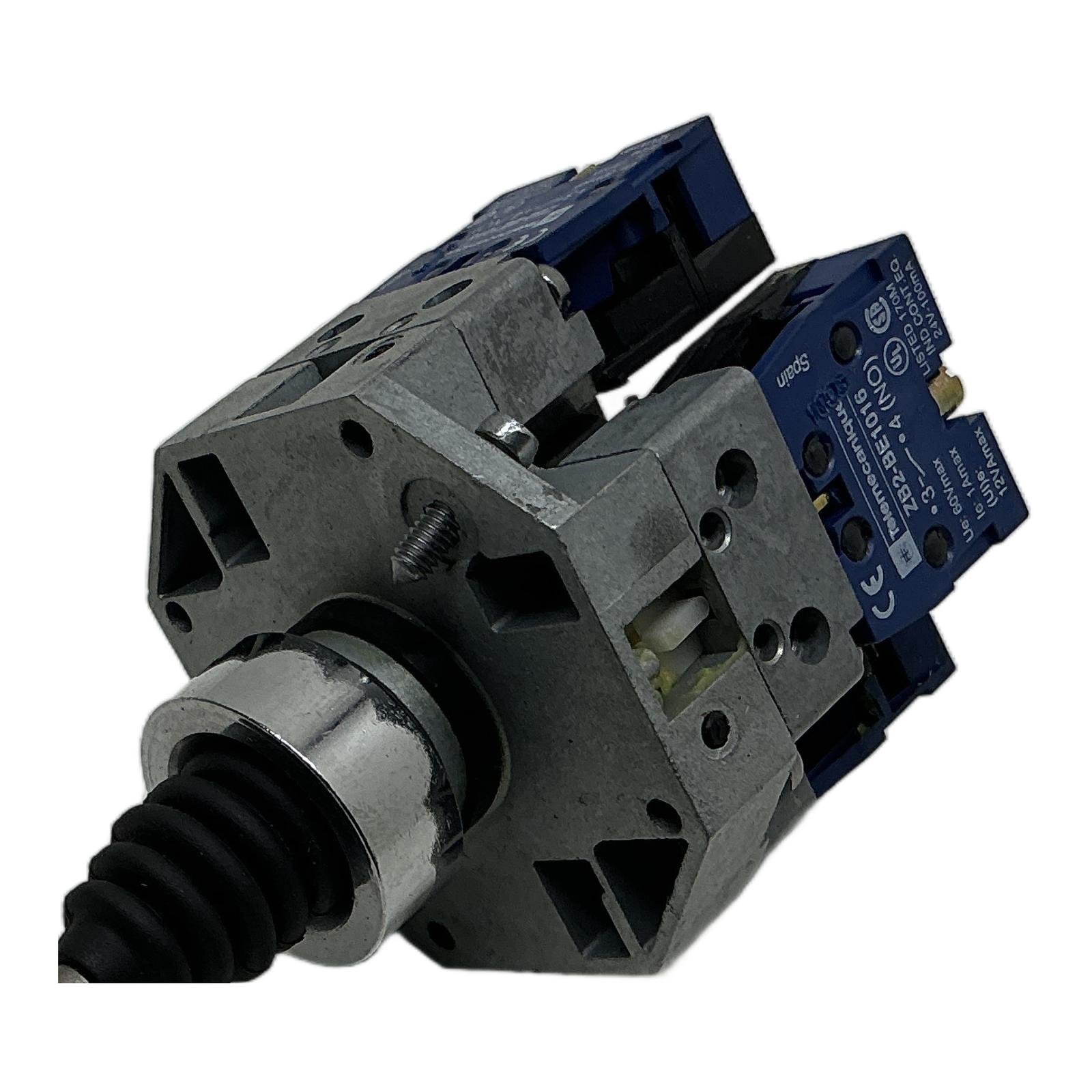

Schneider Electric Joystick Controller XD2GA1212111116 Description The Schneider Electric XD2GA1212111116 is a complete joystick controller from the Harmony XD2 series, designed for reliable and intuitive control in industrial settings. This unit provides 4-directional, momentary control with a spring return mechanism that brings the lever back to the central (0) position. It is ideal for controlling machinery such as cranes, hoists, and conveyors. Specifications Manufacturer: Schneider Electric Series: Harmony XD2 Part Number: XD2GA1212111116 Component Type: Complete Joystick Controller Operator Profile: 54 mm long operating shaft Operator Direction Information: 4 directions Return Mechanism: Spring return to 0 position Contacts: 1 Normally Open (NO) contact per direction Mounting Diameter: 22 mm Label Info The included contact blocks are Telemecanique ZB2-BE101 (1NO). Electrical Ratings (Contact Block): Ui 600V max, Ith 10A max. Application Perfectly suited for material handling, industrial automation, and construction machinery where precise, momentary directional control is required. Country of Origin Made in France. CO2 Impact By opting for this reused component, you contribute to saving approximately 4.4 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions of a 22 km car journey. Availability This is an obsolete item but is available from our stock. It’s an excellent choice for repairs or maintaining existing systems that utilize the Harmony XD2 series. Order now from profideals for expert support and fast delivery. FAQ What are the electrical ratings of the included contact blocks?The joystick is equipped with ZB2-BE101 normally open (NO) contact blocks. These have a conventional thermal current (Ith) of 10A and are rated for AC-15 use at 240V/3A and DC-13 use at 250V/0.27A. Is this joystick controller suitable for outdoor use?The Harmony XD2 series typically has an IP65 rating when properly installed in a suitable enclosure, making it dust-tight and protected against water jets. However, you should always verify the specific rating for your application and ensure the panel mounting provides a secure seal. Can the contact blocks be changed or added to?Yes, the Harmony XD2 system is modular. The ZB2 contact blocks can be removed and replaced. Depending on the joystick’s mechanical design, you may be able to add additional contact blocks (e.g., Normally Closed – NC) for more complex control logic, but you should consult the technical datasheet to confirm compatibility and space. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
