TELEMECANIQUE XD2 AC232

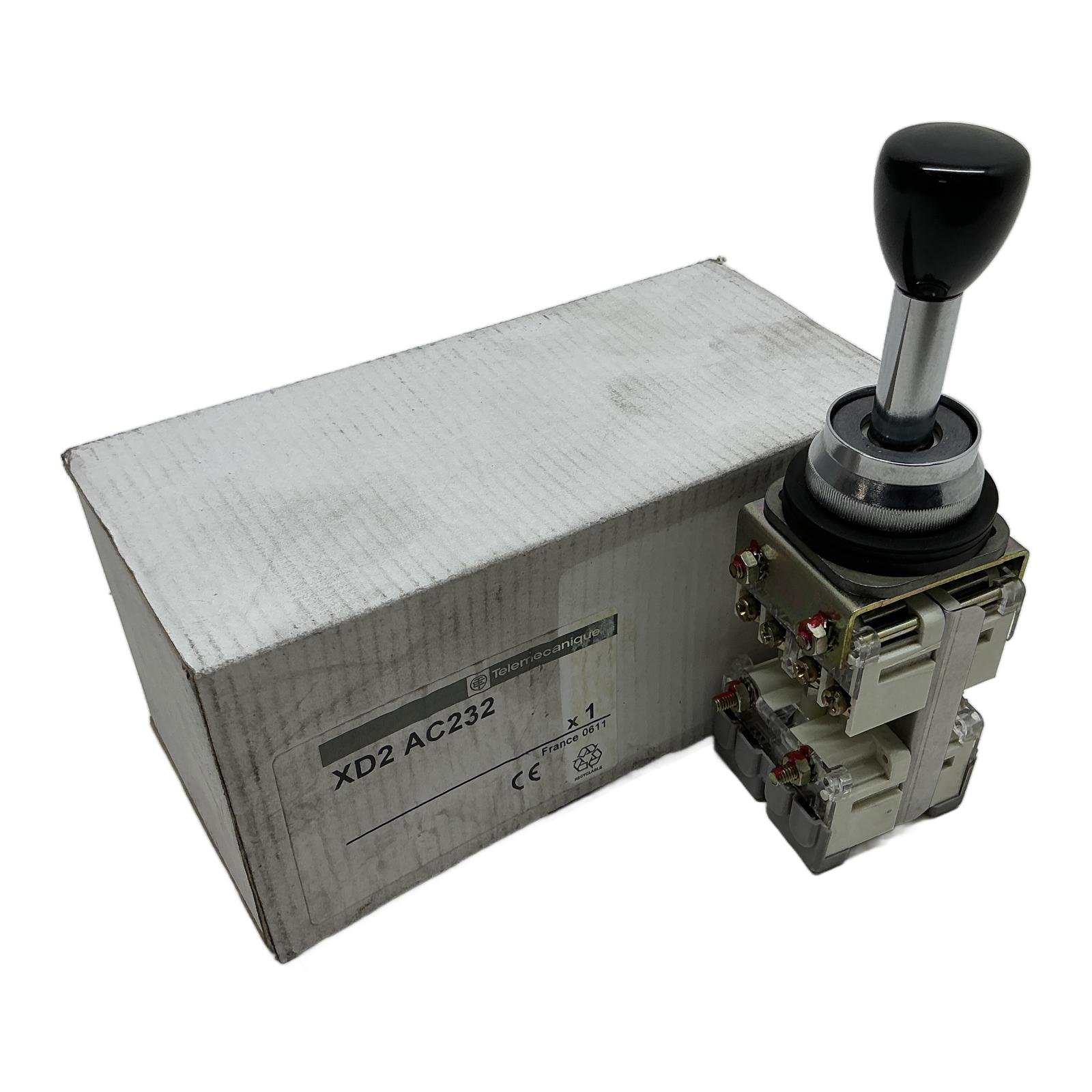

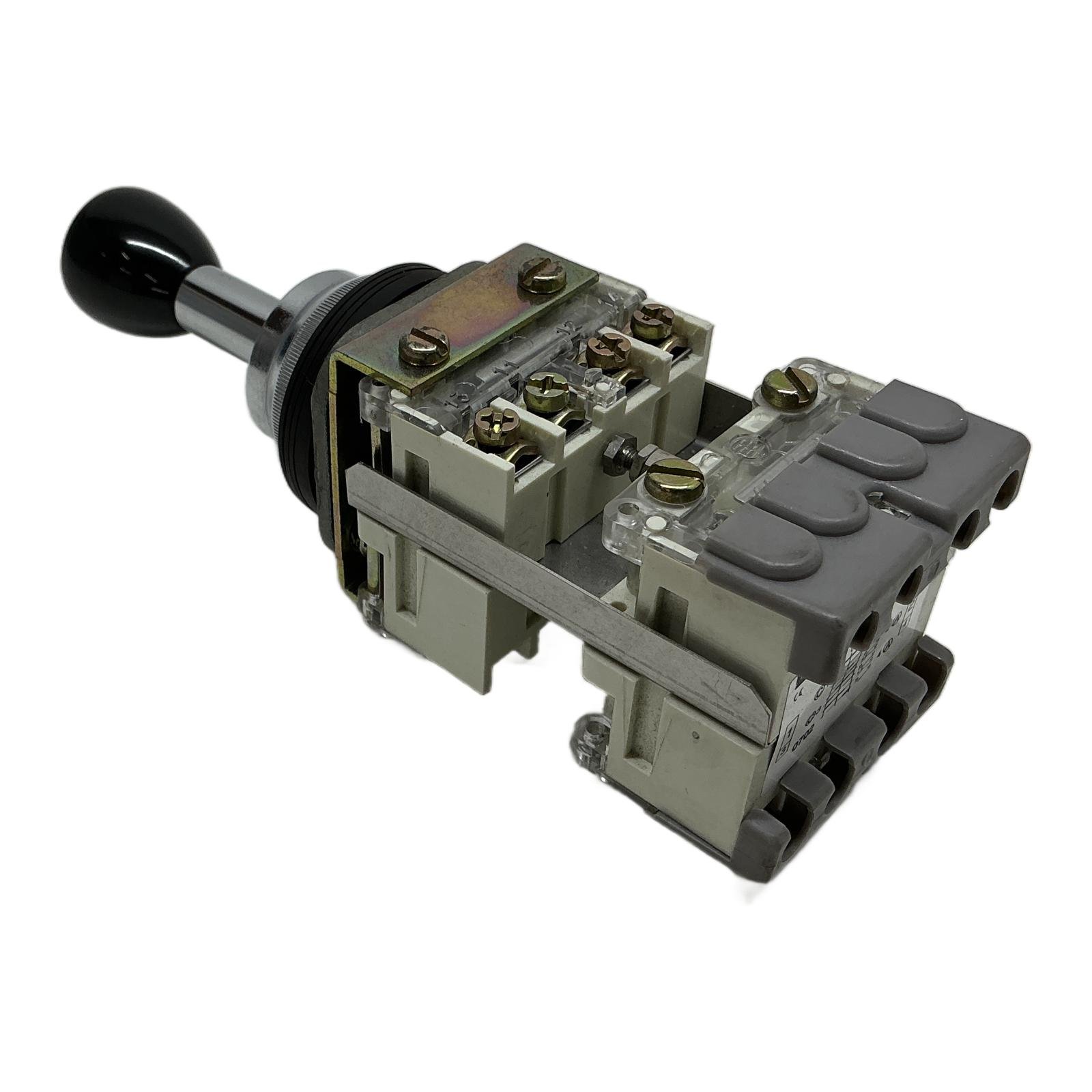

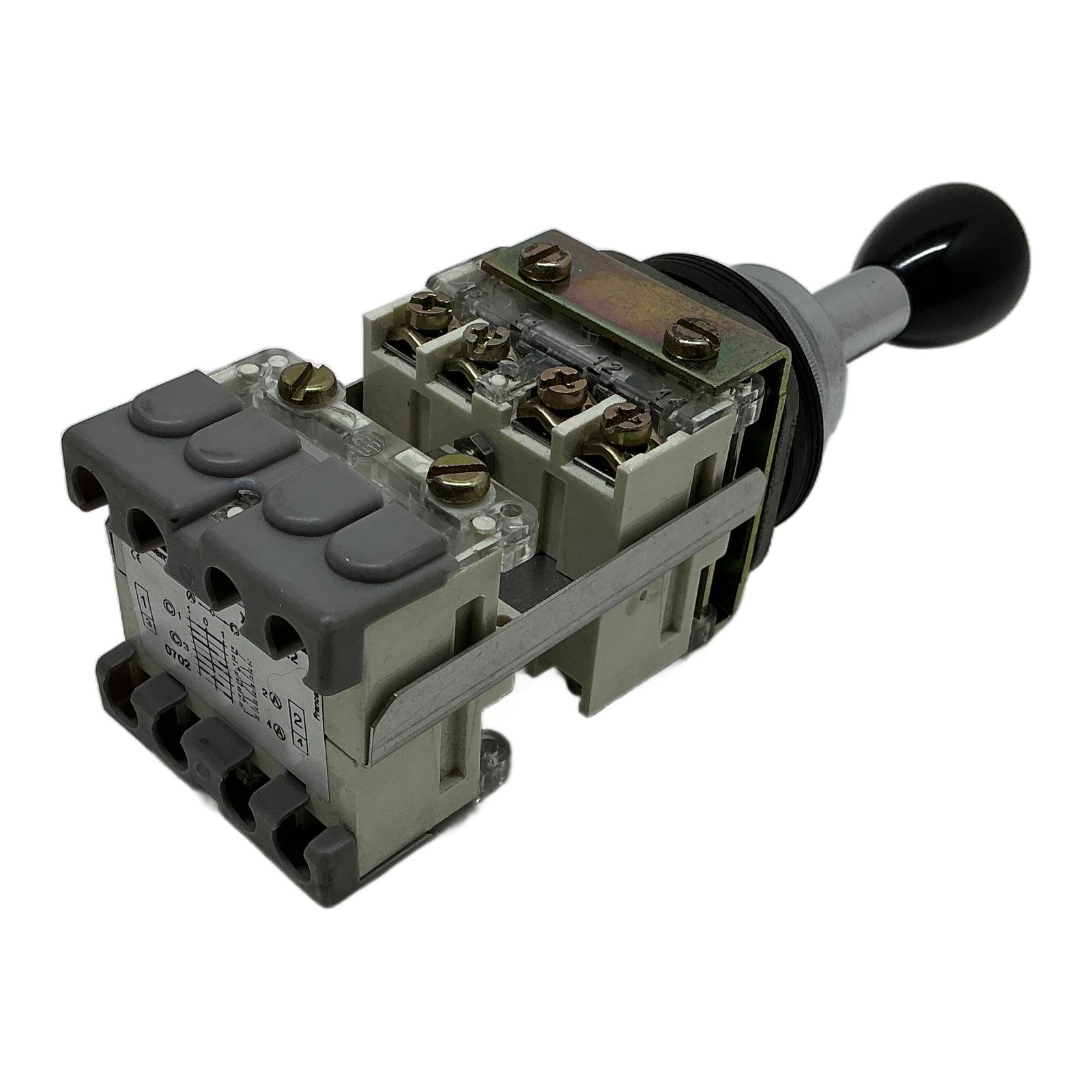

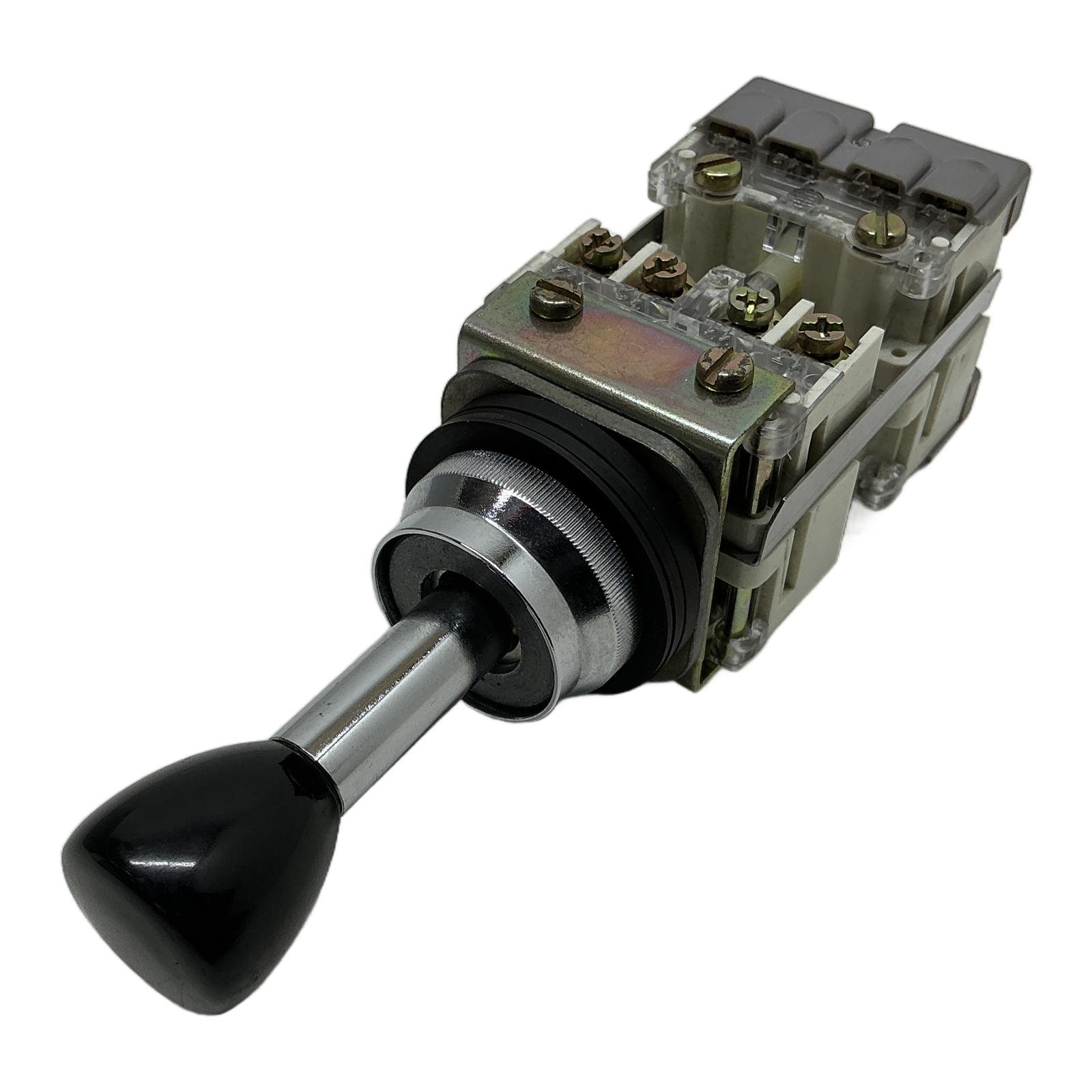

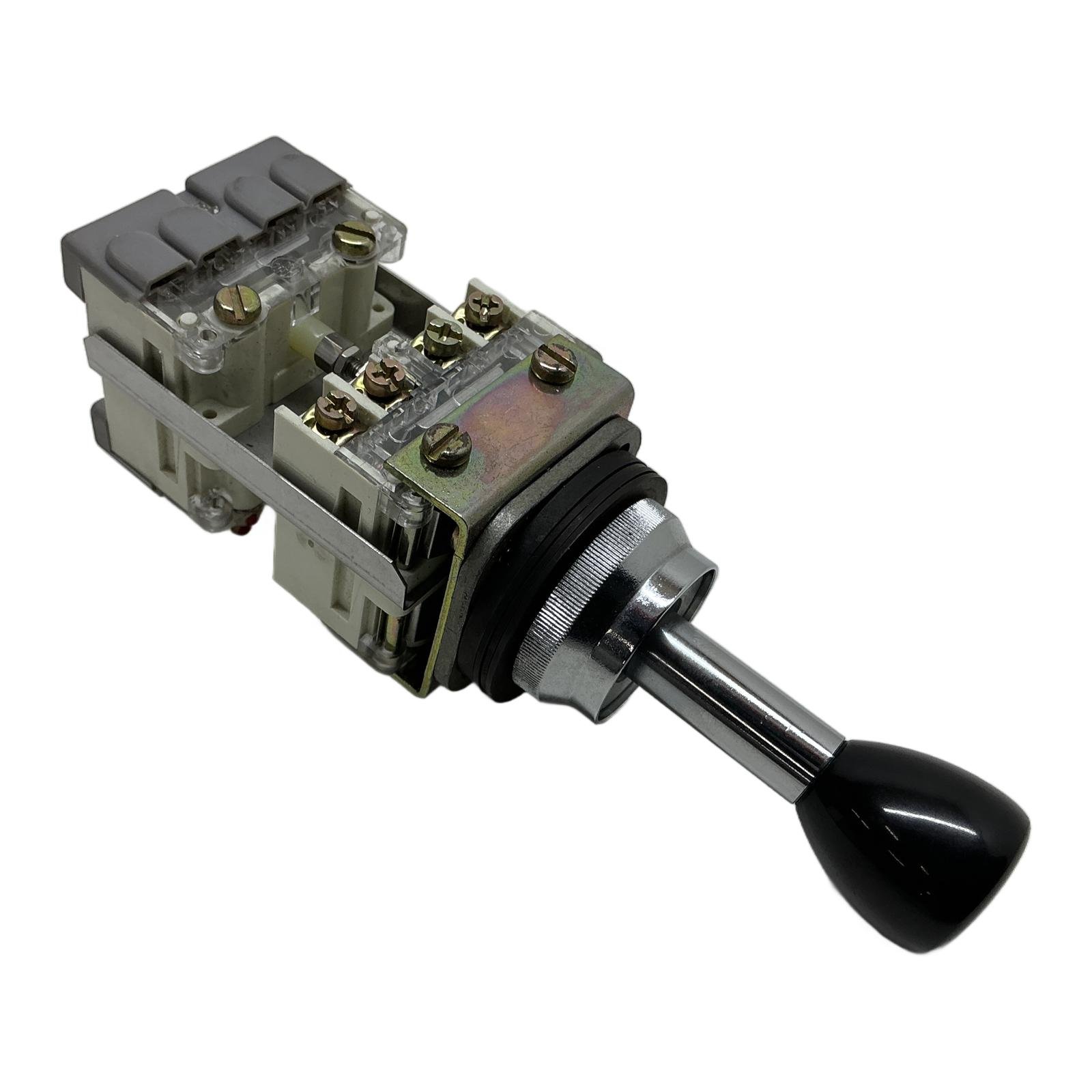

Telemecanique XD2 AC232 Joystick Controller Description The Telemecanique XD2 AC232 is a high-quality joystick controller designed for reliable performance in demanding industrial environments. As part of the Harmony Style 4 series, it features a standard 22mm mounting diameter for easy panel integration. This model provides 2-directional control with a spring-return mechanism, ensuring the lever automatically returns to the neutral position for safety. It is an ideal solution for controlling motors, hoists, cranes, and other automated machinery. Specifications Manufacturer: Telemecanique Type: XD2 AC232 Series: Harmony Style 4 (XD2) Control Type: 2-Direction, Momentary Return Mechanism: Spring Return to Center Mounting Diameter: 22 mm Contact Configuration: 1 Normally Open (NO) per direction Enclosure Material: Metal and Plastic Label Info Brand: Telemecanique Model: XD2 AC232 Origin: France Date Code: 0611 (June 2006) Application This joystick controller is commonly used in material handling, industrial automation, and construction machinery for precise manual control of movement along two axes. Country of Origin Made in France. CO2 Impact Opting for this component saves approximately 12 kg of CO2 emissions compared to manufacturing a new one, supporting a more sustainable industrial ecosystem. Availability This is an obsolete item but available from our stock as New Old Stock (NOS) in its original packaging. Limited quantity available. Order now from profideals for expert support and fast delivery. FAQ What is the mounting hole diameter for the XD2 AC232?The joystick requires a standard 22 mm panel cutout for mounting. Is this a momentary or maintained action joystick?This is a momentary action controller, also known as spring return. The lever returns to the central (neutral) position when released. Can the contact blocks be replaced or changed on this model?Yes, the contact blocks on the Harmony Style 4 (XD2) series are modular and can be removed or replaced to alter the electrical configuration, provided the replacement blocks are compatible with the XD2 system. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
