TELEMECANIQUE XCSB701

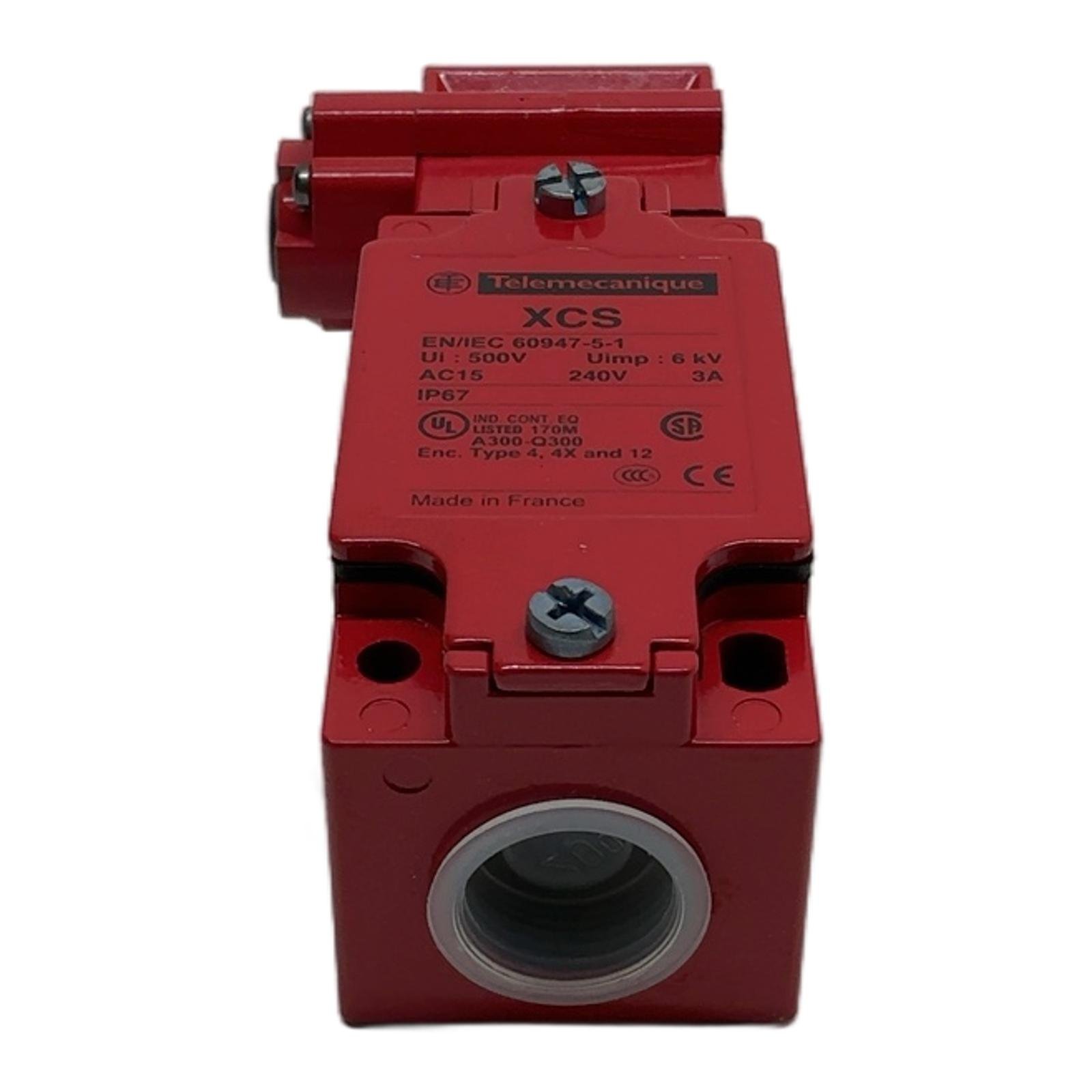

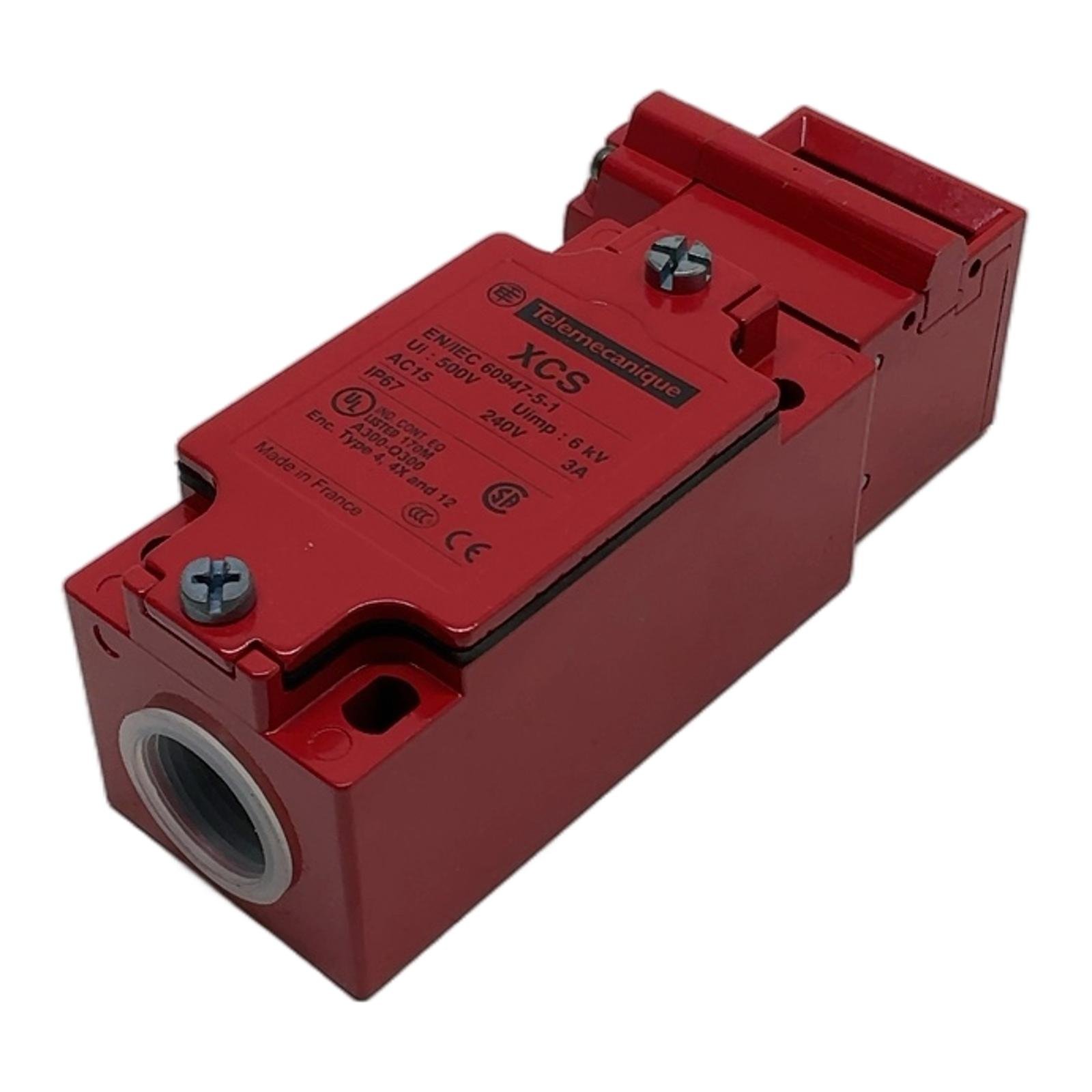

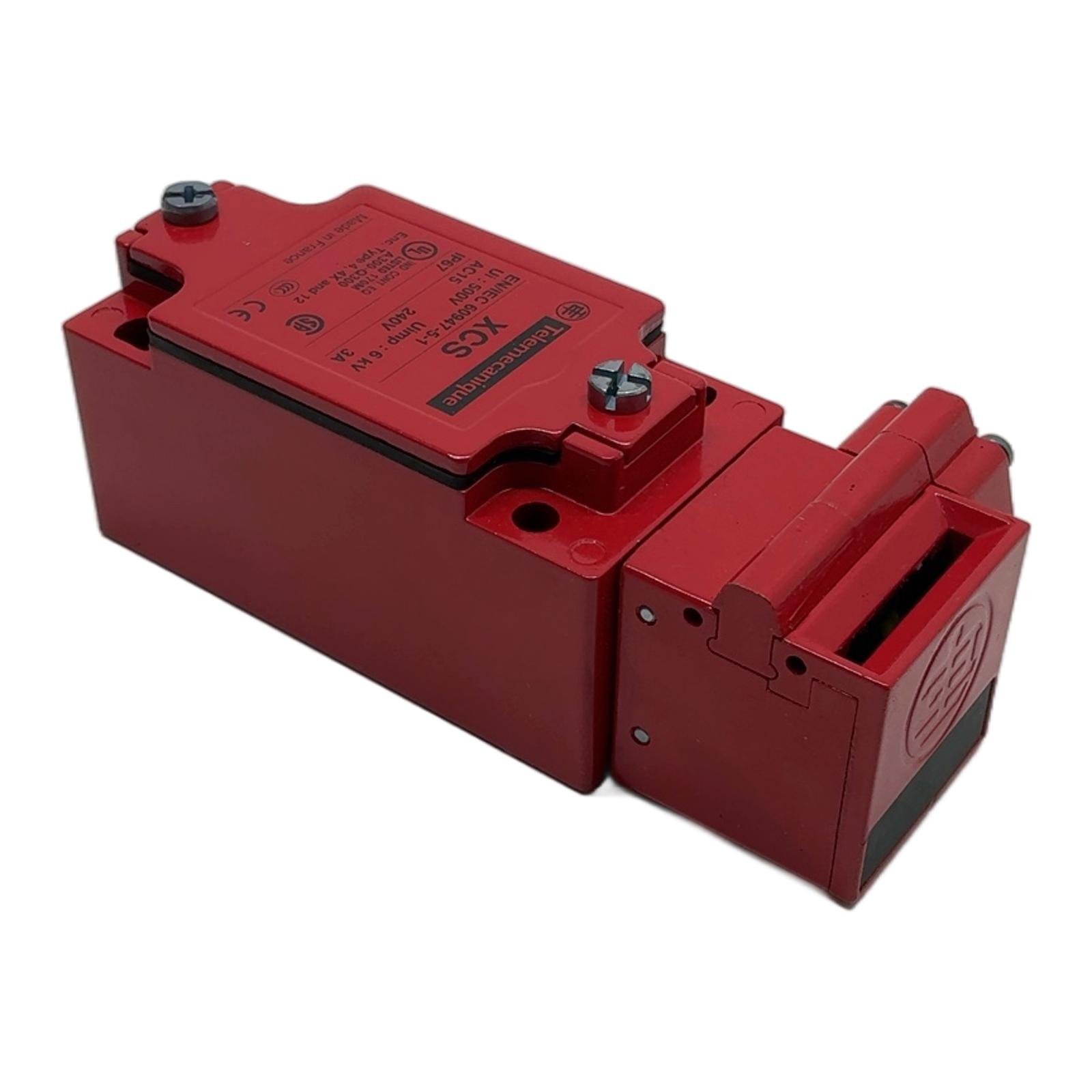

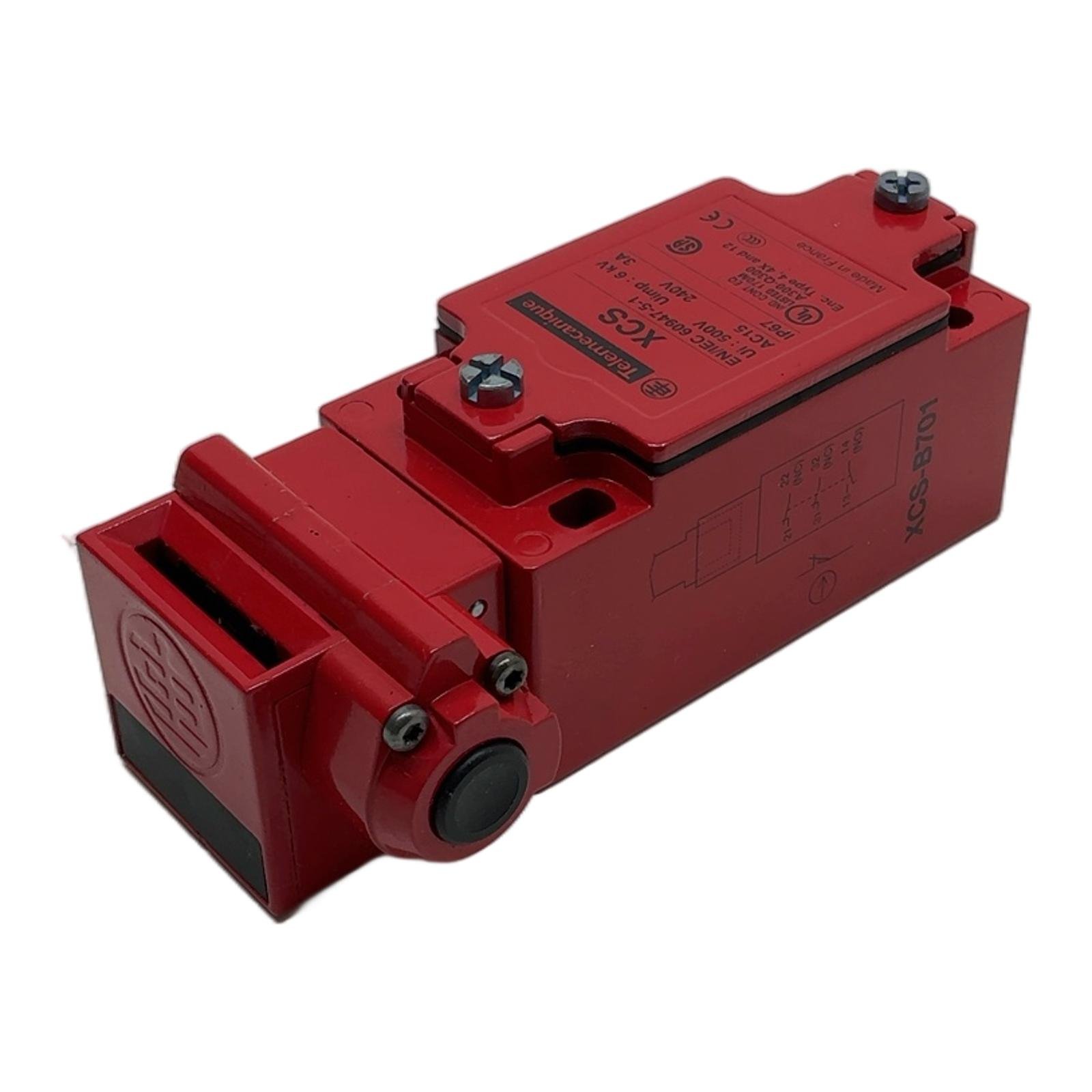

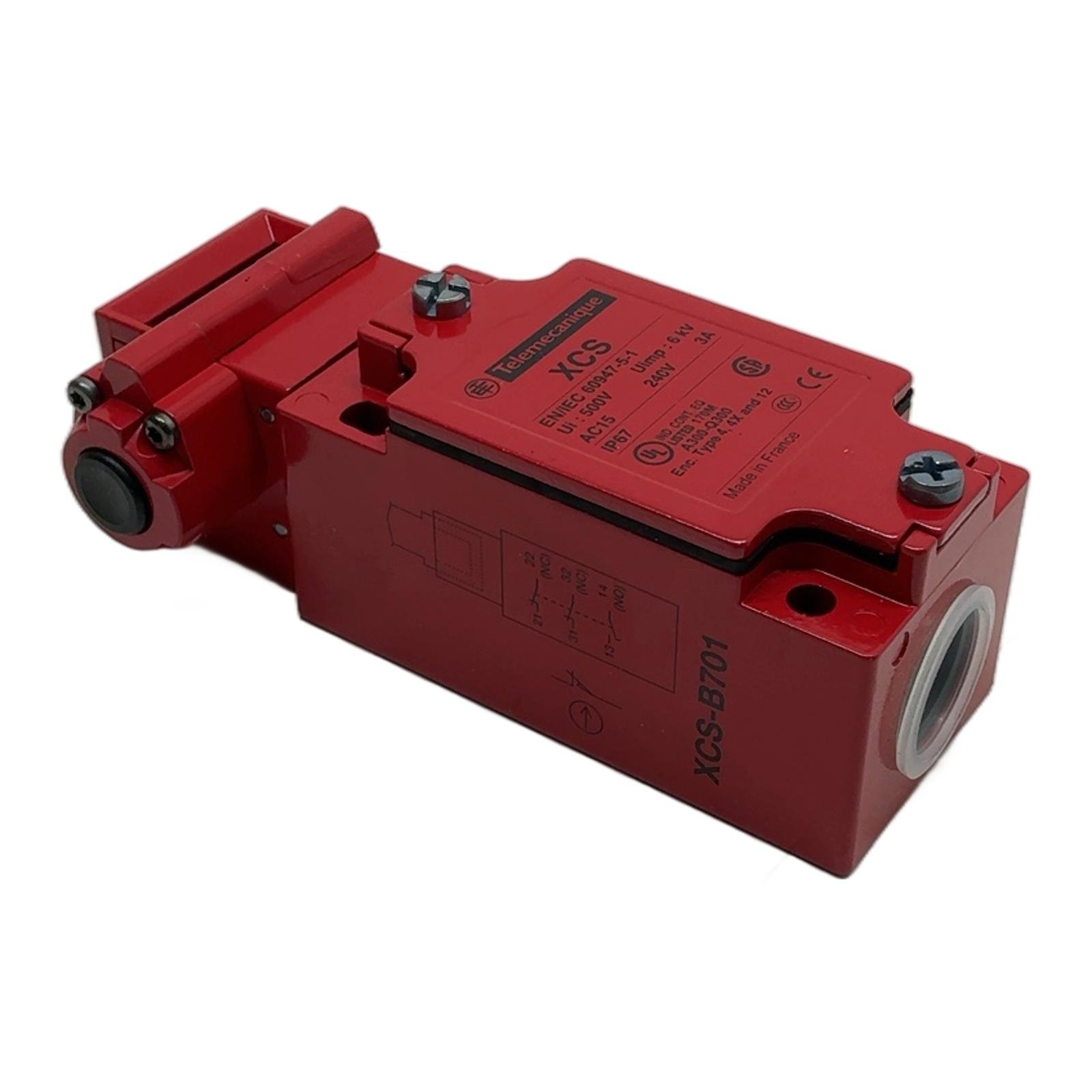

Telemecanique XCSB701 Safety Interlock Switch Description The Telemecanique XCSB701 is a robust safety interlock switch designed for monitoring machine guards and access panels in industrial automation systems. Part of the Preventa Safety detection range, this switch ensures that machinery enters a safe state when protective guards are opened. Its metal (Zamak) construction provides high durability for demanding environments. Specifications Manufacturer: Telemecanique Model: XCSB701 Contacts: 2 Normally Closed (NC) + 1 Normally Open (NO) Contact Operation: Slow-break, break before make Rated Insulation Voltage (Ui): 500V Rated Impulse Withstand Voltage (Uimp): 6 kV AC15 Utilization Category: 3A at 240V AC Protection Rating: IP67, dust and water tight Enclosure Type: Type 4, 4X, 12 Cable Entry: 1 tapped entry for Pg 13.5 gland Body Material: Zamak Label Info Standards: EN/IEC 60947-5-1 Certifications: UL Listed (170M), CSA, CE Application This switch is ideal for use in packaging, material handling, robotics, and manufacturing applications where guard monitoring is critical for operator safety. It is suitable for use in high-level safety circuits when combined with an appropriate safety relay or PLC. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned switch, you help avoid the 18.0 kg of CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of actuator key is required for the XCSB701?The XCSB701 is designed to be used with XCSZ series actuators from Telemecanique, such as the XCSZ01, XCSZ02, or XCSZ03, depending on the application’s mounting and alignment needs. The actuator must be ordered separately. What does the ‘slow-break, break before make’ contact operation mean?’Slow-break’ means the contact state changes in direct proportion to the actuator’s speed. ‘Break before make’ is a safety feature ensuring that the normally closed (NC) safety contacts are fully opened before the normally open (NO) auxiliary/signaling contact closes, guaranteeing a safe state signal. Can this switch be used in a Category 4, PL e safety circuit according to ISO 13849-1?Yes, when correctly integrated into a safety circuit with a suitable safety monitoring module (e.g., a Preventa XPS safety relay) and dual-channel wiring, the XCSB701 can be used in applications requiring up to Category 4, Performance Level e (PL e). profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
