SCHNEIDER ELECTRIC VW3A1101

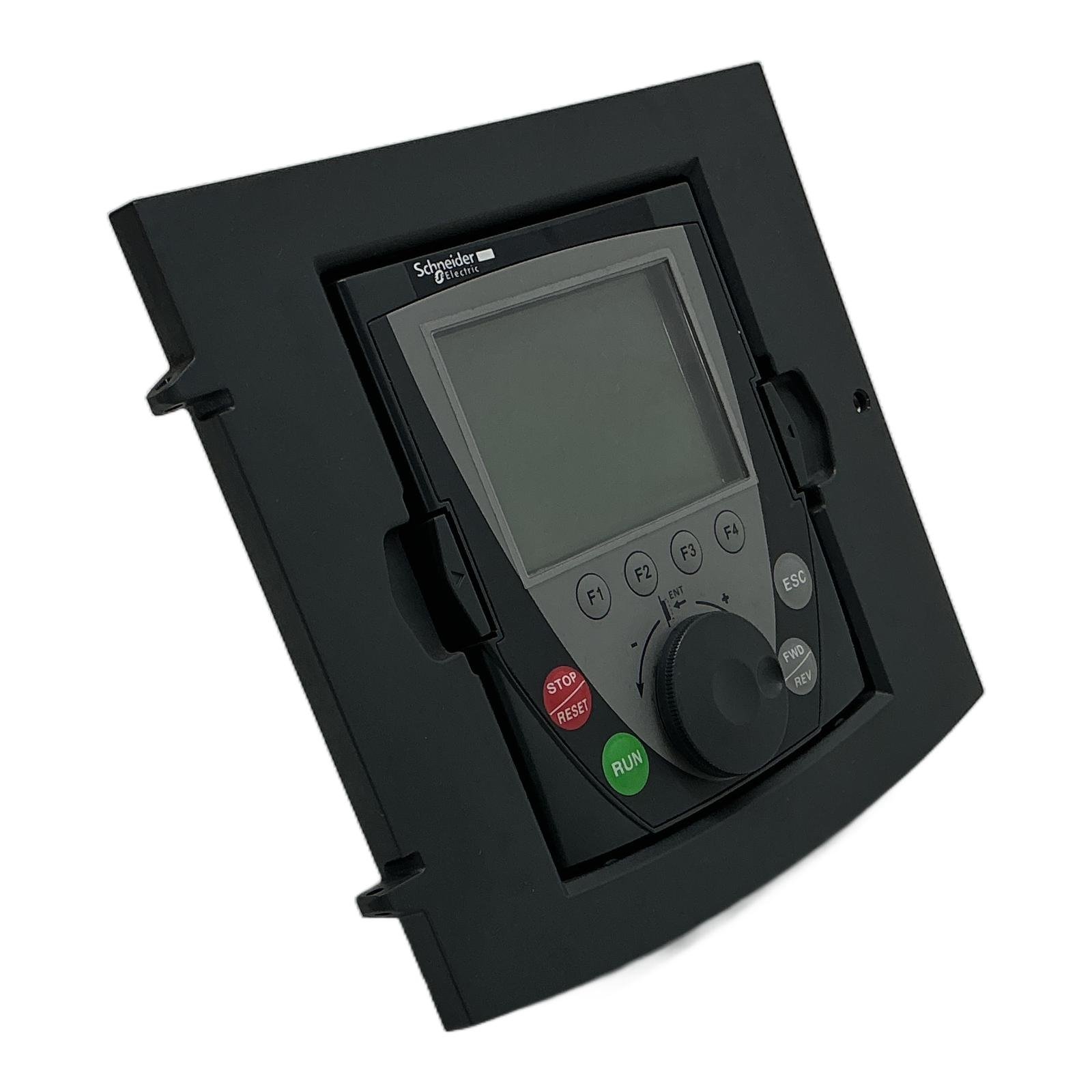

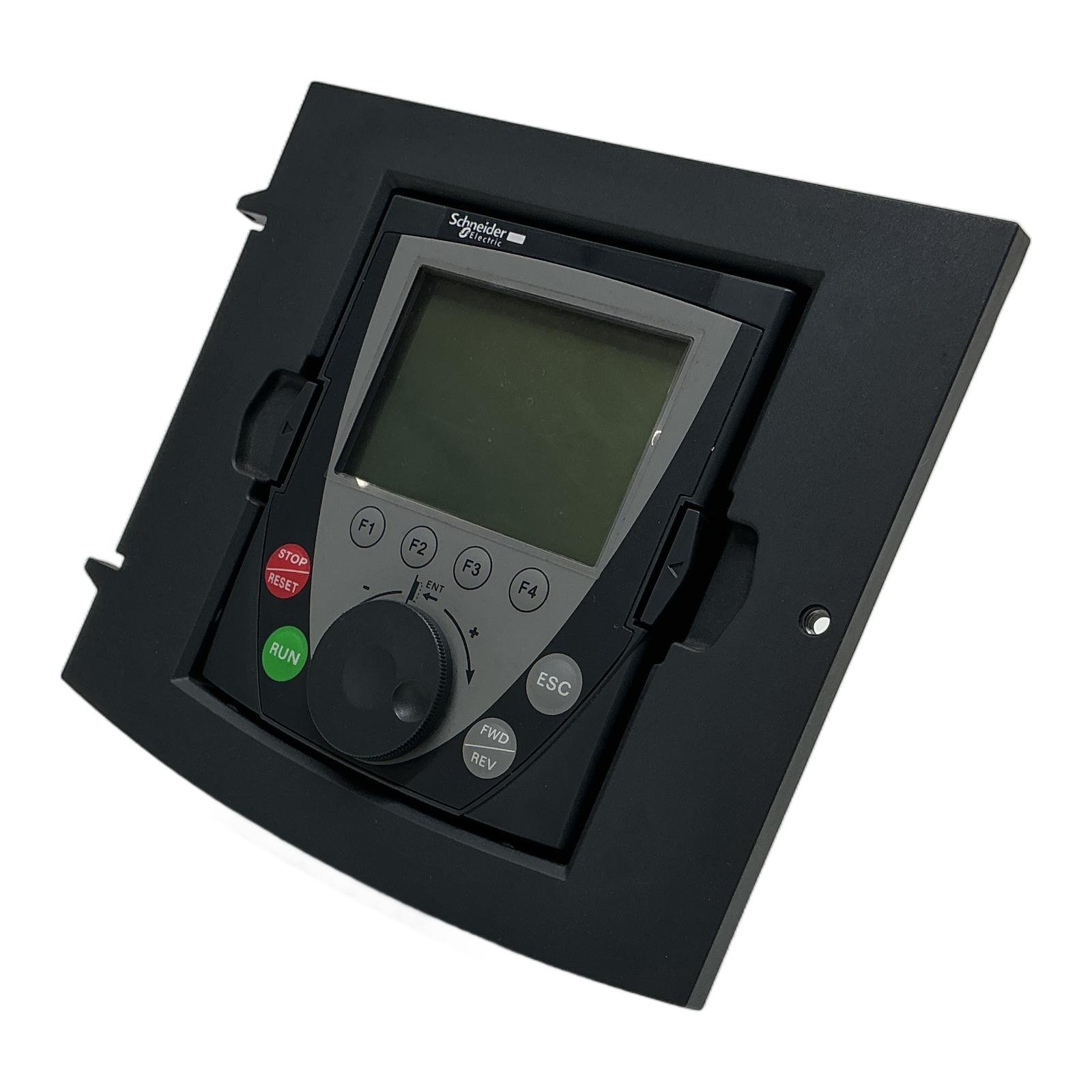

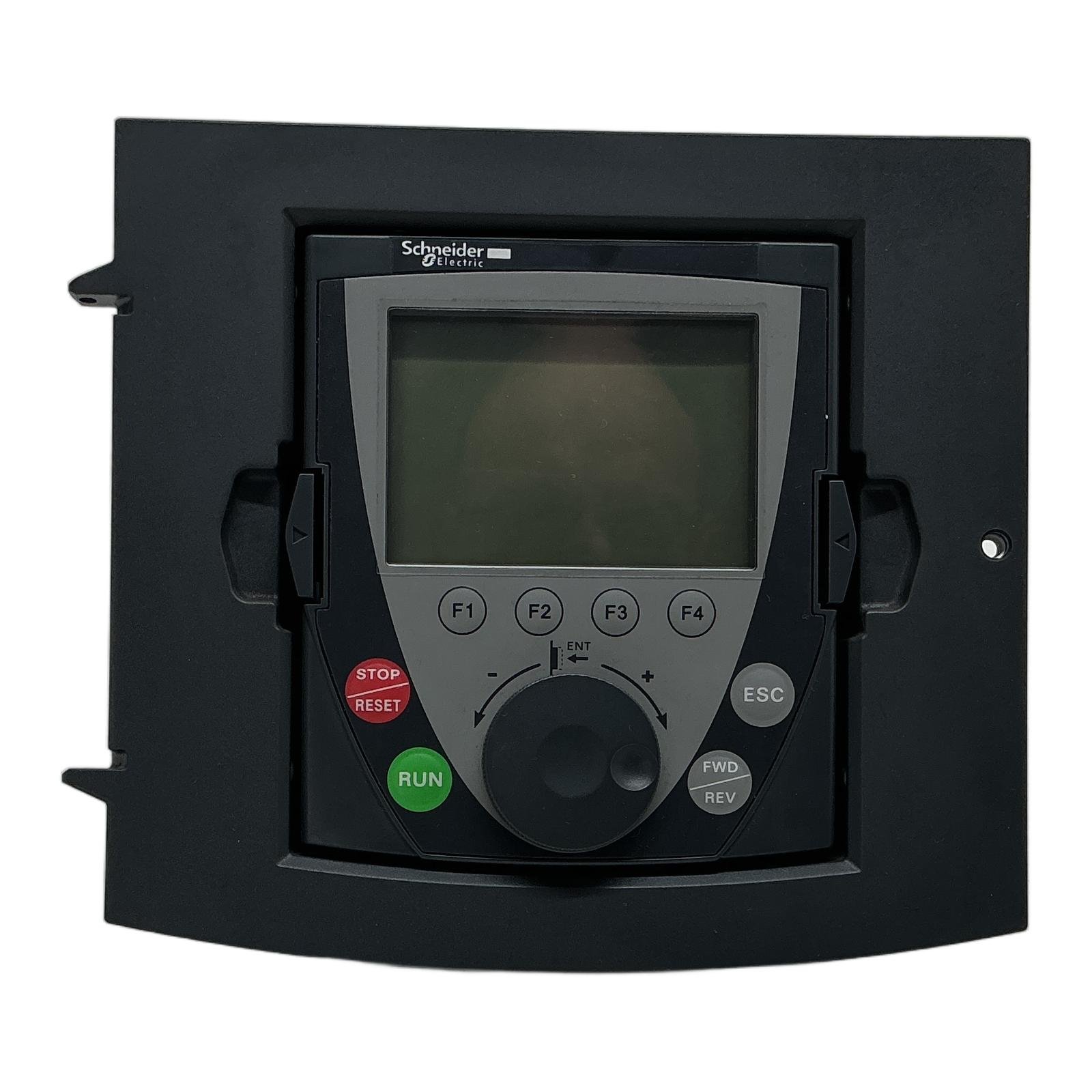

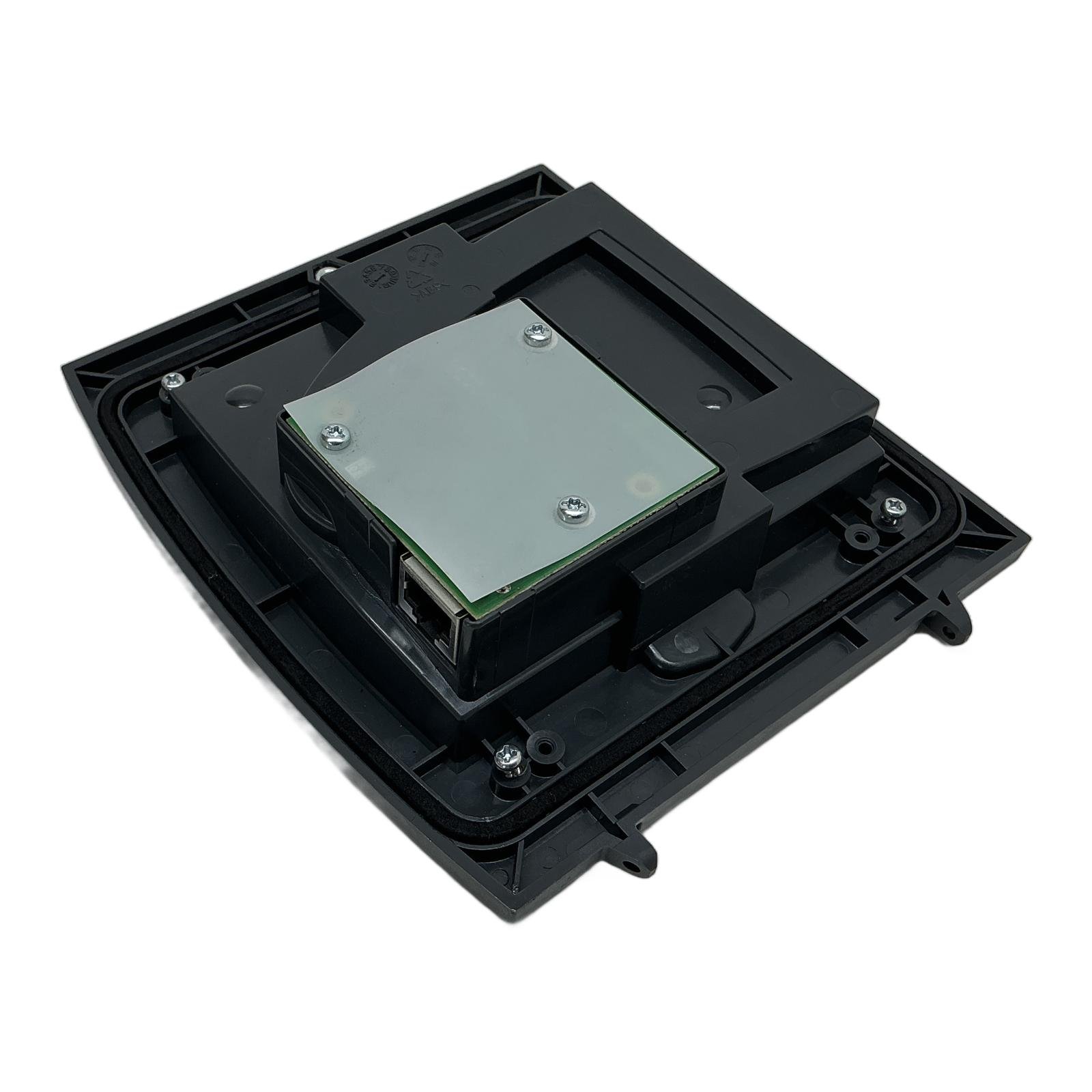

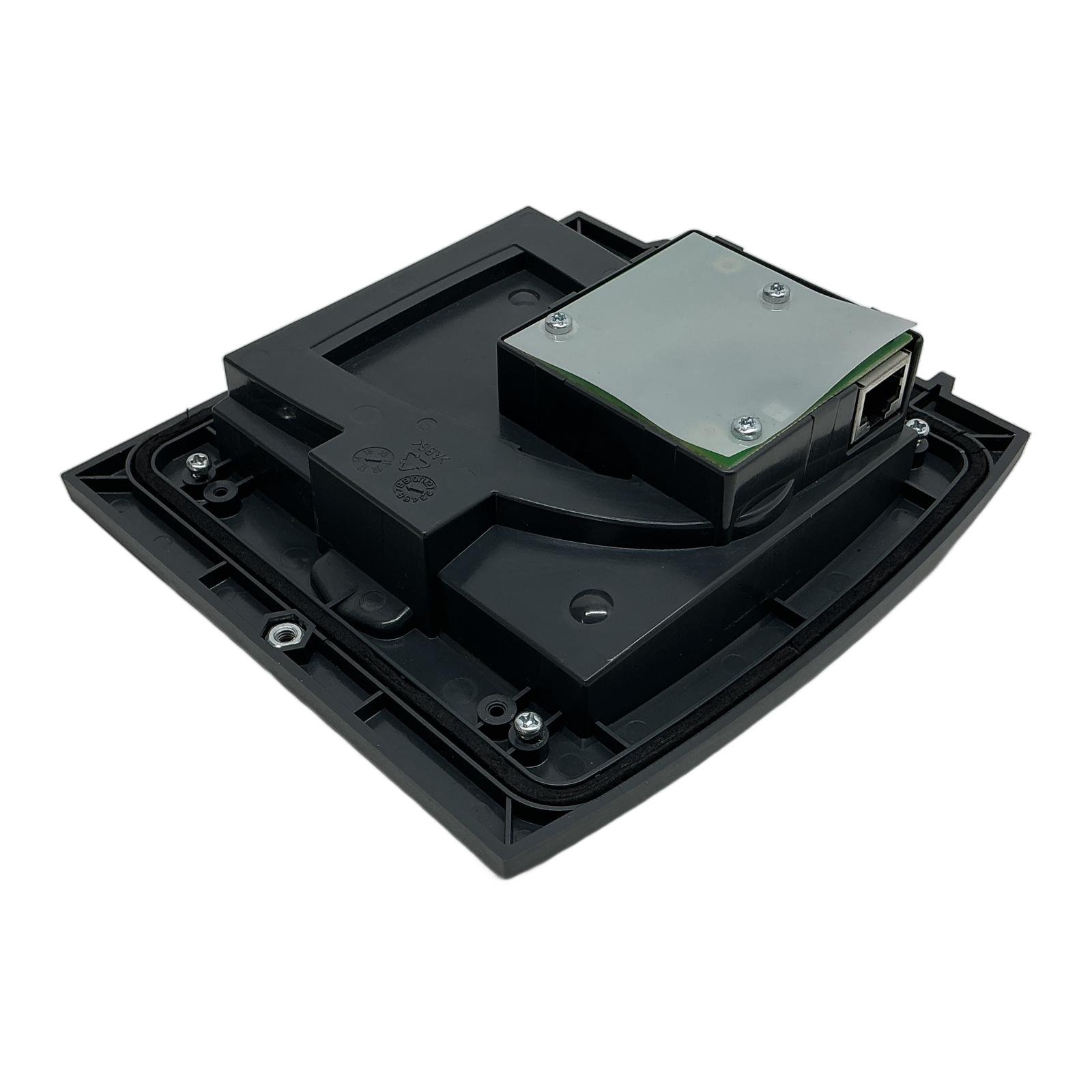

Schneider Electric VW3A1101 Display Terminal Description The VW3A1101 is an advanced graphic display terminal designed for the Schneider Electric Altivar series of frequency inverters. This HMI provides a user-friendly interface for programming, adjusting, and monitoring your drive. With its clear 8-line display and intuitive navigation dial, it simplifies complex configurations and provides real-time diagnostic information to minimize downtime. Specifications Manufacturer: Schneider Electric Part Number: VW3A1101 Product Type: Remote Graphic Display Terminal Compatibility: Altivar 61, Altivar 71, and other compatible series Display: 8-line graphic display IP Rating: IP54 (when correctly mounted on a drive) Connection: Direct plug-in or remote via RJ45 cable (with accessory kit) Label Info Model: VW3A1101 CPU Version: V2.51E21 Application Ideal for applications requiring local control and monitoring of Altivar VFDs, such as in HVAC systems, pumping stations, and industrial machinery. It enables quick access to parameters, fault history, and operational data. Country of Origin This product is manufactured by Schneider Electric in Indonesia. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid 10.0 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Is this VW3A1101 terminal compatible with the Altivar 320 series drives? No, the VW3A1101 is designed for older Altivar series like the ATV61 and ATV71. For the Altivar Machine ATV320, you would need a different display terminal, such as the VW3A1111 or remote mounting kits specific to that series. Can I use a standard RJ45 Ethernet cable for remote mounting? Yes, when used with a remote mounting kit (like VW3A1102), you can connect the VW3A1101 terminal to the drive using standard RJ45 male/male cables. The terminal itself has a proprietary connector for direct mounting on the drive front. What is the maximum cable length for remote mounting this display? The maximum recommended cable length for remotely mounting the VW3A1101 terminal is 10 meters (approximately 32 feet) when using shielded cables to ensure reliable communication and prevent signal degradation. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
