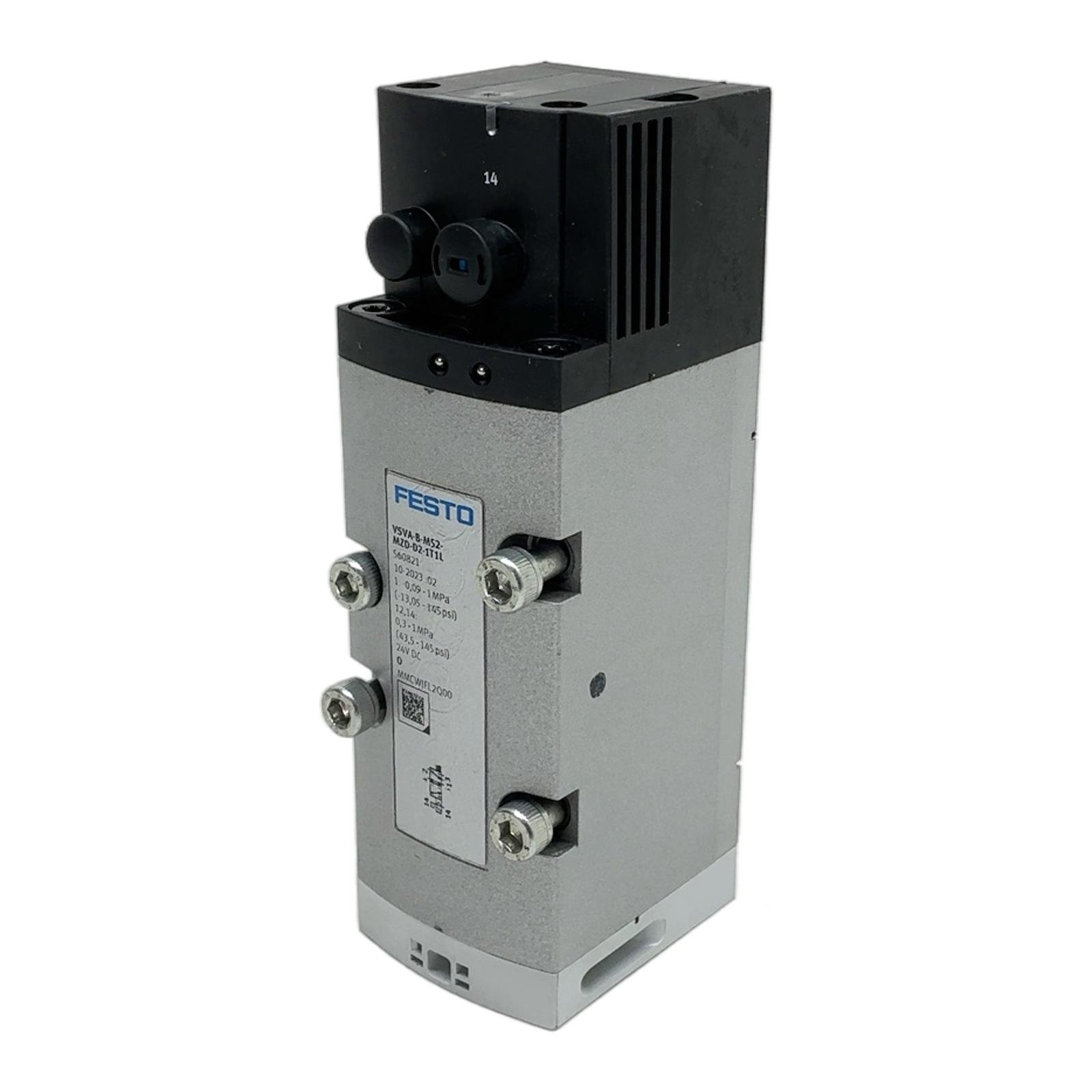

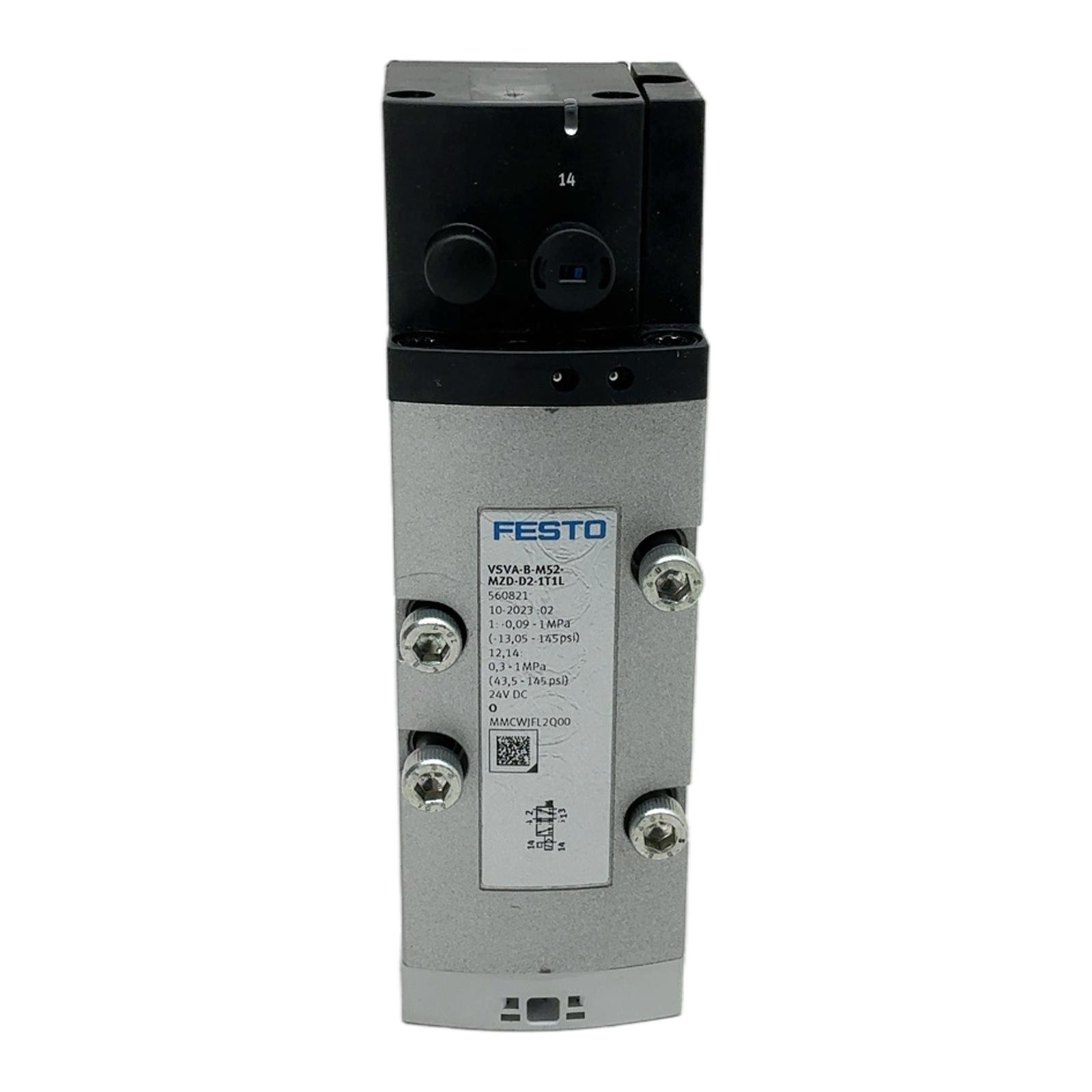

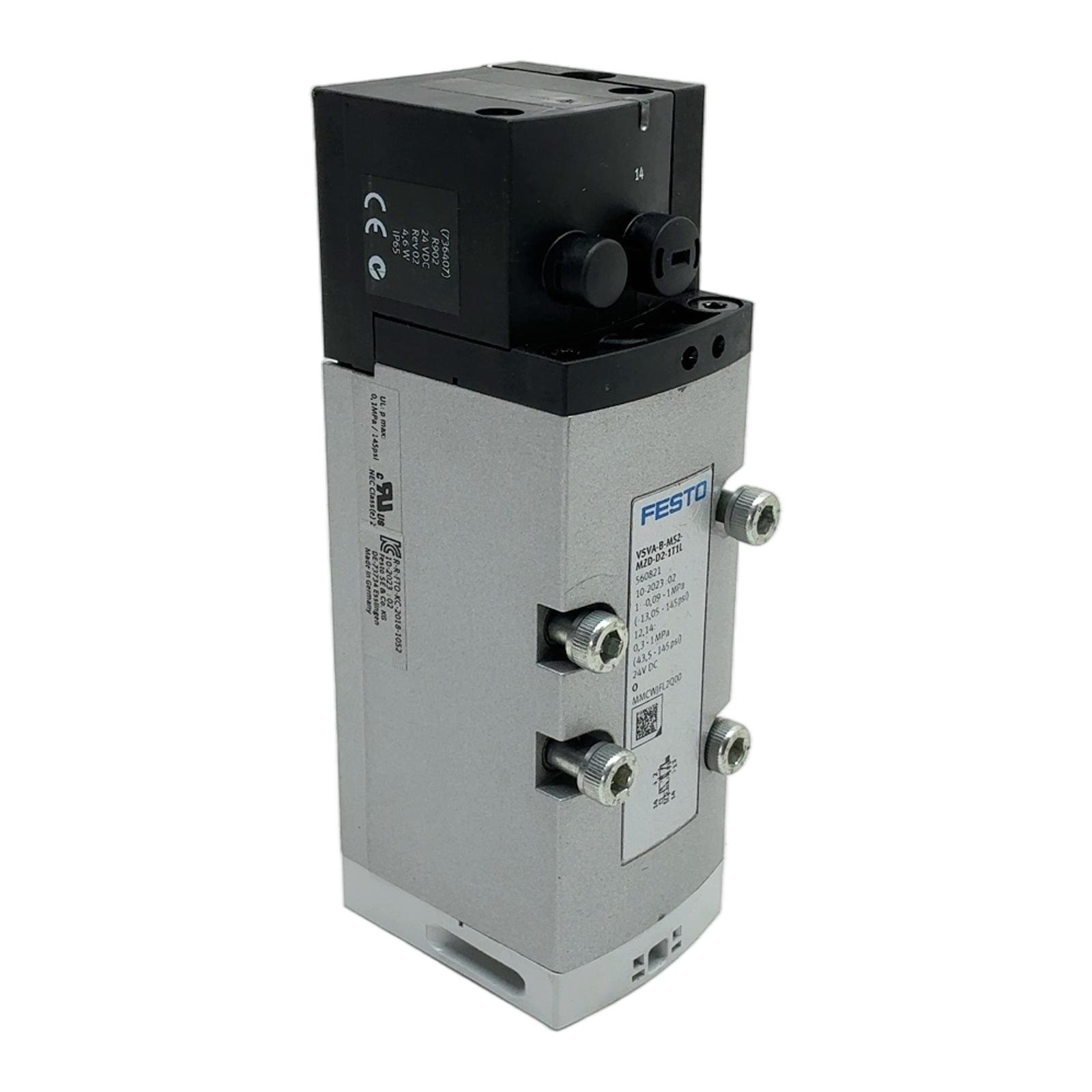

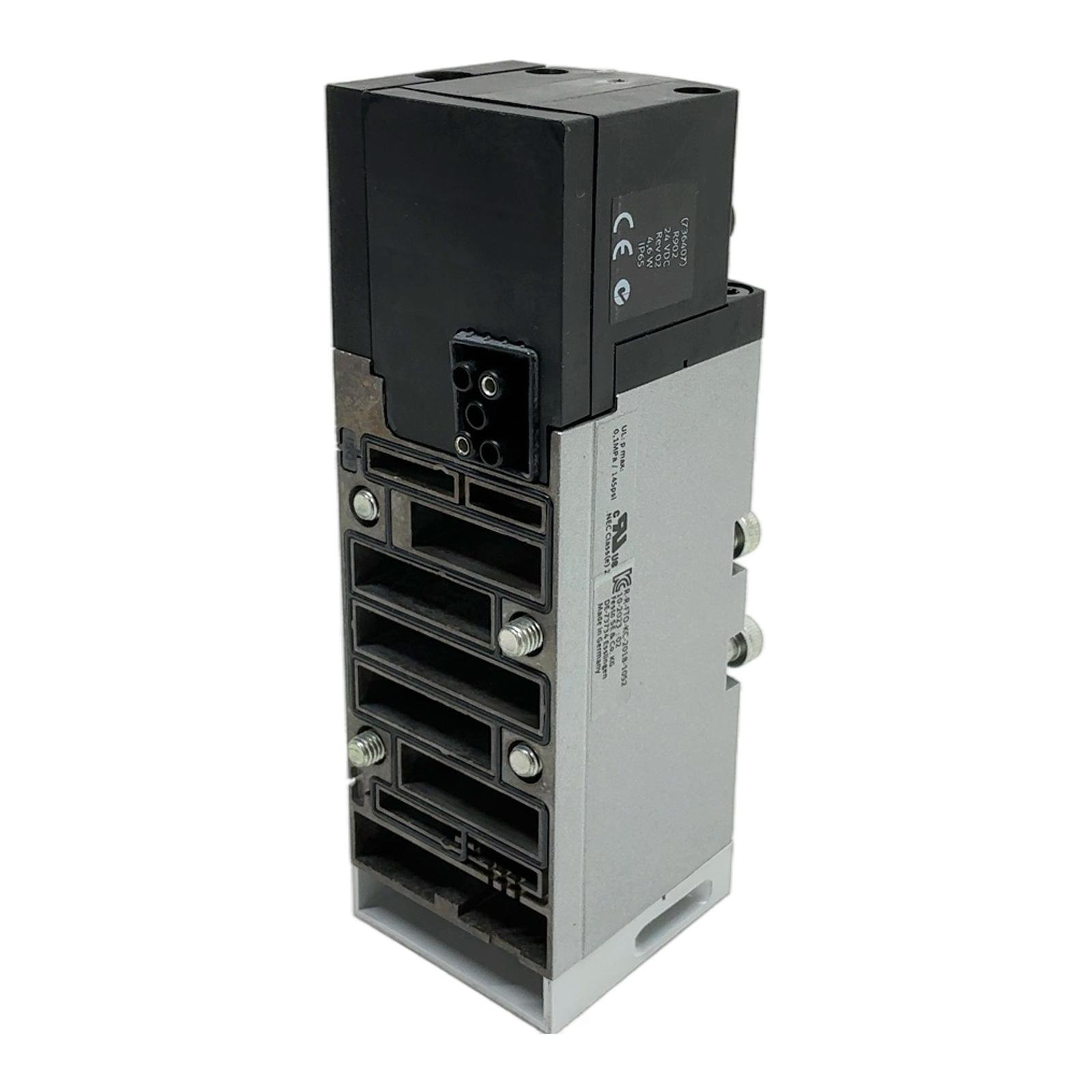

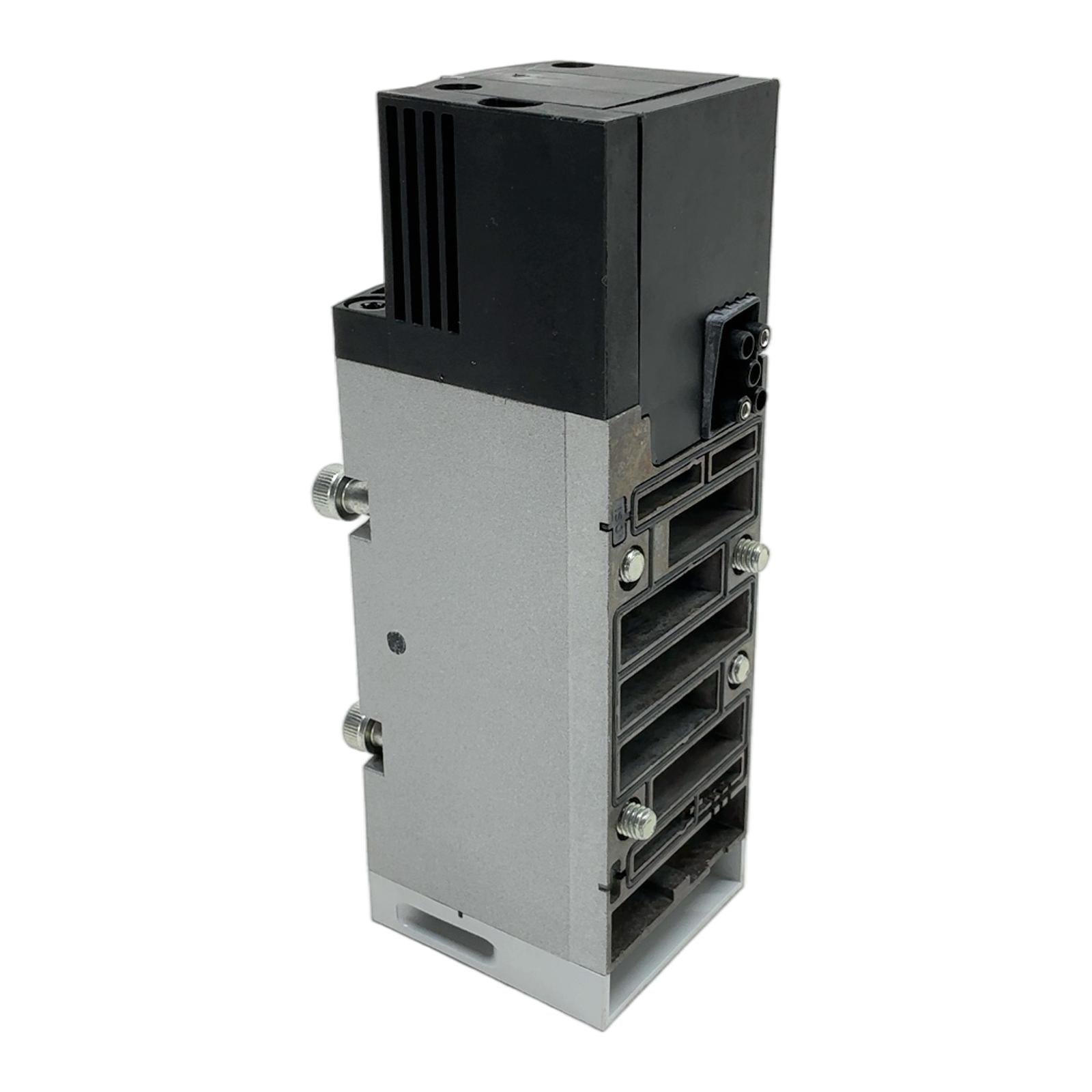

FESTO VSVA-B-M52-MZD-D2-1T1L 560821 Solenoid valve

Festo VSVA-B-M52 Solenoid Valve Description The Festo VSVA-B-M52-MZD-D2-1T1L, part number 560821, is a high-performance solenoid valve designed for integration into pneumatic valve terminals like the VTSA and VTSA-F series. This 5/2-way monostable valve provides reliable switching for a wide range of automation tasks. It operates on a 24V DC supply and is capable of handling both positive pressure and vacuum applications, making it highly versatile. With its robust construction and IP65 rating, it ensures durability in demanding industrial environments. Specifications Manufacturer: Festo Type: VSVA-B-M52-MZD-D2-1T1L Part Number: 560821 Valve Function: 5/2-way, monostable Operating Voltage: 24V DC Coil Power Consumption: 4.6 W Operating Pressure (Port 1): -0.09 to 1 MPa (-13.05 to 145 psi) Operating Pressure (Ports 12, 14): 0.3 to 1 MPa (43.5 to 145 psi) Protection Class: IP65 Label Info Model: VSVA-B-M52-MZD-D2-1T1L Part No: 560821 Production Date: 10-2023 Coil P/N: (736407) R902 Application This valve is ideal for use in factory automation, material handling, packaging machinery, and any application requiring precise pneumatic control via a valve manifold system. Country of Origin Made in Germany. CO2 Impact Opting for this component saves approximately 16.0 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation. Availability This item is in stock and ready for dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the blue manual override button?The manual override allows you to actuate the valve manually without an electrical signal. This is useful for testing, system setup, or emergency operation. It can be a locking or non-locking type depending on the specific model. Is this valve suitable for vacuum applications?Yes, the specifications for port 1 indicate an operating pressure range from -0.09 to 1 MPa, which means it can handle vacuum down to -0.9 bar. Can this valve be used standalone or does it require a manifold?This VSVA series valve is designed for manifold mounting. It connects to a VTSA or VTSA-F valve terminal sub-base which provides the air supply and electrical connections for multiple valves. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
