IMI NORGREN VP5006BJ411H00

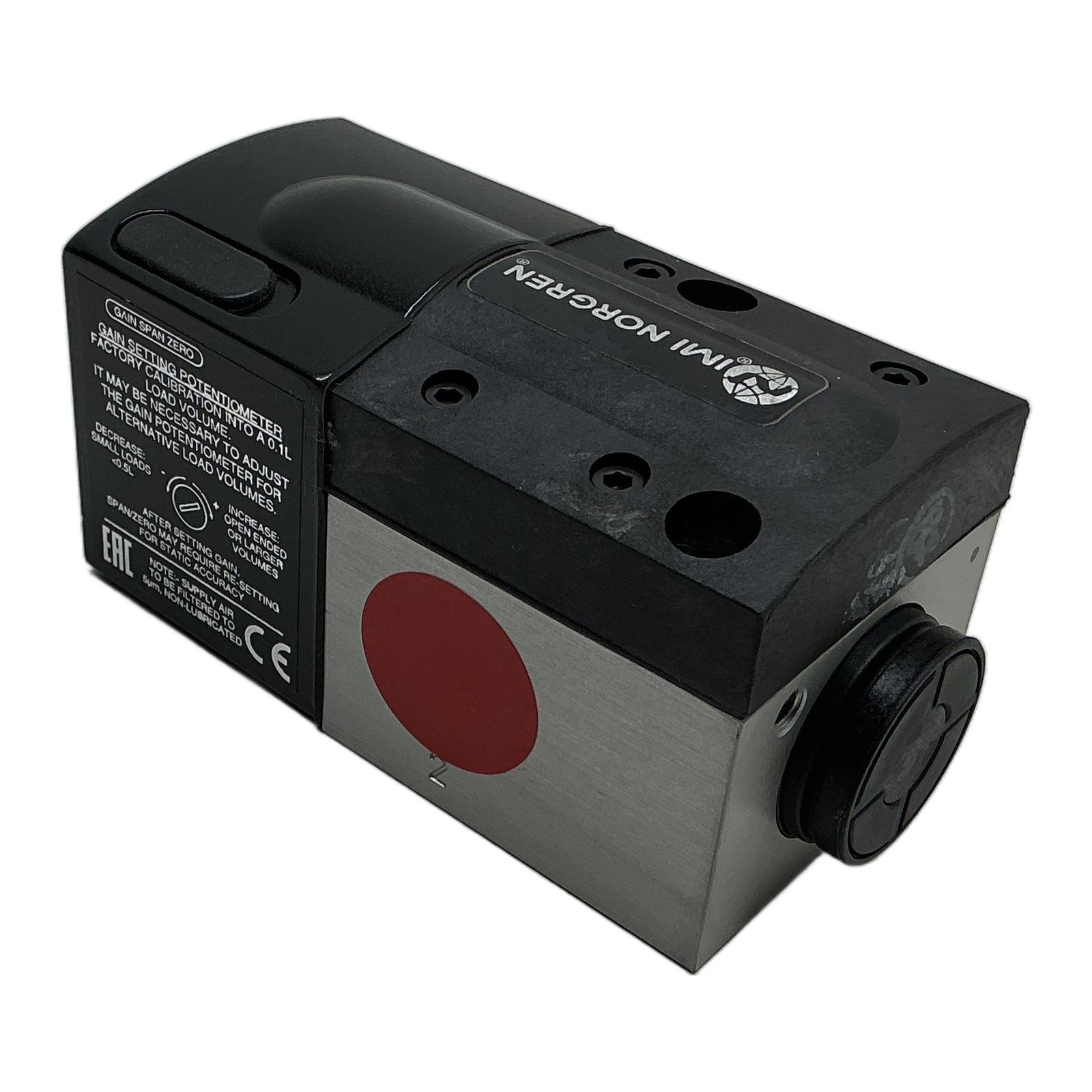

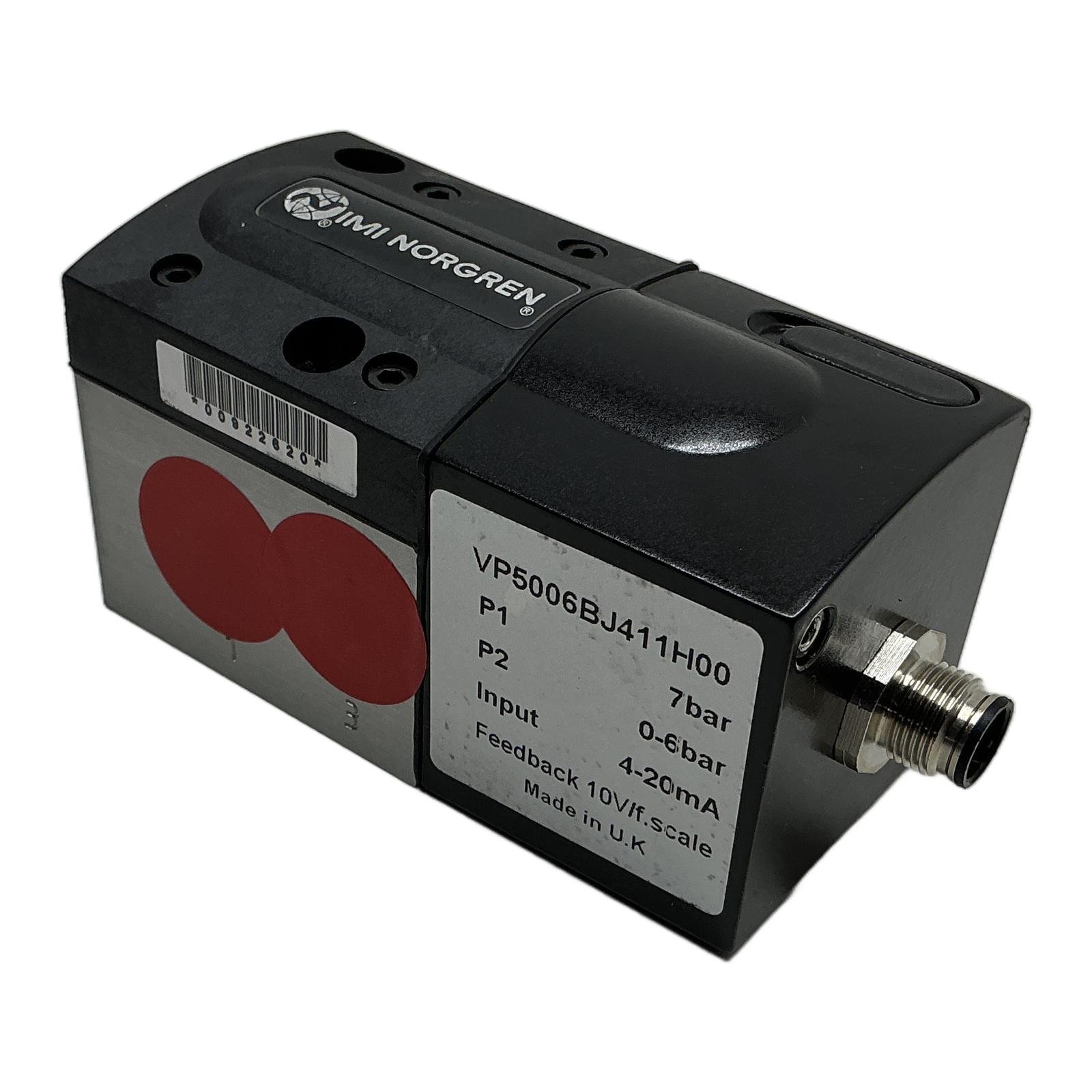

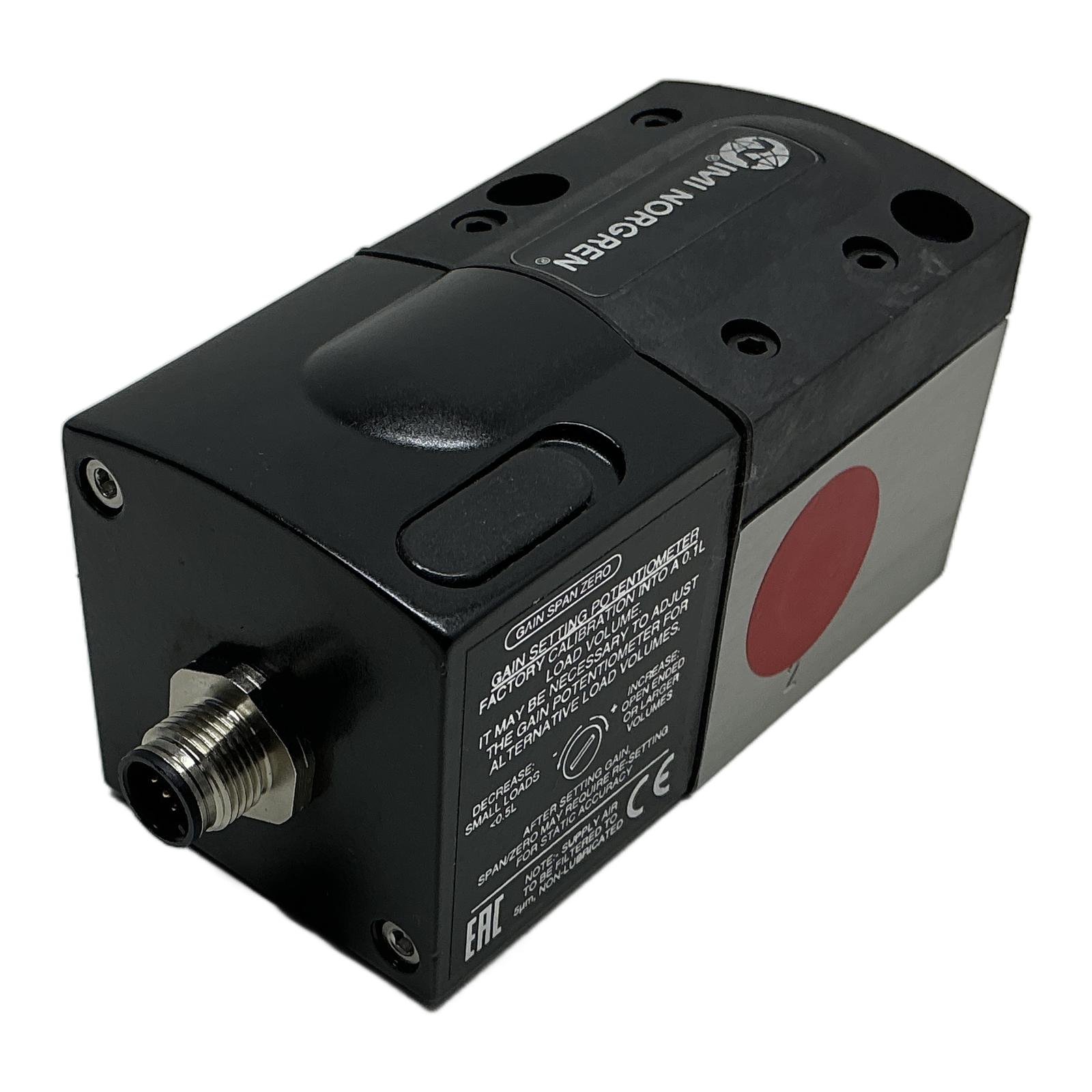

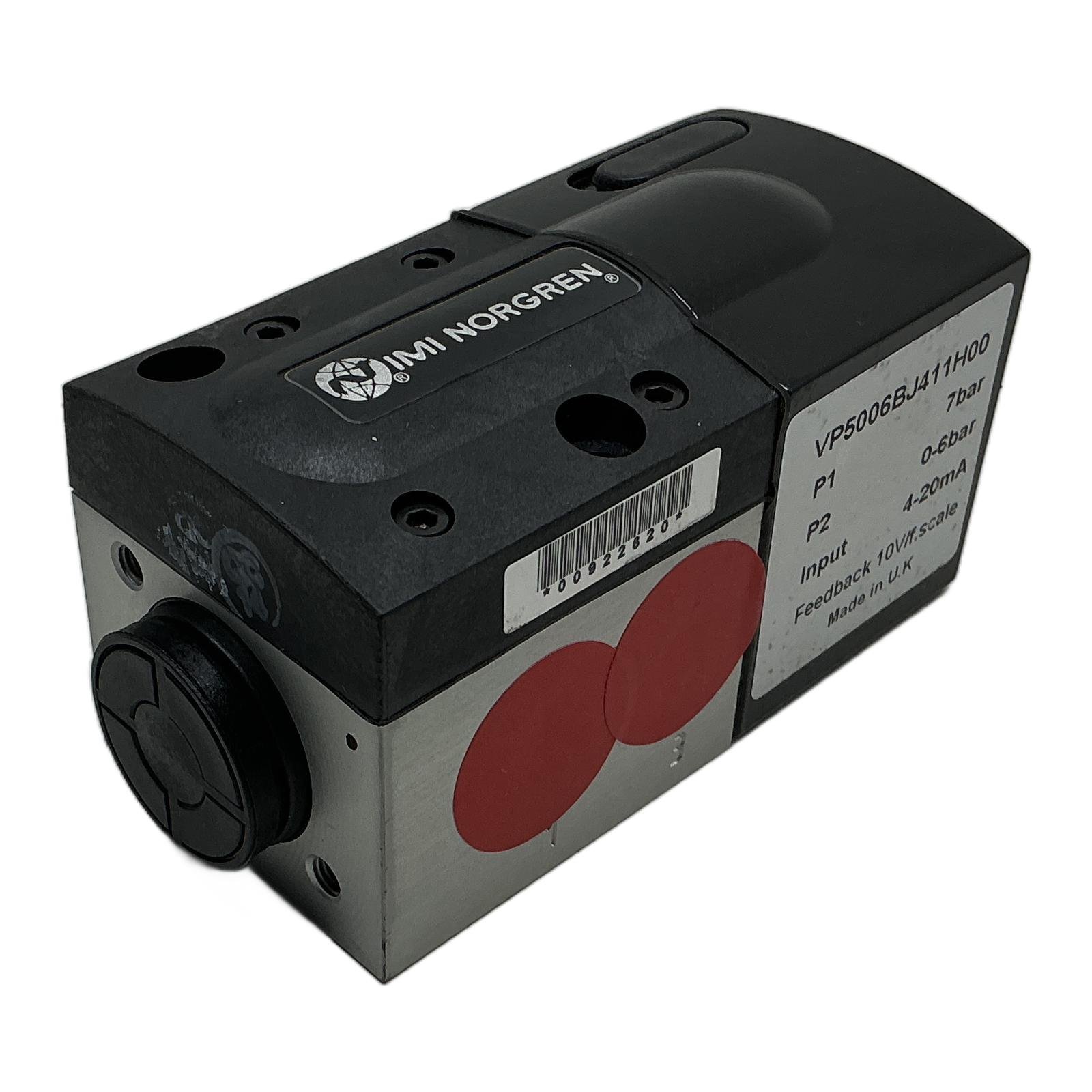

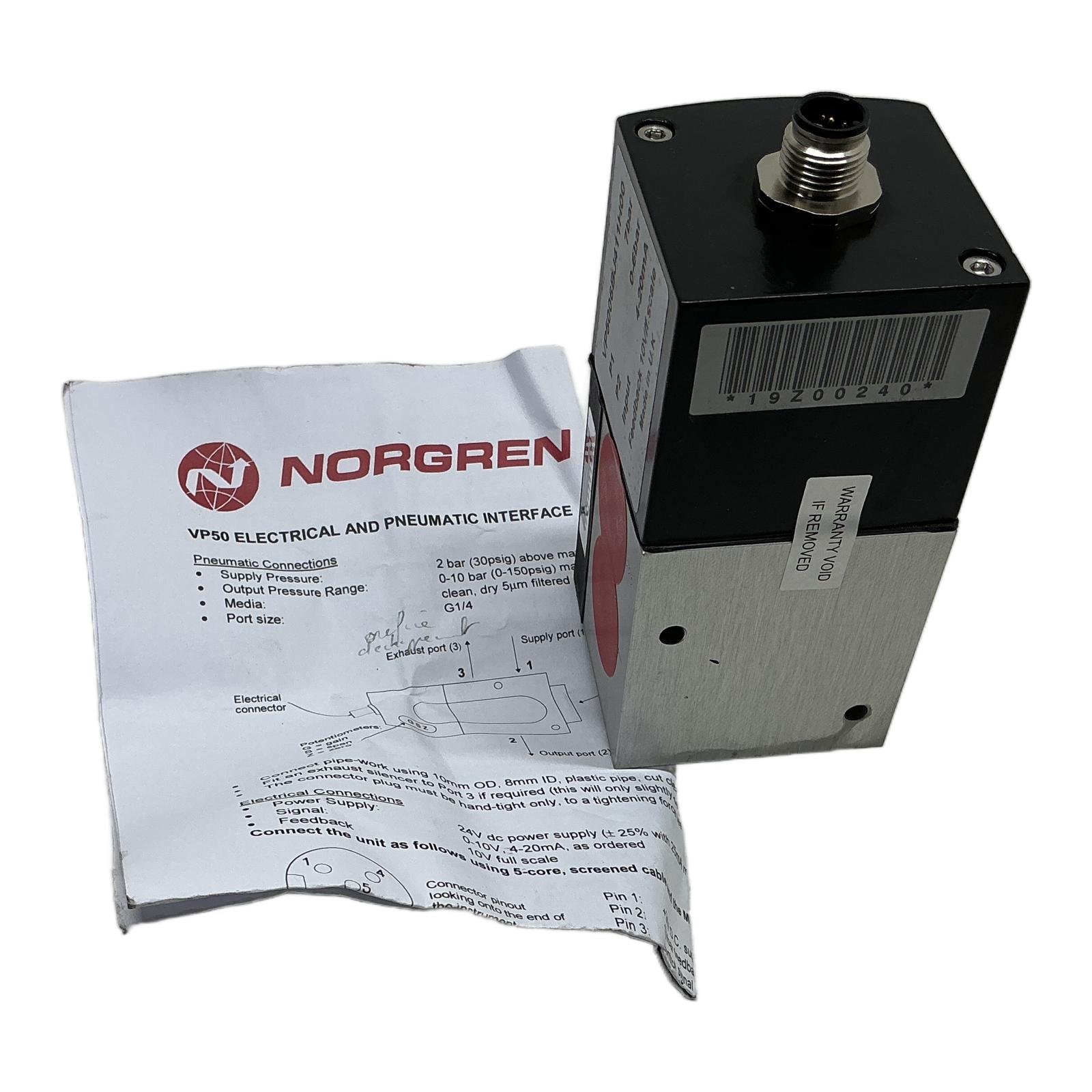

IMI Norgren VP50 Proportional Pressure Control Valve Description The VP5006BJ411H00 is an electro-pneumatic proportional pressure control valve from IMI Norgren’s trusted VP50 series. It accurately converts a 4-20mA electrical input signal into a highly stable and repeatable pneumatic output pressure between 0 and 6 bar. This unit is ideal for applications requiring precise and dynamic pressure control. It features a G1/4 port size, an M12 4-pin connector, and provides a 0-10V feedback signal for process monitoring. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: IMI Norgren Series: VP50 Type: Proportional Pressure Control Valve Output Pressure Range: 0 to 6 bar Maximum Supply Pressure (P1): 7 bar Input Signal: 4-20mA Feedback Signal: 0-10V Full Scale Port Connection: G1/4 Electrical Connection: 4-pin M12 Operating Medium: Compressed air, filtered to 5um, non-lubricated Label Info Model: VP5006BJ411H00 P1: 7bar P2: 0-6bar Input: 4-20mA Feedback: 10V/f.scale Application This valve is suitable for a wide range of industrial applications, including tension control, robotics, material handling, and process control systems where precise regulation of air pressure is critical. Country of Origin Made in the U.K. CO2 Impact By purchasing this remanufactured component, you are actively contributing to the circular economy and have helped avoid approximately 32 kg of CO2 emissions associated with the production of a new part. Availability This item is in stock and ready for immediate dispatch. FAQ What is the required air quality for the VP5006BJ411H00?The supply air must be filtered to 5 micrometers (5um) and should be non-lubricated (oil-free). This ensures the longevity and accuracy of the internal valve components. How do I adjust the Gain and Span on this valve?The valve has potentiometers for Gain, Span, and Zero adjustments under a protective cover. The label indicates it is factory-calibrated for a 0.1L load volume. For different load volumes, you may need to adjust the Gain potentiometer to optimize response time and prevent oscillation. What do the input and feedback signals mean for my control system?The valve is controlled by a 4-20mA analog current signal from your PLC or controller. It provides a 0-10V analog voltage feedback signal, which is proportional to the actual output pressure. This feedback allows for closed-loop control and system monitoring to verify that the correct pressure is being delivered. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
