PHOENIX CONTACT UK 6 N 3004524

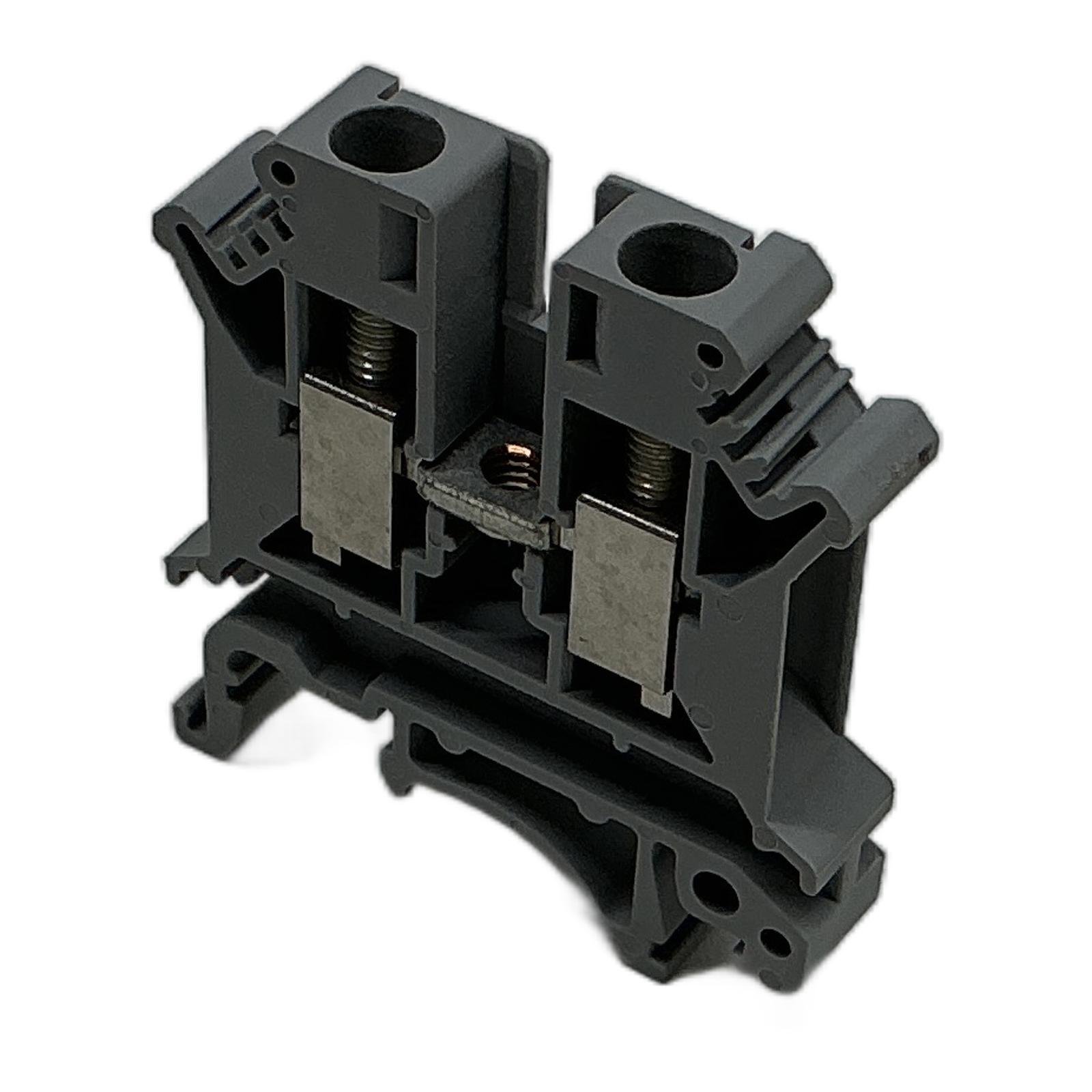

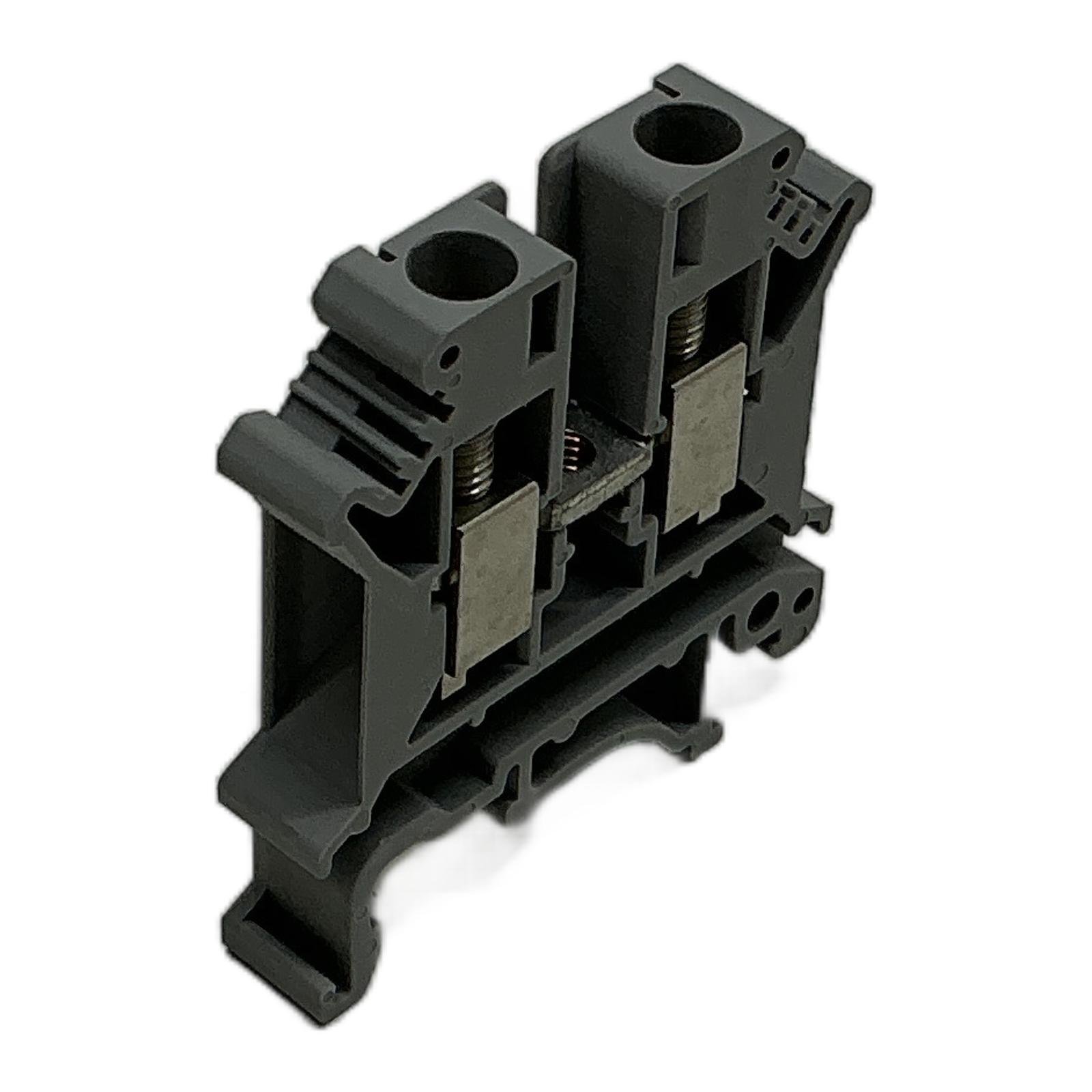

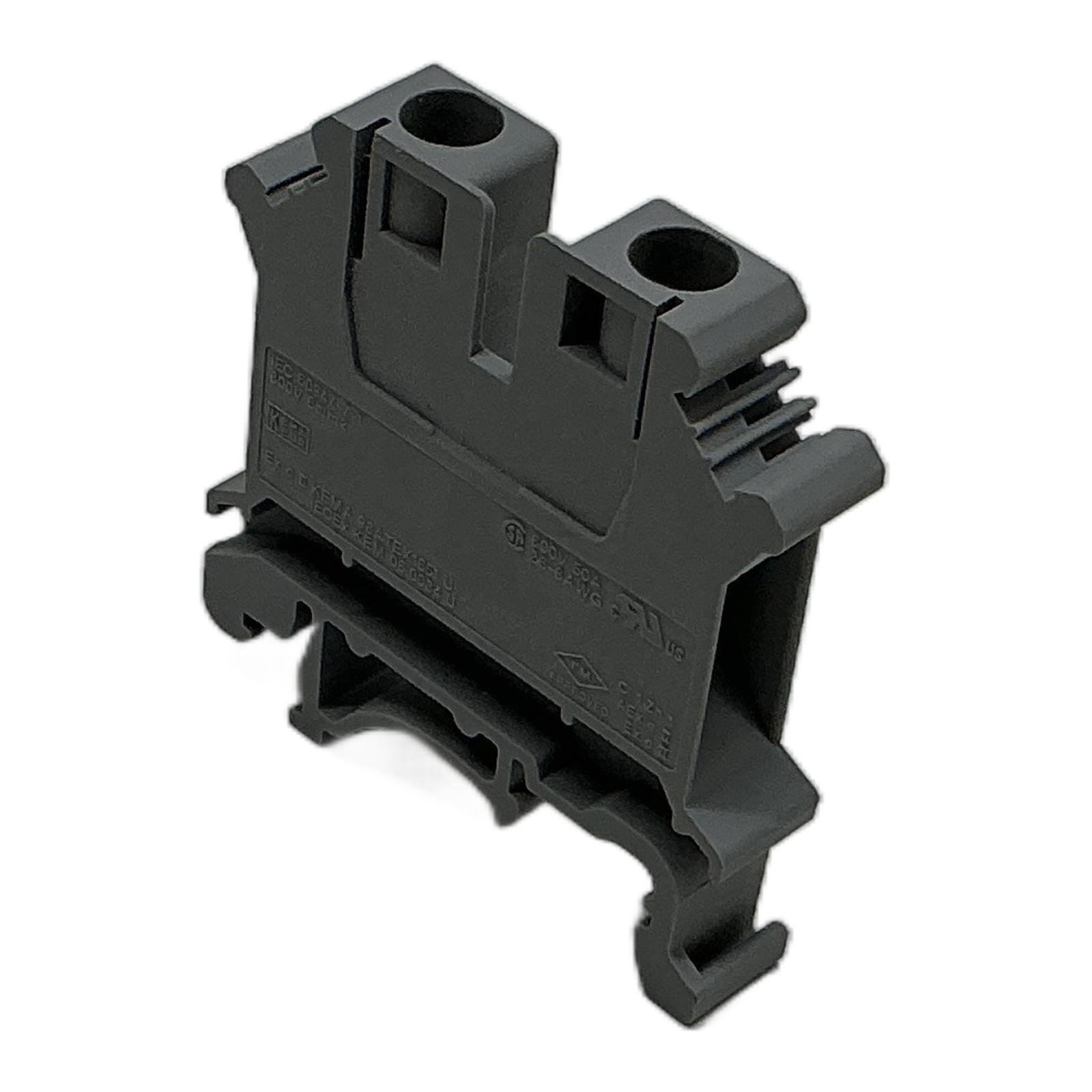

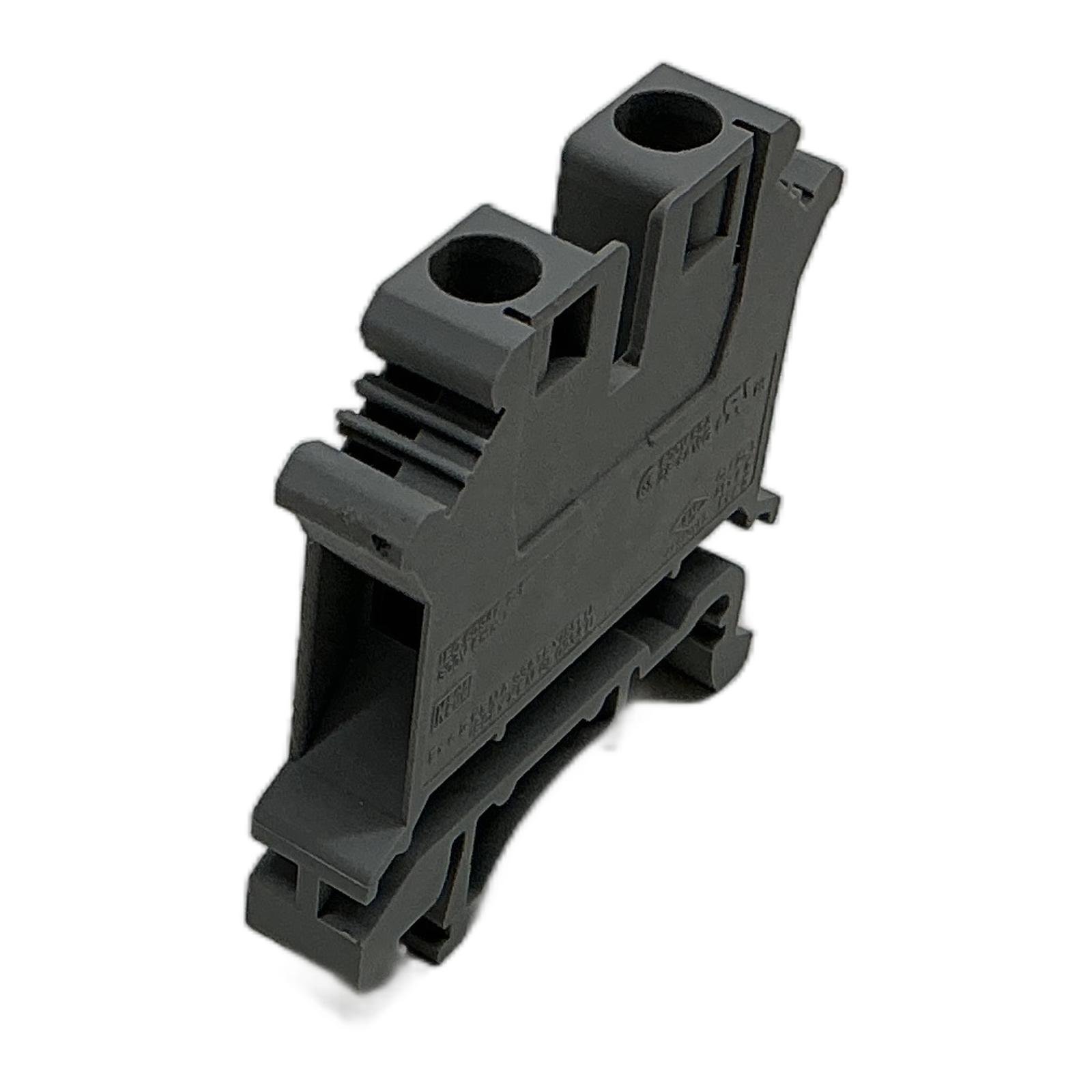

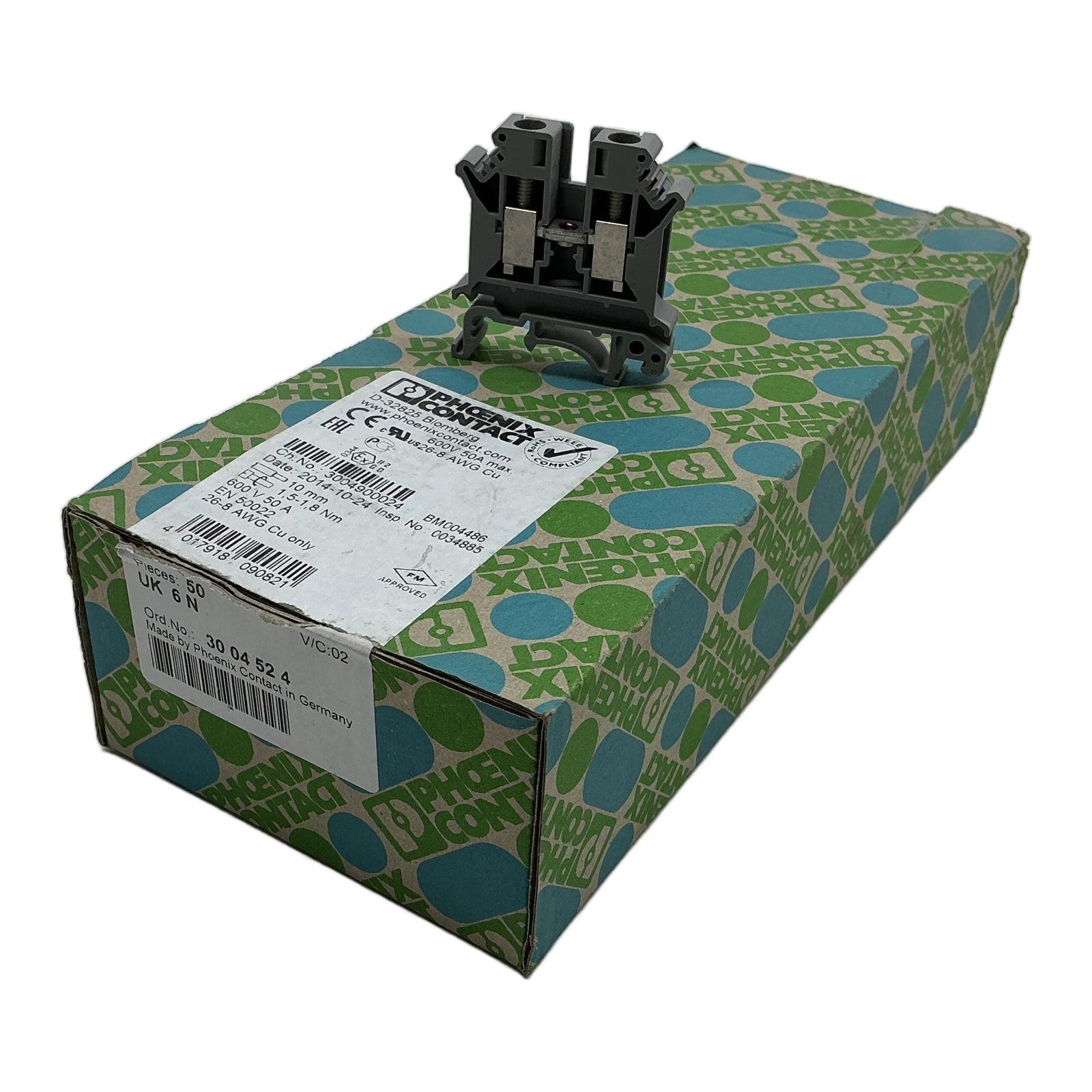

Phoenix Contact UK 6 N Universal Terminal Block Description This is a box of 50 pieces of the Phoenix Contact UK 6 N, a universal feed-through terminal block with a screw connection. Part of the renowned CLIPLINE complete system, it offers maximum flexibility and a reliable connection for a wide range of applications. Its robust design ensures a secure connection for conductors up to 6 mm2 and is rated for 50A at 600V, making it ideal for power distribution and signal wiring in industrial control panels. Specifications Manufacturer: Phoenix Contact Model: UK 6 N Order Number: 30 04 52 4 Connection Method: Screw Connection Nominal Voltage (UL): 600 V Nominal Current (UL): 50 A Conductor Cross Section: 0.2 mm2 to 10 mm2 (26 – 8 AWG) Mounting Type: DIN rail NS 35/7,5, NS 35/15, NS 32 Color: Grey Tightening Torque: 1.5 Nm to 1.8 Nm Label Info EAN: 4017918090821 Date of Manufacture: 2014-10-24 Application The UK 6 N terminal block is widely used in machine building, plant engineering, and control cabinet construction for terminating and distributing control and power circuits. Country of Origin Made in Germany. CO2 Impact By purchasing this reused component, you are helping to avoid approximately 23.1 kg of CO2 emissions compared to a new product, contributing to a more sustainable industrial environment. Availability This box of 50 pieces is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What type of DIN rail is the UK 6 N compatible with? Answer: The UK 6 N terminal block is designed for mounting on NS 35/7,5, NS 35/15, and NS 32 DIN rails, offering versatile installation options. Question? What is the recommended wire stripping length and tightening torque for the screw connection? Answer: For a secure connection, a wire stripping length of 10 mm is recommended. The M3 screws should be tightened to a torque of 1.5 Nm to 1.8 Nm. Question? Can these terminal blocks be used in potentially explosive atmospheres? Answer: Yes, the UK 6 N has ATEX / IECEx approvals (as indicated by the ‘Ex’ symbol on the label), making it suitable for use in certain hazardous areas. Always verify the specific Ex rating against your application’s requirements. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
