FYH UCT207J

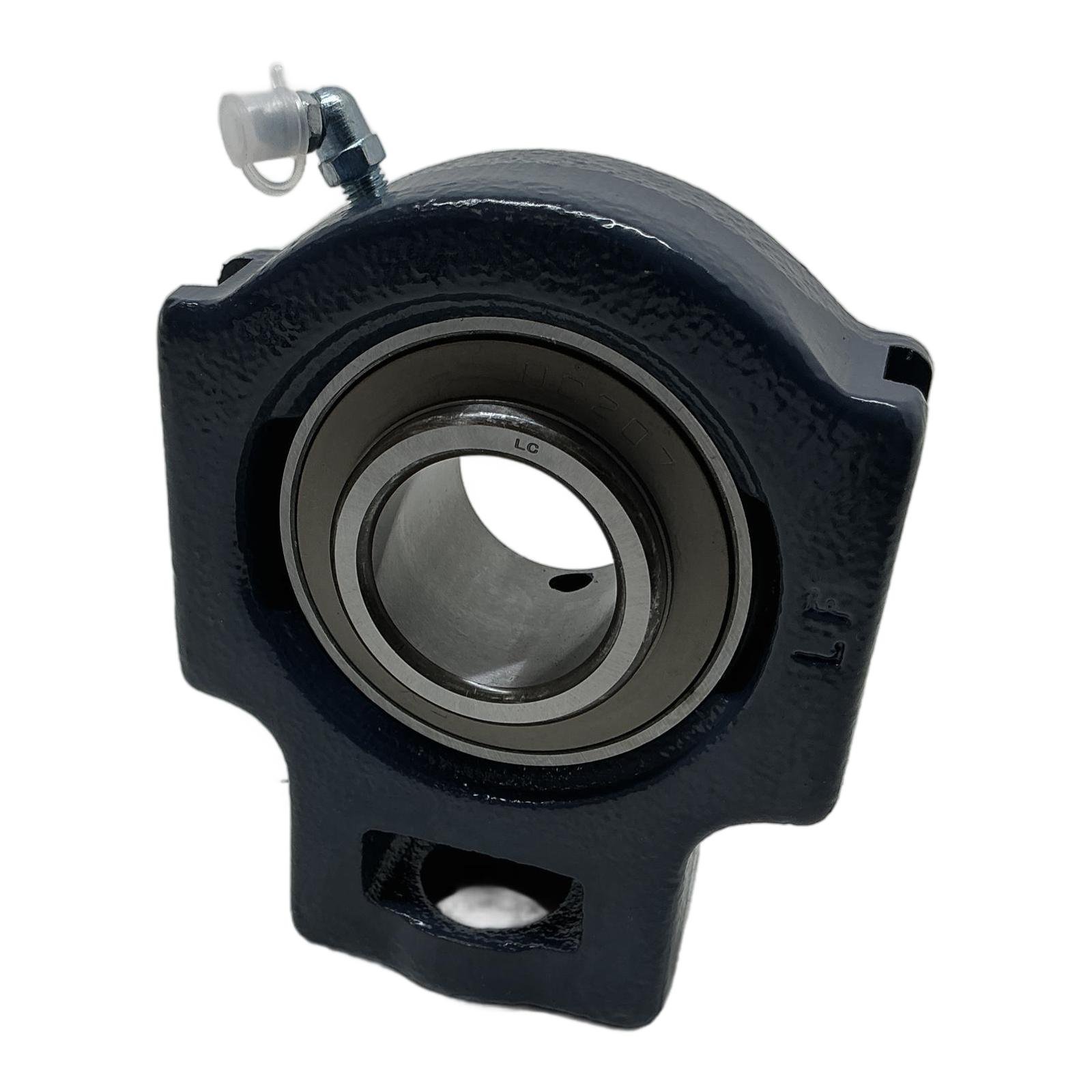

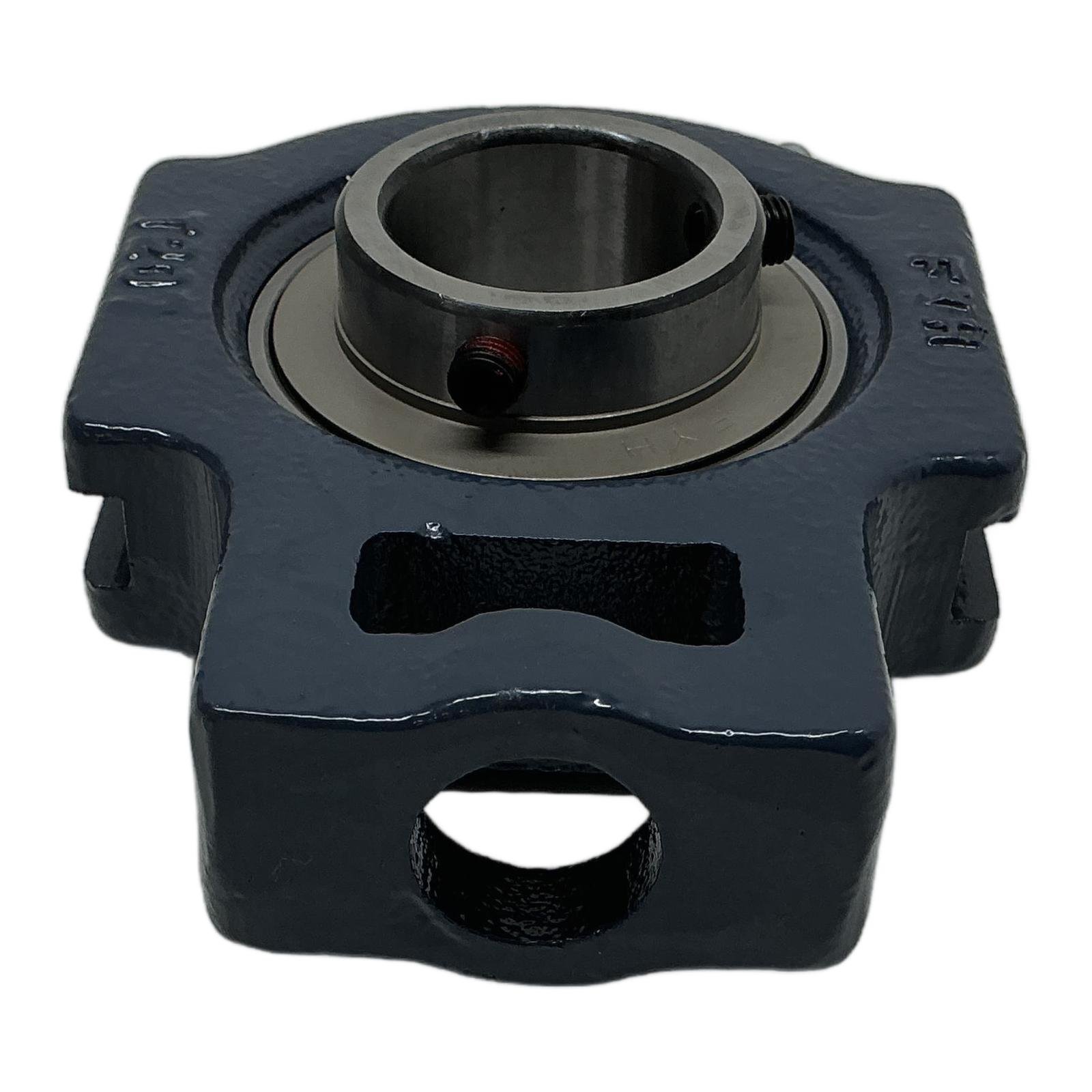

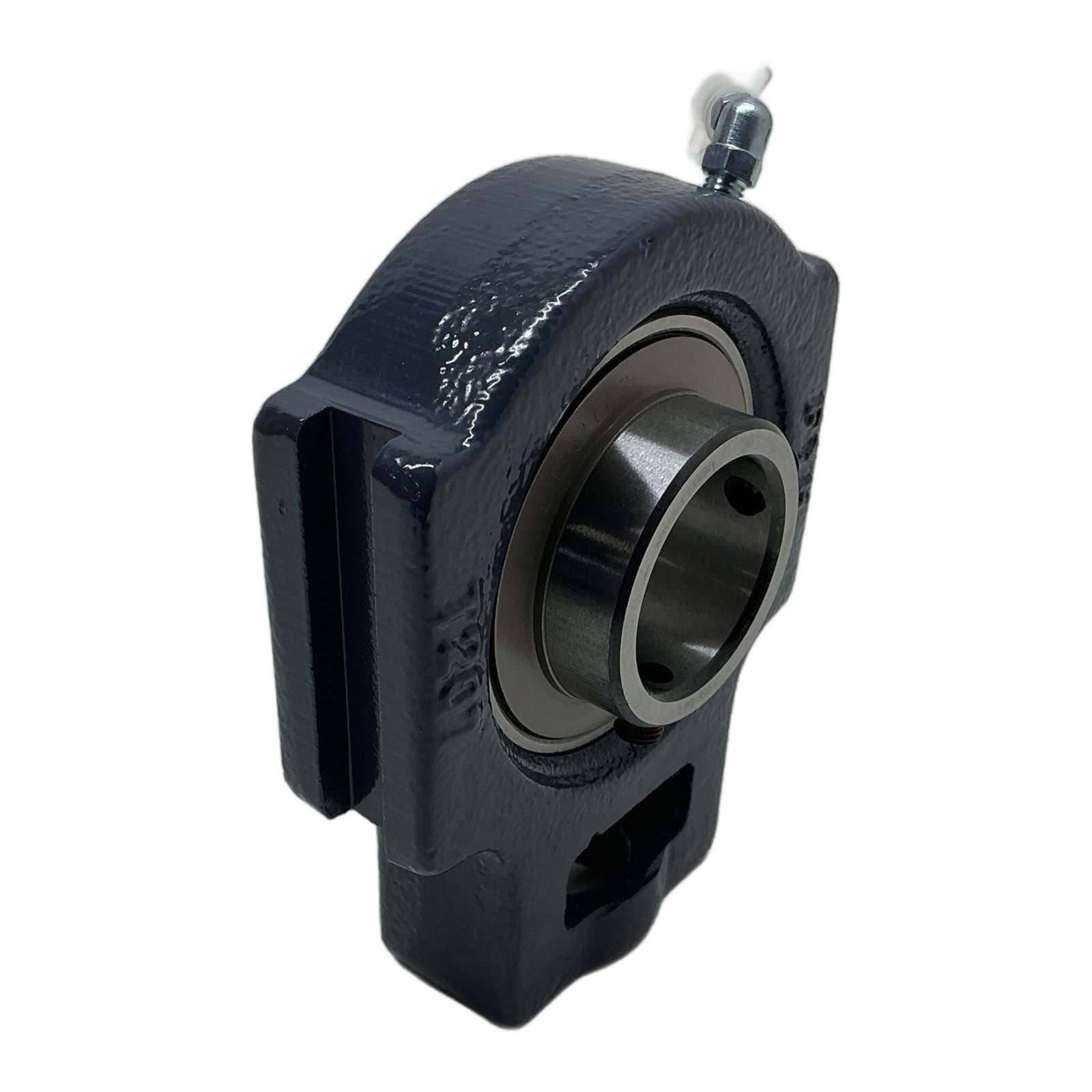

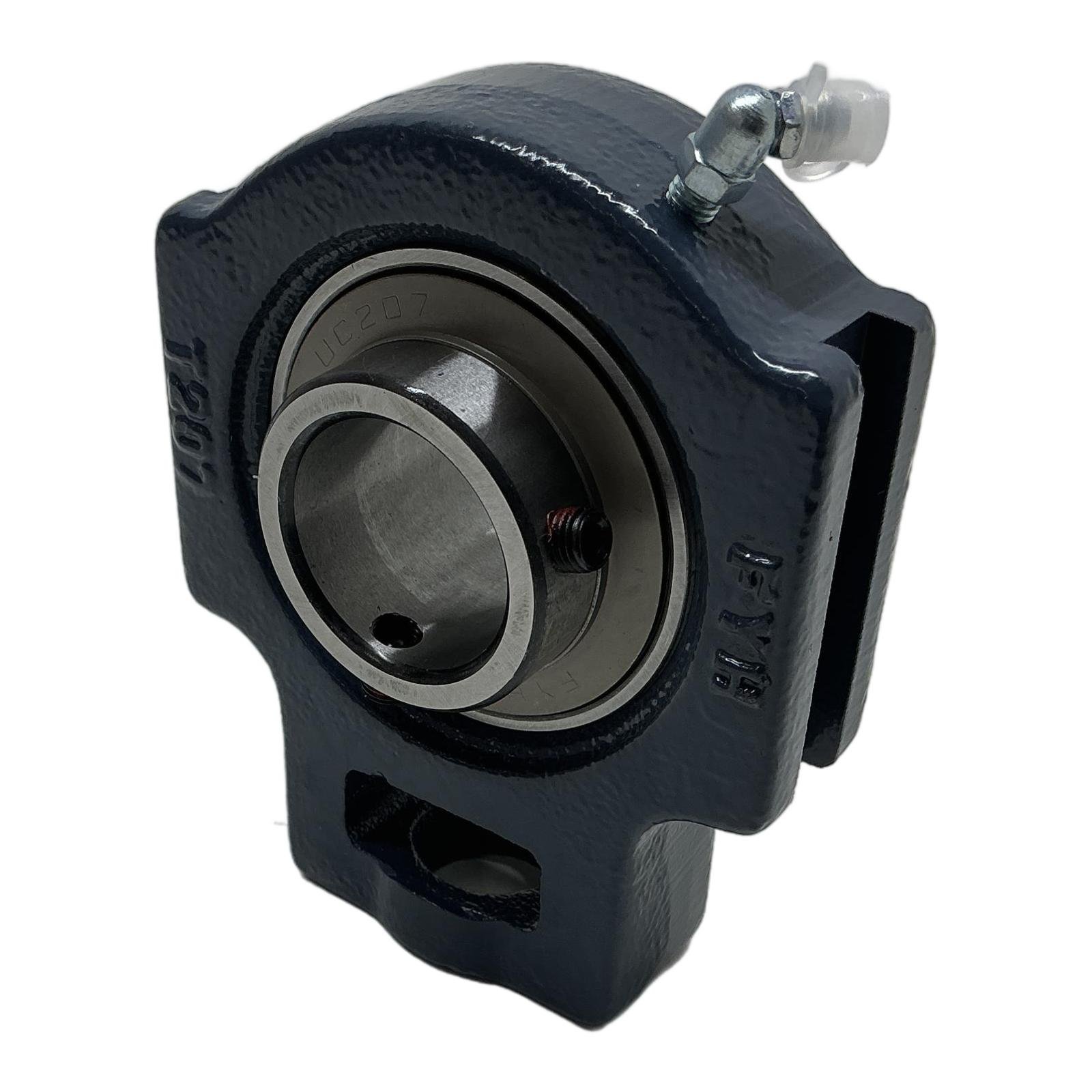

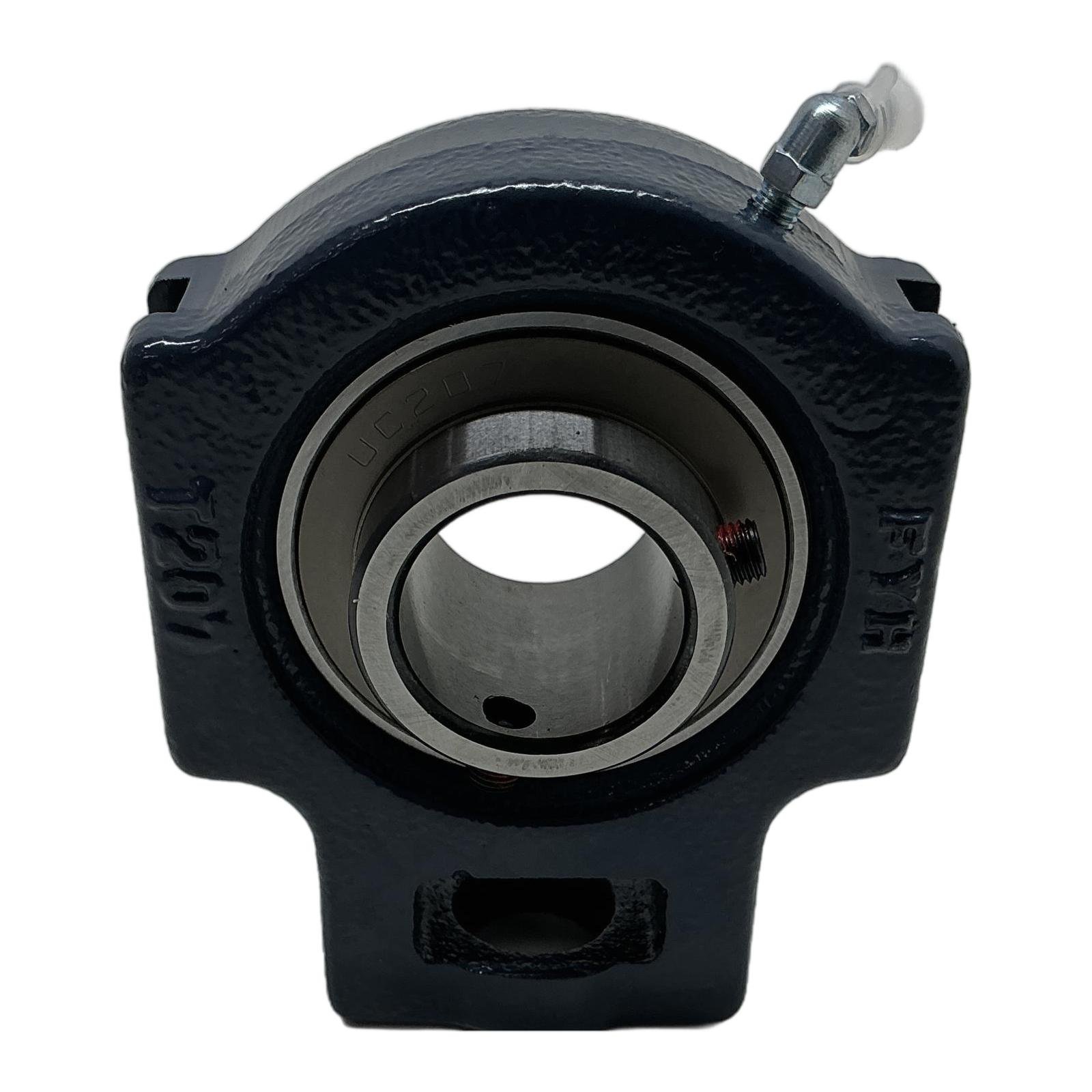

FYH UCT207J Take-Up Bearing Unit Description The FYH UCT207J is a robust take-up bearing unit featuring a 35mm bore diameter. It consists of a UC207 insert bearing and a T207 cast iron housing. This unit is specifically designed for applications requiring shaft adjustment and belt or chain tensioning, such as conveyor systems. The included set screws provide a secure lock onto the shaft, and the integrated grease nipple allows for easy maintenance and re-lubrication, extending the operational life of the unit. Specifications Manufacturer: FYH Model: UCT207J Housing Type: T207 (Take-Up) Bearing Insert: UC207 Bore Diameter: 35 mm Housing Material: Cast Iron Locking Mechanism: Set Screw Locking Lubrication: Re-lubricatable via grease nipple Label Info Brand: FYH Part Number: UCT207J Order Code: 9100006204-00060 Application Ideal for use in conveyor systems, agricultural machinery, and industrial equipment where shaft positioning and tensioning are critical for performance and reliability. Country of Origin Manufactured in Japan, ensuring high-quality standards and precision engineering. CO2 Impact Choosing this surplus bearing unit prevents the emission of approximately 3.4 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorbed by a mature tree over several months. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the proper procedure for mounting and tensioning a UCT207J take-up unit?The UCT207J should be mounted in a take-up frame, ensuring the guide surfaces are clean and parallel. Initially, leave the housing bolts loose. Slide the unit to apply initial tension to the belt or chain, then align the shaft. Tighten the bearing’s set screws onto the shaft, and finally, tighten the housing bolts in the frame. Adjust tension as per the machinery’s specifications. What type of grease should be used for re-lubrication, and what is the recommended interval?A high-quality lithium-based grease with an NLGI grade 2 consistency is typically recommended. The re-lubrication interval depends heavily on the operating conditions (speed, load, contamination). For standard conditions, re-lubricating every 500-1000 operating hours is a good starting point. Always clean the grease nipple before applying new grease to avoid contamination. Is the UC207 insert bearing replaceable within the T207 housing?Yes, the UC207 insert bearing is a standard component and can be replaced independently of the T207 housing. To do so, loosen the set screws, remove the shaft, and then the old insert can be taken out of the housing. Ensure the housing’s spherical seat is clean before installing a new UC207 insert. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
