SCHNEIDER ELECTRIC TSXDSY16T2

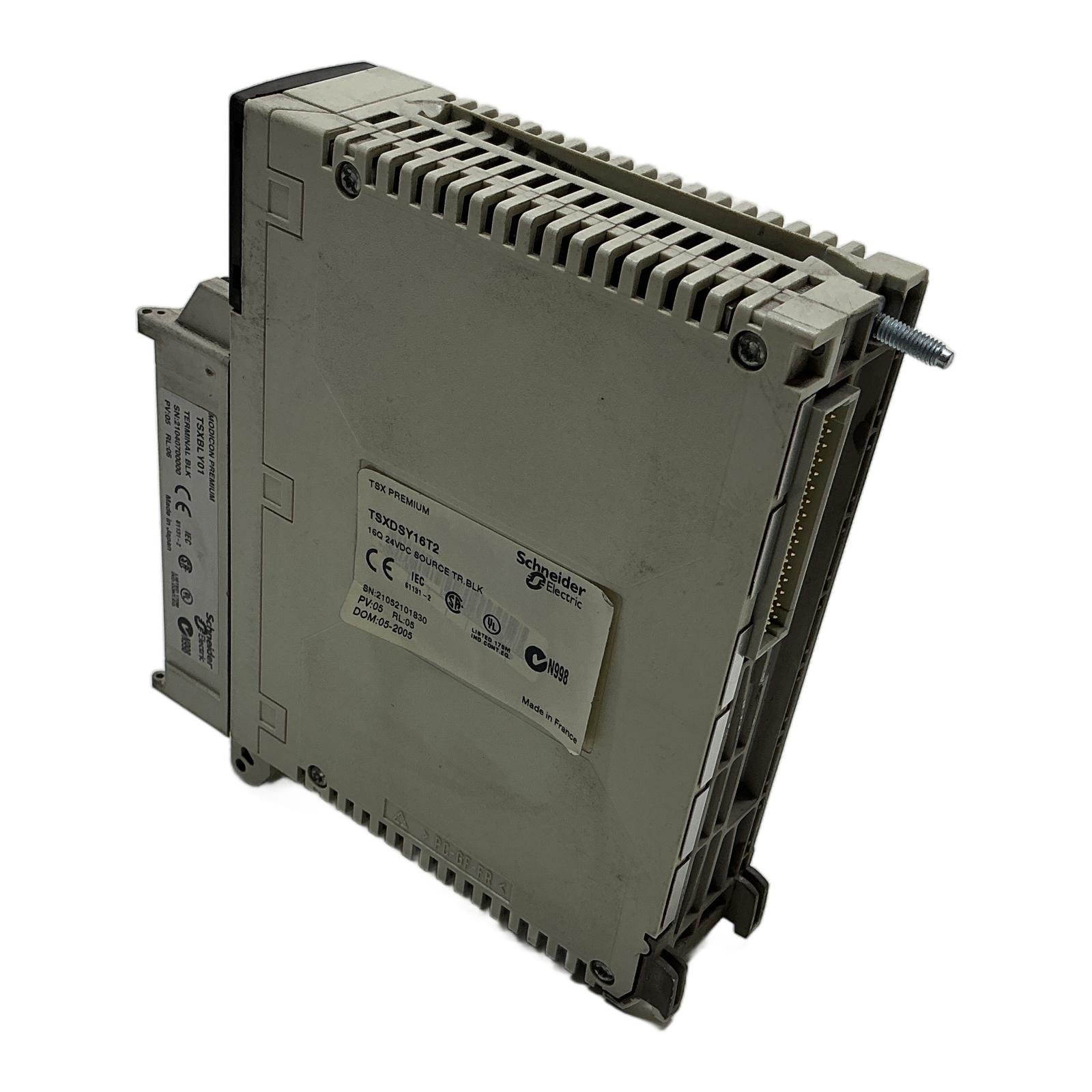

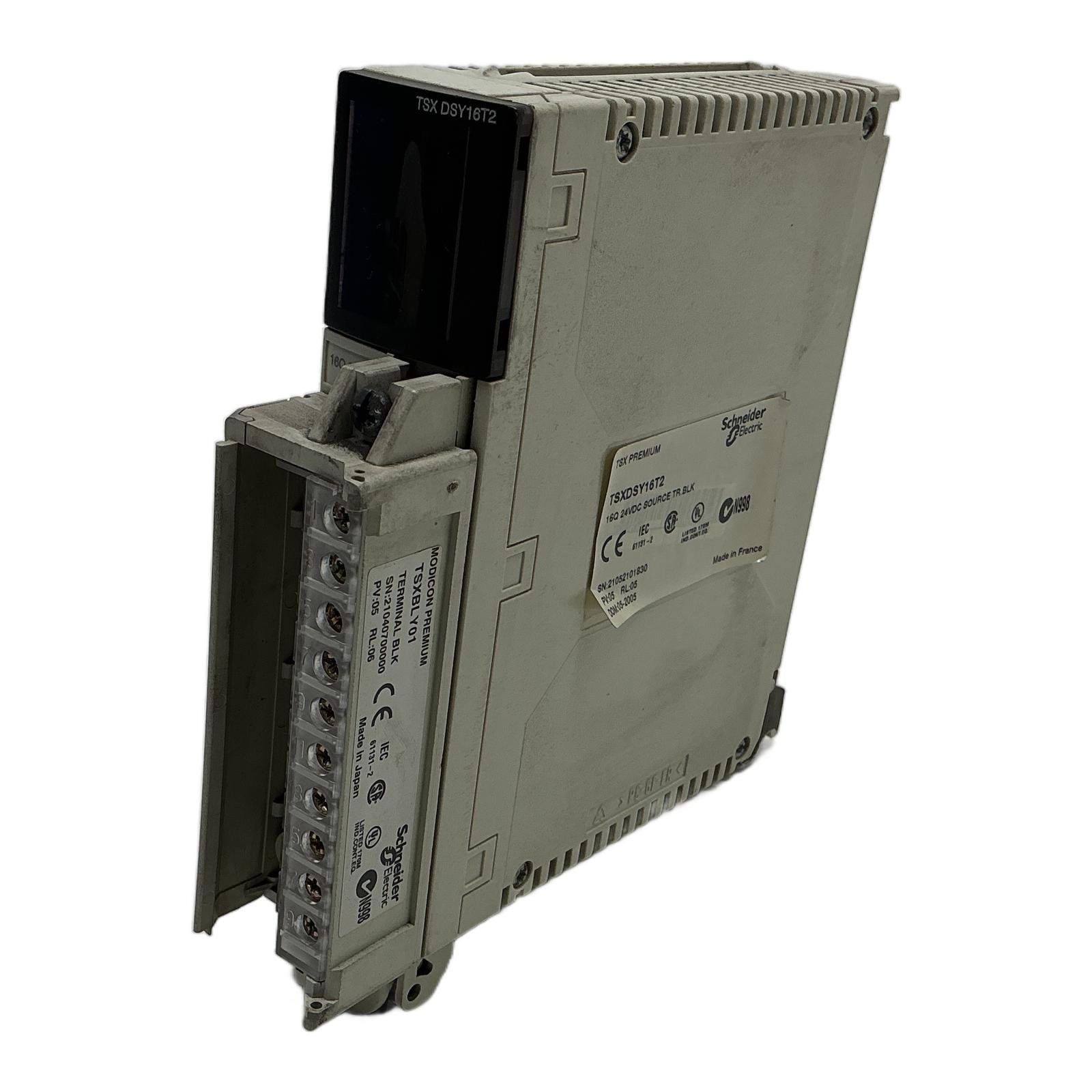

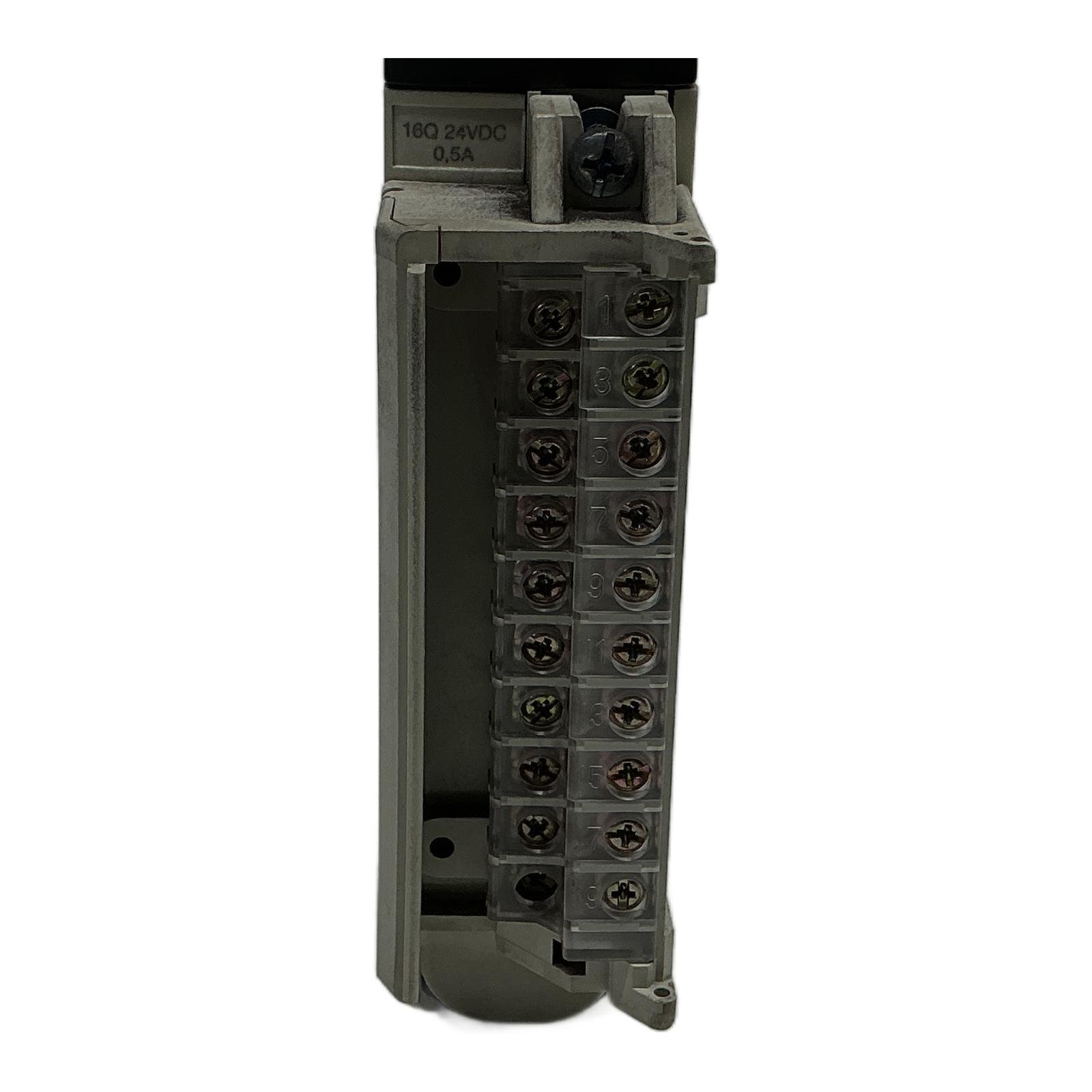

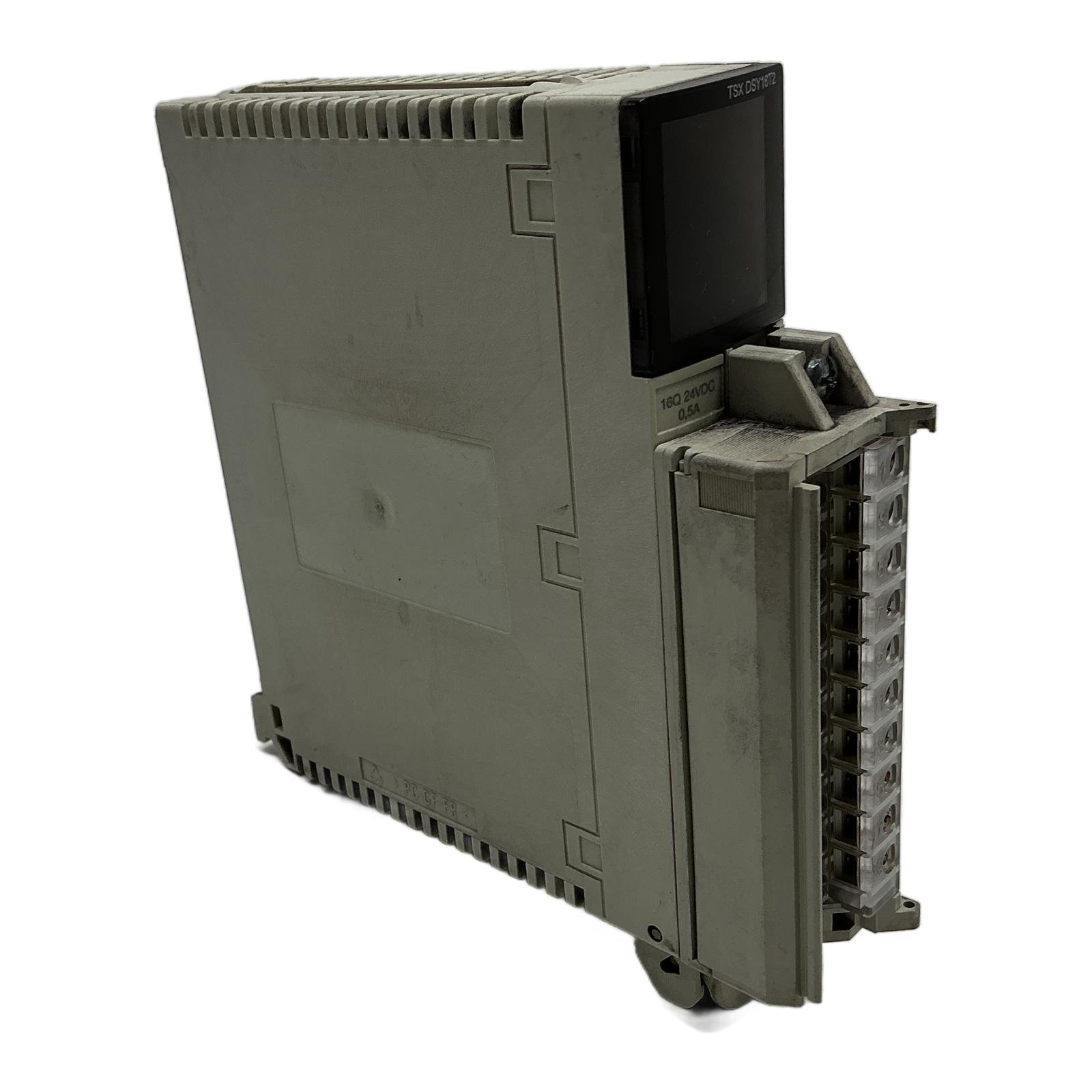

Schneider Electric TSXDSY16T2 – Modicon Premium 16-Point Output Module Description The TSXDSY16T2 is a discrete output module for the Schneider Electric Modicon Premium PLC platform. It provides 16 solid-state source outputs, rated for 24V DC operation. This module is ideal for controlling actuators, solenoid valves, and indicator lights in industrial automation applications. It comes complete with its removable TSXBLY01 screw terminal block for easy wiring and maintenance. Specifications Manufacturer: Schneider Electric Product Line: Modicon Premium Model Number: TSXDSY16T2 Discrete Outputs: 16 (source type) Output Voltage: 24V DC Current per Output: 0.5 A Total Module Current: 8 A max Protection: Short-circuit, overload, and overvoltage protection Terminal Block: Includes removable TSXBLY01 screw terminal block Label Info TSXDSY16T2: PV:05, RL:05, DOM:05-2005, SN:21052101830 TSXBLY01 (Terminal Block): PV:05, RL:06, SN:21040700000 Application This module is designed for use within a Modicon Premium PLC system to expand its digital output capabilities. It is commonly used in manufacturing, process control, and material handling systems to interface with 24V DC field devices. Country of Origin The main module (TSXDSY16T2) is made in France. The terminal block (TSXBLY01) is made in Japan. CO2 Impact Choosing this pre-owned module over a new one saves approximately 12.0 kg of CO2. This is equivalent to the emissions from charging over 1400 smartphones. Availability This is an obsolete item, but it is available from stock. Order now from profideals for expert support and fast delivery. FAQ Question?Is this module compatible with the latest Modicon M580 systems? AnswerNo, the TSXDSY16T2 is part of the obsolete Modicon Premium series and is not directly compatible with the M580 backplane. It requires a Modicon Premium rack and CPU. Question?What is the maximum current per output point and for the entire module? AnswerEach of the 16 outputs can handle a maximum current of 0.5A. The total current for the module should not exceed 8A. Question?Does this module include built-in protection against short-circuits or overloads? AnswerYes, the TSXDSY16T2 features integrated electronic protection against overloads and short-circuits for each output group, enhancing system reliability. It also has overvoltage protection. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Current Date: Friday, March 13, 2026
