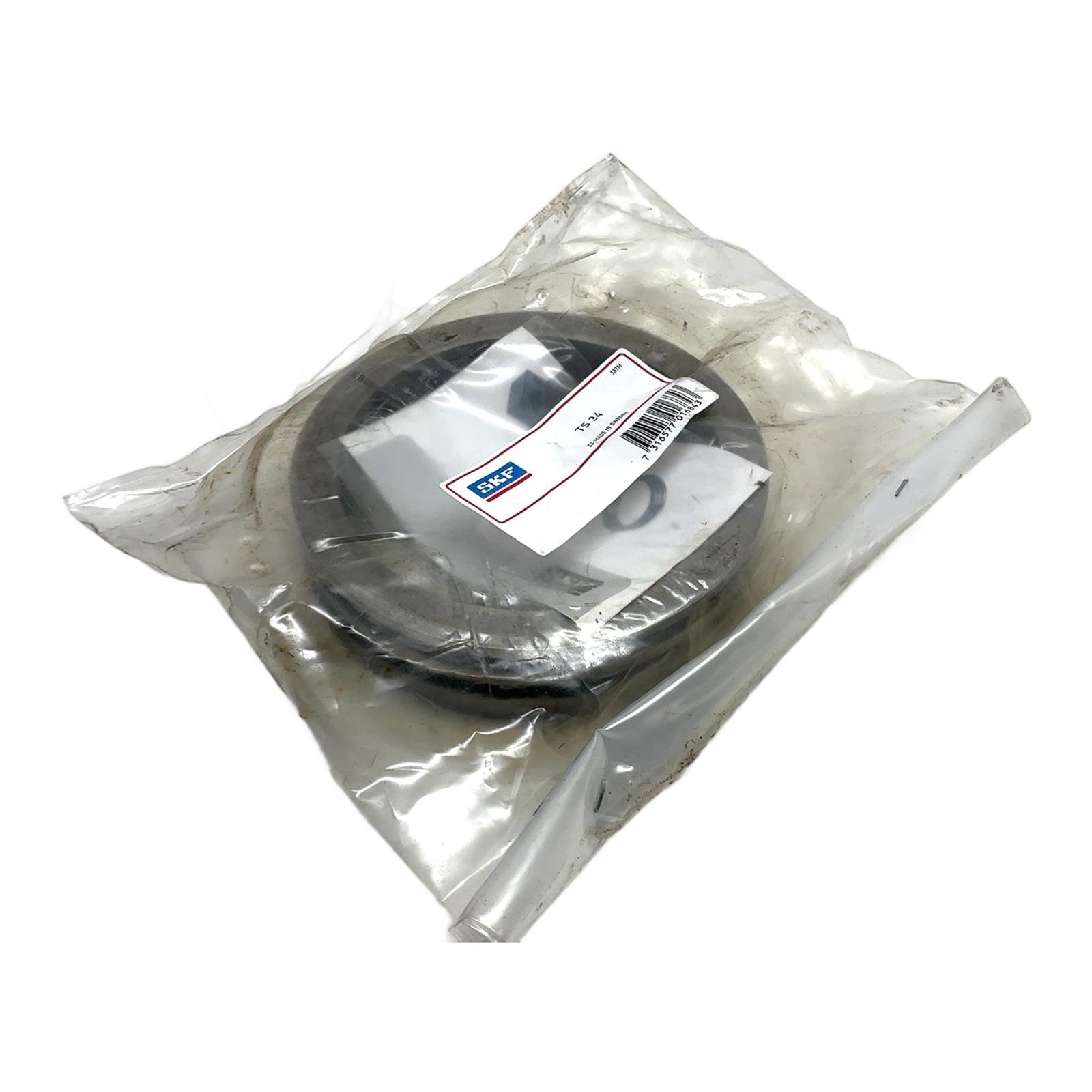

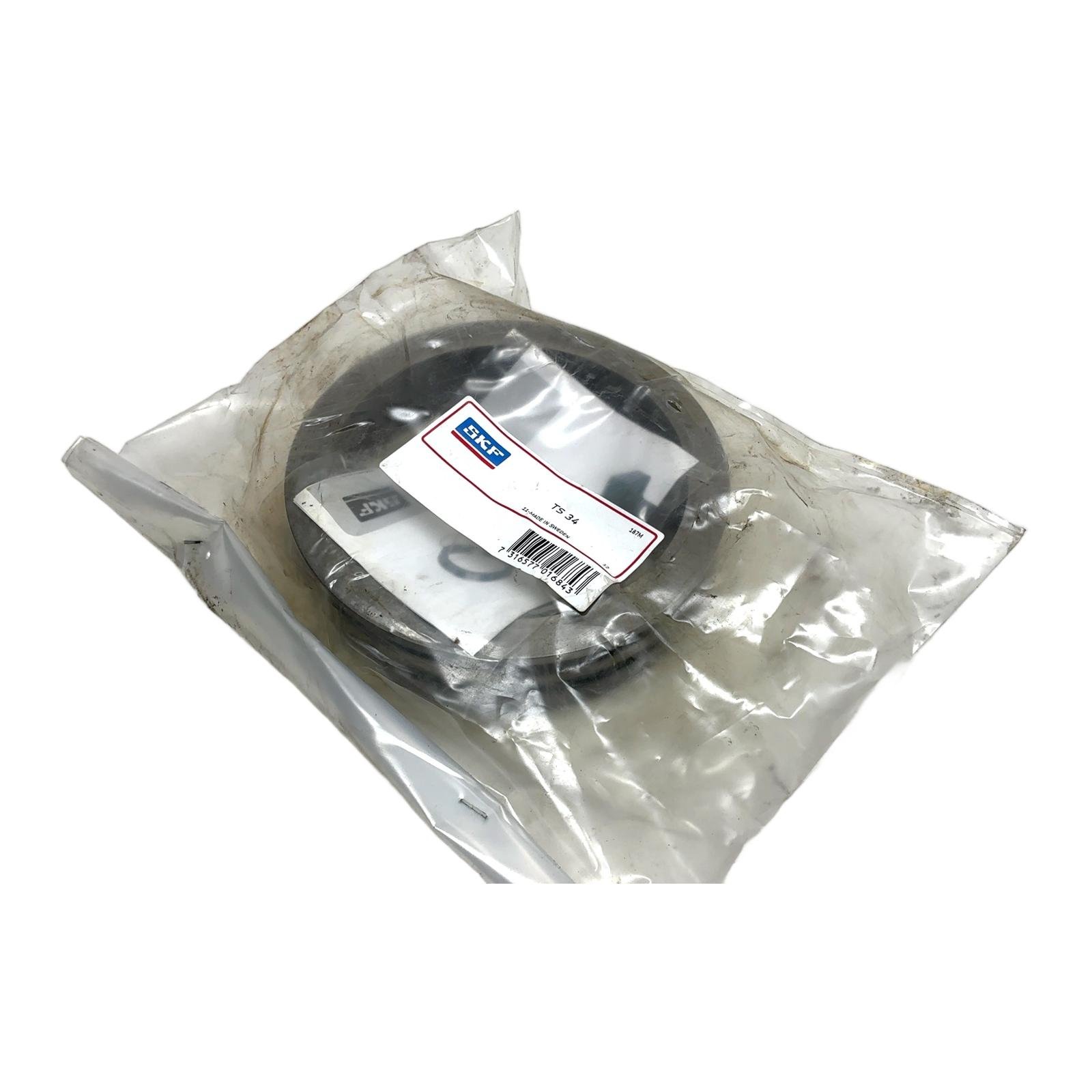

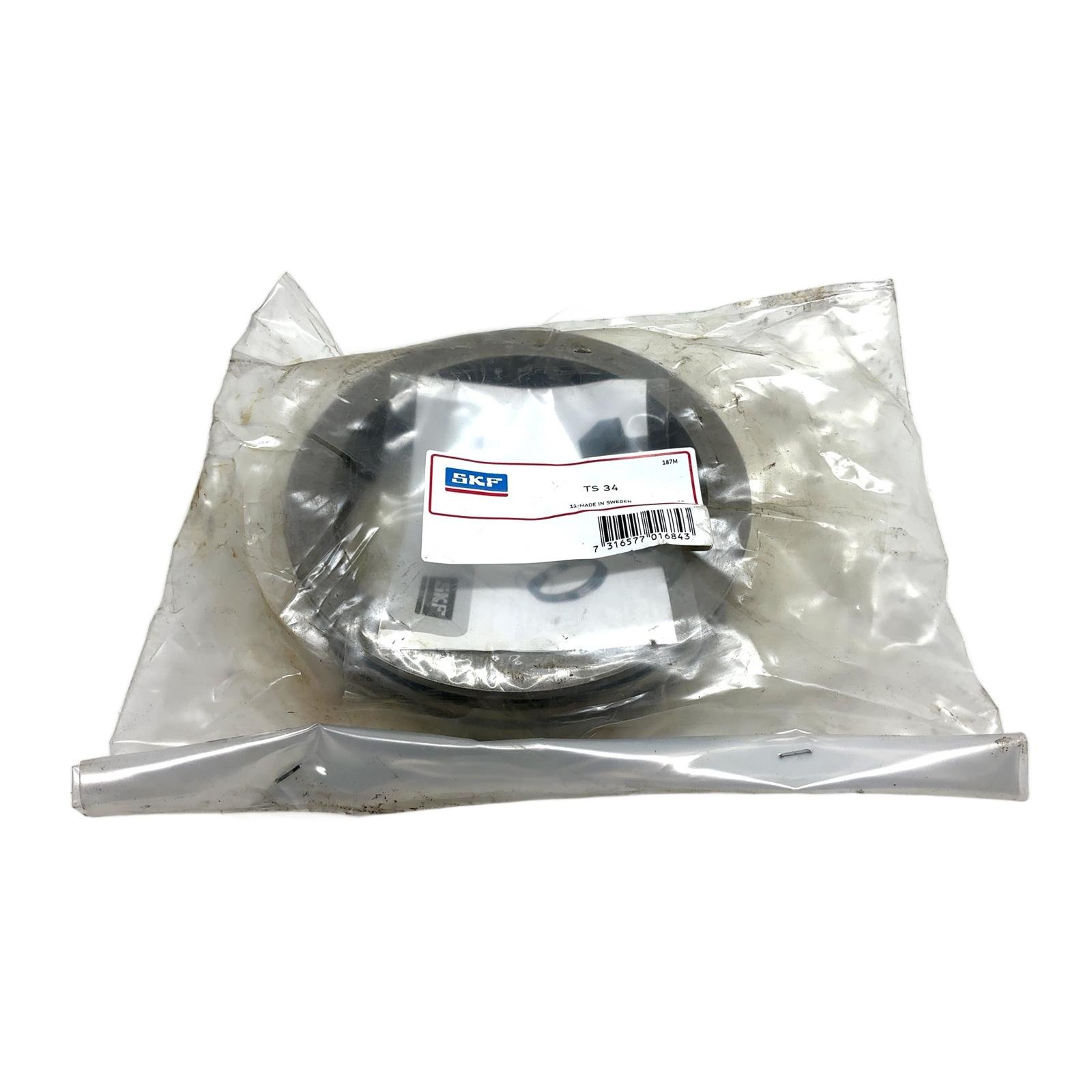

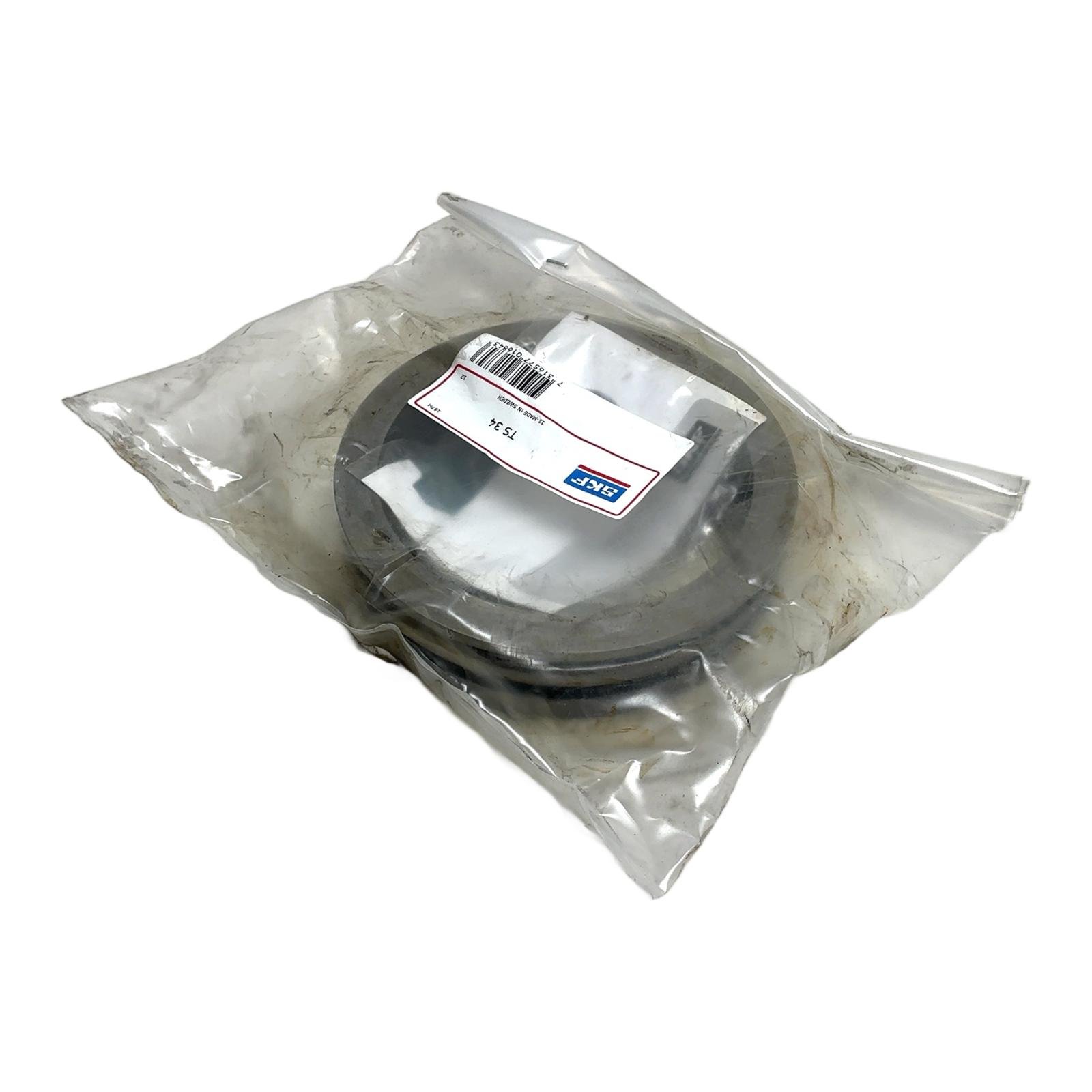

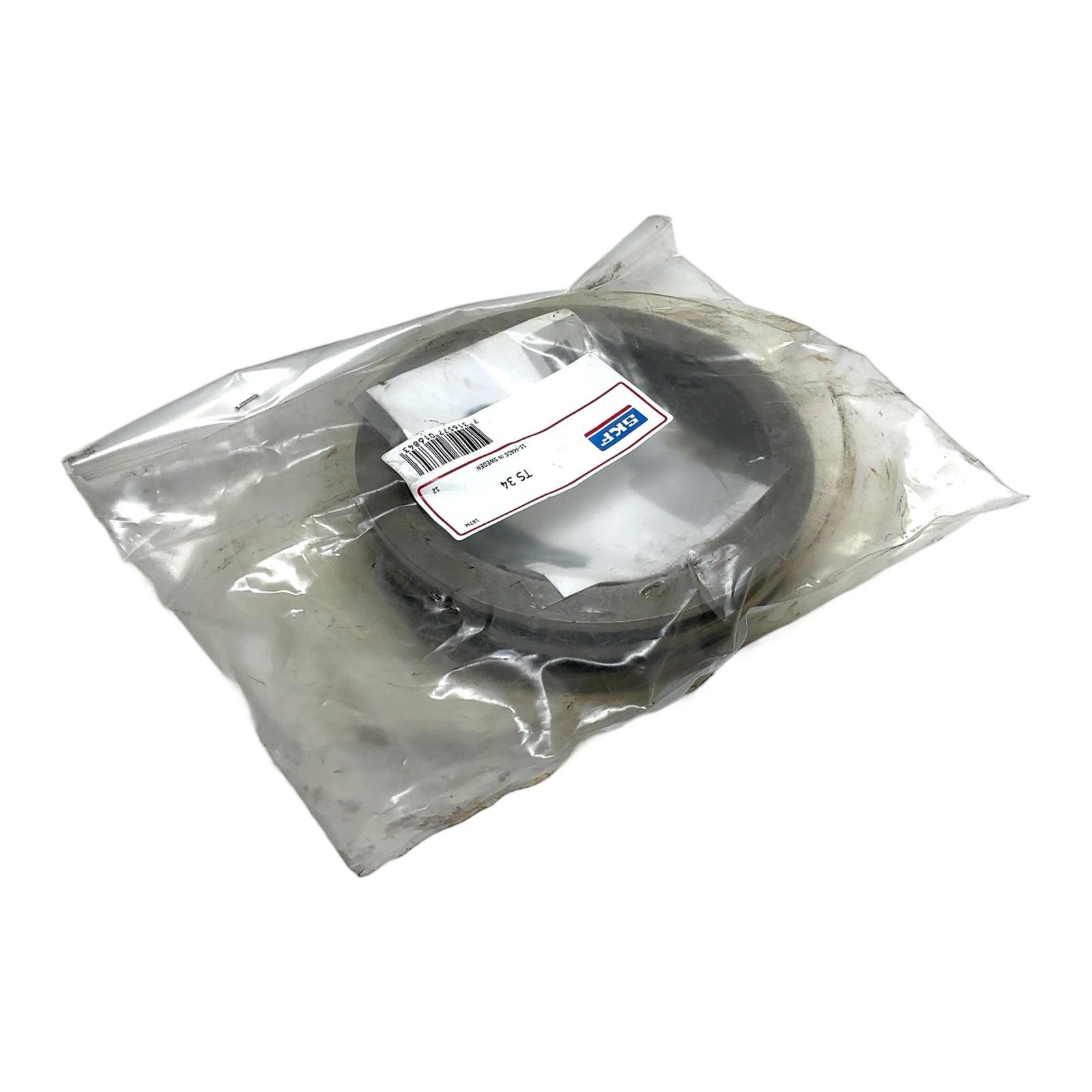

SKF TS34

SKF TS 34 Heavy-Duty Taconite Seal Description The SKF TS 34 is a premium taconite seal designed to provide maximum protection for bearing arrangements in demanding industrial applications. Engineered for split plummer block housings, this seal creates an effective barrier against severe contamination, significantly extending the service life of bearings. Its robust cast iron construction and multi-stage labyrinth design are ideal for harsh environments found in mining, paper mills, and aggregate processing plants. Specifications Manufacturer: SKF Model: TS 34 Seal Type: Taconite, heavy-duty labyrinth seal Shaft Diameter: 150 mm Compatibility: Designed for SKF SNL 3134 and SNL 3234 series housings Material: Cast iron cartridge, nitrile rubber (NBR) V-ring Label Info Part Number: TS 34 EAN: 7316577016843 Application This seal is specifically suited for applications where bearings are exposed to high levels of abrasive dust, dirt, and moisture. It is commonly used on conveyor pulleys, crushers, and other heavy machinery where reliability is critical. Country of Origin Made in Sweden. CO2 Impact By choosing this new-old-stock seal, you help avoid the production of a new one, saving an estimated 7.4 kg of CO2 emissions. This is a sustainable choice for your maintenance needs. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What is the main application for the SKF TS 34 Taconite seal?AnswerThe TS 34 is a heavy-duty seal primarily used for bearing arrangements in split SNL plummer block housings (specifically SNL 3134 and SNL 3234 series) operating in highly contaminated environments, such as mining, cement, and pulp and paper industries. Question? What are the key components of the SKF TS 34 seal?AnswerIt consists of a multi-stage labyrinth seal made from cast iron, which does not make contact with the shaft, and an external V-ring that seals against the labyrinth cartridge. This design effectively purges contaminants and retains grease. Question? Is any special maintenance required for this seal after installation?AnswerThe SKF TS 34 is designed to be greased. It features a grease fitting that allows for periodic relubrication, which purges old grease and contaminants from the labyrinth passages, ensuring optimal performance and extending the service life of the bearing. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
