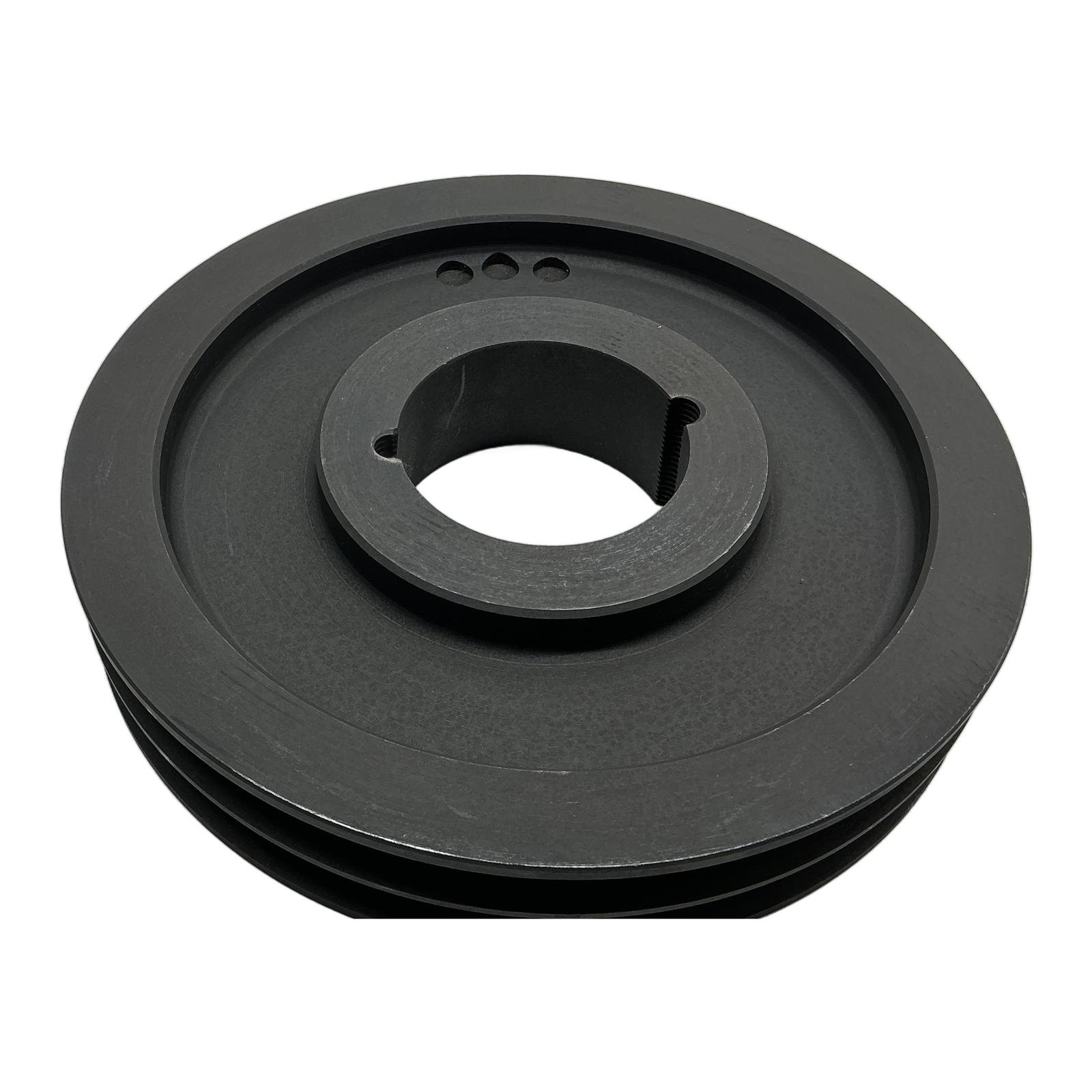

GENERIC SPB 250-2 2517 V-Belt Pulley

Generic 2-Groove V-Belt Pulley for SPB Belts Description This is a high-quality, pre-bored V-belt pulley, type 2SPB250, designed for reliable power transmission in a wide range of industrial applications. Manufactured from durable cast iron, it features two grooves compatible with SPB profile V-belts. The pulley is designed to be used with a 2517 taper lock bush, allowing for easy, secure, and precise mounting on various shaft sizes. Specifications Type: 2SPB250 Number of Grooves: 2 Belt Profile: SPB Pitch Diameter: 250 mm Outside Diameter: approx. 258 mm Required Taper Bush: 2517 Material: Cast Iron (EN-GJL-250 or equivalent) Label Info Part Description: V-RIEMSCHIJF 2SPB250(KLEMB 2517) Internal ID: 102173 Application Suitable for use in conveyor systems, industrial fans, pumps, compressors, and other machinery requiring efficient mechanical power transmission. CO2 Impact Choosing this reused component prevents the emission of approximately 13.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 65 km. Availability This item is in stock and ready for immediate dispatch. The taper bush is not included but can be ordered separately. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a standard pulley and one for a taper lock bush?A standard pulley has a fixed bore with a keyway. A pulley for a taper lock bush has a tapered bore, allowing the use of interchangeable bushes to fit various shaft diameters. This provides a more secure, concentric fit and simplifies installation and removal. How do I correctly install a 2517 taper lock bush with this 2SPB250 pulley?First, ensure the shaft, bush bore, and pulley bore are clean. Slide the bush into the pulley hub, aligning the non-threaded holes. Lightly oil the threads of the grub screws and insert them. Slide the assembly onto the shaft, position it, and then tighten the grub screws alternately and evenly until the specified torque is reached, ensuring the pulley runs true. Can I use an SPC profile V-belt with this SPB pulley?While SPC and SPB belts have the same top width, their depth is different (SPC is deeper). Using an SPC belt in an SPB groove is not recommended as it will not seat correctly, leading to reduced power transmission efficiency, excessive wear, and potential belt slippage or damage. Always match the belt profile to the pulley groove profile. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
