IFM SM7000
IFM SM7000
€ 229,95
1 op voorraad
1 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
IFM |
| Category |
Sensors |
| Description |
Electronic flow meter |
| MPN |
SM7000 |
| Other Notations |
SM7000 |
| Fabr. Art. Nr. |
SM7000 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

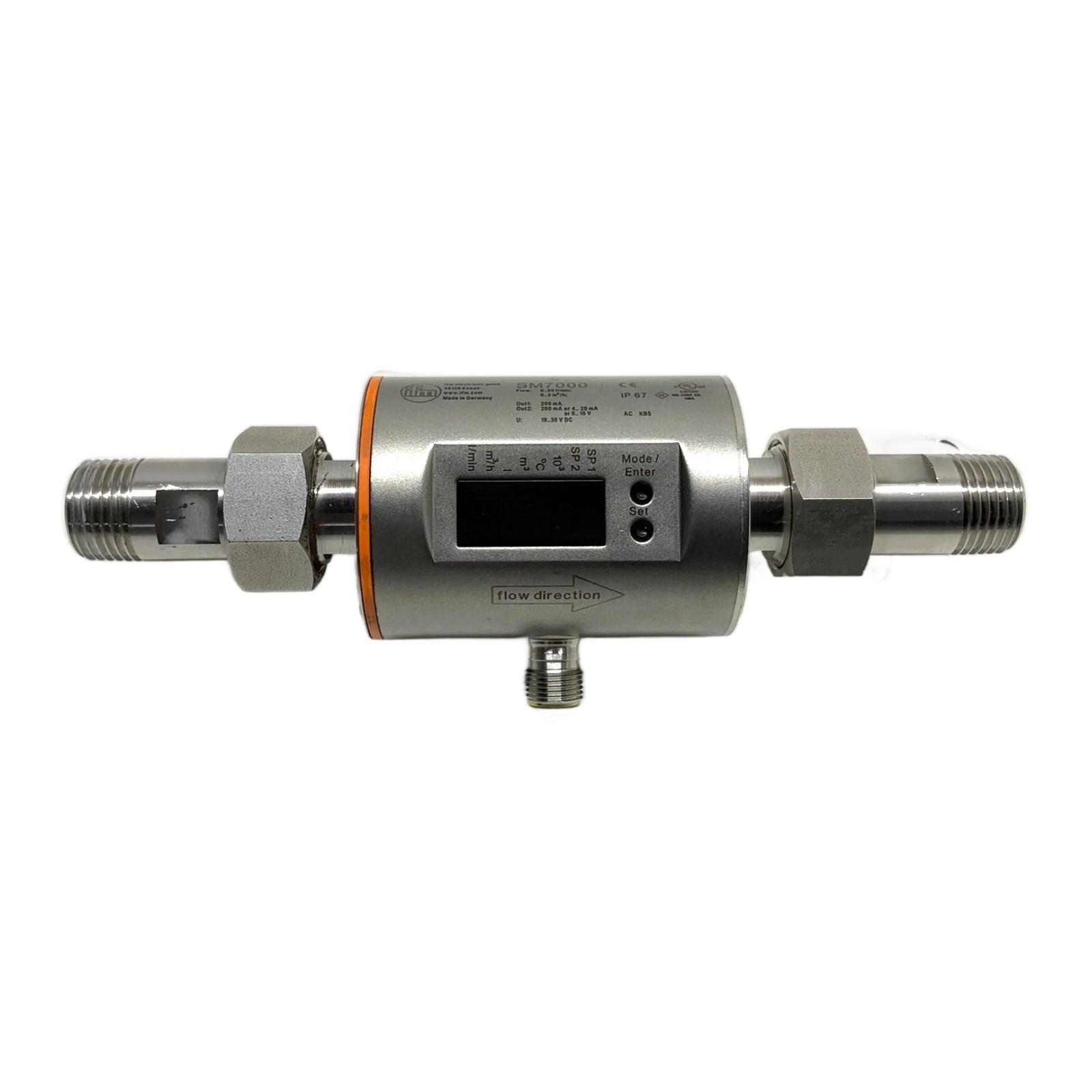

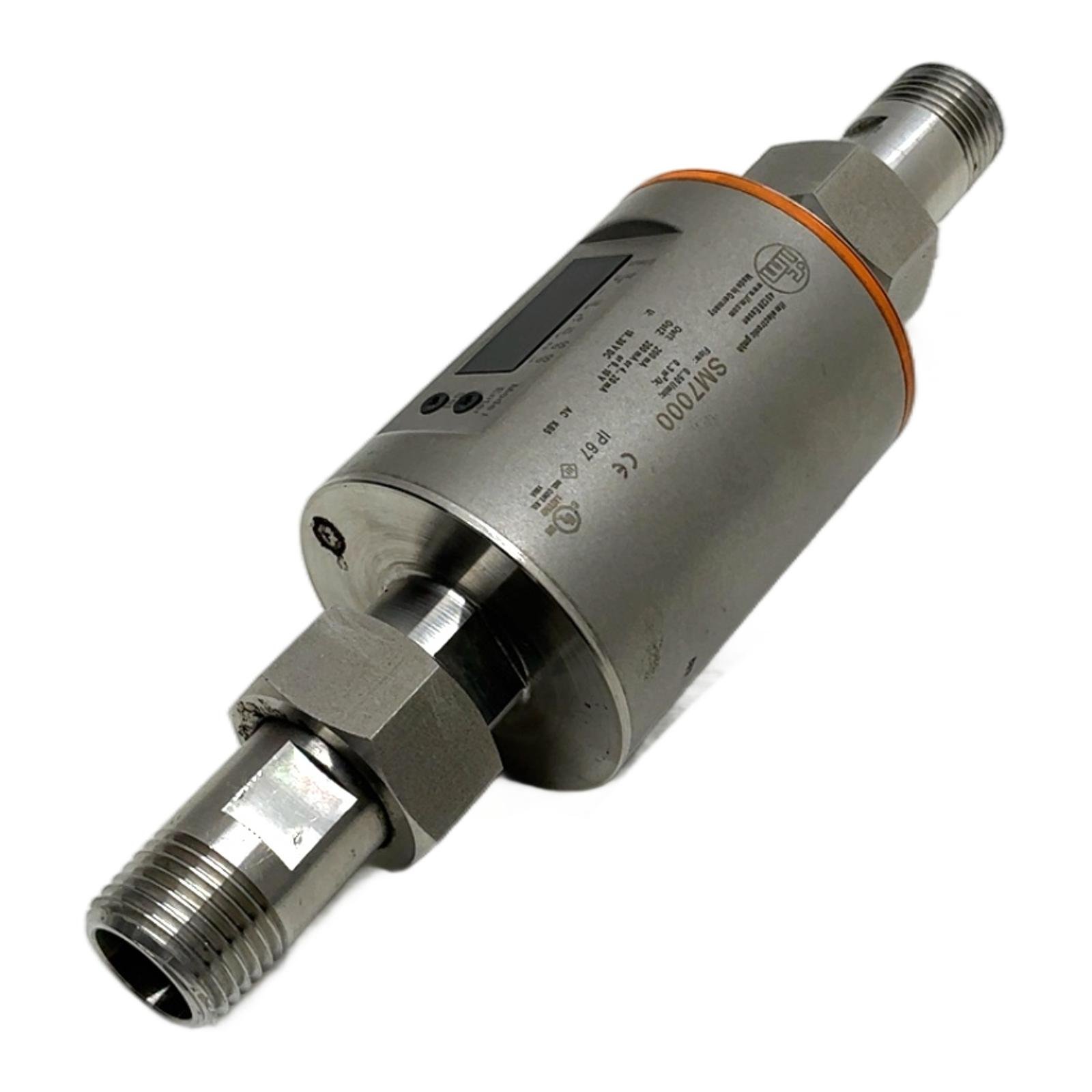

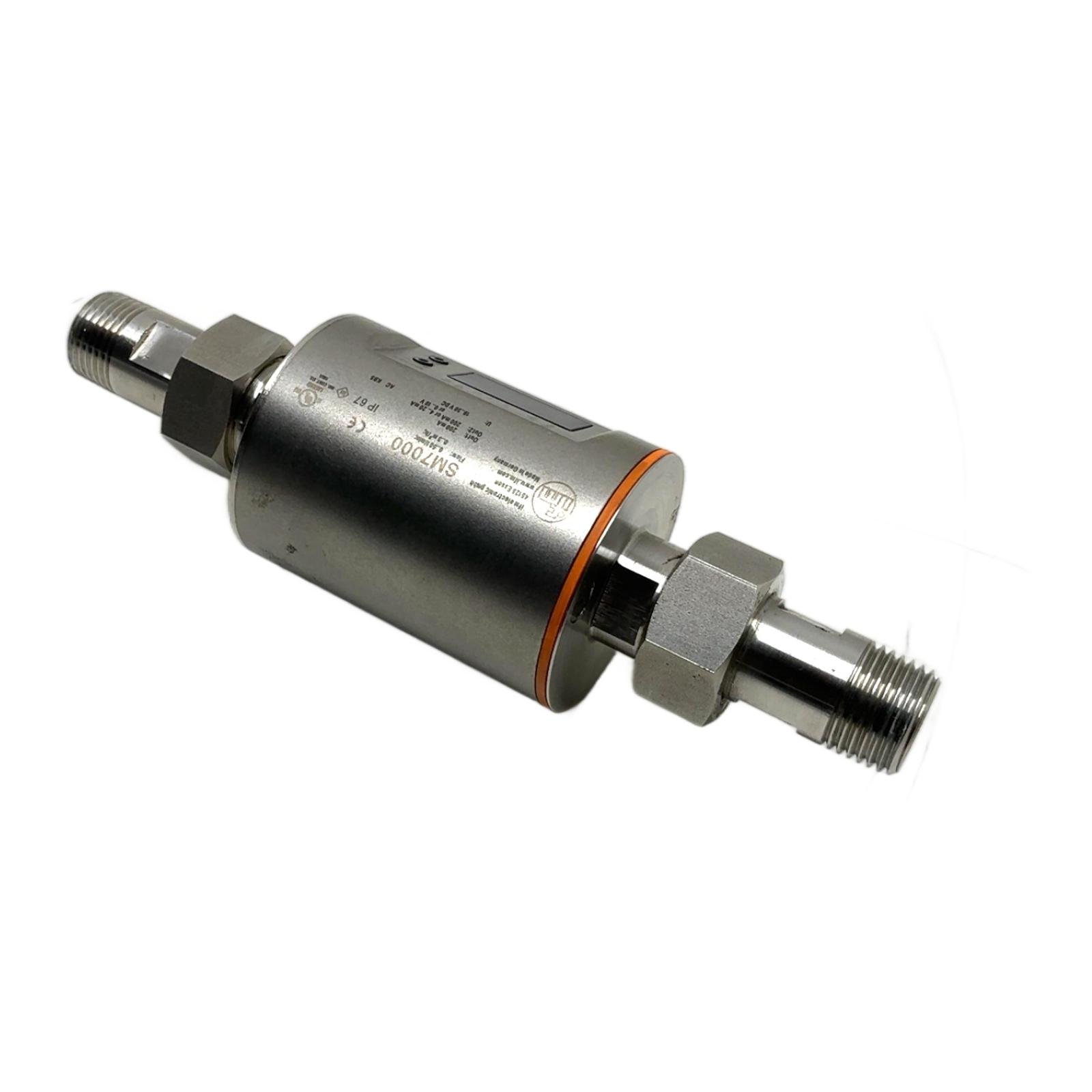

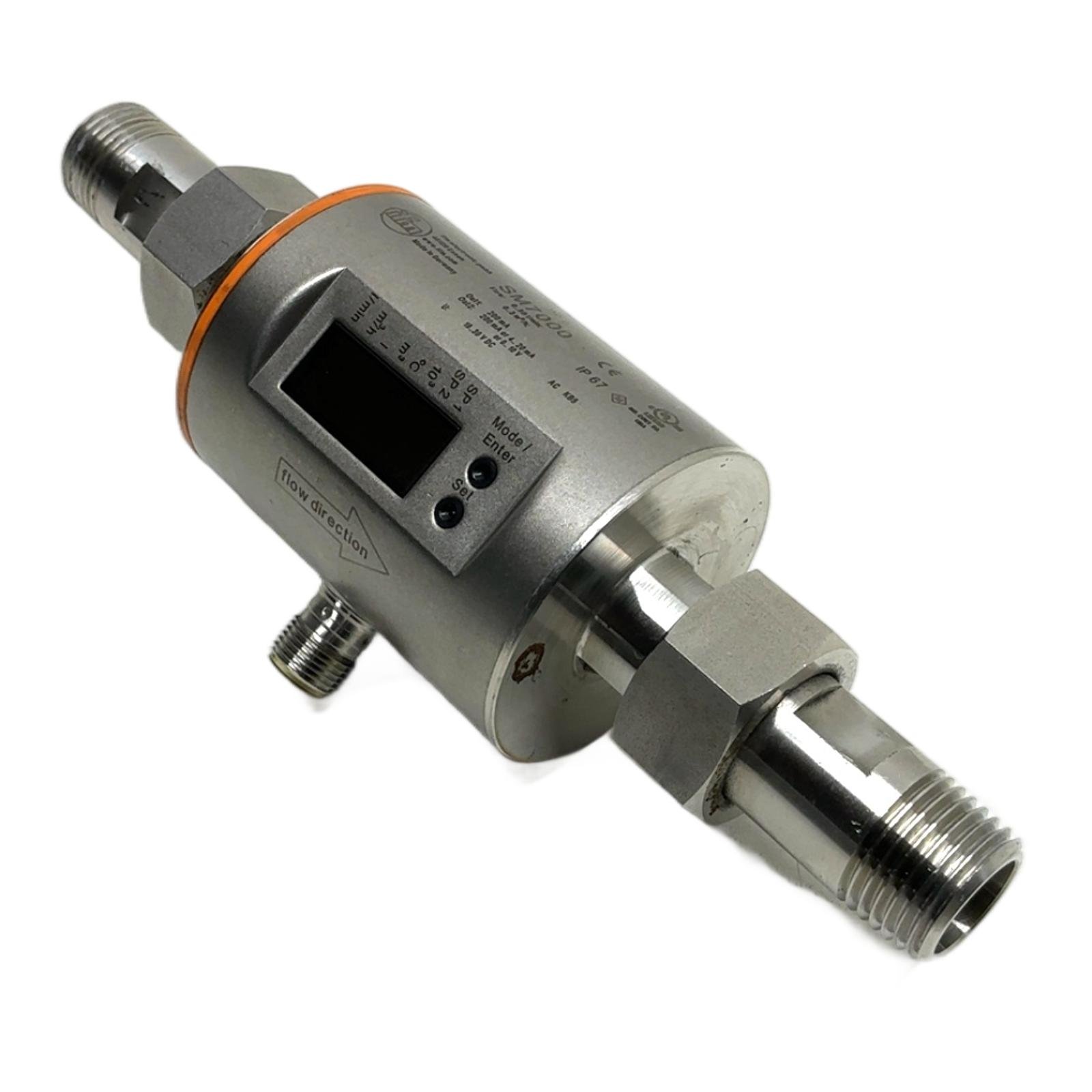

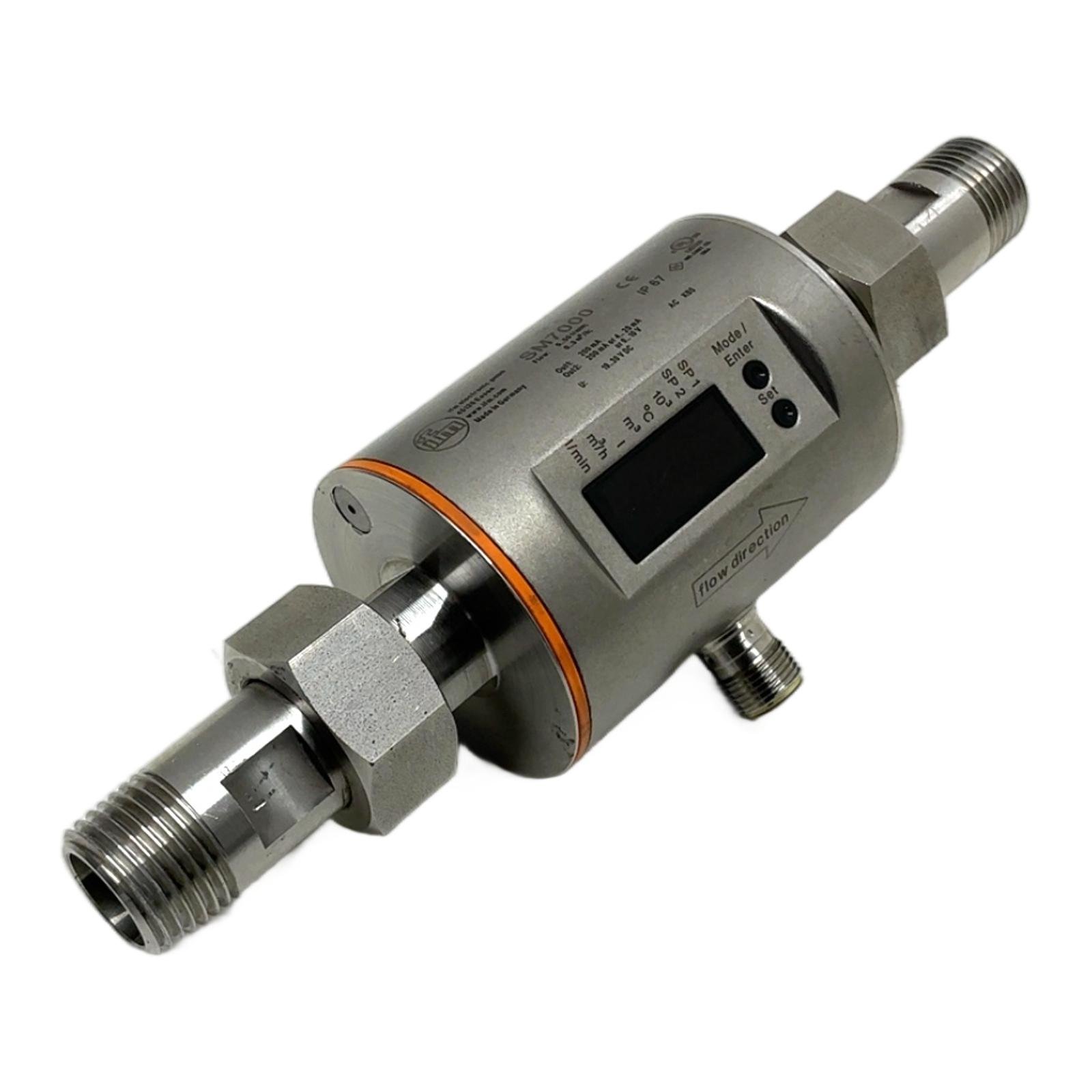

ifm SM7000 Magnetic-Inductive Flow Meter Description The ifm SM7000 is a high-performance magnetic-inductive flow meter designed for the precise measurement of conductive liquids in industrial applications. Its compact and robust stainless steel construction ensures durability, while the integrated display provides immediate local feedback on flow rates. With flexible outputs and an IP67 rating, this sensor is suitable for a wide range of process control and monitoring tasks. Specifications Manufacturer: ifm Type: SM7000 Operating Voltage: 19…30 V DC Outputs: 2 (Switching and Analogue 4…20 mA / 0…15 V) Measuring Range: 0 to 50 l/min Maximum Pressure: 5 MPa / 725 psi Process Connection: G 1/2 Thread IP Rating: IP67 Label Info Model: SM7000 Flow: 0…50 l/min Pmax: 5 MPa / 725 psi Temp: -10 to 60 deg C Supply: 19…30 V DC Out1: 200 mA Out2: 200 mA or 4…20 mA or 0…15 V Application This flow meter is ideal for monitoring cooling circuits, managing process and waste water, and controlling dosing applications in various industries, including machine building and water management. Country of Origin Made in Germany. CO2 Impact Reusing this ifm SM7000 flow meter saves approximately 24.6 kg of CO2. This saving is comparable to the emissions from driving a car for 123 kilometers. Choosing refurbished components makes a tangible environmental difference. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What types of liquids can the SM7000 measure?The SM7000 is designed to measure conductive liquids with a minimum conductivity of 20 microS/cm. It is not suitable for oils or demineralised water. How do I configure the outputs?Configuration is performed using the two pushbuttons (‘Mode/Enter’ and ‘Set’) on the front of the device. The menu allows you to set the output functions, measuring range scaling, and switching points. What are the materials of the wetted parts?The parts in contact with the medium are typically made of high-grade stainless steel (1.4404 / 316L), PEEK for the measuring pipe, and FKM for the seals, ensuring broad chemical compatibility. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
SEW-EURODRIVE RF27 DR63L4/BR Gearmotor 0.25kW 58 RPM 22.32 Ratio Brake Motor 3-Phase
Op voorraad
| Gewicht | 16,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
SEW-EURODRIVE |
| Category |
Gear Boxes |
| Description |
Geared Electric Motor |
| MPN |
RF27 DR63L4/BR Gearmotor 0.25kW 58 RPM 22.32 Ratio Brake Motor 3-Phase |
| Other Notations |
RF27 DR63L4/BR Gearmotor 0.25kW 58 RPM 22.32 Ratio Brake Motor 3-Phase ,RF27-DR63L4/BR-Gearmotor-0.25kW-58- ,RF27DR63L4/BRGearmotor0.25kW58RPM22.32RatioBrakeMotor3-Phase ,RF27DR63L4/BRGearmotor0.25kW58RPM22.32RatioBrakeMotor3Phase |
| Fabr. Art. Nr. |
RF27 DR63L4/BR Gearmotor 025kW 58 RPM 2232 Ratio Brake Motor 3Phase |
PARKER DAB213-OR-O-O-O 2132138
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
PARKER |
| Category |
Valves |
| Description |
Pneumatic control valve |
| MPN |
DAB213-OR-O-O-O 2132138 |
| Other Notations |
DAB213-OR-O-O-O 2132138 ,DAB213-OR-O-O-O2132138 ,DAB213OROOO 2132138 ,DAB213OROOO2132138 |
| Fabr. Art. Nr. |
DAB213OROOO 2132138 |
