RITTAL SK3210.100 SK3210101

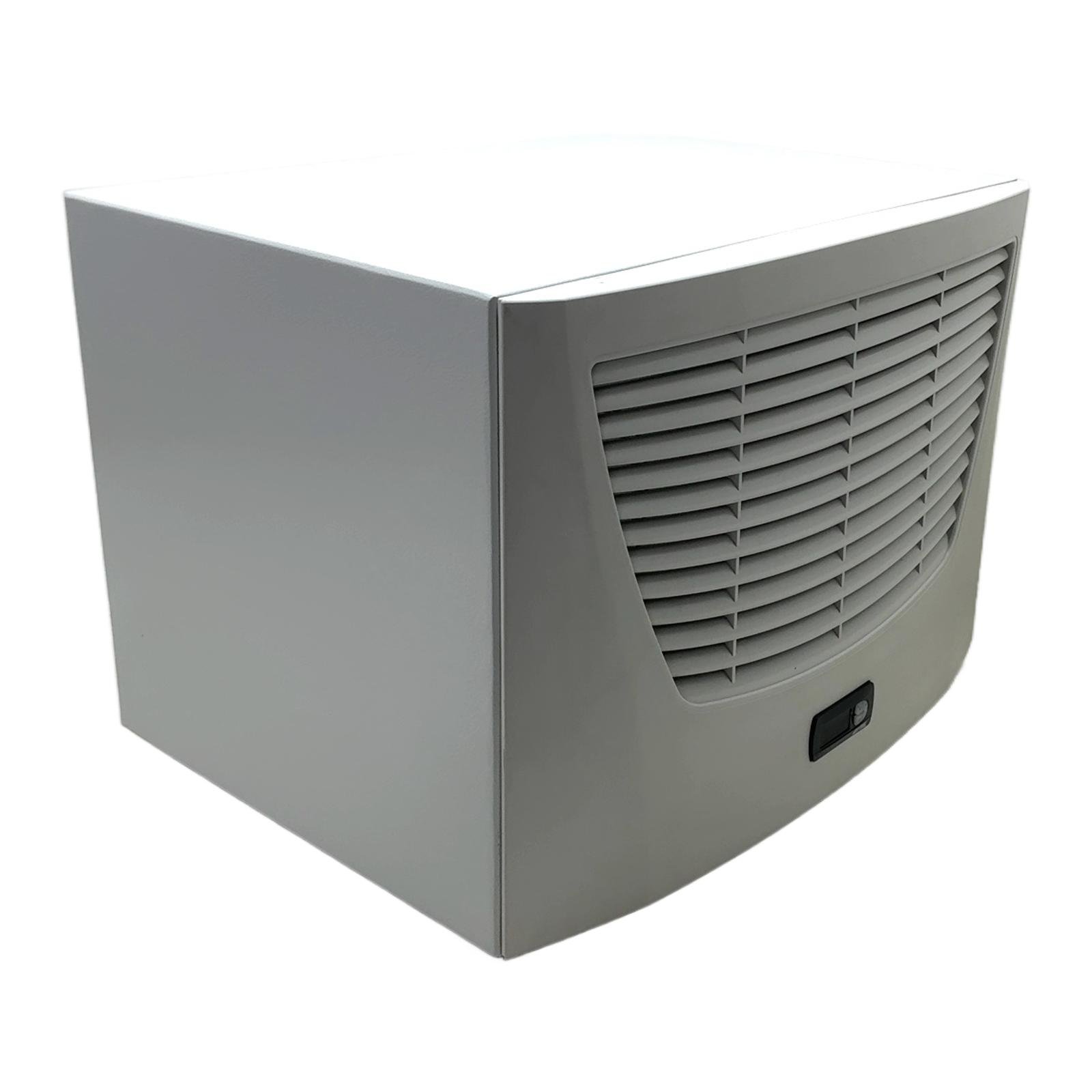

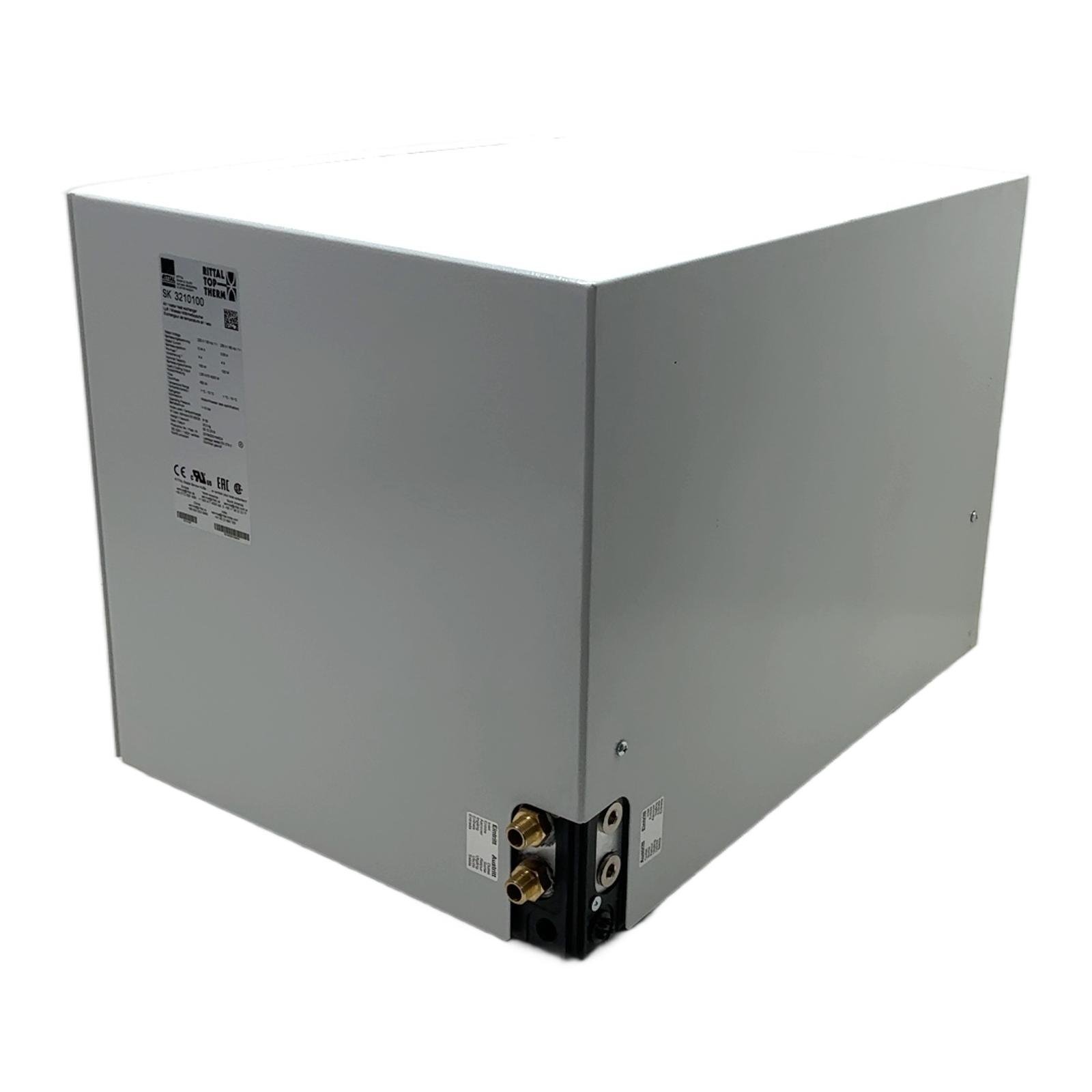

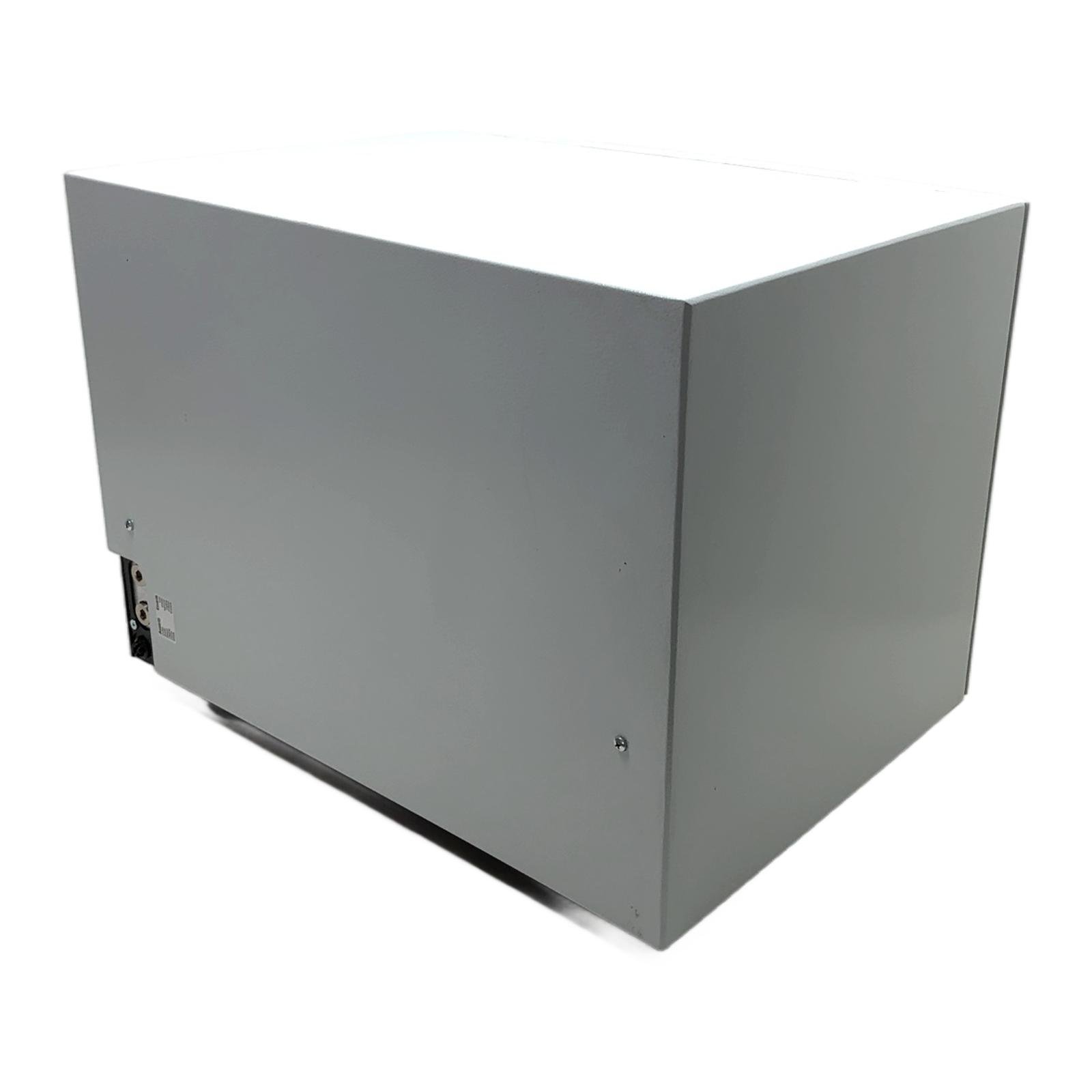

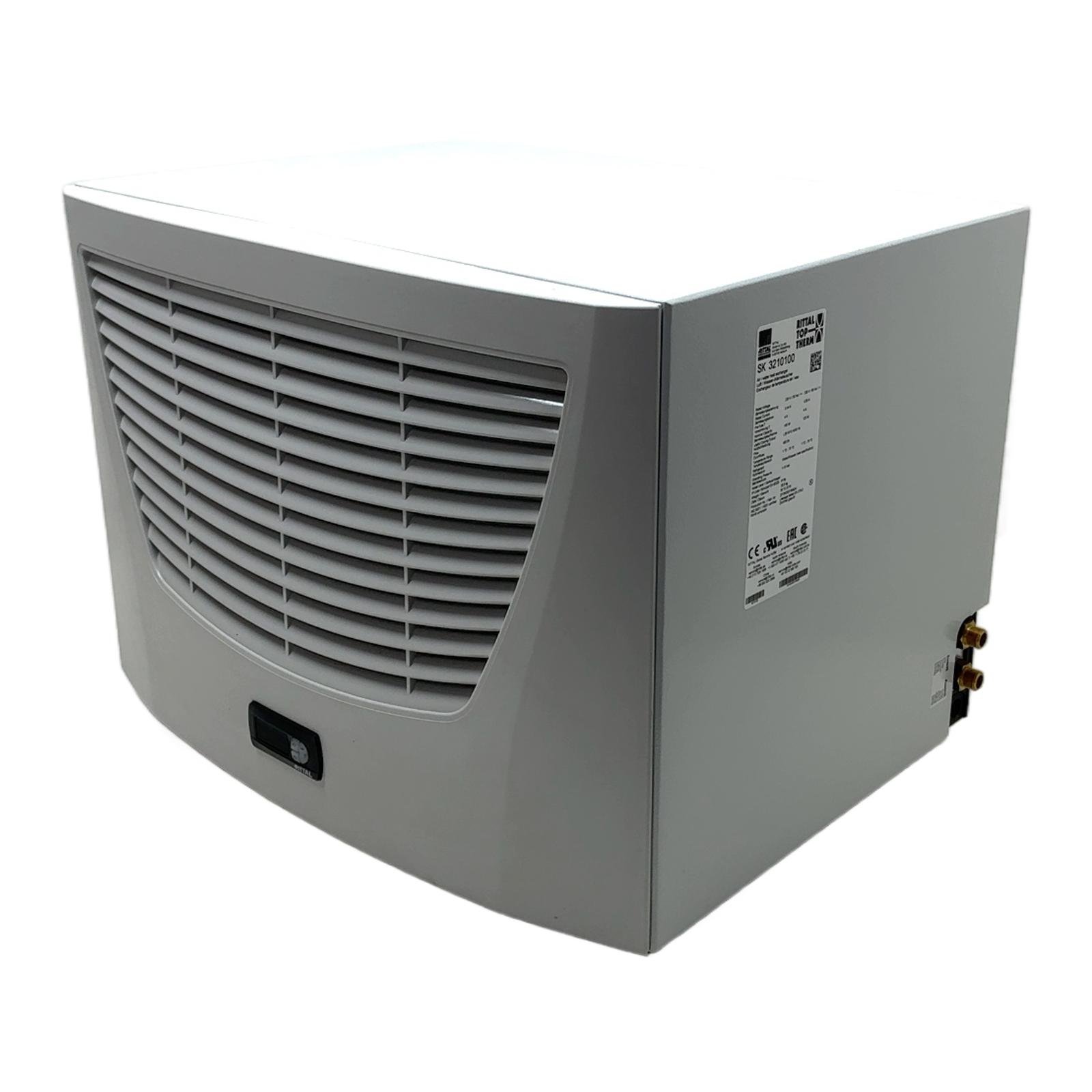

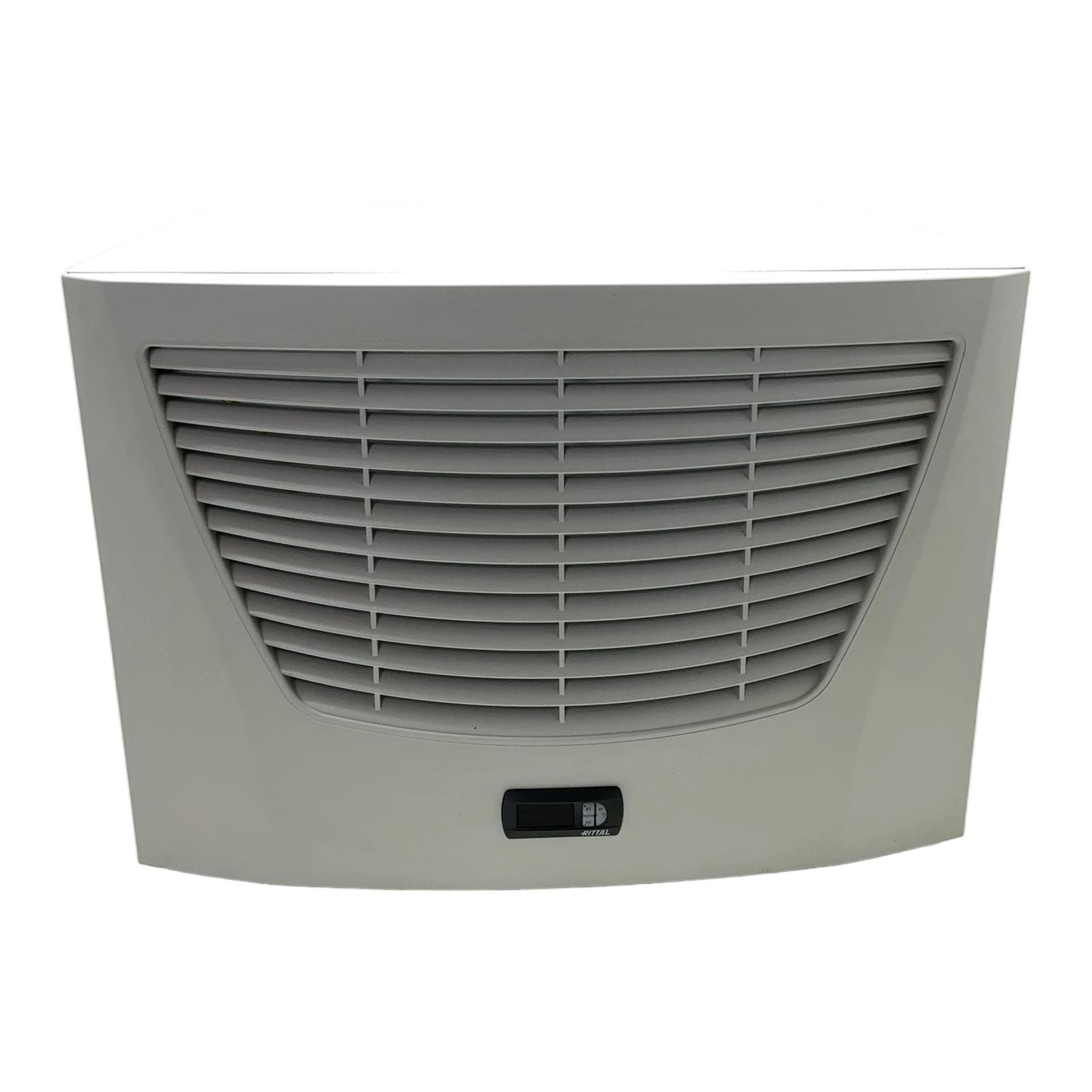

Rittal SK 3210100 TopTherm Heat Exchanger Description The Rittal SK 3210100 is a wall-mounted air/water heat exchanger designed for precise and efficient temperature control in industrial enclosures. It provides a powerful 4000W cooling output, making it ideal for applications with high heat loads. Its robust design and IP55 rating ensure reliable performance in harsh industrial settings, protecting critical components from overheating. Specifications Manufacturer: Rittal Model: SK 3210100 Product Line: TopTherm Useful Cooling Output: 4000 W (at L35 W10) Rated Voltage: 230 V, 50/60 Hz, 1-phase Rated Current: 0.44 A (50Hz) / 0.50 A (60Hz) Nominal Power Consumption: 100 W (50Hz) / 120 W (60Hz) Operating Pressure (Water): 1 to 10 bar Water Flow Rate: 400 l/h Protection Rating: IP55 according to EN 60529 Weight: 25.5 kg Label Info Type: SK 3210100 Production No.: 2018K000184924 Date of Manufacture: 30.10.2018 Application This unit is perfectly suited for cooling sealed enclosures in industries such as manufacturing, process automation, and data centers. It is particularly effective where ambient air is contaminated with dust, oil, or aggressive chemicals, as it creates a closed internal loop, preventing contaminants from entering the cabinet. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned heat exchanger prevents the emission of approximately 165.0 kg of CO2 compared to manufacturing a new one. This saving is comparable to the emissions from driving a standard passenger car for 825 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the required water connection specifications for the SK 3210100?The unit requires an operating pressure between 1 and 10 bar. It uses standard threaded fittings for inlet and outlet connections and is designed for a water flow rate of 400 liters per hour for optimal performance. Is this heat exchanger suitable for environments with high dust and moisture?Yes, absolutely. With an IP55 rating, it is protected against dust ingress and low-pressure water jets from any direction, making it ideal for most demanding industrial environments. Can the internal fan speed be controlled?The SK 3210100 is designed to operate at a fixed speed determined by the 230V, 50/60Hz power supply for consistent and reliable cooling performance. External fan speed control is not a standard feature. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
