SKF SE509

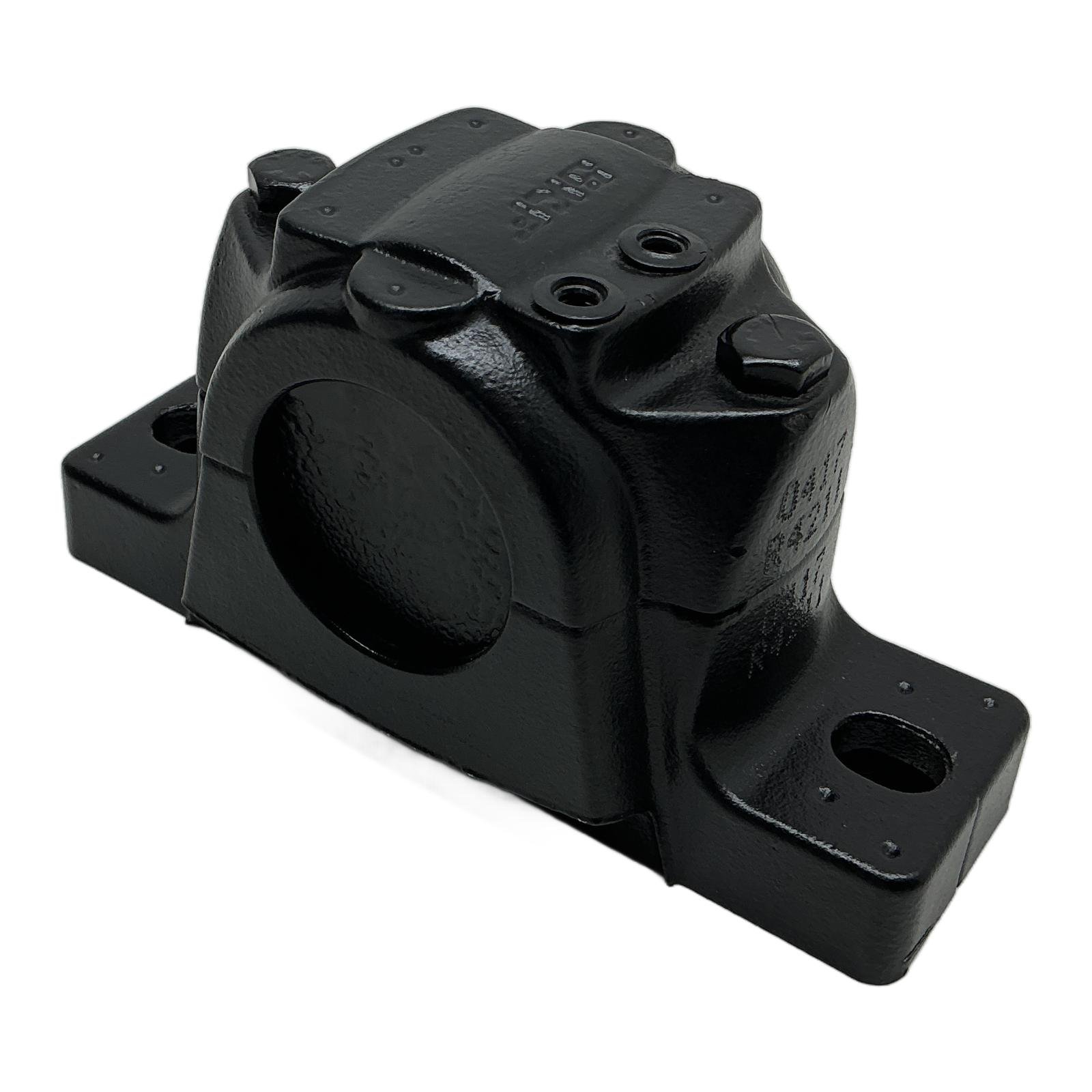

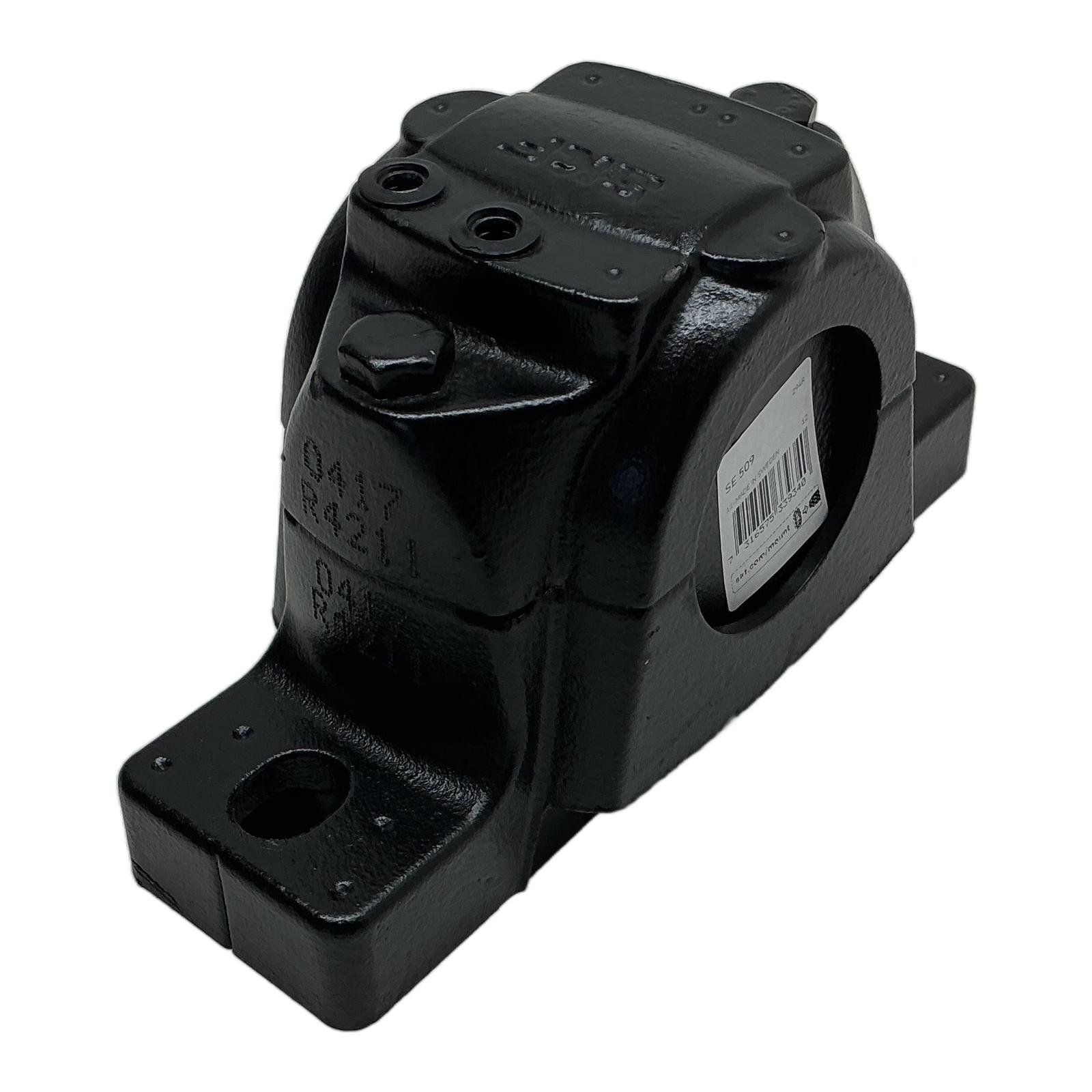

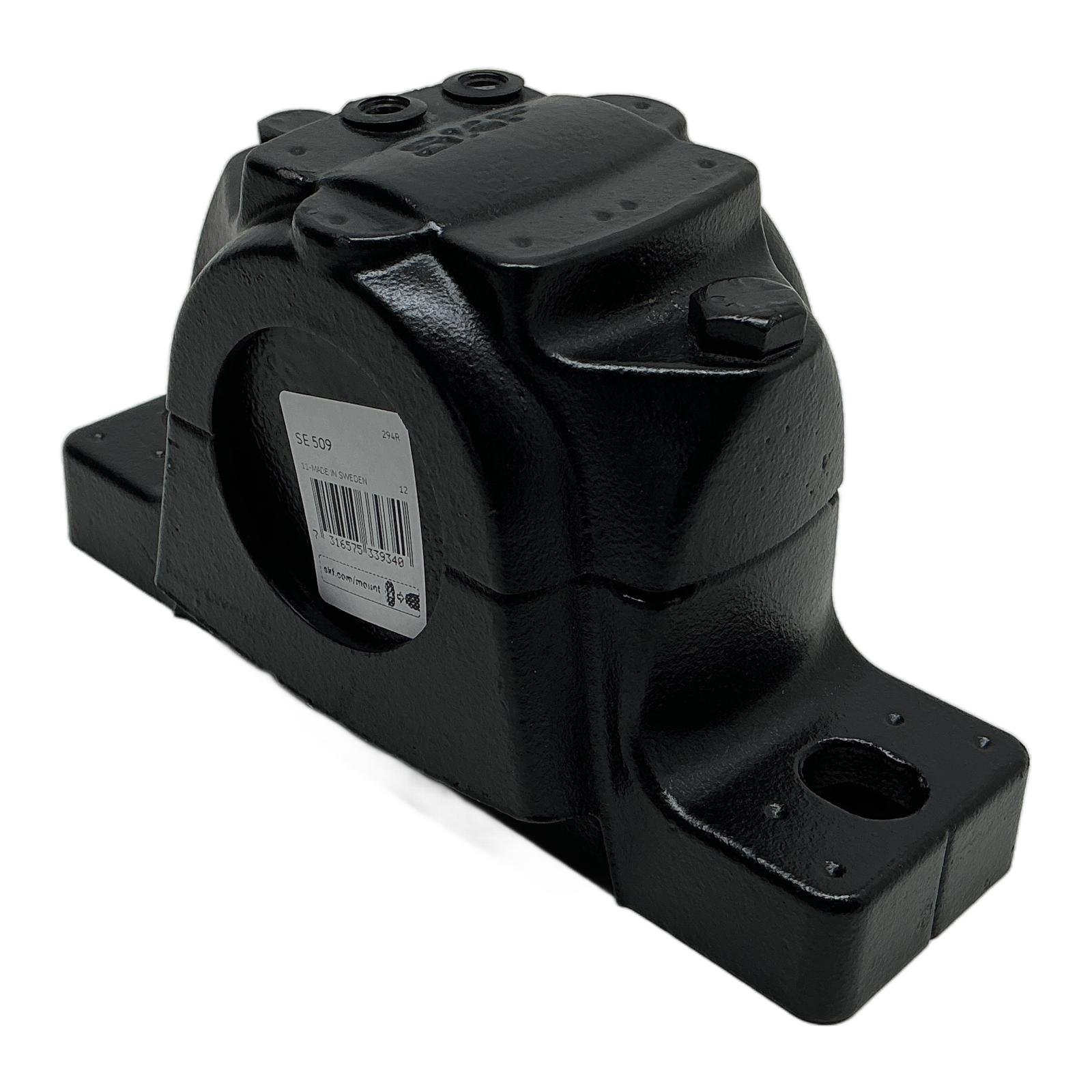

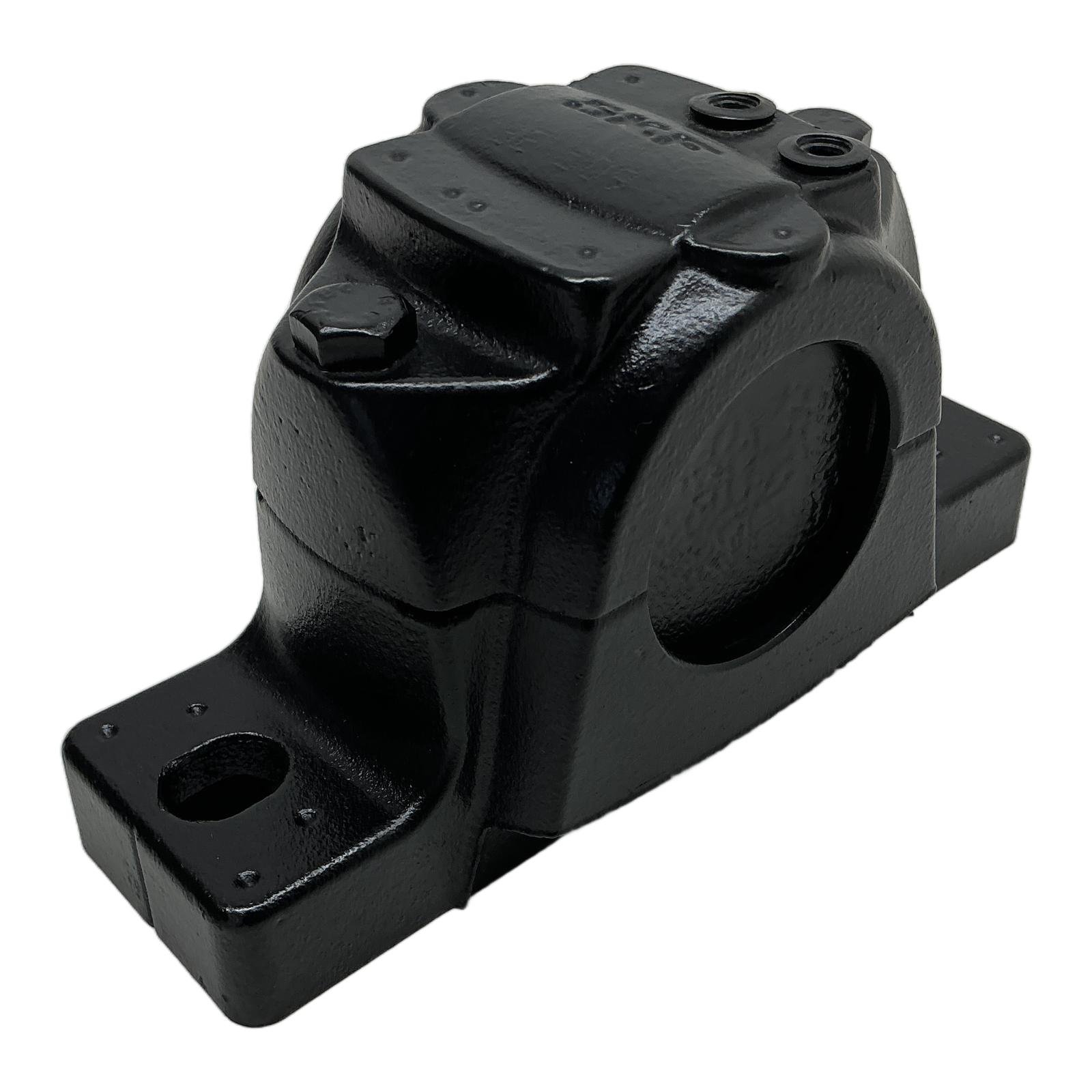

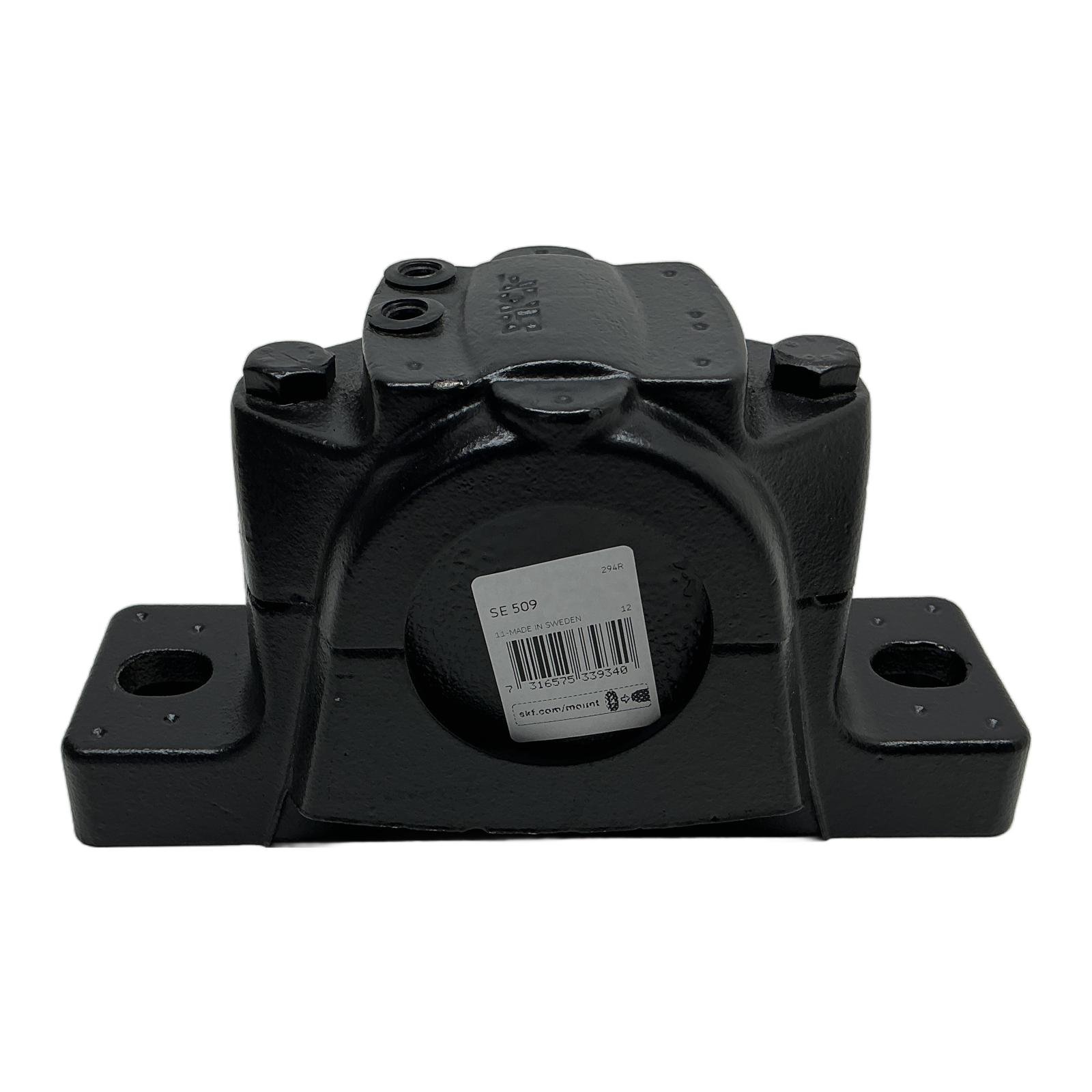

SKF SE 509 Plummer Block Housing Description The SKF SE 509 is a robust and reliable split plummer block housing, engineered for demanding industrial environments. Constructed from high-grade cast iron, it provides excellent stability and heat dissipation for the enclosed bearing. Its split design simplifies the process of mounting, inspecting, and maintaining bearings, reducing downtime. This housing is part of the proven SKF SE series, known for its quality and durability. Specifications Manufacturer: SKF Type: Plummer Block Housing (Split Type) Model: SE 509 Suitable Shaft Diameter: 40 mm (with compatible bearing and adapter sleeve) Material: Grey Cast Iron Mounting: 2-bolt base mounting Label Info Model: SE 509 EAN: 7316575339340 Application The SKF SE 509 is ideal for use in a wide range of applications, including conveyor systems, fans and blowers, agricultural machinery, and general industrial equipment where reliable shaft support is critical. Country of Origin Made in Sweden. CO2 Impact By choosing this pre-owned unit, you are preventing the emission of approximately 6.4 kg of CO2, which would have been generated during the production of a new one. This is a smart choice for both your budget and the environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of bearing is the SKF SE 509 housing designed for?It is designed for self-aligning ball bearings or spherical roller bearings with a tapered bore, typically mounted using an adapter sleeve (e.g., bearing 22209 EK with sleeve H 309). What is the recommended lubrication method for this housing?The housing is designed for grease lubrication and typically includes ports for installing grease nipples, allowing for easy relubrication to ensure optimal performance and bearing life. What are the tightening torque specifications for the housing cap bolts?Proper torque on the cap bolts is critical for correct bearing clearance. The specific torque values are provided in the official SKF technical datasheet for the SE 509 and must be followed precisely during installation. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
