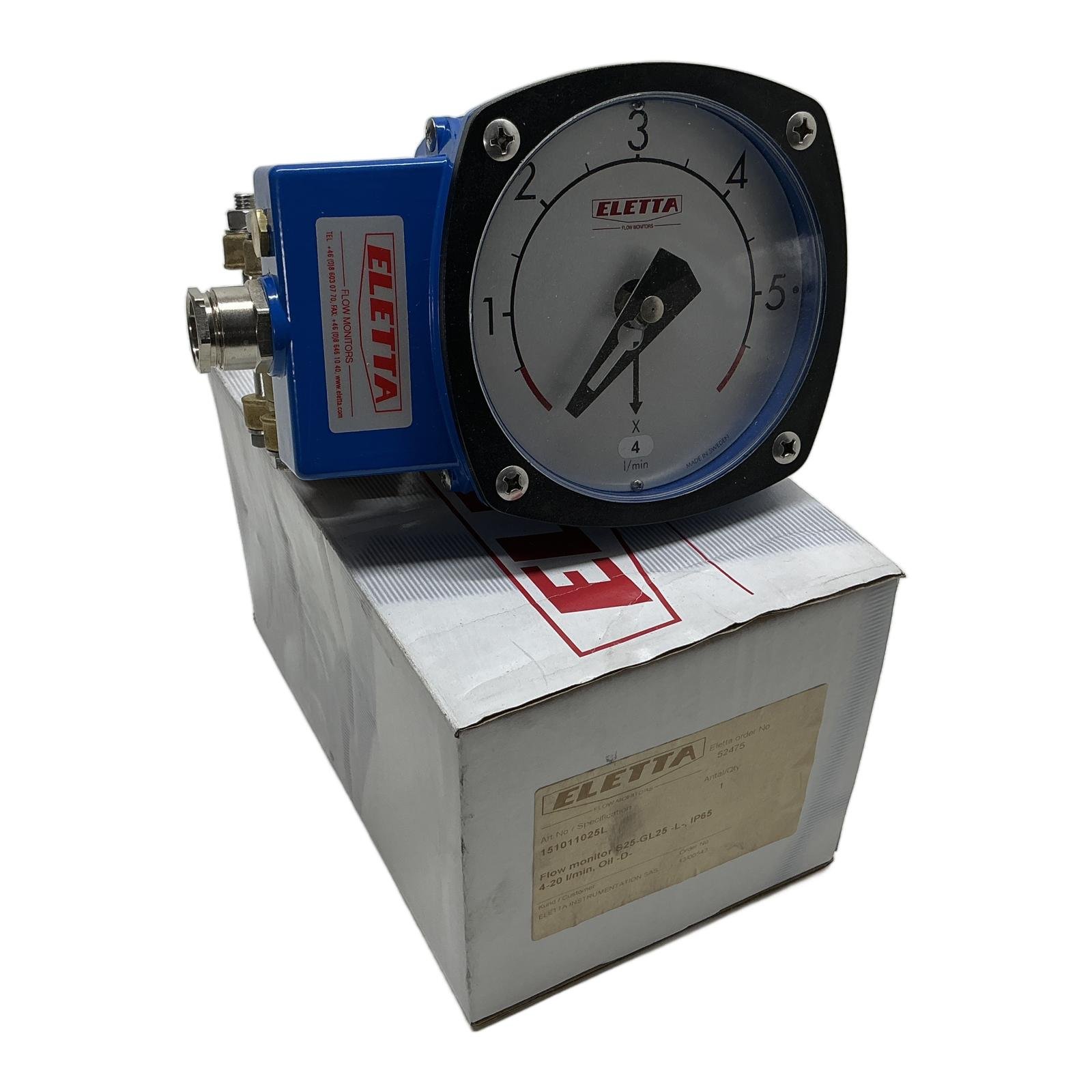

ELETTA S25-GL25 -L- 151011025L 4-20 l/min

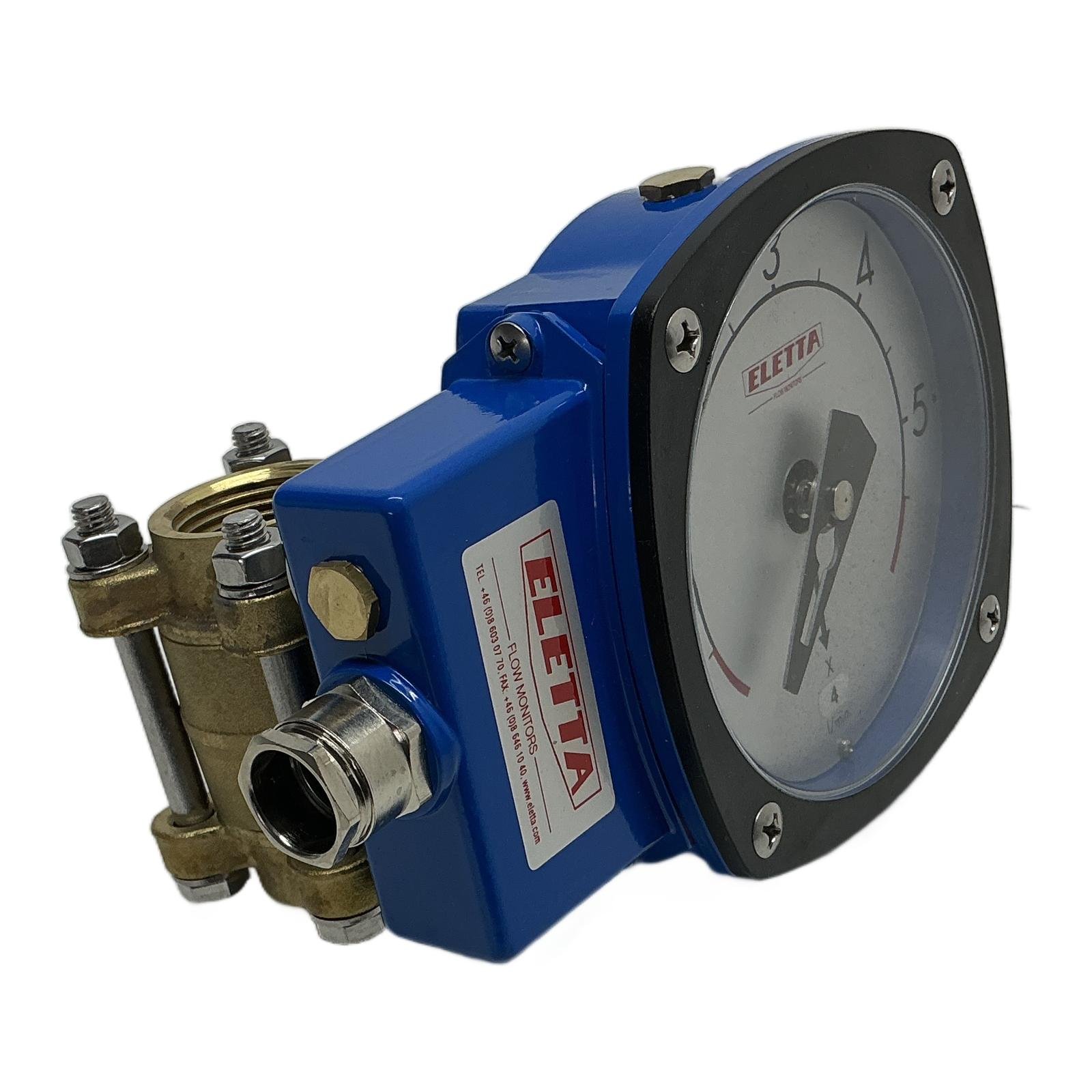

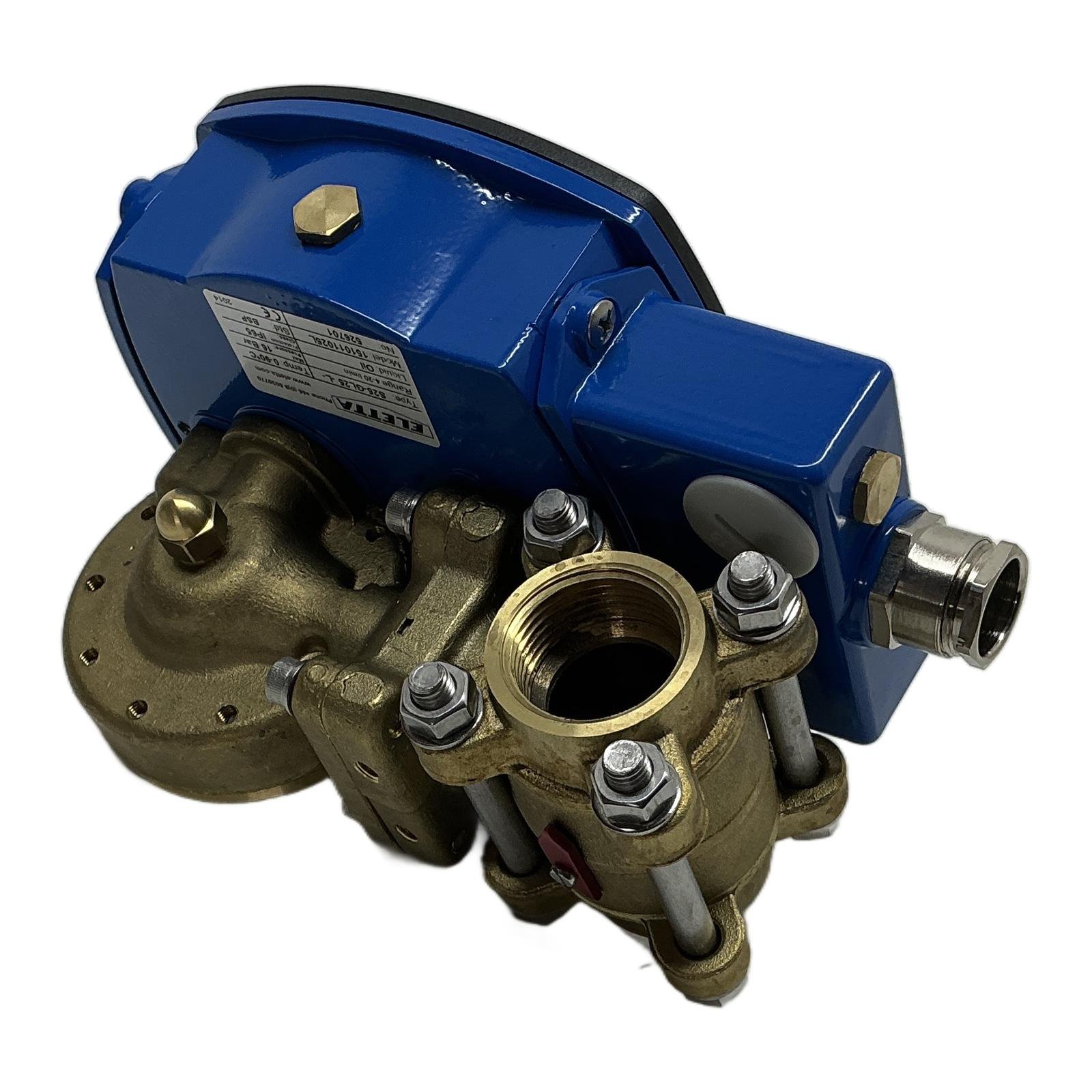

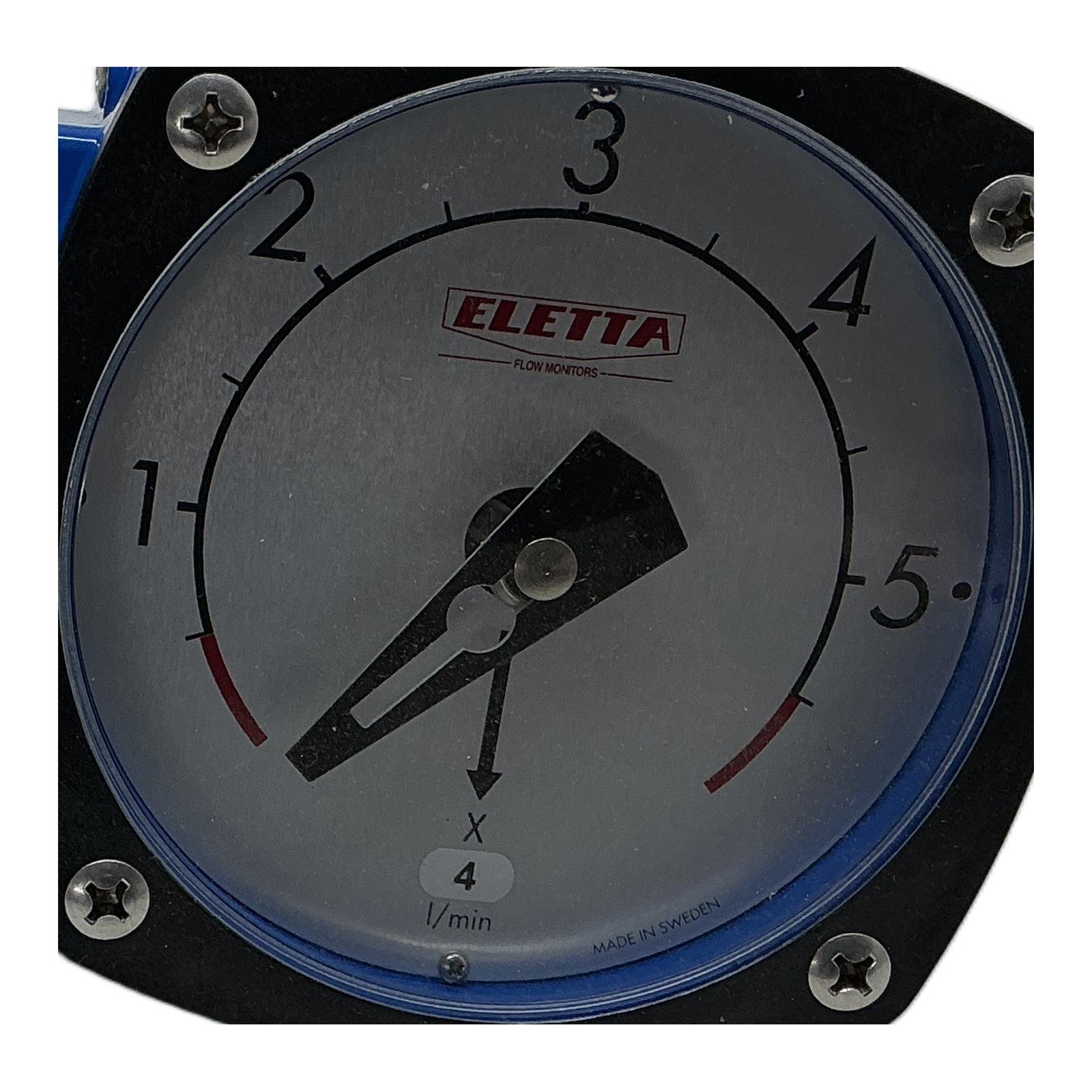

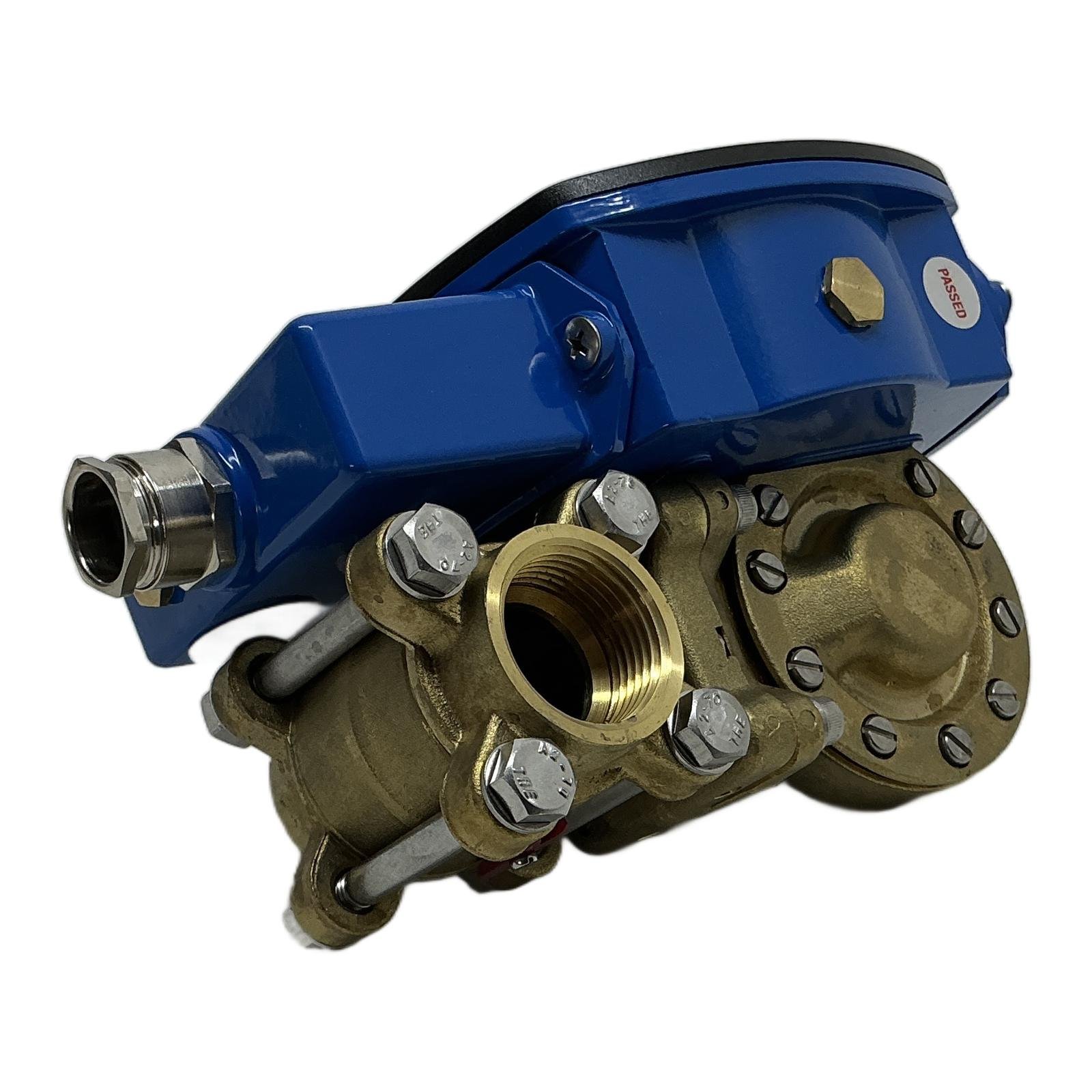

Eletta S-Series Flow Monitor Description This is an S25-GL25-L flow monitor from Eletta, a leading manufacturer of flow monitoring solutions. Designed for reliability and precision, this unit is ideal for monitoring the flow of oil in industrial applications. It features a large, easy-to-read analog dial for local indication and includes both a microswitch for alarm functions and a 4-20mA analog output for continuous monitoring within a control system. Its robust gunmetal construction ensures a long service life even in demanding environments. Specifications Manufacturer: Eletta Type: S25-GL25 -L- Part Number: 151011025L Flow Range: 4 – 20 l/min Medium: Oil Maximum Pressure: 16 bar Maximum Temperature: 90 deg C Connection Size: DN25 / 1 inch BSP Body Material: Gunmetal Electrical Output: SPDT Microswitch & 4-20mA Transmitter Protection Class: IP65 Label Info Type: S25-GL25 -L- Model: 151011025L No: 526701 Application This flow monitor is suitable for various applications, including lubrication systems, hydraulic circuits, cooling systems, and general process monitoring where oil flow needs to be reliably measured and controlled. Country of Origin Made in Sweden. CO2 Impact By choosing this pre-owned but unused component, you are avoiding the emission of approximately 24.0 kg of CO2. This is equivalent to the CO2 emissions from driving a standard car for 120 kilometers. Industrial reuse is a significant step towards a more sustainable future. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the calibration medium for this S25-GL25-L monitor?This unit is factory-calibrated for Oil, as specified on the nameplate. Using it for other media, such as water, would require recalibration or the application of a correction factor to obtain accurate readings. Can this flow monitor be mounted in any orientation?Eletta S-Series monitors are designed for horizontal installation to ensure the highest accuracy of the flow reading and switch points. While vertical mounting is possible, it may affect the measurement and require adjustments. What do the “-L-” and “-D-” designators in the model number signify?The “-L-” suffix indicates the electrical function, which for this model is a combination of an SPDT microswitch and a 4-20mA analog output transmitter. The “-D-” noted on the box label typically refers to specific options or revisions related to the scale or internal configuration for the specified medium. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
