ELETTA S25-GL20 -L- 151011020L 2-10 l/min

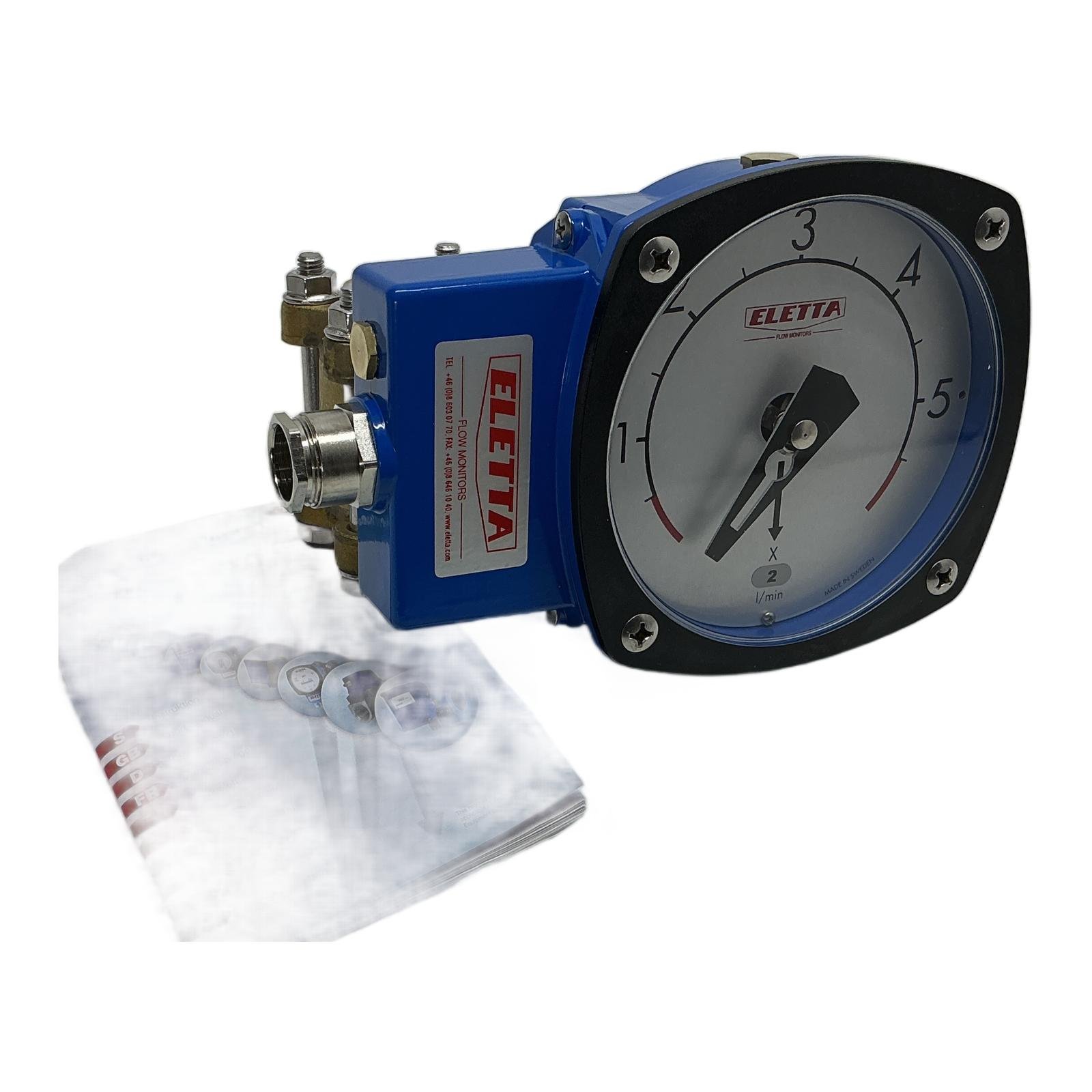

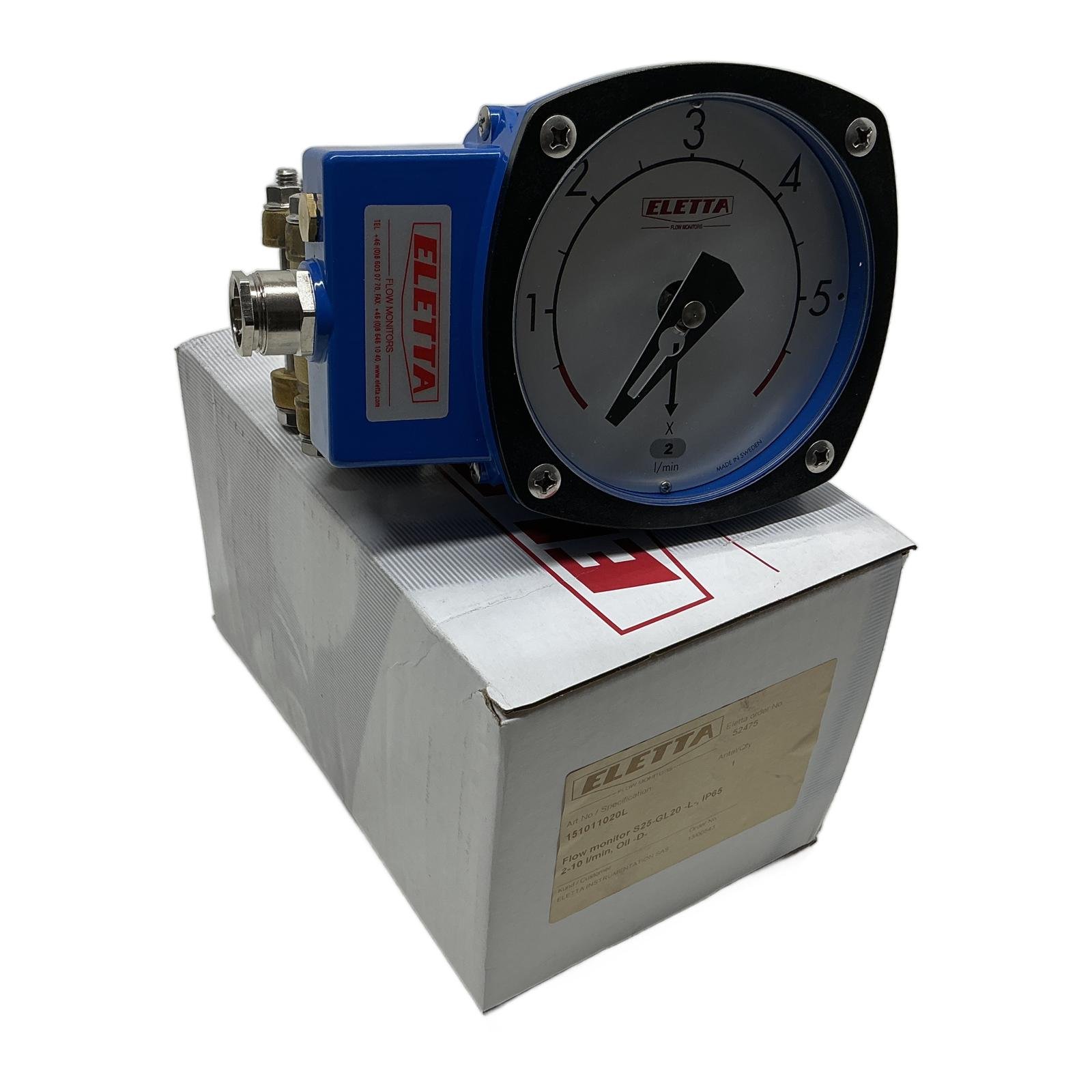

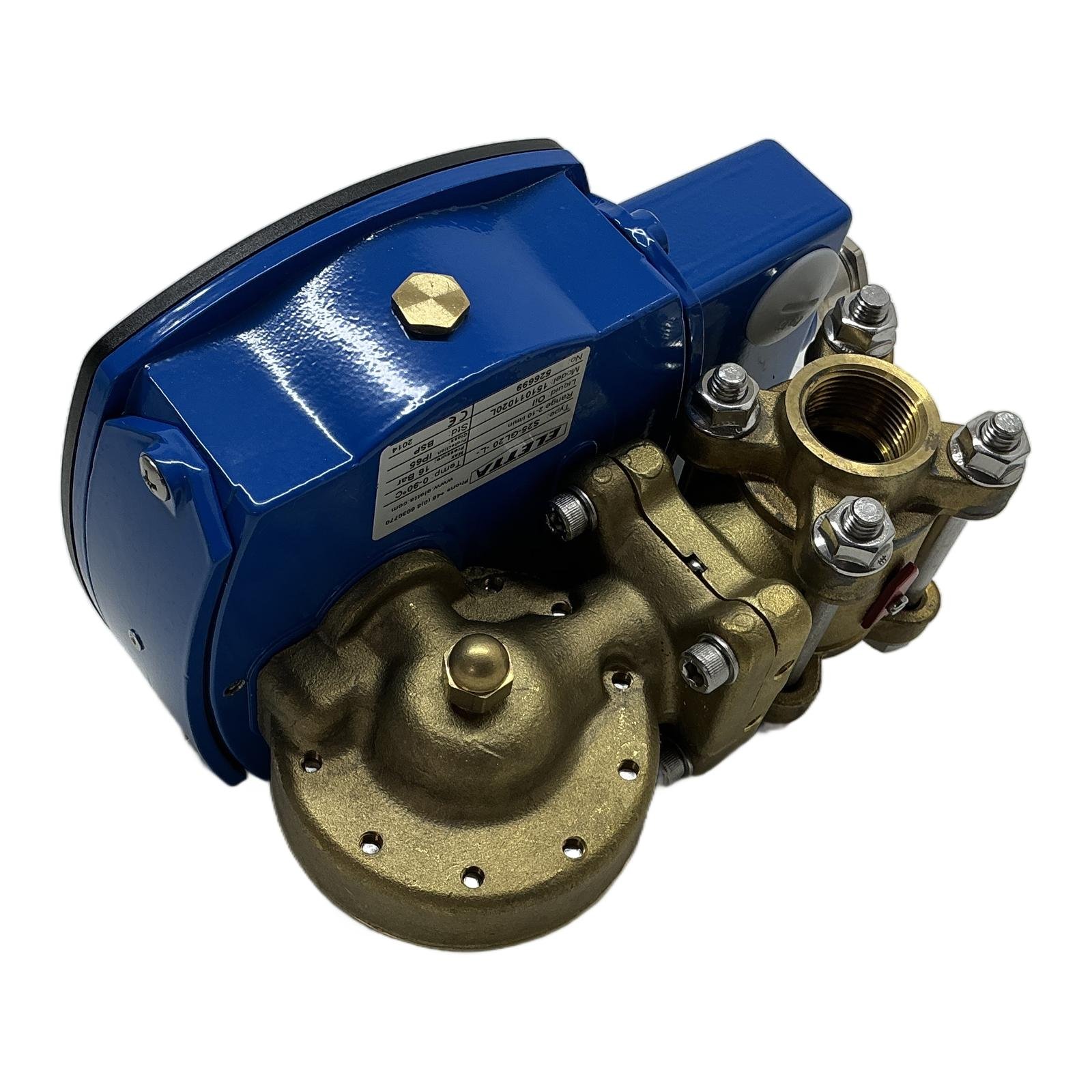

Eletta S25 Series Flow Monitor for Oil Description This is an S25-GL20-L- flow monitor manufactured by Eletta. It is engineered for reliable monitoring of liquid flows, specifically oil, within industrial systems. The device provides a clear visual indication of the flow rate on its large analog dial and includes an integrated microswitch for alarm or control functions. Its robust construction with a gunmetal body ensures long service life even in harsh environments. Specifications Flow Range: 2-10 l/min (liters per minute) Monitored Liquid: Oil Maximum Operating Pressure: 16 Bar Operating Temperature: 0 to 90 deg C Protection Rating: IP65 Connection Thread Standard: BSP Label Info Type: S25-GL20-L- Model: 151011020L Serial No: 526699 Year: 2014 Application Ideal for applications in hydraulic power packs, lubrication circuits, cooling systems, and other machinery where continuous monitoring of oil flow is critical for safe and efficient operation. Country of Origin Manufactured in Sweden. CO2 Impact By reusing this component, you are actively participating in the circular economy. The production of a new flow monitor is avoided, saving an estimated 11.0 kg of CO2 emissions. This demonstrates a commitment to sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘-L-‘ in the type number S25-GL20-L- signify? The ‘-L-‘ designation in Eletta’s type numbers typically refers to the microswitch configuration. For many models, it indicates a single SPDT (Single Pole Double Throw) microswitch. However, it is always recommended to consult the specific product datasheet to confirm the exact electrical specifications. Can this flow monitor be mounted in any orientation? Eletta differential pressure flow monitors like the S25 series are generally designed for horizontal mounting to ensure the highest accuracy. Installing the unit in a vertical orientation can affect the measurement due to the influence of gravity on the internal mechanical components. Please refer to the installation manual for detailed mounting instructions. Is this monitor suitable for use with water? This particular unit is specified and calibrated for ‘Oil’. Using it with water would likely lead to inaccurate flow readings because of the significant differences in fluid density and viscosity. For water applications, you should select an Eletta flow monitor that has been specifically calibrated for water. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
