ELSTER QA65 50 Z I 8000310657

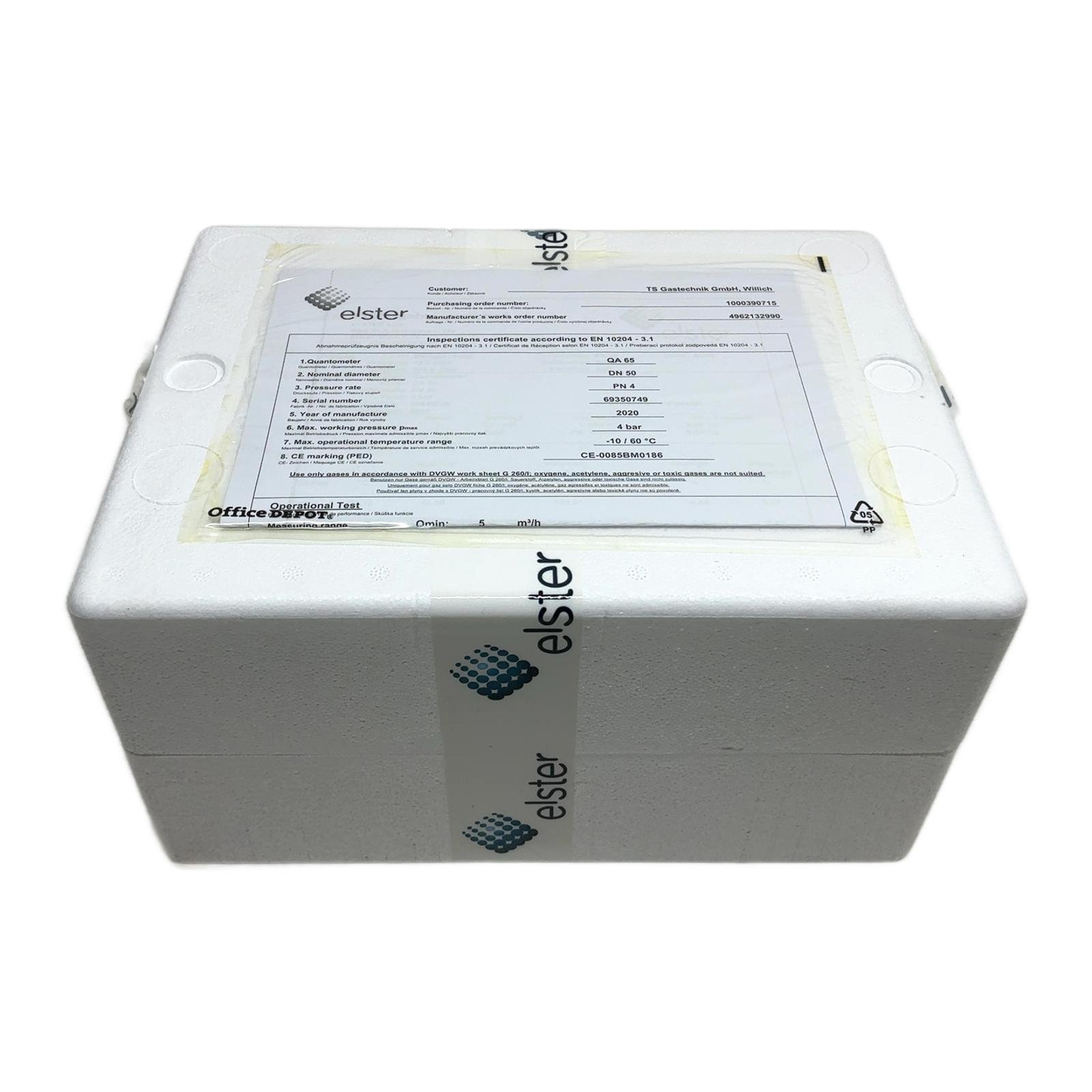

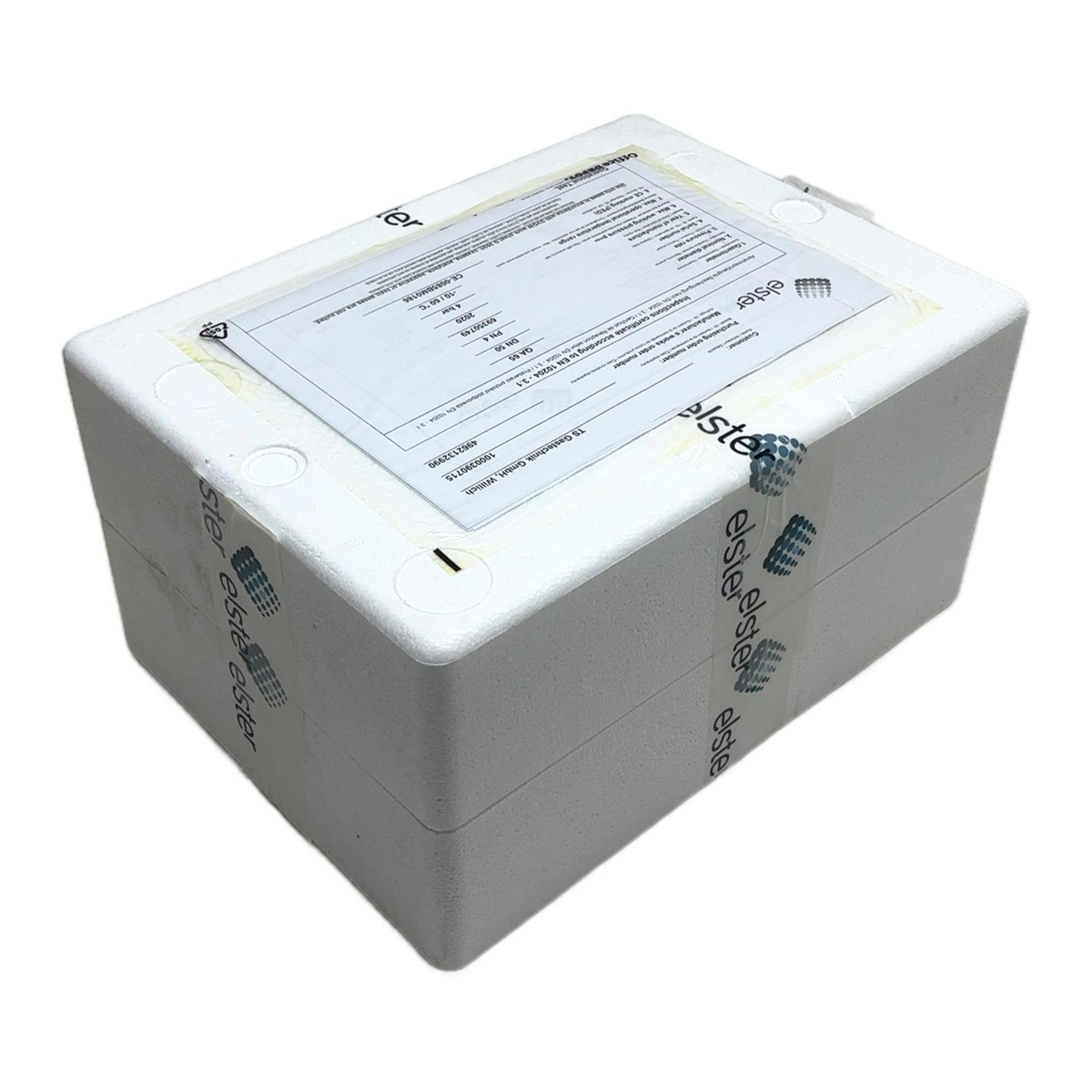

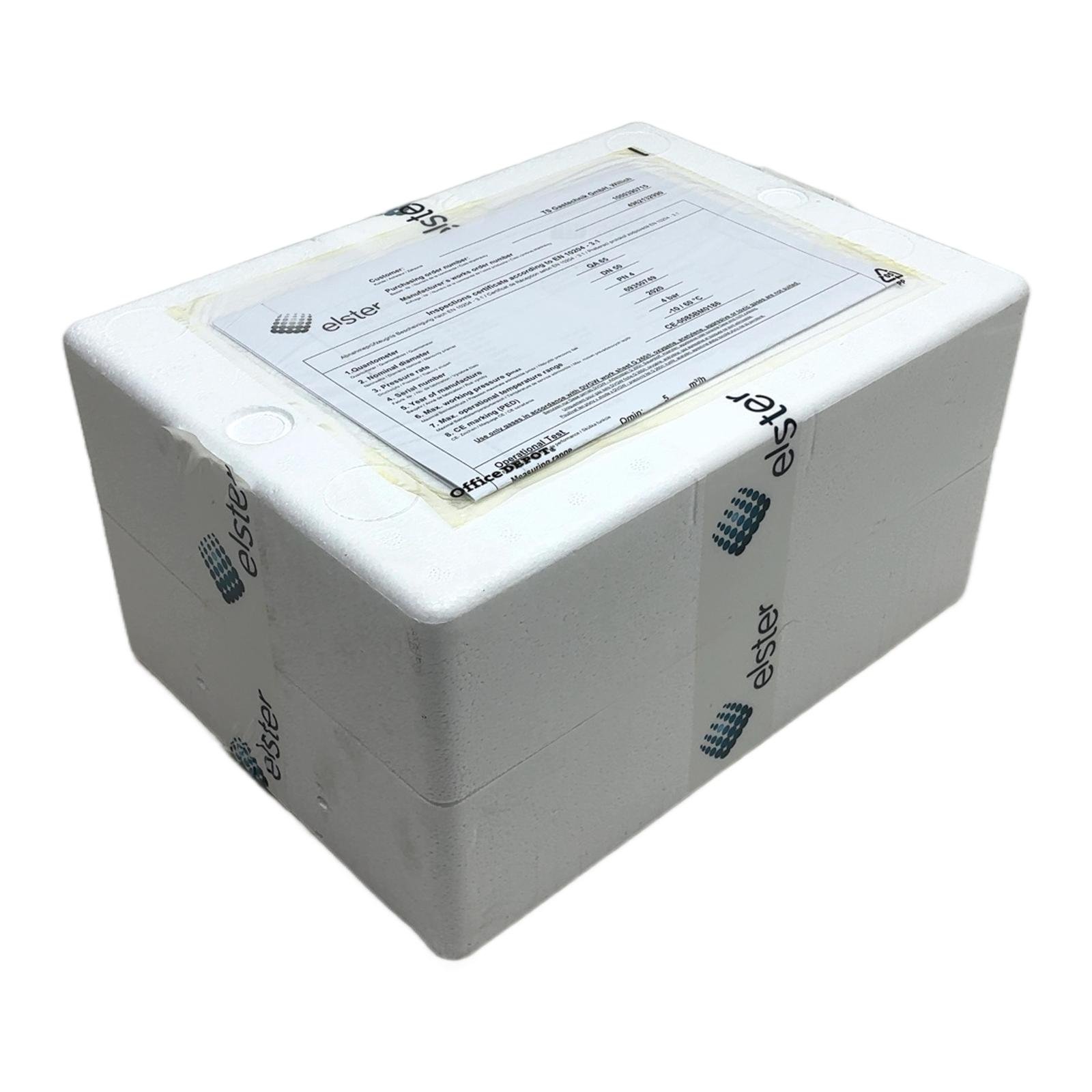

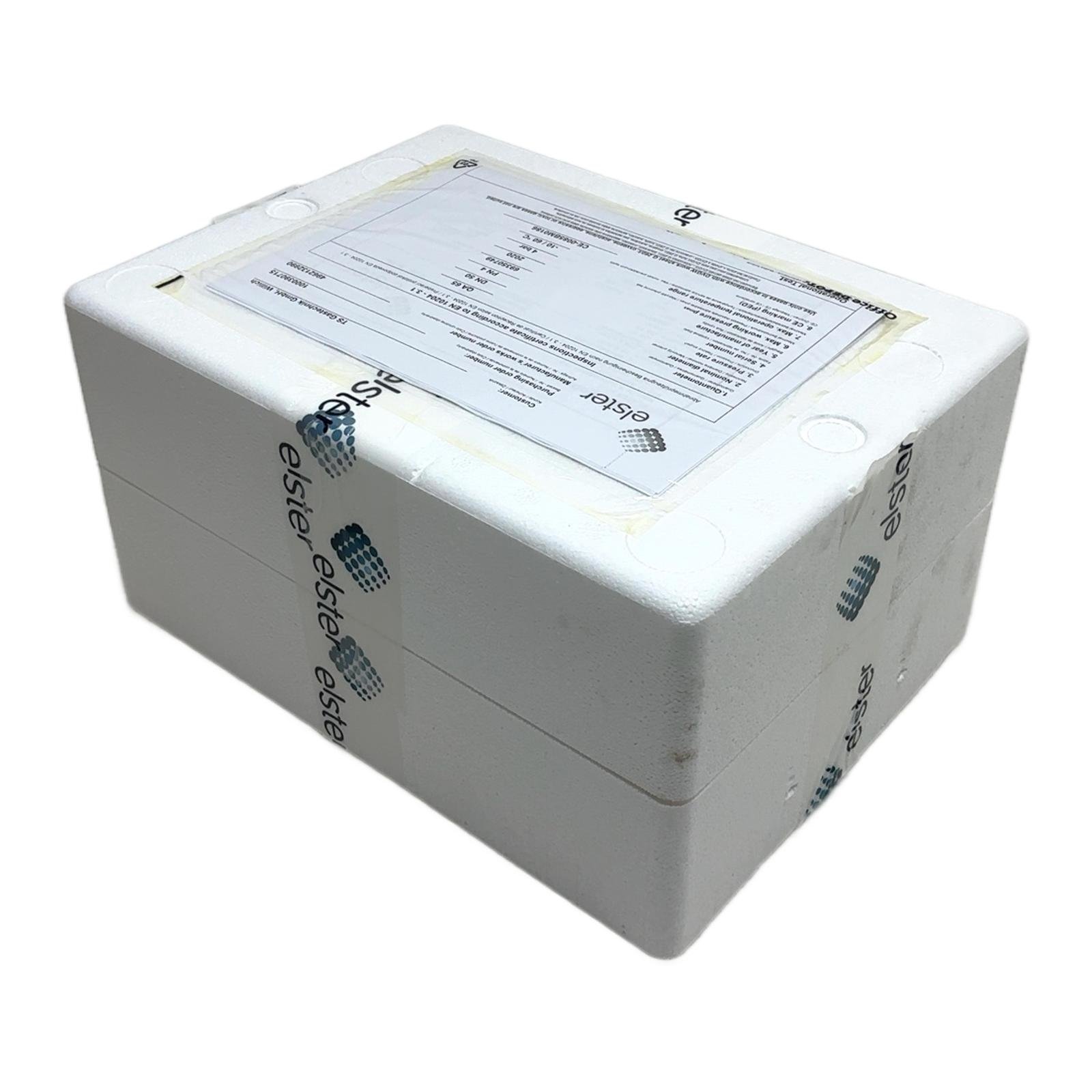

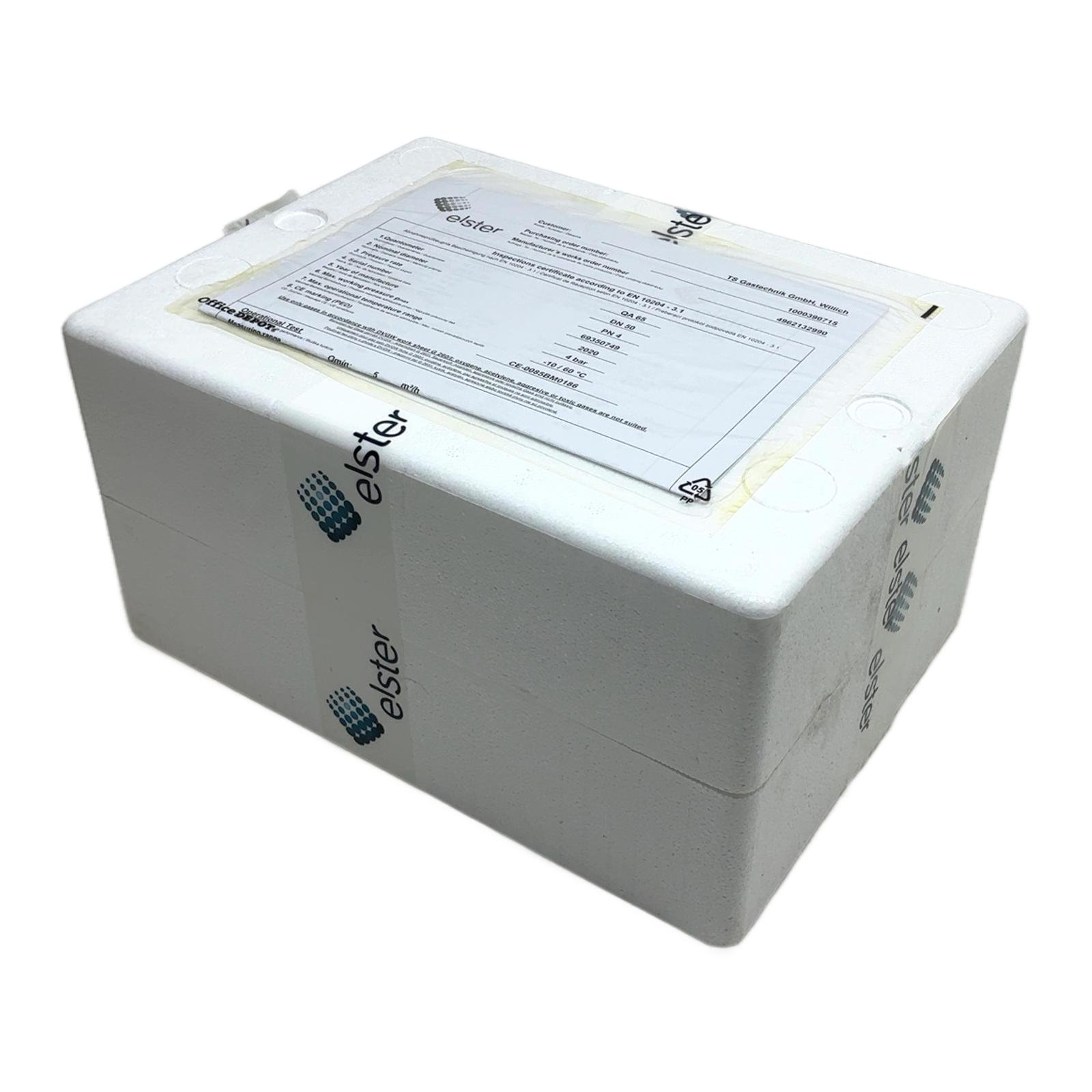

Elster QA65 Turbine Gas Meter Description This is a new, unused Elster Quantometer, model QA65, designed for precise measurement of gas volume. It operates on the principle of a turbine wheel, where the gas flow drives the wheel and the rotation is transmitted to a mechanical counter. This unit is suitable for a variety of non-corrosive industrial gases. It comes in its original, sealed packaging from 2020 and includes an EN 10204 – 3.1 inspection certificate, ensuring quality and traceability. Specifications Manufacturer: Elster (Honeywell) Model: QA65 Type: Quantometer (Turbine Gas Meter) Nominal Diameter: DN 50 Pressure Rating: PN 4 Maximum Working Pressure: 4 bar Flow Range: 5 m3/h (Qmin) to 100 m3/h (Qmax) Operating Temperature Range: -10 deg C to +60 deg C Year of Manufacture: 2020 Label Info Serial Number: 69350749 CE Marking (PED): CE-0085BM0186 Part Number: 8000310657 Application Ideal for secondary measurement in gas distribution networks, industrial boiler inputs, and any application requiring accurate monitoring of gas consumption for process control or cost allocation. Country of Origin Manufactured in Germany. CO2 Impact Opting for this surplus new item instead of a factory-new one prevents the emission of approximately 64.0 kg of CO2, contributing to a more sustainable industrial operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What types of gases is the QA65 Quantometer suitable for?The QA65 is designed for natural gas, town gas, propane, butane, and other non-corrosive, filtered gases. The label explicitly states it is NOT for oxygen, acetylene, or other aggressive or toxic gases. Does this meter require an external power source to operate?No, the integrated mechanical counter operates entirely without an external power supply. Optional low-frequency (LF) or high-frequency (HF) pulsers for remote reading, if fitted, would require connection to a compatible data logger or system. What are the installation requirements regarding straight pipe runs?For optimal accuracy, Elster recommends a straight, unobstructed pipe run of at least 3 times the nominal diameter (3xDN) upstream and 2 times the nominal diameter (2xDN) downstream of the meter. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
