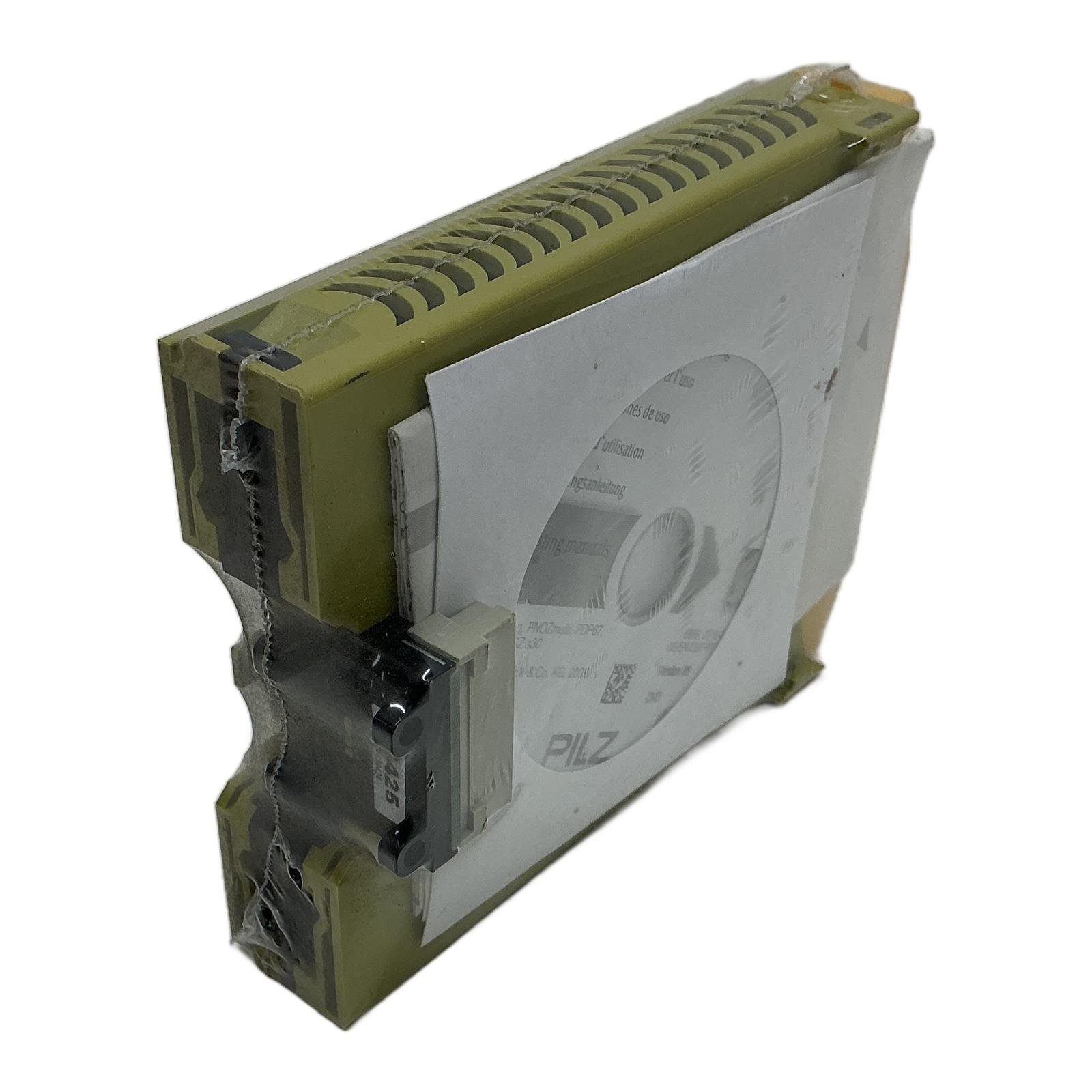

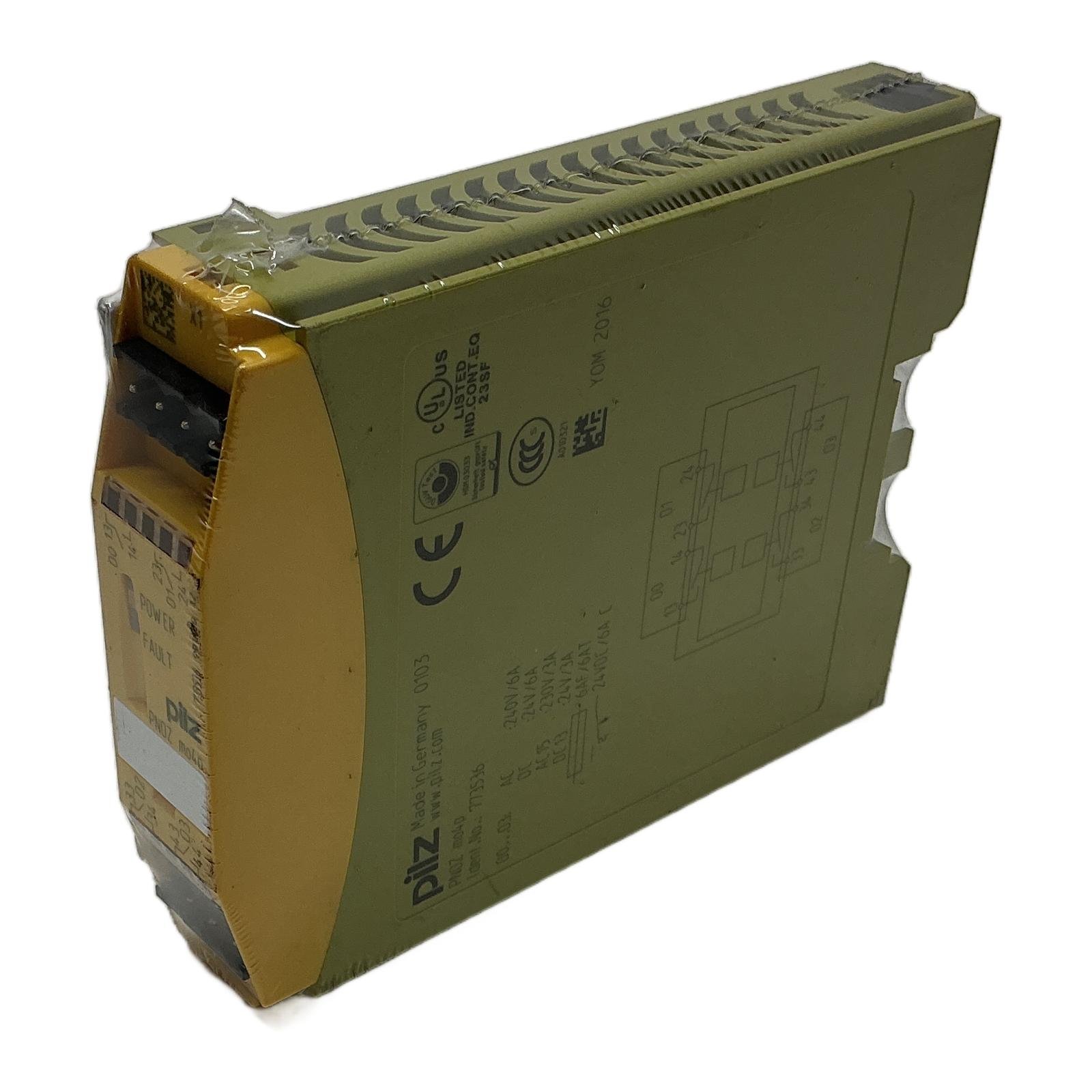

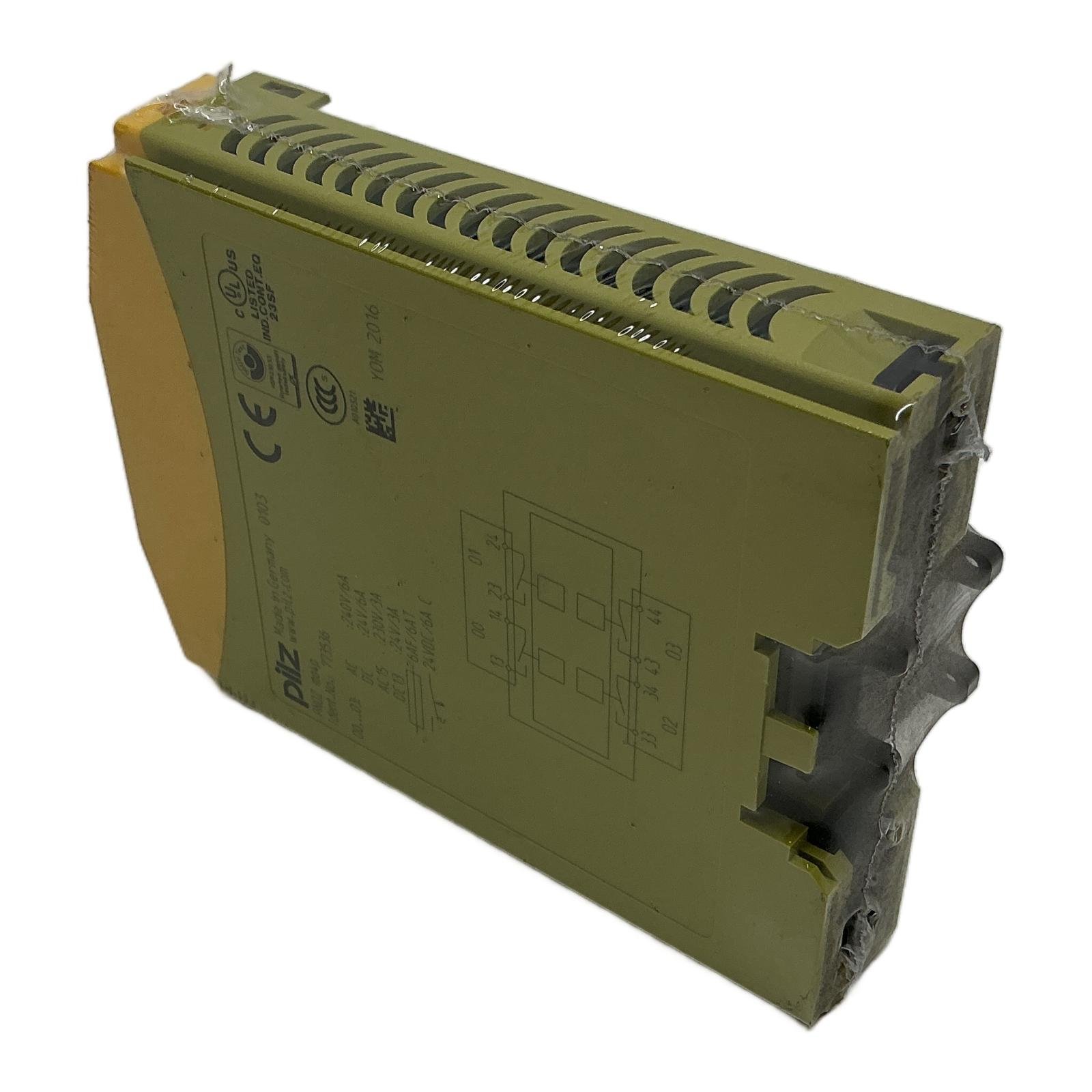

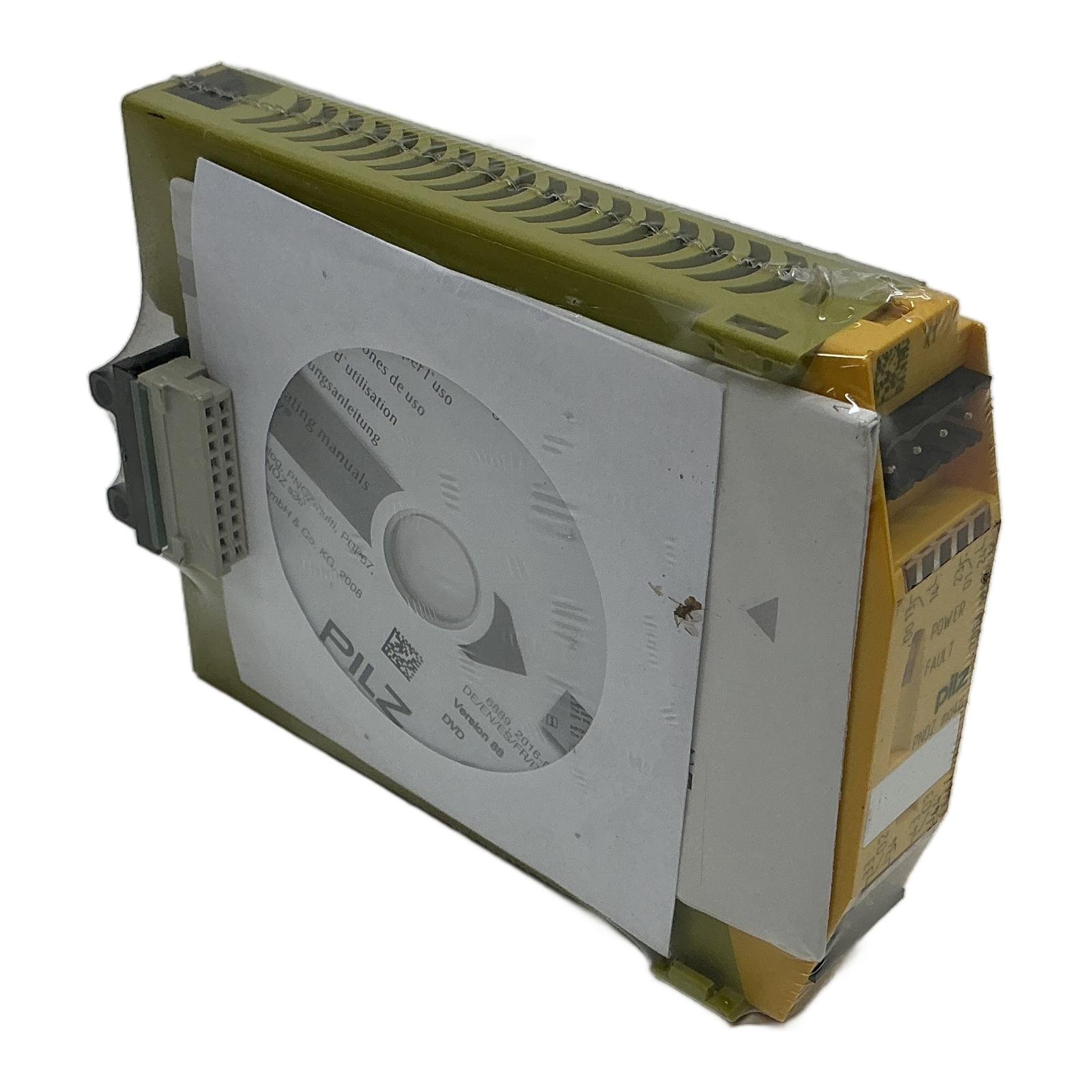

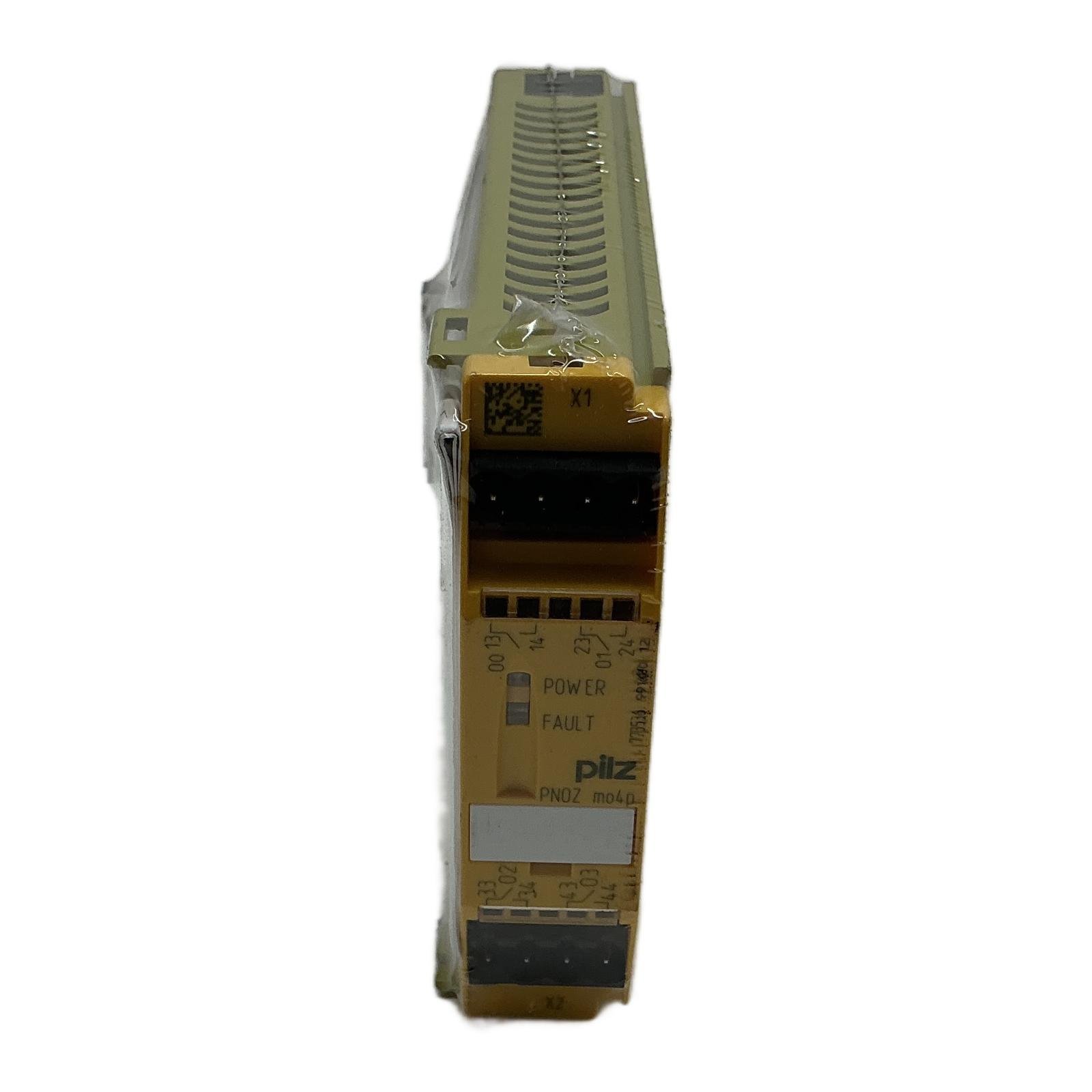

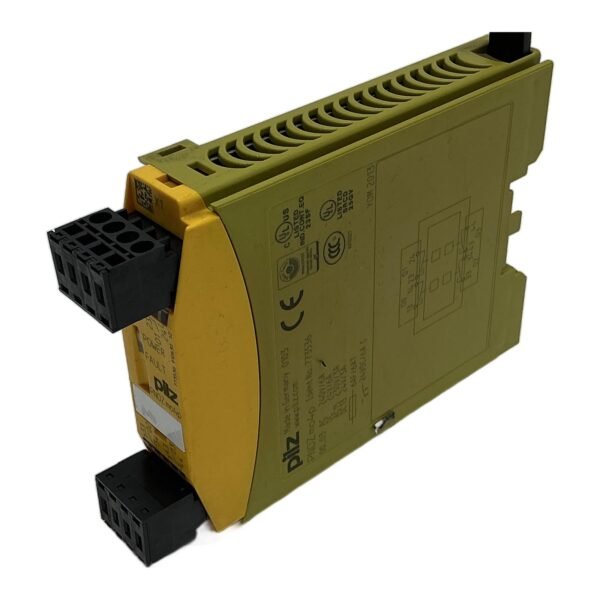

PILZ PNOZ mo4p 773536

Pilz PNOZ mo4p Safety Relay Output Module Description The PNOZ mo4p with Ident.No. 773536 is a safe relay output expansion module for the configurable PNOZmulti safety system. It is designed to extend the functionality of a PNOZmulti base unit by providing four additional safe relay outputs. These outputs can be used to control actuators safely, making it an essential component for complex machine safety applications. Specifications Manufacturer: Pilz Type: PNOZ mo4p Part Number: 773536 Product Family: PNOZmulti Function: Safe Relay Output Module Number of Outputs: 4 safe relay outputs Contact Configuration: 2 N/O contacts per output AC-15 Switching Capacity: 230V / 3A DC-13 Switching Capacity: 24V / 3A Connection: Pluggable spring-loaded terminals (not included unless pictured) Label Info Ident.No.: 773536 Model: PNOZ mo4p YOM: 2016 Made in Germany Application This module is used in a wide range of industries including manufacturing, packaging, and automation, wherever configurable safety logic with multiple safe outputs is required. It is suitable for applications such as emergency stop monitoring, safety gate monitoring, and light curtain control. Country of Origin This product is proudly Made in Germany. CO2 Impact By choosing this pre-owned module, you help save approximately 7.0 kg of CO2 emissions compared to purchasing a new one. This saving is equivalent to driving a car for about 35 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can this PNOZ mo4p module be used standalone?No, the PNOZ mo4p is an expansion module and requires a PNOZmulti base unit (e.g., PNOZ m1p or m0p) to function. It connects to the base unit via the internal bus system. What is the maximum current I can switch with the relay contacts?The contacts are rated for different loads. For resistive loads, it can switch up to 6A at 24VDC or 240VAC. For inductive loads, the rating is 3A at 24VDC (DC-13) or 3A at 230VAC (AC-15). Always check your application’s load type against the datasheet. Is the PNOZ mo4p compatible with the newer PNOZmulti 2 system?No, the PNOZ mo4p is part of the classic PNOZmulti series. It is not compatible with PNOZmulti 2 base units. For PNOZmulti 2, you need to use the corresponding “m EF” series expansion modules. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
